Dimplex DAC 9000 User manual

Dimplex
Air Conditioner – DAC 9000

2
CONTENTS.
Page
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Introduction.
Thank you for choosing a Dimplex air conditioner.This manual contains information,
regulations and warnings which are of fundamental importance if the appliance is to be
installed correctly and the highest performance, in the safest possible conditions is to be
obtained.We suggest that you read the manual carefully before installing or starting up
the appliance.
The new Dimplex appliances represent the most highly developed air conditioning units
available today.
Features.
The air-conditioning unit is of the mono tube type, transferable (on Wheels) with air/air
operating system for domestic use and has 3 settings.
• Ventilate/Fan.
• Cool.
• Dehumidify.

3
The ventilation mode "moves" the air allowing for its recycling.
The cooling mode, a refrigerating circuit (compressor), cools the room by transferring
the heat from inside to outside though the air exhaust hose.While cooling, the air-
conditioning unit also dehumidifies the room air.
Humidity absorbed from the air condenses and turns into water that is collected in the
internal tank.The water level in the tank is automatically controlled by a float and micro
switch and when the preset level is exceeded the indicator above the 'Power' Switch will
light and the compressor will shut off automatically, the fan motor will stay on circulating
the air. At this time, you must empty the water tank as described in "Drainage" page 9.
Please Note!
During very humid conditions it will be necessary to empty the water tank more
frequently.
An added feature of this model, when enough water is collected in the tank, water is
automatically pumped up and through the condenser.The recycled water cools the
condenser which increases the cooling capacity output also evaporating some of the
water alleviating the frequency of having to empty the water tank.
Dehumidification, in the cooling mode your air-conditioner does remove moisture from
the air however another feature of this machine it, can be set up to operate as a
Dehumidifier with better moisture removal performance.
Specifications.
Cooling Capacity 9000BTU/hr
2270cal/hr
2638 watts
Power consumption 830 Watts
Air Volume (max setting) 400m3/h
Humidity removal capacity 18L/day
Net weight 31kg
Power supply 230-240V/50Hz
Compressor Rotary
Refrigerant R22
Fan Speed 2
Timer 1-8 hours
Thermostat 18-32°C
Dimension(WxDxH) 377x400x750 mm
Test Conditions Temperature 27°C
Humidity 60%

4
Important Safeguards.
• The air conditioning unit must always be stored and transported upright. Otherwise
you may cause irreparable damage to the compressor; in case of doubt we suggest
you wait for at least 24 hours before you start the air-conditioner.
• Avoid restarting the air conditioning unit unless 4 minutes have passed since it was
turned off or the compressor may suffer damage.
• Never use the mains plug as a switch to start and turn off the air conditioning unit.
Use the provided ON/OFF switch located on the control panel.
• Always place the portable air conditioner on a stable surface.
• Connect the portable air conditioner to a correct wall socket.
• Mount the exhaust hose on the portable air conditioner.
• The air conditioning unit should only be used by adults: do not allow children to play
with it.
Energy Saving Tips.
• Do not cover or restrict the airflow from the Outlet or Inlet grills.
Minimal distance from furniture and wall is 50cm.
• Keep blinds and /or draperies, on any windows, closed during the sunniest part of the
day.
• Keep the filter clean. Under normal conditions, the filters should be cleaned
approximately every 30 days. Since the filters remove airborne particles, more
frequent cleaning maybe necessary, depending on the indoor air quality.
• Set the fan speed switch to high cool and the thermostat to the coolest position for
the initial start-up, then set the Fan switch to Low cool and lower the thermostat to a
comfortable setting.

5
1
2
3
4
5
6
7
8
9
• Please read the instructions carefully and save them in a safe place for future reference.

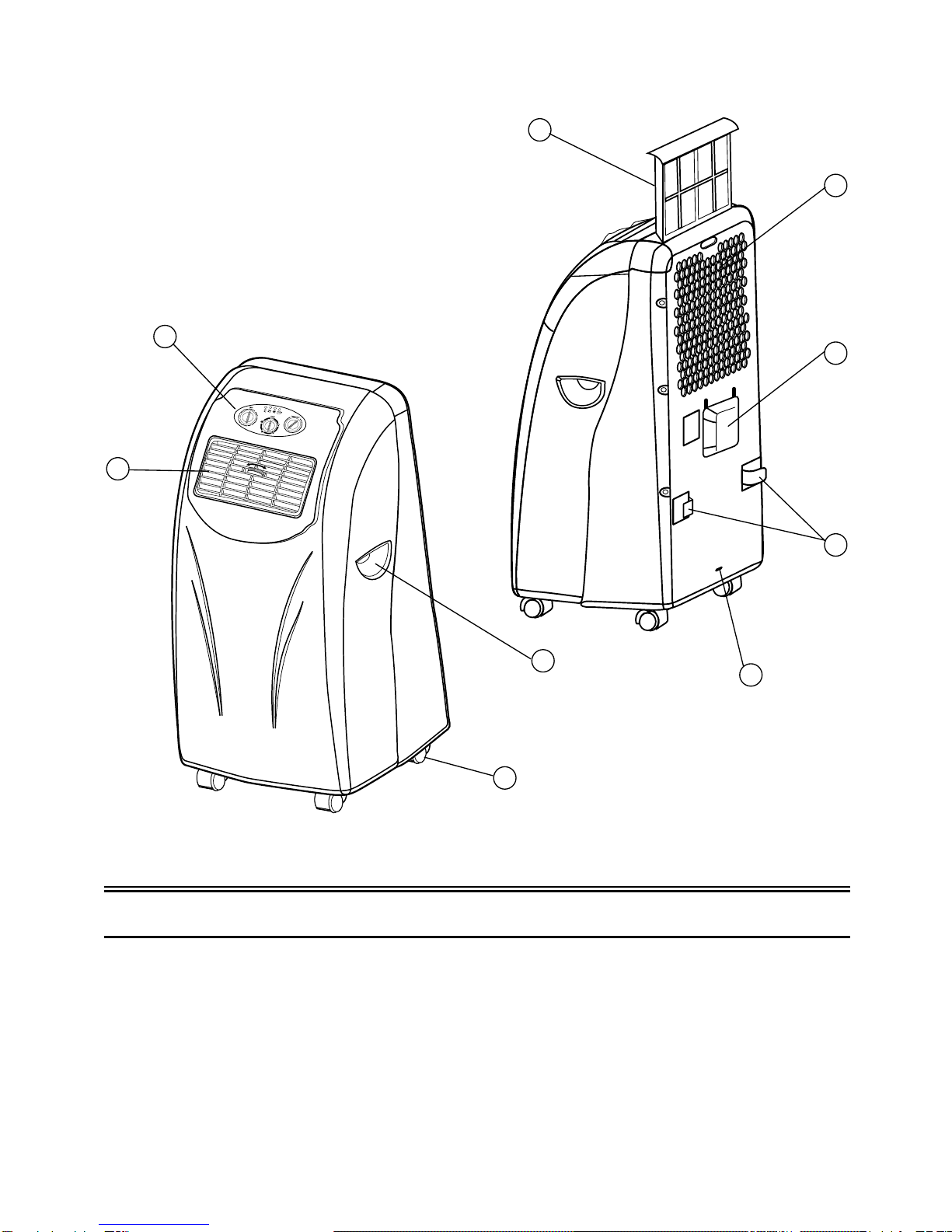

1. Control panel
2. Cooling air outlet
3. Handle
4. Castors
5. Air filter
6. Air inlet
7. Exhaust air outlet
8. Cord storage
9. Water stopper (rubber plug inside)
Know your Air Conditioner.

6
Installation.
Mounting of the unit
This unit is a PORTABLE AIR CONDITIONER. It can be moved from room to room, so
the cooling can follow you anywhere.The mounting is easy, beneath a window or wall.
Please refer to either of the following ways -
1. Using the foam strips
• Connect the supplied foam
strips with the exhaust pipe,
let the hot air flow to the
outside.
• Should the foam strip(s) be
too large, cut off the extra
part to fit the window.

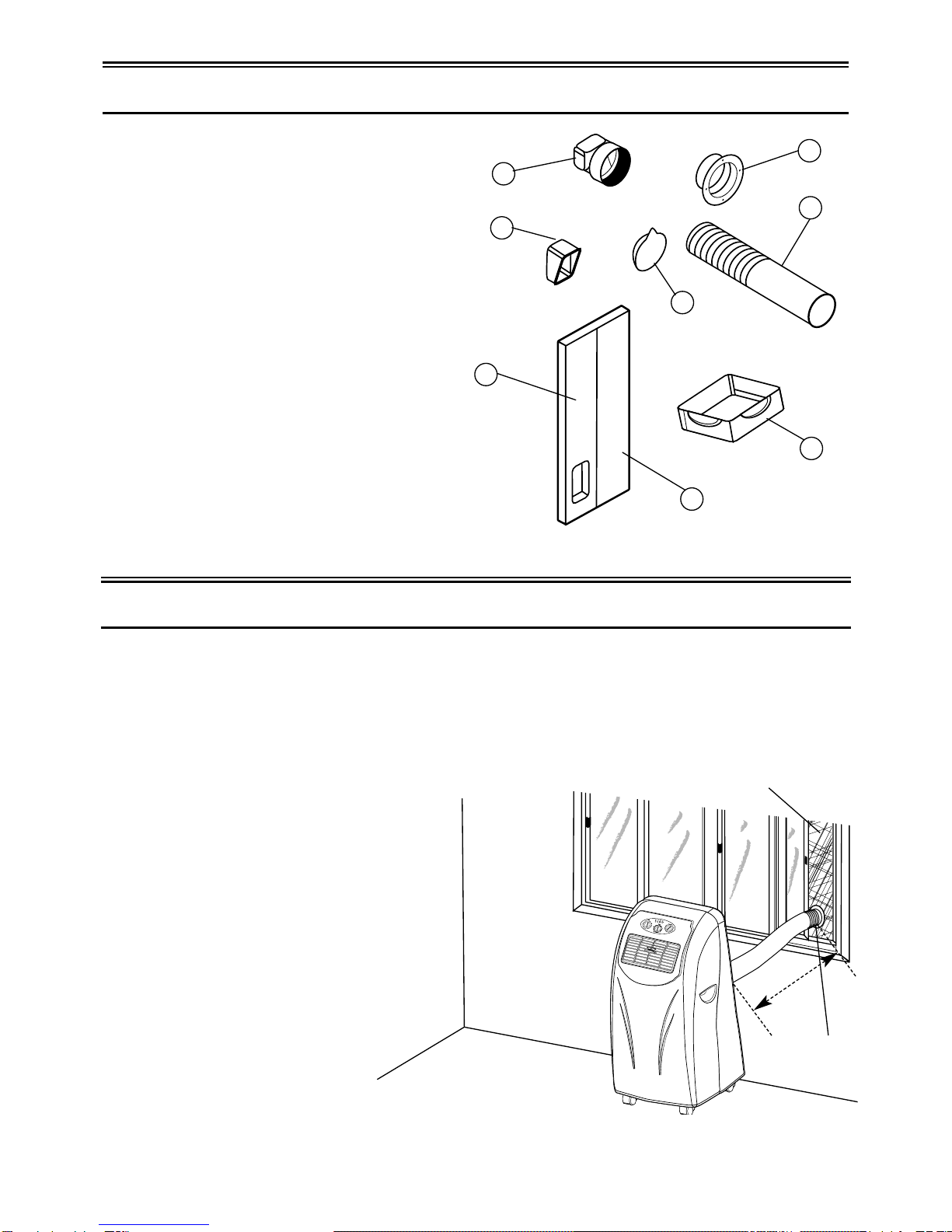

1. Adaptor - for insertion over hose and
into back of the air conditioner.
2. Adaptor - for insertion over hose and
into foam strip.
3. Exhaust hose.
4. Foam strip - for filling the open
window space and with hole for
connection to exhaust hose.
5. Foam strip - for filling the open
window space.
6. Round window connector.
7. Cap for round window connector.
8. Water tray.
Accessories.
1
23
4
5
6
7
8
OFF
Foam
strips
Adaptor
50cm

7
2. Using the round window
connectors.
• Make a hole (diameter 112mm)
in the wall/glass to fit the
supplied round window
connector.
• Take off the adaptor (the
one which does not connect
with the unit), fit the hose
directly to the round window
connector.
• When the hole is not in use.
Use the cap for the round
window connector to cover
the hole.
Mounting of the exhaust pipe
1. The supplied exhaust hose can be extended
from 300 to 1500mm for mounting. It is
recommended that you use the hose in the
shortest possible length.
2. Take care to prevent any bow or bend in
the middle of the exhaust hose, as this will
trap hot exhaust air, which will radiate into
the room and cause this unit to shut itself
off due to overheating.
WARNING!
The length of the exhaust pipe is specially
designed according to the specification of
this product. Do not replace or extend it
with your own private hose as this could
cause the unit to malfunction.
VOID WARRANTY
Round window
connector
50cm

8

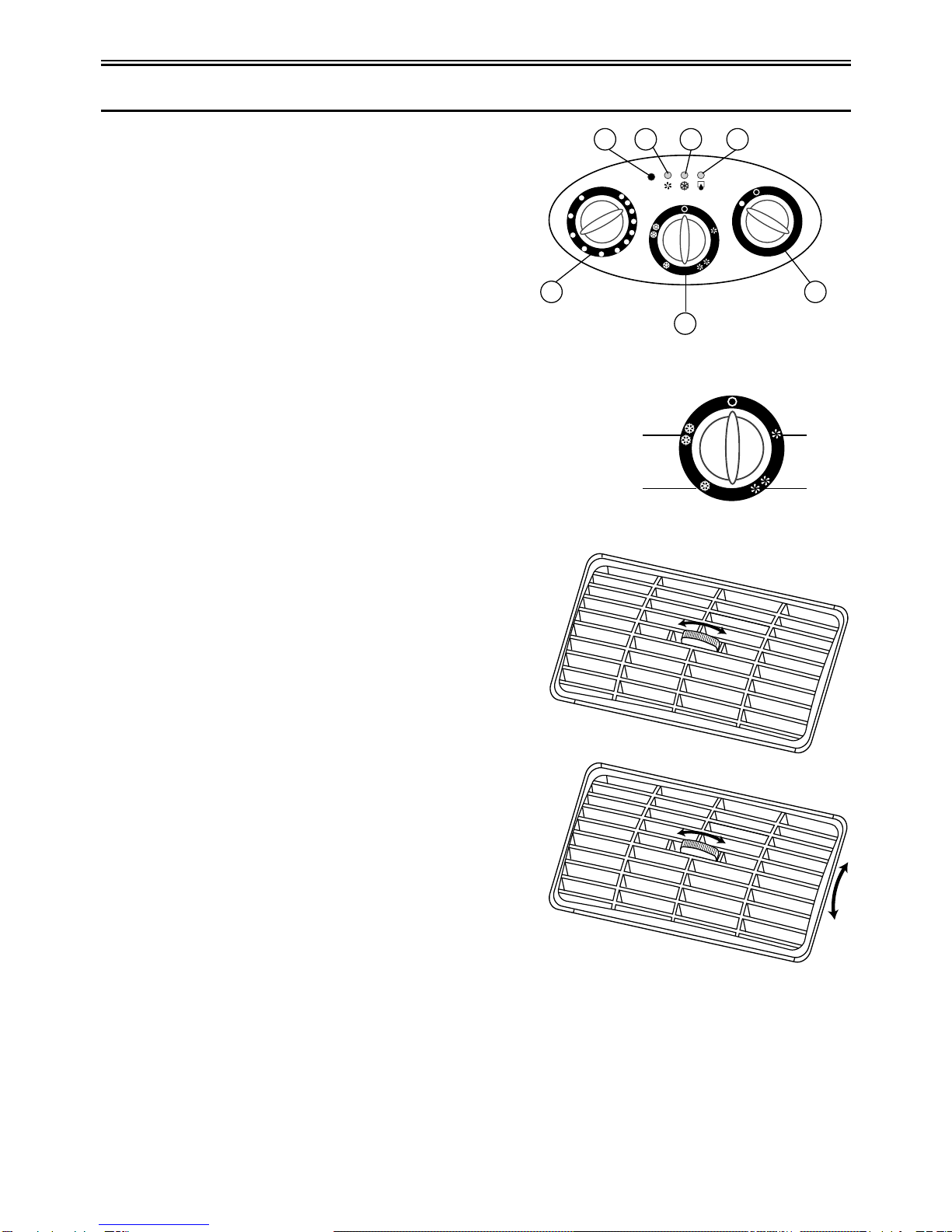

Operation.
1. Power indicator
2. Fan operating indicator
3. Cooling operating indicator
4. FULL WATER indicator
5. Timer (1-8 hours) as well as ON/OFF
switch
6. Speed switch with options for - LOW FAN,
HIGH FAN, LOW COOL, HIGH COOL.
7. Thermostat
Turning ON/OFF
• Set TIMER to ON for continuous operation (the
unit will operate as long as it is not turned off).
Power indicator comes on.
• To turn off the unit, turn the TIMER to OFF position.
Setting the Temperature
Turn the THERMOSTAT to regulate the
temperature you desired. (This is for cooling mode
only.)
Set Timer
Set the TIMER to the desired operating time (1 to
8 hours).When the set time has been reached, the
machine will shut off automatically.
Regulating air flow direction
Turn the roller on air vent to control the air flow
direction of the vertical louvres.
Move the air vent directly to adjust the air flow
direction of the horizontal louvres.
NOTICE!
To prolong the compressor’s life, the compressor will only work 3 minutes after you switch the
unit on or re-switch on.The cooling system will switch off if the ambient temperature is lower
than the set one.The ventilation, however, keeps working on the set level. If the ambient
temperature rises above the selected level, the cooling will return to work.
T
H
E
R
M
O
S
T
A
T
S
P
E
E
D
DAC - 9000
H
O
U
R
T
I
M
E
R
1
2
3
4
5
6
7
8
S
P
E
E
D
1 2 3 4
6
57
LOW
FAN
HIGH
FAN
HIGH
COOL
LOW
COOL

9
Drainage.
During the process of cooling, water will be generated from the air and collected in the
water tank inside the unit.When the tank is full, the compressor will stop and the Full
Water indicator on the control panel will come on to remind you to empty the water
tank. During this time the fan will continue to operate, circulating the air.The water tank
should be emptied as follows:
1. Turn off the unit.
2. Position the supplied plastic water tray,
flat on the floor, under the drain hole.
3. Remove the water stopper and the
rubber plug. Empty the condensed
water from the air conditioner.
4. When the water tray is almost full,
replace the rubber plug to stop the
flow of water, empty the water tray.
5. Repeat step 2, 3, 4, till all the condensed
water is emptied.
6. After all condensed water is drained,
replace the rubber plug and water
stopper.
The FULL WATER indicator should be
off now.
ATTENTION!
1. All condensed water must be drained
prior to relocation or storage.
Water stopper
Rubber
plug Water tray

10
Dehumidification.
NOTE! The machine operates in the cooling mode but it does not lower the room
temperature. It absorbs the excessive humidity present in the air.
1. Plug the unit into proper electrical outlet.
2. Position the exhaust tube as shown or remove
from the air-conditioner.
3. Turn the TIMER to position ON or 1 to 8
hours automatic timer setting.
4. Set the FAN SPEED control to the desired
output of airflow, high or low.
5. Set the THERMOSTAT to the maximum
cooing position.
6. When the water tank is full, the light above
'Power' switch will light and the compressor will
shut off automatically, the fan will stay on circulating the air. At this time, you must
empty the water tank as described "Draining the Condensed Water".
Continuous Drainage.
In very humid conditions to avoid the unit from continually shutting down when the
water tank is full the unit can also be continuously drained if a convenient drainage
position is available.
Important!
The water is only gravity drained therefore the tube must lay lower and drain at a lower level
than the outlet tube at the rear of the air conditioner.
• Before operating the air conditioner, remove the water stopper, take out the
rubber plug and connect a PVC tube 12mm diameter.
Maintenance.
Always unplug the unit from the mains before beginning the cleaning.
Cleaning the housing
• Use a soft, damp cloth to wipe the body clean.
• Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or
other cleansing solutions.These all could possibly hurt the cabinet.
Cleaning the filter
• Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the
filters and then rinse thoroughly under running water (no hotter than 40°C).
• Dry thoroughly before replacing.

11
NOTICE! Never operate the unit without the filters.
End of season storage
• Unplug the unit.
• Drain the condensed water COMPLETELY (Please refer to drainage clause).
• Clean or change the filter.
• Turn on the unit in ventilation mode for a couple of hours, so the inside can dry out
completely.
• It is recommended that the unit be put back into the original
carton for storage and do not stack heavy objects on top of
the unit.
Power cord storage
• When the unit is not in use, please store the power cord as
per illustration opposite.
Trouble Shooting Guide.
If the product is treated in the right manner, you should encounter no problems. In case
of difficulties, please check the following points before calling for the maintenance service.
Product does not work • Check whether the product is plugged in.
No cool air • Has three minutes passed after switching on the
unit, check whether the water tray is filled.
• The room temperature should be in the operation
range of 18°C-32°C
• Is the set temp higher than the room temp.
Weak ventilation performance • Check if the exhaust hose is blocked or kinked.
• Check if the filter is dusty.
The unit is noisy • Check that the unit is sitting on a level surface.
After long usage, the product should be cleaned by a professional maintenance service centre.
Cord
