Dimplex DCEVPT8L User manual

Power Tower Air Cooler
Model: DCEVPT8L
For domestic household use only.
INSTRUCTION MANUAL
15429_Dimplex DCEVPT8L Manual.indd 115429_Dimplex DCEVPT8L Manual.indd 1 8/09/20 4:28 PM8/09/20 4:28 PM

2
Please read the operating instructions carefully before using your fan for the
first time and keep them in a safe place.
WARNING - This appliance must not be used in a bathroom.
WARNING - Do not use this appliance in the immediate surroundings of a bath,
a shower or a swimming pool.
• If the mains lead is damaged it must only be replaced by the manufacturers
service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Prior to cleaning or other maintenance, the appliance must be disconnected
from the supply mains.
• Never immerse the appliance in water or other liquids.
• Do not place on soft, unstable or non-horizontal/angled surfaces.
• Never operate the appliance if a cable or connector has been damaged,
after appliance malfunction or if the appliance was dropped or is otherwise
damaged.
• If the mains lead is damaged it must only be replaced by the manufacturers
service agent or a similarly qualified person in order to avoid a hazard.
• Please ask a professional service agent to repair the product. Improper repair
may cause danger to users.
• Disconnect the appliance from mains power whenever it is not in use, before
relocating it, and before cleaning.
• Operate the appliance only at the voltage specified on the rating label.
• Only connect the unit to a properly installed and easily accessible socket so
that you can quickly disconnect the plug if necessary.
• Do not connect this product to the mains using an extension lead.
• This fan is only intended for INDOOR RESIDENTIAL applications. This fan
should not be used for commercial or industrial or leisure applications or in
small enclosed spaces.
• Never use the mains lead as a carrying strap or pulling lead.
• To avoid a fire or electrocution hazard, NEVER put the cord near heat
registers, radiator, stoves or heaters.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE
INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
Note also the information presented on the appliance
15429_Dimplex DCEVPT8L Manual.indd 215429_Dimplex DCEVPT8L Manual.indd 2 8/09/20 4:28 PM8/09/20 4:28 PM

3
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from trac areas and where it will not be a tripping hazard.
• DO NOT use the unit near windows or where water collects. Rain and water
collection may lead to a risk of fire or electric shock.
• DO NOT COVER.
• Only operate this appliance with a minimum of 50cm clearance all around
i.e. away from walls, furniture and overhanging objects such as curtains or a
shelf.
• WARNING: To avoid danger of suocation please remove all packaging
materials particularly plastic and EPS and keep these away from vulnerable
people, children and babies.
• NEVER drop or insert any object or fingers into any openings.
• Do not use the appliance in locations where paint, petrol or other flammable
liquids are used or stored.
• Do not use bug sprays or other flammable cleansers/vapour sprays on or
around the unit.
• Always switch o the unit and take the plug out of the socket
• If you are not using the unit
• Before you clean or carry out maintenance on the unit
• If a fault occurs
• In the event of an electrical storm.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away from
electrical appliances such as televisions & radios.
15429_Dimplex DCEVPT8L Manual.indd 315429_Dimplex DCEVPT8L Manual.indd 3 8/09/20 4:28 PM8/09/20 4:28 PM

4
4

















 











15429_Dimplex DCEVPT8L Manual.indd 415429_Dimplex DCEVPT8L Manual.indd 4 8/09/20 4:28 PM8/09/20 4:28 PM

5
Model no. DCEVPT8L
Rated voltage 220V ~240V
Rated frequency 50Hz
Rated power 65W
Weight (net) 10.5kg
Motor type DC
Noise level 40-64dB
Product size (w x d x h) 270 × 345 × 1050mm
• For greater precision, please always refer to the rating label placed on the product.
Specification
15429_Dimplex DCEVPT8L Manual.indd 515429_Dimplex DCEVPT8L Manual.indd 5 8/09/20 4:28 PM8/09/20 4:28 PM

6
Parts
Reel
Control panel
Display panel
Wetted pad
Water tank
Ice crystal box
The ice crystal box
is a random gift
15429_Dimplex DCEVPT8L Manual.indd 615429_Dimplex DCEVPT8L Manual.indd 6 8/09/20 4:28 PM8/09/20 4:28 PM

7

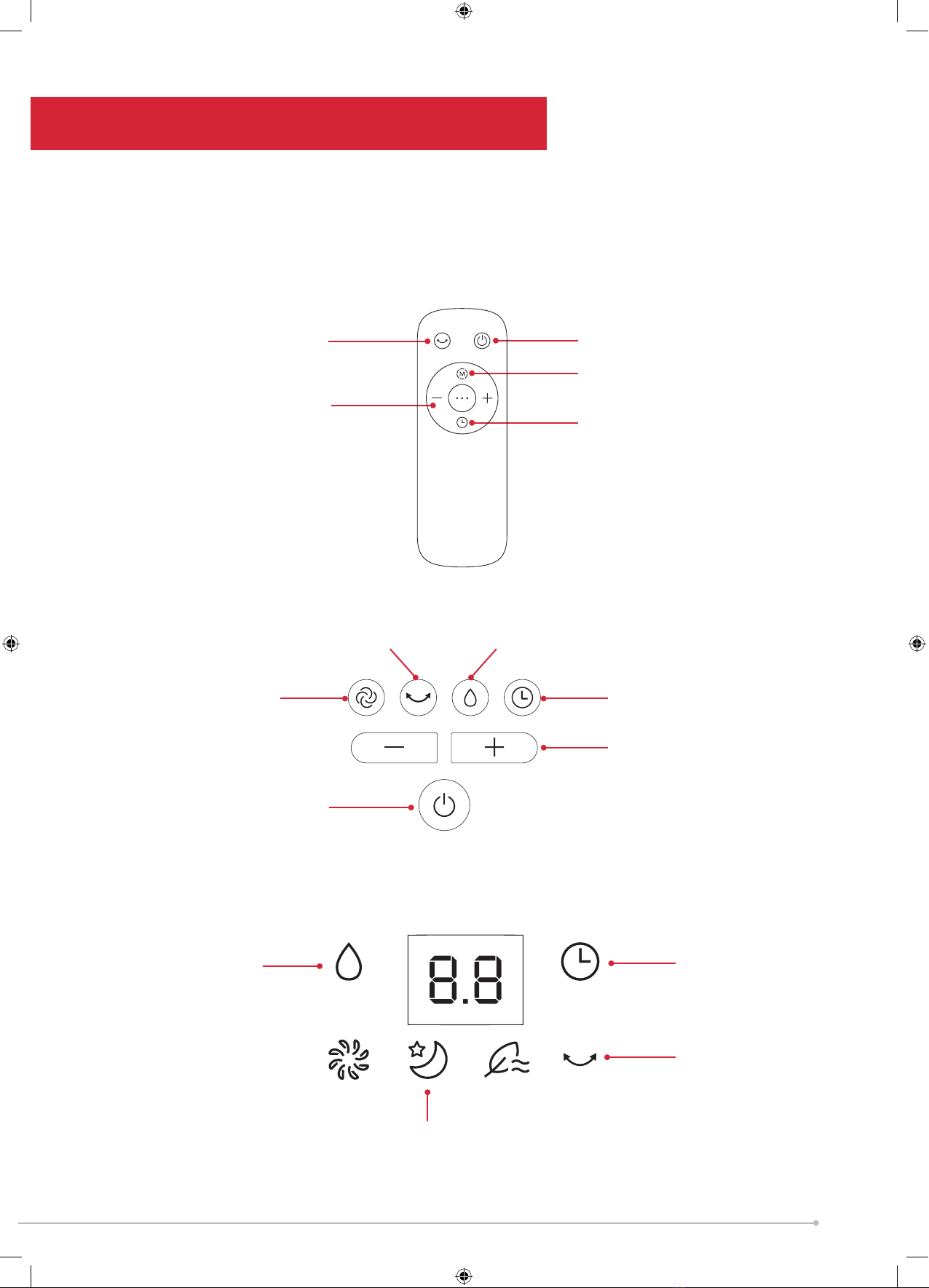

Fan Operation
On/O
Set wind type/Smart
Timer/Delay start
Timer/Delay start
Increase/Decrease Key
Swinging wind Humidification
Increase/Decrease Key
Turn swing on/o
A. Battery Installation
Two AAA 1.5V batteries have been included. Please insert the batteries into the remote
control, aligned to the direction of the polarity.
B. Remote control
C. Control panel
D. Display panel
Wind speed
Humidification
On/O
Swinging wind
Timer/Delay start
Wind speed
Normal/Sleep/Natural
15429_Dimplex DCEVPT8L Manual.indd 715429_Dimplex DCEVPT8L Manual.indd 7 8/09/20 4:28 PM8/09/20 4:28 PM

8
ATTENTION:
PLEASE READ THIS MANUAL CAREFULLY BEFORE CONNECTING DEVICE
TO THE POWER SUPPLY. CHECK THE VOLTAGE MATCHES THE UNIT RATING
BEFORE OPERATING.
(RATED ELECTRIC POWER: 220V~240V; 50 HZ).
POWER ON/OFF
Press the ON/OFF button to turn on. To switch o, press the ON/OFF again.
SWINGING WIND
Touch the SWINGING WIND key to start or stop swinging wind.
HUMIDIFICATION
Short press in the start state to start or stop HUMIDIFICATION. In the dry or hot
weather, start the humidification function to have a better experience.
WIND SPEED
Three wind classes available:
NORMAL WIND (level 4, normal wind indicator light is lit up),
SLEEP WIND (level 2, sleep wind indicator light is lit up),
NATURAL WIND (level 2, natural wind indicator light is lit up).
INCREASE/DECREASE KEY
Short press in the standby state. If the state is set at the scheduled start time, the
scheduled startup time can be reduced / increased.
Short press in the start state. If the state is set at the timing shutdown time, the
timing shutdown time can be reduced / increased. If the state is not set at the
timing/reservation time, the wind speed can be reduced / increased. Note: When
timing/reservation, press this key, the time will be reduced/in-creased by 0.5
hours every time for 0-3 hours, and 1 hour for 3-10 hours.
When adjusting the wind speed, short press this key to increase or decrease
wind speed by 1 level every time. .
TIMER
In the start state, press this key, the display will flash. Set the time, and then
the display flashes 3 times, this is, the timing is completed.
In the standby state, press this key, the display will flash. Set the time, and
then the display flashes 3 times, this is, the reservation is completed.
After pressing this key, the wind class mode and class can be set at the
same time.
Cancel timed operation:
Operation
15429_Dimplex DCEVPT8L Manual.indd 815429_Dimplex DCEVPT8L Manual.indd 8 8/09/20 4:28 PM8/09/20 4:28 PM

9
Operation
Cancel timing in shutdown state: when timing has been set, press the timing
button (the pattern on the screen will flicker at this time), and then long press
the timing button 2S within 6S to cancel timing.
Cancel timing in the startup state: when timing has been set, press the timing
button (the pattern on the screen will flicker at this time), and press the timing
button 2S again immediately to cancel timing.
15429_Dimplex DCEVPT8L Manual.indd 915429_Dimplex DCEVPT8L Manual.indd 9 8/09/20 4:28 PM8/09/20 4:28 PM

10
ADDING WATER IN WATER TANK AND INSTRUCTIONS FOR DISASSEMBLY
AND WASHING
Operation
NOTE:
• ENSURE THAT MACHINE IS IDLE WHEN EMPTYING WATER TANK.
• WHEN ADDING WATER AND CLEANING, THE POWER PLUG SHOULD BE
UNPLUGGED.
• BEFORE STARTING MACHINE, ENSURE THAT PUMP MODULE IS SECURED
CORRECTLY, IF THE PUMP MODULE IS INCORRECTLY SECURED, THE
MACHINE MAY OPERATE ABNORMALLY.
• THERE ARE TWO METHODS FOR ADDING WATER:
• EMPTY WATER TANK WITHOUT REMOVING PUMP MODULE, THEN ADD
WATER TO THE WATER TANK.
• THE WATER TANK AND PUMP MODULE SHOULD BE SEPARATED, THE
WATER IN THE WATER TANK SHOULD BE EMPTIED COMPLETELY, CLEAN
WATER TANK AND ADD FRESH WATER.
1. Turn the buckle 90 degrees
clockwise to unlock the water tank.
3. Separate water tank and pump
module (including water tube) by
turning knob 90 degrees counter
clockwise.
2. Remove water tank and empty water.
4. Clean water tank and add fresh
water.
15429_Dimplex DCEVPT8L Manual.indd 1015429_Dimplex DCEVPT8L Manual.indd 10 8/09/20 4:28 PM8/09/20 4:28 PM

11
Operation
1. Pull out half of the water in the
water tank from the bottom of the
machine.
2. Remove the ice crystal box from the
package and put it in the refrigerator
for more than 3 hours. Place the frozen
ice crystal box in the water tank and
add water not exceeding the “MAX”
(maximum) indicating scale.
5. Reattach pump module to water tank and reinsert into machine, then turn
buckle 90 degrees counter clockwise to lock.
USE OF ICE CRYSTAL BOX
NOTE:
• THE ICE CRYSTAL BOX CAN BE REUSED AND RECYCLED.
• DO NOT ATTEMPT TO OPEN ICE CRYSTAL BOX.
• THE ICE CRYSTAL BOX MATERIAL IS ENVIRONMENTALLY FRIENDLY, NON-
TOXIC AND HARMLESS, AND CAN BE SAFELY PLACED IN THE FREEZER
FOR FREEZING.
• THE FROZEN ICE CRYSTAL BOX CAN BE PLACED IN THE WATER TANK TO
LOWER THE TEMPERATURE FROM THE AIR OUTLET.
• THE ICE CRYSTAL BOX CAN BE SUBSTITUTED BY ICE, WHICH ALSO HAS A
COOLING EFFECT.
• WHEN ADDING WATER, ENSURE THAT THE WATER LEVEL OF THE WATER
TANK DOES NOT EXCEED THE “MAX” (MAXIMUM) INDICATOR. IF THE WATER
LEVEL IS LOWER THAN THE “MIN” (MINIMUM) INDICATOR, ADD WATER.
Water tank scale
15429_Dimplex DCEVPT8L Manual.indd 1115429_Dimplex DCEVPT8L Manual.indd 11 8/09/20 4:28 PM8/09/20 4:28 PM

12
Over time, dust can accumulate on the rear net which can aect the fan’s
performance. It is recommended to clean the fan at least once a month.
1 Turn the unit o and disconnect the appliance from the power supply.
2 Remove any dust build up with a soft brush, and gently clean the rear net
with a vacuum cleaner.
3 Wipe the surface of the unit with a soft damp cloth. You may use a mild
detergent for any stubborn marks.
IMPORTANT
The control panel and other parts must not come into contact with water or any
other liquids.
Cleaning
15429_Dimplex DCEVPT8L Manual.indd 1215429_Dimplex DCEVPT8L Manual.indd 12 8/09/20 4:28 PM8/09/20 4:28 PM

13
If the unit fails to operate eciently, is broken or other problems arise, unplug
and do not operate. Ask for advice by calling your local after sales service agent
or the Customer Care Centre on 1300 556 816 (AU)/ 0800 666 2824 (NZ).
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd
1340 Ferntree Gully Road,
Scoresby 3179, Victoria
Australia
Ph: 1300 556 816
Glen Dimplex New Zealand Ltd
38 Harris Road, East Tamaki,
Auckland 2013
New Zealand
Ph: 0800 666 2824
Maintenance
Warranty
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the ground water,
polluting the food chain and damaging health and well-being.
15429_Dimplex DCEVPT8L Manual.indd 1315429_Dimplex DCEVPT8L Manual.indd 13 8/09/20 4:28 PM8/09/20 4:28 PM

14
Supplied by Glen Dimplex New Zealand Ltd
38 Harris Road, East Tamaki, Auckland 2013
Customer Care: 0800 666 2824
[e-mail]
www.dimplex.co.nz
© Glen Dimplex New Zealand Ltd. All rights reserved. Material contained in this publication may not be reproduced in whole or in part,
without prior permission in writing of Glen Dimplex New Zealand Ltd.
15429_Dimplex DCEVPT8L Manual.indd 1415429_Dimplex DCEVPT8L Manual.indd 14 8/09/20 4:28 PM8/09/20 4:28 PM
