Dimplex CDN20-AU User manual

INSTRUCTION MANUAL
8/54993/0 Iss2 OCN 11823
For domestic household use only.
Caden 2kW Revillusion Suite
Model: CDN20-AU

IMPORTANT
THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND
RETAINED FOR FUTURE REFERENCE.
CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/
OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY
Please read the operating instructions carefully before using your product for
the first time and keep them in a safe place.
• When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electrical shock and injury to persons, including the
following:
• If the appliance is damaged, check with the supplier before installation and
operation.
- Do not use outdoors.
- Do not use in the immediate surroundings of a bath, shower or a
swimming pool.
- Do not use this heater if it has been dropped.
- Do not use if there are visible signs of damage to the heater.
- Use this heater on a horizontal and stable surface, or fix it to the
wall, as applicable.
• Do not locate the appliance immediately below a fixed socket outlet or
connection box.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the
appliance.
• Do not use this appliance in series with a thermal control, a program controller,
a timer or any other device that switches on the heat automatically, since a
fire risk exists when the appliance is accidentally covered or dis-placed.
• In the event of a fault, unplug the appliance.
• Unplug the appliance when not required for long periods.
• This product is only intended for INDOOR RESIDENTIAL applications only.
• DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Take care to position the
cord away from traffic areas and where it will not be a tripping hazard.
• This appliance must not be used in a bathroom.
• Although this appliance complies with safety standards, we do not recommend
its use on deep pile carpets or on long hair type of rugs
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged it must be replaced by the manufacturer or
2

service agent or a similarly qualified person in order to avoid a hazard.
• Keep the supply cord away from the front of the appliance.
• Do not use this heater in small rooms when they are occupied by persons
not capable of leaving the room on their own, unless constant supervision is
provided.
• To reduce the risk of fire, keep textiles, curtains and or flammable material a
minimum distance of 1m from the air outlet.
• In order to avoid overheating, DO NOT COVER the appliance. Do not place
material or garments on the appliance, or obstruct the air circulation around
the appliance, for instance by curtains or furniture, as this could cause
overheating and a fire risk.
• This Heater carries the warning symbol indicating that it must not be
covered.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,
this appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off
by the utility.
• CAUTION Some parts of this product can become very hot and cause burns.
Particular attention has to be given where children and vulnerable people are
present.
• Children shall not turn on/off the appliance.
• Ensure that furniture, curtains or other combustible material are positioned
no closer than 1 metre from the appliance.
• Unplug the appliance when not required for long periods.
• Keep the supply cord away from the front of the appliance.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to
chemical burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery
immediately call the 24-hour Poisons Information Centre on 13 11 26 (in
Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly secured,
e.g. that the screw or other mechanical fastener is tightened. Do not use if the
compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can
still be dangerous.
3

Exposed to the
weather outdoors
Near water If the power cable
wires are frayed or cut
Where small children
may be left unattended
If an extension
lead may become
overloaded
Where there is risk
of fire or close to
a naked flame
Where the power
cable may be
damaged
On a slope or
uneven surface
Where it may be
damaged by
chemicals
If there is a risk
of water falling on
the unit
Where there is a risk
of interference by
foreign objects
This product is not
made for DIY repair
4

Model no. CDN20-AU
Colour/Finish Natural White
Dimensions 1446w x 460d x 1257h
Watts 2000
Heat Settings 2
Thermostat Control Yes
Remote Control Yes
Warranty 2 years
Dimensions (w x d x h) 150 x 150 x 510mm
Specifications

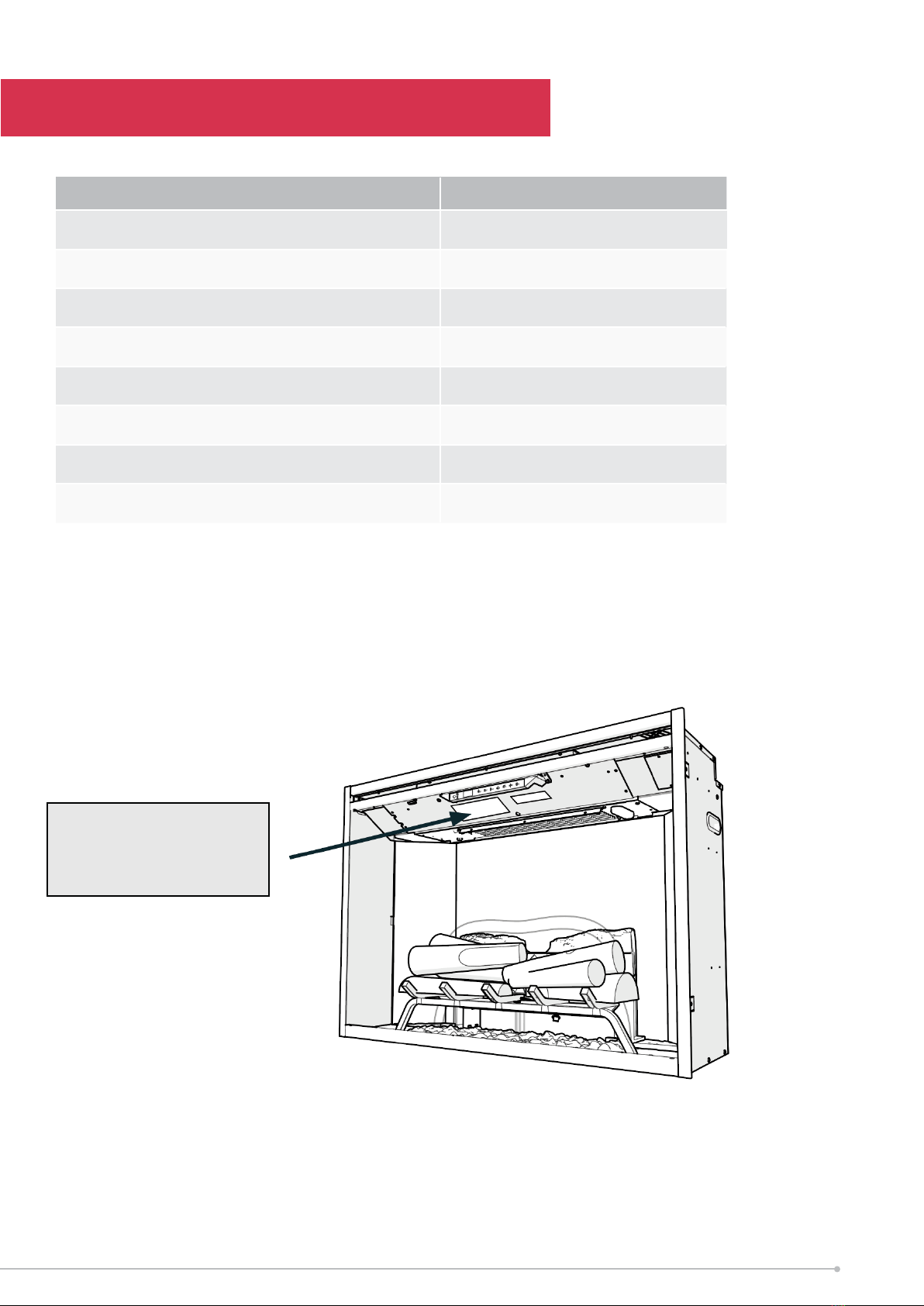

For greater precision, please always refer to the rating label placed on the product.
Rating Label
5

Operation Temperature
-20°C to 40°C
Fixed Wiring
In such instances this appliance must be installed by a suitably quailified installer
and the means for disconnection must be incorporated in the fixed wiring in accord-
ance with the local wiring rules.
WARNING Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of fire, electric shock, or injury to persons.
NOTE: A 10 Amp circuit is required. A dedicated circuit is preferred, but not essential
in all cases. A dedicated circuit will be required if, after installation, the circuit break-
er trips or the fuse blows on a regular basis when the heater is operating. Additional
appliances on the same circuit may exceed the current rating of the circuit breaker.
Unpacking the Unit
The unit comes packed with a protective sheet covering the front of the unit. This
sheet is intended to prevent dust and debris from entering during construction. This
sheet is designed so that it can be partially removed to complete the wiring and un-
packing and can be reinstalled until the final installation is complete. The log set was
installed on the grate
and the grate permanently fixed to the firebox at the factory. Carefully remove the
packaging from around the log set. Make sure the wires from the log set are con-
nected securely
to the grate box.
CAUTION The Realogs contain LED's to create a unique pulse and glow effect. Han-
dle the log set carefully. They are fragile and can crack or break if dropped.
This product is provided with a ‘Tipping Restraint Kit’ as shown below, to prevent
the product accidentally tipping over. Fitting Instructions are supplied with this kit
please follow these instructions carefully.

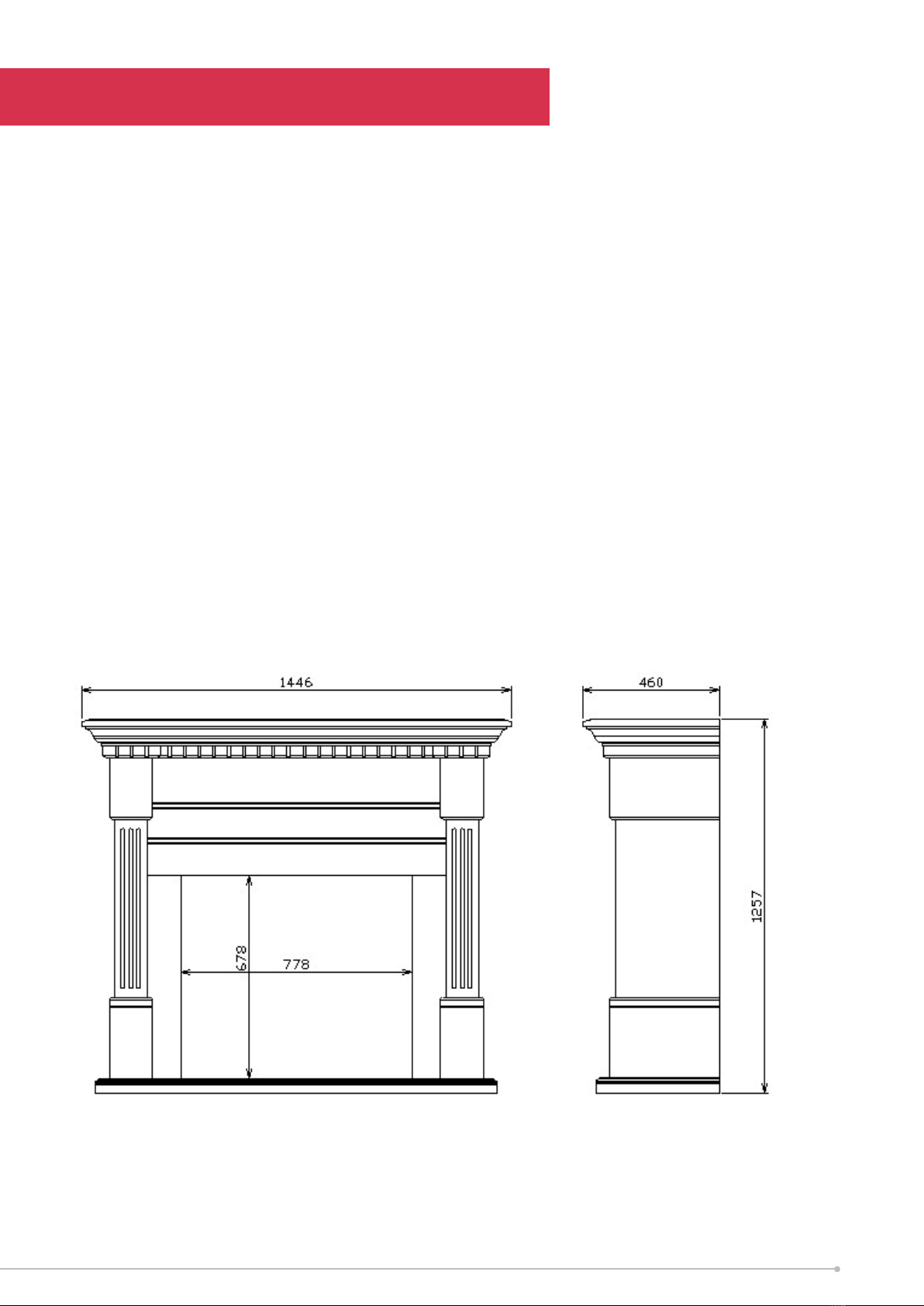

Setup & Product Dimensions
6

Caden
Fitting
WARNING: FALLING OR TIPPING APPLIANCES CAN CAUSE INJURY OR DEATH OF
YOUNG CHILDREN, PLEASE ENSURE CHILDREN DO NOT CLIMB, HANG OR STAND
ON THIS PRODUCT.
WARNING: THE APPLIANCE IS PROVIDED WITH A TIPPING RESTRAINT, THIS
RESTRAINT IS NOT A SUBSTITUTE FOR PROPER ADULT SUPERVISION. THIS
RESTRAINT MAY PROVIDE PROTECTION AGAINST TIPPING FURNITURE. DO NOT
ALLOW CHILDREN TO CLIMB ON FURNITURE. FAILURE TO DETACH THIS RE-
STRAINT BEFORE MOVING FURNITURE MAY RESULT IN INJURY AND DAMAGE.
Setup & Product Dimensions
7

A B C D E F G
WARNING The Revillusion Electric Firebox must be installed properly before it
is used.
CAUTION Except for installation and cleaning described in this manual, an
authorized service representative should perform any other servicing.
The manual controls for the Revillusion Electric Firebox are located on the
front panel. Touch an icon to activate. The selected setting displays on the left
side of the panel.
A multi-function remote control also is provided. The remote control has a
range of approximately 9m. To operate correctly, the remote control must be
pointed toward the front of the electric firebox.
H
A
C
E
FI
J
B
G
D
Touch Panel & Remote
Remote Battery Replacement
To replace the battery:
1. Push down on the battery cover located on the back of
the remote control. Slide the battery cover open.
2. Install 3V (CR2032) Lithium battery in the battery holder.
The positive (+) side of the battery faces up.
3. Close the battery cover.
8

Press to activate the current standby state (On/Off).
• Standby State On
Press to turn everything Off. Press again to activate
the previous state.
• Standby State Off
Press to activate the previous state.
-If the flame effect was On, the previous heat setting
will be activated (On or Off).
-If the flame effect was Off, the previous heat setting
will be activated (High or Low).
Press again to turn everything Off.
• Heat On
Press to turn heat On (indicated by 1 short beep and
the icon appearing on the display). Displays current
heater temperature setting. Use the Temp Up/Down
icon to change the heater temperature setting.
• Heat Off
Press to turn heat Off (indicated by 1 short beep).
After the heater is switched off, the fan will
continue on for 60 seconds before turning off.
Press multiple times to lower the heater temperature
in 1' F (1' C) increments. Displays current
temperature; lowest temperature is 41' F (5' C). This
feature is active whenever the heat is enabled.
Press multiple time to raise the heater temperature in
1' F (1' C) increments. Displays current temperature;
highest temperature is 99' F (37' C). This feature is
active whenever the heat is enabled.
Hold both Heat ( ) and Temp– ( ), on the unit, for
2 seconds. Temperature displays on the screen.
Hold both Heat ( ) and Temp– ( ), on the unit,
for 2 seconds, when temperature is adjusted "---"
displays on the screen.
!
NOTE:
Power/
Standby
Function DescriptionIcon
A
B
C
D
Heat
Temp Down
Temp Up
Heat Enable
Heat Disable
Change Fahrenheit
(0 F) to Celsius (0 C)
Press both Temp+ ( ) and Temp– ( ) on the unit.
Operation
9

Function DescriptionIcon
Press multiple times to change the flame base colors
from Red to Blue to Off. (The first segment on the
display will change from "r" to "b" to blank) This
feature is active only when the flame effect is On.
Press multiple times to change the LEDs on the sides
and back of the unit from Midnight mode to white to
yellow to red. (The middle segment on the display
will change through 0 - 3 respectively. This feature is
active only when the Flame is ON.)
Press to light the log set and start the flame effect.
Press again to turn feature Off.
Press multiple times to change the sleeper timer in
0.5 hr increments from 0.5 hr to 8.0 hr before turning
off. The remaining time on the sleep timer displays.
Press to change the LED lights from High to Low.
(The last segment on the display will change from
"H" to "L") The RealogTM LEDs remain On when the
heater is ON and the flame effect is Off.
When the Light Sensor is activated, High
and Low flickering brightness settings are also available
(Flashing "H" and "L").
Press to activate (ALS ON) the ambient light sensor.
Press again to turn the sensor off (ALS OFF).
The light sensor will adjust the brightness of
the fireplace based on the ambient light in the room.
E
F
G
H
I
J
Color
Themes
360' Light
Brightness
Flame
Light
Sensor
Timer
Control Lock
Control Unlock
!
NOTE:
!
NOTE:
Hold both Temp– ( ) and Brightness ( ), on the unit,
for 2 seconds to disable the manual controls.
Hold both Temp– ( ) and Brightness ( ), on the unit,
for 2 seconds to disable the manual controls.
Resetting the Temperature Cut off Switch
Should the heater overheat, an automatic cut out will turn the heater off and it will
not come back on without being reset. It can be reset by disconnecting power at the
main electrical panel and waiting 5 minutes before plugging the unit back in.
CAUTION If you need to continuously reset the heater, unplug the unit and call
technical support.
Operation
10

Over time, dust can accumulate on the logs, grate & base which can effect
performance. It is recommended to clean the unit at least once a month.
CAUTION: ALWAYS Turn the unit OFF and disconnect the appliance from the
power supply before undergoing any cleaning and maintenance.
Logs and Base
The electric firebox should not be operated with an accumulation of dust
or dirt on or in the firebox, as this can cause a build up of heat and eventual
damage.
Dust and vacuum the firebox as needed.
Use a damp cloth and a mild detergent to clean painted surfaces of the elec-
tric firebox. Never use abrasive cleaners.
Reflector Screen
The reflector screen is cleaned in the factory during the assembly operation.
During shipment, installation, handling, etc., the screen may collect dust parti-
cles; these can be removed by dusting lightly with a clean dry cloth.
To remove fingerprints or other marks, clean the reflector screen damp cloth.
Never use abrasive cleaners. Dry the screen completely with a lint free cloth
to prevent water spots.
IMPORTANT
The control panel and other parts must not come into contact with water or
any other liquids.
Cleaning
11

If the unit fails to operate efficiently, is broken or other problems arise, unplug
and do not operate. Ask for advice by calling your local after sales service
agent or the Customer Care Centre on 1300 556 816 (AU) / 0800 666 2824
(NZ).
Maintenance
Recycling: Do not dispose of electrical appliances as unsorted
municipal waste. Use separate collection facilities. Contact your
local government for information regarding the collection systems
available. If electrical appliances are disposed of in landfills or dumps,
hazardous substances can leak into the ground water, polluting the
food chain and damaging health and well-being.
Warranty
Please refer to the warranty card in the box for warranty information. For any
troubleshooting advice, please contact the relative Customer Care Centre below.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
8 Lakeview Drive, 38 Harris Road, East Tamaki,
Scoresby 3179, Victoria Auckland 2013
Australia New Zealand
Ph: 1300 556 816 Ph: 0800 666 2824
Customer Care: 1300 556 816
[e-mail]
www.dimplex.com.au
Supplied by Glen Dimplex Australia
8 Lakeview Drive, Scoresby, Victoria, 3179
© Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without
prior permission in writing of Glen Dimplex Australia.
12
