Dinex TQ1T1D6 Installation and operation manual

SECTION 1: INTRODUCTION
Introduction..............................................................................2
Freight Damage Claims plate..................................................2
SECTION 2: INFORMATION
Information...............................................................................2
Identification Plate ...................................................................2
SECTION 3: MAINTENANCE
Maintenance............................................................................3
Cleaning ..................................................................................3
WARRANTY............................................................................4
TQ Quiet Series Cart:
For Service Information call 1.888.673.4639
Please provide following information:
• Designation number
• Identification number
Manual No. TQ Quiet Cart
TQ Quiet Series Cart
Operating & Maintenance Manual
Models: TQ1T1D6
TQ1T1D8
TQ1T2D14
TQ1T2D16
TQ1T2D18
TQ1T2D20
TQ2T1D10
TQ2T1D12
TQ2T1D14
TQ2T1D16
TQ2T1D18
TQ2T1D20
TQ2T2D24
TQ2T2D28
TQ2T2D32
TQ2T2D36
DO NOT DISCARD
DINEX
4711 E. Hefner Rd. (73131) • PO Box 53006 • Oklahoma City, OK 73152-3006
[phone] • Fax [phone] • www.dinex.com

TQ Quiet Cart | 2
INTRODUCTION
Congratulations! You have just purchased one of the nest pieces of
equipment on the market today. Before installing or operating your
new Dinex equipment you should read through this material. This
manual should be retained for further reference as it contains operation
instructions and warranty information. Should you have any questions
concerning the Equipment, please call the 24/7 Dinex Hotline at 1-888-
673-4639.
!
IMPORTANT: For your safety, read and follow all cautions,
information, and warnings.
FREIGHT DAMAGE CLAIMS
Your TQ Series Cart was carefully inspected and packed before leaving
our factory. The transportation company assumes full responsibility for
the safe delivery of this equipment. Dinex cannot assume responsibility
for damage or loss incurred during transit. Visible damage or loss
should be noted on the freight bill and signed by the person
making the delivery.
A freight claim should be led immediately with the transportation
company. If damage is unnoticed or concealed until the equipment is
unpacked, notify the transportation company immediately and tell them
you want to le a concealed damage claim. This must be done within
fteen (15) days after delivery was made. Be sure to retain all packing
materials and cartons.
!
IMPORTANT: All packing materials should be retained for return
shipment.
APPLICATION AND USE
The Equipment is for commercial use in the food service industry.
!
ATTENTION: Installation of this equipment should be performed
only by persons qualied or licensed to install electrical equipment.
• Adjustments and service work should be performed only by
qualied service technicians.
• This equipment is intended for commercial use only. Not for
household use.
• Use of other than genuine Dinex replacement parts or service
work performed by those other than authorized Dinex service
agents will void the warranty.
• Do not use corrosive cleaners on the equipment. Use
only mild detergents.
SAFETY
The instructions contained in this manual provide important guidelines
for the Equipment user regarding a correct and safe installation.
Particular attention should be paid to the warnings given in various parts
of this manual. Never dismantle and/or repair the appliance with the
power supply in place. Especially, do not repair electrical elements if
you are not qualied for such work.
!
IMPORTANT:
• Please note that the China Plate Dispenser is for commercial use
only and must be used exclusively for the purposes prescribed.
!
Caution: Exposed surfaces of heated dispensers can be hot to the
touch and may cause burns.
• Disconnect dispenser from electrical power and allow to cool
before removing open tube assembly from shield.
INFORMATION
INFORMATION ON THIS SECTION
When contacting customer service please provide the following
information located on the product identication plate:
• Model number
• Serial number of the equipment (identication plate)
• Description of the part
• See Manual for item number

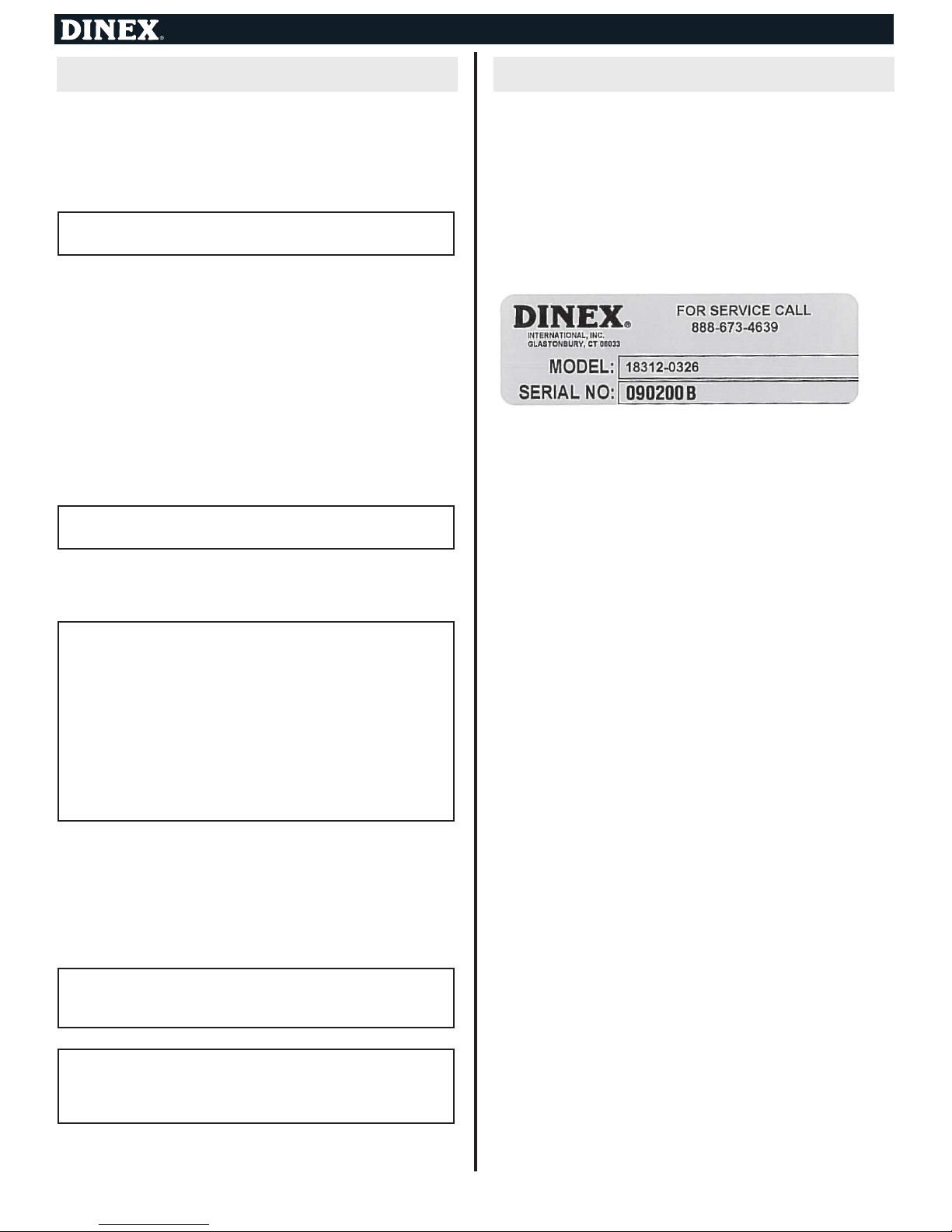

IDENTIFICATION PLATE
Different serial numbers for each unit.

TQ Quiet Cart | 3
MAINTENANCE
!
IMPORTANT: Annually (or as needed) add glacier grease to caster
swivel mechanism to ensure the wheels remain Quiet while in use.

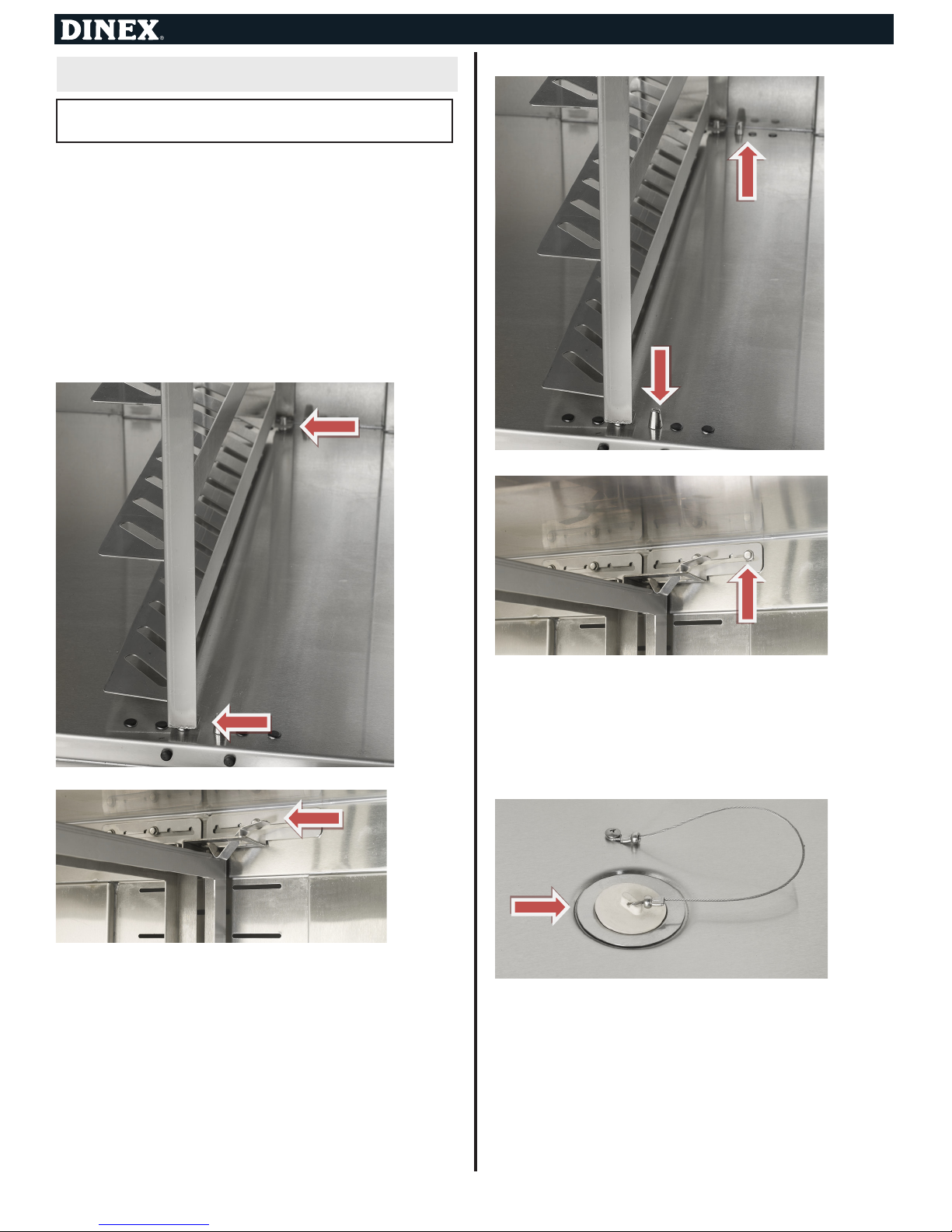

REMOVE RACK
Place one hand on rack and lift up on locking bracket lever and pull rack
clear from bracket (See gure 2). Repeat this action on other side and
rack should fall away from inside wall of cart. Lift rack off of pins and
remove from inside of cabinet (See gure 1). Repeat process for each
rack.
INSTALL RACK
Slide rack into cabinet at a 20 degree angle away from side wall so you
can clearly see the bottom holes of rack (See gure 1). Line up holes
on cone pins and let rack slide down on pins till they stop. Push rack
towards cabinet wall until rack locks into place on both locking brackets
(See gure 2). Rack should not be able to be pulled free easily when
rack is locked into place.
CHANGE RACK LOCATION (FOR DIFFERENT SIZE TRAYS)
Remove plastic plug in the pin location you wish to move the rack to
(See gure 3). Using a at head screw driver unscrew cone pin and
screw into new pin location. Replace plastic plug in now vacant unused
hole. Repeat this process on both sides of rack cone pin locations
making sure you use the same hole location on both sides so the rack
stays parallel to inside cabinet wall. You will then loosen both hex bolts
(do not remove) until top locking bracket can slide free of slots (See
gure 4). You will push up on bracket and slide it to the next set of slots
(or last set) depending on which hole location you have moved your
cone pins to. Then let the bracket slide back down into the slot making
sure that the bracket is resting on the bolt shaft. Tighten screws with
hand tools so as to not strip threads on hex insert. “Power screw drivers
are not recommended for this operation”.
GENERAL CLEANING
Open doors and lock them in the open position, remove the drain plug
and remove racks to clean, sanitize and dry the inside of cart thoroughly
(See gure 5). After cleaning, replace the racks and drain plug. Close
doors to clean outside of cart and using 2 or more people gently tilt
back cart and lay down on its back using support bars to clean the
undercarriage.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5

TQ Quiet Cart | 4
DINEX WARRANTY
These Warranties cover the following CARLISLE | DINEX (“Dinex")
equipment products (the “Warranted Products"):
• Rethermalization Equipment Products
• Induction Heating System Products (excluding Induction Bases
covered under separate warranty)*
• Milk Cooler Products
• Ice Cream Freezer Products
• Air Curtain Refrigerator Products
• Blast Chiller Products
• Hot/Cold Food Counter Products
• Plate, Rack and Tray Dispenser Products
• Plate Heater Products
• Base Heater Products
• Drying and Storage Rack Products
• Starter Station Products
• Conveyer Products
• Tray and Other Cart Products
Warranted Products also includes any other Equipment System
Products identied on Dinex’s website (www.dinex.com) from time to
time.
Standard Warranty. Except as indicated otherwise below, Dinex
warrants that the Warranted Products will be free from defects in
title, material and workmanship under normal use and service and
will perform substantially in accordance with Dinex’s written technical
specications for the Warranted Products (as such specications
exist on the date the Warranted Products are shipped) (the “Product
Specications" ) . This warranty covers both parts and labor and
is available only to end-users (the “Customers") that purchase the
Warranted Products from Dinex or its authorized distributors. For the
purpose of these warranties, a defect is determined by Dinex after its
good faith investigation.
Dinex Software. In addition to the other warranties set forth herein, with
respect to Dinex’s licensed software, Dinex warrants that it has the right
to license or sublicense the software to Customer for the purposes and
subject to the terms and conditions set forth in Dinex’s standard terms
and conditions.
Supplies and Accessories. Dinex’s warranty for its supplies and
accessories that are shipped with Warranted Products is covered by a
separate warranty statement, which is available at www.dinex.com.
Services. Dinex warrants that any service it provides to Customer will
be performed by trained individuals in a workmanlike manner.
DURATION
Dinex provides a one year warranty for the Warranted Products*. The
warranty period begins on the date the Warranted Products are shipped
to Customer. The warranty period for any Warranted Product or part
furnished to correct a warranty failure will be the unexpired term of the
warranty applicable to the repaired or replaced Warranted Product.
*Turbo•Temp and Smart•Therm Induction Chargers are Warranted for
two years.
REMEDIES
If Customer promptly noties Dinex of Customer’s warranty claim and
makes the Warranted Product available for service, Dinex will, at its
option, either repair or replace (with new or exchange replacement
parts) the non-conforming Warranted Product or parts of the Warranted
Product. With respect to Dinex’s licensed software, Dinex will, at its
option, either correct the non-conformity or replace the applicable
licensed software. Warranty service will be performed without charge
from 8:00 a.m. to 5:00 p.m. CST, Monday - Friday, excluding Dinex
holidays, and outside those hours at Dinex’s then prevailing service
rates and subject to the availability of personnel. With respect to Dinex’s
warranty for the services it provides to Customer, Customer’s exclusive
remedy shall be the re-performance of the services by Dinex. The
foregoing remedies are Customer’s exclusive remedies and Dinex’s
sole liability for warranty claims under this warranty statement. This
exclusive remedy shall not have failed of its essential purpose (as
that term is used in the Uniform Commercial Code) as long as Dinex
remains willing to repair or replace defective Warranted Products within
a commercially reasonable time after being notied of Customer’s
warranty claim.
LIMITATIONS
THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES, WHETHER WRITTEN, ORAL, EXPRESSED,
IMPLIED OR STATUTORY. EXCEPT AS PROVIDED HEREIN, NO
EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT
LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT,
SYSTEM INTEGRATION AND DATA ACCURACY, WILL APPLY.
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THOSE
DESCRIBED IN THIS DOCUMENT AND NO PRIOR STATEMENTS BY
ANY OF DINEX’S REPRESENTATIVES SHALL MODIFY OR EXPAND
THESE WARRANTIES. DINEX AND DINEX’S AFFILIATES AND
REPRESENTATIVES SHALL HAVE NO LIABILITY TO CUSTOMER
FOR (1) ANY SPECIAL, PUNITIV E, INCIDENTAL, INDIRECT
OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN
CONNECTION WITH THE WARRANTED PRODUCTS, REGARDLESS
OF WHETHER SUCH LIABILITY SHALL BE CLAIMED IN CONTRACT,
TORT, EQUITY OR OTHERWISE, (2) ANY ASSISTANCE NOT
REQUIRED UNDER DINEX’S QUOTATION OR (3) ANYTHING
OCCURRING AFTER THE WARRANTY PERIOD ENDS.
DINEX’S STANDARD WARRANTIES ONLY APPLY TO END-USER-
PURCHASERS LOCATED IN THE UNITED STATES AND CANADA.
ANY SALE TO END-USER-PURCHASERS OUTSIDE THE UNITED
STATES AND CANADA WILL BE SUBJECT TO COMMERCIAL
TERMS SPECIFICALLY AGREED BY DINEX AND THE END-USER
PURCHASER. DINEX MAKES NO WARRANTY, EXPRESS OR
IMPLIED, TO END-USER-PURCHASERS OUTSIDE THE UNITED
STATES OR CANADA UNLESS OTHERWISE EXPRESSLY AGREED
IN WRITING.
These warranties do not apply to, and Dinex shall not have any
obligation to Customer hereunder with respect to, any warranty claim
resulting from or arising out of: (i) normal wear and tear; (ii) damage
caused by shipping or accident; (iii) damage caused by improper
installation, repair or alteration not performed by Dinex; (iv) the use
of the Warranted Product in combination with any software, tools,
hardware, equipment, supplies, accessories or any other materials or
services, not furnished by Dinex or recommended in writing by Dinex;
(v) the use of the Warranted Product in a manner or environment,
or for any purpose, for which Dinex did not design or license it, or
inconsistent with Dinex’s recommendations or instructions on use
including, but not limited to, power supply requirements identied in
Product Specications; (vi) any alteration, modication or enhancement
of the Warranted Product by Customer or any third party not authorized
or approved in writing by Dinex; (vii) Warranted Product manufactured
to meet customer specications or designs; or (viii) any accessories or
supplies or other equipment or products that may be delivered with the
Warranted Product .
In addition, these warranties do not cover: (i) Any defect or deciency
(including failure to conform to Product Specications) that results,
in whole or in part, from any improper storage or handling, failure
to maintain the Warranted Products in the manner described in any
applicable instructions or specications, inadequate backup or virus
protection or any cause external to the Warranted Products or beyond
Dinex’s reasonable control, including, but not limited to, power failure
and failure to keep Customer’s site clean and free of dust, sand and
other particles or debris; (ii) the payment or reimbursement of any
facility costs arising from repair or replacement of the Warranted
Products; (iii) any adjustment, such as alignment, calibration, or other
normal preventative maintenance required of Customer; and (iv)
expendable supply items.

TQ Quiet Cart | 5
NOTES:

Manual No. TQ Quiet Cart
Please conrm that you have the most current specication sheet by visiting www.carlislefsp.com.
Dinex reserves the right to change specications and product design without notice.
Such revisions do not entitle the buyer to corresponding changes, improvements,
additions or replacements for previously purchased equipment.
Printed in USA
© 2012 Carlisle FoodService Products
Oklahoma City, OK 73131
www.carlislefsp.com | 800-654-8210
