A810 Android SIP Video Phone
User Manual v1.0

1 / 63
Preface
Welcome
Thanks for choosing the A810 Android SIP video phone！We hope you will make full
use of this rich-feature phone, Contact us if you need any technical support: 0755-
61919966。
About This Manual
This manual provides information about the introduction of the IP phone, and about
how to configure or use it. Please read this document carefully before use the A810
Android SIP video phone.
Intended Audience
This manual is aimed primarily at the following people:
Users
Engineers who install, configure and maintain the A810 Android SIP video
phone.
Revision Record
Document Name Version Firmware Version
A810 Android SIP Video
Phone User Manual
v1.0
2.61.6.2.1
Conventions
The phone or device mentioned in this document refers to the A810 Android SIP
video phone. "Note" marked in the document is what users need to pay attention to.

2 / 63
Contents
1 Installation requirement..............................................................................4
2 Get Started.................................................................................................5
2.1 Device Introduction .......................................................................................... 5
2.1.1 Overview ...................................................................................................................... 5
2.1.2 Features ........................................................................................................................ 5
2.2 Button and keys................................................................................................ 6
2.3 Ports ................................................................................................................ 7
2.4 Specification..................................................................................................... 7
2.5 Indicator .......................................................................................................... 9
3 Configuration.......................................................................................... 10
3.1 Basic configuration......................................................................................... 10
3.1.1 Touch screen Operation............................................................................................. 10
3.1.2 Power on/off............................................................................................................... 10
3.1.3 Home interface........................................................................................................... 11
3.2 Network Setting.............................................................................................. 12
3.2.1 DHCP ......................................................................................................................... 12
3.2.2 Static IP ...................................................................................................................... 13
3.2.3 Wi-Fi........................................................................................................................... 14
3.2.4 Wi-Fi AP .................................................................................................................... 15
3.3 VOIP Setting.................................................................................................. 16

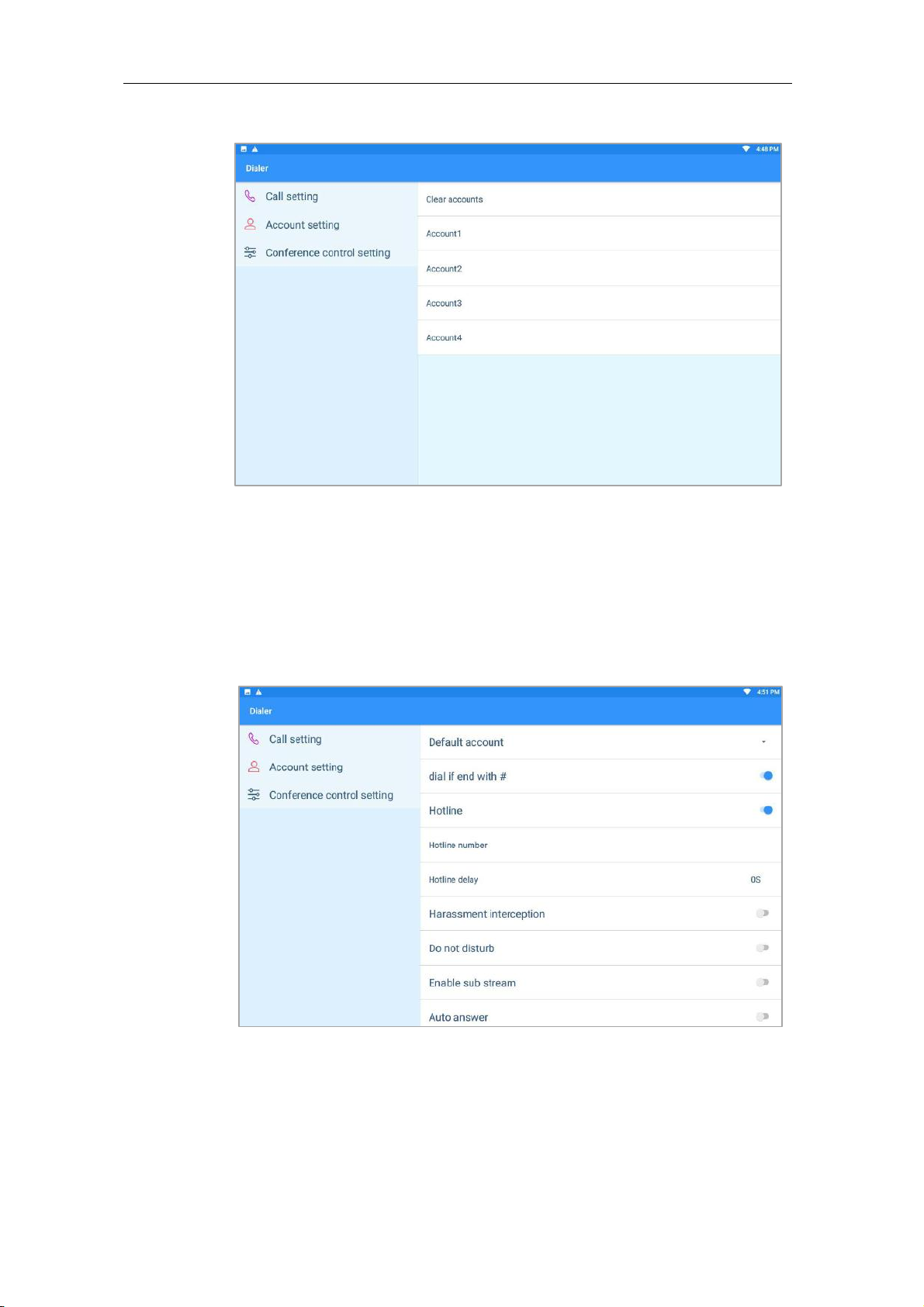

3.3.1 SIP Account Setting................................................................................................... 16
3.3.2 Call Setting................................................................................................................. 19
3.4 Bluetooth Settings........................................................................................... 24
3.5 Display Setting ............................................................................................... 24
3.6 Sound............................................................................................................. 25
3.7 Date & Time................................................................................................... 27
3.8 Language ....................................................................................................... 28
3.9 Security.......................................................................................................... 28
3.10 Advanced Setting.......................................................................................... 29
3.11 About ........................................................................................................... 29
4 How to use .............................................................................................. 31

3 / 63
4.1 Call function................................................................................................... 31
4.1.1 Dial numbers.............................................................................................................. 31
4.1.2 Incoming calls............................................................................................................ 33
4.1.3 Explanation of function buttons during calls ........................................................... 36
4.1.4 Call Log...................................................................................................................... 39
4.2 Contacts......................................................................................................... 44
4.2.1 Contacts...................................................................................................................... 44
4.2.2 Enterprise contact ...................................................................................................... 51
4.2.3 Mobile Contact........................................................................................................... 51
4.2.4 Favorite Contacts....................................................................................................... 54
4.2.5 Group.......................................................................................................................... 56
4.2.6 Black List and White List ......................................................................................... 57
4.2.7 Contacts Operating Options...................................................................................... 57
4.3 Other Application........................................................................................... 58
4.3.1 One-key to Lock ........................................................................................................ 58
4.3.2 File Manager .............................................................................................................. 58
4.3.3 Gallery ........................................................................................................................ 60
4.3.4 Input Method Editor .................................................................................................. 60
4.3.5 Install Third-party Application ................................................................................. 60
5 FAQ ........................................................................................................ 62

4 / 63
1 Installation requirement
Reminder
Please read this User Manual carefully before installing and using this device.
Please contact us if any issue during using this device, our email is telpouc
@telpo.com.
Please ensure this device working in the temperature range of 0℃~45℃.
Suggestions
For safety installation and use, we suggest:
Please do not place the device where is water, please do not let any liquid enter the
device.
Please keep device away from the heat source.
Power requirement
Power supply must meet the requirements of this manual.

5 / 63
2 Get Started
Thanks for use our A810 Smart Video Phone. Please read the user manual before use
this device. In this user manual, we will introduce the specification, features,
configuration way, maintain method of A810 with you.
2.1 Device Introduction
2.1.1 Overview
This video phone is a high-end media video phone with OCTA Core, 64 bit CPU.
Carrying with Android 7.1 operating system, 1280x800 10-inches LCD screen and 8MP
camera, it has a great performance in various scenarios. It can support 1080 dual stream
video call, support HDMI screen sharing, WIFI screen sharing, double- screen-
differential-display, etc., which will help different use in video call and video
conference. Be strong in contact function, SDK for third-party application to integrate,
this device is good for office use and other industry use.
2.1.2 Features
Standard communicate protocol
Support SIP protocol, strong in extensibility and compatibility, can communicate with
different IMS/Soft switch platform.
HD Video
Build-in 1280x800 pixel, multi-touch 10-inch IPS screen, and 8MP camera, support
1080P Dual Stream, can send HD Main Stream and HD Sub Stream at the same time.
Rich Audio/Video Codec
Support rich codecs including G.711A、G.711U、G.722、AMR、G.729A/AB、G726、
OPUS、iLBC、AAC-LD H.264, etc.

6 / 63
Strong contact function
Support Enterprise Contact, Mobile Contact, Local Contact. Support functions
including fuzzy search, add/edit/delete/import/export local contact. Support
black/white list, collector, group etc.
Multiple Network Applications
Support static IP, DHCP IP access mode, fully application to various network
environments. Support FTP file sharing, WIFI screen sharing, WIFI hot spots, etc.
Rich interfaces
This device has two HDMI ports, one for HDMI in and another for HDMI out. Two
Ethernet ports, Wan for uplink, LAN for downlink. One headphone port, one USB, one
SD/TF card port.

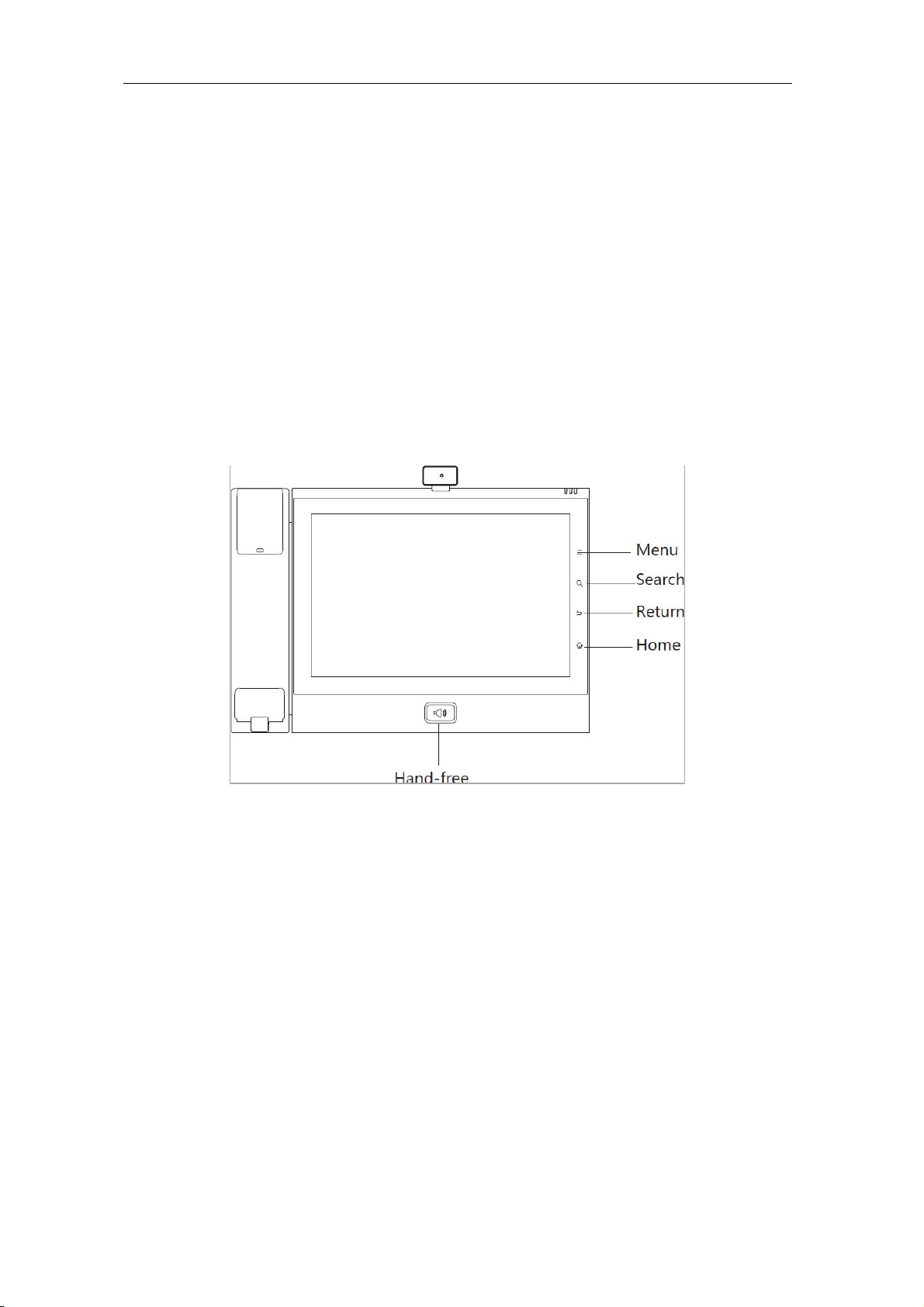

2.2 Button and keys
Menu key: tap menu key to set wall paper/add widgets
Search key: tap search key to enter the searching interface of contact list.
Return key: tap return key to return back to the last interface
Home key: tap home key to back to home interface. Long-term press the home
key to capture the screenshot
Hand-free button: tap hand-free button in power-on status, to enter the dialer
interface, and use hand free function.

7 / 63
2.3 Ports
2.4 Specification
Items Video Phone
System
OS Android 7.1
CPU OCTA core, 64 bit, 2GHz
FLASH 16GB, eMMC
RAM 2GB, DDR3
Screen Size 10.1'',1280x800, IPS multi touch screen
Camera 8 mega-pixel, angle adjustable
Display Angle Adjustment Display angle adjustable from 10 degree~70 degree
Ethernet Port
2 Ethernet ports, 10M/100M/1000M, adaptive; POE
(Optional)
HDMI
Two HDMI ports, support HDMI-in and HDMI-out, can
support sharing screen and input video auxiliary stream
at the same time

8 / 63
Wireless Screen Sharing 1080p@30
WLAN 2.4G/5.8G Dual WIFIs，IEEE802.11b/g/n/ac, support
AP and WLAN features
Bluetooth BT2.1+EDR/3.0/4.1LE
Storage Card 1 Micro SD（TF）
USB Port 1 USB2.0 ，
support U disk, headphone, keyboard,
mouse
Handset Port RJ-9
Headphone Port One 3.5mm/Bluetooth headphone/USB headphone
Network Protocol
SIP、TCP/IP ，SIP，SDP，UDP ，RTP ，RTCP，
DHCP，DNS，HTTP，HTTPS，SNTP ，XCAP，
IPv4，IPv6
Audio Audio
Protocol
G.711a/G.711u/G.729/G.722/iLBC/SILK/OPUS/ACC/
AMR- WB
Audio
Audio Codec
DTMF, AEC, PLC, AGC, VAD, CNG, AJB, ANR,
VQM, Side tone Cancellation
Voice Record Support
Video
Video Codec Encoding: H.264, VP8
Decoding: H.264, VP8, H265, MPEG-4
Video
Resolution
QVGA （320 x 240 ）、CIF （352x288 ）、VGA
（640x480）、 4CIF（704x576）、 720p（1280x720），
1080p( 1920 x 1080)
Video Display Full screen show in opposite end, Preview in local side
with both showing and preview screen.
Video
conference
Support China Mobile Cloud Video Conference
Platform
Support local/UC portal to launch conference
Video output of main stream and auxiliary stream
(1080P@30 Dual Streams)
Video input of main stream and auxiliary stream
(1080P@30 Dual Streams)
Support same display in two screens, Support different
display in two screens.
Conference operating in local side
Telephony
Contacts 2000 contacts, support contacts search, import, export
Call Logs 1000 call logs for received calls, 1000 call logs for
missed calls,1000 call logs for dialed numbers
Local
Conference 6 parties audio conference
Telephony
Features Call Hold, Call Forward, Call Transfer, Three-Way
Calling, Call Waiting, Call Reject, Call ID, Missed

9 / 63
Call Reminder, Speed Dial
Line & SIP
Account 4 lines, 4 accounts
Android OS
Features Build-in APP: clock, gallery, web browser, search
Security TLS, SRTP(AES128)
Management WEB/TR069
Customized Applications SDK/API for customer application development; Build-
in company contacts
Power Adapter Input：AC100～220V
Output：DC12V/1.5A
Size 300mm*200mm*72mm
2.5 Indicator
The device indicator on right top side, status shows as below
Status of Indicator Descriptions
Light off Device on standby and SIP account is working
Red light on Network disconnect or SIP account is error
Red light twinkle Missed call
Green light on On calling
Green light twinkle Incoming call, ringing
Blue light on Disturbance-free mode is on

10 / 63
3 Configuration
This part mainly introduces the configuration method of this device, will tell the method
of basic, voice, network, etc. setting.
3.1 Basic configuration
This basic configuration is including the basic device configuration and use.
3.1.1 Touch screen Operation
Tap
Please tap the touch screen to use the soft key, application, option choosing, button
press.
Long press
If want to enable any application options, just need to long press this application until
its option show.
Drag
Long press and drag application to somewhere you want, keep press it during drag it.
For example, if you want to put this application into Recycler, just keep press and drag
it to recycler.
Slide
Slide the screen horizontally or vertically to switch interfaces
Double tap
Fast double tap on the screen, for example, double tap the screen when video call, will
show full screen.
Zoom
In some application, like gallery, you can zoom in and zoom out the picture using two
fingers.
3.1.2 Power on/off
1) Power on
The device will power on automatically when plug in the power supply.
2) Power off

11 / 63
You can plug off the power supply if you do use the device, it will help to save the
electric power
3) Restart
Please follow the steps below if you want to restart the device:
①Tap “Setting”-“System Maintain”
②Tap “Restart”
3.1.3 Home interface
There are some frequently used applications on bottom of Home interface, there
are Dialer, Call Log, Contact List, Record, Browser, Setting.
There is MORE icon on the bottom middle of Home interface, tap to show more
applications.
Date shows on the top left side, SIP account status and network status show on
the top right side.

12 / 63
On the top right side there are showing network status and current account, you
can slide down the status bar to switch the accounts.
Long press to change your wall paper. Tap wall paper, and choose the one you
want to replace, tap submit on top left side to confirm.
On home interface, you can slide to speed dial contact interface. Long press
someone’s contact on contact list, and create shortcut to this speed dial contact
interface. After added, user can tap number or video icon to make audio/video
call. Also can delete shortcut by long press.
3.2 Network Setting
This device can support wired network and WIFI. In wired network, it can support
both static IP and DHCP. If enable both wired network and WIFI, device will use
wired network first.
3.2.1 DHCP
You can configure DHCP following the step as below:
Tap Setting icon->Ethernet, Ethernet is enabled by default, network type is DHCP by
default. After select DHCP, it will automatically acquire the IP address from DHCP
server. You can check the IP information in Setting->About. Pictures show as below.

13 / 63
Note:
If fail to get IP address from DHCP, IP address information will
show Not Available.
3.2.2 Static IP
You can configure the Static IP following below steps:
Tap Setting icon—Ethernet, select Static IP. Pictures show as below:

14 / 63
Parameter Description as below:
Parameter Descriptions
IP address Set the device IP address
Netmask Set the device netmask
DNS 1 Local main DNS address
DNS 2 Local standby DNS address
Gateway Set the outbound gateway
3.2.3 Wi-Fi
Tap Setting icon—Wi-Fi, enable Wi-Fi option, and select the WIFI hotspot.

15 / 63
1) After enable the Wi-Fi option, this device will search AP and show on the list.
2) Connect to the available AP. If the AP is with a password, it will show a Lock
icon next to this AP. If the AP is without a password, then it won’t show the Lock
icon.
3) When tap the AP with password, please fill in the password to connect. If
password error, it will show as below.
3.2.4 Wi-Fi AP
This device can share hotspot to mobile phones or other wireless devices. Please tap
Setting icon—WiFi AP, then can enter to enable the hotspot function.

16 / 63
1) First please set the hotspot name and password: Please tap Wireless Hotspot
Name, set the hotspot name in the pop-up box. Tap Password, and set the hotspot
password in the pop-up box.
2) After finish the setting of hotspot name and password, you can turn on the
wireless hotspot, then can be searched by the mobile devices.
3) Encryption Type: the encryption type is WPA2 PSK. If you select NO in
Encryption type, then no need hotspot password for mobile devices connecting.
4) Attentions: Device Wi-Fi connecting and hotspot cannot work at the same time.
When enable the hotspot, please ensure the Ethernet wire connecting with the
device, and ensure the
3.3 VOIP Setting
VoIP Settings are including SIP Account Setting and Call Setting. You can enter Vo I P
setting interface using these two methods:
Method 1: Tap Setting icon—VOIP Settings
Method 2: Tap Dialer App—Tap setting icon on top right side—Tap Call Setting
3.3.1 SIP Account Setting
After enter VoIP setting, please tap Account Setting, and then enter the SIP account
setting interface.

17 / 63
There are 4 VoIP accounts available to set, please tap one of them to enter the
configuration interface.

18 / 63
Parameter description as below:
Parameter Descriptions
Enable Enable the VoIP account
Phone number The register ID of SIP account
Password The register password of SIP account
Domain
The register server of SIP account, server configuration format
should be domain/IP[:port],server could be domain or IP
address
Proxy port The register server port of SIP account, 5060 by default if not
fill
in
More
1.
If the account and name are same, and the domain andthe
proxy port are same, you not set More, device will auto fill
in the More.
2.
If the account and name are different, or the domain and the
proxy port are different, then please tap More to manually
set.
Conference control
setting
This option is for Huawei Video Conference, if not connect with
Huawei Video Conference, then no need to configure.
Proxy address
The main proxy server, server configuration format should be
domain/IP[:port], server should be domain or IP address
Authentication User SIP authentication user name
Display name The register account display name, optional to fill

19 / 63
Please tap √ to submit the configuration, then success to set the SIP account.
If want to modify the account setting, please tap the account directly, and set it basing
on your need. Please tap √ to submit after configuration. Clear accounts option to
clear all account configurations.
3.3.2 Call Setting
After enter VoIP setting, please tap Call Setting to configure the call, picture show as
below:
