Directed Electronics 410S User manual

Model 3000ESP
Owner's Guide

i
©1999 Directed Electronics, Inc.
Limited Lifetime
Consumer Warranty
Directed Electronics, Inc. ("DEI®") promises to the original purchaser to repair or
replace with a comparable reconditioned model any of the purchased brand unit
(hereafter the "unit"), excluding without limitation the siren, the remote transmit-
ters, the associated sensors and accessories, which proves to be defective in work-
manship or material under reasonable use during the lifetime of the vehicle provided
the following conditions are met: the unit was professionally installed and serviced
by an authorized DEI dealer; the unit will be professionally reinstalled in the vehicle
in which it was originally installed by an authorized DEI dealer; and the unit is
returned to DEI, shipping prepaid with a legible copy of the bill of sale or other dated
proof of purchase bearing the following information: consumer's name, telephone
number and address; the authorized dealers name, telephone number and address;
complete product description, including accessories; the year, make and model of the
vehicle; vehicle license number and vehicle identification number. All components
other than the unit, including without limitation the siren, the remote transmitters
and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void
if: the original purchaser has not completed the warranty card and mailed it within
ten (10) days of the date of purchase to the address listed on the card; the unit's
date code or serial number is defaced, missing or altered; the unit has been modified
or used in a manner contrary to its intended purpose; the unit has been damaged by
accident, unreasonable use, neglect, improper service, installation or other causes
not arising out of defects in materials or construction. The warranty does not cover
damage to the unit caused by installation or removal of the unit. DEI, in its sole dis-
cretion, will determine what constitutes excessive damage and may refuse the return
of any unit with excessive damage. TO THE MAXIMUM EXTENT ALLOWED BY LAW,
ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED
WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE
EXPRESSLY EXCLUDED; AND DEI NEITHER ASSUMES NOR AUTHORIZES ANY PERSON
OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNEC-
TION WITH ITS PRODUCTS. DEI DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY
FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS
OR INSTALLERS. DEI SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS
AGAINST POSSIBLE THEFT. DEI IS NOT OFFERING A GUARANTEE OR INSURANCE
AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CON-
TENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM.

ii ©1999 Directed Electronics, Inc.
THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR
REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND.
IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUBSIDIARY, THE
PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CAL-
IFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN
THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DEI SHALL BE
STRICTLY LIMITED TO THE AUTHORIZED DEI DEALER'S PURCHASE PRICE OF THE
UNIT. DEI SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUD-
ING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES,
DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF
ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE
MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE
CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights and you may also
have other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your
authorized DEI dealer for details of the plan or call DEI Customer Service at 1-800-
876-0800. DEI security systems, including this unit, are deterrents against possible
theft. DEI is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability
whatsoever, including without limitation, liability for theft, damage and/or vandalism.
DEI does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
■Date of purchase
■Your full name and address
■Authorized dealer's company name and address
■Type of alarm installed
■Year, make, model and color of the automobile
■Automobile license number
■Vehicle identification number
■All security options installed on automobile
■Installation receipts

1
©1999 Directed Electronics, Inc.
Table of Contents
Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
Standard Configuration Transmitter Diagram. . . . . . . . . . . . . . . . . . . . . . . . . 2
What Is Included. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arming/Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disarming/Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disarming the FailSafe® Starter Kill without a Transmitter . . . . . . . . . . . . . . . . 7
Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Panic Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Owner Recognition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Glossary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Quick Reference Guide (Removable). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

2©1999 Directed Electronics, Inc.

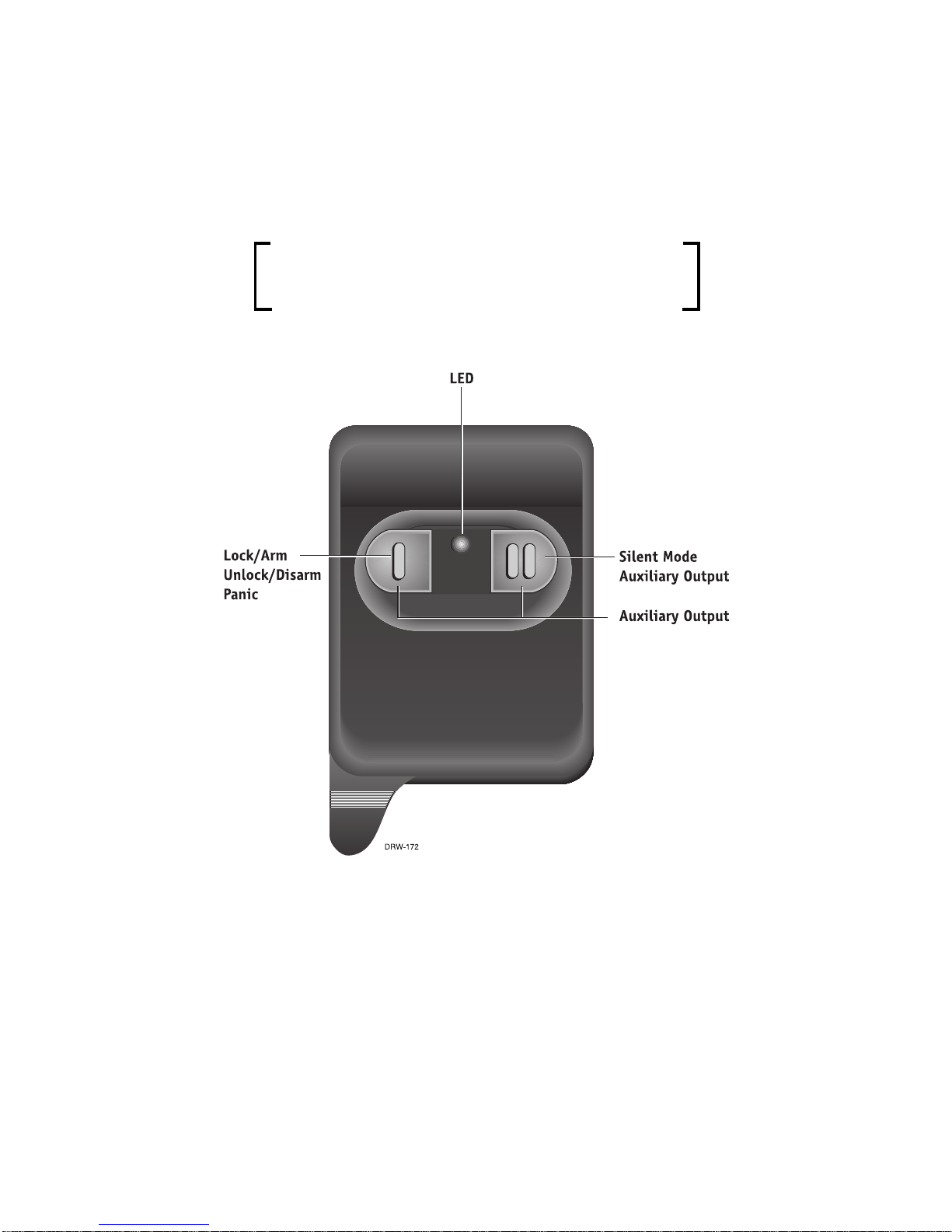

Standard Configuration

3
©1999 Directed Electronics, Inc.
What is Included
■The control module
■A pair of two-button transmitters
■The red status LED indicator light
■A push-button Valet®switch
■Your warranty card
■Failsafe®Starter Kill ready circuitry (may require additional
labor)
Important Information
This system has been designed to provide years of trouble-free op-
eration. Due to the complexity of this system, it must only be
installed by an authorized dealer. Installation of this product by
any person other than an authorized dealer voids the warranty. All
dealers are provided with a preprinted dealer certificate to verify
that they are authorized.
This owner’s guide should help you to get the most out of your sys-
tem. Please take the time to read it thoroughly prior to using the
system.
You can print additional or replacement copies of this manual by
downloading this guide from the DEI website at www.dei.com.

4©1999 Directed Electronics, Inc.
This device complies with Part 15 of FCC rules. Operation is subject
to the following conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference re-
ceived, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this device.
The system requires no specific maintenance. Your remote control
is powered by a miniature 12V battery, type GP23A, that will last
approximately one year under normal use. When the battery weakens,
operating range will be reduced and the LED on the remote will dim.
Your warranty card must be returned and the bar code serial num-
ber must not be removed. If the warranty card is not returned you
do not have a warranty. It is also necessary to keep your proof of
purchase which reflects that the product was installed by an au-
thorized dealer. Make sure you receive the warranty card from
your dealer.
Your Warranty
System Maintenance
FCC/ID Notice

5
©1999 Directed Electronics, Inc.

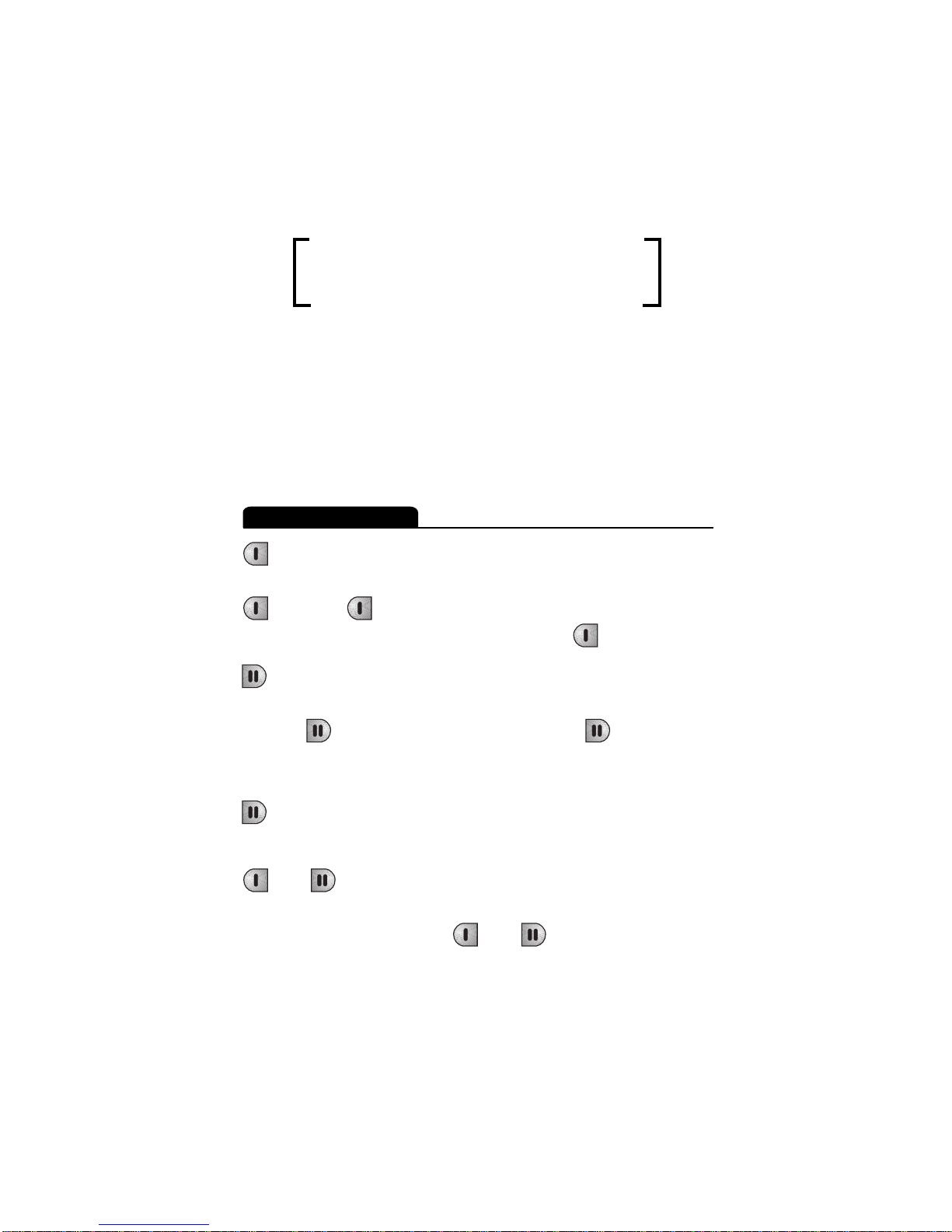

Transmitter Functions
Your vehicle keyless entry system is programmable, making it pos-
sible to assign any transmitter button to any specific receiver func-
tion. The transmitter initially comes programmed with Standard
Configuration, but may also be customized by an authorized deal-
er. The buttons in all of the instructions in this manual correspond
to a Standard Configuration transmitter.
Button
The arm/lock, disarm/unlock, and panic functions are controlled by
. Pressing for one second will alternately arm/lock or dis-
arm/unlock. Panic Mode is activated by pressing for 1.5 seconds.
Button
Silent Mode and an optional auxiliary function are controlled by
pressing . Silent Mode™ works by pressing for less than
one second prior to arming or disarming with the transmitter. An
optional auxiliary function is controlled by pressing and holding
for 1.5 seconds.
The auxiliary output controls _____________________________.
and Buttons
An optional auxiliary function that you have added to your system
can be activated by pressing and simultaneously.
The auxiliary output controls _____________________________.
Standard Configuration

6©1999 Directed Electronics, Inc.
Using Your System
Pressing for one second will arm the system and lock the
doors. The red LED will begin to flash once per second. The
Failsafe® Starter Kill will prevent the vehicle’s starter from crank-
ing if it has been installed. If connected, the vehicle's horn will
honk and the parking lights will flash once to confirm arming of
the system. If the ignition is turned on while the system is armed
the horn will honk and the parking lights will flash (if connected).
NOTE: You must use your remote transmitter to lock the vehicle in order
for the system to be armed. Manually locking the vehicle does not arm
the system; it will only lock the doors. If you have not used the remote
transmitter to lock the vehicle doors (i.e. the vehicle has been locked using
the lock/unlock switch) the transmitter cannot be used to unlock the doors.
The system also can be programmed to arm the starter kill auto-
matically (called passive mode). If the system is programmed for
passive mode, it will automatically activate the starter kill 30 sec-
onds after the ignition is turned off. Passive mode is indicated by
rapid flashing of the LED after the ignition is turned off.
NOTE: For passive mode to be effective, the Failsafe® Starter Kill relay
must be installed.
If passive mode is programmed on, it is also possible to program
the system to lock the doors automatically. This is called passive
locking. If passive locking is turned on, care must be taken to pre-
vent the keys from being locked in the vehicle.
Arming/Locking

7
©1999 Directed Electronics, Inc.
To disarm the system and unlock the doors of the vehicle, press
for one second. The Failsafe® Starter Kill will be deactivated
and the vehicle’s horn (if connected) will honk twice. The parking
lights will also flash twice (if connected). The red LED will go out,
unless the system is programmed for passive mode. If programmed
for passive mode, the LED will begin to flash rapidly when the sys-
tem is disarmed. This indicates that the system will re-engage the
Failsafe® Starter Kill relay and re-lock the doors (if passive locking
is selected) in 30 seconds unless the key is turned on.
NOTE: If the system has been armed with the remote transmitter, you
must use the transmitter or the Valet switch to disarm the system and
deactivate the starter kill. Manually unlocking the vehicle does not dis-
arm the system; it will only unlock the doors.

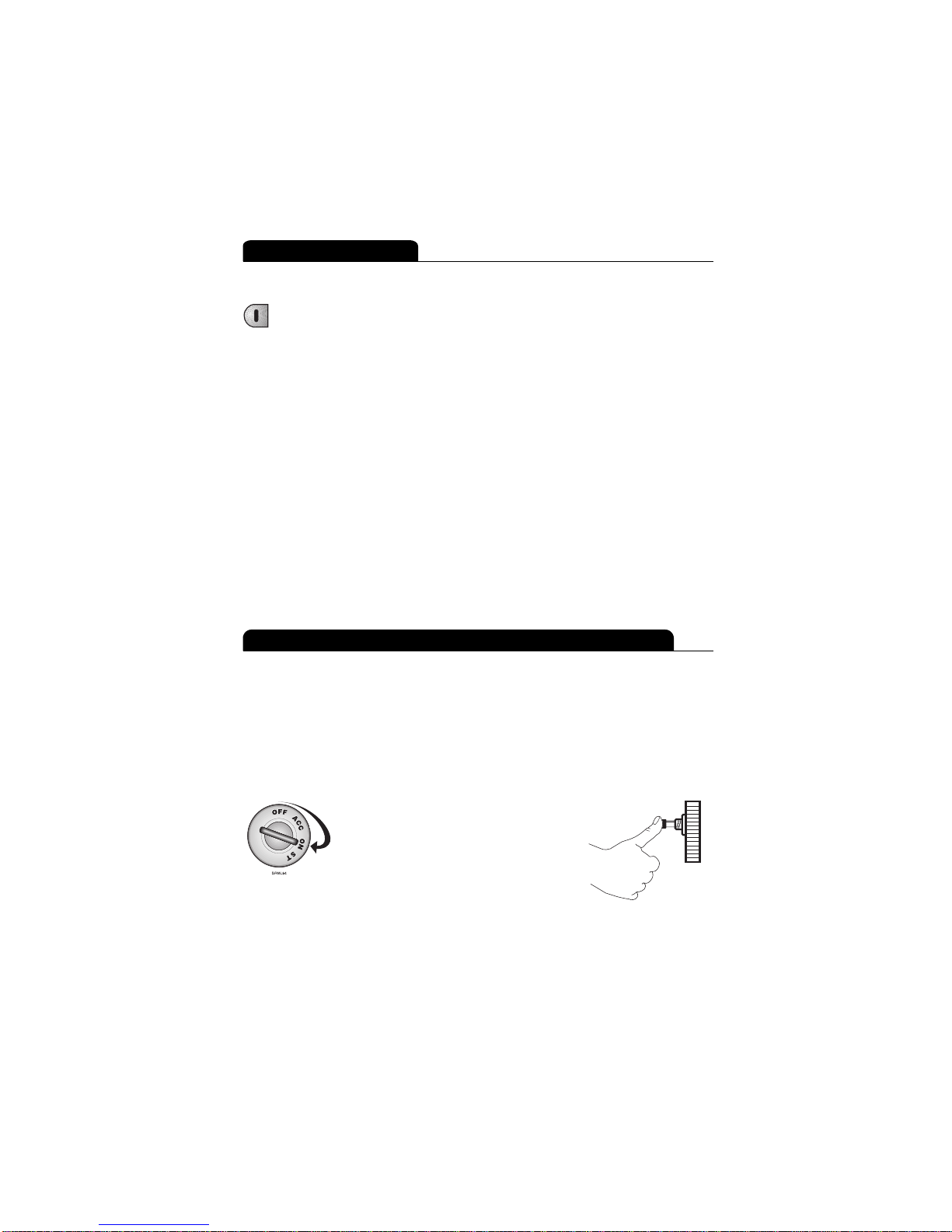

This feature allows you to override the starter kill without the
transmitter should it be lost, damaged or disabled. To do this, you
must have the ignition key and know where the Valet® switch is
located. Check with the installer for the location of the Valet® switch.
Turn the ignition to the "run"
position. Press and release the
Valet® switch, within 10 seconds.
The LED will stop flashing and the
vehicle should start. If it does not,
you may have waited too long.
Turn the ignition off and try again.
DRW-35
Disarming the Failsafe® Starter Kill without a Transmitter
Disarming/Unlocking

8©1999 Directed Electronics, Inc.
Use the Silent Mode to temporarily turn off the arm or disarm con-
firmation honks by briefly pressing before either arming or
disarming the system. The confirmation honk(s) will then be elim-
inated for that one operation only. To permanently turn off the
arm and disarm confirmation honks, contact your installation
dealer.
You can prevent your system from automatically activating the
Failsafe® Starter Kill relay and locking the doors, by using Valet®
Mode. This is very useful when washing the vehicle or having it
serviced. In Valet® Mode, the system will not activate the Starter
Kill, even with the transmitter, but all convenience functions
(door locks, trunk release, etc.) will work normally.

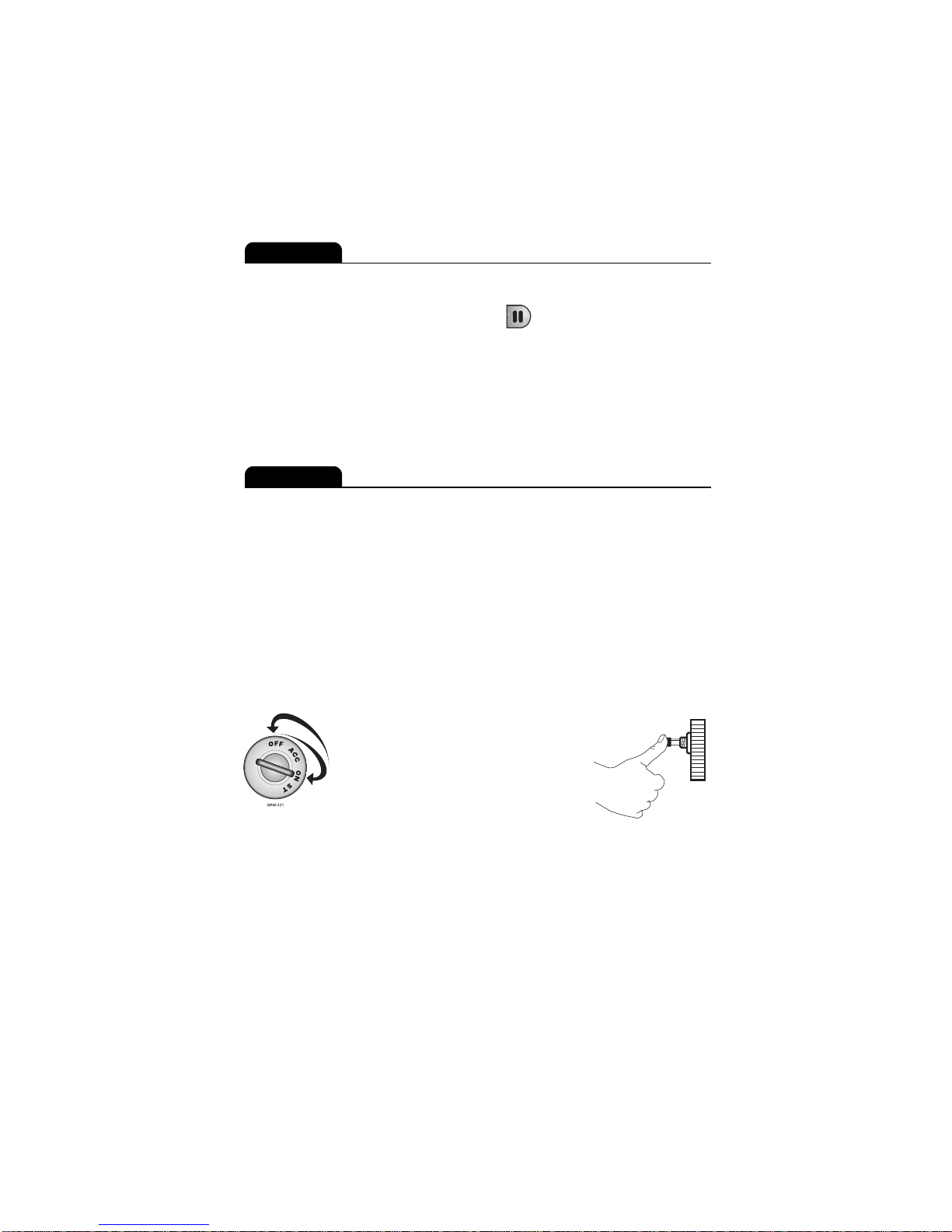

To enter or exit Valet®Mode with the Valet switch
Turn ignition to “on” position,
then turn to “off” position. Press
and release the Valet switch within
10 seconds. The status LED will
light steady if you have entered
Valet Mode. To exit Valet Mode,
repeat the steps above. The LED
will turn off when exiting Valet
Mode.
DRW-35
Valet® Mode
Silent Mode

9
©1999 Directed Electronics, Inc.
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your transmitter! Just
press for 1.5 seconds, and you will enter Panic Mode. The
horn will honk and the parking lights will flash for 30 seconds. To
stop Panic Mode at any time, press on the transmitter.
NOTE: In order for Panic Mode to function, the vehicle’s horn (or option-
al siren) as well as the vehicle's parking lights must be connected.
Rapid Resume Logic
The system will store its current state to non-volatile memory. If
power is lost and then reconnected the system will recall the
stored state from memory. If the unit is in Valet®Mode and the bat-
tery is disconnected for any reason, such as servicing the car, when
the battery is reconnected the unit will still be in Valet Mode. This
applies to all system states including arm, disarm, and Valet Mode.
Panic Mode

10 ©1999 Directed Electronics, Inc.
Programming Options
Programming options control what your system does during normal
operation, and require little or no additional parts. However, some
may require additional installation labor.
The following list of program settings shows the defaults in Bold:
■Passive mode or active mode. In passive mode the Failsafe
Starter Kill relay will be automatically activated 30 seconds
after the ignition key is turned off.
■Both the ignition switch-controlled door lock and unlock fea-
tures can be turned on or off. If ignition door lock is on, the
vehicle's doors will lock three seconds after the key is turned
on. If ignition door unlock is on, the vehicle's doors will
unlock when the key is turned off.
■Passive door locking (with passive arming) or active door
locking (only when arming with the transmitter). This feature
only works if passive arming has been turned on.
■The locking and unlocking horn honk confirmations can be
programmed on or off. The vehicle’s horn must be connected.
■Domelight supervision when the key is turned off can be pro-
grammed on or off. If programmed on, the domelight will turn
on for 30 seconds each time the ignition is turned off.

11
©1999 Directed Electronics, Inc.
Owner Recognition
Owner Recognition is a feature available exclusively from DEI®.
Using a DEI®Bitwriter hand-held programming tool, your dealer
can program many of the system settings. The programmer makes
it possible to program different settings for each transmitter that
is used with the system. Then, whenever a specific transmitter is
used, the system will recall the settings assigned to that transmit-
ter. Owner Recognition lets up to four users of the system have dif-
ferent settings that meet their specific needs. It is almost like hav-
ing four separate alarms in your vehicle, one for each user.
NOTE: Owner Recognition cannot be programmed without a Bitwriter and
the necessary software. Check with your dealer for more information.
Security & Convenience
Expansions
Here we have listed only some of the many expansion options
available. Please consult your dealer for a complete explanation of
all the options available to you.
Domelight Supervision: If installed, the domelight will illuminate
for 30 seconds each time the system is disarmed using the trans-
mitter. This is useful for seeing inside the vehicle at night prior to
entering it.

12 ©1999 Directed Electronics, Inc.
Valet® Start System: For the ultimate in convenience, the Valet®
Start System can start your vehicle, monitor engine functions, and
power your climate control system with a push of a button! Over-
rev protection, open-hood lockout, brake-pedal shutoff, and auto-
matic timer shutoff are all included. This option is available only
for automatic-transmission, fuel-injected gasoline vehicles.
Power Window Control: Power window control is provided with
the 529T or 530T systems. The 529T system will roll up two win-
dows automatically when the system is armed, or roll two windows
down. The 530T can roll two windows both up and down. The 530T
also provides one touch switch operation.
Power Trunk Release: An auxiliary output of the system can oper-
ate a factory power release for the vehicle's trunk or hatch. If the
factory release is not power-activated, DEI's 522T trunk-release
solenoid can often be added.
Progressive Door Unlocking: For added security, your system can
be configured to only unlock the driver's door when the unlock
button is pressed. The passenger door(s) can then be unlocked by
pressing the unlock button again within 15 seconds of unlocking
the driver's door.
820T Valet® Car★Com™: The 820T is a one-way pager system that
can be added to any compatible DEI security system. Using the
820T, many of the security and convenience features of your DEI
security system can be operated from any touch tone telephone.

13
©1999 Directed Electronics, Inc.
Glossary of Terms
Control Unit: The “brain” of your system. Usually hidden under-
neath the dash area. It houses the microprocessor which monitors
your vehicle and controls all of the alarm’s functions.
Failsafe®Starter Kill: An automatic switch controlled by the secu-
rity system that prevents the starter from cranking whenever the
system is armed. The vehicle is never prevented from cranking
when the system is disarmed, in Valet®mode, or should the starter
kill switch itself fail. Your system is ready for this feature, howev-
er installation of this feature may require additional labor.
LED: Red light mounted somewhere in the vehicle. It is used to
indicate the status of your system. It is also used to report trig-
gers and faults in the system or sensors.
Transmitter: Hand-held, remote control which operates the vari-
ous functions of your system.
Valet®Switch: A small push button switch mounted somewhere
inside the vehicle. It is used to override the alarm when a trans-
mitter is lost or damaged, or to enter Valet®mode.

14 ©1999 Directed Electronics, Inc.
Cut along dotted line where indicated for a quick and easy reference to keep in your purse or wallet.
✂
QUICK REFERENCE GUIDE:
To arm/lock using your remote
■Pressing for one second will arm the system and lock the doors.
The red LED will begin to flash once per second. The Failsafe® Starter
Kill will prevent the vehicle’s starter from cranking if it has been in-
stalled. The vehicle’s horn (if connected) will honk and the parking
lights will flash once to confirm arming of the system.
To disarm/unlock using your remote
■To disarm the system and unlock the doors, press for one second.
The Failsafe® Starter Kill will be deactivated and the vehicle’s horn (if
connected) will honk twice and the parking lights will flash twice.
Disabling the Failsafe® Starter Kill without a transmitter
■To do this, you must have the vehicle's ignition key and know where the
Valet® switch is. Be sure to check with the installer for the location of
the Valet® switch. Turn on the ignition. Press and release the Valet®
switch, within 10 seconds. The LED will stop flashing and the vehicle
should start.
To enter or exit Valet®Mode
■Turn the ignition to the "on" position. Turn the ignition back off. Press
and release the Valet® switch within 10 seconds. The Status LED will
light steady if you have entered Valet® Mode. To exit Valet® Mode,
repeat the steps above. The LED will turn off when exiting Valet® Mode.
To activate panic mode
■Press and hold down for 1.5 seconds.
To exit panic mode
■Press .
✂

®
The company behind this system is Directed Electronics, Inc.
Since its inception, DEI® has had one purpose, to provide consumers with the finest
vehicle security and car stereo products and accessories available. The recipient of
more than 20 patents in the field of advanced electronic technology, DEI is ISO 9001
registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call [phone] for more information about our products and services.
Directed Electronics, Inc.
Vista, CA 92083
www.dei.com
© 1999 Directed Electronics, Inc. - All rights reserved
G410 7/99
DEI is committed to delivering on time, the best products we know how to provide,
and to constantly work with our customers and vendors to improve our products, qual-
ity, delivery and customer friendly features.
