1
© 2004 Directed Electronics, Inc.
wwhhaattiissiinncclluuddeedd
➤Control module
➤One 2-button transmitter
➤Hood pinswitch
➤Toggle override switch
➤8-pin main H1 harness
➤Heavy guage relay wires (6)
wwaarrnniinngg!!ssaaffeettyyffiirrsstt
warning! Verify that the vehicle is set to
park and that the parking brake is set
before beginning installation.
warning! On vehicles with air bags or sup-
plemental restraint systems (SRS) you may
notice a bright yellow tube with small wires
in it marked SRS underneath the steering
column near the key cylinder. DO NOT
tamper or unplug these for any reason to
prevent costly damages to the vehicle or
personal injury. Tampering may cause
unintended deployment of airbags.
warning! This system is intended for auto-
matic, fuel-injected vehicles only. Installation
in any other vehicle is contrary to its intend-
ed use.

2© 2004 Directed Electronics, Inc.
The following safety warnings must be observed at all times:
➤Due to the complexity of this system, installation of this
product must only be performed by an authorized Directed
Electronics dealer.
➤When properly installed, this system can start the vehicle via
a command signal from the remote control transmitter.
Therefore, never operate the system in an area that does not
have adequate ventilation. The following precautions are the
sole responsibility of the user; however, authorized Directed
Electronics dealers should make the following recommenda-
tions to all users of this system:
1. Never operate the system in an enclosed or partially
enclosed area without ventilation (such as a garage).
2. When parking in an enclosed or partially enclosed area
or when having the vehicle serviced, the remote start
system must be disabled using the installed toggle
switch.
3. It is the user's sole responsibility to properly handle and
keep out of reach from children all remote control trans-
mitters to assure that the system does not unintention-
ally remote start the vehicle.
4. TTHHEEUUSSEERRMMUUSSTTIINNSSTTAALLLLAACCAARRBBOONN
MMOONNOOXXIIDDEEDDEETTEECCTTOORRIINNOORRAABBOOUUTTTTHHEE
LLIIVVIINNGGAARREEAAAADDJJAACCEENNTTTTOOTTHHE
EVVEEHHIICCLLEE..
AALLLLDDOOOORRSSLLEEAADDIINNGGFFRROOMMAADDJJAACCEENNTT
LLIIVVIINNGGAARREEAASSTTOOTTHHEEEENNCCLLOOSSEEDDOORR
PPAARRTTIIAALLLLYYEENNCCLLOOSSEEDDVVEEHHIICCLLE
ESSTTOORRAAGGEE
AARREEAAMMUUSSTTAATTAALLLLTTIIMMEESSRREEMMAAIINNCCLLOOSSEEDD..
➤Use of this product in a manner contrary to its intended
mode of operation may result in property damage, personal
injury, or death. Except when performing the Safety Check

3
© 2004 Directed Electronics, Inc.
outlined in this installation guide, (1) Never remotely start
the vehicle with the vehicle in gear, and (2) Never remotely
start the vehicle with the keys in the ignition. The user will
be responsible for having the neutral safety feature of the
vehicle periodically checked, wherein the vehicle must not
remotely start while the car is in gear. This testing should be
performed by an authorized Directed Electronics dealer in
accordance with the Safety Check outlined in this product
installation guide. If the vehicle starts in gear, cease remote
start operation immediately and consult with the user to fix
the problem immediately.
➤After the remote start module has been installed, test the
remote start module in accordance with the Safety Check
outlined in this installation guide. If the vehicle starts when
performing the Neutral Safety Shutdown Circuit test, the
remote start unit has not been properly installed. The remote
start module must be removed or properly reinstalled so that
the vehicle does not start in gear. All installations must be
performed by an authorized Directed Electronics dealer.
OOPPEERRAATTIIOONNOOFFTTHHEERREEMMOOTTEESSTTAARRTTMMOODDUULLEEIIFF
TTHHEEVVEEHHIICCLLEESSTTAARRTTSSIINNGGEEAARRIISSCCOONNTTRRAARRYYTTOO
IITTSSIINNTTEENNDDEEDDMMOODDE
EOOFFOOPPEERRAATTIIOONN..OOPPEERR--
AATTIINNGGTTHHEERREEMMOOTTEESSTTAARRTTSSYYSSTTEEMMUUNNDDEERR
TTHHEESSEECCOONNDDIITTIIOONNSSMMAAYYRREESSUULLTTIINNPPRROOPPEERRTTYY
DDAAM
MAAGGEEOORRPPEERRSSOONNAALLIINNJJUURRYY..IIMMMMEEDDIIAATTEELLYY
CCEEAASSEETTHHEEUUSSEEOOFFTTHHEEUUNNIITTAANNDDRREEPPAAIIRROORR
DDIISSCCOONNNNEECCTTTTHHEEIINNSSTTAALLLLEED
DRREEMMOOTTEESSTTAARRTT
MMOODDUULLEE..DDIIRREECCTTEEDDEELLEECCTTRROONNIICCSS,,IINNCC..WWIILLLL
NNOOTTBBEEHHEELLDDRREESSPPOONNSSIIBBLLEEOORRPPAAYYFFOORRIINNSSTTAALL--
LLAAT
TIIOONNOORRRREEIINNSSTTAALLLLAATTIIOONNCCOOSSTTSS..

4© 2004 Directed Electronics, Inc.
iinnssttaallllaattiioonnppooiinnttssttoorreemmeemmbbeerr
before the installation
➤Please read this entire installation guide before beginning the
installation. The installation of this remote start system
requires interfacing with many of the vehicle’s systems. Many
new vehicles use low-voltage or multiplexed systems that can
be damaged by low-resistance testing devices, such as test
lights and logic probes (computer safe test lights). Test all
circuits with a high-quality digital multi-meter before
making connections.
➤Do not disconnect the battery if the vehicle has an anti-theft-
coded radio. If equipped with an air bag, avoid disconnecting
the battery if possible. Many airbag systems will display a
diagnostic code through their warning lights after they lose
power. Disconnecting the battery requires this code to be
erased, which can require a trip to the dealer.
➤Remove the domelight fuse. This prevents accidentally
draining the battery.
➤Roll down a window to avoid being locked out of the car.
after the installation
➤Test all functions. The "Using Your System" section of the
Owner's Guide is very helpful when testing.
➤Complete the vehicle
SSaaffeettyyCChheecckk
outlined in this manual
prior to the vehicle reassembly.
➜
➜

5
© 2004 Directed Electronics, Inc.
ffiinnddiinnggtthheewwiirreessyyoouunneeeedd
obtaining constant 12V
We recommend two possible sources for 12V constant: The (+)
terminal of the battery, or the constant 12V supply to the igni-
tion switch. Always install a fuse within 12 inches of this connec-
tion. If the fuse will also be powering other circuits, such as door
locks, a power window module, or a Nite-Lite®headlight control
system, fuse accordingly.
IIMMPPOORRTTAANNTT!!
Do not remove the fuse holder on the
red wire. It ensures that the control module has its own
fuse, of the proper value, regardless of how many acces-
sories are added to the main power feed.
➜
IIMMPPOORRTTAANNTT!!
Do not use a 12V test light or logic
probe (computer safe test light) to locate these wires!
All testing described in this manual assumes the use of
a digital multimeter.

6© 2004 Directed Electronics, Inc.
finding the starter wire
The starter wire provides 12V directly to the starter or to a relay
controlling starter. In some vehicles, it is necessary to power a
cold start circuit. A cold start circuit will test exactly like a starter
circuit, but it does not control the starter. Instead, the cold start
circuit is used to prime the fuel injection system for starting when
the vehicle is cold.
Use the following procedure to find the starter wire with your
multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the starter wire. The
steering column is an excellent place to find this wire.
Remember you do not need to
interrupt the starter at the same
point you test it. Hiding the
control module and connections is
always recommended.
4. Turn the ignition key switch to the start position. Make sure
the car is not in gear! If your meter reads (+)12V, go to the
next step. If it doesn’t, probe another wire.
5. Cut the wire you suspect of being the starter wire.
6. Attempt to start the car. If the starter engages, reconnect it
and go back to Step 3. If the starter does not turn over, you
have the right wire.
➜

7
© 2004 Directed Electronics, Inc.
finding the 12V switched wire
The ignition wire is powered when the key is in the run or start
position. This is because the ignition wire powers the ignition
system (spark plugs, coil) as well as the fuel delivery system (fuel
pump, fuel injection computer). Accessory wires lose power
when the key is in the start position to make more current avail-
able to the starter motor.

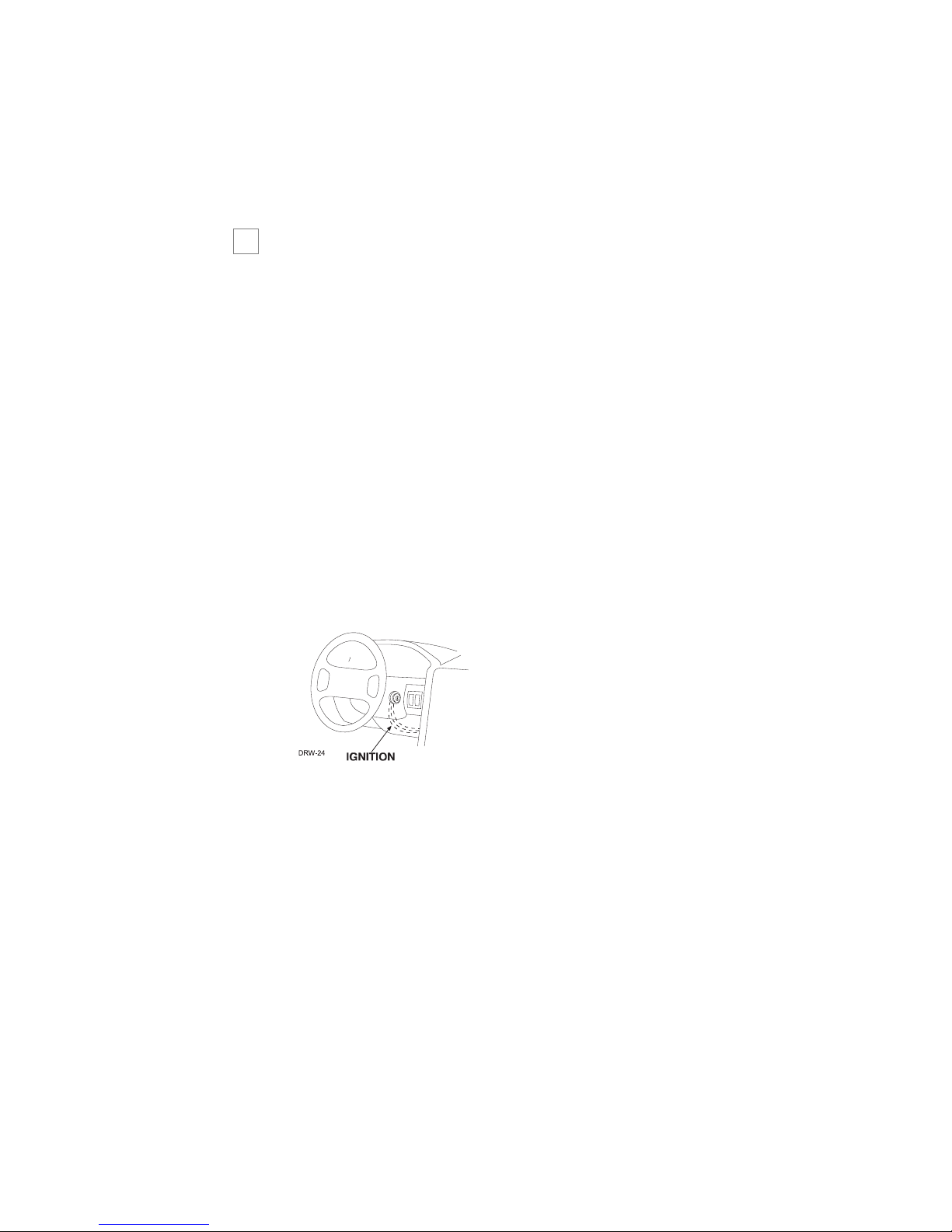

Use the following procedure to find the (+)12V ignition wire
with your multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being
the ignition wire. The steering
column harness or ignition switch
harness is an excellent place to find
this wire.
4. Turn the ignition key switch to the run position. If your
meter reads (+)12V, go to the next step. If it does not read
(+)12V, probe another wire.
5. Now turn the key to the start position. The meter display
should stay steady, not dropping by more than a few tenths
of a volt. If it drops close to or all the way to zero, go back to
Step 3. If it stays steady at (+)12V, you have found an igni-
tion wire.
➜

8© 2004 Directed Electronics, Inc.
finding the accessory wire
An accessory wire will show (+)12V when the key is in the acces-
sory and run positions. It will not show (+)12V during the
cranking cycle. There will often be more than one accessory wire
in the ignition harness. The correct accessory wire will power the
vehicle's climate control system. Some vehicles may have sepa-
rate wires for the blower motor and the air conditioning
compressor. In such cases, it will be necessary to add a relay to
power the second accessory wire.

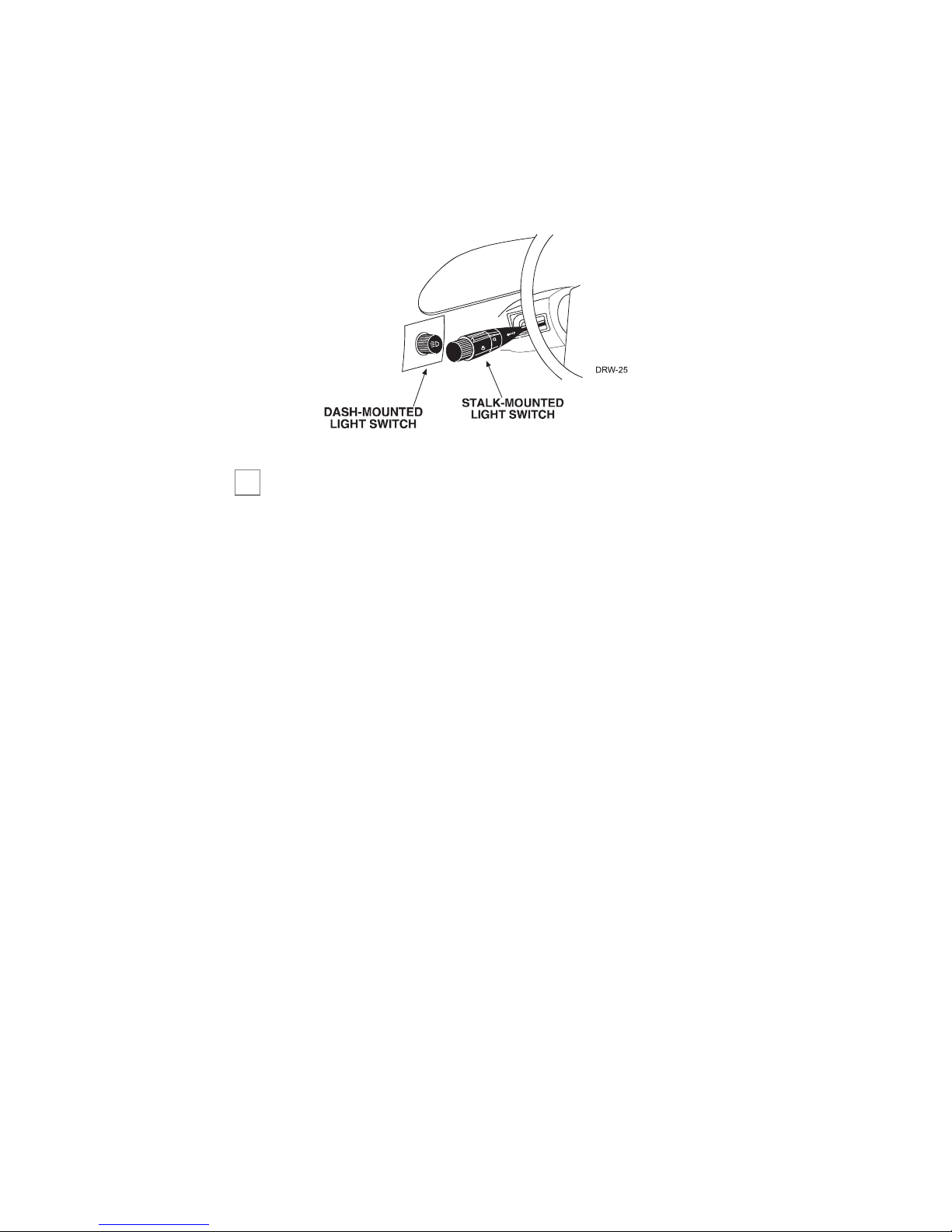

finding the parking light wire
There are several different types of parking light circuits. The
following description is for a standard negative-triggered parking
light circuit, usually located at the light switch. If the web vehicle
information suggests a different type of parking light circuit,
please contact Directed Technical Support.
Using the web information on the vehicle, locate the suspected
wire and place the red lead of the meter to a constant (+)12 volt
source and secure it. Place the multi-meter in the DC position.
Probe the suspected wire. With the switch in the off position the
meter will read off. While watching the meter, turn the switch to
the parking light position. The meter should read 12V. While
testing the suspected wire, run the dash dimmer light control up
and down — the voltage should NOT vary. If the voltage does
vary, continue probing to find the correct wire.
➜
➜

9
© 2004 Directed Electronics, Inc.
finding the tachometer wire
To test for a tachometer wire, a multimeter capable of testing AC
voltage must be used. The tachometer wire will show between
1V and 6V AC. In multi-coil ignition systems, the system can
learn individual coil wires. Individual coil wires in a multi-coil
ignition system will register lower amounts of AC voltage. Also,
if necessary, the system can use a fuel injector control wire for
engine speed sensing.
Common locations for a tachometer wire are the ignition coil,
instrument cluster, fuel injectors, or engine computers.
Use the following procedure to locate the tachometer wire with
your multimeter.
1. Set the multimeter to ACV or AC voltage and a range of 12V or 20V.
2. Attach the (-) probe of the meter to chassis ground.
3. Start the engine.
4. Probe the wire you suspect of being the tachometer wire with the
red probe of the meter.
➜

10 © 2004 Directed Electronics, Inc.
5. If this is the correct wire the meter will read between 1 and 6
VAC and the voltage will vary as the engine rpm is changed.
ffaaccttoorryyaannttii--tthheeffttssyysstteemmss
((iimmmmoobbiilliizzeerrss))
Vehicle anti-theft systems (immobilizers) require installation of a
bypass module. The bypass module allows for easy interfacing,
while still maintaining the OEM security system’s integrity. For
vehicle listings and required bypass, see DirectFax Document
1059, available only to authorized dealers though the technical
resources listed at the front of this guide.

11
© 2004 Directed Electronics, Inc.
pprriimmaarryyhhaarrnneessss((HH11)),,
88--ppiinnccoonnnneeccttoorr
—
—
—
—
—
—
—
—WHITE (-) Parking Light Flash Output
LT. GREEN/BLACK Factory Alarm Disarm
WHITE/BLUE (-) Remote Start Activation Input
BLACK Ground
GRAY (-) Hood Pin Shutdown Input
BROWN (+) Brake Switch Shutdown Input
VIOLET/WHITE Tachometer Input
BLUE (-) 200mA Status Output
HH11//11
HH11//22
HH11//33
HH11//44
HH11//55
HH11//66
HH11//77
HH11//88

12 © 2004 Directed Electronics, Inc.
rreellaayywwiirreess((hheeaavvyyggaauuggee))
66--ccoonnnneeccttoorrss
—
—
—
—
—
—
pprriimmaarryyhhaarrnneessss((HH11))ddeessccrriippttiioonn
HH11//11BBLLUUEE(-) 200 mA status output
Provides a 200mA output as soon as the control module begins
the remote start process. This wire can be used to activate an
immobilizer bypass unit.
HH11//22VVIIOOLLEETT//WWHHIITTEEtachometer input
This input provides the control module the engine rpm data.
This wire is connected to the negative side of the ignition coil in
vehicles with conventional ignition coils. In multi-coil and high
energy ignition systems, locating a proper signal may be more
difficult. (See Finding the Wires You Need section of this guide
for finding the tachometer wire.)
PINK/WHITE (+) Output to Ign2/Acc2 Circuit
RED (+) 12V Input 30A Fused
PINK (+) Output to Ignition Circuit
ORANGE (+) Output to Accessory Circuit
RED (+) 12V Input 30A Fused
PURPLE (+) Output to Starter Circuit
AA
BB
CC
DD
EE
FF

13
© 2004 Directed Electronics, Inc.
HH11//33BBRROOWWNN(+) brake switch shutdown input
This wire must be connected to the vehicle’s brake light wire.
This is the wire that shows (+) 12V when the brake pedal is
depressed. The remote start will be disabled or shut down any
time the brake pedal is pressed.
Locate the factory brake wire using your meter. Find the switch
at the top of the metal arm coming off the brake pedal. There are
usually two wires connected to that switch. Locate the wire color
according to the web information. With your black meter lead
still in the kick panel, probe the suspected wire with the meter.
With the brake pedal at rest the meter should read zero. While
watching the tester, depress the brake pedal. The meter should
read 12V. Once you have located the correct brake wire, strip a
small portion of insulation off this wire and solder the small
BROWN (H1/3) wire on the main harness to it and wrap the
connection with electrical tape.
HH11//44GGRRAAYY(-) hood pin shutdown input
This wire must be connected to the hood pinswitch. This input
will disable or shut down the remote start when the hood is
opened.
important! Do not use the vehicle until you confirm the
operation of the brake shutdown.

14 © 2004 Directed Electronics, Inc.
Installing the hood pin switch requires drilling a ¼-inch hole in the
metal lip under the hood. Choose a location that will allow the pin
switch to be depressed when the hood is closed. The pin switch has
a spade connector on the bottom for the wire connection.
Place the wire with the spade connector onto the pin switch and
run the wire into the vehicle’s passenger compartment through a
factory rubber grommet. Using a sharp, pointed object poke a
hole into the grommet and attach the wire to the object with
electrical tape. Pull the wire through the grommet taking extra
care to keep the wire away from any moving parts or anything
that will generate extreme heat. Once the wire is run into the
vehicle and secured from any moving parts, solder the wire to
the GRAY (H1/4) wire on the main wire connector and wrap
the connection with electrical tape.
The bypass toggle switch is designed to bypass the remote start
in an emergency or to disable the remote start functions
important! Do not use the vehicle until you confirm the
operation of the hood pin shutdown.

15
© 2004 Directed Electronics, Inc.
temporarily (i.e., for service on the vehicle or when parking in an
enclosed area). This switch is to be mounted in an easily acces-
sible location in the passenger compartment.
Connect the toggle switch as shown below.
HH11//55BBLLAACCKKground
Remove any paint and connect this wire to bare metal, prefer-
ably with a factory bolt rather than your own screw. (Screws tend
to either strip or loosen with time.) We recommend grounding
all your components to the same point in the vehicle.
note: More problems are attributed to poor ground con-
nections than any other cause. Take extra care to ensure
the ground is a clean metal-to-metal contact and secure.
BYPASSED WHEN CLOSED
BYPASS
TOGGLE
SWITCH
TO GRAY (H1/5) WIRE
ON
CONTROL MODULE
HOOD PIN SWITCH -
OPEN WHEN HOOD IS CLOSED
HOOD PIN SWITCH -
CONNECTOR

16 © 2004 Directed Electronics, Inc.
HH11//66WWHHIITTEE//BBLLUUEE(-) remote start activation input
Two pulses on this wire within 3-seconds will initiate the start,
or two pulses within 3-seconds will cancel the start. This input
can be wired to a push button switch located in the passenger
compartment or it can be used for diagnostic troubleshooting.
HH11//77LLTT..GGRREEEENN//BBLLAACCKKfactory alarm disarm
This wire sends a negative pulse every time the remote start is
activated. This can be used to pulse the disarm wire of the
vehicle’s factory anti-theft device. Use a relay to send a (-) or (+)
pulse to the disarm factory wire as shown in the following
diagrams.
note: In most instances the negative pulse output can be
connected directly to the factory disarm wire. The circuit
shown on the left below is provided for those instances
where direct connection will not correctly function.
SELF-TAPPING
BOLT OR SCREW
RING
TERMINAL
GROUND
WIRE
NOTE: REMOVE ANY PAINT
BELOW RING CONNECTOR
DIA-591
