Directed Electronics Cyber 76XV User manual

[ Put a stop to crime ]
[ User guide ]
MODELMODEL
S e c u r i t y s y s t e m a n d c o n v e n i e n c e
76XV

i
©2004 Directed Electronics, Inc.
Limited Lifetime
Consumer Warranty
For a period of five calendar year from the date of purchase of this auto-security
device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or
replace (with a comparable reconditioned model), free of cost, any electronic control
module which proves to be defective in workmanship or material under normal use,
SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL
AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY
INSTALLED. If warranty service is necessary you must have a clear copy of your sales
receipt containing all of the information shown on the following page.
After the first calendar year, from the date of purchase of this auto-security device,
Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace
(with a comparable reconditioned model) any electronic control module which proves
to be defective in workmanship or material under normal use FOR A CHARGE OF
$45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PRO-
FESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS
ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy
of your sales receipt containing all of the information shown on the following page.
This warranty contains the entire agreement relating to warranty and supersedes all
previous and contemporaneous representations or understandings, whether written or
oral. IN ANY EVENT, DEI IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS
CONTENTS.
This warranty is void if the product has been damaged by accident, unreasonable use,
neglect, improper service or other causes not arising out of defects in materials or
construction. This warranty is nontransferable and does not apply to any unit that
has been modified or used in a manner contrary to its intended purpose and does not
cover batteries. The unit in question must be returned to the manufacturer, postage
prepaid. This warranty does not cover labor costs for the removal, diagnosis, trou-
bleshooting or reinstallation of the unit. For service on an out-of-warranty product a
flat rate fee by model is charged. Contact your authorized dealer to obtain the ser-
vice charge for your unit.
These systems are a deterrent against possible theft. Directed Electronics, Inc. is not
offering a guarantee or insuring against the theft of the automobile or its contents
and disclaims any liability for the theft of the vehicle and/or its contents. Directed
Electronics does not authorize any person to create for it any other obligation or lia-
bility in connection with this security system.

ii ©2004 Directed Electronics, Inc.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD-
ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM-
MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU-
SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-
RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF
NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR
ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH
SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT
NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,
REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL
LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE
ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR
THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or
consequential damages. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
■Date of purchase
■Your full name and address
■Authorized dealer's company name and address
■Type of alarm installed
■Year, make, model and color of the automobile
■Automobile license number
■Vehicle identification number
■All security options installed on automobile
■Installation receipts

iii
©2004 Directed Electronics, Inc.

iv
©2004 Directed Electronics, Inc.

1
©2004 Directed Electronics, Inc.
Table of Contents
Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i
What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote-Controlled Silent Arm/Disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote-Controlled Valet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Nuisance Prevention Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Arming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Stealth Coding™Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
High Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Glossary Of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2©2004 Directed Electronics, Inc.

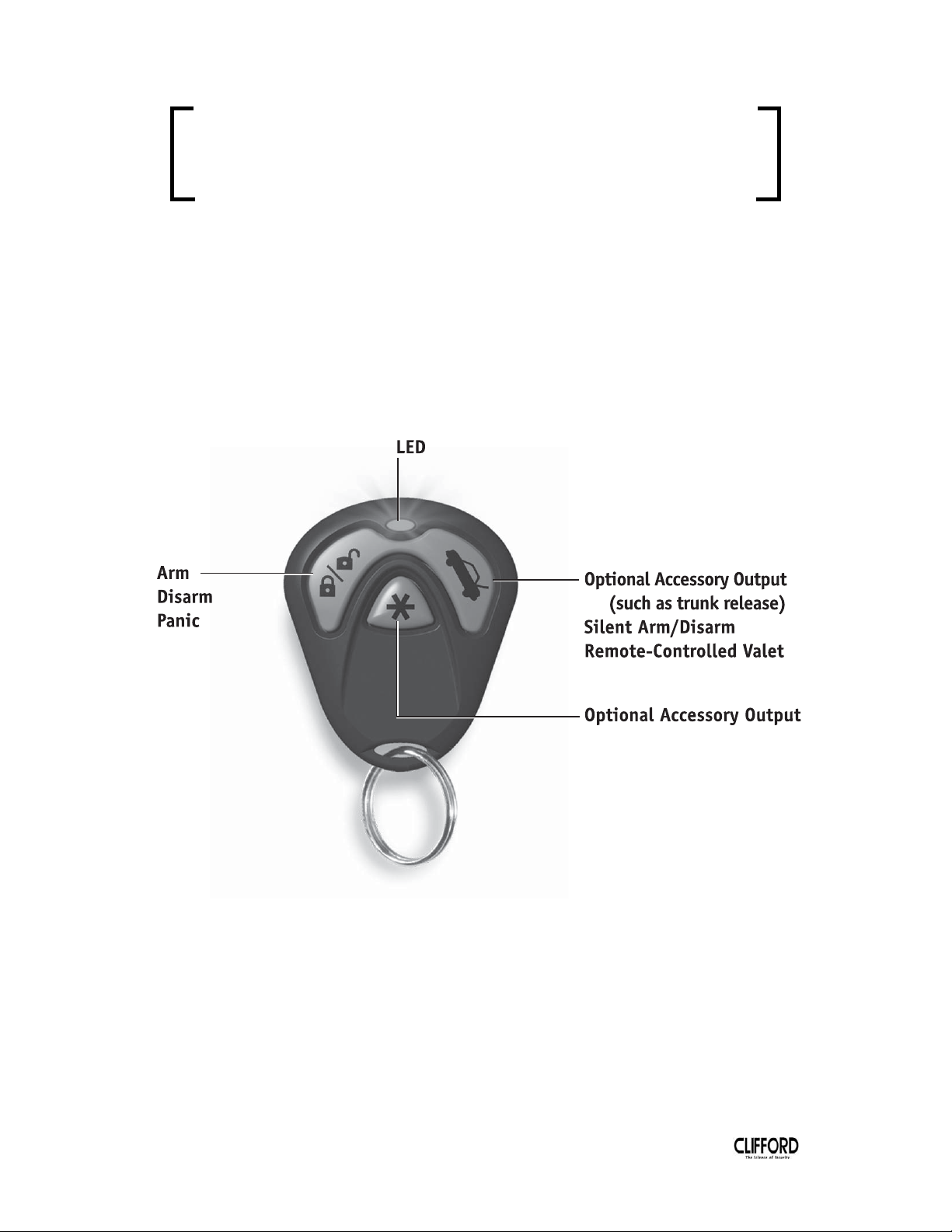

Standard Configuration

3
©2004 Directed Electronics, Inc.
What is Included
■A control module
■Two 3-button remote transmitters
■A zone 2 impact sensor on-board the control module
■A high-powered siren
■A fault-proof starter interrupt on-board the control module
■An LED Blue system status indicator
■A push-button Valet®switch
Important Information
Congratulations on the purchase of your state-of-the-art vehicle
security system. This system has been designed to provide years of
trouble-free operation. By carefully reading this guide prior to
using your system, you will maximize the use of this product and
its features.
Your vehicle security system has no specific maintenance require-
ments. The remote transmitter is powered by a lightweight 3-volt
lithium battery that will last approximately one year under normal
use. When the battery begins to weaken, the LED on the remote
transmitter will dim and you will notice reduced operating range
System Maintenance

4©2004 Directed Electronics, Inc.
when using the remote transmitter. To access the battery for
replacement, remove the rear cover of the remote with a small,
flat-blade screwdriver.
Your warranty card must be returned and the barcode serial num-
ber must not be removed. If the warranty card is not returned, no
warranty will be honored on your unit. It is also necessary to keep
your proof of purchase, which reflects that the product was
installed by an authorized dealer. Make sure you receive the war-
ranty card from your dealer.
This device complies with Part 15 of FCC rules. Operation is subject
to the following conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate this device.
FCC/ID Notice
Your Warranty

5
©2004 Directed Electronics, Inc.
Transmitter Functions
This system is programmable, making it possible to assign any trans-
mitter button to any specific receiver function. The remote initially
comes programmed with Standard Configuration, but may also be
customized by an authorized dealer. The buttons in all of the instruc-
tions in this manual correspond to a Standard Configuration remote.
Button
The arm/disarm/panic functions are usually controlled by .
Button
An optional accessory function (such as trunk release), remote-
controlled silent arm/disarm, and remote-controlled Valet®are
usually controlled by . (Silent arm/disarm and remote-
controlled Valet work by pressing for less than one second. An
optional accessory can be controlled by pressing and holding
for 1.5 seconds.)
This accessory output controls ____________________________.
Button
A user-assigned convenience or expansion option that you have
added to your system can be activated by pressing .
This accessory output controls_____________________________.
Standard Configuration

6©2004 Directed Electronics, Inc.
Using Your System
The transmitter buttons indicated in this manual correspond to a
standard configuration transmitter, unless otherwise specified.
You can arm the security system by pressing for one second.
When the system arms, you will hear a short siren sound (chirp)
and the parking lights will flash once. If the power door locks are
controlled by the system, the doors will also lock. Once armed, the
LED system status indicator will flash once per second to indicate
that the system is actively protecting your vehicle. If you hear a
second chirp after arming and notice that the LED system status
indicator is flashing in a grouped pattern, this signals Bypass
Notification. Bypass Notification is described in detail in the
Diagnostics section of this manual.
Your security system can also be programmed for Passive Arming.
With Passive Arming, the system automatically arms itself 30 sec-
onds after the ignition has been turned off and the last door has
been closed. During the 30-second Passive Arming countdown, the
LED system status indicator will flash twice as fast as it does when
the system is armed. If the system is programmed for Passive
Arming, care must be taken to prevent the keys from being locked
in the vehicle.
NOTE: If any protected entry point, such as a door or switch-protected
trunk or hood, is open, Passive Arming will not engage. Additionally, each
Arming

7
©2004 Directed Electronics, Inc.
time a sensor is triggered during the Passive Arming countdown, the
countdown starts over.
Arming your security system protects your vehicle to the following
degrees:
■Light impacts trigger a warn-away response, causing the siren
to chirp and the parking lights to flash for a few seconds.
■Heavy impacts trip a trigger sequence, which consists of the
siren sounding continuously and the parking lights flashing
for 30 seconds.
■If a door is opened, the siren immediately starts chirping and
the parking lights start flashing to provide an instant
response. Three seconds later, the siren output changes to a
continuous blast. This two-stage progressive response allows
you time to disarm the security system with your remote
transmitter, in case the door is inadvertently opened while
the system is armed.
■Turning on the ignition key triggers the same two-stage pro-
gressive response as opening a door.
■The fault-proof starter interrupt prevents the vehicle’s starter
from cranking.
Press to disarm the security system when it is already armed.
If the power locks are controlled by the system, the doors will also
unlock. Disarming is confirmed when the parking lights flash twice
and the siren emits two chirps. The LED system status indicator will
also stop flashing. The siren chirping either four or five times when
Disarming

8©2004 Directed Electronics, Inc.
disarming indicates Tamper Alert, which is described in the
Diagnostics section of this guide.
If your transmitter is lost or damaged, you can manually disarm
your vehicle security system. To disarm the system without a trans-
mitter, you must have the vehicle's ignition key and know where
the Valet switch is located. Be sure to check with your installer at
the time of installation for the location of the Valet switch.

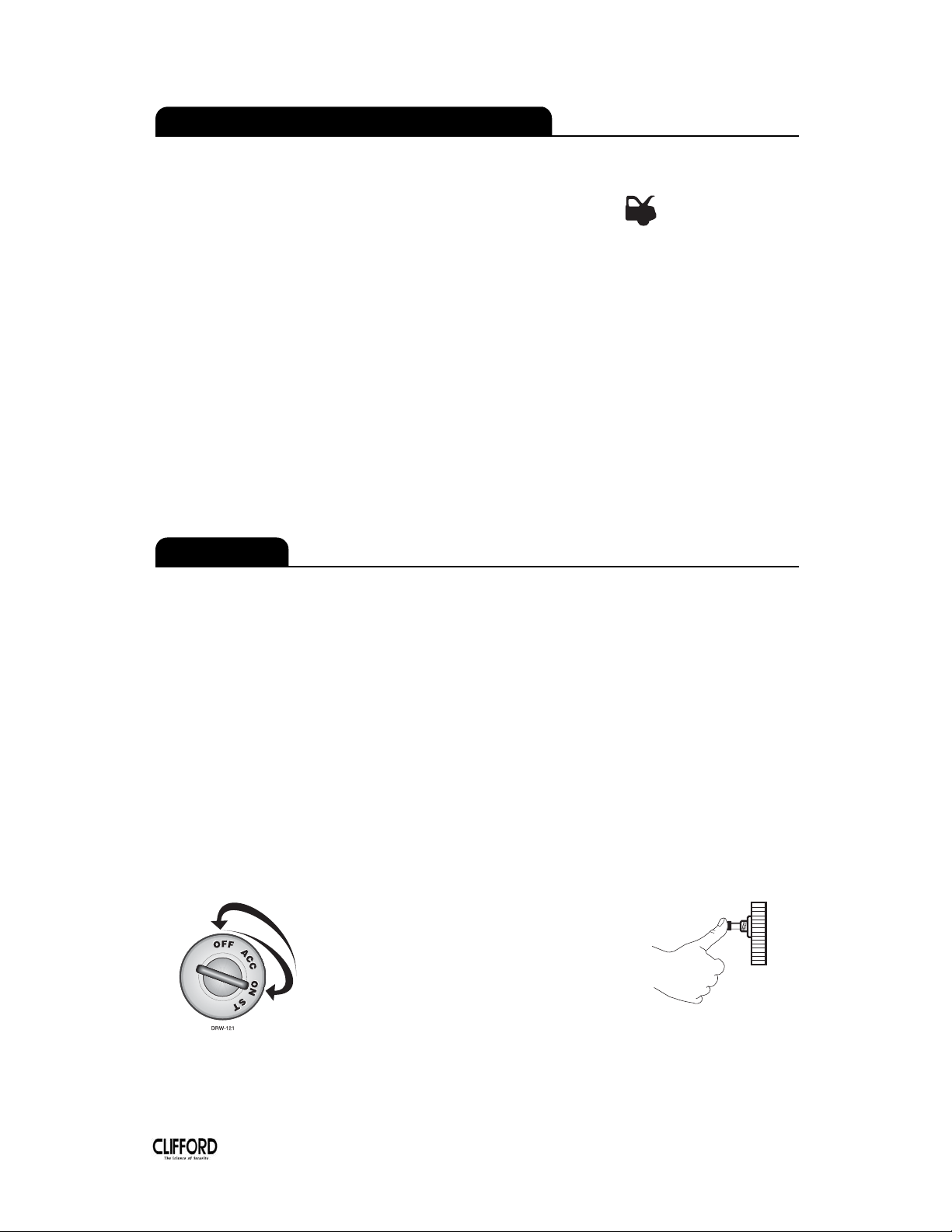

To disarm the security system,
turn the ignition key on and
press the Valet switch within 15
seconds. The system should
now disarm. If the system does not disarm, you may have waited
too long to press the Valet switch; turn the ignition off and repeat
the process.
Location of Valet Switch_________________________________
If you are threatened in or near your vehicle, you can press
for 1.5 seconds to trigger Panic Mode on your security system and
attract attention. The siren will sound and the parking lights will
flash for 30 seconds. To stop the Panic Mode at any time, press
again.
Panic Mode
DRW-35
Disarming Without a Transmitter

9
©2004 Directed Electronics, Inc.
Use remote-controlled silent arm/disarm to temporarily turn off
the arm or disarm chirps by briefly pressing before either
arming or disarming. The confirmation chirp(s) will then be elimi-
nated for that one operation only. To permanently turn off the arm
and disarm chirps, contact your installation dealer.
NOTE: The warn-away response to lighter impacts is bypassed if the
system is armed using remote-controlled silent arm/disarm. This ensures
that the siren does not chirp in an environment where you do not want
chirps to be emitted. The system is still capable of being triggered by
heavier impacts; only the warn-away response generated by light impacts
is bypassed.
Valet Mode prevents your security system from arming and trigger-
ing either automatically or with the remote transmitter. In Valet
Mode, the system will not arm, but all convenience functions (door
locks, trunk release, etc.) remain operational. This feature is use-
ful when washing or servicing your vehicle. You can access Valet
Mode either manually or from the remote transmitter.
To enter or exit Valet Mode with the Valet switch:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the
Valet switch within 10
seconds.
The LED system status indicator will light solidly if you are
DRW-35
Valet Mode
Remote-Controlled Silent Arm/Disarm

10 ©2004 Directed Electronics, Inc.
entering Valet Mode and will turn off if you are exiting Valet Mode.
You can also enter or exit Valet Mode by using the remote
transmitter:
1. Open any vehicle door.
2. Press .
3. Press .
4. Press again.
The LED system status indicator will light solidly if you have
entered Valet Mode and will turn off if you have exited Valet Mode.
Your security system has Nuisance Prevention Circuitry™(NPC™) to
prevent annoying false alarms. This circuitry is designed to prevent
repetitive trigger sequences due to faulty door pinswitches or envi-
ronmental conditions such as thunder, jackhammers, airport
noise, etc.
Here's how it works: If the alarm is triggered by the same sensor
or switch three times within a 60 minute period, your system inter-
prets this pattern of triggers as false alarms. After the third trig-
ger, the NPC™ignores, or bypasses, that sensor or switch (along
with any other sensors or switches sharing the same zone) for 60
minutes. If the bypassed sensor is triggered again while it is
already being bypassed, the 60-minute bypass period will start
Nuisance Prevention®Circuitry
Remote-Controlled Valet

11
©2004 Directed Electronics, Inc.
over. This ensures that a sensor that is continually being triggered
will remain bypassed.
The vehicle doors are protected differently by NPC™. If your secu-
rity system is triggered by an open door for three, full 30-second
cycles (one and one half minutes), the system will bypass the
doors until the trigger ceases.
NOTE: Arming and disarming the system does not reset the NPC™. The
only ways to reset a bypassed zone are for that zone not to be triggered
for 60 minutes or to turn the ignition key on. When testing your system,
it is important to remember that NPC™ can cause zones to be bypassed
and appear to not work. If five chirps are heard when disarming the sys-
tem, NPC™ has been engaged. To clear the NPC™ memory, simply turn the
ignition key on.
Diagnostics
The microprocessor at the heart of your system has the ability to
constantly monitor all of the switches and sensors connected to it.
It can detect any faulty switches or sensors and prevent them from
disabling the entire system. It can also record and report any trig-
gers that occur when you are away from your vehicle.
If the system is armed at the same time that an input is active
(door opening, sensor triggering, etc.), you will hear one chirp to
indicate arming and a second chirp a few seconds later to indicate
Bypass Notification. A Bypass Notification chirp means that the
Arming Diagnostics

12 ©2004 Directed Electronics, Inc.
system ignores the input that was active when the system was
armed, until that input ceases. Three seconds after that input
ceases, the system will resume normal monitoring. For example, if
your vehicle has an interior light exit delay and you arm the sys-
tem before the light turns off, you may hear a Bypass Notification
chirp. Three seconds after the light turns off, however, normal
monitoring resumes.
NOTE: Bypass Notification does not occur when the system is in remote-
controlled silent arm/disarm mode or if the chirps have been programmed
not to sound.
Your system has a Tamper Alert feature that notifies you of system
triggers that occur while you are away from your vehicle. If you
hear four chirps when you disarm, this indicates that the system
was triggered in your absence. If you hear five chirps when you
disarm, this indicates that a specific zone was triggered so many
times that the NPC™has bypassed that zone. In both cases, the
pattern of the flashing LED system status indicator indicates which
zone was triggered (see Table of Zones). The LED does not, howev-
er, report when warn-away responses have activated; it only
reports triggered sequences. The system retains this information in
its memory and will continue to chirp four or five times each time
the system is disarmed, until the next time the ignition is turned on.
A zone is represented by the number of LED flashes used by the
system to identify a particular type of input. Standard input assign-
Table of Zones
Disarming Diagnostics

13
©2004 Directed Electronics, Inc.
ments are listed in the following table, along with spaces to write
in any optional sensors or switches that you have had installed.
ZONE
(Number of DEALER-INSTALLED
LED Flashes) DESCRIPTION OPTIONS
1Instant trigger for optional sensor,
hood or trunk pins
2A heavier impact detected by
the on-board impact sensor
3Door switch trigger
5Ignition trigger
NOTE: The LED does not report when the warn-away response has been
activated; it only reports triggered sequences.
Stealth Coding™
Technology
The receiver and transmitter use mathematical formulas called
algorithms to change their codes each time the transmitter is used.
This Stealth Coding™Technology has been developed to increase
the security of the unit. By following this set code sequence, the
receiver and transmitter stay synchronized, even if the transmitter
is used out of range of the vehicle. If, however, the transmitter is
pressed many times out of range, or the battery is removed, the
transmitter may get temporarily out of sync and fail to operate the
system. To resynchronize the transmitter, simply press

14 ©2004 Directed Electronics, Inc.
several times within range of the vehicle. The system will auto-
matically resynchronize and the transmitter will respond normally.
High Frequency
Your system transmits and receives at 434 MHz. This provides a
cleaner spectrum with less interference and a more stable signal.
Enjoy a phenomenal increase in range, even in areas with high
radio interference.
Programming Options
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require installation labor.
This system's programming options are listed below, with the fac-
tory default settings in bold:
■Active arming (only with the transmitter) or passive arming
(automatic arming 30 seconds after the last vehicle door is
closed).
■Active door locking (only when arming with the transmitter)
or passive door locking (selectable only when Passive Arming
has been programmed).
■Arming and disarming confirmation siren chirps can be pro-
