AM1 Security System
installation guide

trademarks and copyrights
Bitwriter®, Clifford®, Code-Hopping®, Directed®, Doubleguard®, ESP®, FailSafe®, Ghost Switch®, Learn Routine™,
Nite-Lite®, Nuisance Prevention®, NPC®, Revenger®, Silent Mode™, Soft Chirp®, Stealth Coding™, Stinger®,
Valet®, Vehicle Recovery System™, VRS™, and Warn Away®are all Trademarks or Registered Trademarks of
Directed Electronics, Inc.
NNOOTTEE::This product is intended for installation by a professional installer only! Any
attempt to install this product by any person other than a trained professional may
result in severe damage to a vehicle’s electrical system and components.

© 2005 directed electronics, inc. i
contents
what is included . . . . . . . . . . . . . . . .3
control module . . . . . . . . . . . . . . . .3
installation points to remember . . .3
before beginning the installation: 4
after the install: . . . . . . . . . . . . . .4
tools required . . . . . . . . . . . . . . . . .4
deciding on component location . .5
control module . . . . . . . . . . . . . .5
integrated LED/Valet® switch . . . .6
starter kill relay . . . . . . . . . . . . . .6
connecting your wires . . . . . . . . . . .6
obtaining constant 12V . . . . . . . .6
finding the 12V switched . . . . . . .
ignition wire . . . . . . . . . . . . . . . .7
finding the door pin switch circuit 9
main harness wire . . . . . . . . . . . . . .
connection guide . . . . . . . . . . . . . .10
main harness wiring diagram . . .10
main harness wiring guide . . . . .10
auxiliary harness wire . . . . . . . . . . . .
connection guide . . . . . . . . . . . . . .15
auxiliary harness wiring diagram 15
auxiliary harness wiring guide . .15
keyless entry systems . . . . . . . . . . .
—three types . . . . . . . . . . . . . . .17
door lock harness wire . . . . . . . . . . .
connection guide . . . . . . . . . . . . . .20
plug-in harnesses . . . . . . . . . . . . . .20
integrated LED/Valet®switch . . .20
data port—Bitwriter®. . . . . . . . .20
four-pin optional sensor harness .21
RED wire . . . . . . . . . . . . . . . . . .21
BLACK wire . . . . . . . . . . . . . . . .21
BLUE, GREEN wires . . . . . . . . . .21
dealer master control loop . . . . . .21
door lock learn routine . . . . . . . . .21
to learn lock: . . . . . . . . . . . . . . .22
to learn unlock: . . . . . . . . . . . . .22
to exit the learn routine: . . . . . .23
on-board dual stage shock sensor 23
internal programming jumper . . .24
zones . . . . . . . . . . . . . . . . . . . . . . . .24
long term event history . . . . . . . .25
rapid resume logic . . . . . . . . . . . . .25
feature programming . . . . . . . . . .26
to enter feature programming . . .
routine . . . . . . . . . . . . . . . . . . . .26
once a feature is programmed . .27
accessing another feature . . . . .27
accessing another menu . . . . . .27
exiting feature programming . . .27
Bitwriter®ONLY features . . . . . .28
features #1 menu . . . . . . . . . . .29
features #2 menu . . . . . . . . . . .30
master dealer remotes . . . . . . . . .31
master dealer remote learn . . . . . .
routine . . . . . . . . . . . . . . . . . . . .31
troubleshooting . . . . . . . . . . . . . . .33
wiring quick reference guide . . . .37

ii © 2005 directed electronics, inc.

© 2005 directed electronics, inc. 3
what is included
zControl module z4-pin sensor harness
z12-pin main harness zIntegrated LED/Valet switch
z7-pin door monitor/Aux harness z3-pin door lock harness

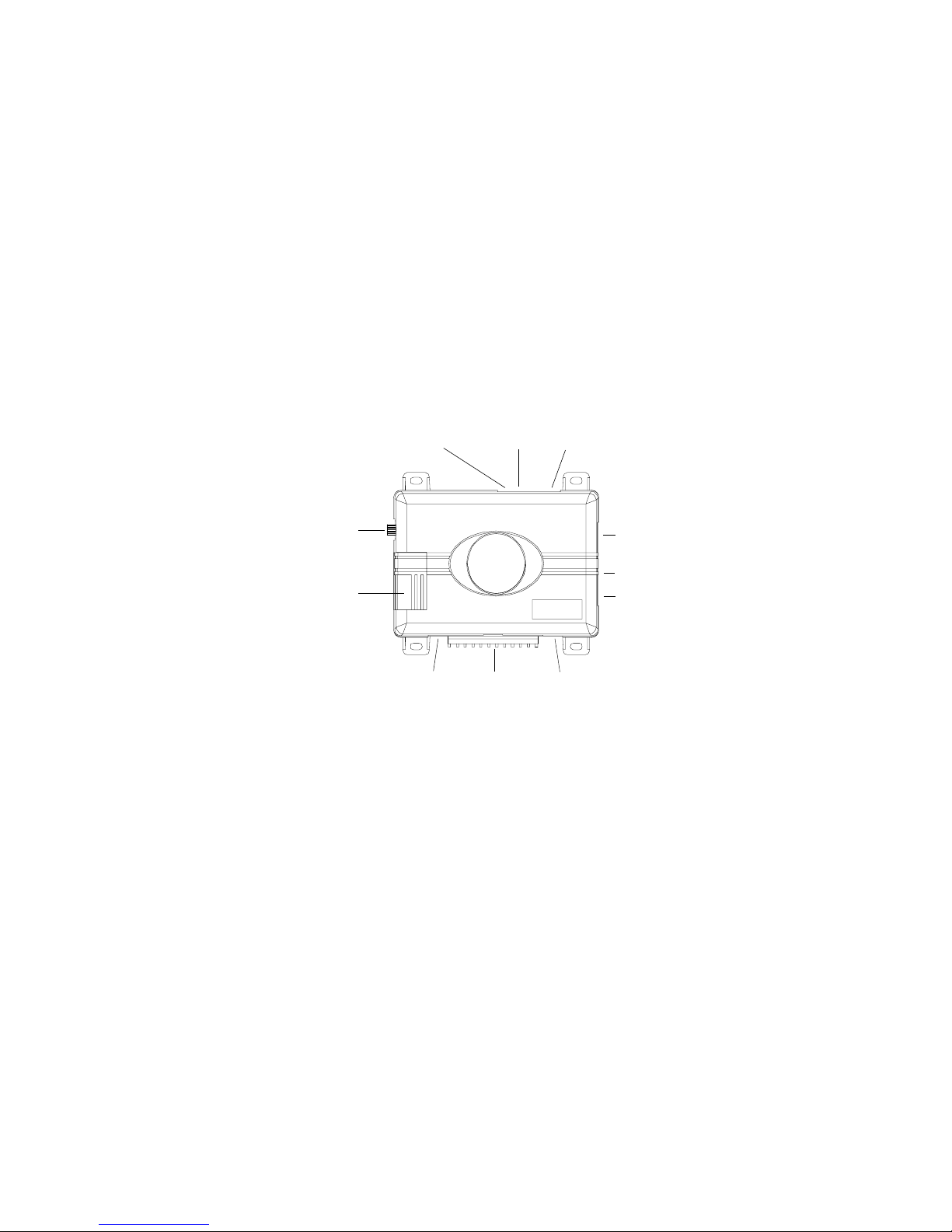

control module
installation points to remember
This product represents many years of research and development. It is very sophisti-
cated and should be installed by experienced security installers only. Please do not
attempt installation of this product without reading this guide. The system has been de-
signed to provide the ultimate in security, coupled with limitless convenience and ex-
pansion options.
This product is not intended for consumer installation and will have NO WARRANTY
unless it is installed by an authorized dealer.
BITWRITER ®
DEALER
MASTER
CONTROL
LOOP
OPTIONAL
RECEIVER
(NOT USED)
SHOCK SENSOR
ADJUSTMENT
12-PIN
MAIN
HARNESS
VALET
®
(INTEGRATED
LED/VALET
SWITCH)
OPTIONAL
SENSOR
INPUT
(506T OR 504D)
7-PIN DOOR MONITOR/
AUX HARNESS
DOOR LOCK
LED (INTEGRATED LED/
VALET ® SWITCH)
10-AMP
FUSE/JUMPER
ACCESS

4© 2005 directed electronics, inc.
Do not disconnect the battery if the vehicle has an anti-theft coded radio. If equipped
with an airbag, avoid disconnecting the battery if possible.
IIMMPPOORRTTAANNTT!!Please read this entire installation guide before beginning the installa-
tion. The installation of this security system requires interfacing with many of the vehi-
cle’s systems. Many new vehicles use low-voltage or multiplexed systems which can
be damaged by low resistance testing devices, such as test lights or logic probes. Test
all circuits with a high-quality digital multi-meter before making the connections.
IMMPPOORRTTAANNTT!!Many airbag systems will display a diagnostic code through their warn-
ing light after they lose power. Disconnecting the battery requires this code to be
erased, a procedure that can require a trip to the dealer.
before beginning the installation:
zCheck with the customer to determine the integrated LED/Valet switch location.
zRemove the domelight fuse. This prevents accidentally draining the battery.
zRoll down a window to avoid being locked out of the car.
after the install:
zTest all functions. The “Using Your System” section of the Owner’s Guide is very
helpful when testing.
zWhen testing, don’t forget that this system is equipped with Nuisance Prevention®Circuitry.
NPC™can bypass both sensor zones, making them seem to stop working.
zCarefully reassemble the under-dash trim panels.
zInspect the engine compartment for tools that may have been left behind.
tools required
This is a general list of tools required to complete the installation of this security sys-
tem in most vehicles. Some vehicles may require additional tools.
zDigital multi-meter zNutdriver and/or socket set
zWire cutters/strippers zPanel removal tool

© 2005 directed electronics, inc. 5
zSolderless terminal crimpers zDrill bit set
zCordless power drill zPhillips head screwdriver
zTorx driver set zWork light
deciding on component location
control module
Never put the control module in the engine compartment!
The first step in hot-wiring a vehicle is removing the driver's side underdash panel to
access the starter and ignition wires. If the control module is placed just behind the
driver's side dash it can easily be disconnected.
When locating the control module, try to find a secure location that will not require
you to extend the harnesses’ wires (they are 1.5 meters long). Keep it away from the
heater core (or any other heat sources) and any obvious leaks.

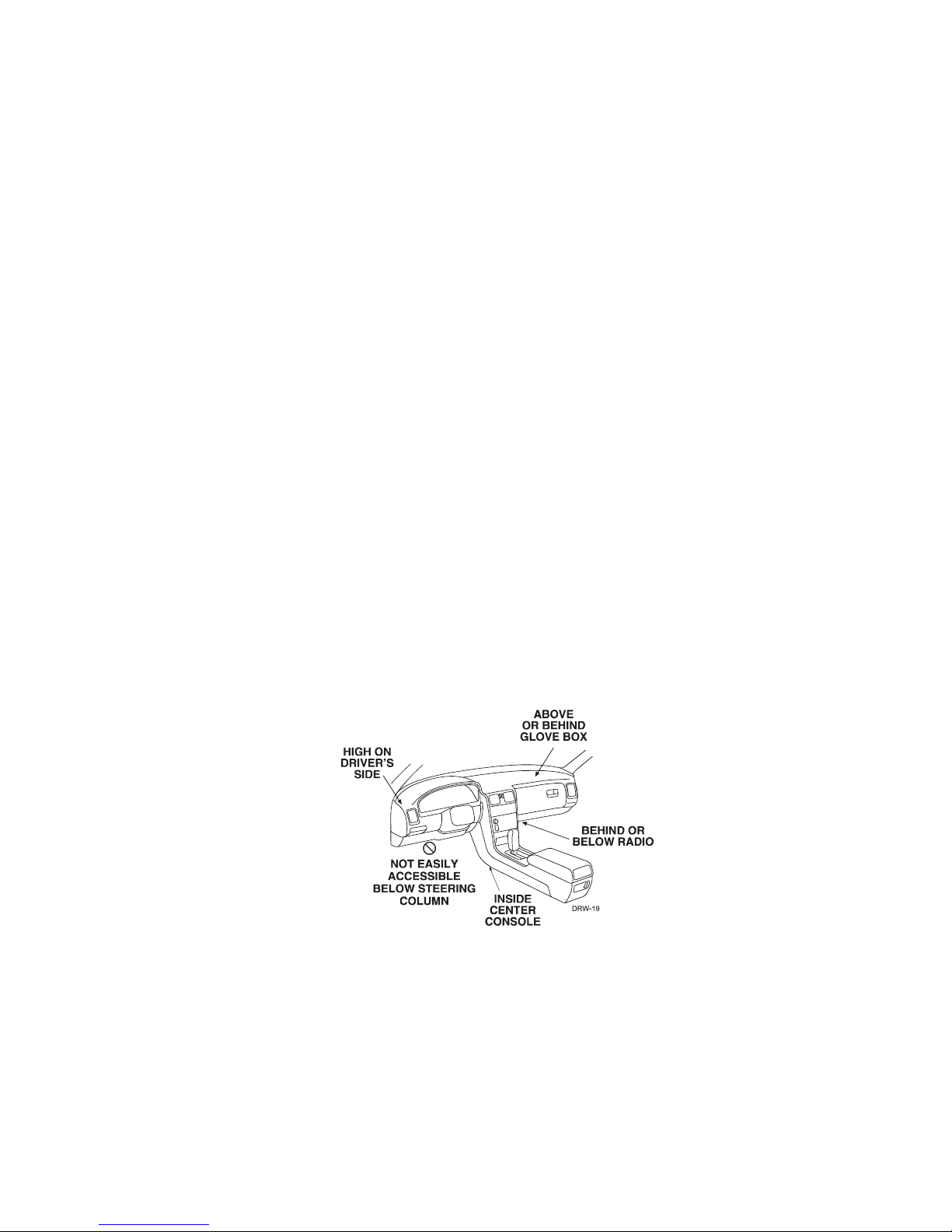

Some good control module locations: Above the glove box, inside the center console,
above the underdash fuse box, above the radio, etc.

6© 2005 directed electronics, inc.
integrated LED/Valet®switch
Things to remember when positioning the integrated LED/Valet®switch:
• It should be visible from both sides and the
rear of the vehicle, if possible.
• It needs at least 1-1/2" clearance to the rear.
• It is easiest to use a small removable panel,
such as a switch blank or a dash bezel.
Remove it before drilling your 5/16" hole.
IIMMPPOORRTTAANNTT!!Do NNOOTTuse a step drill bit (unibit) for drilling the 5/16” hole. It is rec-
ommended to use a 5/16” drill bit. Use care to ensure the hole is drilled straight.
Drilling at an angle can cause product malfunction.
starter kill relay

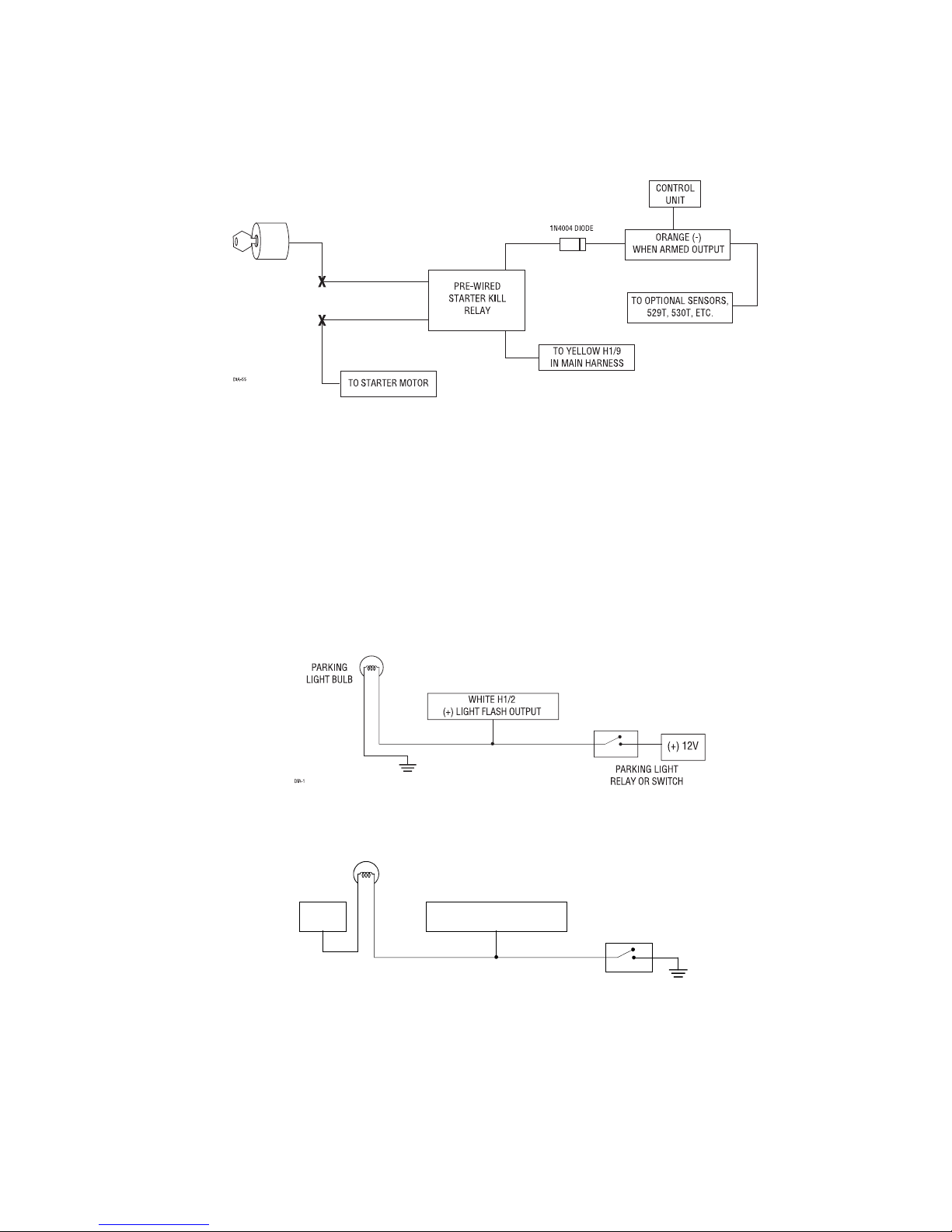

If the Starter Kill Relay or it’s connections are immediately visible upon removal of the
underdash panel, they can easily be bypassed. Always make the relay and its con-
nections difficult to discern from the factory wiring! Exposed yellow butt connectors do
not look like factory parts, and will not fool anyone! For this reason, routing the starter
kill wires away from the steering column is recommended.
connecting your wires
Now that you have decided where each component will be located, you’re going to
find the wires in the car that the security system will be connected to.
IIMMPPOORRTTAANNTT!!Do not use a 12V test light to find these wires! All testing described in
this manual is described using a digital multimeter.
obtaining constant 12V
We recommend two possible sources for 12V constant: The (+) terminal of the battery,
or the constant supply to the ignition switch. AAllwwaayyssiinnssttaallllaaffuusseewwiitthhiinn1122iinncchheessooff
tthhiissccoonnnneeccttiioonn..

© 2005 directed electronics, inc. 7
IIMMPPOORRTTAANNTT!!Do not remove the fuse holder on the red (H1/11) wire. It ensures that
the control module has it’s own fuse, of the proper value, regardless of how many
accessories are added to the main power feed.
finding the 12V switched ignition wire
The ignition wire is powered when the key is in the run or start position. This is
because the ignition wire powers the ignition system (spark plugs, coil) as well as the
fuel delivery system (fuel pump, fuel injection computer). Accessory wires, on the other
hand, lose power when the key is in the start position to make more current available
to the starter motor. Use the following procedure to find (+)12V with your multimeter.
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the ignition wire.
The steering column harness or ignition switch harness is
an excellent place to find this wire.
4. Turn the ignition key switch to the run position. If your
meter reads (+)12V, go to the next step. If it doesn’t, probe
another wire.
5. Now turn the key to the start position. The meter dis-
play should stay steady, not dropping by more than a few
tenths of a volt. If it drops close to or all the way to zero,
go back to step 3. If it stays steady at (+)12V, you have
found an ignition wire.

8© 2005 directed electronics, inc.
finding a parking light wire

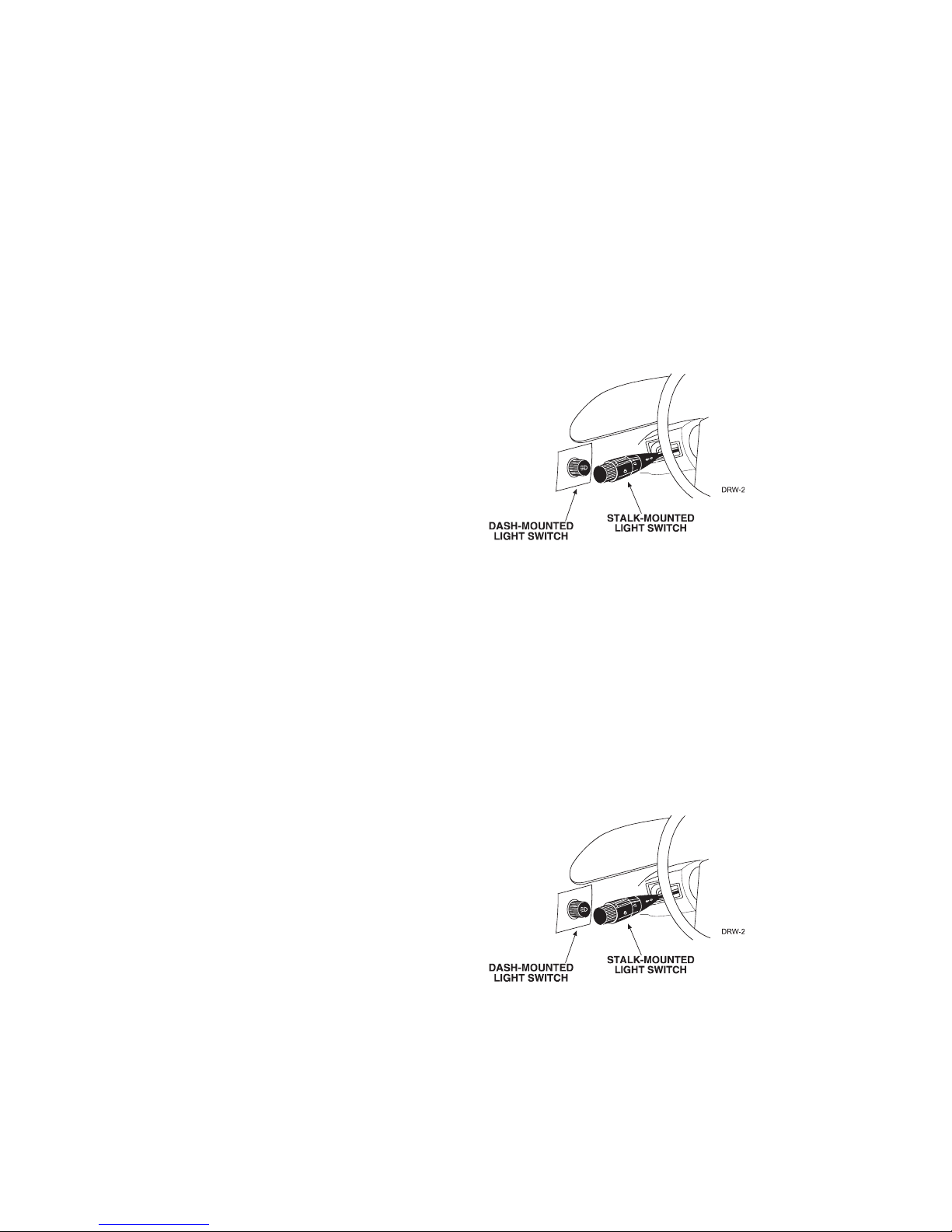

The parking light wire is often found near the switch. Many cars have the switch built
into the turn signal lever, and in these cars the parking light wire can be found in the
steering column. The same wire is often available in the kick panel or running board.
(+) parking light wire
Use the following procedure to find (+) parking light wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V
is fine).
2. Attach the (-) probe of the meter to
chassis ground.
3. Probe the wire you suspect of being the
parking light wire. Usually, the area
near the headlight/parking light switch
is an excellent area to start, as is the
kick panel.
4. Turn on the parking lights. If your meter shows (+)12V, turn off the parking lights
and make sure it goes back to zero.
5. If it does return to zero, turn the parking lights back on and, using the dash light
dimmer control, turn the brightness of the dash lights up and down. If the meter
changes more than a volt when using the dimmer, look for another wire. If it
stays relatively close to (+)12V, you have found your parking light wire.
(-) parking light wire
Use the following procedure to find (-) parking light wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V
is fine).
2. Attach the (+) probe of the meter to
+12V.
3. Probe the wire you suspect of being the
parking light wire. Usually, the area
near the headlight/parking light switch
is an excellent area to start, as is the
kick panel.

© 2005 directed electronics, inc. 9
4. Turn on the parking lights. If your meter shows (+)12V, turn off the parking lights
and make sure it goes back to zero.
5. If it does return to zero, turn the parking lights back on and, using the dash light
dimmer control, turn the brightness of the dash lights up and down. If the meter
changes more than a volt when using the dimmer, look for another wire. If it
stays relatively close to (+)12V, you have found your parking light wire.
finding the door pin switch circuit
The best places to find the door switch wire are:
At the pin switch: When testing at the pin switch, check the wire to ensure that it “sees”
all the doors. Often, the passenger switch will cover all the doors even if the driver’s
switch will not.
At the dome light: This may not be your best choice if the vehicle has delayed domelight
supervision, but it will work in vehicles with completely diode-isolated pin switches.
Often the door switch wires, described above, can also be found in the windshield pil-
lars, running boards or kick plates.
Use the following procedure to find the door pin switch wire with your multimeter.
1. Set to DCV or DC voltage (12V or 20V is fine).
2. In most cars, fasten the (+) probe of your meter to (+)12V constant.
3. Probe the wire you suspect of being the door trigger wire. If the meter reads
(+)12V when any door is opened and the meter goes to 0 with the door closed,
you have found a trigger wire.
NNOOTTEE: Make sure the wire you use “sees” all the doors! Some newer vehicles lack
standard-type pinswitches. The dome light in these vehicles is turned on when the door
handle is lifted. These usually have a wire coming out of the door into the kick panel
which will provide a (-) trigger for all doors.

10 © 2005 directed electronics, inc.
main harness wire connection guide
main harness wiring diagram
___
___
___
___
___
___
___
___
___
___
___
___
main harness wiring guide
HH11//11OORRAANNGGEE((--))550000mmAAggrroouunndd--wwhheenn--aarrmmeeddoouuttppuutt::This wire supplies a (-)
ground as long as the system is armed. This output ceases as soon as the system is
disarmed. This wire controls operation of the pre-wired starter kill relay and can be
used to control other optional accessories.
NNOOTTEE::If connecting the orange wire to control another module, such as a 529T or
530T window controller, a 1 amp diode (type 1N4004) will be required. Insert the
diode as shown below.
RED/WHITE (-) 200mA Auxiliary Channel/Delayed Accessory Output
RED (+) 12V Constant Power Input
BROWN (+) Siren Output
YELLOW (+) Ignition Input
BLACK (-) Chassis Ground Input
VIOLET (+) Door Trigger Input
BLUE (-) Instant Trigger (Hood and Trunk Pin)
GREEN (-) Door Trigger Input
BLACK/WHITE (-) 200mA Domelight Supervision Output
WHITE/BLUE No Function
WHITE (+)/(-) Light Flash Output
ORANGE (-) 500mA Ground When Armed
H1/1
H1/2
H1/3
H1/4
H1/5
H1/6
H1/7
H1/8
H1/9
H1/10
H1/11
H1/12

© 2005 directed electronics, inc. 11
IIMMPPOORRTTAANNTT!!Never interrupt any wire other than the starter wire.
HH11//22WWHHIITTEElliigghhttffllaasshhoouuttppuutt::As shipped, this wire should be connected to the (+)
parking light wire. It will supply a (+) 10A output. If the light flash polarity fuse jumper
inside the unit is moved to the opposite position (see Internal Jumpers), this wire sup-
plies a (-) 10A output. This is suitable for driving (-)parking light wires.
LIGHT BULB
PARKING LIGHT
RELAY OR SWITCH
(+) 12V WHITE H1/2
(-) LIGHT FLASH OUTPUT

12 © 2005 directed electronics, inc.
HH11//33WWHHIITTEE//BBLLUUEEnnooffuunnccttiioonn..
HH11//44BBLLAACCKK//WWHHIITTEE((--))220000mmAAddoommeelliigghhtt--ssuuppeerrvviissiioonnoouuttppuutt::Connect this wire to
the optional domelight supervision relay.
IIMMPPOORRTTAANNTT!!This output is only intended to drive a relay. It cannot be connected
directly to the domelight circuit, as the output cannot support the current draw of one
or more bulbs.
HH11//55GGRREEEENN((--))ddoooorrttrriiggggeerriinnppuutt: Most vehicles use negative door trigger circuits.
Connect the green wire to a wire which shows ground when any door is opened. In
vehicles with factory delays on the domelight circuit, there is usually a wire that is
unaffected by the delay circuitry.

© 2005 directed electronics, inc. 13
HH11//66BBLLUUEE((--))iinnssttaannttttrriiggggeerr::This input will respond to a negative input with an
instant trigger. It is ideal for hood and trunk pins and will report on zone one.

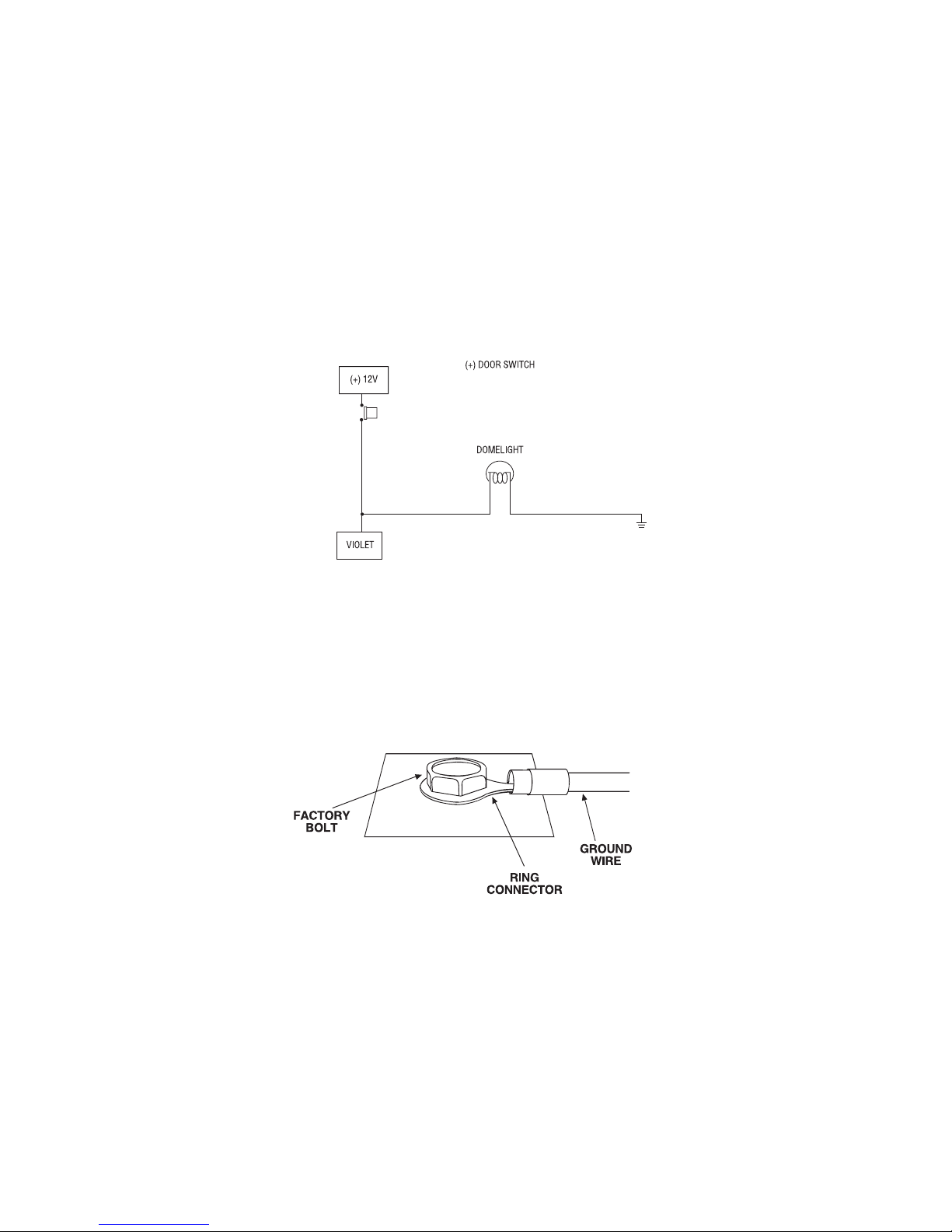

HH11//77VVIIOOLLEETT((++))ddoooorrttrriiggggeerriinnppuutt::This wire is used in vehicles that have a positive
(+) switched dome light circuit . Connect the violet wire to a wire that shows (+)12V
when any door is opened, and ground when the door is closed.
HH11//88BBLLAACCKK((--))cchhaassssiissggrroouunnddccoonnnneeccttiioonn::Connect this wire to bare metal,
preferably with a factory bolt rather than your own screw. Screws tend to either
strip or loosen with time. All components, should be grounded to the same point
in the vehicle if possible.
HH11//99YYEELLLLOOWW((++))iiggnniittiioonniinnppuutt::Connect this wire to the (+)12V ignition wire. This
wire must show (+)12V with the key in Run position and during cranking. Take care
to insure that this wire cannot be shorted to the vehicle chassis at any point.

14 © 2005 directed electronics, inc.
HH11//1100BBRROOWWNN((++))ssiirreennoouuttppuutt::This output can be used if an optional siren is
installed. Connect this to the RED wire of the siren. Connect the BLACK wire of the
siren to (-) chassis ground, preferably at the same point as the control module’s BLACK
ground wire.
HH11//1111RREEDD((++))1122VVccoonnssttaannttppoowweerriinnppuutt::Before connecting this wire, remove the
supplied fuse. Connect to the battery positive terminal or the constant 12V supply to
the ignition switch.
NNOOTTEE::Always use a fuse within 12 inches of the point you obtain (+)12V. Do not
use the 15A fuse in the harness for this purpose. This fuse protects the module itself.
HH11//1122RREEDD//WWHHIITTEE((--))220000mmAAaauuxxiilliiaarryycchhaannnneell//ddeellaayyeeddaacccceessssoorryyoouuttppuutt::If pro-
grammed for an auxiliary output, this wire will provide a (-) pulse when the lock but-
ton on the factory transmitter is pressed twice within three seconds. This output can be
used to control optional accessories. If programmed for delayed accessory output, this
wire will provide (-) ground when the ignition is turned off and will continue to output
(-) ground until a door is opened then closed. This can be used to energize the acces-
sory circuit in the vehicle to keep the radio and other accessories on after the ignition
is turned off.
IIMMPPOORRTTAANNTT!!Never use this wire to drive anything but a relay or a low-current input!
This transistorized output can only supply (-) 200 mA, and connecting directly to a sole-
noid, motor, or other high-current device will cause the module to fail.
NNOOTTEE::Sensors and other triggers can be bypassed if this output is used to open the
vehicle trunk while the alarm is armed. See H2/5 Gray zone shunting for program-
ming and connection descriptions.

© 2005 directed electronics, inc. 15
auxiliary harness wire connection guide
auxiliary harness wiring diagram
___
___
___
___
___
___
___
auxiliary harness wiring guide
HH22//11BBRROOWWNN((--))hhoorrnnhhoonnkkoouuttppuutt::This wire supplies a 200 mA (-) output that can
be used to honk the vehicle’s horn. It provides a pulsed output when the security sys-
tem is armed/disarmed and in the triggered sequence or in panic mode. In most vehi-
cle’s with (-) horn circuits this wire can control the vehicle’s horn without adding a
relay. If the vehicle has a (+) horn circuit, an optional relay must be used to interface
with the vehicle’s horn circuit.
IIMMPPOORRTTAANNTT!!Never use this wire to drive anything but a relay or a low-current input!
This transistorized output can only supply (-) 200 mA, and connecting directly to a sole-
noid, motor, or other high-current device will cause the module to fail.
HH22//22GGRREEEENNffoorraarrmmiinnppuutt::Connect this GREEN wire to a wire that changes state when
the doors are locked using the factory keyless entry transmitter. This wire can accept a
positive (+) or negative (-) input. The vehicle’s power door lock motor wire is ideal.
HH22//33RREEDDddiissaarrmmddeeffeeaattiinnppuutt::This wire is used to prevent the interior door lock
switches from disarming the system. To determine the best location to interface this
wire, first test the operation of the remote keyless entry system. When unlocking the
doors with the factory remote transmitter, does the driver’s door unlock first? Most
YELLOW/BLACK Light Flash Monitor Input
VIOLET/BLACK No Function
GRAY (+) Trunk Release/Sensor Shunt Input
BLUE Disarm Input
RED Disarm Defeat Input
GREEN Arm Input
BROWN (-) Horn Honk Output
H2/1
H2/2
H2/3
H2/4
H2/5
H2/6
H2/7

16 © 2005 directed electronics, inc.
vehicles operate this way. If this is the case connect the RED wire to the passenger
unlock motor wire. When testing this wire be sure that it shows 12V (+) ONLY when
the unlock button on the factory transmitter is pressed the second time to unlock the
passenger doors. If the factory keyless entry system unlocks all of the doors at the
same time, it is recommended that the H2/7 YELLOW/BLACK wire be used for dis-
arm defeat input.
NNOOTTEE::The H2/3 wire connection is not required if using H2/7 YELLOW/BLACK as a
disarm defeat wire.
HH22//44BBLLUUEEddiissaarrmmiinnppuutt::Connect the BLUE wire to a wire that changes state when the
doors are unlocked using the factory keyless entry transmitter. If the factory transmitter
unlocks the driver’s door first, the BLUE wire must be connected to the wire that changes
state when the driver’s door is unlocked by itself. In this case, find the driver’s door
unlock motor wire. In most vehicle’s this wire can be found in the driver’s kick panel.
NNOOTTEE::Some vehicles (some models of the Honda, GM and Ford) have long door
lock pulses. These long pulses may interfere with the disarm function of this system
when unlocking all doors using the factory OEM remote. Use the supplied door unlock
pulse adapter for these vehicles. Refer to the diagram below.
HH22//55GGRRAAYYttrruunnkkrreelleeaassee//sseennssoorrsshhuunnttiinnppuutt::This input is used to bypass the sensor
inputs when the trunk is opened using the factory keyless entry system or trunk release
relay while armed. When the system receives a (+) input on this wire, zones 1, 2 and
4 are bypassed for 3-seconds. If during that 3-seconds, ground is applied to the H1/6

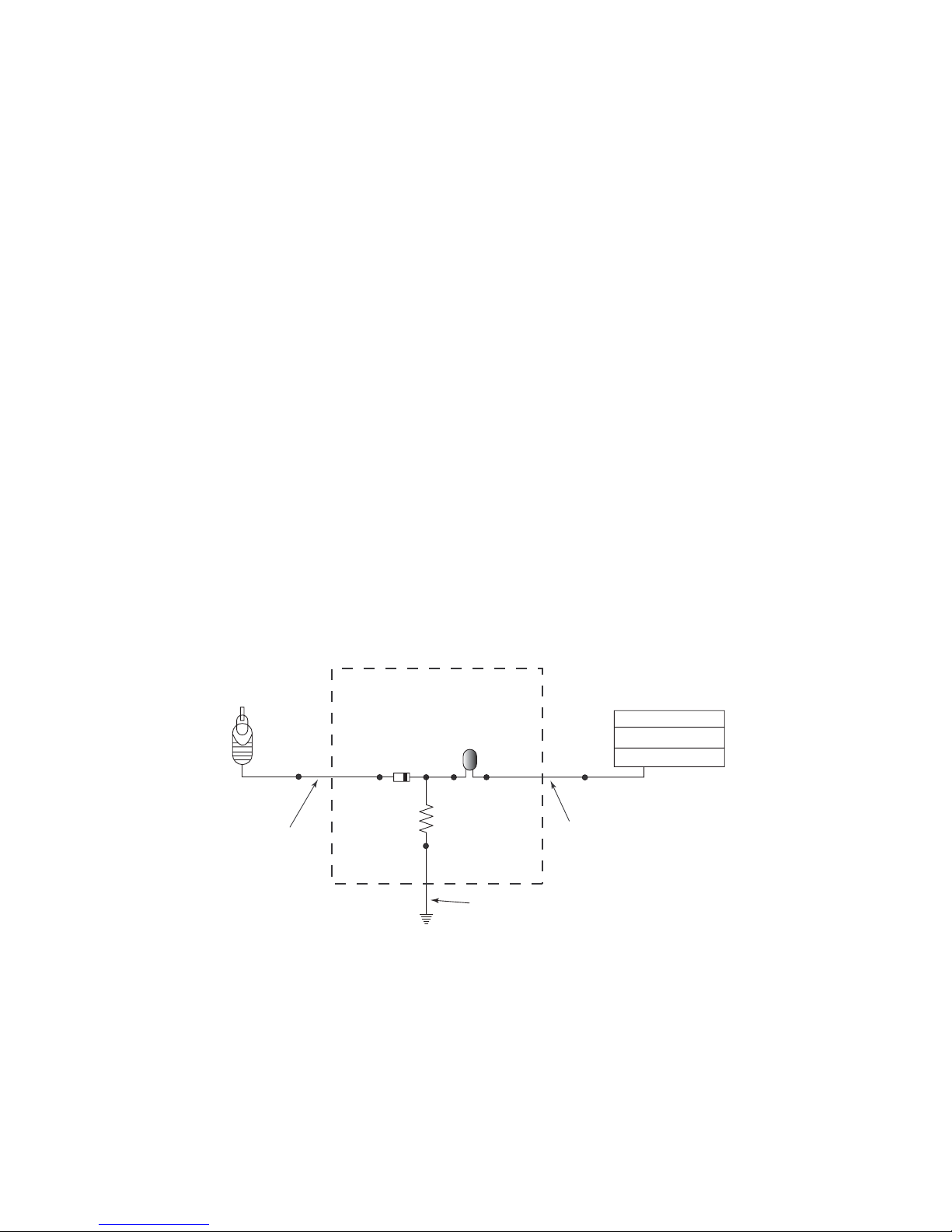

CONTROL MODULE
+ -
0.47 mF
POLARIZED
CAP 25V
OR
HIGHER
UNLOCK MOTOR
WIRE
DIODE
6.2 MΩ
RESISTOR
(BLUE-RED-
GREEN-SILVER
OR GOLD)
BLUE - DISARM WIRE
BLACK/WHITE
WHITE/BLUE
BLUE/WHITE
DOOR UNLOCK
PULSE ADAPTER

© 2005 directed electronics, inc. 17
BLUE wire then the alarm zones are bypassed (See Feature menu 1/8) and will
remain bypassed until the ground input is removed. This means that when the trunk is
open with the factory transmitter the only triggers that remain active while the trunk is
open are the doors and ignition. 3-seconds after the trunk is closed the bypassed
zones again become active.
HH22//66VVIIOOLLEETT//BBLLAACCKKnnooffuunnccttiioonn..
HH22//77YYEELLLLOOWW//BBLLAACCKKlliigghhttffllaasshhmmoonniittoorriinnppuutt::This input monitors the factory sys-
tem light flash output and can be used as a disarm defeat wire. Connect this wire to
the light flash wire that flashes when the factory transmitter is used. This may be a sta-
tus LED, parking lights, reverse lights, etc., depending on the vehicle type and manu-
facturer. This wire can accept a (+) positive or (-) negative input.
kkeeyylleesssseennttrryyssyysstteem
mss——tthhrreeeettyyppeess
There are three main types of keyless entry systems. Systems that unlock the driver’s
door first and have internal relays, systems that unlock the driver’s door first but have
external relays, and systems without driver’s priority door unlock.
factory remote—driver’s door unlock

18 © 2005 directed electronics, inc.
external relays—driver’s door unlock
This system is used in many four-door GM sedans. To test for this type of system, probe
the unlock wire from the interior switch (black or white). Unlock the driver’s door, by
itself, using the factory remote. If the switch wire shows (+) 12V, then use the follow-
ing diagram:
NNOOTTEE::It is often easy to access the passenger unlock wire going to the rear door
motor on the driver’s side.
