DirekTronik 1000Base-T User manual

Gigabit Ethernet Media Converter
Quick Start Guide
This quick start guide describes how to install and use the Gigabit Ethernet media
converter. The converter introduced here provides one channel media conversion
solution.

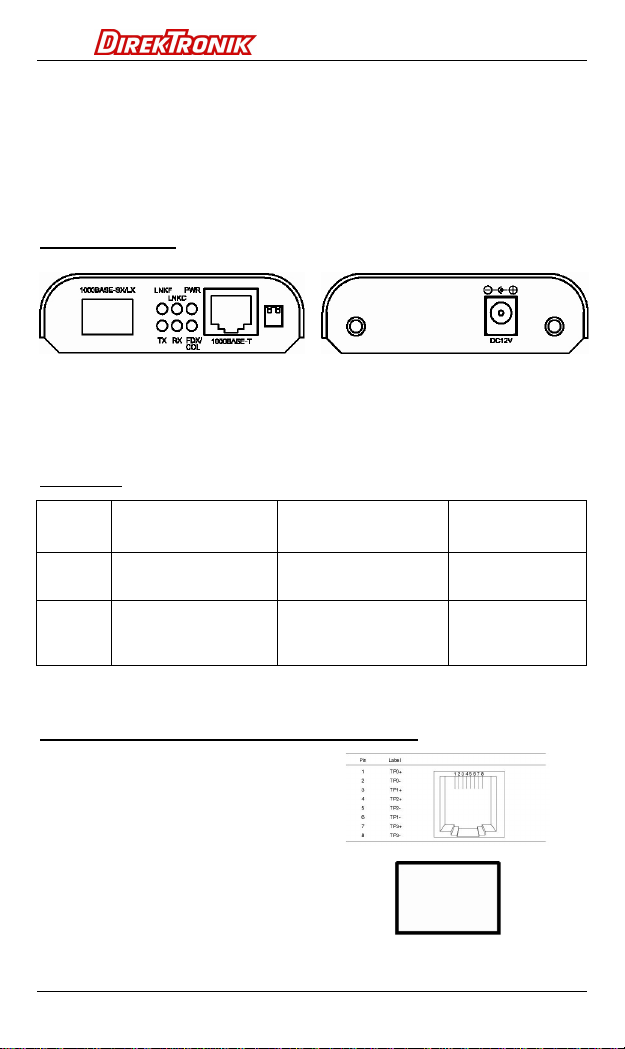

Physical Description
Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied
AC to DC power adaptor to the receptacle on the rear panel of the Gigabit Ethernet
media converter, and then attach the plug into a standard AC outlet with a voltage range
from 100 to 240V AC.
DIP Switch
DIP
switch Up (Default Setting) Down
Left-hand
side The fiber port auto detects duplex mode Force the fiber port to full duplex mode
Right-hand
side Disable LFPT Enable LFPT LFPT:
link-fault-pass-through
function
<Note> Power must be on/off after re-setting LFPT function.
The 1000Base-T and 1000Base-SX/LX Connectors
The 1000Base-T Connections
The following lists the pinouts of
1000Base-T port.
The 1000Base-SX/LX Connections
The SFP socket for Gigabit fiber optic
expansion.
User’sManual 1

Gigabit Ethernet Media Converter

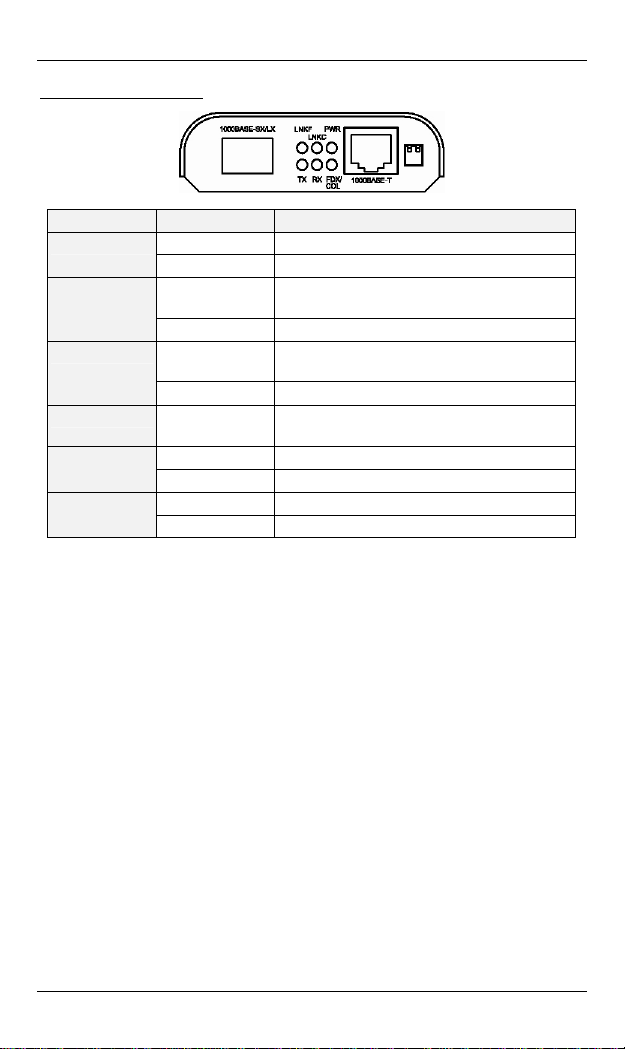

The Port Status LEDs
LEDs State Indication
Steady Power feeding inPower
Off No power
Steady TX port: A valid network connection established
LNKC stands for LINK/Copper
LNKC
Off No connection
Steady FX port: A valid network connection established
LNKF stands for LINK/Fiber
LNKF
Off No connection
FDX/COL Steady Connection in full duplex mode
FDX stands for FULL DUPLEX
Steady Receiving dataRX
Off No reception
Steady Transmitting dataTX
Off No transmission
Functional Description
•DIP switch configuration for “Link-Fault-Pass-Through”, fiber auto/force
mode.
•1000Mbps-Auto/Full-duplex, Auto-Negotiation, Auto-MDI/MDIX.
•SFP socket for Gigabit fiber optic expansion.
•Full wire-speed forwarding rate.
•0.8A 12VDC external universal PSU.
•0 t
o℃45 (℃32℉to 113℉) operating temperature range.
•Aluminum case.
•Supports Wall Mounting installation or use with media converter chassis
system.
2 User’s Manual

Gigabit Ethernet Media Converter
User’sManual 3
FCC Statement
The FCC (Federal Communications Commission) restricts the amount of radio
frequency emission and radiation coming from computer equipment.
The equipment introduced in this manual has been tested and found to comply with
the limits for a Class A digital device pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user is required to correct the interference at his/her
own expense.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.
Trademarks
Product names mentioned in this manual may be trademarks or registered
trademarks of those products.
All trademarks or brand names mentioned are properties of their respective
companies.
Preface
This manual describes how to install and use the Gigabit Ethernet Media Converter.
The Converter introduced here provides one channel media conversion solution:
1000Base-T to 1000Base-SX/LX (multi-mode/single-mode) with
link-fault-pass-through function
1000Base-T to 1000Base-LX (WDM single-mode) with
link-fault-pass-through function
The Gigabit Ethernet Media Converter fully complies with IEEE802.3ab
1000Base-T and IEEE802.3z 1000Base-SX/LX Gigabit Ethernet standards.
In this manual, you will find:
yProduct overview
yFeatures on the media converter
yIllustrative LED functions
yInstallation instructions
ySpecifications

Gigabit Ethernet Media Converter
4 User’s Manual
Table of Contents
QUICK START GUIDE.............................................................................1
PHYSICAL DESCRIPTION...........................................................1
FUNCTIONAL DESCRIPTION.......................................................2
FCC STATEMENT...................................................................................3
TRADEMARKS.........................................................................................3
PREFACE.................................................................................................3
TABLE OF CONTENTS.............................................................................4
INTRODUCTION ......................................................................................5
PRODUCT OVERVIEW...............................................................5
PRODUCT FEATURES ...............................................................6
PACKING LIST .........................................................................7
ONE-CHANNEL MEDIA CONVERTER.....................................................8
PHYSICAL PORTS ....................................................................8
PORT STATUS LEDS...............................................................8
INSTALLATION........................................................................................9
SELECTING A SITE FOR THE EQUIPMENT ....................................9
CONNECTING TO POWER..........................................................9
INSTALLING IN A CHASSIS .........................................................9
SPECIFICATIONS...................................................................................10
ORDERING INFORMATION ...................................................................11
APPENDIX .............................................................................................11

Gigabit Ethernet Media Converter
Introduction
The Gigabit Ethernet Media Converter provides one channel for media conversion
between 1000Base-T and 1000Base-SX/LX with link-fault-pass-through function. It
can be used as a stand-alone device or with a standard 19” chassis as shown below.
Product Overview
Figure 1:
1000Base-T to Gigabit SFP socket Media Converter with link-fault-pass-through function
<NOTE> The chassis is to be ordered separately.
User’sManual 5

Gigabit Ethernet Media Converter
6 User’s Manual
Product Features
yOne-channel media conversion between: 1000Base-T and 1000Base-SX/LX
ySFP socket for Gigabit fiber optic expansion
yFiber media allows either: Multi-mode fiber, Single-mode fiber, or WDM
Single-mode fiber
yFull wire-speed forwarding rate
yFront panel status LEDs
yUsed as a stand-alone device or with a chassis
yHot-swappable when used with a chassis
yMake sure to make a connection to the TX port before make a connection to the
fiber port, a link condition will be sensed on the fiber port whenever the media
converter detects a link condition on the TX port
yThere are two pins on the DIP switch of the 1000Base-T and 1000Base-SX/LX
one-channel media converter:
¾Toggle up the pin on the left-hand side to let the fiber port auto detect
duplex mode.
¾Toggle down the pin on the left-hand side to force the fiber port to full duplex
mode.
¾Toggle up the pin on the right-hand side to disable the
link-fault-pass-through function.
¾Toggle down the pin on the right-hand side to enable the
link-fault-pass-through function.
DIP
switch Up (Default Setting) Down
Left-hand
side The fiber port auto detects duplex mode Force the fiber port to full duplex mode
Right-hand
side Disable LFPT Enable LFPT LFPT:
link-fault-pass-through
function
<Note> Power must be on/off after re-setting LFPT function.
yThe TX port auto detects duplex mode
yThe TX port supports auto MDIX for uplink purpose
<Note> One of the fiber ports should be forced to full duplex mode and the other fiber
port should be set to auto detect duplex mode when two 1000Base-T and
1000Base-SX/LX one-channel media converters are connected to each other via fiber
port.

Gigabit Ethernet Media Converter
User’sManual 7
Packing List
When you unpack this product package, you will find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately
to your authorized reseller.
yThe Media Converter
yUser’s Manual
yAC to DC Power Adaptor

Gigabit Ethernet Media Converter
One-Channel Media Converter
Physical Ports
1000T to 1000SX/LX Media Converter
This converter provides one TX port and one Gigabit SFP socket. For the Gigabit
SFP socket, it provides options of multi-mode, single-mode, or WDM single-mode
fiber. For the TX port, it uses RJ-45 connector and supports auto MDIX for uplink
purpose.
Port Status LEDs
The LED indicators give you instant feedback on status of the converter:
Figure 2:
1000Base-T to Gigabit SFP socket Media Converter with link-fault-pass-through function
LEDs State Indication
Steady Power feeding inPower
Off No power
Steady TX port: A valid network connection established
LNKC stands for LINK/Copper
LNKC
Off No connection
Steady FX port: A valid network connection established
LNKF stands for LINK/Fiber
LNKF
Off No connection
FDX/COL Steady Connection in full duplex mode
FDX stands for FULL DUPLEX
Steady Receiving dataRX
Off No reception
Steady Transmitting dataTX
Off No transmission
8 User’s Manual

Gigabit Ethernet Media Converter
User’sManual 9
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:
yThe ambient temperature should be between 32 and 113 degrees Fahrenheit (0
to 45 degrees Celsius).
yThe relative humidity should be less than 95 percent, non-condensing.
ySurrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
yMake sure that the equipment receives adequate ventilation. Do not block the
ventilation holes of the equipment.
yThe power outlet should be within 1.8 meters of the product.
Connecting to Power
This Converter is a plug-and-play device.
yConnect the supplied AC to DC power adapter to the receptacle at the back of the
converter.
yAttach the plug into a standard AC outlet.
Installing in a Chassis
The Converter is designed to fit into any of the expansion slots on a rackmount
chassis.
yUnscrew the carrier from the desired expansion slot on the chassis.
yFit the converter onto the carrier.
yWhen the converter is completely seated onto the carrier, insert the carrier to the
guide rails of the expansion slot.
yCarefully slide in the carrier until it is fully and firmly fit the chassis.
yFasten the carrier to the chassis by the screws.
<NOTE> Never insert any converter into the chassis directly without using
the supplied carriers. The carriers allow secure and consistent placement of the
converters into the chassis’ backplane without causing any damage.

Gigabit Ethernet Media Converter
10 User’s
Manual
Specifications
Applicable Standards IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-SX/LX
Fixed Ports
1000Base-T to 1000Base-SX/LX: 1 TX port, 1 Gigabit SFP socket
Speed 2000Mbps for full-duplex
Forwarding rate 1,488,100pps for 1000Mbps
LED Indicators
1000T to 1000SX/LX: Power; TX; RX; FDX/COL; LNKF; LNKC
Dimensions 80.3mm (W) × 109.2mm (D) × 23.8mm (H)
(3.16” (W) × 4.3” (D) × 0.94” (H))
Weight 150g (0.33lb.)
Power External power adaptor
0.2A @ 12VDC
Power Consumption 2.4W Max.
Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)
Humidity 5 ~ 95%, non-condensing
Emissions FCC part 15 Class A, CE Mark Class A

Gigabit Ethernet Media Converter
User’sManual 11
Ordering Information
1000T to 1000SX/LX Media Converter
# Gigabit Ethernet Cable / Connector Distance
Port One
1000Base-T 4-pairs Cat. 5 / RJ-45 100m
Port Two Options
1000Base-SX MMF of 850nm (62.5/125µm) / SFP 220m
1000Base-SX MMF of 850nm (50/125µm) / SFP 550m
1000Base-LX SMF of 1310nm (9 or 10/125µm) / SFP 10km
1000Base-LX SMF of 1310nm (9 or 10/125µm) / SFP 20km
1000Base-LX SMF of 1550nm (9 or 10/125µm) / SFP 50km
1000Base-LX WDM SMF of TX:1310nm / RX:1550nm (9 or 10/125µm) / SFP 20km
1000Base-LX WDM SMF of TX:1550nm / RX:1310nm (9 or 10/125µm) / SFP 20km
1000Base-LX WDM SMF of TX:1310nm / RX:1550nm (9 or 10/125µm) / SFP 40km
1000Base-LX WDM SMF of TX:1550nm / RX:1310nm (9 or 10/125µm) / SFP 40km
<NOTE>
The maximum node-to-node network distance is in full duplex operation.
MMF denotes Multi-Mode Fiber. SMF denotes Single-Mode Fiber.
MMF can be applied for 1000Base-LX as well.
Appendix
Fiber budget Distance
1000Base-SX 7.5dBm 220m 850nm (62.5/125µm)
1000Base-SX 7.5dBm 550m 850nm (50/125µm
1000Base-LX 14dBm 10km 1310nm (9 or 10/125µm)
1000Base-LX 19dBm 20km 1310nm (9 or 10/125µm)
1000Base-LX 19dBm 50km 1550nm (9 or 10/125µm)
1000Base-LX 12dBm 20km TX:1310nm / RX:1550nm (9 or 10/125µm)
1000Base-LX 12dBm 20km TX:1550nm / RX:1310nm (9 or 10/125µm)
1000Base-LX 20dBm 40km TX:1310nm / RX:1550nm (9 or 10/125µm)
1000Base-LX 20dBm 40km TX:1550nm / RX:1310nm (9 or 10/125µm)
