Dirty hand 101172 User manual

900W POWER GENERATOR
800 RATED WATTS/900 MAXIMUM WATTS
PORTABLE POWER GENERATOR
is safety alert symbol identies important safety messages in
this manual. Failure to follow this important safety information
may result in serious injury or death.
MODEL # 101172
Operation Manual
!
Part # 101189 Rev B

1100 W 120th Ave, Suite 600
Westminster, CO 80234 • 720-287-5182
For Service or Questions
Call 1-877-487-8275
720-287-5182
www.dirtyhandtools.com
Dirty Hand Tools® is a brand of

Table of Contents
Important Safety Information .....................................................4
Unpacking and Setup .....................................................................7
Filling with Gasoline and Oil.........................................................8
Operation Precautions....................................................................9
Operation .....................................................................................11
Maintenance.................................................................................13
Troubleshooting ...........................................................................15
Storage .........................................................................................17

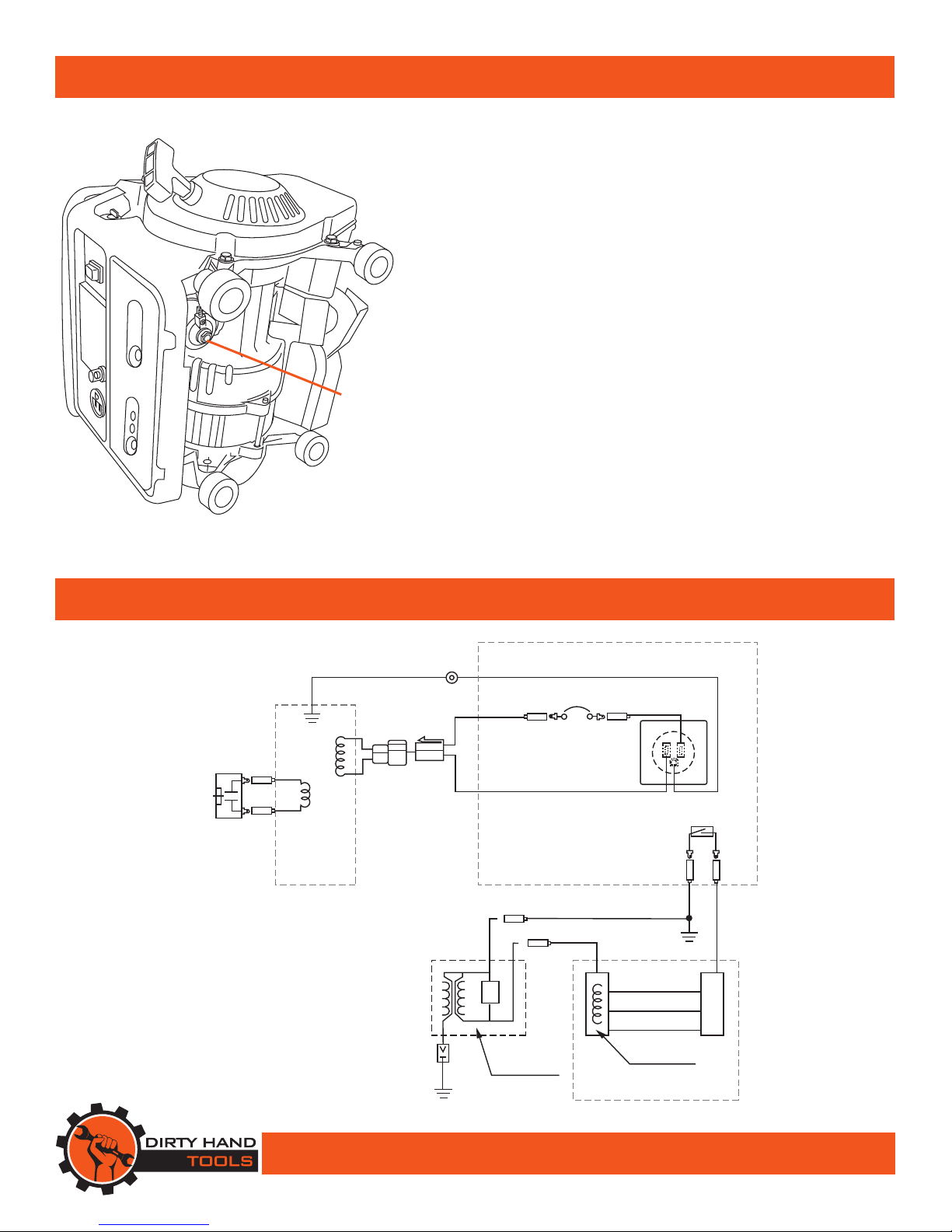

Wiring Diagram...........................................................................17
Parts List ......................................................................................18
Generator Assembly.....................................................................19
Warranty and Specifications..........................................Back Cover
3

Important Safety Information
WARNING: Read and thoroughly understand all instructions
and safety information before operating this portable power
generator. Failure to do so may cause serious injury or death.
Do not allow anyone to operate this portable power generator
who has not read this manual. As with all power equipment, a
portable power generator can be dangerous if used improperly. Do
not operate this portable power generator if you have doubts or
questions concerning safe operation.
Call our customer service department at 720-287-5182,
1-877-487-8275, or visit www.dirtyhandtools.com if you have any
questions or concerns about the safe operation of this equipment.
Intended Use
Do Not Use the portable power generator for any purpose other
than for which it was designed. Any other use is unauthorized and
may result in serious injury or death.
Personal Protective Equipment
Wear ANSI-approved safety goggles and heavy-duty work gloves
during set up. While this portable power generator operates at a
relatively low noise level, about 82 dB, you may want to wear ear
plugs or noise deafening headphones.
People with pacemakers should consult their physician(s) before
use. Electromagnetic fields in close proximity to a heart pacemaker
could cause pacemaker interference or pacemaker failure. Caution
is necessary when near the engine’s magneto or recoil starter.
4
!
WARNING
!
DANGER
!
CAUTION

5
Important Safety Information
General Safety
Failure to follow warnings, cautions, assembly and operation
instructions in the Operation Manual may result in serious injury
or death.
READ THE OPERATION MANUAL BEFORE
OPERATION.
• Do not permit children to operate this equipment at any time.
Do not permit others that have not read and understood the
complete Operation Manual to operate this equipment.
• Do not operate the portable power generator when under the
influence of alcohol, drugs or medication.
• Do not allow a person who is tired or otherwise impaired or not
completely alert to operate the portable power generator.
NEVER place ngers, hands, or body near the generator when
it is running. Do not lean or reach over the generator when the
machine is running.
• Keep all safety guards in place and in proper working order at all
times.
• Keep all people (except the operator) a minimum of six feet
from the generator during operation.
• Do not transport the generator with the engine running.
• Do not tilt the machine while the engine is running.
• Do not leave the generator unattended when it is running. Turn
off the engine before leaving the area.
!
DANGER
!
DANGER

6
USING A GENERATOR INDOORS
CAN KILL YOU IN MINUTES
Exhaust contains carbon monoxide
which is a poison
that you cannot see or smell.
101119
DANGER
Never use inside a house
or garage even with doors
and windows open!
Use only outside away
from windows,
doors and vents!
101131
To prevent serious injury:
Operation of this equipment may create
sparks that can start fires around dry
vegetation or flammable materials.
A spark arrestor may be required.
Operator should contact local fire agencies
for laws and regulations regarding fire
prevention requirements.
CAUTION
HOT MUFFLER!
TO PREVENT BURNS,
DO NOT TOUCH MUFFLER
OR OTHER EXHAUST
COMPONENTS.
Important Safety Information
• Never run the engine in an enclosed area or without proper
ventilation as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly
poisonous gas.
• Fill the gasoline tank outdoors with the engine off and allow
the engine to cool completely.
• Do not operate the engine with the air cleaner or cover over
the carburetor air-intake removed, except for adjustment.
Removal of such parts could create a fire hazard.
• e muer and engine become very hot with use and can
cause a severe burn; do not touch. Allow the engine to cool
before refueling, doing maintenance, or making adjustments.
Safety Decals
Safety labels on the portable power generator are to remind
you of important information while you are operating the
unit. Make sure all safety warning decals are attached and in
readable condition. Replace missing or defaced decals. Contact
Dirty Hand Tools at 1-877-487-8275 for replacement decals.
To prevent serious injury, electric shock and property damage:
1. Keep access doors on enclosures locked.
2. Have licensed electrician do all electric work including
ground connection and maintenance.
3. Keep dry.
4. Keep all guards in place and in proper working condition.
5. WearANSI-approved safety goggles during setup and maintenance.
6. Turn switch off and remove key after use. 101130
7. Read Operator’s Manual before setup or use.
8. Add engine oil before starting. Starting without oil will ruin the
engine and void warranty. Read maintenance information in
the Operator’s Manual.
9. Unconditioned electrical equipment can damage sensitive equipment.
Do not use to power sensitive electric equipment without appropriate
line conditioner sold separately.

7

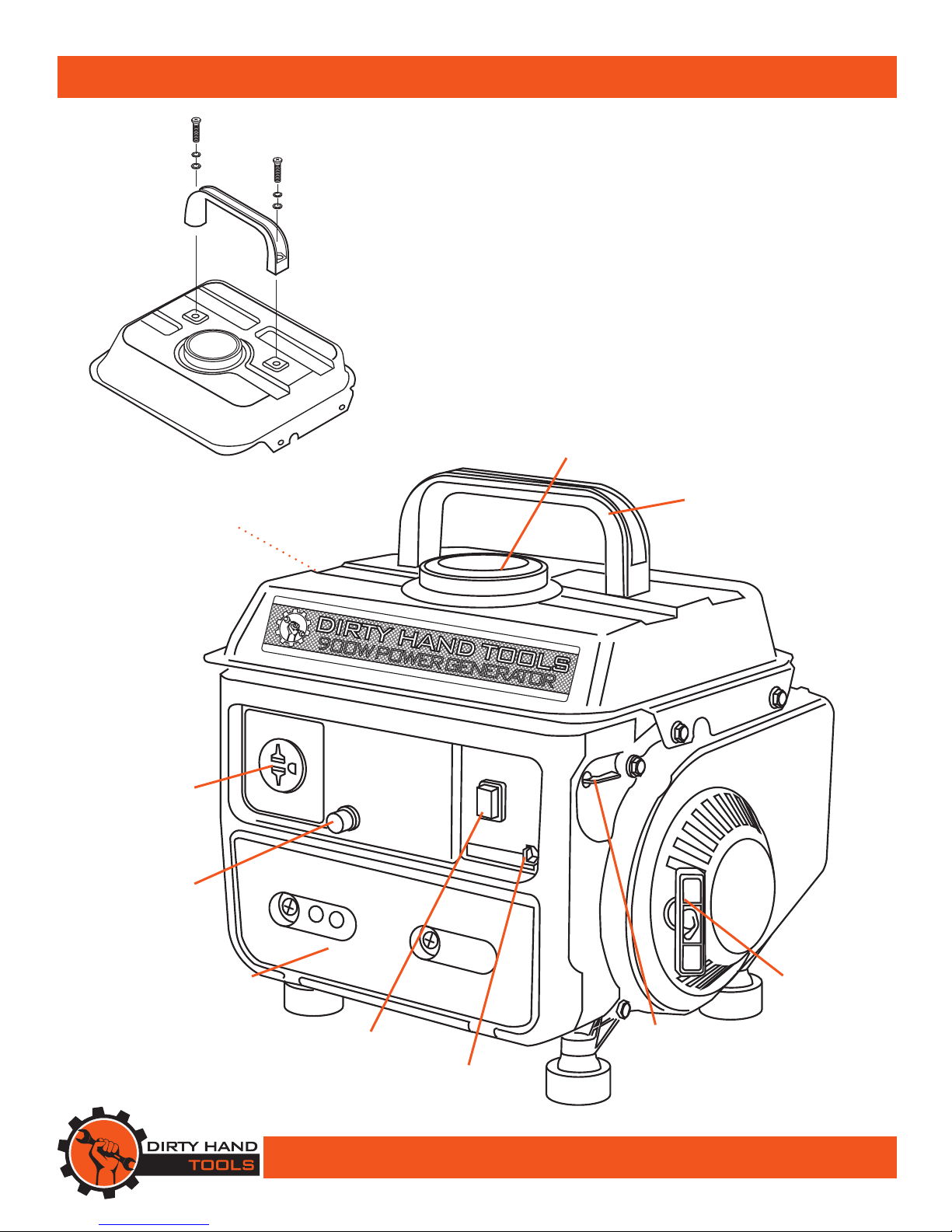

900W POWER GENERATOR
CIRCUIT
BREAKER
RECOIL
STARTER
GASOLINE
FUEL FILL
POWER
SWITCH
AIR FILTER
COVER
FUEL
VALVE
CHOKE
CARRYING
HANDLE
AC
RECEPTACLE
GROUND
TERMINAL
(on back)
Unpacking and Setup
Your portable power generator is assembled at the factory, with the
exception of the carrying handle, which is packed separately and
must be attached to the fuel tank cover with hardware supplied.
Attach the handle with a bolt, lock washer, and washer in two
places (see line drawing at left).

8

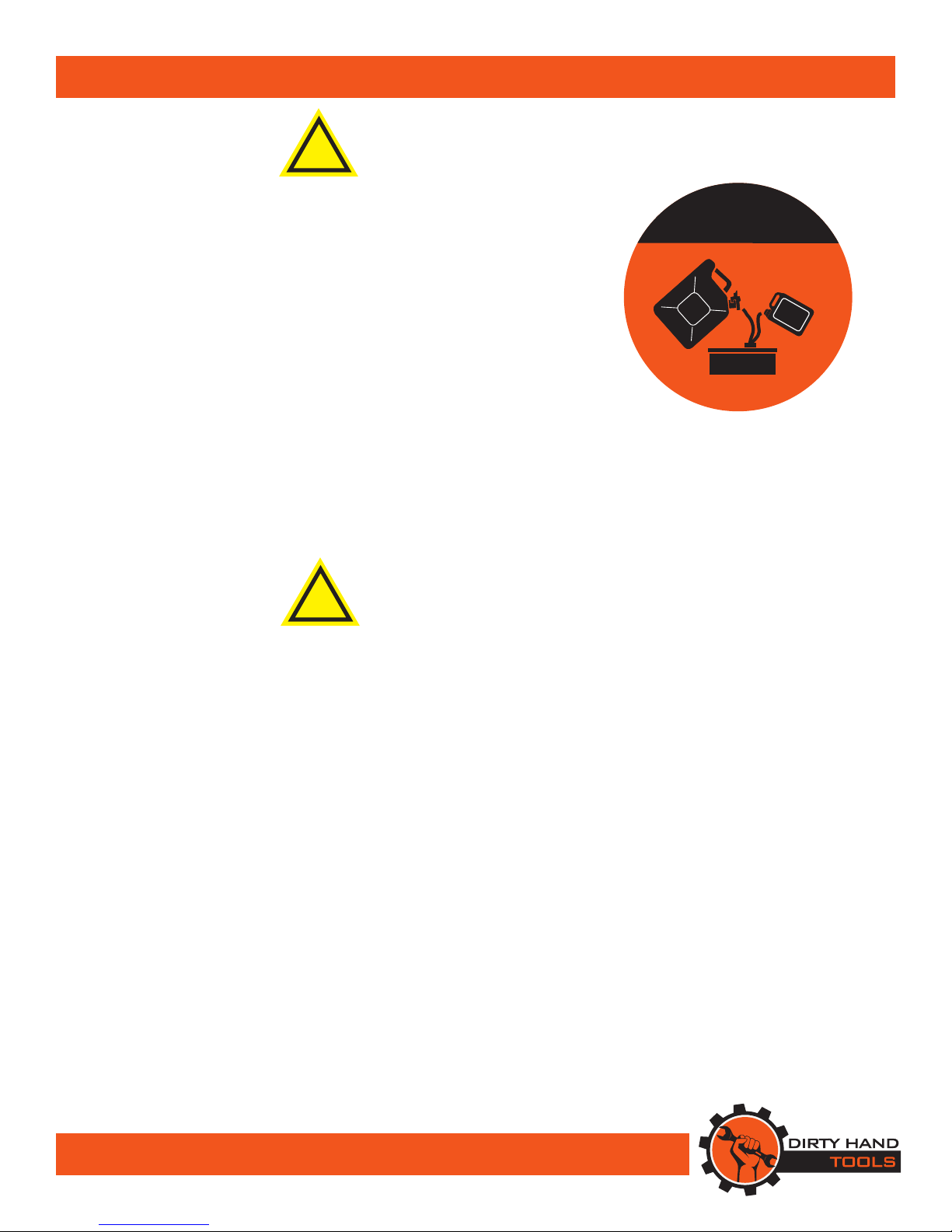

Filling with Gasoline and Oil
MIX UNLEADED GASOLINE WITH 2-STROKE ENGINE
OIL, 50:1 GAS/OIL RATIO, IN A SEPARATE CONTAINER
AND ADD TO THE FUEL TANK
BEFORE STARTING THE ENGINE
1. Place the portable power generator on a level surface. Set up
the generator outdoors in a well-ventilated, dry area, away
from building air intakes. e generator should be protected
from direct exposure to rain and snow. Do not set up the
generator on a conductive surface such as a metal deck.
2. e fuel tank holds approximately 1.1 gallons of fuel. Mix one
gallon of 89+ octane gasoline with 2.5 fl. oz. of two-stroke
engine oil in an approved container. Slowly shake the container
to thoroughly mix the gasoline/2-cycle oil.
Do not run the engine with an improper gasoline/2-cycle oil
mixture. Running the engine with an improper mixture WILL
permanently damage the engine and void the warranty.
ALWAYS FILL THE TANK WITH
ENGINE OFF AND COOL.
ALWAYS CHECK THE FUEL LEVEL
BEFORE OPERATING.
Allow the engine to cool for at least two minutes before
removing the fuel cap.
DO NOT REFUEL INDOORS OR NEAR ANY SOURCE
OF POSSIBLE COMBUSTION. DO NOT SMOKE
WHILE FUELING.
DO NOT OVERFILL.
!
WARNING
!
WARNING
FUEL MIX:
50:1
M
I
X
T
H
O
R
O
U
G
H
L
Y
2.5 FL. OZ.
2-CYCLE
OIL
1
GALLON
GAS
MIX
GAS
OIL
1
0
1
1
2
5

9

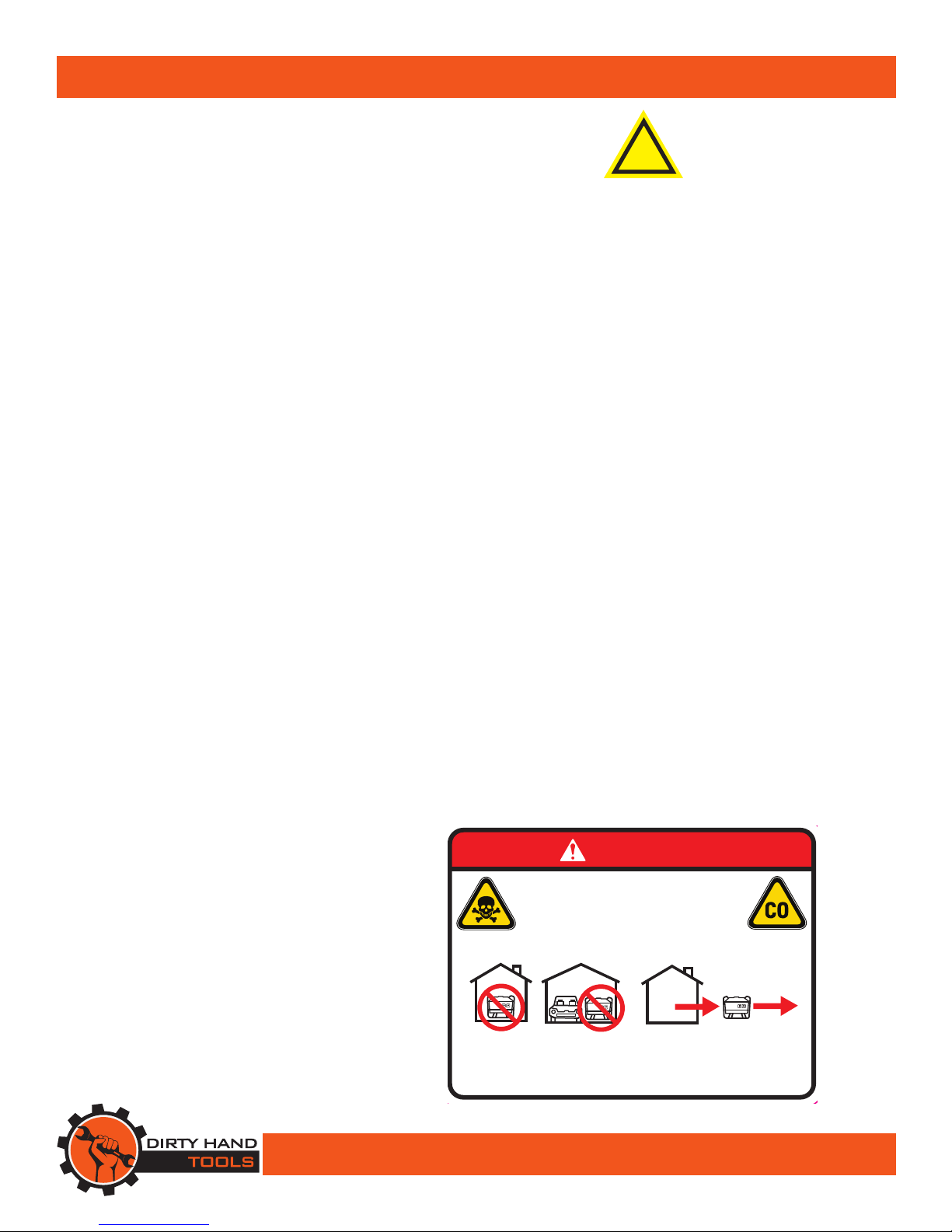

Operation Precautions
CARBON MONOXIDE HAZARD
USING A GENERATOR INDOORS
CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide.
is is a poison you cannot see or smell.
1. Keep all safety guards in place and in proper working order at
all times.
2. NEVER place fingers, hands, or body near the generator when
it is running. Do not lean or reach over the generator when the
machine is running.
3. Keep all people (except the operator) a minimum of six feet
from the generator during operation.
4. Do not transport the generator with the engine running.
5. Operate on level ground. Do not tilt the machine while the
engine is running.
6. Do not leave the generator unattended when it is running.
Turn off the engine before leaving the area.
7. Do not operate in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Gasoline-
powered engines may ignite the dust or fumes.
8. Do not use this piece of equipment while tired or under the
influence of drugs, alcohol or medication.
9. Parts, especially exhaust system components, get very hot
during use. Stay clear of hot parts.
10. Do not cover the generator during operation.
!
WARNING
USING A GENERATOR INDOORS
CAN KILL YOU IN MINUTES
Exhaust contains carbon monoxide
which is a poison
that you cannot see or smell.
101119
DANGER
Never use inside a house
or garage even with doors
and windows open!
Use only outside away
from windows,
doors and vents!

10
Operation Precautions
is generator is not intended to power sensitive electronic
equipment without the addition of an appropriate line
conditioner and surge protector (both not included).
Sensitive electronic equipment, including but not limited
to audio/video equipment, television sets, computers, and
printers, should be operated on approved inverter type
generators or pure sine wave generators. If the plugged in
product operates abnormally or unusually slow, immediately
stop using the generator as a power source.
1. Before connecting an appliance or power cord to the
generator make sure that it is in good working order.
Faulty appliances or power cords can create a potential for
electrical shock.
2. If an appliance begins to operate abnormally, becomes
sluggish or stops suddenly, turn it off immediately.
Disconnect the appliance, and determine whether the
problem is the appliance, or if the rated load capacity of the
generator has been exceeded.
3. Make sure that the electrical rating of the tool or appliance
does not exceed that of the generator. Never exceed the
maximum power rating of the generator. Power levels
between rated and maximum may be used for no more
than 30 minutes.
4. Substantial overloading will open the circuit breaker.
Exceeding the time limit for maximum power operation
or slightly overloading the generator may not switch the
circuit breaker OFF, but will shorten the service life of the
generator.
5. Connect the generator only to an electrical system (120V~)
that is compatible with the electrical characteristics and
rated capacities of the generator.
6. Set up the generator outdoors in a well-ventilated, dry area,
away from building air intakes. e generator should be
protected from direct exposure to rain and snow. Do not
set up the generator on a conductive surface such as a metal
deck.
!
CAUTION

11
Operation
ONLY AFTER THE GENERATOR IS RUNNING
SMOOTHLY SHOULD AN APPLIANCE OR TOOL
BE PLUGGED INTOTHE AC OUTLET OFTHE
GENERATOR.
1. Prior to each use, connect a #6 AWG grounding wire (not
included) from the ground terminal on the control panel to a
grounding rod (not included) that has been driven at least 24
inches deep into the earth. e grounding rod must be an earth-
driven copper or brass rod (electrode).
2. Turn the engine’s fuel valve to the OPEN position (see Figure 1).
3. Turn the engine’s choke lever to the START position. Set the
choke lever to the run position only when the engine has started
or upon restarting a warm engine.
4. Turn the engine power switch to the ON position.
5. Pull the recoil starter handle slowly until you meet some
resistance. Pull the recoil starter with a rapid full arm stroke
allowing the starter rope to rewind slowly. Repeat as necessary
until the engine starts running.
6. After the engine warms up and starts running normally, move
the choke lever to the RUN position (see Figure 2).
Note: Allow the engine to warm up for about 3 minutes before
moving the choke lever to the RUN position.
7. e rst 25 hours of operation is the break-in period.
Breaking-in the Engine will help ensure proper equipment and
engine operation, and will extend the engine’s lifespan. During
this time frame, DO NOT exceed 75% of the generator’s load
limit. In other words, the maximum load during this break-
in period should be no more than 600 watts. After the first
25 hours of use change the unleaded gasoline/2-cycle oil fuel
mixture.
e warranty is void if the engine is not broken in properly.
!
CAUTION
!
CAUTION
Figure 1
OPEN
FUEL
VALVE
POWER
ON
MOVE
CHOKE LEVER
TO START
Figure 2
MOVE
CHOKE LEVER
TO RUN

12
Operation
7. Load And Circuit Breaker: e total combined load
through the outlet on the generator must not exceed the
rated maximum power (800 watts) of the unit. Always
reduce the load if the AC circuit breaker turns off. Once the
load is reduced, press the breaker to reset the generator and
continue operation.
8. Calculating Power Draw: Power draw can be calculated by
multiplying volts and amps. e resulting number is wattage.
Never exceed the rated maximum wattage (800) for the
generator or outlet. Refer to appliance/tool owner’s manuals
to determine the wattage of electrical load devices.
Note: Long power cords and extension cords draw additional
power. Keep cord length at a minimum.
9. AC Application: Allow the engine to run at no load until
warm (approx. 3 minutes) after each start-up to allow the
engine to stabilize.
10. Plug the power cord of the 120 volt appliance/tool into the
120 volt AC outlet on the generator (see Figure 3).
Do not allow the generator to completely run out of fuel with
devices attached. A generator’s output may sharply spike as it
runs out of fuel, causing damage to attached devices.
11. When finished using the appliance/tool, unplug its power
cord from the AC outlet on the generator (see Figure 4).
12. Generator Shut O: Remove all electrical load
devices from the generator. Allow the engine to run for
approximately 3 minutes with no electrical load.
13. Turn the generator’s power switch to OFF to stop the
engine (see Figure 5).
14. Turn the fuel valve to the OFF position.
15. Allow the generator to completely cool down before
storing, at least 20 minutes.
16. For any lengthy time of storage, more than 20 days,
completely empty the fuel from the generator’s fuel tank
and engine’s fuel lines. Cover and store in a well ventilated
area.
!
CAUTION
Disconnect
Powered
Devices
Before
Startup or
Shutdown
Shutoff
Under
Load
Damages
Generator
Unit Can Power Any One of the Following Items:
Running
Watts Start-up Watts
1/4 HP Air Compressor 600 900
1/6 HP Motor 500 800
3/8” Drill 400 600
Mini Refrigerator 400 700
Table/Box Fan 200
15 Amp Battery Charger 380
String Trimmer 350
Hedge Trimmer 500
Radio 50
Ten 75W Light Bulbs 750
101126
Figure 3
Figure 5
CLOSE
FUEL
VALVE
POWER
OFF
Figure 4

13
Maintenance
BEFORE PERFORMING ANY MAINTENANCE
PROCEDURE STOPTHE ENGINE, WAIT FIVE 5
MINUTES TO ALLOW ALL PARTS TO COOL.
Disconnect the spark plug wire,
keeping it away from the spark plug.
Regular maintenance is the way to ensure the best performance
and long life of your machine. Please refer to this manual and the
engine manufacturer’s owner’s manual for maintenance procedures.
!
WARNING
Maintenance Before Monthly/ Every 6 Mo./ Annually/
Procedure Each Use 20 Hours 100 Hours 200 Hours
Check Engine Gas/Oil Mix Level X X X X
Check General Equipment Condition X
Check Air Cleaner X X X
Check Deposit Cup X X X
Clean/Replace Air Filter* X X X
Check/Clean Spark Plug X X
Check/Adjust Idle Speed X X
Check/Adjust Valve Clearance X X
Clean Fuel Tank, Strainer & Carburetor X X
Clean Combustion Chamber** X X
Replace Fuel Lines** X X
Maintenance Checklist
* Change/clean air filter more frequently if in dusty environment
** Service performed by qualified technician

14
Maintenance
TO PREVENT SERIOUS INJURY FROM
ACCIDENTAL STARTING TURN THE POWER
SWITCH OF THE ENGINE TO ITS “OFF”
POSITION.
Wait for the engine to cool, and remove the spark plug wire
before performing any inspection, maintenance, or cleaning
procedures.
Changing /Cleaning the Air Filter
1. Wipe off the air cleaner cover. en remove two screws that
secure the cover to the generator body (see Figure 6).
2. Remove the air filter.
3. Wash the air filter in warm water and mild detergent
several times. Rinse. Squeeze out excess water and allow it
to dry completely. Soak the filter in lightweight oil briefly,
then squeeze out the excess oil.
4. Install a new air filter or reinstall the cleaned air filter.
Secure the air cleaner cover before use.
Spark Plug Maintenance:
1. Disconnect spark plug wire from end of plug. Clean out
debris from around the spark plug.
2. Using the spark plug wrench provided, remove the spark
plug. Inspect the spark plug. If the electrode is oily, clean
it using a clean, dry rag. If the electrode has deposits on it,
polish it using emery paper. If the white insulator is cracked
or chipped, replace the spark plug.
3. When installing a new spark plug, adjust the plug’s gap to
the specication on the technical specication chart. Do not
pry against the electrode or the insulator, the spark plug can
be damaged. (See Figure 7.)
4. Install the new spark plug or the cleaned spark plug into the
engine. Gasket style spark plugs should be nger-tightened
until the gasket contacts the cylinder head, then turned
about 1/2 to 2/3 more rotation. Non-gasket-style spark
plugs should be nger-tightened until the plug contacts the
head, then about 1/16 turn more.
Figure 6
AIR
FILTER
!
WARNING
Figure 7
AIR FILTER
COVER

15
Engine Troubleshooting
PROBLEM SOLUTION
e engine will not start.
• Improper gasoline/2 cycle oil mix. • Drain fuel. Remix and add new fuel using 50:1 gas/oil ratio.
• No fuel in tank or fuel valve closed. • Add fuel and open fuel valve.
• Choke not in start position. • Place choke in START position and pull recoil starter.
• Low quality or deteriorated, old gasoline. • Drain fuel. Add new fresh 89+ octane/2-cycle oil mix.
• Dirty fuel passageways blocking fuel flow. • Clean out fuel passageways using fuel additive.
• Carburetor needle stuck. Smell of fuel in air. • Gently tap side of carburetor with screwdriver handle.
• Too much fuel in chamber. • Turn choke to RUN position.
• Spark plug wire not connected securely. • Connect spark plug wire securely to spark plug.
• Spark plug electrode wet or dirty. • Remove and clean spark plug. Reinstall spark plug and restart.
• Incorrect spark plug gap. • Reset spark plug gap according to specifications.
• Spark plug wire or spark plug broken. • Replace spark plug and/or spark plug wire.
• Cylinder not lubricated after long storage. • Remove spark plug. Pour tablespoon of oil into spark plug hole.
Replace spark plug. Crank engine a few times and try to start.
• If the engine still will not start, visit our web site at www.
dirtyhandtools.com or call 1-877-487-8275 for assistance.
Engine misres, backres or knocks.
• Spark plug wire loose. • Tighten spark plug wire.
• Incorrect spark plug gap. • Reset spark plug gap according to specifications.
• Spark plug wire or spark plug broken. • Replace spark plug and/or spark plug wire.
• Low quality or deteriorated, old gasoline. • Drain fuel. Add new fresh 89+ octane/2-cycle oil mix.
• Engine too cold. • Use cold weather fuel and oil additives.
• Engine knocks. • Engine overloaded, do not exceed recommended load rating.
Engine stops suddenly.
• Low quality or deteriorated, old gasoline. • Drain fuel. Add new fresh 89+ octane/2-cycle oil mix.
• Defective fuel cap creates vacuum. • Test and replace fuel cap.
• Improper idle speed. • Move choke to RUN position.
• Incorrect timing, deposit buildup, worn • Requires qualified technician.
engine or other mechanical problem.
BEFORE PERFORMING ANY MAINTENANCE
PROCEDURE STOPTHE ENGINE, WAIT FIVE 5
MINUTES TO ALLOW ALL PARTS TO COOL.
Disconnect the spark plug wire, keeping it away from the spark plug.
!
WARNING

Generator Troubleshooting
16
PROBLEM SOLUTION
No output from generator’s AC receptacle.
• Engine speed too slow. • Adjust engine speed. Requires qualified technician.
• Open or shorted wiring. • Clean and reconnect all wiring.
• Faulty capacitor. • Replace capacitor.
• Open/shorted rotor or stator windings. • Replace stator windings.
• Open rectifier. • Test rectifier and replace if required.
Low output voltage with no load.
• Engine speed is too slow. • Adjust engine speed. Requires qualified technician.
• Open rectifier. • Test rectifier and replace if required.
• Faulty capacitor. • Replace capacitor.
• Open/shorted rotor or stator windings. • Replace stator windings.
• Alternator not magnetized. • Re-magnetize the alternator.
High output voltage with no load.
• Faulty capacitor. • Replace capacitor.
• Engine speed is too fast • Adjust engine speed. Requires qualified technician.
Low output voltage under load.
• Open rectifier. • Test rectifier and replace if required.
• Engine speed is too low at full load. • Adjust engine speed. Requires qualified technician.
• Excessive load applied. • Reduce the applied load.
• Engine speed is too fast • Adjust engine speed. Requires qualified technician.
Erratic output voltage.
• Dirty, corroded, or loose wiring. • Clean and reconnect all wiring.
• Unbalanced load applied. • Remove all loads, then apply each individually to determine
which load is causing the erratic output. Do not reconnect
the faulty tool or appliance.
Noisy operation.
• Loose generator or engine bolt. • Tighten all mountings.
• Short circuit in generator field or load. • Test winding resistance, replace field winding if required, test
load devices for shorts, replace defective load device(s).
• Faulty bearing. • Replace bearing.

Storage
1. Wait for the engine to cool, then clean the engine with a
clean cloth.
2. When the generator is to be stored for longer than 20
days, prepare the engine for storage by emptying the fuel
tank and draining all fuel lines (see Figure 8). Clean out
area around spark plug and remove. Pour one tablespoon
of engine oil into the cylinder through the spark plug hole.
Reinstall the spark plug, but leave the spark plug wire
disconnected. Pull recoil starter handle to distribute oil in
the cylinder. Stop after one or two revolutions when you
feel the piston start the compression stroke (when you start
to feel resistance).
3. Apply a thin coat of rust preventive oil to all uncoated
metal parts.
4. Cover and store in a dry, well-ventilated area out of reach
of children.
17
Wiring Diagram
Engine
Switch
AC SocketAC Reset
red
black
black
black
black
ash
ash
magneto
red & white
yellow/green
Generator
Capacitance
Spark
Plug
2P6.3
saffron yellow
CDI Winding
Ignition Coil Assembly
MW
EXW
Figure 8
DRAIN
PLUG

18
Parts List
Part Description Qty
1 Left Crankcase 1
2 Right Crankcase 2
3 Bearing (6004) 2
4 Hole Circlip (#42) 1
5 Oil Seal (20 x 30 x 7) 2
6 Pin (10 x 7 x 14) 2
7 Stud (AM6 x 50) 2
8 Flange Nut (M6) 4
9 Flange Bolt (M6 x 45) 4
10 Stud (AM6 x 100) 2
11 Oil Seal (6 x 12 x 7) 1
12 Governor Shaft 1
13 Washer (6 x 10) 2
14 Governor Fork 1
15 Cross Round Head Bolt (M3 x 8) 2
16 Spring Washer (#3) 2
17 Governor Arm 1
18 Collar Bushing 1
19 Weight Comp 1
20 Flange Bolt (M6 x 16) 4
21 Crankshaft Assy. 1
23 Piston Pin 1
24 Roller Bearing (14 x 10 x 14) 1
25 Piston 1
26 Second Piston Ring 1
27 First Piston Ring 1
28 Cylinder Gasket 1
29 Cylinder 1
30 Cylinder Cap Gasket 1
31 Cylinder Cap 1
32 Flange Bolt (M6 x 105) 2
33 Nut (M6 x 18) 2
34 Cylinder Cap Cover 1
35 Flange Bolt (M6 x 12) 10
36 Ignition Coil Assy. 1
37 Clamp 1
38 Spring Washer (#6) 7
39 Cross Round Head Bolt (M6 x 16) 2
40 Flywheel 1
41 Flange Nut (M10 x 1.25) 1
42 Recoil Starter Assy. 1
Part Description Qty
43 Intake Valve Gasket 1
44 Intake Valve Assy. 1
45 Flange Bolt (M6 x 20) 4
46 Stud (AM6 x 60) 2
47 Intake Gasket 1
48 Carburetor 1
49 Carburetor Gasket (B) 1
50 Carburetor Gasket (A) 1
51 Supporting Plate 1
52 Compression Spring 1
53 Cross Round Head Bolt (M6 x 40) 1
54 Rod Link 1
55 Tension Spring 1
56 Governor Spring 1
57 Control Panel 1
58 Capacitor 1
59 Self Tapping Screw (ST4.2 x 13) 1
60 Alternator Stator 1
61 Alternator Rotor 1
62 Flange Bolt (M8 x 156) 1
63 Rear Cover 1
64 Flange Bolt (M6 x 80) 3
65 Washer (#6) 3
66 Flange Bolt (M6 x 10) 2
67 Muffler 1
68 Muffler Gasket 1
69 Flange Bolt (M6 x 16) 2
70 CDI Winding 1
71 Spark Plug 1
72 Absorber 4
73 Fuel Tank 1
74 Strainer 1
75 Fuel Cup 1
76 Fuel Tank Cap 1
77 Handle 1
78 Cross Round Head Bolt (M6 x 30) 1
79 Washer (#6) 2
80 Fuel Switch 1
81 Rubber 1
82 Choke Lever 1

19
Generator Assembly
e parts list and assembly drawing are provided as a reference tool
only. It is recommended that any repairs or parts replacement be
done by a qualified technician. User repair and parts replacement
may void the warranty.

Warranty & Specications
IMPORTANT NOTICE
We, the manufacturer, reserve the right to change the product and/
or specifications in this manual without notification. e manual is for
information usage only and the pictures and drawings depicted herein are
for reference only.
Warranty Repair and Service
Do not return this product to the store for warranty issues or repair. Call
our customer service department at 720-287-5182, 1-877-487-8275, or
visit www.dirtyhandtools.com for the location of the nearest service center.
Record the information below for future reference.
Model No.
Serial No.
Date of Purchase
Place of Purchase
SKU/Part No. 101172
Description 900W Portable Power Generator
Peak Wattage 900 Watts
Continuous Wattage 800 Watts Maximum
Circuit Breaker 7 Amps
Power Receptacles 1 - 120VDC, 60Hz
Engine 2 HP 63CC, 2 Cycle*
EPA/CARB Approved
Fuel Type 50:1 Gasoline/2-Cycle Oil Ratio**
Spark Plug Gap 0.028”~ 0.031”
Run Time @ 50% Load 5 Hours
Sound Rating 82 dB
Dimensions 19”L x 15”W x 16”H
Weight 38 Lbs.
Accessories Spark Plug Wrench Included
*As rated by engine manufacturer
** Unleaded Gasoline, 89+ Octane
Specications
1100 W 120th Ave., Suite 600
Westminster, CO 80234 • 720-287-5182
Dirty Hand Tools® is a brand of For Service or Questions
Call 1-877-487-8275
720-287-5182
www.dirtyhandtools.com
