Disan DS A01 User manual

Central Vacuum Systems
OWNER’S MANUAL
CENTRAL VACUUM CLEANERS
DS MODULAR
MOD. DS A01 MOD. DS B01
MOD. DS B02 MOD. DS BC100i
MOD. DS C03 MOD. DS CD125i
MOD. DS D02 MOD. DS F03
MOD. DS H02

© Copyright by DISAN S.r.l.
Technical drawings and layout: Disan S.r.l.
Any unauthorized reproduction, even partial, is
forbidden.
Photos, drawings and descriptions in this
handbook reflect the state of the art at the moment
when this catalogue was printed. The company
Disan reserves the right to update its production,
previous catalogues and handbooks. For further
information, please contact “DISAN”’s technical
office.
Disan acknowledges a 2 years guarantee for parts
having manufacturing defects. The guarantee is
valid only if the instructions set out in this handbook
are fully complied with.
1aediz. 12040500 • Printed in Italy • Tezzele Print Srl

3
INDEX
Introduction 4
Optional parts 10
Quality controls 5
5
Unloading and handling of the power unit
6
Technical features and main parts
Regular filter cleaning ............................................ 11
Emptying of the dust container.................................11
Check of the functioning of the automatic
filter shaker.............................................................. 12
Check of the functioning of the turbine.................... 13
Filter control and replacement................................. 13
Check of the lid tight................................................ 14
Sequence of the starting of the turbines ................ 14
15Safety instructions
16Troubleshooting
13Extraordinary maintenance
Regular maintenance (by the person in charge of the central
vacuum system)
15
11
19Yearly maintenance contract
18Identification data
19Check list for the installer
20Certificate and guarantee terms
Installation of the power unit 11
Central vacuum cleaner DS A01 100 l – 125 l – up to 1 operator . 6
Central vacuum cleaner DS B01 100 l – 125 l – up to 2 operators 6
Central vacuum cleaner DS B02 100 l – 125 l – up to 2 operators 6
Central vacuum cleaner DS BC100i - 100 l – up to 2+1 operators 6
Central vacuum cleaner DS C03 100 l – 125 l – up to 3 operators 7
Central vacuum cleaner DS CD125i - 125 l – up to 3+1 operators 7
Central vacuum cleaner DS D02 100 l – 125 l – up to 4 operators 7
Central vacuum cleaner DS F03 125 l– up to 6 operators. 7
Central vacuum cleaner DS H02 125 l– up to 8 operators. 7
Technical data of the central vacuum cleaner........... 8
Main parts ................................................................. 9

4
Central Vacuum Systems
Dear Client
Thank you for trusting and choosing our
brand. We are confident that the use of this three
phase central vacuum cleaning system with a
modular system will fully satisfy you.
This product’s details have been carefully designed
so as to make it durable and always fully efficient.
•System quality
The components of the central vacuum cleaner
have been manufactured in full compliance with EU
directives on the safety of electrical systems.
Disan’s central vacuum cleaner was engineered for
a professional use, particularly focusing on the
following elements:
1. solidity and resistance;
2. suction power;
3. long life with minimum maintenance;
4. safety of the low voltage electric system;
5. technologic quality, reliability;
6. reduced dimensions.
• Purpose of these instructions
The use of the central vacuum cleaning system is
very simple and does not require specific technical
knowledge. Nevertheless, a number of instructions
have to be carefully followed in order to avoid any
inconvenience during operation.
The purpose of this handbook is to convey to
operators the fundamental criteria for the operation
of the system. A table of failures at the end of this
handbook helps troubleshoot the causes of
malfunctions, if any.
Please treat this handbook with care and keep it for
future reference.
•Appointment of the person in charge of
the system
We suggest to nominate a person in charge of the
vacuum cleaning system, who attends to the
emptying of the dust canister and to the maintenance
of the system, who teaches cleaners how to use the
system and who serves as an interlocutor with the
technical assistance (to be provided by the installer).
• Loss of the handbook
If you lose or damage this handbook, ask the installer
for another copy.
•State of the art and updates of this
handbook
This handbook reflects the state of the art at the
moment when it has been printed.
The manufacturer reserves the right to update its
products and the corresponding handbooks.
INTRODUCTION

• Checks during production
Disan’s central vacuum cleaners and their
components are repeatedly subjected to quality
and functional checks by highly qualified technicians
during its manufacturing, in order to guarantee a
long operation life and perfect operation for
professional use. In this way it is guaranteed that
Disan’s products leave the manufacturing
department in perfect conditions.
•Checks on delivery (to be performed by
the client)
All the material shipped was carefully controlled
before its delivery to the forwarder.
This handbook is attached to the packaging in
such a way as to be clearly visible.
• Indications on handling
Lift the pallet carefully using the lift truck fitting this
purpose.
Since the dust separators are particularly tall,
check the stability and balanced positioning of the
load on the forks. When moving, keep the load as
low as possible for more stability and visibility,
then operate with the maximum caution.
5
Central Vacuum Systems
It is the purchaser’s responsibility always to con-
trol the goods on delivery and check that they
were not damaged during their transport. If a damage
is found, accept the goods with reservation,
specifying your observations on the delivery note.
In case of damage of the material, inform
immediately the carrier for subsequent damage
compensation.
• Check of the finished system
The installer checks the system and performs
a series of functional checks during its installa-
tion.
The modulus of the motor suction are separately
furnished on the pallet. In the waste container you
will find a pipe connection for the dust and motor
separator, connection couplings and tighten
wrappers.
• Dimensions of the central vacuum cleaner
The dust separator and the motor(s) are separately
mounted on pallets designed for this purpose and
shrink-wrapped and box packing.
The following calculation of sizes and weights
includes packaging. Measures are in centimeters.
UNLOADING AND HANDLING OF THE EQUIPMENT
QUALITY CHECKS
H
WD
H
WD
Z 820
Engines
185
57
62
72
82
172
A01 B01 BC100i CD125i B02 C03 D02 F03 H02
Weight kg
Width
Depth
Height
78 94 192 135 190
80
120
162
358 405
80
120
75
522 80
120
200
Dust separator Separator 100l Separator 125l
Weight without automatic
filter-shaker kg
Weight with automatic
filter-shaker kg
Width
Depth
Height
95
100
72
82
172

1 x 5,5 kW for 2 operators Code B100ST – B125ST
Central vacuum cleaner consisting of:
- one silenced SIEMENS turbine with three-phase
side channel motor without transmission, secured
on a metal frame, IP55 safety degree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made
of special polyester cloth with high withholding
properties, deflector for the mechanical-
gravitational separation of dust, dirt receptacle on
wheels with disposable plastic bags and cushioned
fasteners, safety and compensation system in the
dust bag, manual filter shaker;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping
network and all other parts and accessories for
the professional setting of the system;
- CE certificate.
1 x 2,2 kW for 1 operator Code A100 – A125
Central vacuum cleaner consisting of:
- one silenced SIEMENS turbine with three-phase
side channel motor without transmission, secured
on a metal frame, IP55 safety degree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made
of special polyester cloth with high withholding
properties, deflector for the mechanical-
gravitational separation of dust, dirt receptacle on
wheels with disposable plastic bags and cushioned
fasteners, safety and compensation system in the
dust bag, manual filter shaker;
- electric control box with IP56 safety degree,
realized in accordance with CEI norms, with low-
voltage (12 V) outlet and equipped with electric
chart for linkage;
- connections for correct linkage to the piping
network and all other parts and accessories for
the professional setting of the system;
- CE certificate.
6
Central Vacuum Systems

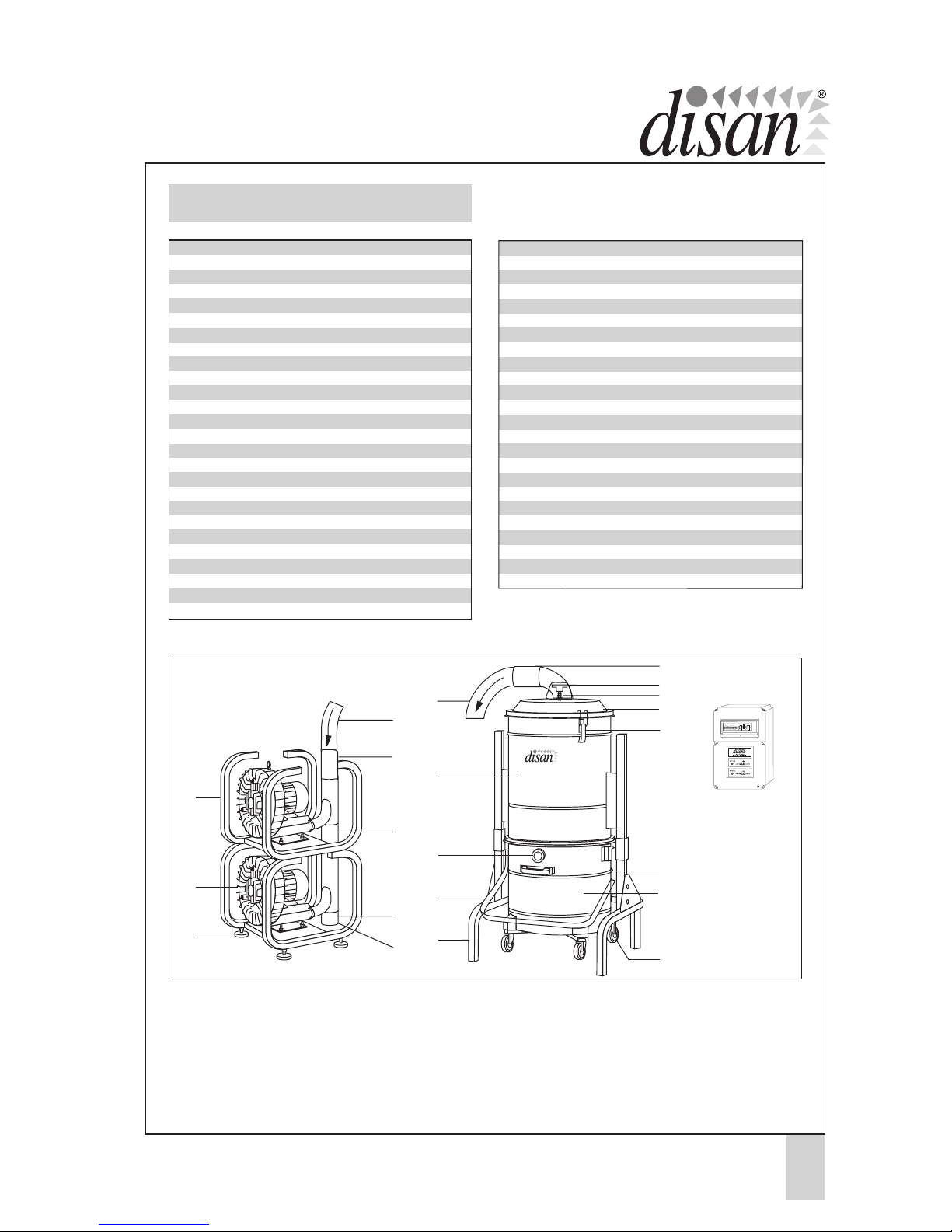

CHARACTERISTICS OF THE CENTRAL VACUUM
CLEANER AND MAIN PARTS
Central vacuum cleaner
model DS A01 100l – 125l
Central vacuum cleaner
model DS B01 100 l – 125 l
Central vacuum cleaner
model DS B02 100 l - 125 l
2 x 2,2 kW for 2 operators Code B200 – B225
Central vacuum cleaner consisting of:
- Two silenced SIEMENS turbines with three-phase
side channel motor without transmission, secured on
a metal frame, IP55 safety degree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made
of special polyester cloth with high withholding
properties, deflector for the mechanical-
gravitational separation of dust, dirt receptacle on
wheels with disposable plastic bags and cushioned
fasteners, safety and compensation valves,
arranged for pressure compensation system in
the dust bag, manual filter shaker;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping
network and all other parts and accessories for
the professional setting of the system;
- CE certificate.
Central vacuum cleaner
model DS BC 100i
1 x 4,5 kW for 2+1 operators Code BC100i
Central vacuum cleaner consisting of:
- one silenced SIEMENS turbine with three-phase
side channel motor without transmission, secured
on a metal frame;
- electronic inverter for continuous modulation of
the frequency and the other motor parameters
with electromagnetic shielding of type B (for
applications within the private and the industrial
sector)
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
specialpolyester clothwith highwithholding properties,
deflector for the mechanical-gravitational separation
of dust, dirt receptacle on wheels with disposable
plastic bags and cushioned fasteners, safety and
compensation valves, arranged for pressure
compensation system in the dust bag;
- automatic self-cleaning filter device through
programmable shaking device;
- electric control box with IP55 safety degree,
realized in accordance with CEI norms, with low-
voltage (12 V) outlet and equipped with electric
chart for linkage;
- Ø70 metal muffler for low noise level;
- connections for correct linkage to the piping
network and all other parts and accessories for
the professional setting of the system;
- CE certificate.
+

7
Central Vacuum Systems
Central vacuum cleaner
model DS C03 100 l – 125 l
3 x 2,2 kW for 3 operators Code C100 – C125
Central vacuum cleaner composed of:
- three silenced SIEMENS turbines with three-phase
side channel motor without transmission, secured on
a metal frame, IP55 safety degree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
special polyester cloth with high withholding properties,
deflector for the mechanical-gravitational separation of
dust, dirt receptacle on wheels with disposable plastic
bagsandcushionedfasteners,safetyandcompensation
valves, arranged for pressure compensation system in
the dust bag, manual filter shaker;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping network
andall other parts and accessories for the professional
setting of the system;
- CE certificate.
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
special polyester cloth with high withholding properties,
deflector for the mechanical-gravitational separation of
dust, dirt receptacle on wheels with disposable plastic
bagsandcushionedfasteners,safetyandcompensation
valves, arranged for pressure compensation system
in the dust bag, manual filter shaker;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping network
andall other parts and accessories for the professional
setting of the system;
- CE certificate.
Central vacuum cleaner
model DS CD 125i
1 x 5,5 kW for 3+1 operators Code CD125i
Central vacuum cleaner consisting of:
- one silenced SIEMENS turbine with three-phase side
channel motor without transmission, secured on a
metal frame;
- electronic inverter for continuous modulation of the
frequency from 34 to 84 Hertz with electromagnetic
shielding of type B (for applications within the private
and the industrial sector);
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
specialpolyester clothwith highwithholding properties,
deflector for the mechanical-gravitational separation
of dust, dirt receptacle on wheels with disposable
plastic bags and cushioned fasteners, safety and
compensation valves, arranged for pressure
compensation system in the dust bag;
- automatic self-cleaning filter device through
programmable shaking device;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- Ø100 metal muffler for low noise level
- connections for correct linkage to the piping network
andall other parts and accessories for the professional
setting of the system;
- CE certificate.
+
3 x 5,5 kW for 6 operators Code F125ST
Central vacuum cleaner consisting of:
- three silenced SIEMENS turbines with three-phase
side channel motor without transmission, star-triangle
starting,securedon ametalframe, IP55 safetydegree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
specialpolyester clothwithhigh withholdingproperties,
deflector for the mechanical-gravitational separation
of dust, dirt receptacle on wheels with disposable
plastic bags and cushioned fasteners, safety and
compensation valves, arranged for pressure
compensation system in the dust bag, manual filter
shaker predisposed for self-cleaning filter device;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping network
andall otherparts and accessoriesfor theprofessional
setting of the system;
- CE certificate.
Central vacuum cleaner
model DS F03 125 l
2 x 7,5 kW for 8 operators Code H125ST
Central vacuum cleaner consisting of:
- twosilenced double-Vshaped SIEMENSturbines with
three-phase side channel motor without transmission,
star-triangle starting, secured on a metal frame, IP55
safety degree;
- cyclonic dust separator in steel, painted with epoxy
powder, secured on a metal frame, filter chamber
equipped with industrial-conceived star filter made of
specialpolyester clothwith highwithholding properties,
deflector for the mechanical-gravitational separation
of dust, dirt receptacle on wheels with disposable
plastic bags and cushioned fasteners, safety and
compensation valves, arranged for pressure
compensation system in the dust bag, manual filter
shaker predisposed for self-cleaning filter device;
- electric control box with IP55 safety degree, realized
in accordance with CEI norms, with low-voltage (12
V) outlet and equipped with electric chart for linkage;
- connections for correct linkage to the piping network
andall other parts and accessories for the professional
setting of the system;
- CE certificate.
Central vacuum cleaner
model DS H02 125 l
Central vacuum cleaner
model DS D02 100 l - 125 l
2 x 5,5 kW for 4 operators Code D100 – D125
Central vacuum cleaner consisting of:
- two silenced SIEMENS turbines with three-phase side
channel motor without transmission, star-triangle
starting,secured ona metal frame,IP55 safety degree;

8
Central Vacuum Systems
Central vacuum cleaner
Mod. DS MODULAR
Mod.
DS
A01
100L
Operators
Nominal motor power
Voltage
requirement
Inlets voltage
requirement
Suction power
Airflow max
Airflow @ 140 mbar
Sound level
Engine weight
Engine width
Engine depth
Engine height
Filter chamber capacity
Dirt receptacle
capacity
Filter surface
Separator weight
Separator width
Separator depth
Separator height
* Valori indicativi
1
1x2,2
380- 400
12
320
316
224
68
51,5
47,5
65
50
210
125
35.000
95
80
72
157
2
1x5,5
380- 400
12
360
552
407
78
156
59,5
96
65
160
100
16.500
57
65
63
153
2
1x5,5
380- 400
12
360
552
407
78
156
59,5
96
65
210
125
35.000
95
80
72
157
2
2x2,2
380- 400
12
320
632
440
68
106
47,5
65
97
160
100
16.500
57
65
63
153
2
2x2,2
380- 400
12
320
632
440
68
106
47,5
65
97
210
125
35.000
95
80
72
157
2+1
1x4,5
380- 400
12
340
690
165-565
68
65
53
63,5
58
160
100
16.500
57
65
63
153
3
3x2,2
380- 400
12
320
942
655
68
157
47,5
65
97
160
100
16.500
57
65
63
153
3
3x2,2
380- 400
12
320
942
655
68
157
47,5
65
97
210
125
35.000
95
80
72
157
3+1
1x5,5
380- 400
12
360
868
223-784
71
163
67
97
65
210
125
35.000
95
80
72
157
4
2x5,5
380- 400
12
360
1100
805
78
325
59,5
96
125
160
100
16.500
57
65
63
153
4
2x5,5
380- 400
12
360
1100
805
78
325
59,5
96
125
210
125
35.000
95
80
72
157
6
3x5,5
380- 400
12
360
1640
1210
78
486
59
96
185
210
125
35.000
95
80
72
157
8
2x7,5
380- 400
12
380
1810
1470
78
369
59,5
97
145
210
125
35.000
95
80
72
157
Mod.
DS
A01
125L
Mod.
DS
B01
100L
Mod.
DS
B01
125L
Mod.
DS
B02
100L
Mod.
DS
B02
125L
Mod.
DS
BC
100i
Mod.
DS
C03
100L
Mod.
DS
C03
125L
Mod.
DS
CD
125i
Mod.
DS
D02
100L
Mod.
DS
D02
125L
Mod.
DS
F03
125L
Mod.
DS
H02
125L
kW
Volt
Volt
mbar
m
3
/ h
m
3
/ h
dB
kg
cm
cm
cm
l
l
cm
2
kg
cm
cm
cm
1
1x2,2
380- 400
12
320
316
224
68
51,5
47,5
65
50
160
100
16.500
57
65
63
153

9
Central Vacuum Systems
Main parts
11. Frame support sep. 100 l code CE217
Frame support sep. 125 l code CE218
12. Knob of filter shaker 100 l
code CE706
Knob of filter shaker 125 l
code CE707
13. Bracket blocking the knob 100 l code CE708
Bracket blocking the knob 125 l code CE709
14. Cover 100 l
code CE700
Cover 125 l code CE703
15. Cover locking clasp 100 l
code CE710
Cover locking clasp 125 l code CE710
16. Separator handle 100 l code CE711
Separator handle 125 l
code CE712
17. Dust container 100 l code CE317
Dust container 125 l
code CE318
18. Wheels 100 l code CE219
Wheels 125 l code CE220
19. Main electric control box
· Mod. DS A01
code IE201
· Mod. DS B01 code IE203
· Mod. DS B02 code IE202
· Mod. DS C03
code IE204
· Mod. DS D02 code IE208
· Mod. DS F03
code IE209
· Mod. DS H02
code IE218
1
3
4
5
6
7
2
6
5
4
8
9
10
11
13
15
16
17
18
14
12 19
Z 821
Mod. DSB02 125 l
1. Frame of the motor 2,2 kW code IE102
Frame of the motor 5,5 Kw/7,5 kW code IE101
2. Suction motor 2,2 kW code CE660
Suction motor 5,5 kW code CE662
Suction motor 7,5 kW code CE663
3. Support foot 2,2 kW code CE111
Support foot 5,5 kW/7,5kW code CE111
4. Flexible Air tube 100 l code CE211
Flexible Air tube 125 l code CE212
5. Rubber hose 2,2kW Ø70mm code CE412
Rubber hose 5,5kW Ø100mm code CE411
Rubber hose 7,5kW Ø100mm code CE411
6. Hose-coupling 2,2kW Ø70mm code CE908
Hose-coupling 5,5kW Ø100mm code CE909
Hose coupling 7,5kW Ø100mm code CE909
7. Cap 2,2 kW Ø70mm code CE450
Cap 5,5 kW Ø100mm code CE451
Cap 7,5 kW Ø100mm code CE451
8. Filter chamber 100 l code CE702
Filter chamber 125 l code CE701
9. Visual indicator “too full” 100 l code CE213
Visual indicator “too full” 125 l code CE214
10.Lever Open/Close
dust container 100 l code CE215
Lever Open/Close
dust container 125 l code CE216

10
Central Vacuum Systems
For their installation, please see the instructions attached to each optional.
•Zinc-coated muffler with
couplings
- Diam. 70 mm
code IS10
- Diam. 100 mm
code IS11
•Electronic control-
sequential starting
device.
- 2 motors code IS02
- 3 motors code IS03
Z 279
Z 288
Z 287
•Automatic self-cleaning
filter device with
electronic card. This
device permits the
automatic, daily cleaning
of the filter, thereby
always guaranteeing its
full vacuum efficiency.
- Mod. with separator
100 l code IS92
- Mod. with separator
125 l code IS01
•Plastic bags for dust
collection, 20-piece-
package.
- Mod. with separator
100 l code IE601
- Mod. with separator
125 l code IE602
•Grill and pipe complete
with two plastic bags.
It allows the insertion in
the dust container of the
plastic bags to collect the
dust
- Mod with separator
100 l code IE601
- Mod with separator
125 l code IE602
•Cyclone
The upper cyclone
protects the filter and
improves dust storage
inside the container.
- Mod. with separator
100 l code IS08
Z 278
Z 222
LIST OF OPTIONALS
Z 822 Z 277
•Inlet resistance
4700 Ωcode IS06

11
Central Vacuum Systems
ORDINARY MAINTENANCE
(by the person in charge of the central vacuum cleaner)
Regular filter
cleaning
The system works perfectly only if the filter in the
filter chamber is cleaned with particular care.
Cleaning operations are carried out when the system
is switched off.
If you intend to empty the dust container or the
plastic bag after cleaning, first operate the filter
cleaning devices and then wait a few minutes for
the dust to deposit on the bottom of the container.
Manual operation
Manual cleaning of the filter must be carried out at
regular time intervals, depending on the use of the
system (e.g. every 3-34 weeks if the system is used
daily), before emptying the dust container or in any
case if you notice a reduction in suction power.
Sequence procedure
1. Lower the blocking bracket (13).
2. Energetically raise and lower the knob (12) with
one hand, several times (approx. 10-15 times).
3.Bring back the blocking bracket (13) to its original
position.
Emptying of the
dust container
It is essential to control the dust level every month.
Dust may be collected directly in the container or
in the plastic bag fitting this purpose. If necessary,
dispose of the dust in compliance with the rules
envisaged for separate waste collection and replace
the bag. Before emptying, shake the filter (see
“Regular filter cleaning”).
Wait a few minutes for the dust to deposit on the
bottom of the container.
12
13
INSTALLATION OF THE CENTRAL VACUUM CLEANER
The central vacuum cleaner must be installed and
hooked up by an authorized installer. Instructions
for a correct installation of the system are given in
the corresponding handbook “DESIGN -
INSTALLATION – INSPECTION OF DS SUPER
COMPACT AND DS MODULAR SYSTEMS”.
Z 823
21
Z 824
Filter self-cleaning system
An automatic filter shaking device (optional) is
available for three-phase central vacuum cleaners,
ensuring the automatic self cleaning of the filter
every 12-24 hours.
- To start the command-operated filter shaking
device, press the switch (21) on the control panel
of the shaker. We suggest performing this operation
before emptying the dust container and in any
case if you notice a reduction in suction power.
- The automatic shaking device works only when
the system is switched off.
Please notice: shaking times exceeding one minute
do not improve cleaning but do contribute to an
early wear of the filter.

Central Vacuum Systems
2. Grasp the handle (16) and extract the container
(17). Empty the container or replace the plastic
bag (20).
• Plastic bag for separator 100 l code IE601
• Plastic bag for separator 125 l code IE602
Functional check of the automatic
filter shaking device
Check whether the filter shaking device works
properly:
1. Keep pressed for a few seconds button (21) on
the control panel of the shaker.
2.If noisiness or the emission of vibrations is higher
than normal or in any case excessive, contact
the installer.
Sequence procedure
In the containers without dust bag the visual indicator
(9) shows how full the dust container (17) is and
when it is covered by dust it must be emptied.
1.Release slowly the lever (10) until when the
wheels of the container (17) are perfectly leant
on the floor.
Please notice: The insertion of the plastic bag in
the dust container is possible only through the
installation of the grill and pipe (see attached
instruction of the article)
Griglia e depressore per separatori l 100 Cod. IS05
Griglia e depressore per separatori l 125 Cod. IS07
12
10
17
16
17
20
9
17
8
21
Z 825
Z 826
Z 827
Z 824
3.Reinsert the container by setting it under the
vacuum cleaner. Please pay attention that the
visual indicator (9) remains outside. Push the
lever to the bottom so that the container (17)
goes up so that it fits tightly again in the filter
chamber (8). During the operation of hooking of
the dust container, please pay attention not to
crush the suction pipe.

13
Central Vacuum Systems
Functional check
of the turbine
EXTRAORDINARY MAINTENANCE
(by the installer)
Perform the following controls every year:
Filter control
and replacement
Stages to disassemble the lid:
While the system is switched off, detach the hose
(4) from the lid fitting (23). Lower the blocking device
(13). Unblock the locking hooks (15) and lift the lid
(14) together with the filter.
If there is an automatic filter shaking device,
disconnect the plug (24) from the socket (25) on
the back of the control panel.
Check whether the turbine works properly:
1. Switch the system on and set the switches of the
turbines (22) on the control panel in the position
“manual”.
2.If noisiness or the emission of vibrations is higher
than normal or in any case excessive, contact
the installer.
3.After the control remember to replace the switches
(22) of the turbine control in the position
“automatic”.
- Checking the filter conditions: check whether
the internal surface of the filter is completely white.
If it isn’t, the filter is probably pierced. Check whether
there are holes. To check, follow the steps necessary
to disassemble the lid and the filter.
- Filter cleaning: if the internal surface of the filter
is white while the external one is excessively dirty,
clean it with a brush, a compressor or a traditional
vacuum cleaner. The filter can also be cleaned by
washing it in a washing machine at low temperatures.
To clean the filter, follow the steps necessary to
disassemble the lid and the filter.
- Filter replacement: if the filter is pierced and
therefore no longer usable, put it in a plastic bag,
close it and dispose of it in compliance with the
rules for separate waste collection. Replace the
filter as described below.
22
4
23
13
15
14
24
25
Z 828
Z 829
Z 830

14
Central Vacuum Systems

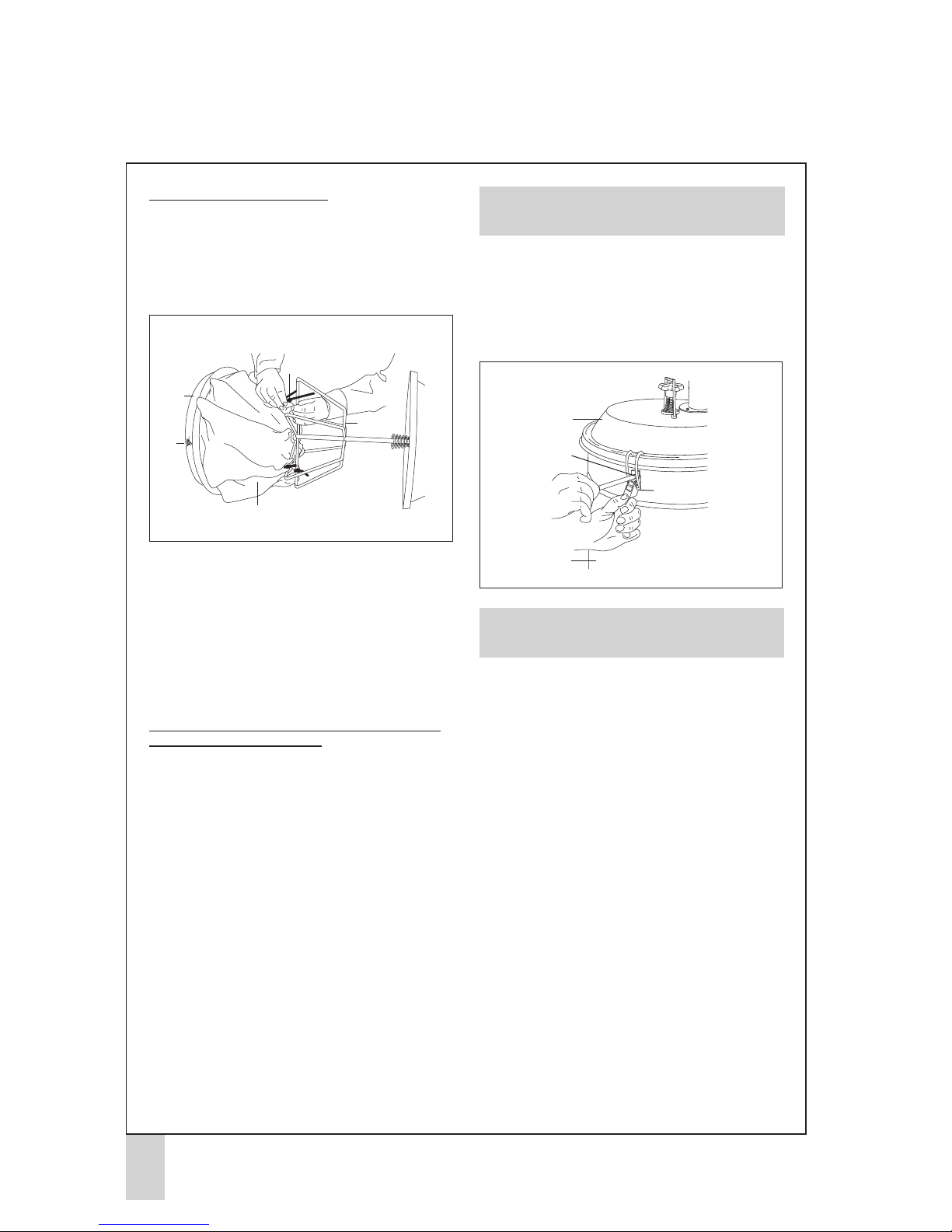

Steps for filter dismantling:
1. Turn the filter (26) upside down to expose the
fixing clamps (27).
2. Cut the clamps (27) and detach the housing (28)
from the filter (26).
3. Unscrew the clamp (29) from the filter ring (30),
remove it from the filter and set aside.
!WARNING!
The filter must be carefully replaced.
It must be replaced by another filter with the same
characteristics, otherwise you risk jeopardising the
correct operation of the vacuum cleaner.
• Star filter with a 460 mm diameter for separator
160 l Cod. ER17080
•Star filter with a 560 mm diameter for separator
210 l Cod. ER17081
Steps for filter and lid mounting onto the
central vacuum cleaner:
Mount the filter and the lid onto the central vacuum
cleaner following in reverse sequence the procedure
indicated for the disassembly of the filter and of the
lid.
The sequence of the functioning of the engine is
automatically adjusted by a meter in the electrical
panel. This allows a functioning in work-hours
equivalent for every engine.
Control the tight of the lid (14) with the filter chamber
(8). If the seal under the lid (14) has given way
unscrew the blocking screws (31) of the locking
clasps (15), and make them slide to the bottom until
the perfect closing of the lid (14). After this operation
tighten the blocking screws (31).
Sequence of the functioning
of the motors
Control of the tight
of the lid
26
30
28
27
29
14
8
31
15
Z 831
Z 832

15
Central Vacuum Systems
SAFETY INSTRUCTIONS
(read carefully)
Failed observance of the safety instructions may
compromise the operation of the system or seriously
damage it. The following “safety instructions” contain
essential indications for the system’s safety and for
the safety of the people using it.
System’s safety prearranged during its
production
The vacuum cleaner was made paying particular
attention to the safety of operators. Each component
was designed on the basis of strict safety guarantees
which Disan has adopted.
Electrical safety
)Connect the central vacuum cleaner only to a
current with the same tension indicated on the
“identification data” plate (see chapter
“IDENTIFICATION DATA”, page 18) .
)Establish the electrical connection provided with
efficient grounding and with a neutral phase.
)The safety of the electronic system is guaranteed
only if there is a suitable safety ground fault
circuit-breaker complying with the regulations in
force.
System’s safety
)Before using it for the first time, make sure – via
the installer - that the entire system works
perfectly.
)Do not expose the central vacuum cleaner to the
direct action of the weather (e.g. rain, snow etc.).
)Do not wash the central vacuum cleaner with
water jets, do not dip it in water.
)Check at regular time intervals the dust container
or the plastic bag, if the machine is provided (see
paragraph “Emptying of the dust container”, page
11).
)At regular time intervals, shake the filter manually
(see paragraph “Periodic filter cleaning”, page
11).
)Never vacuum-clean without having the filter
installed and, under any circumstance, use only
original Disan star-filters
)Leave always the switch of the electric box in
the position “automatic”.
)Do not start the system when out of order.
Technical assistance
)If the green light signalling connection to the
mains (at the centre of the control panel) remains
on and if the causes of the failed operation cannot
be found among those listed in the “TABLE OF
FAILURES”, page 16, please contact your dealer
or an authorised installer.
)Any intervention must be carried out only when
the system is switched off and disconnected from
the mains.
)We suggest checking the system and overhauling
the central vacuum cleaner every 4-5 years.
!WARNING!
Safety devices must never be tampered with!

16
Central Vacuum Systems
TROUBLESHOOTING
SYMPTOM
The inlet socket
whistles
No vacuum
power
Low vacuum
power
The system does
not start
The system remains
on
The system turns on and
off intermittently
The ground fault
circuit-breaker trips
CAUSE
1 Filter clogging
2 Hose clogging
3 Wrong closing of the dust container – cyclone’s gasket
(optional) damaged or out of place
4 Simultaneous use of several inlet sockets
5 Tubes clogging – air infiltration
6 Thermal contact breaker
7 Defective or dirty microswitch of the socket
8 Wear of the inlet socket’s contacts
9 12 Volt mains lead to inlet sockets
is damaged
10 Defective electric parts– motor failure
11 Dust container full
12 Defective gasket of the inlet socket – protruding screws
5. TUBES CLOGGING – AIR INFILTRATION
If the procedures listed under 1,2,3 and 4 do not
increase the air flow rate, clogging is in the tubing.
(caused by punctures, drillings, or nails driven
into the wall).
If the system is provided by sphere valve for the
manual closing of the different pipe lines, close
the valve corresponding to the defective line until
the intervention of the installer. The system can
be used on the pipe line corresponding to the
others closing valves.
6. THERMAL CONTACT BREAKER
The contact breaker (the main switch) blows
when
- the vacuum motor has been subjected to a
considerable electric current overload;
- the motor is defective;
- the motor has overheated due to filter clogging,
clogging of the tubing or a narrowing in the
breather pipe.
Before switching the system on again, wait 8-10
minutes for the motor to cool down. If after
completing the procedures as of items 1, 2 and
5 the switch continues to trip, switch the system
off and contact your installer
7. DEFECTIVE OR DIRTY MICROSWITCH OF
THE SOCKET
If the central vacuum cleaner remains switched
on or does not start despite the closing or
opening of the inlet socket, check whether the
microswitch on the socket itself works properly.
If you cannot find the cause, contact your
installer.
1. FILTER CLOGGING
If suction power at the inlet socket is low, the filter
may be excessively clogged.
In this case:
- if the machine has a manual shaking device,
clean it as indicated on page 15;
- if it equipped with an automatic shaking device,
see page 11.
2. HOSE CLOGGING
If the suction power at the inlet socket is good,
clogging is in the hose or in the brushes. If – on
the contrary - suction power at the inlet socket is
weak, clogging is
a. in the socket (visible to the naked eye)
b. in the tubing (see item 5)
If necessary, clean them manually (for precaution,
wear latex gloves, as those used in the kitchen).
3. WRONG CLOSING OF THE DUST CONTAINER
– CYCLONE’S GASKET (OPTIONAL)
DAMAGED OR OUT OF PLACE
After emptying, make sure that the dust container
closes tightly to avoid suction power reductions.
Furthermore, check that the gasket is positioned
correctly and that it is not damaged.
4. SIMULTANEOUS USE OF SEVERAL INLET
SOCKETS
The central vacuum cleaners are designed for a
number of operators depending on the model of
the machine. The simultaneous use of several
inlet sockets on the same network entails a
considerable suction power reduction.

17
10. DEFECTIVE ELECTRIC PARTS – MOTOR
FAILURE
If the procedures listed above do not start the
vacuum motor, the cause lies in the damage
of an electric part. Contact your installer.
11. DUST CONTAINER FULL
Empty the container (see page 11 “Emptying of
the dust container”)
12. DEFECTIVE GASKET OF THE INLET
SOCKET – PROTRUDING SCREWS
Replace the gasket or tighten the screws
correctly
8. WEAR OF THE INLET SOCKET’S CONTACTS
If the system does not start and you use inlet
sockets with contacts, check whether the
contacts are worn.
9. 12 VOLT MAINS LEAD TO INLET SOCKETS
IS DAMAGED
It happens rarely that the mains lead connecting
the inlet sockets to the central vacuum cleaner
gets damaged.
Central Vacuum Systems
Clogging of the tubes – air infiltrations
ANALYSIS PROGNOSIS REMEDY
Drop in
suction
power
clogged
insufficient
suction air infiltrations
1A Open the dust container
1B Vacuumtheotherwayround,connectingapowerfulvacuum
cleaner to the inlet sockets
2 Explore the tubes with a spiral probe (used for plumbing
works)
3 Contact Disan’s technical office
1A If there is no noise, switch on the system keeping the inlet
sockets closed
1B Locate the source of whistling due to air infiltrations
2 Use the suitable inspection camera (code GE903)
3 Contact Disan’s technical office

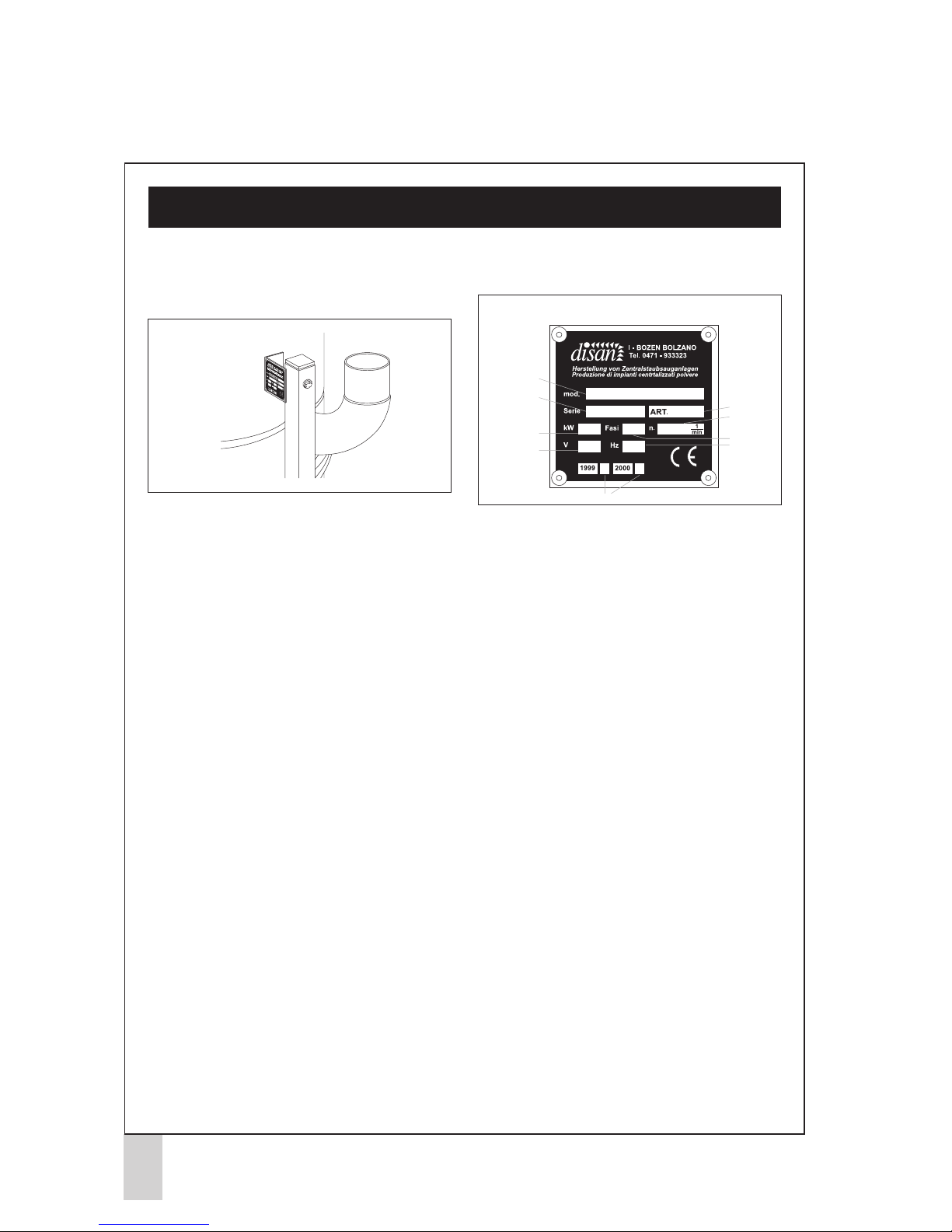

IDENTIFICATION DATA
Position of the identification data plate
The position of the identification data plate indicating
the machine’s data is as shown in the picture:
G = supply tension (V)
H = operating frequency (Hz)
I = year of construction
Data on the plate
All technical and construction data pertaining to
your central vacuum cleaner are indicated on the
identification plate.
A = vacuum cleaner’s model
B = serial number
C = article code
D = motor absorption (kW)
E = number of revolutions per minute of the motor
F = motor’s stages
Data identification for assistance or guarantee
purposes
Whenever you contact Disan’s “technical assistance
service” or the installer, specify the data of your
machine. A clear indication of the “machine’s model”
and of the “serial number” will help the constructor
answering you and will avoid inaccuracies or
mistakes. Please refer to the data indicated in your
guarantee certificate (see last page).
0 0 3 0 9 S 6 4 0 6
2 2 3 2 8 5 0
3
3
050
X
0 0 610 I B100ST
5,5 3 2 8 5 0
38050
X
A
I
B
D
G
C
E
H
F
DS B01 100 l
Z 833
Z 834
18
Central Vacuum Systems

19
Central Vacuum Systems
CHECK LIST FOR THE INSTALLER
YEARLY MAINTENANCE CONTRACT
Check of inlet socket’s tightness
Check of the starting of the system at the
inlet sockets
Check of the wear of vacuum cleaning
accessories
Check of the suction value
Filter check and cleaning
Check of the functioning of the automatic
filter-shaking device*
Check of the turbine’s operation
Check of the functioning of the starting
device system*
Check of the correct adjusting of the by-
pass valves
Inversion of sequence of the starting of the
turbines.
We suggest entrusting your installer with the yearly maintenance
of the modular systems in order to always keep the system at its maximum efficiency
* if available

Guarantee certificate
24 MONTH GUARANTEE
Guarantee certificate
Model:
Date of purchase:
Purchaser’s address:
Serial number:
Seller’s stamp and signature
To be filled in by the manufacturer
GUARANTEE CERTIFICATE
!IMPORTANT!
Please send us this card, filled in, within
30 days to allow the recording of your
guarantee right.
Model:
Serial number:
Tested by:
