Disan MATRIX RANGE User manual

MATRIX RANGE
User’s manual

SUMMARY
1. Introduction......................................................................................2
2. Unpacking ........................................................................................3
2.1 Control of accessories ....................................................................4
3. Construction features......................................................................5
4. Technical data.................................................................................6
5. Installation.........................................................................................7
5.1 Place of installation .........................................................................7
5.2 Inlet reversibility ................................................................................7
5.3 Fixing of central unit ........................................................................9
5.4 Connection to pipe network........................................................11
5.5 Electrical connection....................................................................12
6. Use of central unit..........................................................................13
6.1 Use of accessories .........................................................................13
7. Maintenance .................................................................................14
7.1 Technical advice...........................................................................14
7.2 Ordinary maintenance .................................................................14
8. Troubleshooting .............................................................................16
9. Guarantee......................................................................................19
9.1 Terms of guarantee .......................................................................19
9.2 Coupon of guarantee ..................................................................19
3

1. Introduction
Congratulations for purchasing a DISAN central vacuum unit of Matrix range. A combination
of technology, simplicity and well-being. The Matrix range is ideal: compact, practical and re-
ally powerful and available in two different models: Matrix PT with disposable bags and Matrix
FF with permanent flat cartridge and easy collection of the dust.
2. Unpacking
Follow the instruction printed on the cardboard box to move the central unit to the location
selected for installation.
Open the box, remove internal cardboard
and lift with both hands the central unit with
the nylon bag. Arrange it on the floor and
remove the dust protection bag.

1. Introduction
Congratulations for purchasing a DISAN central vacuum unit of Matrix range. A combination
of technology, simplicity and well-being. The Matrix range is ideal: compact, practical and re-
ally powerful and available in two different models: Matrix PT with disposable bags and Matrix
FF with permanent flat cartridge and easy collection of the dust.
2. Unpacking
Follow the instruction printed on the cardboard box to move the central unit to the location
selected for installation.
Open the box, remove internal cardboard
and lift with both hands the central unit with
the nylon bag. Arrange it on the floor and
remove the dust protection bag.
Arrange the cardboard box on the floor, with
the opening side upward and cut the adhesive
tape.
Collect all the accessories in the box and dispose in accordance with the prescription.
2

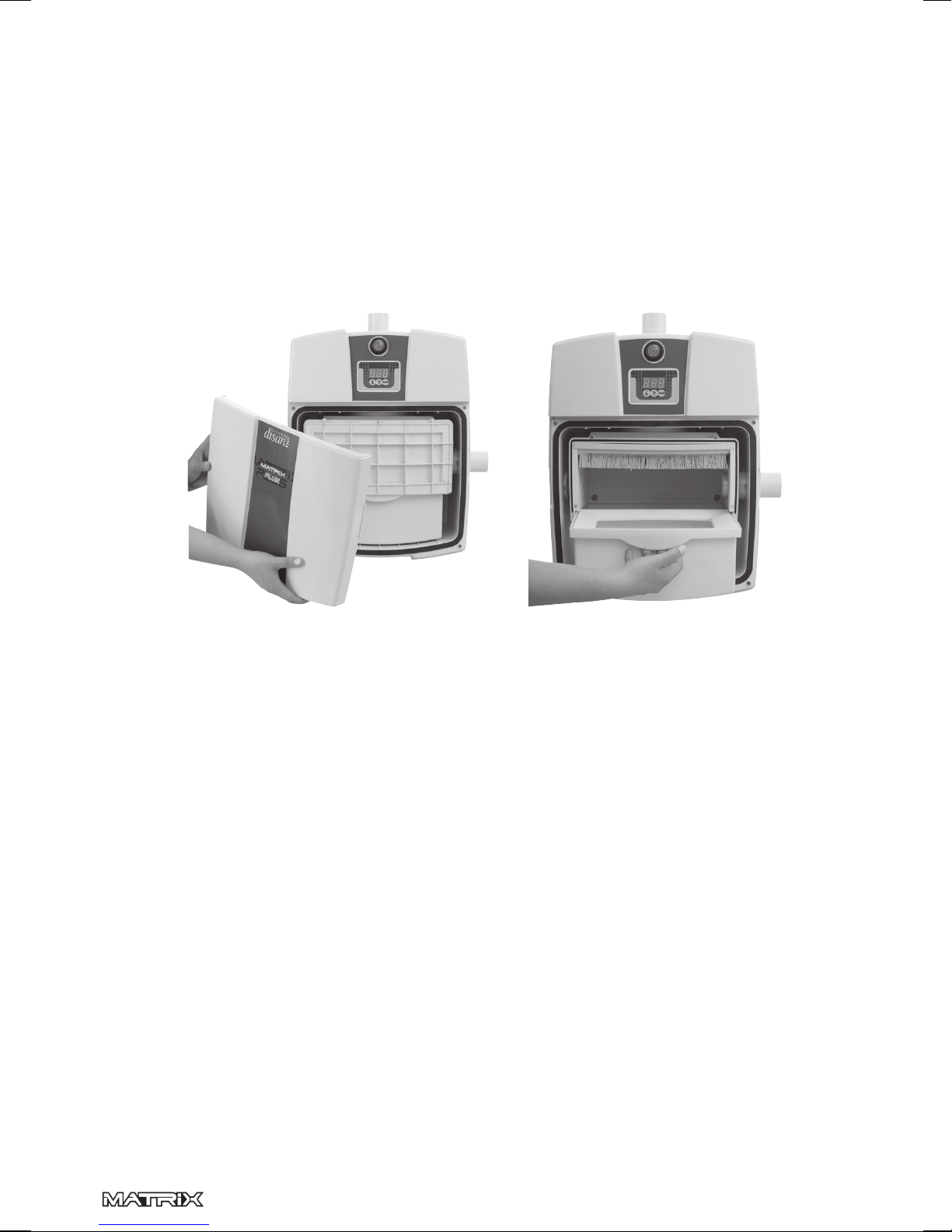

3. Construction scheme
Matrix PT

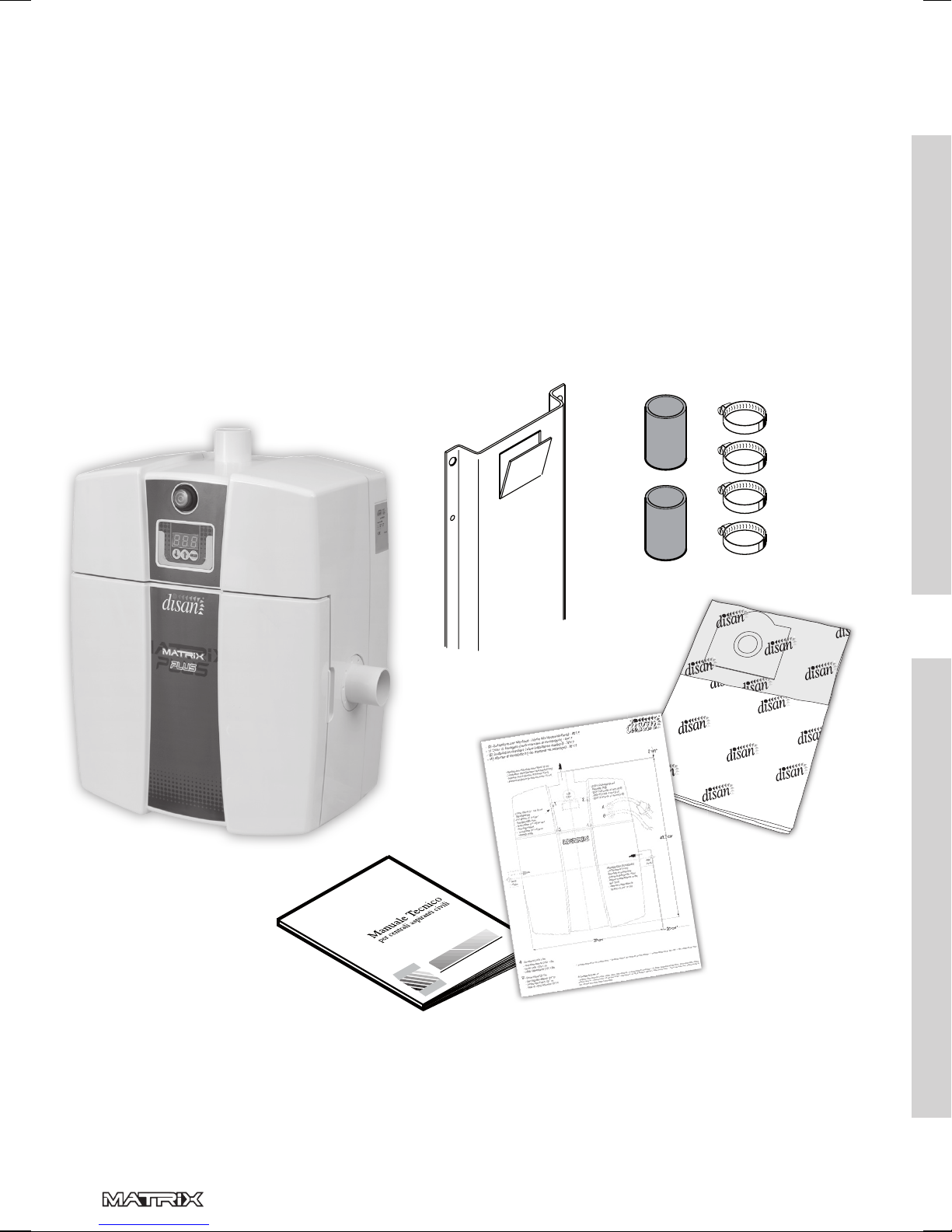

2.1 Control of the accessories
Check inside the box that all accessories are present:
1. Central unit
2. Metal fixing plate
3. Two rubber muffs
4. Four clamps for rubber muffs
5. Paper bag
6. User’s guide and Guarantee coupon
7. Installation template
Every central unit manufactured and packaged in our facility is standing an operational test
and certified by every operation.
3

3. Construction scheme
Matrix FF
Motor
Disposable bag
Flat filter
Dust container
Motor protection
Cover with quick fix
Matrix PT
4

5. Installation
5.1 Place of installation
The installation of central unit is following to the layout of the piping set by an appointed
installer. Considering the construction’s features, the protection class IP55 and the moderate
noise level, the Matrix units can be installed even outdoor.
The minimal room for installation chamber is
70 x 60 cm (lxh)

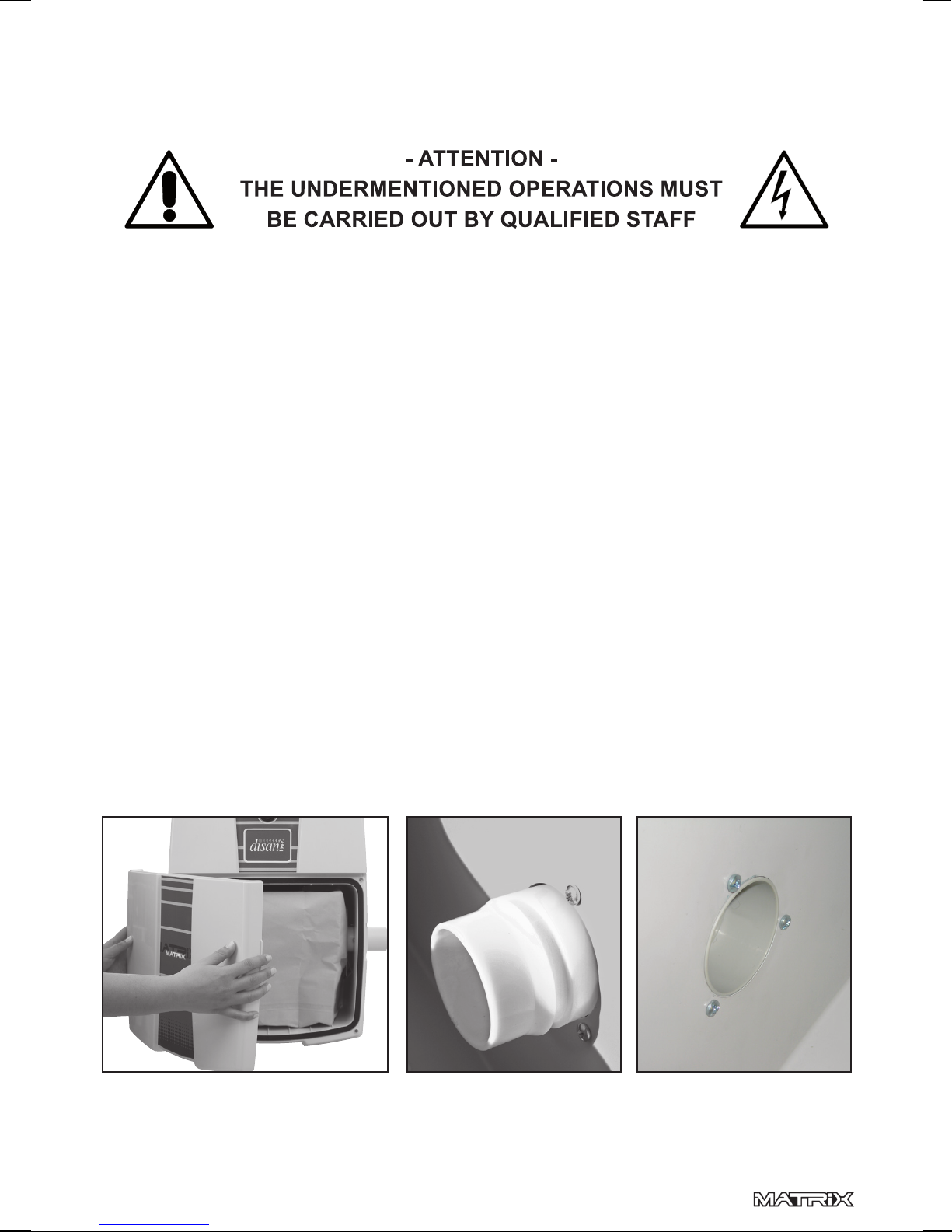

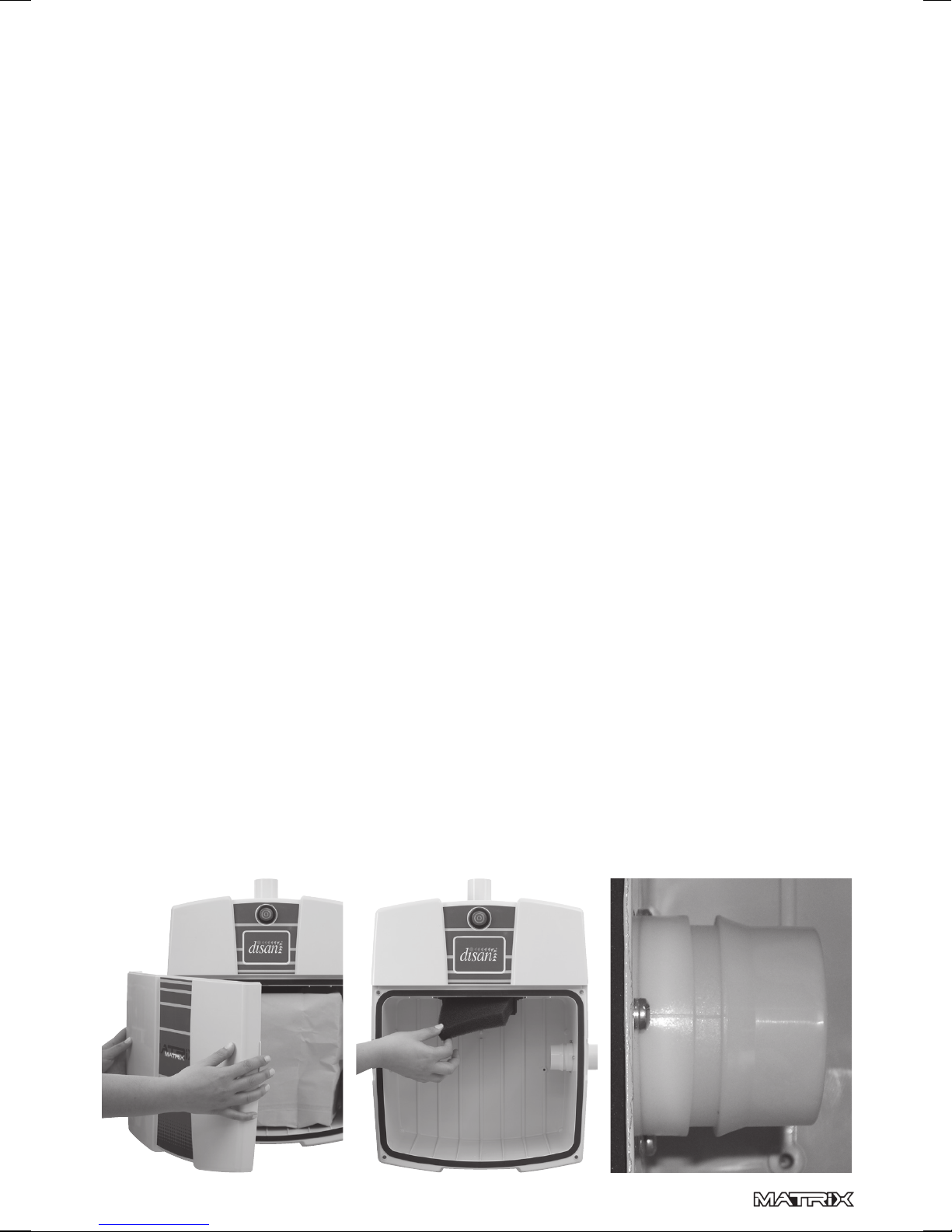

5.2 Inlet reversibility
The Matrix unit is usually delivered with inlet connection assembled on the right side of the
unit. When necessary, it is possible to switch the central unit form right to left, by assembling
the inlet on the left side.
1. Open the front cover with quick-fix magnets
2. Loosen the 3 screws from inside and remove the inlet muff
3. In the opposite side unscrew in the same way the inlet cap
4. Change the inlet muff with the inlet cap
Paying attention to the right positioning of the joints.
4. Technical data :
Field of application Matrix - PT Matrix - FF
area up to m2 130 m2 130
max. tube length m ca. 30 m ca. 30
max. inlet valves Stk. 3-4 Stk. 3-4
TECHNICAL FEATURES:
Power kW 1,5 kW 1,5
Motor stage 1 1
Inlet power supply Volt 230 Volt 230
IPX Protection degree IP55 IP55
Max Vacuum mbar 260 mbar 260
Max air volume m3/h 220 m3/h 190
Airwatt @ ø 32mm W 421 W 378
Filtration Paper Bag Flat filter
Filtration surface cm2 3350 cm2 5200
Housing ABS ABS
Dust container capacity L 5 L 3,5
Max Noise Level dB 59 dB 59
Size cm 23x39x49,5 cm 23x39x49,5
Weight kg 7,5 kg 7,6
5

5. Installation
5.1 Place of installation
The installation of central unit is following to the layout of the piping set by an appointed
installer. Considering the construction’s features, the protection class IP55 and the moderate
noise level, the Matrix units can be installed even outdoor.
The minimal room for installation chamber is
70 x 60 cm (lxh)
5.2 Inlet reversibility
The Matrix unit is usually delivered with inlet connection assembled on the right side of the
unit. When necessary, it is possible to switch the central unit form right to left, by assembling
the inlet on the left side.
1. Open the front cover with quick-fix magnets
2. Loosen the 3 screws from inside and remove the inlet muff
3. In the opposite side unscrew in the same way the inlet cap
4. Change the inlet muff with the inlet cap
Paying attention to the right positioning of the joints.
123
4. Technical data :
Field of application Matrix - PT Matrix - FF
area up to m2 130 m2 130
max. tube length m ca. 30 m ca. 30
max. inlet valves Stk. 3-4 Stk. 3-4
TECHNICAL FEATURES:
Power kW 1,5 kW 1,5
Motor stage 1 1
Inlet power supply Volt 230 Volt 230
IPX Protection degree IP55 IP55
Max Vacuum mbar 260 mbar 260
Max air volume m3/h 220 m3/h 190
Airwatt @ ø 32mm W 421 W 378
Filtration Paper Bag Flat filter
Filtration surface cm2 3350 cm2 5200
Housing ABS ABS
Dust container capacity L 5 L 3,5
Max Noise Level dB 59 dB 59
Size cm 23x39x49,5 cm 23x39x49,5
Weight kg 7,5 kg 7,6
6

5.4 Connection to pipe network
1. Connect with the muff and clamps included the
middle side inlet in with piping network
2. Connect with the muff and clamps included
the outlet with the exhaust line.
3. The silences (optional) can be connected
near the exhaust grid.
5.5 Electrical connection
Before plugging in the central unit make sure that the main power supply correspond to the
voltage requirements written on the label, which referred to the data on the identification
plate. The manufacturer declines all responsibility for damages to persons or objects due to
an electric system not in compliance with the regulation in force.
• Connectthelow-voltagestartingcable
• Plug-inthemainelectriccable.
5.3 Fixing the central unit
Inside the packaging you will find the special installation template to easy the position and
fixing, as well as the installation wall plate.
1.The template should be fixed on the
wall where the central unit should be
installed. For reference the inlet and
outlet should be considered.
2. Mark the drilling point through the template.
3. Arrange the plate on the wall.
4. Hang the central unit on the wall plate.
5. Hang the suction unit the frame.
7
