Displays2go FSBEVCART4 User manual

ASSEMBLY INSTRUCTIONS
FSBEVCART4 - Beverage Cart with Wine Glass Holder & Wheels V20.04
Parts List

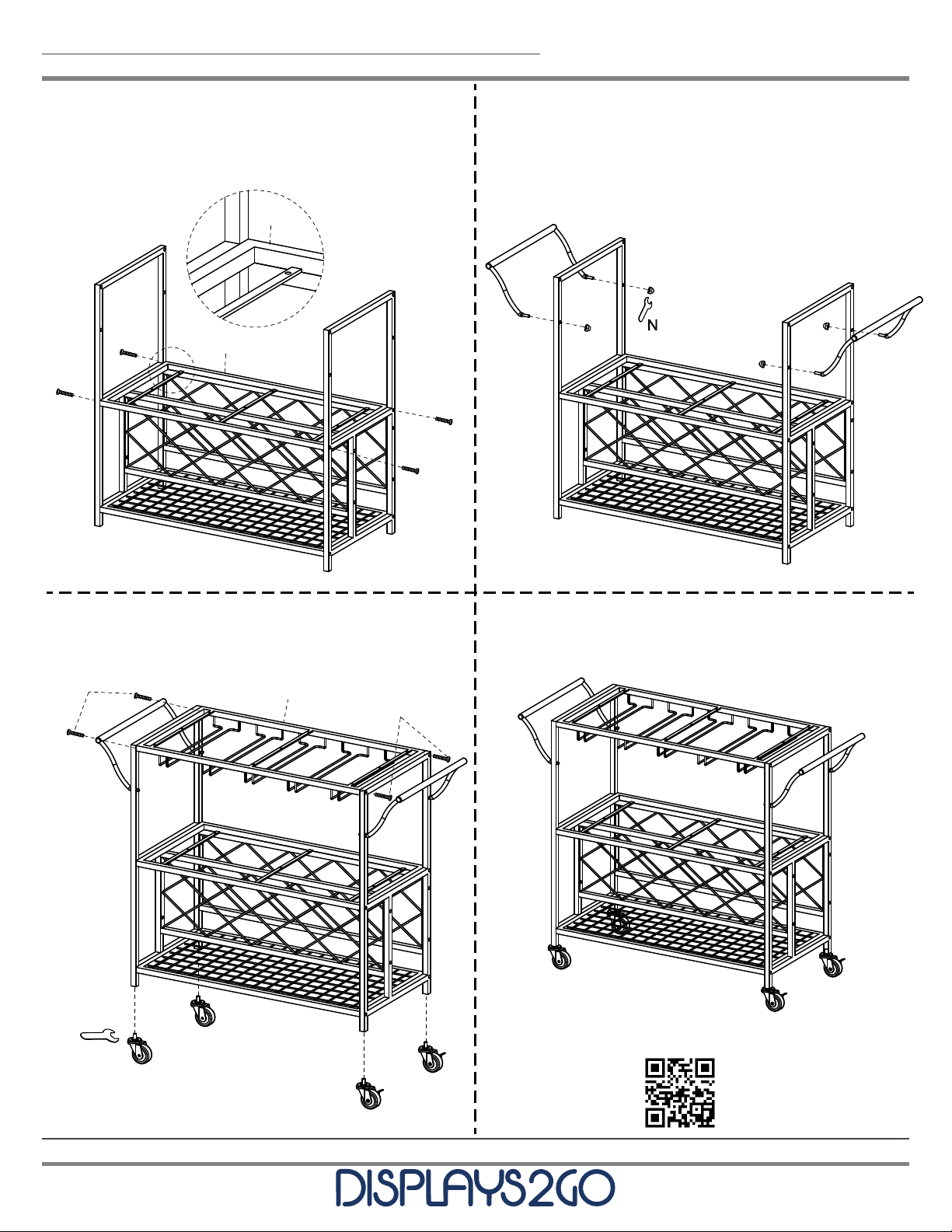

Step 1. Attach Side Frames (E) to Grid Rack Base (D).
Use Screws (L) and tighten with included Hex Key (J) from
both sides as shown.
Step 2. Place one Cross Rack (C) in between 2 side panels
and align the holes on C and E. Use Screws (K) and Cap (M)
to fix the rack. Hand tighten the screws and caps first and then
use Wrench (N) and Hex Key (J) to securely tighten them.
Assemble the other Rack (C) the same way.
L
DL
L
L
E
E
C
K
K
K
M
M
M
M
M
M
K
K
M
K
E
C
N
M
1 of 2
A x1pcB x1pcC x2pcsD x1pc
E x2pcF x2pcs G x2pcsH x2pcs I x1pc
J x1pcK x8pcs L x12pcsM x12pcsN x1pc
10mm
8mm6mm6x25mm8x25mm6mm6mm

B
B
L
L
L
L
ASSEMBLY INSTRUCTIONS
FSBEVCART4 - Beverage Cart with Wine Glass Holder & Wheels V20.04
2 of 2
If you have any questions regarding our products, please visit us at www.displays2go.com or contact D2G customer service at 844-221-3388.
Step 3. Place the Middle Frame (B) with wooden shelf onto
the assembled racks. Secure the shelf with Screws (L) and
Hex Key (J).
Step 4. Insert one Handle (F) from the outside into the
corresponding holes on Side Panel (E). Hand tighten with
Cap (M) first then use Wrench (N) to fix the handle.
Repeat above to assemble the 2nd Handle on the other side.
M
M
M
M
F
F
L
L
G
G
H
H
I
A
Step 6. Check the serving cart to make sure all parts are
securely fixed.
The assembly is finished.
Step 5. Place the Top Frame (A) with wine glass holder at the
and fix it to the side panel using Screws (L) and Hex Key (J).
Hand tighten Caster (H & G) onto feet and secure with includ-
ed Wrench (I).
Scan QR code to visit
the product page:
