1. Summary
Summary
Thank you for purchasing our LED PAR lighting. Please read these instructions
carefully before starting and operate the fixture according to these instructions in order to
avoid any possible damages and accidents caused by misuse.
Product Introduction
This LED PAR color-changing projecting light is constructed of high strength die-cast
aluminum. It uses high power red, green, and blue LED diodes. Each color can be
independently set at 256 discrete levels. It uses a switching power supply for low weight,
efficient power use, stability , and long life. It can be operated by built-in programs including
dimmer, strobe, gradual change, fading, etc., or by international standard DMX 512 signal.
Packing list
LED Light Fixture
DMX Cable
User Manual
2. Safety Information
Safety Notes
●Repairs should only be attempted only by qualified technicians
●Always make sure to disconnect from the power source before setting up, servicing, or moving
●Avoid direct eye exposure to the LEDs when the unit is powered on
Safety Instructions
● Make sure the power supply voltage is consistent with the requirements of this light.
●Before installation, please check that the light’s fasteners and mechanical structure

WWW.DIVINELIGHTING.COM
2
have arrived in good condition and without damage.
● This light is designed for indoor use only. Ambient temperature should not exceed 105
degrees Fahrenheit (40 degrees Celsius).
●This fixture may be mounted in any position provided there is adequate room for
ventilation. Make sure there are no flammable or explosive objects within 1.5 feet (0.5
meters).
●Please make sure that this fixture is properly grounded.
3. Outside Dimensions
Hyper 363

WWW.DIVINELIGHTING.COM
3
4. Features
 High quality LEDs: low consumption, high brightness, stable output, and long life
Each color LED capable of 256 discrete levels, RGB can make over 16.7 million colors
Linear dimming 0-100%, strobe, color change by either fading or snapping
DMX512 Controller，4 button set DMX ID address with LCD display
Auto run / Sound activated / Master-slave / DMX control board
Switching power supply for optimal functioning
Lens degree: 25º (15º or 45º lens optional)
DMX512 3/6/7/8 channels
5. DMX Controller Functions
3 Channel Operation
DMX Channel
Value
Control Function
Priority
1CH
0—255
R 0—100%
2CH
0—255
G 0—100%
3CH
0—255
B 0—100%

WWW.DIVINELIGHTING.COM
4
6 Channel Operation
Channel
DMX
Value
Control
Function
Remark
Priority
1CH
0-255
Master dimmer
0—100%
You must use channel 1 along with 2, 3, or
4, otherwise no output.
1
2CH
0-255
Red Dimming
3CH
0-255
Green Dimming
4CH
0-255
Blue Dimming
5CH
0-14
Not used
Speed adjustment when channel 6 is set
between 32 - 223
2
15-255
Strobe Speed
6CH
0-31
Not used
32-63
From dark to bright
You must use channel 1 along with 2, 3, or
4, otherwise no output.Adjust speed with
channel 5.
3
64-95
From bright to dark
96-127
From dark-bright-dark
128-164
RGB Gradient
Adjust speed with channel 5.
(CH1, 2, 3, 4 not used)
165-191
RGB dark-bright-dark
Auto run
192-223
7 color snapping
224-255
Sound activated

WWW.DIVINELIGHTING.COM
5
7 Channel Operation
Channel
DMX
Value
Control
Function
Remark
Priority
1CH
0-255
Master dimmer
0—100%
You must use channel 1 along with 2, 3, or
4, otherwise no output.
1
2CH
0-255
Red Dimming
3CH
0-255
Green Dimming
4CH
0-255
Blue Dimming
5CH
0-14
Not used
Speed adjustment when channel 6 is set
between 32 - 223
3
15-255
Strobe Speed
6CH
0-31
Not used
32-63
From dark to bright
You must use channel 1 along with 2, 3, or
4, otherwise no light.Adjust speed with
channel 5.
3
64-95
From bright to dark
96-127
From dark-bright-dark
128-164
RGB Gradient
Adjust speed with channel 5
(CH1, 2, 3, 4 not used)
165-191
RGB dark-bright-dark
Auto run
192-223
7 color snapping
224-255
Sound activated
7CH
0-9
Not used
You must use channel 1, otherwise no
output.
2
10-29
Red 100%
30-39
R85%+Y15%
40-49
R60%+Y40%
50-69
Yellow 100%
70-79
Y85%+G15%
80-89
Y60%+G40%
90-109
Green 100%
110-119
G85%+B15%
120-129
G60%+B40%
130-149
Blue 100%
150-159
B85%+C15%
160-169
B60+C40%
170-189
Cyan 100%
190-199
C50%+M50%
200-219
Magenta 100%
2
220-229
M50%+W50%
230-249
W95%+Y5%
250-255
White 100%

WWW.DIVINELIGHTING.COM
6
8 Channel Operation
Channel
DMX
Value
Control
Function
Remark
Priority
1CH
0-255
Master dimmer
0—100%
You must use channel 1 along with 2, 3, or
4, otherwise no output.
1
2CH
0-255
Red Dimming
3CH
0-255
Green Dimming
4CH
0-255
Blue Dimming
5CH
0-14
Not used
Speed adjustment when channel 6 is set
between 32 - 223
3
15-255
Strobe Speed
6CH
0-31
Not used
32-63
From dark to bright
You must use channel 1 along with 2, 3, or
4, otherwise no light.Adjust speed with
channel 5.
3
64-95
From bright to dark
96-127
From dark-bright-dark
128-164
RGB Gradient
Adjust speed with channel 5
(CH1, 2, 3, 4 not used)
165-191
RGB dark-bright-dark
Auto run
192-223
7 color snapping
224-255
Sound activated
7CH
0-9
Not used
You must use channel 1, otherwise no
output.
2
10-29
Red 100%
30-39
R85%+Y15%
40-49
R60%+Y40%
50-69
Yellow 100%
70-79
Y85%+G15%
80-89
Y60%+G40%
90-109
Green 100%
110-119
G85%+B15%
120-129
G60%+B40%
130-149
Blue 100%
150-159
B85%+C15%
160-169
B60+C40%
170-189
Cyan 100%
190-199
C50%+M50%
200-219
Magenta 100%
220-229
M50%+W50%
230-249
W95%+Y5%
250-255
White 100%
8CH
0-55
56-105
106-155
156-205
206-255
nod0 (fast)
nod1
nod2
nod3
nod4 (slow)
You must use channel 1 along with 2, 3, or
4, otherwise no output.
1

WWW.DIVINELIGHTING.COM
7
6. Control Panel Instructions
DMX IN/OUT
LED display
4 button
MENU : access the menu or return to a previous menu option
ENTER: select the current menu option
UP: menu selection or parameter increases
DOWN: menu selection or parameter decreases
7. Manual Instructions
Operating instruction:
1. MENU is used to access the menu or return to a previous menu option. It cannot be
used to select and store the current menu option. Press UP / DOWN to choose a desired
menu item. Here are the menu options:
”addr”: DMX mode （d001-d512）
”UErn”: Software version（UE2.0）
”nodE”: DMX dimming mode（nod0- nod4）. This feature slows dimming response to
mimic conventional lighting. (fast to slow –NOTE: Set to nod0 for instant dimming.)
”LEd”: Turns display on or off for stealth use.（on/Off)
”SoUA”: Sound activated mode （SouA）
”bL”: Blue color brightness adjustment mode（b000- b255）
”GL”: Green color brightness adjustment mode（g000- g255）
”rL”: Red color brightness adjustment mode （r000-r255）
”FLAS”: White color strobe（FL00-FL15）
”FAdE”: Gradual change model（FA00-FA15）
DMX IN DMX OUT
MENU ENTER UP DOWN

WWW.DIVINELIGHTING.COM
8
”ASC-”: Colors jumping（AC00-AC15）
”Pr--”: Built-in program （Pr00-Pr15）
”SP--”: Built-in program speed change model (SP00-SP15)
“SLAU”: Slave mode (SL.AU)
“CHnd”: DMX Channel mode(3CH/6CH/7CH/8CH)
2. Examples
Press ENTER to access the further menu setting. This process can be saved automatically;
that means you will enter the process saved previously when you activate the light next time.
Example: if you want to choose DMX mode d001:
Press MENU, go back to the initial setting
Press UP / DOWN until you see Addr
Press ENTER to choose, the display will start blinking
Press UP / DOWN to change the address code to select d001
 Press ENTER to select and store the current menu option. DMX mode will be
stored automatically and the screen will stop blinking.
DMX channel selection
Press MENU, go back to the initial setting
Press UP / DOWN until “CHnd”
Press ENTER to access the menu items to select, the screen will now be blinking
Press UP/DOWN to choose the DMX Channel: 3CH, 6CH, 7CH, 8CH
Press ENTER to confirm
To turn off display screen
Press MENU, go back to the initial setting
Press UP/DOWN，shows “LED”
Press ENTER to access the menu items to select, the screen will now be glinting
Press UP/DOWN to choose “oFF”
Press ENTER to confirm. Display will automatically shut off after 20 seconds. Pressing
any key will reactivate the menu

WWW.DIVINELIGHTING.COM
9
To use the built-in program (Pr- -)
Press MENU, go back to the initial setting
Press UP / DOWN until Pr- -
Press ENTER to choose. The display will start blinking
Press UP / DOWN to change the address code.
 Press ENTER to select and store the current menu options. DMX mode will be
stored automatically and the screen will stop blinking.
Pr00: red
Pr01: green
Pr02: blue
Pr03: amber
Pr04: cyan
Pr05: purple
Pr06: white
Pr07: red strobe
Pr08: green strobe
Pr09: blue strobe
Pr10: amber strobe
Pr11: cyan strobe
Pr12: purple strobe
Pr13: white strobe
Pr14: three color (RGB) strobe
Pr15: seven color strobe
Note：Pr7--- Pr15 can change the content of SP，correct the speed of jumping change,
SP00 (fastest) to SP15 (slowest)
8. Operating Mode Instructions
Master/Slave
Master: Units are set to master mode by default. (i.e. outputting DMX signal that mirrors
their own DMX input) unless a DMX controller is used. Signal lines longer than 200 feet (60
meters) or 20 lamps should use a signal amplifier.

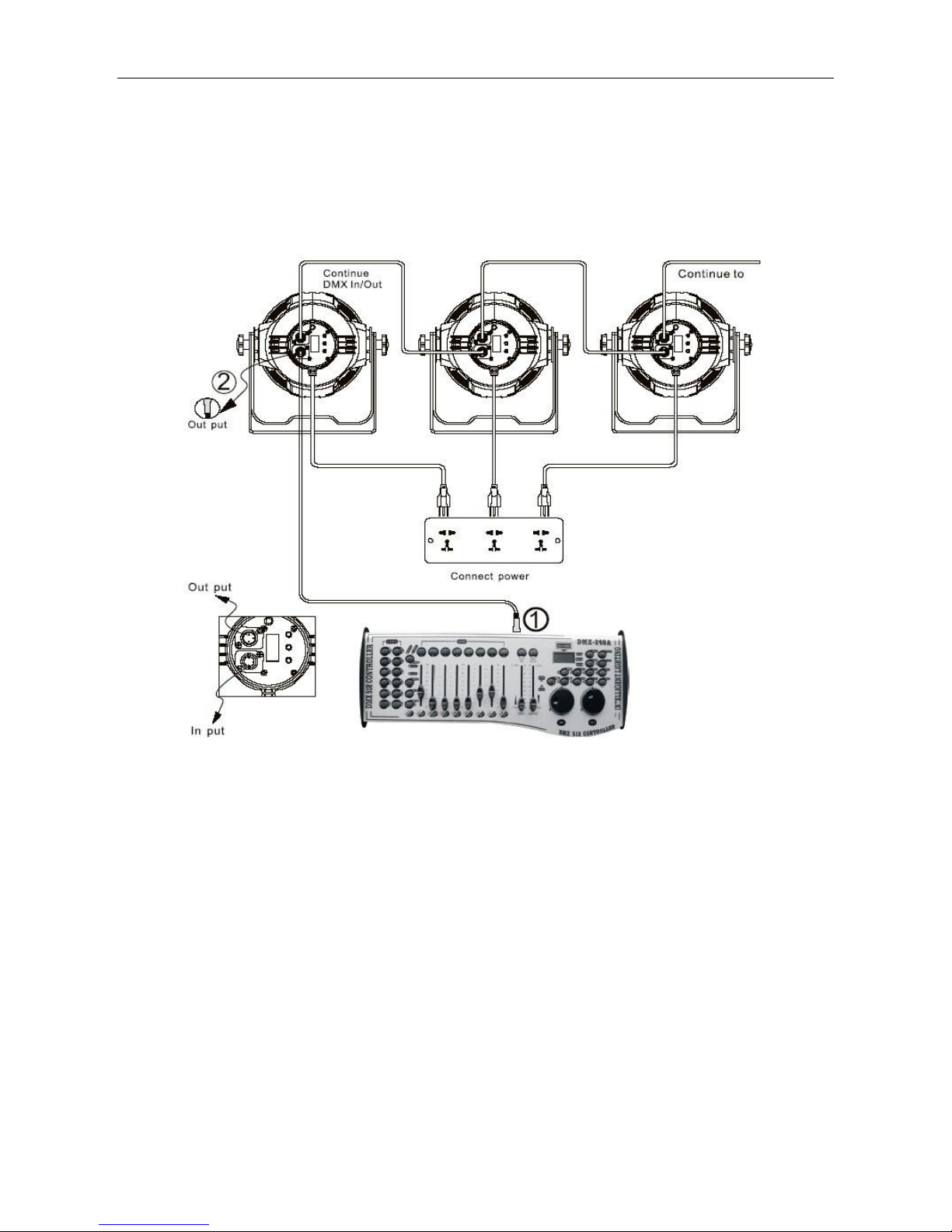

Slave: Connect all slave units to the master unit using a DMX cable. Set all slave units
to SLAU mode OR address them to the same channel (typically d001). Any adjustments
made to the master should be displayed on the slave units as well. To ensure proper
signaling, only one light should be set as Master. Use of a DMX controller will override the
signal output of a light that is using its own internal program (i.e. flash, fade)

WWW.DIVINELIGHTING.COM
10
9. XLR cable connection
XLR cable：

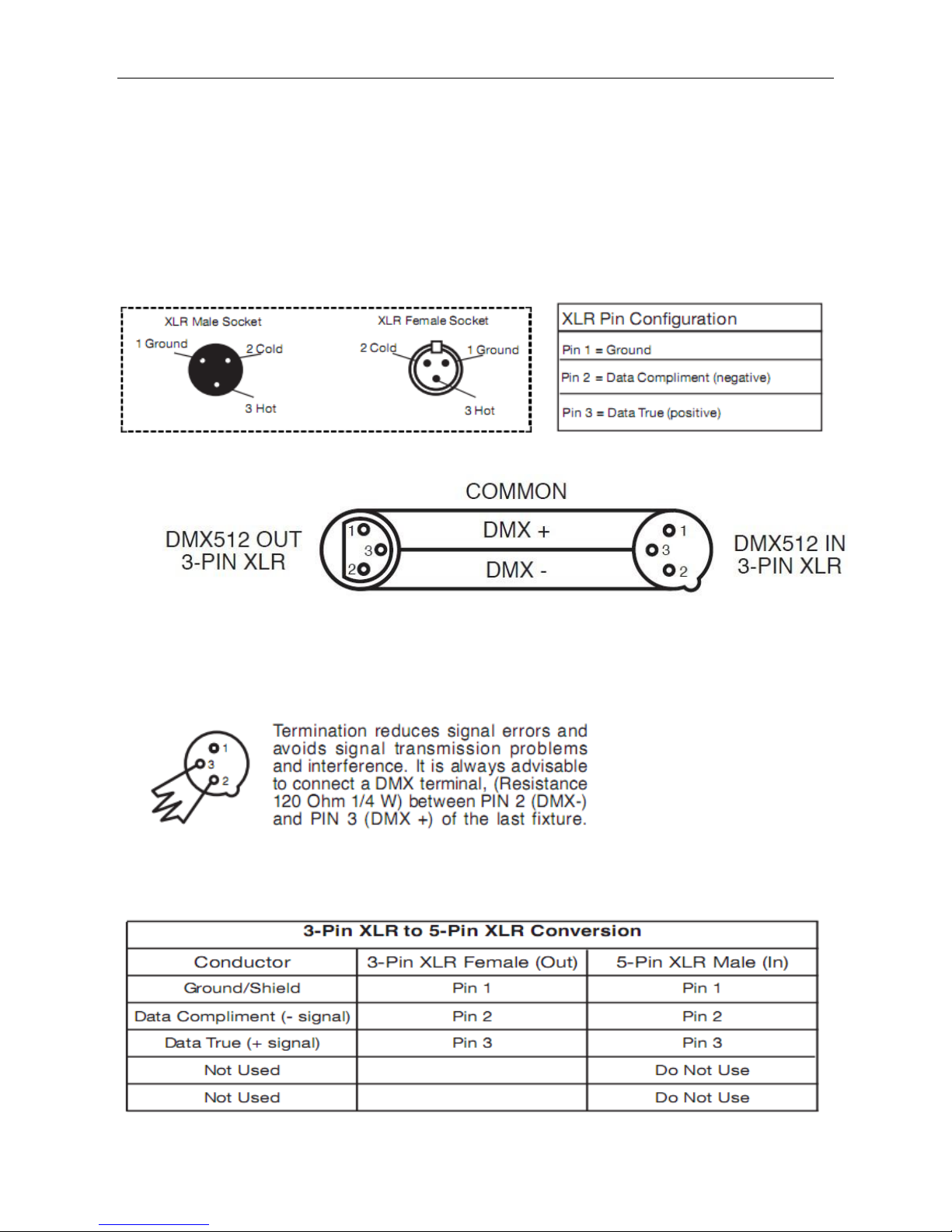

XLR/DMX connections are connected male to female as shown below:
pin 1: Ground, pin 2: Negative, pin 3: Positive
Noted：In order to avoid failures and interference signal transmission，we connect a
resistance120Ω （1/4W ）at the end of the DMX connecting as below:
The Conversion between 3pin and 5 pin XLR
If the output of the DMX512 controller is 5PIN, please use 1pc 5PIN to 3PIN cable.

WWW.DIVINELIGHTING.COM
11
10. Cable Connection Diagram
Cable connection diagram

WWW.DIVINELIGHTING.COM
12
Electrical wiring diagram
显示板
Display board
DC 24V IN
16P 电脑显示排线 16pin computer cable
控制主板 Control board DSLM-PAR575-5408
DMX IN
LED 铝基灯板
LED Aluminum Light Panel
灯板连接线
DSLM-PAR575-5A
K1
K2
K3
K4
V+ V+ R G B
GND
POWER IN DISPLAY
DMX IN/OUT UR UB
1
2
3 UG UW
STC12C5404
34063
75176
LM358
MIC
C1
L1

WWW.DIVINELIGHTING.COM
13
11. Exploded View

WWW.DIVINELIGHTING.COM
14
12. Illuminance List

WWW.DIVINELIGHTING.COM
15
13. Troubleshooting
Problem
Possible Cause/Solution
Cannot turn light on
Check that the power plug is fully inserted
Check that the power switch to the lights is on
Check for blown fuse on circuit
DMX not functioning
Check that the DMX cable is connected to the lights
Check if the light is in DMX mode（d001)
Check the DMX512 controller for signal output
Check that the DMX cable is good
Display not bright
Or
LEDs not coming on
When initially powered on, did the LEDs flash once? If so, the
power source is normal; if not, please check the voltage switch
or transformer
Check if the power input to the IC board is normal
Check if the cable connected to the display is loose
Replace the main board
Several LEDs of one
color don’t light
LEDs are connected in series first then in parallel. Check to see
if any LEDs are loose
Use a multimeter to check continuity of each LED. Replace
burned out LED
Check whether transistor is loose or bad
Check whether current limiting resistor is good
Check constant current IC is normal or not (compared with the
normal IC)
Single color LEDs
always bright/not
bright
Check the switch of this color is normal or not
Change the IC control board
Note：Only professional technicians can do above

WWW.DIVINELIGHTING.COM
16
14. Technical Specifications
●Input voltage: AC 100V-264V/47-63HZ
●Output voltage: DC24V
●Power Consumption: 108W
●Lamp Type: LED (3W)
●Lamp Spec: Red (12pcs), Green (12pcs), Blue (12pcs)
●Control Signal: DMX512, Sound activated, Auto run
●Control mode: Stand-alone/Sound activated
●Channel: 3, 4, 6, 7, 8 CH
●Color effect: RGB mixing
●Function Effect: Dimmer, Strobe, Gradual change
●Beam Angle: 25° (15° or 45° lenses optional)
●Anti-electricity intension: 1.5kV
●Insulation Resistance: ＞２MΩ
●Size: 330*295*220mm
●Net Weight: 5kg
