REPAIR PARTS MANUAL
MODEL NO. D22KH46 (96046001200)
LAWN TRACTOR
433618 Rev. 3

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• MODEL NUMBER - “D22KH46 (96046001200)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC .................................................................................................................. 3
ELECTRICAL..............................................................................................................4-5
CHASSIS ....................................................................................................................6-7
DRIVE..........................................................................................................................8-9
ENGINE...................................................................................................................10-11
STEERING ..............................................................................................................12-13
SEAT ............................................................................................................................ 14
DECALS....................................................................................................................... 15
MOWER DECK .......................................................................................................16-17
MOWER LIFT............................................................................................................... 18
WARRANTY.............................................................................................BACK COVER

3
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-15 AMP DC @ 3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH13
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK
85 86
30 87
87A
87
87A 8586
30
RELAY
BLUE
BLUE BLACK
BLACK
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
SCHEMATIC

4
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30
33
22
79 21
40
71
34
16
42
T27S
29
With 12V Outlet Option
59
103
46
45
0
60
AMPS
60
102
105
81

5
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 18 64-91 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 17 56-88 Harness Assembly Light
22 532 00 41-52 Bulb Light
24 532 40 02-53 Cable Battery 8"
25 532 41 28-95 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ignition
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 532 42 56-75 Harness Ignition
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
45 532 43 46-34 Ammeter
46 532 43 46-35 Hourmeter
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 19 42-76 Harness Ignition
79 532 17 52-42 Socket Asm Bulb Twistlock
81 532 40 96-15 Relay harness Sealed
90 532 40 07-24 Cover Terminal Battery
91 532 19 02-70 Strap Battery Mount Front
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
102 532 40 44-54 Harness Pigtail K46
105 532 40 75-68 Switch Reverse
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6

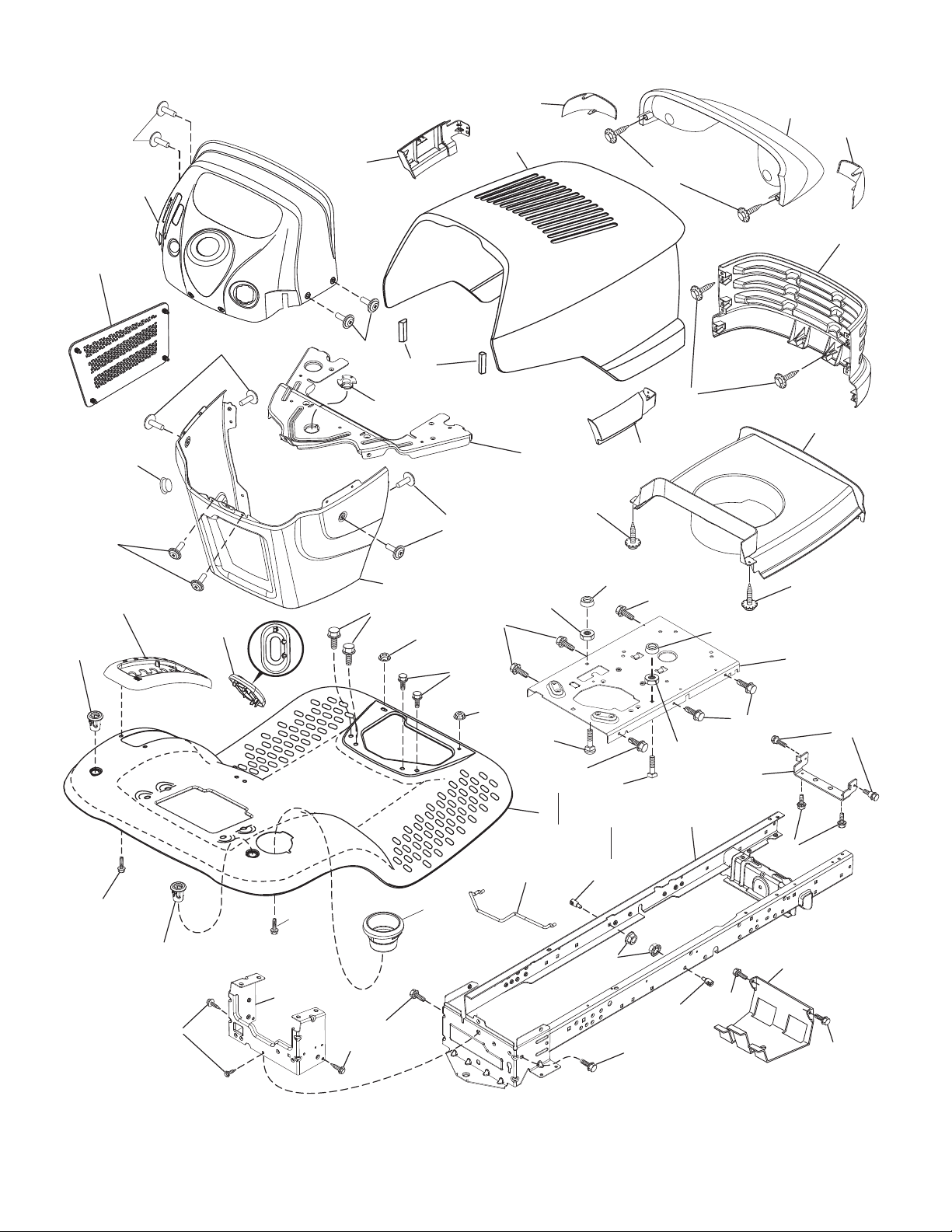

TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
CHASSIS
182
176
178
150
122
122
175
177
195
14
153
130
130
18
148
176 176
176
181
181
196
5
176
162
180
138
68
139
278
287
189
189
152
68
68
68
68
183
183
236
236
34
235
235
228
228
194
165
37
194
194
36
36
161
chassis-tex_stealth pl_9
206
205
15
25
58
189
189 159
159

7
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
CHASSIS
KEY PART
NO. NO. DESCRIPTION
5 532 41 18-76 Dash Upper
14 532 43 63-64 Hood
15 532 16 18-41 Lens LH
18 532 18 71-14 Grille
25 532 16 18-42 Lens RH
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 43 63-66 Fender
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
122 532 19 25-12 Screw 10-32 x 5/8
130 532 41 63-58 Screw #10 x 0.750 BOS Thread
138 532 40 97-30 Cupholder
139 532 17 18-73 Bolt Shoulder 5/16 - 18
148 532 16 46-55 Bumper Extrusion
150 532 19 03-09 Duct Air
152 532 19 95-35 Shield Browning/Debris
153 532 43 46-04 Lightbox Assembly
159 817 00 06-12 Screw Hexw
161 532 41 20-72 Window Fuel
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc
165 532 19 68-26 Support Tank Rear
175 532 19 32-36 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-27 Bushing Steering
178 532 19 56-51 Cargo Asm. Net
180 532 41 50-63 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 25-51 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 41 45-79 Console Asm. Deck Lift
205 532 18 71-11 Skirt Hood Side RH
206 532 18 71-12 Skirt Hood Side LH
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18 unc
278 532 19 63-94 Bracket Hood
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
DRIVE
231
51
170
225
125
drive-tex_K46_pedal_39
2
2
73
73 33
205
1
116
33
230
230
183
183
205
116
64
188
161
35
184
167
160
42
29
15
159
159
221
186
189
49
187
50
51
52
51
190
185
125
226
125
125
80 125
208
210
214
125
215
153
166
211
211
222
17
163
153
99
216
143
185
56
213
221
160
206
26
207
209
92 125
116
197 196

9
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
DRIVE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 42 61-20 Transaxle, Tufftorq K46BT (Order
Parts from Transaxle Manufacturer)
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 72-75 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt Hex 5/16-18 x 3.75
80 532 41 00-24 Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
99 532 41 57-42 Rod Spring Bypass
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 40 10-34 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
183 532 13 70-57 Spacer Axle
184 532 41 17-16 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 58-04 Link Clutch Anti-Rotation
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 94-66 Rod Control Cruise
210 532 40 09-80 Rockr Asm. Pdeal Control
211 532 12 01-83 Bearing Nylon
213 532 41 23-24 Knob control Cruise
214 532 42 12-63 Pad Pedal Forward
215 532 40 17-23 Pad Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
225 532 40 33-19 Keeper Belt Transaxle
226 532 40 15-64 Bracket Mount Torque
230 532 18 89-67 Washer Harden .793 x 1.637 x 060
231 532 40 72-87 Idler V-Groove 1.688" OFFSET

10
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
ENGINE
1
29
SPARK ARRESTER KIT
84
45
engine-tex_Kohl-2cyl_5
18
15 12
11
41
42
85
90
9
62
87
71
70
79
69
2
21
20
22
116
37
28
37
81
82

11
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Engine Kohl Model No. SV715-
0026
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 40 00-08 Clutch Electric
12 532 40 50-97 Pulley Engine
15 532 40 00-21 Tank Fuel
18 532 43 02-18 Cap Fuel
20 532 42 61-84 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
22 532 19 15-96 Control Choke
28 532 40 11-35 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 x 15/32 x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 43 40-17 Shield Heat Muffler
69 - - - - - - Gasket (Order From Engine Mfgr.)
70 532 14 66-99 Pipe Exhaust LH
71 532 14 67-00 Pipe Exhaust RH
79 532 19 23-34 Screw Socket HD 5/16-18 x .75
81 532 14 84-56 Tube Drain Oil Easy
82 532 42 82-87 Valve Oil Drain
84 817 12 06-16 Screw 3/8-16 x 1
85 532 17 39-37 Bolt 7/16-20 x 4 x Gr. 5-1.5
87 532 19 82-39 Bolt 5/16-18 unc x 1 With Sems
90 817 00 06-16 Screw 3/8-16 x 1
116 532 42 46-59 Knob
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
ENGINE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Kohler Co. 1-800-544-2444

12
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
STEERING ASSEMBLY
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
19 60
59
58
70
68
69
67
67
66
15
15
14
14
61
2
6
steering-tex_STDSRR_1_r2
16
28
13 22
64
21
51
26
1
45
20
63
57
57
63

13
KEY PART
NO. NO. DESCRIPTION
1 532 42 41-46 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 14-25 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Steering Support Lower
26 532 42 46-91 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 2-3/8 x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
STEERING ASSEMBLY

14
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
SEAT ASSEMBLY
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6.5SL_2
44
43
1 532 40 66-25 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

15
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
DECALS
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
1
1
4
6
3
13
9
14
15
11
1
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 13 83-36 Rim Assembly, Front
4 532 05 99-04 Tube, Front
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease
7 532 12 49-59 Bearing, Flange
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 42 05-31 Tire, Rear 18 x 9.5-8
10 532 12 49-26 Tube, Rear
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 521 97 17-01 Decal, Hood RH/LH
3 532 43 45-81 Decal, Side Panel
4 532 43 13-75 Decal. Fender Service
6 532 41 91-38 Decal, Warning Start Inst.
9 532 14 50-05 Decal, Battery Dnge/Poi
11 532 43 50-41 Decal, Replacement
13 532 43 45-78 Decal, Steering Wheel
14 532 16 03-96 Decal, Mower Schematic
15 532 17 05-63 Decal, Mower Warn. Keep Hands
Away
- - 532 40 95-07 Pad, Footrest Control
- - 532 16 69-60 Decal, Bypass
- - 532 40 95-05 Pad, Footrest, LH
- - 532 43 36-16
Manual, Operator's (Eng./Span.)
- - 532 43 36-18 Manual, Parts (English)

16
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
MOWER DECK



















MOWER?DECKªTEX?ELECT??R











































 
242
241

17
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 43 63-78 Mower Housing
2 532 40 55-07 Cover Mandrel LH
3 532 40 55-06 Cover Mandrel RH
6 532 19 51-86 Arm Suspension
8 532 19 30-03 Bolt/Washer Asm. 7/16-20 unf
11 532 40 53-80 Blade Mower 46" Hi Lift Bagger
- - 532 40 31-07 Blade Mulching
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 53-57 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol. Rolling Wsh. Hd.
31 532 18 76-90 Washer, Spacer
32 532 19 74-73 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5
36 532 19 73-79 Pulley, Idler, Flat
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
46 532 13 77-29 Screw
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw Hex Wsh. Thd. 3/8-16 x 1
59 532 14 10-43 Guard, Tuv. Idler (94)
62 874 52 06-36 Bolt Fin Hex 3/8-16 x 2-1/4 Gr. 5
68 532 40 51-43 V-Belt
69 872 14 05-05 Bolt
116 532 12 48-42 Bolt, Shoulder
117 532 18 86-06 Wheel, Gauge
118 873 93 06-00 Nut, Crownlock 3/8-1
119 819 12 14-14 Washer 13/32 x 7/8 x 14 Ga.
145 532 19 31-97 Pulley Idler
147 532 19 72-51 Spring Mower Drive
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
197 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
198 532 40 31-49 Baffle Center Front
199 532 40 31-50 Baffle Front RH
200 532 41 35-24 Washer 13/32 x 1 x 1/2 x 11 Ga
241 532 15 29-27 Screw
242 532 41 55-98 Port Washout
- - 532 41 64-05 Coupling Quick Connect
- - 532 19 28-70 Mandrel Assembly (Includes
housing, shaft assembly, and
bearing only - pulley/nut/washer
and blade bolt/washers not in-
cluded)
- - 532 43 51-20 Replacement Mower, Complete

18
TRACTOR - - MODEL NO. D22KH46 (96046001200), PRODUCT NO. 960 46 00-12
MOWER LIFT
7
3
87
10
88
2
89
90
87
98
97
97
lift-tex_22
91
101*
89 87
100
*Key 91 may be substituted for Key 101
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
91 532 19 51-81 Link Asm. Lift Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm. Lift FXD.
18

19
SERVICE NOTES

LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materi-
als and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or
replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due
to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original
purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limi-
tations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which
vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
1030 Stevens Creek Road
Augusta, GA 30907 USA
04.20.10 JA Printed in the U.S.A.
