Djgusa Infant User manual

Read all instructions
BEFORE USING
this child restraint.
KEEP INSTRUCTIONS FOR FUTURE USE.
Para recibir las instrucciones en español, llame al
1-800-544-1108 o solicitarse por escrito al dirección por arriba.
onBoard™, SureFit™
Infant Seat
Instruction Manual
IMPORTANT!
Failure to follow the warnings on the labels
and in the instruction manual can result in
the death or serious injury of your child.
Weight:
4-35 pounds
(1.8-15.9 kg)
Height:
32 inches (81.2 cm)
or less
This child
restraint is
designed for
use by children
whose:
54
Replacement Parts List
NOTE: If requested color is not available, similar color will be
substituted.
PartCost Quantity Total Cost
Crotch Strap/Buckle $6.99 X ____= $ ____________
Full Wrap Seat Pad $27.50 X ____= $ ____________
(includes Head/Hip Roll and Canopy)
Chest Clip . . . . . . . .$1.50 X ____= $ ____________
Harness Strap . . . . .$2.00 X ____= $ ____________
Locking Clip . . . . . . .$2.50 X ____= $ ____________
Latch Kit . . . . . . . .$24.99 X ____= $ ____________
Base . . . . . . . . . . . .$34.99 X ____= $ ____________
Instructions . . . . . . .$0.00 X ____= $ ____________
Merchandise Total: $ ____________
Shipping and Handling: $ ____________
Sales Tax $ ____________
(Indiana, California,Arkansas, and Massachusetts residents add applicable
sales tax.)
Grand Total $ ______________
No shipping and handling on instructions for quantities under 6. Add $.50 for
each instruction over 6, then add applicable shipping and handling.
Fill Out For Credit Card
 Visa  Mastercard
Card Exp. Date: ______________________________
Cardholder’s Name:__________________________
Card Number: ______________________________
Signature: __________________________________
Up to $25.00 . . . . . . . . . .$5.95
$25.01 to $50.00 . . . . . . .$6.95
$50.01 to $75.00 . . . . . . .$8.95
$75.01 to $100.00 . . . . . .$9.95
$100.01 to $150.00 . . . . .$10.95
$150.01 to $200.00 . . . . .$11.95
$200.01 and up . . . . . . . .$13.95
Outside Continental USA $10.00
CUT ON DOTTED LINE
Eng. 4358-4462B
www.djgusa.com
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 1

Table of Contents
Warnings ........................................................................................2-4
Aircraft Installation ..........................................................................4
General and Warm Weather Use..................................................5
Registration and Recall ....................................................................5
Understanding Your Vehicle ........................................................6-7
Child Restraint Parts..................................................................8-11
Canopy Installation and Use ........................................................12
Accessories (on select models) ..................................................13
Carrier Use................................................................................14-15
Choosing Restraint and Position ................................................16
Preparing Child Restraint to Fit Your Child ......................17-18
Harness Height ................................................................18-19
Adjust Buckle ....................................................................20-21
Securing Your Child in Child Restraint................................22-23
Removing Child from Child Restraint ......................................24
Choosing LATCH or Vehicle Belts..............................................25
Knowing Your Vehicle Belts ....................................................26-27
Locking Clip ..............................................................................28-29
Rear-Facing Use With Base ..........................................................30
Rear-Facing Installation
LATCH And Base..............................................................31-36
Vehicle Belt With Base ....................................................37-41
Vehicle Belt Without Base ..............................................40-41
Rear-Facing Use Without Base ....................................................42
Rear-Facing Installation
Vehicle Belt Without Base ..............................................43-44
Storing the LATCH System..........................................................45
Removing Seat Pad for Cleaning ..........................................46-48
Troubleshooting ..............................................................................49
Warranty ..........................................................................................50
Replacement Parts Order Form ..........................................53-54
1
Thank you for choosing this car seat, referred to
throughout this manual as a child restraint, carrier and
base.The DJG family is committed to creating a child
restraint with the most comfort and convenience
available today.
Remember, parents are a child’s first teachers and
examples. If you always buckle your seat belt, your child
will think it is the natural thing to do. Make it a firm rule
that the vehicle does not go until everyone is buckled
up. Make no exceptions.
No one can predict if use of a child restraint will prevent
injury or death in a particular crash. However, combined
with careful driving, proper use of a child restraint can
lower a child’s risk of injury or death in most crashes.
Your child’s safety is worth the time it will take to read
and follow these instructions.After reading, if you still
have questions or have any problems with this child
restraint, please contact our Consumer Relations
Department at:
Before You Begin...
On the back of the carrier there is an expiration date
for use of this child restraint. Do not use this seat
after the expiration date.
Dorel Juvenile Group, Inc.
Website: www.djgusa.com
Fax: [phone]
Mailing Address: Dorel Juvenile Group, Inc.
P.O. Box 2609
Columbus, IN 47202-2609
Telephone: [phone]
7 A.M. to 6 P.M. EST M-TH
7 A.M. to 4:30 P.M. EST FRI
© 2011 Dorel Juvenile Group All Rights Reserved.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 3

WARNING
!
The vehicle or LATCH belt must stay
tight at the belt path. If it’s not, your child
could be injured or killed.
Never take your child out of the child
restraint or try to tend to your child’s needs
while the vehicle is moving. Never leave
child unattended.
Do not use a child restraint with damaged
or missing parts.
Do not use cut, frayed or damaged
harness straps.
Do not substitute parts or try to modify
the child restraint in any way.
Do not use a child restraint that has been
in a crash.You must get a new child
restraint.
Use the child restraint only on vehicle
seats that face forward. Do not use on seats
that face the sides or rear of the vehicle.
Check the vehicle or LATCH belt before
each use. Use only if the belt can be
tightened properly and securely.
This child restraint should be securely
belted in the vehicle even when not in use. In
a crash or sudden stop, an unsecured child
restraint could injure other occupants.
Never allow any child to play with this
child restraint; it is not a toy.
3
WARNING
!
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front
seating positions.
Never place a child in front of an
airbag in the rear-facing position.
Death or serious injury can occur.
This child restraint must always face the
rear of the vehicle.
This child restraint must only be used
when the child weighs between 4-35 lbs. (1.8-
15.9 kg).
Never place a child less than one year old
forward facing.
Check vehicle instructions for more
information about airbag/child restraint use.
For vehicles with an airbag, but without a
back seat, refer to your vehicle owner’s
manual.
Make sure the harness height is correct
for your child’s size.
The harness must be snug.
Failure to follow these warnings can result in
the serious injury or death of your child. To
help you recognize those instructions which
are most critical to your child’s safety, we
use this symbol :
2
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 5

WARNING
!
Do not lubricate buckles and fasteners.
Do not use this child restraint when the
top of your child’s head comes within one
inch of the top of the child restraint’s head
area.
Dorel Juvenile Group does not recommend
the use of any child restraint accessories
except those provided by DJG.
Do not remove any of the warning labels
or other labels on the child restraint.
Placing your child in a hot child restraint
may result in burns.
Do not use this child restraint without the
seat pad.
Read instructions for other warnings.
Child restraints could be recalled for safety reasons.You
must register this restraint to be reached in a recall.
Send your name, address and the restraint’s model
number and manufacturing date to:
Dorel Juvenile Group, Inc.
PO Box 2609, Columbus, IN 47202-2609
Attn: Consumer Relations
or call 1-800-544-1108 or register online at
www.djgusa.com/registration/carseat/us. Please do
not send in your registration card if you registered your
child restraint online.
For recall information, call the U.S. Government's
Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-800-
424-9153), or go to http://www.NHTSA.gov.
Registration and Recall Information
This child restraint is certified for aircraft use. Use on
forward-facing aircraft seats only and in a position where
the lap belt can be tightened securely.This child restraint
is installed in an aircraft seat the same way it is installed
in a vehicle.
Use the child restraint only with F.A.A. certified
equipment. Contact the airline prior to taking a child
restraint on board in order to comply with their specific
regulations.
Aircraft Installation
General and Warm Weather Use
To help protect your vehicle seat’s upholstery from
damage, use a towel underneath and behind child
restraint.
To avoid your child being seriously burned, take
the following precautions:
1. Park in the shade or where sun does not
directly hit the child restraint.
2. Cover the child restraint with a sheet or blanket
when not in use.
3. Check for hot seat and buckles before placing child in
child restraint.
5
4
4358-4462B US onBoard 35lb 1/5/11 1:38 PM Page 7

6
Your vehicle’s features may be considerably different than
those pictured here. Consult your vehicle owner’s manual
to help identify your vehicle’s specific features.
Understanding Your Vehicle
A
B
C
E
7
D
A.Anchor Bracket
For Top Anchorage Strap
(Forward-Facing Only)
B. LATCH Anchors
(In seat bight)
C. Seat Buckles
D. Airbag
(Consult your vehicle
owner’s manual for all airbag
locations)
E. Seat Bight
(Where seat cushions
meet)
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 9

8

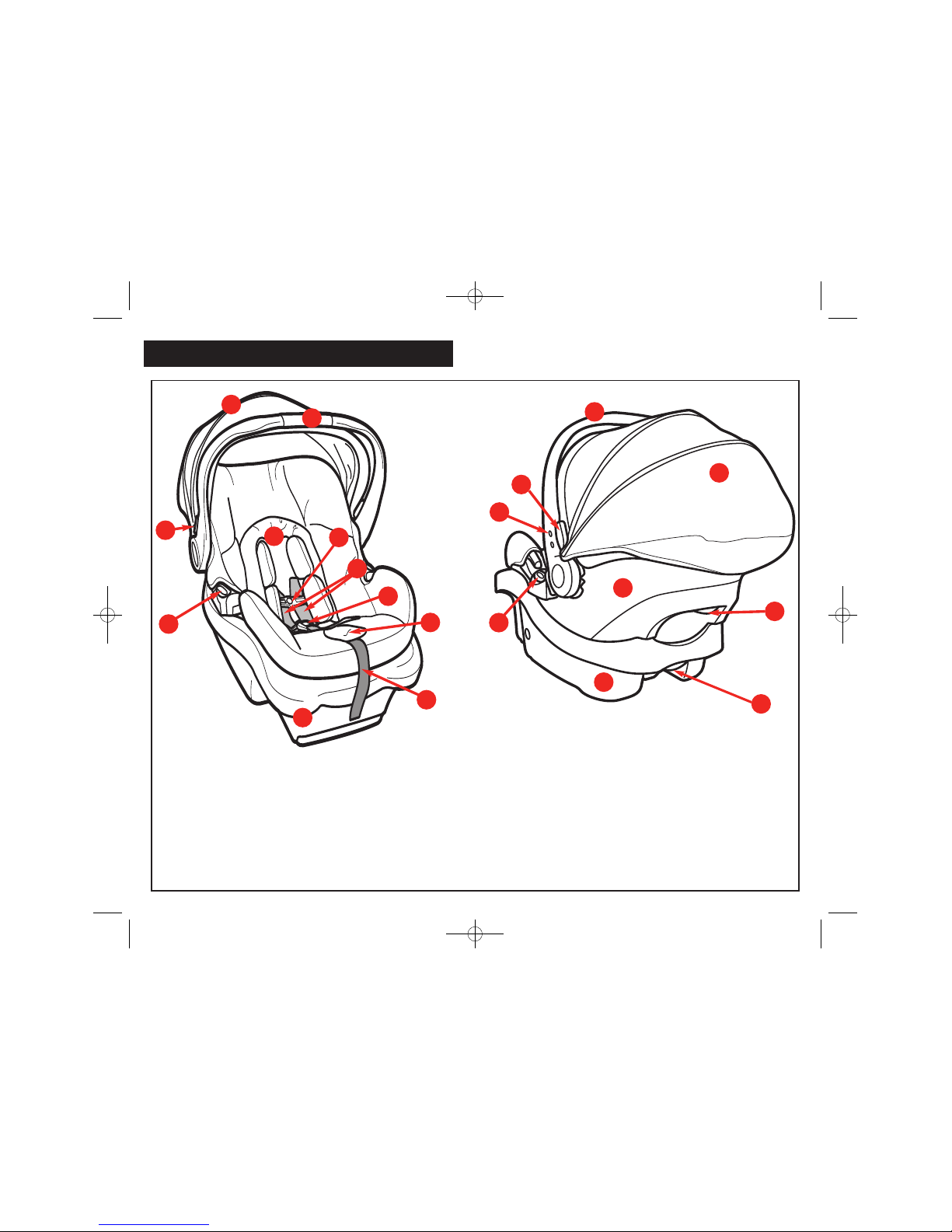

Child Restraint Parts
A. Handle
B. Canopy
C. Head/Hip Roll
(on select models)
D. Handle Adjustment
Lever
E. Handle Adjustment
Lock Indicator
F. Chest Clip
G. Harness Straps
H. Buckle Release
Button
I. Harness Release
Lever
(under flap)
Front
A
B
C
D
G
9
Back
J
K
L
M
N
H
I
E
J. Harness
Adjustment Strap
K. Base Release Lever
L. Base Adjustment
Lever
M. Carrier (shell)
N. Angle Indicator
O. Removable Base
F
D
A
B
N
O
O
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 11

A. Base Release Lever
B. Harness Slots
C. Harness Straps
D. Locking Clip
E. Base Attachment
Hooks
F. Splitter Plate
G. Instruction Book
Storage
H. Harness
Adjustment Strap
Bottom of
Carrier
A
BC
D
G
A
B
Base
J
K
L
O
M
H
I
E
N
I. Base Belt Path
Opening
J. Belt Lock Off
Plates
K. Belt Lock Off Plates
Lock
L. Base Lock Bars
M. LATCH Belts
N. LATCH Storage
Door
O. Base Adjustment
Lever
F
10 11
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 13

13

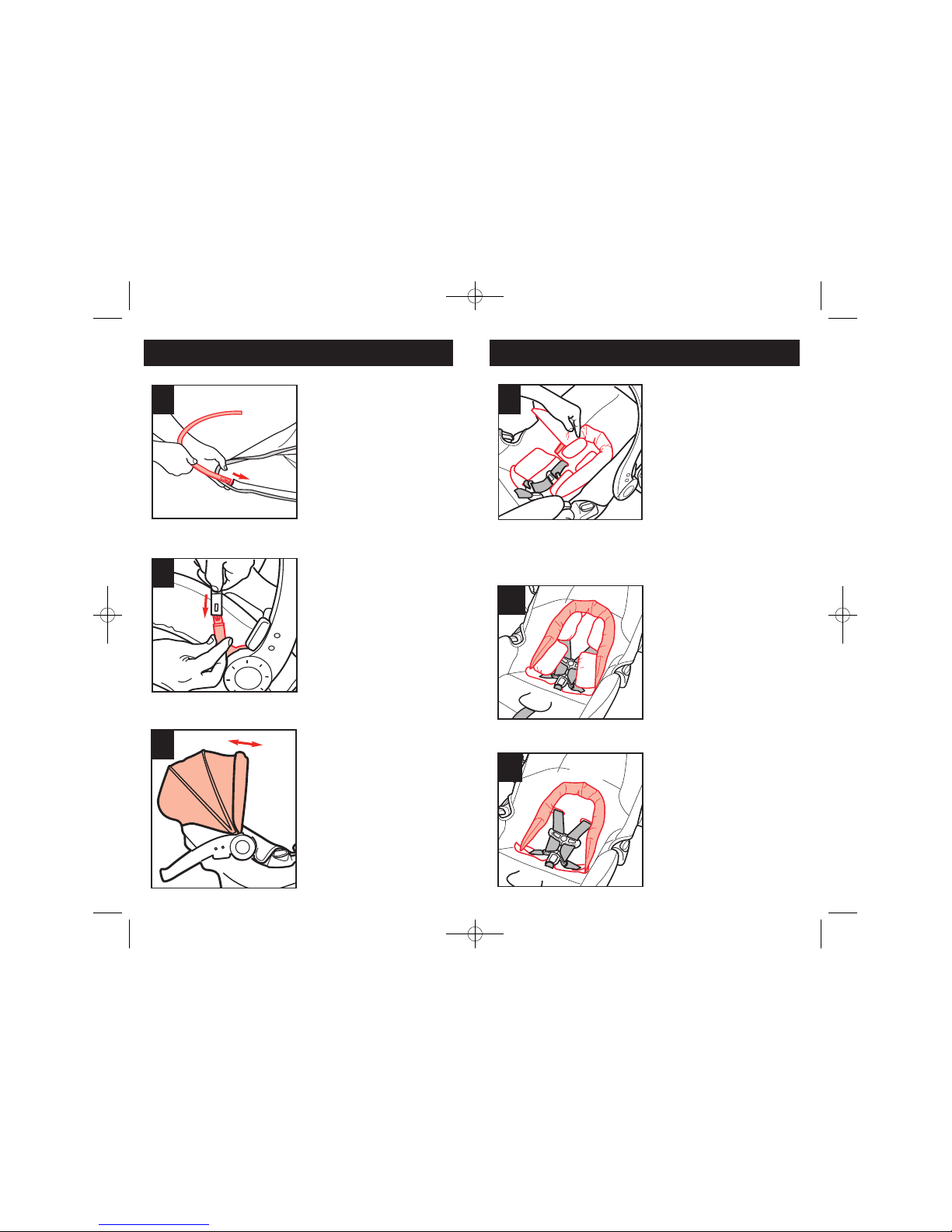

Accessories (on select models)
Hip/Head Roll (on
select models):
To remove hip/head
roll:
Pull hip/head roll out from
behind the harness straps.
To replace hip/head
roll:
Fit hip/head roll around
harness straps.
12
Canopy Installation and Use
Thread plastic strip
completely through
channel in front of the
canopy.
1
To attach canopy, fit back
of canopy over back of
carrier. Snap each plastic
strip end to each canopy
post.
2
Adjust canopy by grasping
front of canopy and
moving front to back to
desired location.
3
For Small Infants:
If your infant is small for
its age, place the head roll
on the outside of the
pillows. This will provide a
snug fit for your infant.
2B As your child grows,
remove the pillows.
For larger infants, the
hip/head roll can be
removed.
2A
1
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 15

14
Carrier Use
To adjust handle, squeeze
both adjustment levers on
each side of handle.
Rotate up or down to
desired location. Release
levers.
When the handle adjuster
levers are in the locked
position, the lock indicator
will be green. Make sure
both handle adjuster levers
are in the locked position.
WARNING:
Do not use in the
seating area or
across top of
shopping cart.
!
15
WARNING
!
Read ALL instructions before using child restraint
as a carrier.
NEVER use carrier unless child is properly
secured.
For use as a carrier by children weighing less than
35 pounds (15.9 kg) and less than 32 inches (81.2
cm) tall.
NEVER leave child unattended. Always keep
child within arm’s reach.
Suffocation Hazard: Infant carrier can roll
over on soft surfaces and suffocate child.
NEVER place carrier on beds, sofas or other
soft surfaces.
Strangulation Hazard: Child can strangle in
loose harness straps. NEVER leave child in
carrier when harness straps are loose or
undone.
Fall Hazard: Child’s movement can slide
carrier. NEVER place carrier near edges of
counter tops, tables or other elevated surfaces.
Do not use the carrier if it is damaged or
broken, or if any parts are missing.
Indicators will be
green when handle is
in the locked position.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 17

17
Preparing Child Restraint to Fit
Your Child
You MUST make these adjustments with your
child before you install the child restraint in the
vehicle.
From the back of the
carrier, pull on the base
release lever to unlock
the carrier from the base
and lift the carrier off the
base.
1
16
Choosing Restraint and Position
Rear-Facing
4-35 lbs (1.8-15.9 kg) AND 32” (81.2 cm) tall or less.
NOTE: If your child does not meet the criteria for the
Rear-Facing position, do not use this child restraint!
Rear-Facing with base:
Child and child restraint
with base face the back of
the vehicle and are placed
in the back seat.
Rear-Facing without
base:
Child and child restraint
without base face the back
of the vehicle and are
placed in the back seat.
continued on next page.
2Loosen harness by pushing
down on the harness
release lever while pulling
out on the harness straps.
3Press in on the chest clip’s
release button and pull
apart.
1
2
1
2
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 19

19
6Check Harness Height:
Determine which set of
harness slots works best
for your child. Adjust if
needed.
Rethread harness into new
harness slot location.
Make sure harness straps
do not twist.
Press red button on
buckle to release the
buckle plates. Pull buckle
plates out. Place harness
straps over sides of child
restraint.
4
5Place the child’s bottom
and back flat against the
child restraint.This will
increase comfort and allow
the harness to properly
tighten.
Harness slot being used
must be even with or
just below the shoulders.
If the bottom harness slots
are above the child’s
shoulders, do not use this
child restraint until the
child grows into it.
Harness
Slot
7
18
From the front of child
restraint, pull harness
straps out.
To change harness
location:
With harness loose, from
the back, remove harness
from the splitter plate.
8
9
10
WARNING
!
Failure to reinstall the harness system correctly
can result in serious injury or death.
From the back of the
child restraint, refasten
the harness straps to the
splitter plate.
NOTE: Make sure the
harness straps and
harness adjustment strap
are not twisted.
11
continued on next page.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 21

21
20
To change buckle
location:
Determine which of the
three available buckle
slots is both comfortable
and snug for your child.
13 From under seat, insert
buckle’s metal clip up
through the carrier and
pad.
Pull on the buckle to
check to make sure
buckle’s metal clip is
completely inserted
through the pad and
carrier.
15
12
14 Choose new location and
push the metal clip
through pad and carrier.
Make sure the buckle is
facing out.
WARNING
!
Failure to reinstall the harness system correctly
can result in serious injury or death.
Buckle placement for
small infants:
Choose the slot closest
to the back of the
restraint. Push metal clip
through the pad and
carrier. Make sure buckle
is facing out.
16
From the bottom, pull the
metal clip through the
carrier and insert it into
the middle slot.
17
Pull on the buckle to
check to make sure
buckle’s metal clip is
secured.
19
From the front, lift pad up
and place the buckle’s
metal clip flush on
bottom of the carrier.
Replace the pad.
18
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 23

23

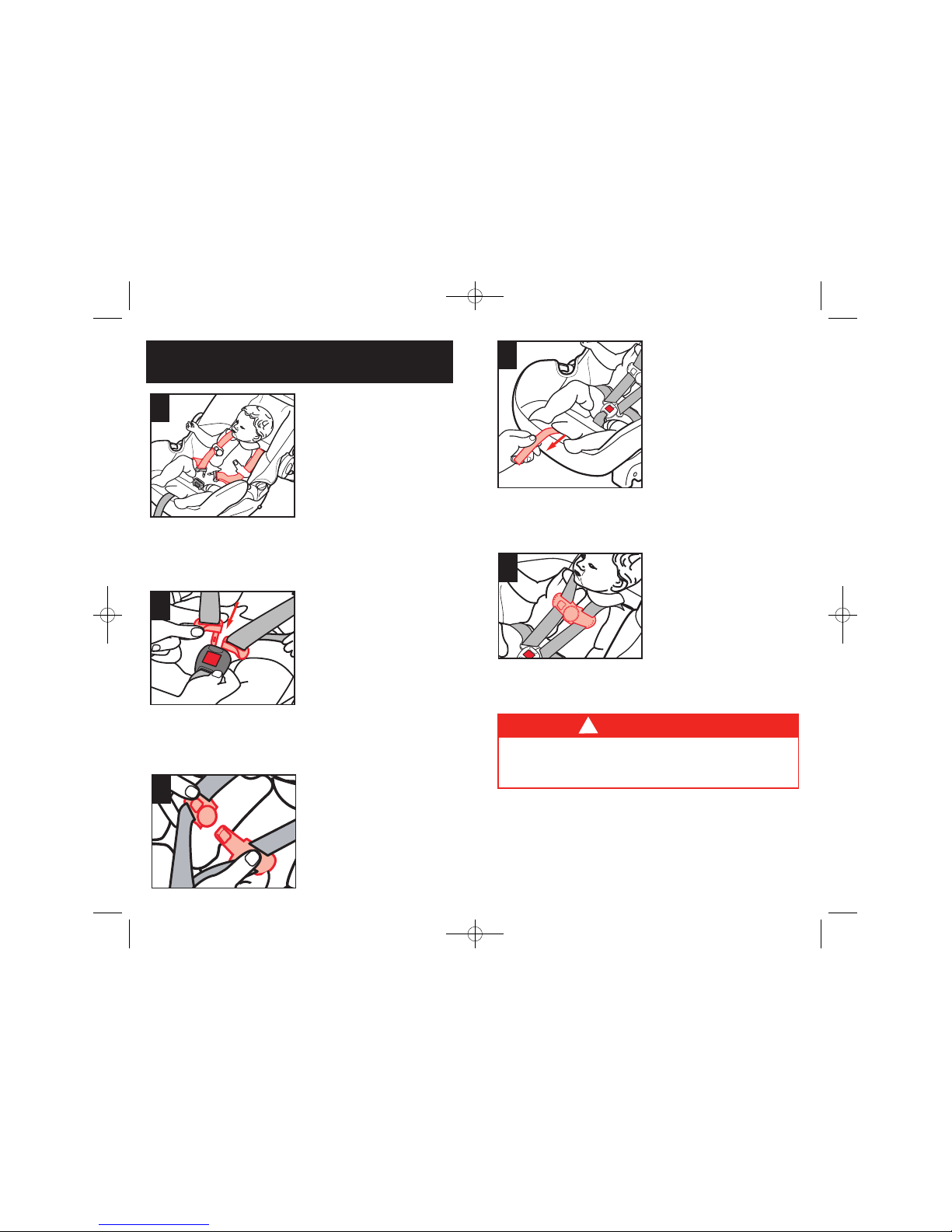

WARNING:
Failure to fasten and tighten the harness
system correctly with each use can result in
serious injury or death.
4
Position the chest clip at
mid-chest (even with
armpits), away from the
child’s neck.
Snap the chest clip
together.
5
Pull on the harness
adjustment strap to
tighten harness snugly.
NOTE: A snug strap
should not allow any slack.
It lies in a relatively
straight line without
sagging. It does not press
on the child’s flesh or push
the child’s body into an
unnatural position.
!
22
1Position harness straps
over the child’s shoulders.
Hold buckle plates
together with one hand
and buckle with the other.
Push buckle plates into
buckle until you hear a
“click.” Pull up on harness
to make sure buckle is
locked.
2
Securing Your Child in the Child
Restraint
3
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 25

25
24
Removing Your Child from the
Child Restraint
Loosen harness by pushing
down on the harness
release lever (under flap on
the front of child restraint)
while pulling out on the
harness.
1
Release harness by
pressing the red button on
the buckle. Remove your
child.
3
Press on the chest clip’s
release button and pull
apart.
2
Choosing LATCH or Vehicle Belts
The LATCH System
Anchor bars
Vehicle Belts
If LATCH is not an
option, you will use your
vehicle’s belts. There are
some vehicle belts that
will not work with a child
restraint or will require
special attention. See
next page for specific
instructions.
LATCH means Lower
Anchors and Tethers for
CHildren. Not all vehicles
manufactured before
September 2002 were
equipped with LATCH.
The LATCH system allows
a child restraint to be
secured in the vehicle
without using the vehicle
belt system and can ONLY
be used in vehicles that
have the anchor bars
installed.
Check your vehicle
owner’s manual to see
which seating positions
may be equipped with the
LATCH system.
The LATCH system can ONLY be used when installing
this child restraint rear-facing WITH the base.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 27

27
Not all vehicle belts will work with this child restraint. You
must determine if your vehicles belts are compatible with
this child restraint. If you will use the LATCH system,
refer to the LATCH section.
ELR - Emergency Locking Retractor Belts
Definition:These belts only lock in a sudden stop or crash.
To see if you have this type of belt, pull on the lap belt, let
it return part way, then pull on it again. If it moves freely, it
is an ELR belt and the child restraint could work loose
during normal driving. Refer to your vehicle owner’s
manual.
Some ELR belts will convert to Automatic Locking
Retractor (ALR) belts if you pull the belt all the way out.
Refer to your vehicle owner’s manual.
ELR shoulder belts either require a locking clip or used
only with the lock off on the base. It cannot be used when
installing without the base.
ELR lap-only belts must be replaced with a manual belt;
contact your vehicle dealer. A locking clip will not correct
this problem.
Automatic/Passive vehicle seat belts
An automatic (passive) 2-point belt has no lap belt.You
must install a lap belt to secure a child restraint.You may
also need to install an extra lap belt for an automatic 3-
point belt. Refer to the vehicle owner’s manual. A locking
clip will not correct this problem.
Vehicle belt too short
Contact your vehicle dealer for a seat belt extender.
Belts in center of the door or side panel (A) or
middle of the vehicle seat
cushion (B).
You must move the child
restraint to another seating
location.A locking clip will
not fix this problem.
See “Locking Clip” section.
Knowing Your Vehicle Belts
AB
26
Buckle
Twist vehicle seat belt and
latch plate (or buckle)
Buckle plate
WARNING
!
Failure to check and adjust the manual lap
belt as described above can result in serious
injury or death.
1
2
Manual Belts
Manual lap belts are
common in the center
rear seat and can allow
the child restraint to
loosen when it is tilted or
jarred. After tightening the
lap belt securely, tilt and
push the child restraint
forward and to both sides.
If no loosening occurs,
your child restraint should
be secure.
If loosening does occur, try
the following: If the buckle
plate slides on the belt,
turn the buckle plate over.
If the buckle slides, turn
the buckle. Refasten the
vehicle lap belt.The release
button should face out
after twisting so that it is
easy to reach in an
emergency.
If the lap belt continues to
loosen, the child restraint
must be moved to
another location in the
vehicle.A locking clip will
not correct this problem;
see your vehicle owner’s
manual.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 29

29
2Thread both portions of
the vehicle belt onto the
locking clip.

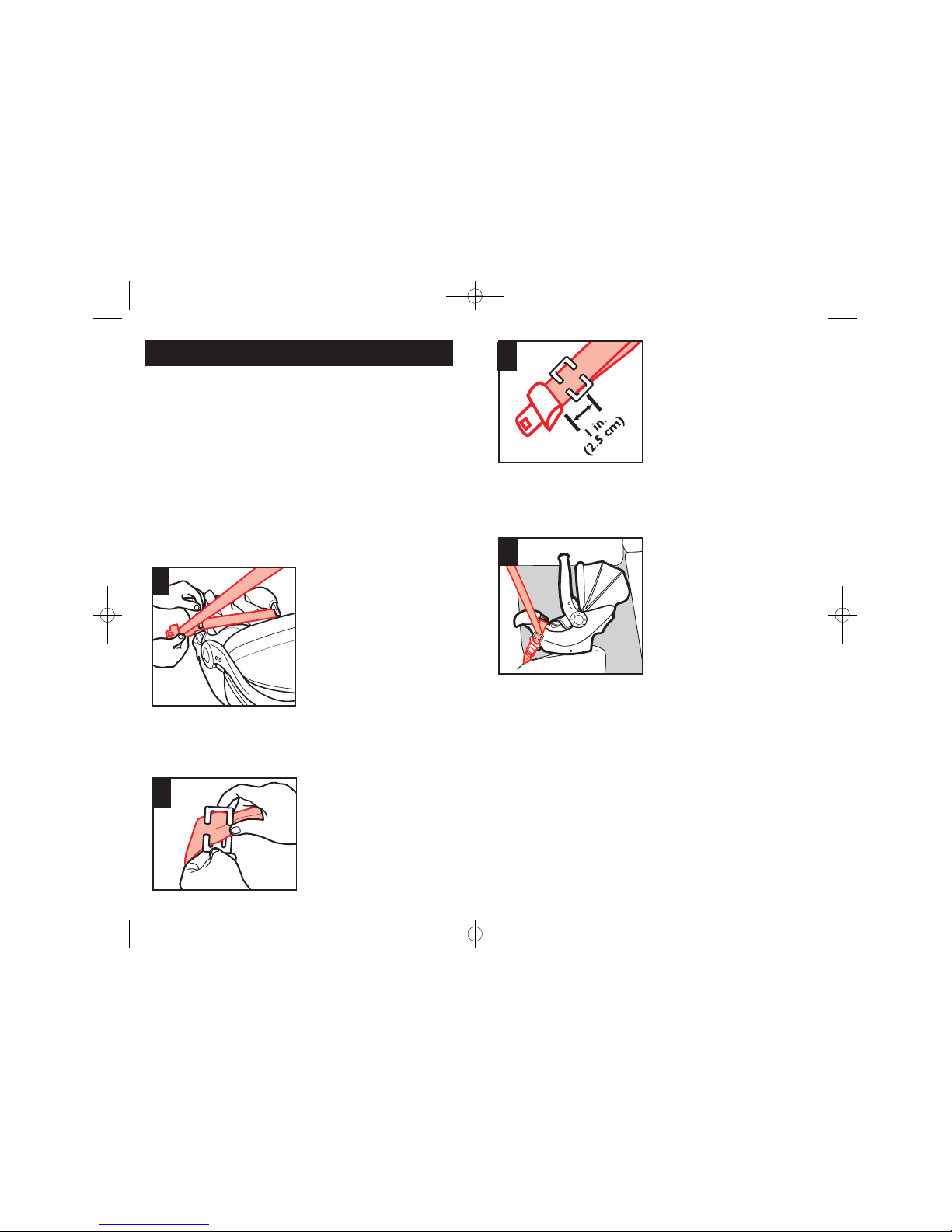

Locking Clip
28
Use the locking clip ONLY when installing the
child restraint with out the base. The base has a
built in lock off system and will not require the
use of the locking clip.
NOTE: Remove the locking clip when the seat belt is
not being used with a child restraint. The locking clip is
located on the bottom of the seat.A locking clip will not
fix all types of seat belt problems.
Before you put your child restraint in the vehicle, buckle
the lap/shoulder belt. Pull on the lap belt portion. If it
loosens or slips, you must either use a locking clip to
hold the seat belt tight or move the child restraint to
another seating location.
Position locking clip about
1 in. (2.5 cm) from vehicle
belt’s buckle plate.
3
4Rebuckle belt. Lap belt
portion should now be
tight. If not, remove
locking clip and repeat all
steps.
Thread vehicle lap belt
through the belt path (as
shown). Buckle. Pull up on
shoulder belt until all slack
is out and lap belt is tight.
Grasp both vehicle belts
together just behind the
buckle plate and unbuckle.
1
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 31

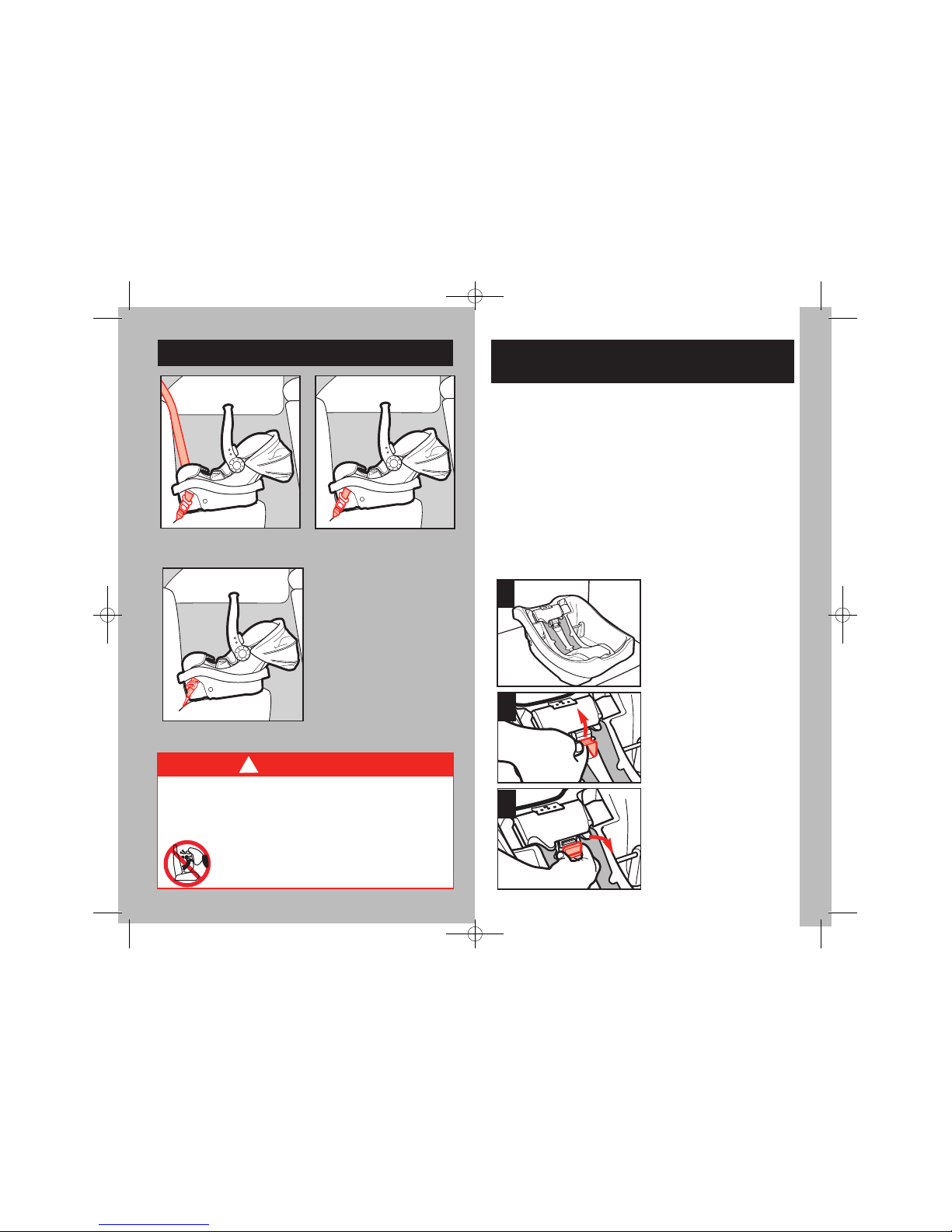

Rear-Facing Use With Base
Lap & Shoulder Belt
LATCH Belt
WARNING:
Failure to place this child restraint facing
the rear of the vehicle when the child is
between 4-35 lbs (1.8-15.9 kg) can result in
serious injury or death.
Placing a rear-facing child restraint
in any seat equipped with an airbag
can result in serious injury or death.
Lap Belt
!
Rear-Facing Use: 4-35 lbs (1.8-15.9 kg), 32” (81.2 cm) or less.
30 31
Rear-Facing Installation with
LATCH and Base
Place base in the back
seat with taller side
against the back of vehicle
seat.
1
Lift up on the belt lock
off lock.
Rear-Facing Use: 4-35 lbs (1.8-15.9 kg), 32” (81.2 cm) or less.
continued on next page.
Remove the lock from the
plates.
Tip: Push down on the
top cover to help make it
easier to open the lock.
2
3
Belt lock off MUST be used when using this base.
Child and child restraint with base face the back of the
vehicle and child restraint is correctly installed in a back
seat.
NOTE: Do not use the vehicle lap or lap and
shoulder belt when installing with the LATCH system.
LATCH can ONLY be used when installing this child
restraint with the base, and when the vehicle seating
position is equipped with LATCH anchors. If desired, a
LATCH kit or an additional base can be purchased for
use on this child restraint. See replacement parts list.
See your vehicle owner’s manual for information on
designated LATCH positions and anchor locations.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 33

32
Lift up belt lock off plate
marked “B”.
4
Open the LATCH storage
door and unhook the
LATCH from the storage
bars. Remove the LATCH
belts from the storage
locations. Completely
close and lock the storage
door.
5
Thread the LATCH hook
through the left side belt
path opening as shown.
6
33
9Push down FIRMLY on
the base and pull up on
the loop to tighten belt.
Tips: To help in
tightening, pull the loop
end up through the belt
path, then tighten.
Push down and towards
the vehicle seat back to
help get a snug fit.
8Fasten one LATCH belt
hook to one vehicle
LATCH anchor, then
fasten the second LATCH
belt hook to the second
vehicle LATCH anchor.
Thread the LATCH hook
and adjuster through the
right side belt path
opening as shown.
NOTE: Make sure
LATCH belt is not
twisted.
7
10 You MUST tuck loose
end of the LATCH belt
back through the belt path
hole.
Rear-Facing Use: 4-35 lbs (1.8-15.9 kg), 32” (81.2 cm) or less.
continued on next page.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 35

Rear-Facing Use: 4-35 lbs (1.8-15.9 kg), 32” (81.2 cm) or less.
34

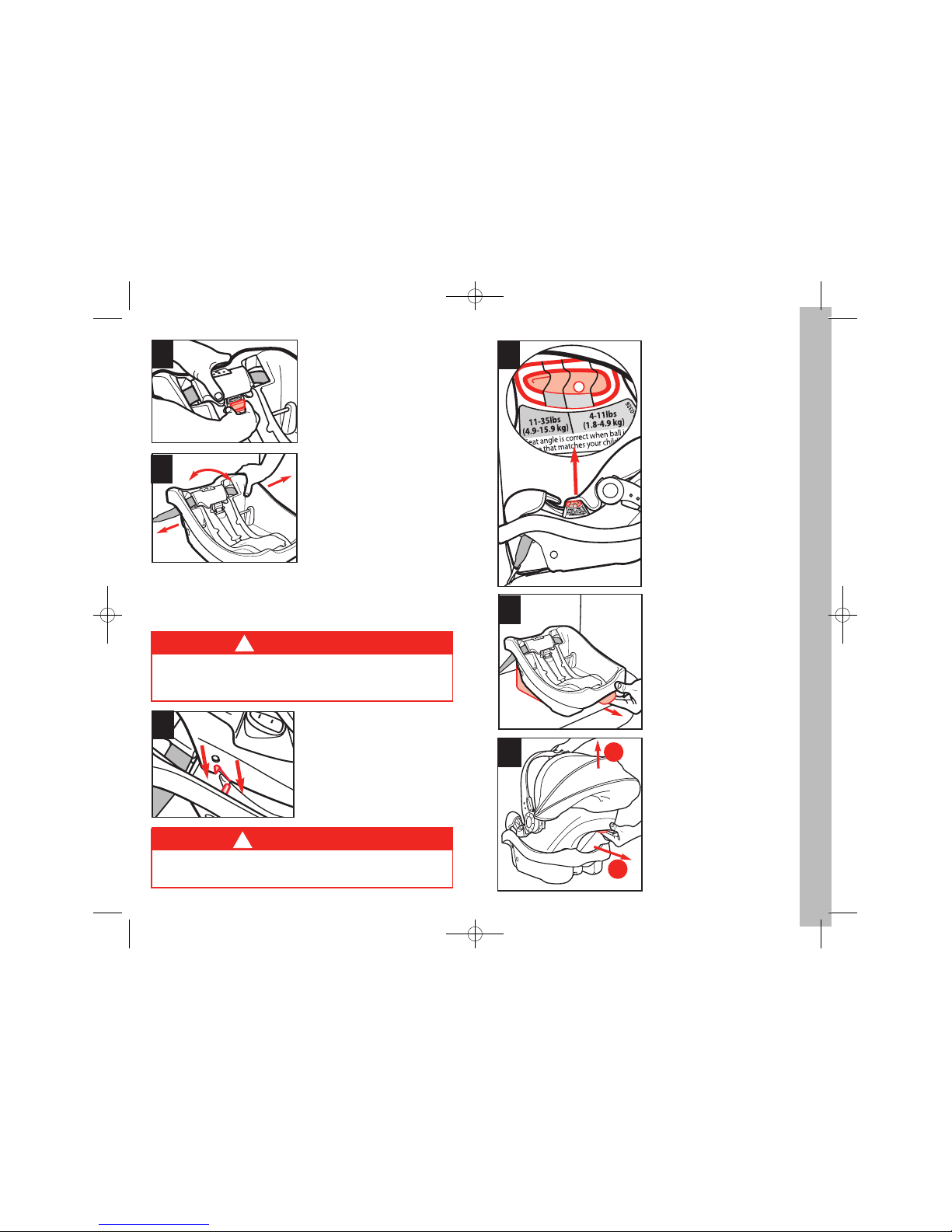

WARNING
!
Failure to securely attach carrier to base
can result in serious injury or death.
With weakest hand at
belt path, tilt and push the
base forward and back,
and from side to side. If
the LATCH belts do not
loosen, your base should
be secure.
NOTE: Some “play” from
front to back or about an inch from side to side is
acceptable.
If the base does not remain tight, do not use the base in
this seating location with this LATCH system.
12
WARNING
!
LATCH hooks MUST be securely fastened.
Failure to do this can result in serious injury
or death.
13 Align notches in the front
of carrier with the bars on
the base. Push down
firmly to lock into place.
You will hear a “click”
when it is locked. Pull up
on carrier to make sure it
is locked into place.
continued on next page.
Check the angle indicator.
The ball should be
between the two marks
on the indicator that
matches the weight of
your child. Adjust base if
needed.
NOTE: Check the angle
indicator while parked on
level ground.
14
15 To Adjust Base:
Loosen LATCH belt and
pull out on the base
adjustment lever and
either lift or lower front
of base. Tighten the
LATCH belt and check
the level indicator for
levelness. Repeat if
needed.
To Remove Carrier
from Base:
From the back of the
carrier, pull on the base
release lever to unlock
the carrier from the
base and lift the carrier
off the base.
16
1
2
35
11 Close both “A” and “B”
lock off plates and lock.
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 37

37
LATCH system must be securely stored
and the storage door completely closed
and lock. Failure to do this can result in
serious injury or death.
When LATCH is not
available, store the
LATCH system as shown.
See “Storing the LATCH
System” section for
complete instructions.
WARNING:
!
Rear-Facing Installation with
Vehicle Belt With Base:
1
Place base in the back
seat with taller side
against the back of vehicle
seat.
2
Rear-Facing Use: 4-35 lbs (1.8-15.9 kg), 32” (81.2 cm) or less.
Belt lock off MUST be used when using this base.
Child and child restraint with base face the back of the
vehicle and child restraint is correctly installed in a back
seat.
NOTE: Do not use the LATCH system when installing
with the vehicle lap or lap and shoulder belt.
continued on next page.
To release LATCH: Push
in on release button and pull
LATCH adjuster away from
child restraint to loosen.
Unhook LATCH hooks.
Tip: To help in loosening
the LATCH for removal,
push down on the child
restraint.
17
36
4358-4462B US onBoard 35lb 1/5/11 1:09 PM Page 39
