Disclaimer
Carefully read this entire document and all safe and lawful practices provided by DJITM before using this product
for the rst time. Failure to read and follow instructions and warnings may result in serious injury to yourself
or others, damage to your DJI product, or damage to other objects in the vicinity. By using this product, you
hereby signify that you have read this disclaimer carefully and that you understand and agree to abide by the
terms and conditions herein. You agree that you are solely responsible for your own conduct while using this
product, and for any consequences thereof. DJI accepts no liability for damage, injury, or any legal responsibility
incurred directly or indirectly from the use of this product.
DJI is a trademark of SZ DJI TECHNOLOGY CO., LTD. and its aliated companies. Names of products, brands,
etc., appearing in this document are trademarks or registered trademarks of their respective owner companies. This
product and document are copyrighted by DJI with all rights reserved. No part of this product or document shall be
reproduced in any form without the prior written consent of or authorization from DJI.
This disclaimer is available in various languages. In the event of divergence among different versions, the
English version shall prevail. The nal interpretation of this document and all related documents of this product
belongs to DJI. This content is subject to change without prior notice. For up to date product information, visit
http://www.dji.com and click on the product page for this product.
Warnings
1. The T Series Spreading System (abbreviated as Spreading System) is only compatible with the DJI AGRASTM T
series aircraft, and the rmware of the aircraft must be the correct version for supporting the Spreading System.
Refer to the Specifications section for more information about compatible aircraft. DO NOT use it with other
products or for purposes other than agriculture.
2. The Spreading System is compatible with dry materials of a diameter between 0.5 - 5 mm. DO NOT use with
other materials. If used with other materials, the operating performance will be negatively affected and the
Spreading System may be damaged. All materials must be used in strict accordance with the instructions for
those materials.
3. The max internal spread tank load depends on the takeo weight of the aircraft. DO NOT overload. Refer to the
Specications section for more information.
4. When connecting the cables, make sure the connection is correct and secure. Operate with caution to avoid
damaging the cables.
5. Make sure that the hopper gate and spinner disk function normally before each use.
6. Operate with caution to avoid injury caused by mechanical parts.
7. When spreading is in progress, maintain a safe distance from the Spreading System to avoid injury.
8. When spreading is in progress, the minimum detection distance of the radar module will be 5 m instead of
1.5 m due to obstruction from the materials being spread. Note that the aircraft cannot sense obstacles that
are not within the detection range. The detection performance of the radar module will also decrease. Fly
with caution. Refer to the disclaimer and safety guidelines of the corresponding aircraft you are operating for
more information on the radar module.
9. DO NOT use liquids to rinse the Spreading System. It is recommended to use dry compressed air as a cleaning agent.
Introduction
The T Series Spreading System is compatible with Agras T series aircraft and oers ecient, reliable, and stable
spreading operations. The material delivery system is precisely controlled by the built-in stirring device and hopper

EN
© 2020DJI All Rights Reserved. 3

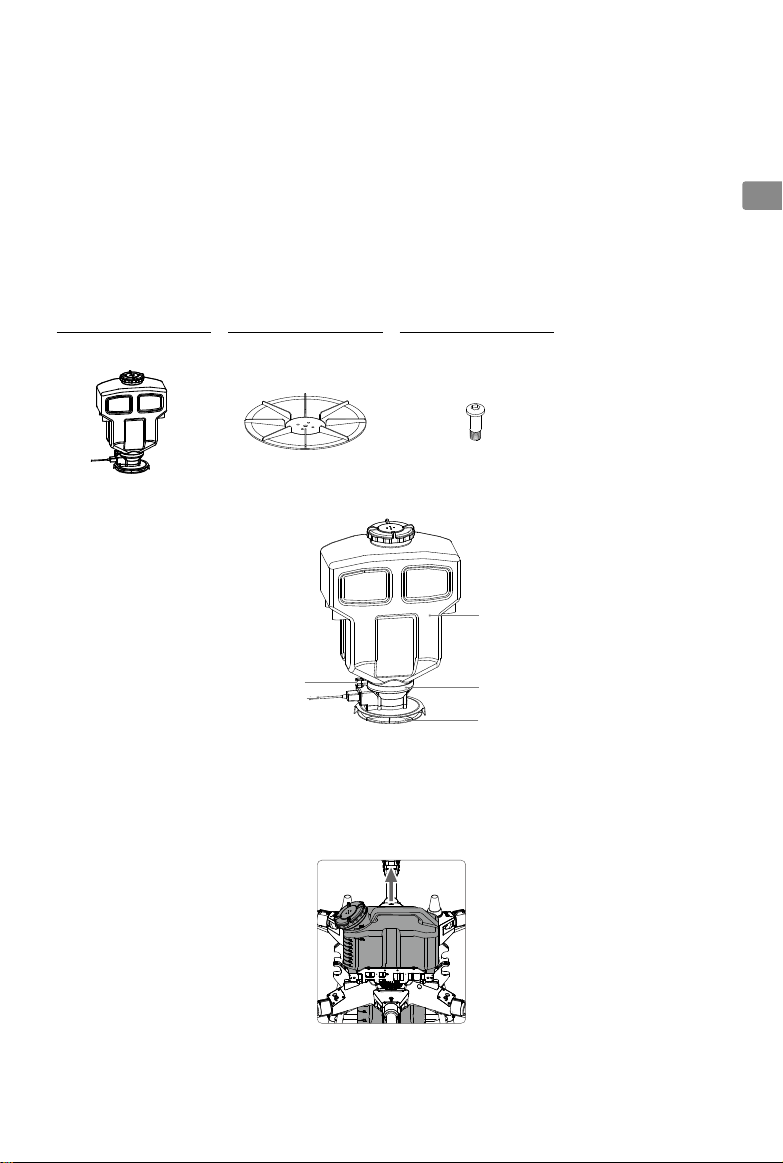

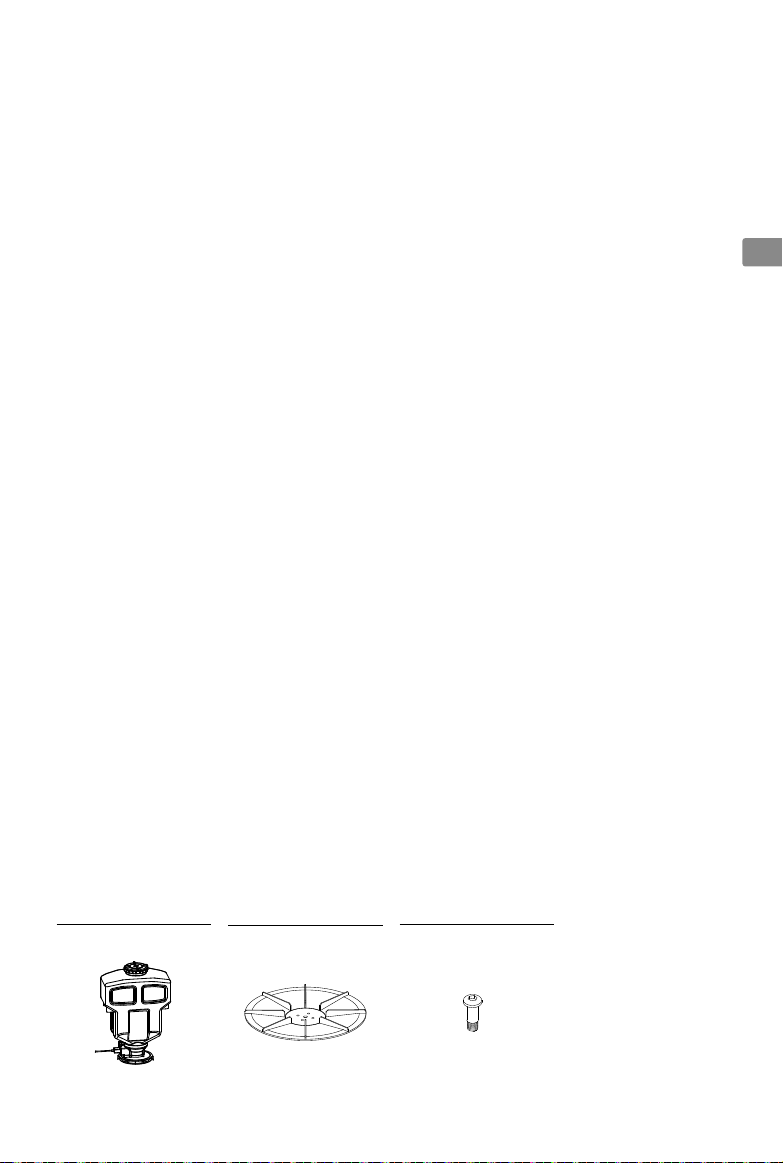

Spreading System × 1 Spare Spinner Disk × 2 M4×12 Screws × 4
Users have the option to
purchase a fender with a
screw pack to use with the
Spreading System 2.0.
gate, which can prevent material blockages and improve operating accuracy and reliability.
Use the app compatible with your aircraft to set parameters such as the hopper outlet size and spinner disk rotating
speed. These parameters can be adjusted to meet dierent requirements. The app provides warning prompts for an
empty tank as well as for abnormalities in the rotating speed, temperature, and hopper outlet size. These prompts
help ensure system safety.
The Spreading System has two versions, 1.0 and 2.0. They each have a dierent structure for the spinner disk.
Compared with the Spreading System 1.0, the Spreading System 2.0 has a higher material delivery rate and can
spread materials 360° around the aircraft. Unless otherwise specied, the descriptions in this document use the
Spreading System 1.0 as an example.

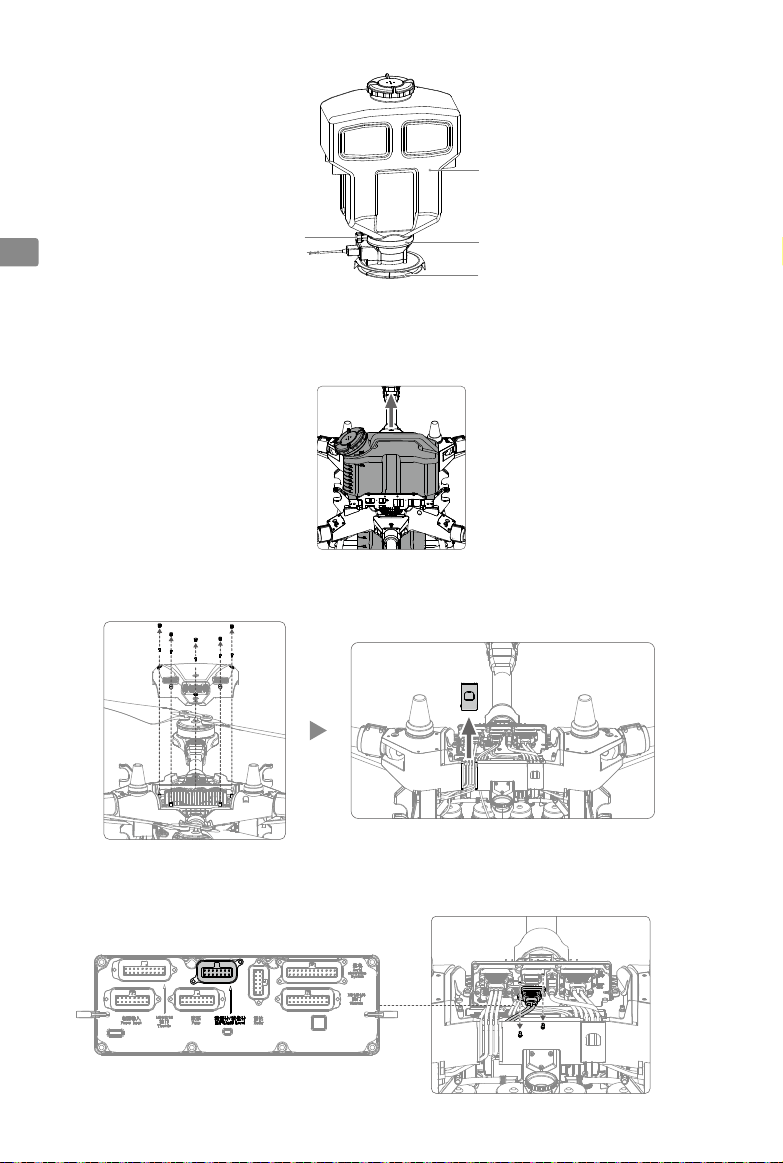

In the Box
Overview
Spread Tank
Spreader
Spinner Disk
Spreader Lock
Cable
Installation
Make sure to remove the Intelligent Flight Battery from the aircraft before installation. Hex keys for M2.5, M3
and M4 screws are required for installation.

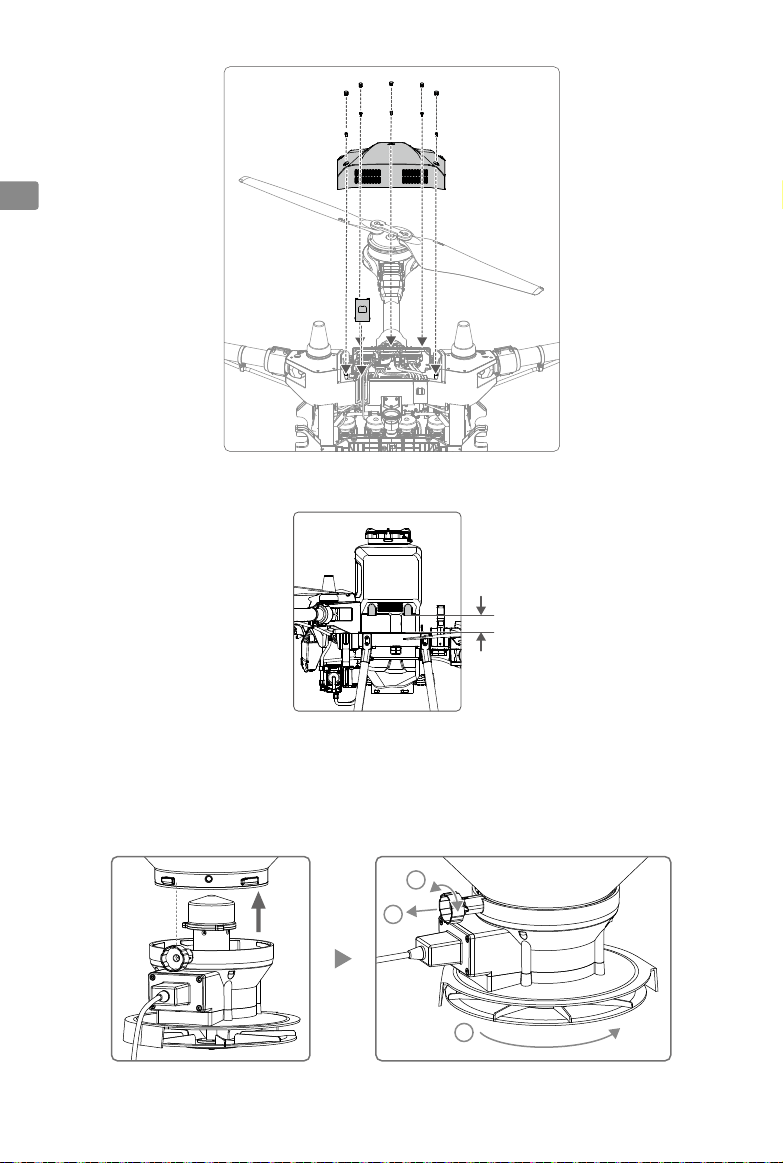

1. Lift and remove the spray tank on the aircraft.
2. Removeall of the rubber stoppers and ve M3×8 screws on the upper cover on the front of the aircraft,
and then remove the upper cover. For the T20 aircraft, the cable strainer protector on the left must also be
removed.

EN
4
© 2020DJI All Rights Reserved.

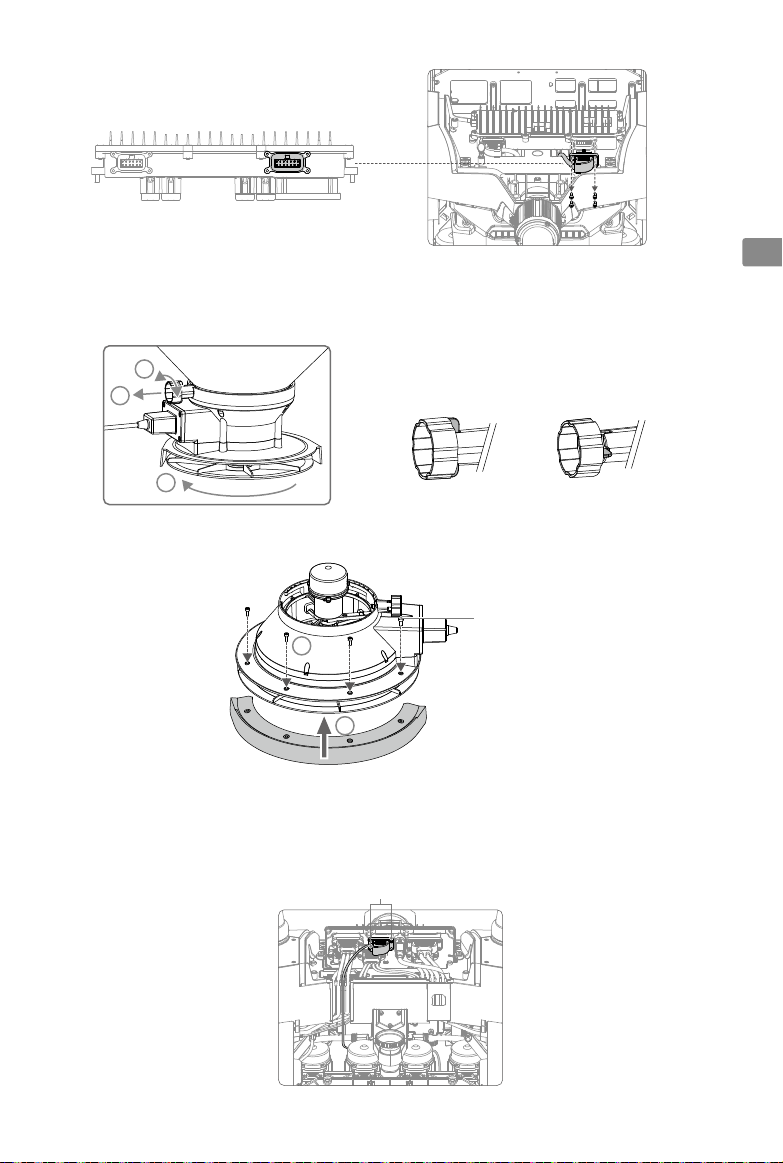

3. Locate the EMF/Liquid Level port on the spray control board. Remove the M2.5×8 screws on the cable
connector, and then unplug the cable and place it in the space near the aircraft frame. The location and
structure of the spray control board are dierent on the T20 and T16. Refer to the gures below for more
information.
T20
4. Detach the spread tank and the spreader: Pull the spreader lock knob out, rotate it 90°, and release. Next,
rotate the spreader to detach it.
Locked Unlocked
2
3
1
T16

EN
© 2020DJI All Rights Reserved. 5

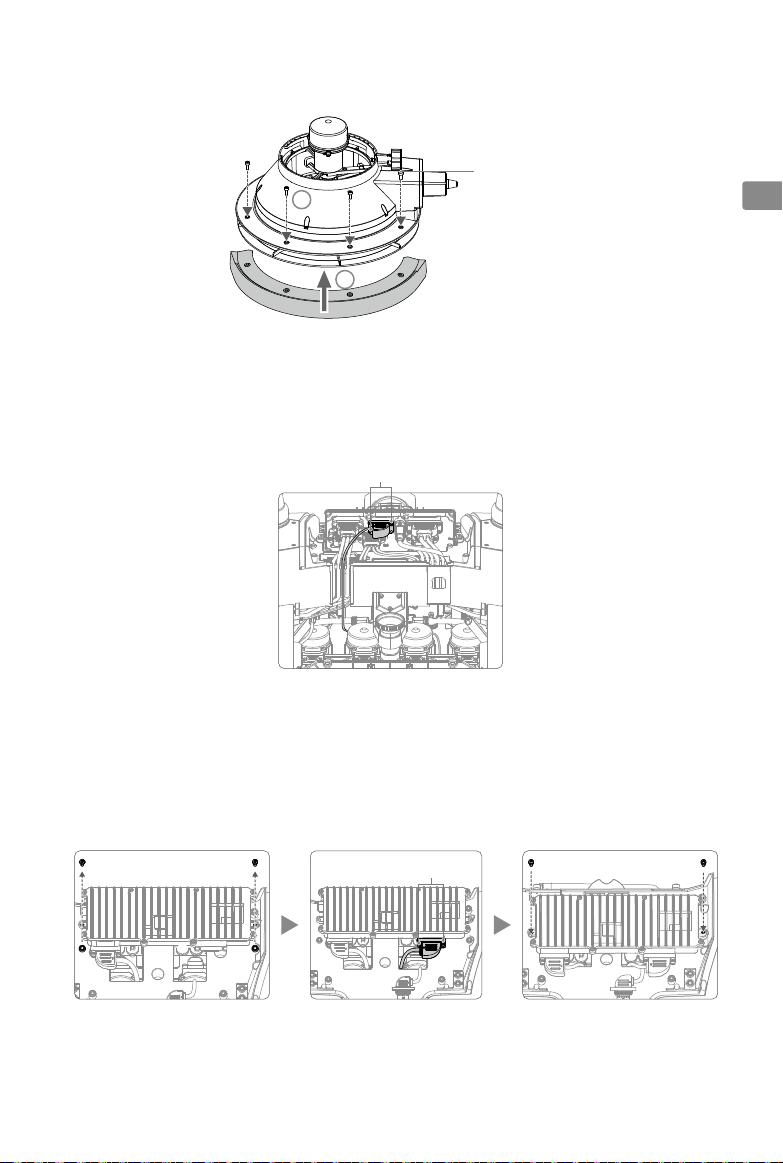

5. For the Spreading System 2.0, there is the option to mount the fender to the spreader. If mounted, the fender will
prevent materials from being spread to the rear of the aircraft.
5 cm
1
2
M3×8
6. Connect the Spreading System cable:
T20
Pass the cable through the space between the delivery pumps and spread tank mounting position. Secure the
cable to the cable strainer on the left of the aircraft, connect it to the EMF/Liquid Level port, and tighten the two
M2.5×8 screws.
M2.5×8
T16
a. Remove the M3×8 screws on both sides of the spray control board. Lift the board gently to make a space
between the board and the mounting position. DO NOT pull the cables connected on the board.
b. Pass the cable through the space between the delivery pumps and spread tank mounting position, then
through the space under the spray control board. Connect the cable to the EMF/Liquid Level port and
tighten the four M2.5×8 screws.
c. Remount the M3×8 screws on both sides of the spray control board.
7. Remount the cable strainer protector (for T20 only) and the upper cover of the aircraft. Tighten the ve M3×8
screws and attach all of the rubber stoppers.
M2.5×8

EN
6
© 2020DJI All Rights Reserved.
9. Mounting the spreader:
a. Face the rear of the aircraft and check the spreader lock knob is in an unlocked position. Insert the spreader
with the knob located to the left of the circular indentation on the spread tank.
b. Rotate the spreader to mount it to the spread tank. To lock the spreader, pull the spreader lock knob out, rotate
it 90°, and release. Make sure that the spreader is locked in position.
1
3
2
8. Insert the spread tank in the aircraft. DO NOT insert it to the bottom of the aircraft frame. Make sure that the
middle of the tank is approximately 5 cm from the middle frame of the aircraft, as shown in the gure below.
5 cm
1
2
c. Secure the Spreading System cable to the landing gear using the Velcro on the cable.

EN
© 2020DJI All Rights Reserved. 7

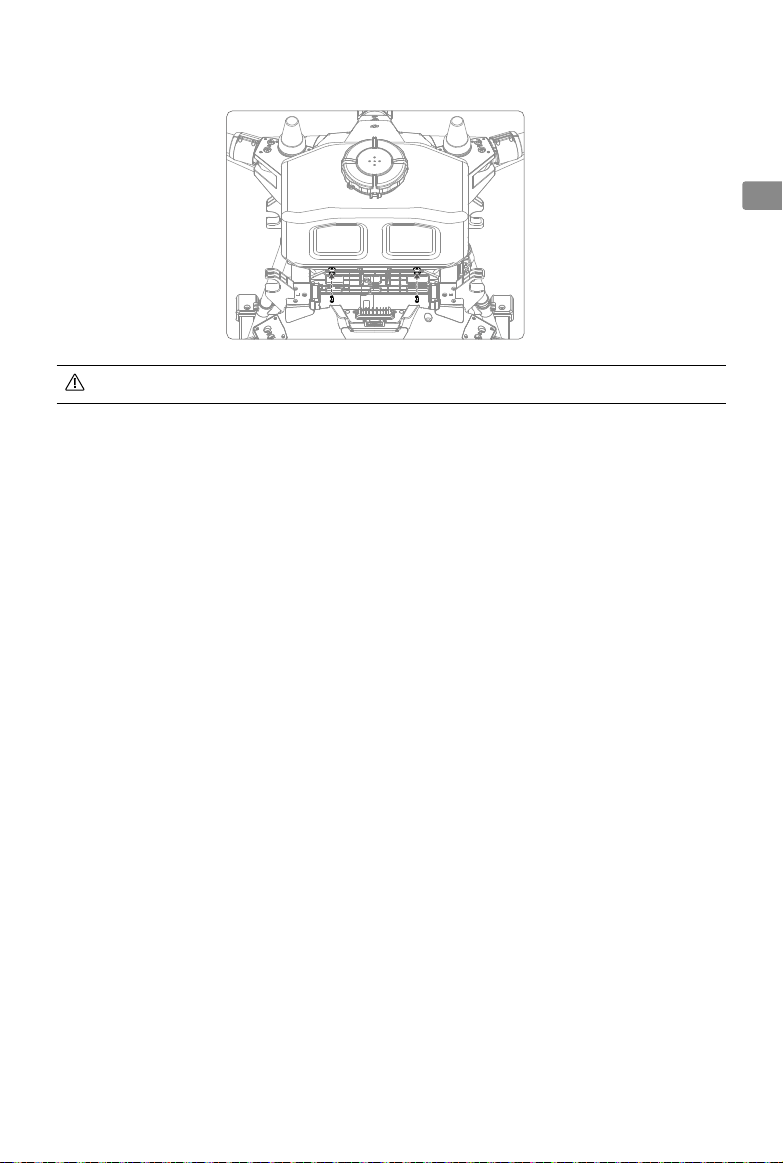

10. Insert the spread tank to the bottom of the aircraft frame and make sure it is in position. Insert and tighten two
M4×12 screws to the rear of the tank.
Operate with caution to avoid injury caused by mechanical parts.
Usage
1. Rotate the cover to open, add compatible materials, and tighten the cover.
2. Power on the remote controller, and then power on the aircraft.
3. Enter Operation View in the app. The following descriptions use the DJI Agras app as an example.
4. Tap the hopper outlet size display on the left of the screen to set the hopper outlet size, spinner disk
rotating speed, ying speed, line spacing, height relative to the vegetation, and banked turning. Adjustable
parameters vary depending on the operation mode. Adjust the settings so that they are suitable for the
materials you are using and test to make sure the performance is as expected.
For the Spreading System 1.0, when measuring between 7.5 to 9 kg/ha of materials spread, it is
recommended to:
• Adjust the hopper outlet size so that the material delivery rate is 1 kg/min.
• Adjust the spinner disk rotating speed so that the spreading range is 4 to 6 meters.
• Set the ying speed to 4 m/s (ying speed setting is unavailable in Manual Operation Mode).
For the Spreading System 2.0, when measuring 45 kg/ha of materials spread, it is recommended to:
• Adjust the hopper outlet size so that the material delivery rate is 8 kg/min.
• Adjust the spinner disk rotating speed so that the spreading range is 5 to 7 meters.
• Set the ying speed to 5 m/s (ying speed setting is unavailable in Manual Operation Mode).
5. Enter the operation mode required for spreading. The operations of the Spreading System vary depending on the
operation mode.
Route Operation Mode
After starting an operation, the aircraft ascends to an altitude of 4 meters and the spinner disk spins. When the
aircraft reaches the route starting point, the hopper gate opens according to the set value and the aircraft ies along
the route and spreads material automatically. Spreading cannot be started or stopped manually.
The operation resumption function can be used during operation. Once the operation is paused, the hopper gate
closes automatically to stop spreading while the spinner disk is still spinning. After operation is resumed, the aircraft
returns to the breakpoint or projection point and continues spreading.

EN
8
© 2020DJI All Rights Reserved.
A-B Route Operation Mode
After the aircraft enters A-B Route Operation Mode, the spinner disk spins. When the aircraft reaches the rst turning
point, the hopper gate opens according to the set value and the aircraft ies along the route and spreads material
automatically. Spreading cannot be started or stopped manually.
The operation resumption function can be used during operation. Once the operation is paused, the hopper gate
closes automatically to stop spreading while the spinner disk is still spinning. After operation is resumed, the aircraft
returns to the breakpoint or projection point and continues spreading.
Manual Plus Operation Mode
Switch to M+ after the aircraft takes o. Press the Spray button on the remote controller to start the spinner
disk. The hopper gate opens according to the set value and the aircraft spreads material automatically once it
has begun ying.
Manual Operation Mode
Switch to M after the aircraft takes o. Use the Spray button on the remote controller to start or stop spreading.
In all operation modes except Manual Operation Mode:
• When the aircraft ies forward or backward, the hopper gate opens automatically to start spreading.
• When the aircraft ies left or right, the hopper gate closes automatically to stop spreading while the
spinner disk continues to spin.
Spreading System Calibration
When to Calibrate
The Spreading System has been calibrated before delivery. There is no need to calibrate before using for the rst
time. Calibration is required in any of the following cases:
• The hopper gate cannot fully open or close.
• The material delivery rate is dierent from the desired value.
• The app incorrectly displays empty tank warnings.
Calibration Procedure
In the app, enter Operation View. Tap , , then tap Calibration in Spreading System Settings. Wait until the app
indicates calibration is complete. If calibration fails, try again.
Maintenance
1. Clean the residue inside the spread tank and spreader regularly. It is recommended to use dry compressed
air and a clean, soft dry cloth. DO NOT rinse with liquids.
2. The spinner disk is a consumable part. If obvious signs of wear are noticeable, follow the steps below to
replace the spinner disk.
a. Make sure that the aircraft is powered o, and then unplug the Spreading System cable.
b. Detach the spreader.
c. Remove the nut, washer, four M3×8 screws, and spinner disk at the bottom of the spreader. Mount a new
spinner disk and secure it using the washers, M3×8 screws, and nut.

EN
© 2020DJI All Rights Reserved. 9
Spinner Disk
Washer
M3×8 Screws
Nut
d. Remount the spreader to the spread tank. Make sure that the spreader is locked in position.
Operate with caution to avoid injury caused by mechanical parts.
The content is subject to change without prior notice.
Downloadthelatestversionfrom
http://www.dji.com/t20
AGRAS and are trademarks of DJI.
Copyright © 2020 DJI All Rights Reserved.
Specications
Items Spreading System 1.0 Spreading System 2.0
Compatible Aircraft* Agras T16, T20
Spreader Weight 1.8 kg 2.1 kg (excluding fender)
Max Hopper Outlet Area 8.6 cm232.3 cm2
Compatible Material
Diameter 0.5 - 5 mm
Spread Tank Volume 20 L
Spread Tank Internal Load Using with the T16: 16 kg
Using with the T20: 20 kg (note: the internal load of Japan version of T20 is 16 kg)
Spreading Range
Varies according to material diameter, spinner disk rotating speed, hopper outlet
size, and ying altitude. For best operating performance, it is recommended to
adjust the corresponding variables to achieve a spreading range of 4 - 6 meters
(for Spreading System 1.0) or 5 - 7 meters (for Spreading System 2.0).
* The rmware of the aircraft must be the correct version for supporting the Spreading System. Check the
release notes of the corresponding aircraft on the ocial DJI website.

10
©2020 大疆创新 版权所有
CHS
免责声明
使用本产品之前，请仔细阅读并遵循本文及大疆 TM 创新（DJITM）提供的所有安全指引，否则可能会给您和周
围的人带来伤害，损坏本产品或其它周围物品。一旦使用本产品，即视为您已经仔细阅读本文档，理解、认
可和接受本声明全部条款和内容。您承诺对使用本产品以及可能带来的后果负全部责任。大疆创新（DJI）对
于直接或间接使用本产品而造成的损坏、伤害以及任何法律责任不予负责。
DJI 是深圳市大疆创新科技有限公司及其关联公司的商标。本文出现的产品名称、品牌等，均为其所属公司的
商标。本产品及手册为大疆创新版权所有。未经许可，不得以任何形式复制翻印。
本文档及本产品所有相关的文档最终解释权归大疆创新（DJI）所有。如有更新，恕不另行通知。请访问
www.dji.com 官方网站以获取最新的产品信息。
注意事项
1. T 系列播撒系统（简称“播撒系统”）仅适用于大疆农业 T系列植保无人飞机（具体机型见“规格参数”），
且需配合支持播撒系统的飞行器固件使用。切勿在其他产品上使用或用于农业植保以外的用途。
2. 播撒系统适合使用颗粒直径为 0.5 - 5 mm 的干燥物料。切勿使用其他物料，否则将影响作业效果，甚至损坏
播撒系统。使用时，严格按照物料本身的使用说明进行操作。
3. 播撒系统作业箱最大载重与飞行器起飞重量有关，详见“规格参数”。切勿超重使用。
4. 连接线材时，确保正确牢固，小心操作，以免损坏线材。
5. 每次使用前，检查仓门开合是否顺畅，播撒盘运转是否正常。
6. 使用时务必小心，谨防机械结构伤手。
7. 进行播撒作业时，务必远离播撒系统，以免造成人身伤害。
8. 进行播撒作业时，由于播撒颗粒的遮挡，雷达模块的最小检测距离将由 1.5 米变为 5米。如有障碍物处于探
测范围以外，则飞行器无法感知障碍物。同时，雷达模块的检测性能亦有所减弱，务必谨慎飞行。更多雷达
模块注意事项请参考对应飞行器的《免责声明和安全操作指引》。
9. 禁止水洗。建议使用干燥的压缩空气进行清洁。
简介
播撒系统是一款适用于大疆农业植保无人飞机的配件，将其安装至飞行器，可完成高效、可靠、稳定的播撒作业。
内置搅拌装置及落料口仓门控制结构，精准控制落料速率，并有效防止落料堵塞，提高作业准确度及可靠性。
用户可通过与飞行器配套使用的 App 设置仓口大小、播撒盘转速等，满足不同作业场景的使用需求。App 可提
示无料报警及转速、温度、仓口大小等参数异常报警，确保系统安全运行。
播撒系统分为 1.0 和2.0 版本，其播撒盘结构有所不同。与播撒系统 1.0 相比，播撒系统 2.0 具有更大的落料
速率，且可以在飞行器水平方向上 360° 范围内播撒物料。若无特殊注明，本文均以播撒系统 1.0 为例进行说明。
物品清单
播撒系统 ×1备用播撒盘 ×2M4×12 螺丝 ×4
对于播撒系统 2.0，用户
还可选购挡板及螺丝包配
合使用。

©2020 大疆创新 版权所有
11
CHS
部件名称
作业箱
播撒机
播撒盘
播撒机锁止旋钮
连接线
安 装
安装前务必确保飞行器智能飞行电池已取下。安装时需自备适用于 M2.5、M3 和M4 螺丝的六角扳手。
1. 向上提起并取出飞行器的喷洒作业箱。
2. 移除飞行器前部上盖的所有胶塞及 5颗M3×8 螺丝，然后移除上盖。对于 T20 飞行器，还需取下左侧（面
向机尾）的线卡保护盖。
3. 在喷洒板上找到“流量计 /液位计”接口，移除连接线接头上的 M2.5×8 螺丝，然后拔下连接线，放置于靠
近机壳边缘的空位中。T20 与T16 的喷洒板位置及结构不同，详见下图。
T20

12
©2020 大疆创新 版权所有
CHS
4. 分离播撒系统的作业箱与播撒机：向外拔出播撒机锁止旋钮，转动 90° 后松开以解除锁定，然后转动播撒机
将其拆下。
6. 连接播撒系统连接线：
T20
将播撒系统连接线从液泵与作业箱安装位的空隙穿过，嵌入飞行器左侧的线卡，然后插入“流量计 /液位计”
接口，并拧紧 2颗M2.5×8 螺丝。
锁止状态 解锁状态
2
3
1
5. 对于播撒系统 2.0，用户可选择安装挡板至播撒机，安装挡板后播撒系统将不会向飞行器后方播撒物料。
5 cm
1
2
M3×8
T16
M2.5×8

©2020 大疆创新 版权所有
13
CHS
8. 将播撒系统的作业箱插入飞行器，注意不要完全插入，作业箱中部与飞行器中框距离约 5 cm（如图）。
5 cm
1
2
T16
a. 移除喷洒板两侧的 M3×8 螺丝，然后轻轻向上提起喷洒板，使其与安装位之间稍有空隙。注意不要扯到喷
洒板上已连接的线材。
b. 将播撒系统连接线从液泵与作业箱安装位的空隙以及喷洒板下方的空隙中依次穿过，然后插入“流量计 /
液位计”接口，并拧紧 4颗M2.5×8 螺丝。
c. 重新安装喷洒板两侧的 M3×8 螺丝。
7. 重新安装线卡保护盖（仅 T20）及飞行器上盖，拧紧 5颗M3×8 螺丝，装好所有胶塞。
M2.5×8

14
©2020 大疆创新 版权所有
CHS
9. 安装播撒机：
a. 面向飞行器尾部，确保播撒机锁止旋钮处于解锁状态，将旋钮位置偏向作业箱上圆形凹槽的左侧，然后向
上嵌入播撒机。
b. 转动播撒机将其安装至作业箱，然后向外拔出锁止旋钮，转动 90° 后松开以锁定播撒机。务必确保播撒机
锁定到位。
1
3
2
c. 使用播撒系统连接线上的魔术贴将线材固定至起落架。
10. 将作业箱完全插入飞行器，确保安装到位，然后在作业箱后侧插入并拧紧 2颗M4×12 螺丝，将其固定。
务必小心操作，谨防机械结构伤手。
使 用
1. 旋开作业箱盖子，加入适量物料，然后拧紧盖子。
2. 依次开启遥控器及飞行器。
3. 进入 App 作业界面。下文描述均以大疆农业 App 为例。
4. 点击屏幕左侧的仓口大小显示，进入播撒参数设置，可设置仓口大小、播撒盘转速、飞行速度、作业间距、
相对作业高度、协调转弯等。不同作业模式下可设置的参数有所不同。用户需自行根据所使用的物料调整各
参数并进行测试，以达到预期作业效果。
对于播撒系统 1.0，以物料亩用量 0.5 - 0.6 kg 为例，建议：
•
调节仓口大小使每分钟落料量为 1 kg；
•
调节播撒盘转速使播撒范围为 4 - 6 m；
•
设置飞行速度为 4 m/s（手动作业模式下飞行速度设置不生效）。
对于播撒系统 2.0，以物料亩用量 3 kg 为例，建议：
•
调节仓口大小使每分钟落料量为 8 kg；

©2020 大疆创新 版权所有
15
CHS
•
调节播撒盘转速使播撒范围为 5 - 7 m；
•
设置飞行速度为 5 m/s（手动作业模式下飞行速度设置不生效）。
5. 按照飞行器使用方法进入所需作业模式进行播撒作业。播撒系统在不同作业模式下的运行方式略有不同。
航线作业模式
执行作业后，飞行器起飞上升至 4米高度，同时播撒盘开始转动。飞行器飞至航线起点时，仓门按照所设值开启，
飞行器沿航线飞行并播撒物料。用户不可手动开启或停止播撒。
作业时可使用作业恢复功能：作业暂停后，仓门关闭，播撒停止（播撒盘仍继续转动）；继续作业后，飞行器
飞回中断坐标点或投影点，然后自动继续播撒作业。
A-B 点作业模式
切换至 A-B 点作业模式后，播撒盘开始转动。飞行器飞至第一个节点时， 仓门按照所设值开启，飞行器沿作业
路线飞行并播撒物料。用户不可手动开启或停止播撒。
作业时可使用作业恢复功能：作业暂停后，仓门关闭，播撒停止（播撒盘仍继续转动）；继续作业后，飞行器
飞回中断坐标点或投影点，然后自动继续播撒作业。
增强型手动作业模式
飞行器起飞后，切换至 M+ 作业模式。此时用户需短按一次遥控器喷洒按键（此时作为播撒按键使用）以使播
撒盘转动。飞行器开始飞行后，仓门按照所设值开启，并自动播撒物料。
手动作业模式
飞行器起飞后，切换至 M作业模式。用户可使用遥控器播撒按键手动开始或停止播撒。
除手动作业模式外，其他作业模式下：
• 飞行器前后飞行时仓门自动开启，进行播撒；
• 飞行器左右飞行时仓门自动关闭，停止播撒（播撒盘仍继续转动）。
播撒系统校准
需要校准的情况
播撒系统出厂时已完成校准，可直接使用。若使用时出现以下情况，则用户需自行校准：
• 仓门无法完全打开或关闭；
• 落料速率与预期值有偏差；
• App 误报无料报警。
校准步骤
进入 App 作业界面 > > ，在播撒系统设置中点击校准，然后等待校准完成。若校准失败，请重试。
维护保养
1. 定期清理作业箱及播撒机内的残渣。建议使用干燥的压缩空气吹气进行清理，并使用干净柔软的干布擦拭。
切勿水洗。
2. 播撒盘为易损耗部件，如存在明显磨损，请按如下步骤及时更换播撒盘：
a. 确保飞行器电源断开，然后断开播撒系统连接线。
b. 拆下播撒机。
c. 移除播撒机下方的螺母、垫片、4颗M3×8 螺丝及播撒盘，然后安装新的播撒盘，装回垫片并拧紧 M3×8
螺丝及螺母。

16
©2020 大疆创新 版权所有
CHS
播撒盘
垫片
M3×8 螺丝
螺母
内容如有更新，恕不另行通知。
您可以在 DJI 官方网站查询最新版本
http://www.dji.com/t20
DJI 和是大疆创新的商标。
Copyright © 2020 大疆创新 版权所有
规格参数
参数 播撒系统 1.0 播撒系统 2.0
适用飞行器 *大疆 T16、T20 植保无人飞机
播撒机重量 1.8 kg 2.1 kg（不含挡板）
最大仓门开口面积 8.6 cm232.3 cm2
适用物料颗粒直径 0.5 - 5 mm
播撒作业箱容积 20 L
播撒作业箱内部最大载重 配合 T16 使用时：16 kg
配合 T20 使用时：20 kg（注意：日本版为 16 kg）
播撒范围
与物料颗粒直径、播撒盘转速、仓口大小、飞行高度等因素有关。建议用户调
整相关变量，使播撒范围处于 4 - 6 m （播撒系统 1.0）或 5 - 7 m （播撒系统 2.0），
以获得较好的作业效果
*需配合支持播撒系统的固件使用，请留意 DJI 官网对应机型的发布记录。
d. 重新安装播撒机至作业箱，并确保播撒机锁定到位。
务必小心操作，谨防机械结构伤手。

©2020 大疆創新 版權所有
17
CHT
免責聲明
使用本産品之前，請仔細閱讀並遵循本文及大疆 TM 創新（DJITM）提供的所有安全指南，否則可能會給您和周
圍的人帶來傷害，損壞本産品或其它周圍物品。一旦使用本產品，即視為您已經仔細閱讀本文件，理解、認
可和接受本聲明全部條款和內容。您承諾對使用本產品以及可能帶來的後果負全部責任。大疆創新（DJI）對
於直接或間接使用本產品而造成的損壞、傷害及任何法律責任概不負責。
DJI 是深圳市大疆創新科技有限公司及其附屬公司的商標。本文出現的産品名稱、品牌等，均為其所屬公司的
商標。本產品及手冊之版權為大疆創新所有。未經許可，不得以任何形式複製翻印。
本文件及本產品所有相關文件的最終解釋權歸大疆創新（DJI）所有。如有更新，恕不另行通知。請前往
www.dji.com 官方網站以取得最新的產品資訊。
注意事項
1. T 系列播撒系统（簡稱「播撒系统」）僅適用於大疆農業 T系列植保無人飛機（具體機型見「規格參數」），
且需配合支援播撒系统的飛行器韌體使用。切勿在其他產品上使用或用於農業植保以外的用途。
2. 播撒系统適合使用顆粒直徑為 0.5 - 5 mm 的乾燥物料。切勿使用其他物料，否則將影響作業效果，甚至損
壞播撒系统。使用時，嚴格按照物料本身的使用說明進行操作。
3. 播撒系统作業箱最大載重與飛行器起飛重量有關，詳見「規格參數」。切勿超重使用。
4. 確保正確牢固地連接線材並小心操作，以免損壞線材。
5. 每次使用前，檢查倉門開闔是否順暢，播撒盤運轉是否正常。
6. 使用時務必小心，謹防機械結構割手。
7. 進行播撒作業時，務必遠離播撒系統，以免造成人身傷害。
8. 進行播撒作業時，由於播撒顆粒的遮擋，雷達模組的最小檢測距離將由 1.5 公尺變為 5公尺。如有障礙物
處於探測範圍以外，則飛行器無法感知障礙物。同時，雷達模組的檢測性能亦有所減弱，務必謹慎飛行。
更多雷達模組注意事項請參考對應飛行器的《免責聲明和安全操作指引》。
9. 禁止水洗。建議使用乾燥的壓縮空氣進行清潔。
簡 介
播撒系统是一款是用於大疆農業植保無人飛機的配件，將其安裝至飛行器，可完成有效率、可靠、穩定的播
撒作業。內置攪拌裝置及掉料口倉門控制結構，精準控制掉料速率，並有效防止掉料堵塞，提高作業準確度
及可靠性。
使用者可透過與飛行器配套使用的應用程式設置倉口大小、播撒盤轉速等，滿足不同作業場景的使用需求。
應用程式可提示無料警告及轉速、溫度、倉口大小等參數異常警告，確保系統安全執行。
播撒系統分為 1.0 和2.0 版本，其播撒盤結構有所不同。與播撒系統 1.0 相比，播撒系統 2.0 具有更大的掉料
速率，且可以在飛行器水平方向上 360° 範圍內播撒物料。若無特殊註明，本文均以播撒系統 1.0 為例進行說明。
物品清單
播撒系統 ×1備用播撒盤 ×2M4×12 螺絲 ×4
針對播撒系統 2.0，使用
者還可選購擋板及螺絲包
配合使用。

18
©2020 大疆創新 版權所有
CHT
零組件名稱
作業箱
播撒機
播撒盤
播撒機鎖止旋鈕
連接線
安 裝
安裝前務必確保飛行器智能飛行電池已取下。安裝時需自備適用於 M2.5、M3 和M4 螺絲的六角扳手。
1. 向上提起並取出飛行器的噴灑作業箱。
2. 移除飛行器前部上蓋的所有膠塞及 5顆M3×8 螺絲，然後移除上蓋。針對 T20 飛行器，還需取下左側（面
向機尾）的線卡保護蓋。
3. 在噴灑板上找到「流量計 /液位計」連接埠，移除連接線接頭上的 M2.5×8 螺絲，然後拔下連接線，放置
於靠近機殼邊緣的空位中。T20 與T16 的噴灑板位置及結構不同，詳見下圖。
T20

©2020 大疆創新 版權所有
19
CHT
4. 分離播撒系統的作業箱與播撒機：向外拔出播撒機鎖止旋鈕，轉動 90° 後鬆開以解除鎖定，然後轉動播撒
機將其拆下。
6. 連接播撒系統連接線：
T20
將播撒系統連接線從液泵與作業箱安裝位的空隙穿過，嵌入飛行器左側的線卡，然後插入「流量計 /液位計」
連接埠，並鎖緊 2顆M2.5×8 螺絲。
鎖止狀態 解鎖狀態
2
3
1
5. 針對播撒系統 2.0，使用者可選擇安裝擋板至播撒機，安裝擋板後播撒系統將不會向飛行器後方播撒物料。
5 cm
1
2
M3×8
T16
M2.5×8
