The Handy THDS User manual

Version 3 - April 2019
DROP SPREADER
27.2kgs (60lb)
MODEL NO: THDS -- PRODUCT NO: 1938107001
EN - ORIGINAL INSTRUCTIONS
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our
policy of continuous improvement determines the right to make modifications without warning.
INSTRUCTION MANUAL

Images used are for illustration purposes only
Copyright Notice
Copyright © Handy Distribution
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or means without
written permission from Handy Distribution.
In all cases this copyright notice must remain intact.

CONTENTS
SPECIFICATION
IMPORTANT INFORMATION
GENERAL SAFETY INSTRUCTIONS
COMPONENTS
ASSEMBLY
OPERATION
RATE SETTINGS
MAINTENANCE
PARTS LIST & DIAGRAM
USER WARRANTY
NOTES
ASSEMBLY IS REQUIRED
This product requires assembly before use. See the “Assembly” section for instructions.
Please check that all parts required for the assembly of this spreader are included. If for any reason you
believe a part for the assembly is missing or damaged, please contact us.
If you require any assistance with regards to the contents or operation of
your machine, please contact us:
TEL: [phone]
EMAIL: [email protected]
(MON –FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS)
DO NOT USE WITH ROCK SALT.
Using rock salt in this spreader will damage the mechanism and shorten the life of the product. Refined
ice melting salt can be used but the user should be aware that this is not a specialised salt spreader and
using salt may corrode the spreader and reduce the life of the machine.
Clean the spreader thoroughly after using refined de-icing salt.

SPECIFICATION
The manufacturer reserves the right to change the product specification and livery according to continued
product improvements.
Model
THDS
Product Number
1938107001
Capacity (Weight)
27kg (60lb)
Hopper Dimension
600x295x230mm
Spread Width
56cm (22”)
Wheel Diameter
300mm (12”)
Weight
N.W 5kg –G.W 6kg
IMPORTANT INFORMATION
INTENDED USE
The product is intended for spreading granular material for domestic gardens. This product is not intended for
commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions
must be observed.
Only perform work described in these instructions for use, any other use is incorrect. The manufacturer will
not assume responsibility for damage resulting from such use.
SAFETY SYMBOLS
Safety alert symbol. Used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result
in serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result
in serious injury
CAUTION
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
CAUTION
Used without the safety alert symbol indicates a potentially hazardous
situation which, if not avoided, may result in property damage.

GENERAL SAFETY INSTRUCTIONS
Read and understand the owner’s manual and labels affixed to the product. Learn its application and
limitations as well as the specific potential hazards. Retain these instructions for future reference. The
operator is responsible for following the warnings & instructions in this manual and on the product.
STAY ALERT
Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect
your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand.
Be aware of what you are doing at all times. Use common sense.
AVOID DANGEROUS CONDITIONS
Make sure there is adequate surrounding workspace. Cluttered areas invite injuries.
Keep your work area clean with sufficient light. Keep the area around the machine clear of obstructions,
grease, oil, rubbish & other debris which could cause persons to fall onto moving parts.
INSPECT YOUR MACHINE
Check all bolts, nuts & screws for tightness before each use, especially those securing guards & drive
mechanisms. Vibration during use, may cause these to loosen.
Replace damaged, missing or failed parts before using.
Warning labels carry important information. Replace any missing or damaged warning labels.
CRUSH AND CUT HAZARDS
Always keep your hands and feet clear from moving parts while operating the equipment.
Always keep the work area clean and clear when operating.
CONDITIONS
We recommend the machine is not used during winds. This may affect the spreading pattern.
DRESS PROPERLY
Do not wear loose clothing, gloves, scarfs, neckties or jewellery (rings, wrist watches, bracelets etc.), which can
be caught in moving parts.
DO NOT OVERREACH
Keep proper footing and balance when using the machine. Never stand on the machine. Serious injury could
occur if the machine is tipped or if the moving parts are unintentionally contacted. Do not store anything
above or near the machine, where anyone might stand on the machine to reach them.
AVOID INJURY FROM UNEXPECTED ACCIDENT
Keep hands & feet out of the way of all moving parts. Do not place any part of your body or any tool e.g. in
moving parts of the machine during operation.
DO NOT FORCE TOOL
Always work within the rated capacity. Do not operate for a purpose for which it was not intended.
MAINTAIN YOUR MACHINE WITH CARE
Clean the machine immediately after use. Keep the machine clean to ensure it operates to its full & safest
performance. When maintaining this machine, only the manufacturer’s original replacement parts should be
used. The use of non-original manufacturer parts may invalidate your warranty.
PROTECT THE ENVIRONMENT
Take left over materials to an authorised collection point or follow the stipulations in the country where the
machine is used. Do not discharge into drains, soil or water.
STORE IDLE EQUIPMENT
When not in use, the machine should be stored in a dry location. Keep the machine away from children and
others not qualified to use it.

COMPONENTS
Remove the machine and contents from the carton. Be sure the carton is empty before discarding.
If you require any assistance with regards to the contents of the lawnmower contact us:
Tel: [phone]
Email: [e-mail]
Mon to Fri - 8.00am to 5.30pm (excl. Bank Holidays)
NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we
recommend you contact our Spares Team on 01793 333212 for expert advice.

ASSEMBLY

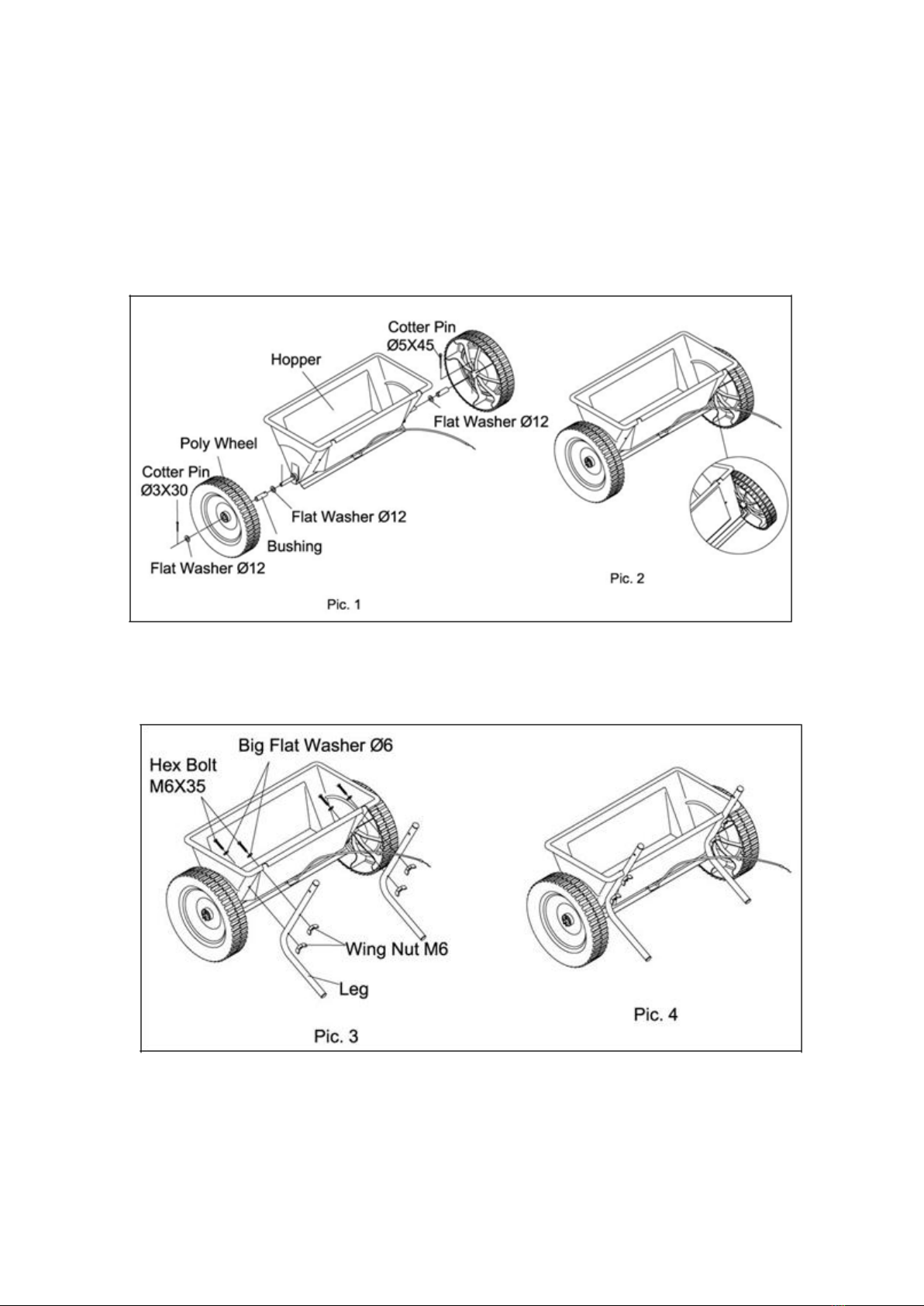

STEP 1
•Insert a Flat Washer Ø12 onto the end of the left Wheel Axle (As you are stood behind the machine). Place
the Bushing into a Poly Wheel and then onto the wheel axle. Then place a Flat Washer Ø12 onto the
Wheel Axle and insert a Cotter Pin Ø3X30 into the hole on the Wheel Axle and bend to lock it.
•Insert a Flat Washer Ø12 onto the end of the right Wheel Axle. Place a Bushing in a Poly Wheel and then
onto the Wheel Axle. Turn the wheel until the hole on the wheel is in-line with the hole on the wheel axle,
insert the Cotter Pin Ø5X45 and bend to lock it.
STEP 2
•Insert two Hex Bolts M6X35 with Big Flat Washers Ø6 through the inner hopper and a leg, then lock using
two Wing Nuts M6. Tighten the nuts.
•Repeat to assemble the second leg.

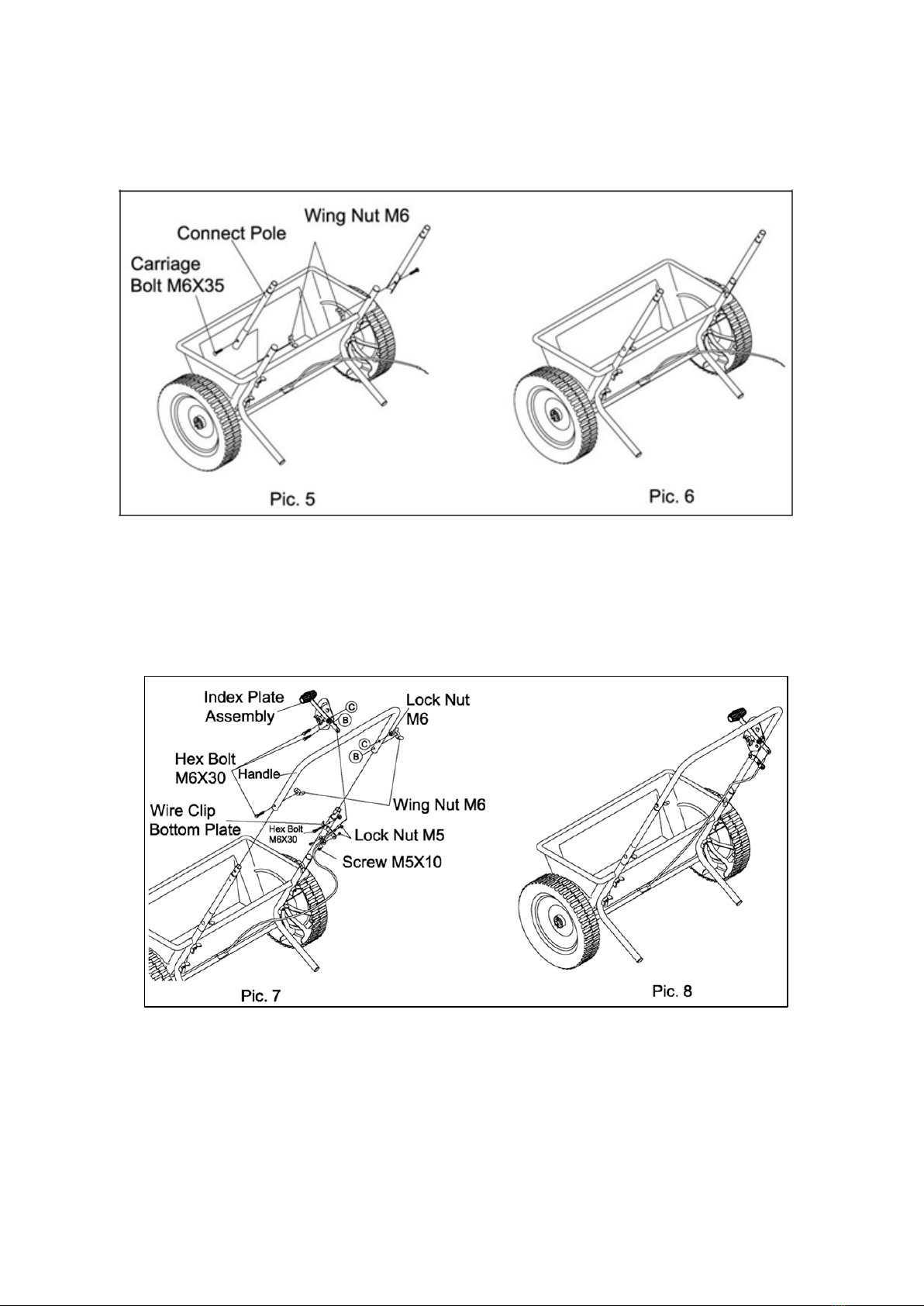

STEP 3
•As per Pic.5, place a Connect Pole onto the top of the leg and lock with a Carriage Bolt M6X35 and a Wing
Nut M6.
•Repeat to assemble the second Connect Pole
STEP 4
•Attach the Handle with the Connect Pole, lock using two Hex Bolts M6X30 and M6 Wing Nuts on the left.
•Insert the Adjustable Wire into the hole in the Index Plate, then attach the Index Plate onto the right side
of the Handle and Connect Pole using two Hex Bolts M6x30, one Lock Nut M6 and one Wing Nut M6.
•Insert the Wire Clip Bottom Plate onto the Connect Pole using a Hex bolt M6x30 & Lock Nut M6.
•Fix the Wire Clip Plate to the Adjustable Wire and Wire Clip Bottom Plate using a Screw M5x10 and Lock
Nut M5.

ADJUSTMENTS
OPERATION
DANGER
The product must only be put into operation if no defects are found. It is crucial that defective
parts are replaced before the product is used again.
Check the safety equipment and the safe condition of the product.
Check all parts to make sure that they fit tightly.
Check whether there are any visible defects: broken parts, cracks, etc.
DANGER
DO NOT EXCEED THE EQUIPMENT MAXIMUM LOAD CAPACITY OF 27.2kgs (60lbs)
Before filling the hopper, familiarise yourself with the operation of this Spreader.
•The spreader is designed to be pushed at 3 miles per hour –brisk walking pace. The rate of walking will
affect the spread pattern and flow rate.
•Move the wing nut attached to the stop bolt on the gauge to the relevant setting.
•Start pushing the spreader forward & pull the control lever back to the stop bolt, opening the feed-gate
hole at the bottom of the hopper.
•Material which is stuck in the hopper bottom opening can cause uneven spreading.
•To stop spreading, push the gauge lever forward to close the feed-gate hole in the hopper.
•Salt may corrode the machine and reduce its working life. DO NOT USE ROCK SALT.
•If fertiliser is accidentally deposited too heavily in a small area, soak the area thoroughly with a garden
hose or sprinkler to prevent burning the lawn.
•When spreading weed control fertilisers, make sure the broadcast pattern does not hit
evergreen trees, flowers or shrubs.
1. Release these two bolts
2. Pull this handle to the
top position.
3. When the handle is at 0,
the hopper is completely
closed. Tighten these two
bolts.
4. Push the handle to the
bottom position (25), to make
sure the hole of the hopper is
completely open.
5. Move the position of the
nut and change the space
between the hole of the
hopper and the rotating
door.

RATE SETTINGS
Our spreaders are designed to spread dry, powdered or granulated materials thinly and evenly over reasonably
smooth surfaces.
•Ensure that the material is dry and free-running. If in doubt pass it through a sieve with 3mm mesh to
remove lumps.
•Set rate-setting dial to No 2.
•Fill the hopper approximately 3/4 full.
•Push the spreader forward and pull the control lever back to the stop bolt. If the spread is uneven or
inadequate, close the feed-gate and reset the dial to a higher number.
•Always move off BEFORE opening the feed-gate and close the gate BEFORE stopping.
MULTI-
USAGES
LBS/1,000
SQ FT
SPREADER
SETTING
The spreader settings are
guidelines only. The spreader
should be calibrated prior to
application to ensure accuracy.
The spreader settings are based
on a walking speed of 3 MPH.
Walking faster or slower will alter
the spread application rate.
Exact rates depend upon the
spreader itself and the accuracy
of the person operating it.
Conversion charts are available
online to convert to metric.
FERTILISER
GRASS SEEDS
PESTICIDES
1
10
2
12
3
14
4
15
5
17
6
18
7
20
8
21
9
23
10
25
OPERATION SPEED
3mph is a good speed to operate the spreader at. Walking slower or faster will alter the spread application
rate. Do not exceed 10mph, to avoid personal injury and/or equipment damage.
CAUTION
The rate settings are guidelines only. Even branded materials may vary in grain size, humidity, density etc. If
in any doubt choose a lower setting than that suggested or start at setting no. 20 and adjust as necessary,
until an even spread is achieved.
WARNING
Do not over apply spreading material. Follow the recommended coverage rate for each product. Over
application will lead to damage and contamination. If spreading material accidentally deposits too heavily,
soak the area thoroughly with a garden hose or sprinkler to prevent burning.
CAUTION
DO NOT USE WITH ROCK SALT.
Using rock salt in this spreader will damage the mechanism and shorten the life of the product. Refined ice
melting salt can be used but the user should be aware that this is not a specialised salt spreader and using
salt may corrode the spreader and reduce the life of the machine. Clean the spread thoroughly after using
refined de-icing salt.

CONSISTENT COVERAGE
To ensure consistent coverage, ensure each spread pattern slightly overlaps the previous, as shown below.
N.B. ALWAYS MOVE OFF BEFORE OPENING FEED-GATE.ALWAYS CLOSE FEED-GATE BEFORE STOPPING
MAINTENANCE
LUBRICATE
Maintenance spray or multi-purpose grease can be applied to the wheel axle prior to long-term storage. Oiling
is not necessary.
CLEANING
After each use thoroughly wash the spreader and clean material out of the hopper.
STORING
Never allow material to stay in the hopper for extended periods of time.
Before storing, ensure that the spreader is clean and dry.
Store indoors or in a protected area during severe weather and in the winter months.
Keep away from direct sunlight.
CHECK ALL NUTS, BOLTS AND FASTENING
Periodically check all fastenings are tight & secure.
NEVER EXCEED LOAD CAPACITY
To avoid damaging the spreader, never exceed the rated load capacity of 27.2kg (60lb).

PARTS LIST & DIAGRAM –THDS (1938107001)
NO.
PART NO.
DESCRIPTION
QTY
NO.
PART NO.
DESCRIPTION
QTY
1
TH163-1
Screw M5x6
8
21
TH163-21
Screw M5X10
2
2
TH163-2
Scratch Board
2
22
TH163-22
Index Plate Assembly
1
3
TH163-3
Wheel Axle
1
23
TH163-23
Cotter Pin Ø5X45
1
4
TH163-4
Hex Bolt M6X35
5
24
TH163-24
Nylon Lock Nut M6
4
5
TH163-5
Big Flat Washer Ø6
6
25
TH163-25
Wire Lock -1
1
6
TH163-6GM
Hopper
1
26
TH163-26
Wire Lock -2
1
7
TH163-7
Axle Bushing
2
27
TH163-27
Screw ST.4.8x20
1
8
TH163-8
Flat Washer Ø12
3
28
TH163-28
Carriage Bolt M6X25
1
9
TH163-9
Poly Wheel
2
29
TH163-29
Lock Washer Ø8
1
10
TH163-10
Cotter Pin Ø3X30
1
30
TH163-30
Spacer
1
11
TH163-11
Bushing
2
31
TH163-31
Adjustable Handle A
1
12
TH163-12
Rotating Door Assembly
1
32
TH163-32
Adjustable Handle B
1
13
TH163-13GM
Handle
1
33
TH163-33
Screw ST.4.2x18
1
14
TH163-14
Hex Bolt M6X30
4
34
TH163-34
Adjustable Handle Rod
1
15
TH163-15GM
Connect Pole
2
35
TH163-35
Nylon Washer
1
16
TH163-16
Carriage Bolt M6X35
2
36
TH163-36
Nylon Lock Nut M5
2
17
TH163-17GM
End Cap
4
37
TH163-37
Lock Washer Ø6
1
18
TH163-18GM
Support Leg
2
38
TH163-38
Wire Clip plate
1
19
TH163-19
Wing Nut
9
39
TH163-39
Wire Clip Bottom Plate
1
20
TH163-20
Adjustable Wire
1
NOTE: Parts Lists are supplied for information
purposes only, not all parts are stocked
individually & we recommend you contact our
Spares Team on 01793 333212 for expert advice.

GJ HANDY & CO LTD USER WARRANTY POLICY
Users Statement of Warranty
Each new machine is warranted against defective material or assembly of material under normal usage. The
warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and
repairing those parts, which are of original manufacture.
Period of Warranty
Webb (excludes Electric Handheld, Dynamic, Heritage, Legacy), Webb Pro, Sanli Engine
a) 2 years from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables, nylon
line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty repairs
should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
g) All machines’ must be serviced within the first 12 months from the original date of purchase to comply
with the warranty, failure to do so will invalidate the 2nd year of the warranty.
Webb Electric Handheld, Webb Dynamic, Heritage & Legacy, Handy, Mowerland, Q-Garden
a) 1 year from the original date of sale to the first domestic user.
b) 90 days from the original date of sale to the professional/commercial user.
c) 90 days from the original date of sale when used for hire.
d) A reduced warranty period of 90 days applies to those items which are subject to normal wear and tear
(e.g. but not limited to wheels, tyres, cutter bars, cylinders, cutting blades, blade boss, belts, cables, nylon
line & spool, collection bags, spark plugs).
e) Engines are supplied with a separate warranty to the machine. The engine manufacturers warranty
statement which will be supplied within the engine instruction manual. All enquiries and warranty repairs
should be discussed with the engine manufacturer or approved warranty repair dealer.
f) 90 days from the original date of purchase for Replacement Spare Parts (unless normal wear & tear
component, which are covered for 30 days).
All warranty repairs must be undertaken by an authorised service dealer. These dealers have been accredited
by GJ Handy & Co Ltd and agree to only use genuine parts and follow our repair procedures.
Not covered by this warranty
a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or
corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services
instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres,
belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has
evidence of faulty manufacture.
c) The warranty policy will not cover failure or damage caused as a result of parts or accessories being
modified without the written approval of GJ Handy & Co Ltd.

d) The warranty policy will not cover the unit if non-genuine parts have been fitted and as a result damage
has occurred to the unit.
e) The warranty policy is non-transferable and is only applicable to the original purchaser.
Disclaimer
a) This warranty is only a remedy for defect of products. GJ Handy & Co Ltd will never warranty in terms of
the merchantability or the fitness for a particular purpose.
b) No person is authorised to make any warranties, representations or promises, expressed or implied, on
behalf of GJ Handy & Co Ltd, or to modify the terms conditions or limitation of this warranty policy in any
way.
c) Neither GJ Handy & Co Ltd nor any company affiliated with GJ Handy & Co Ltd shall be liable in any event
or manner whatsoever for incidental or consequential damages or injuries, including, but not limited to,
loss of crops, loss of profit, out of pocket expenses or profits, rental of substitute equipment or other
commercial losses.
General
a) Most warrantable failures show up within the first few weeks of use. These failures are usually
straightforward and warranty assessment is relatively easy.
b) Failures relating to cutter decks and belts need careful investigation, as the cause may not always be
straightforward. Look for damage to blades and pulleys especially when the cutter belt or blade boss have
snapped or cracked as this could be due to impact damage.
c) Customers should always refer to the operator/instruction manual when any disputed problem arises, you
will find most areas covered within the manual.
Version 7 (Dec 2018)

For spares or support of your Handy product,
please contact us:
Tel: [phone]
Email: customerse[email protected].uk
(Mon –Fri 8.00am to 5.30pm excl. Bank Holidays)
To see our range of garden machinery & equipment visit:
www.thehandy.co.uk
Making gardening easier & affordable since 1938
Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY
