DKL D2-ASTRUM User manual

Operating Instructions
Manufacturer:
DKL CHAIRS GmbH
An der Ziegelei 3
D-37124 Rosdorf
Germany
[phone]
[email protected]
www.dkl.de
Form no. GEN-D2ASTRUM
Rev. 07 / 10.08.2023
Subject to change without
notice.
D2-ASTRUM

2
Contents
Annex
> Instructions for Use W&H Dentalwerk Bürmoos GmbH Electric motor EM-12L
> Instructions for Use W&H Dentalwerk Bürmoos GmbH Implantmed motor EM-19LC
> Instructions for Use W&H Dentalwerk Bürmoos GmbH Piezo Scaler PB 5
> Instructions for Use W&H Dentalwerk Bürmoos GmbH FOOT CONTROL S-NW
> Instructions for Use W&H Dentalwerk Bürmoos GmbH Peristaltic pump
> Operating Instructions DÜRR Dental Spittoon valve 3
> Operating Instructions DÜRR Dental CAS 1 Combi-Separator
> Operating Instructions DÜRR Dental CS 1 Combi-Sepamatic
> Use Manual Syringe Luzzani Minilight
> USER MANUAL FARO EVA
Symbols in the Operating Instructions 3
Symbols inside the Unit 4
Introduction 5
Electromagnetic Compatibility (EMC) 6
Safety notes – General 7
Safety notes – Doctor’s Device, Assistant’s device, Water unit 8
Safety notes – Transmission Instruments 8
Technical Specifi cations 9
Media Requirements 10
Dimensions in Millimetres 12
Product Description 13
Foot Controller 16
Icons – Display 17
Icons – Navigation Touch Display 18
Icons – Setup 19
Moving the Treatment Chair 20
Putting the Treatment Unit into Operation 22
Creating a User 23
Managing Users 24
Main Menu Instruments 24
General Instrument Functions 25
Starting the Turbine 27
Starting the Turbine (Advanced Air) 27
Starting the Electric Motor 28
Starting the Piezo Scaler 30
Function Syringe Luzzani Minilight 31
Implantmed W&H EM-19LC 32
Operating Lamp LED.light EVA 38
Cuspidor 41
Suction 42
Suction System 43
Cleaning and Disinfection of the Suction Handpieces 44
Cleaning and Disinfection of the Suction System 46
Cleaning and Disinfection of the Surfaces 48
Cleaning and Disinfection of the Instrument Holders 51
Check for oil residues in the turbine return air 51
Water Separation Unit (WSU) 52
Flushing Function with the Water Separation Unit (WSU) 54
Intensive Flushing with the Water Separation Unit (WSU) 55
Filling DK-DOX 150 into the Water Separation Unit 56
Setting Media Instruments 57
Maintenance and Inspection 58
Safety Inspections 58
Error Messages 59
Warrantee Declaration + Waste Disposal 61
EMC - Manufacturer‘s Declaration 62

3
Symbols in the Operating Instructions
WARNING!
(risk of injury)
General explanations,
without risk to
persons or objects
Thermodisinfectable Sterilisable up to the
specified temperature Call customer service!
CAUTION!
(to prevent
damage occurring)
Symbols on the unit
Consult instructions for
use or consult electronic
instructions for use
ON / OFF Do not dispose of with
household waste
CE-marking with iden-
tification number of the
notified body
Type B application part
Manufacturing date Model (designation) Serial number
VElectrical voltage VA
AC
AHz
Electrical power con-
sumption
Current intensity Frequency of alter-
nating current
Electrical fuse
Alternating current
Foot controller
Manufacturer Medical device UDI - Product
Identification

4
Symbols inside the Unit
Earth conductor connection -
Protective earth
Functional
earth
Symbols on the packaging
Transport upright; top
Permissible temperature range
Air humidity, limitation
Protect from moisture!
Do not stack!
Fragile
N
Connection point for
neutral conductor
Atmospheric pressure limitation

5
Introduction
For your safety and the safety of your patients
These operating instructions are intended to explain how to use your product. However,
we must also warn of possible dangerous situations. Your safety, the safety of your team
and, of course, the safety of your patients are very important to us.
Please observe the safety instructions!
Intended purpose
This treatment unit is used for the diagnosis and therapy of children and adults in the field of dentistry.
Improper use can damage the treatment unit and thus pose risks and hazards
to the patient, user and third parties.
Qualification of the user
The DKL treatment unit may only be used after medically, professionally and practically trained per-
sonnel have been instructed. The development and design of the treatment unit were geared towards
the target group of dentists, dental hygienists, qualified dental employees (prophylaxis) and dental
assistants.
Production according to EU directive
The medical device complies with the provisions of regulation (EU) 2017/745.
0123
Responsibility of the manufacturer
The manufacturer can only be held responsible for the impact on the safety,
reliability and performance of the treatment unit if the following instructions
are observed:
> The dental unit must be used in accordance with these operating
instructions.
> If assembly, additions, new settings, changes or repair work is carried out
by DKL or trained technicians authorised by DKL or personnel of authorized
dealers trained by DKL.
> The electrical installation of the room must comply with the regulations of
the IEC 60364-7-710 standard („Erection of electrical installations in rooms
used for medical purposes“) or comply with the regulations applicable in
your country.
> The recommended annual maintenance is carried out and any repair work
in this context meets the requirements of EN 62353.
> „Repeat tests and pre-commissioning tests of medical electrical equipment
and systems – general regulations“are fully complied with.
> The national legal regulations are observed when using the device, in
particular the applicable health and safety regulations and accident
prevention measures.

6
Electromagnetic Compatibility (EMC)
Medical electrical equipment is subject to special precautions with regard to EMC and
must be installed and commissioned in accordance with the EMC instructions. DKL gua-
rantees that the dental unit complies with the EMC guidelines only if original DKL acces-
sories and spare parts are used. The use of accessories and spare parts not approved by
DKL may lead to an increased emission of electromagnetic interference or to a reduced
resistance to electromagnetic interference.
The EMC manufacturer declaration can be found on page 62.
HF communication equipment
Do not use portable and mobile HF-communication equipment (such as mobile telepho-
nes) during operation. These can affect medical electrical devices.
Risks due to electromagnetic fields
The functionality of implantable systems, such as cardiac pacemakers and implantable
cardioverter defibrillators (ICD), can be influenced by electric, magnetic and electromag-
netic fields.
> Before using the product, ask the patient and user about implanted systems and
check the use.
> Perform a risk-benefit analysis.
> Do not place the product near implanted systems.
> Do not place the instruments on the patient‘s body.
> Take appropriate emergency precautions and respond immediately to health changes.
> Symptoms such as increased heart rate, irregular pulse, and dizziness may be signs
of problems with a pacemaker or ICD.

7
Safety notes – General
> Before being put into initial operation, the treatment unit must be kept at room
temperature for 24 hours.
> Before each application, check the treatment unit and the instruments with cables for
damage and loose parts.
> Do not operate the treatment unit if it is damaged.
> Check the set parameters each time you restart the unit.
> Carry out a test run before each application.
> The application and timely shutdown of the system is the user’s responsibility.
> Make sure that in the event of a device or instrument failure, the treatment can be
completed safely.
> Use only original DKL fuses.
> Never touch the patient and the electrical connection at the treatment unit at the same
time.
> Do not lean on the doctor‘s device, the assistant‘s device, the tray or the operating
lamp.
> When moving the treatment chair, the doctor‘s device, the assistant‘s device, the tray or
the operating lamp, pay attention to the patient and the practice personnel.
> Always switch off the treatment unit before leaving the practice.
Hygiene and care before using the device
> Clean and disinfect the device immediately before or after each treatment!
> Wear protective clothing.
The treatment unit is classified as an „ordinary device“ (closed device without protection
against water ingress).
The treatment unit is not suitable for use in an explosive atmosphere or in explosive
mixtures of anaesthetics with oxygen or nitrous oxide.
The treatment unit is not suitable for use in rooms with an oxygen enriched atmosphere.
Safety notes – Patient chair
> Not suitable for patients who cannot remain in a resting position due to mental or
physical disabilities.
> The patient‘s arms and legs must rest on the upholstered parts of the chair.
> Do not exceed the maximum patient weight of 150 kg.
> Do not sit on the head or foot rest of the horizontally aligned patient chair.
> Position changes must always be carried out under the surveillance of the person
giving treatment.
> Watch patients while moving the treatment chair.
> Make sure that there are no objects under the treatment chair.
Observe your country-specific guidelines, standards and specifications for
cleaning, disinfection and sterilisation.

8
Safety notes – Doctor’s Device, Assistant’s device, Water unit
> Before putting the device into initial operation and after downtimes (weekends,
(public) holidays etc.), flush the water lines intensively.
> Flush all instrument connections for 2 minutes before starting work.
> Press the glass fill button several times before starting work.
> Rinse used instruments for 20 seconds after each treatment.
Risk of injury or infection caused by instruments that are not in use:
The arrangement of the instruments may cause injury or infection to the hand and
forearm when accessing the tray or the display.
Therefore, when accessing the tray or the display, pay attention to the arrangement of
the instruments.
Safety notes – Transmission Instruments
> Do not exceed the maximum permissible load of 2 kg on the doctor‘s
device and on the assistant’s device.
Follow the instructions and safety notes in the operating instructions for the
transmission instruments.
> For the motors, only use transmission instruments with transmission systems that are
ISO 3964 (DIN 13940) compatible and approved by the manufacturer.
> For air-powered instruments, only use coupling systems according to ISO 9168.
> For air-powered instruments, only use coupling systems with anti-retraction stop for
contaminated cooling water.
> Observe the information provided by the manufacturer of transmission instruments
regarding transmission ratio, maximum speed and maximum torque.
> Only use faultless instruments and with the motors pay attention to the direction of
rotation of the rotating instrument. Follow the manufacturer‘s instructions.
> Plug in the transmission instrument only when the device is at a standstill.
> If the coolant supply fails, switch off the transmission instrument immediately.
> Before each use, check the transmission instrument for damage and loose parts.
> Never operate the clamping mechanism of the transmission instrument while using
the device or while the device is running down.
> Never reach into the instrument while it is running or running down.
> Avoid overheating of the treatment site.
> Check the secure placement of the instrument.
Highly immunosuppressed patients or patients with specific lung diseases should not
get into contact with the water of the treatment unit.
It is recommended to use sterile solutions.
Never touch the USB plug below the doctor‘s device and the patient at the same time.

9
Transport and storage conditions
Ambient temperature -30 to +70 °C
Relative humidity 10 to 80 %
Atmospheric pressure 500 hPA to 1060 hPa
Operating conditions
Quality and load-bearing capacity of the floor The floor must be level and horizontal according to EN
18202. Unevenness of the floor along the total length of
the chair base up to 2 mm is acceptable. The minimum
load-bearing capacity of the floor must be 0.5 N/cm2
(equivalent to approx. 500 kg/m2).
Ambient temperature 10 to 35 °C
Relative humidity 15 to 80 %
Atmospheric pressure 700 hPA to 1060 hPa
Installation site ≤ 3,000 m above sea level
The treatment unit is not suitable for operation in
hazardous areas.
Weight
D2-ASTRUM with floor mounting plate max. 265 kg
D2-ASTRUM without floor mounting plate max. 240 kg
Technical Specifications
Supply voltage 230V AC
Nominal voltage max. 3 A
Frequency 50/60 Hz
Fuse T 6.3 A H 250 V primary
Maximum power consumption 625 VA
Device class according to MDR (EU) 2017/745 IIa
Protection class Device of protection class I
Application parts Type B application parts
Contamination level 2
Over voltage category II
Power cable 3x1,5 mm2
Suction control lines to the suction device 5x1,5 mm2
Potential equalisation 1x 4 mm2
Relay control line optional special function 3x1,5 mm2
Free end electrical cables above floor 500 mm
Fuse for domestic installation Circuit breaker: 16 A medium-lag
Recommendation: circuit breaker type C
Degree of protection against ingress of water Ordinary device (without protection against water ingress).
The foot control is waterproof according to protection class
IPX8.
Permanently connected device. In order to avoid the risk of electric shock, this device may only
be connected to a power supply with an earth conductor.
The motors of the treatment unit are designed for intermittent operation in accordance with the
dental treatment method.
Driving motors for patient chair and backrest: duty cycle (max. 25 s „ON“ / 400 s „OFF“).

10
Media water
Water hardness 1.5 to 2.14 mmol/l = 8,4-12 dH
ph-value 6,5 to 8,5
Water filtration on site ≤ 100 µm
Water inflow Pipe 10x1mm, angle valve outlet 3/8“
Water connection above floor min. 40 mm, max. 60 mm
Water inlet pressure 2.0 to max. 6.0 bars
Water quality Cold water in accordance with local and national drinking
water regulations.
Minimum flow rate 3 l/min
Media air
Air inlet pressure max. 7 bars
Air consumption 80 Nl/min
On-site air filtration ≤ 100 particles size 1 - 5 μm referred to one m3of air
Oil content ≤ 0.5mg/m3,oil-free compressors; the compressor must suck
in hygienically perfect air.
Humidity Pressure dew point ≤ -20 °C at atmospheric pressure
Compressed air supply Pipe 10x1 mm, angle valve outlet 3/8“
Air connection above the floor min. 40 mm, max. 60 mm
Media Requirements
• Perform the installation according to the national installation requirements (e.g. EN 1717).
• For the reduction of microorganisms in the water supply pipe, please observe the following when laying this pipe to the
treatment unit:
- Avoid long stub lines to the treatment unit.
- Select the installation in such a way that other essential consumers (e.g. washbasin) are as far as possible
behind the connection of the treatment unit can be supplied from the same pipe.
- Avoid laying the hot water supply pipes in parallel.
• Recommendation: For the water supply of the treatment unit, install an angle valve with 2 outlets and 2 stop cocks. The
second outlet allows easy sampling of water for microbiological analysis.
Clean air and water pipes before installing the unit.
Chips and other foreign substances could be flushed or blown into the treatment unit.
Metal chips can interfere with the function of pneumatic components. Filters are clogged by foreign substances.
• When assembling, make sure that there are no chips or other foreign substances in the pipes.
• Flush the water pipes.
• Blow out the air ducts.
• Make sure that no further foreign substances get into the pipes and ducts after rinsing or blowing out.
Before the treatment unit is installed, the microbiologically perfect water quality of the domestic water supply
should be ensured and documented in the form of a microbial count.
Sampling and microbial count should be carried out by a competent laboratory.
Connection to the public drinking water supply
The treatment unit with a water separation unit complies with the requirements of EN 1717 (free outlet with separation
distance ≥ 20 mm) and the DVGW (German Technical and Scientific Association for Gas and Water). It is intrinsically safe
in accordance with worksheet W540 and therefore also meets the requirements of W270 and KTW (guideline for hygienic
assessment of organic materials in contact with drinking water).
When the treatment unit is equipped with a cuspidor, the bowl rinser ensures the free outlet with a separation distance
≥ 20 mm.

11
Requirements for the suction system
Vacuum at supply connection min. 0,12 bar, max. 0,18 bar
Minimum suction power at supply connection ≥750Nl/min
Suction system Type 1: high flow rate
wet or dry suction
Diameter of suction handpieces: small suction handpiece: 6 mm
large suction handpiece: 16 mm
Suction pipe DN40 HT-PP (polypropylene, inside diameter approx. 36.5 mm)
Water drain DN40 HT-PP (polypropylene, inside diameter approx. 36.5 mm)
Gradient Min. 10 mm per metre
Wastewater volume 3 l/min
Filter in the treatment unit maintenance interval Article number
Particle filter water inlet 50 μm Replace annually 210623-WBG
Particle filter compressed air inlet 50 μm Replace annually 210623-LBG
Solid particle filter for the suction
system
Mesh size 1 mm In case of damage,
replace at least annually.
514100
1Air: pipe min. 10x1 mm, angle valve outlet 3/8“
2Water drain DN40 HT-PP
3Suction line DN40 HT-PP
4Power cable 3x1.5 mm2
4Equipotential bonding 1x 4 mm2
4Control line to suction device 5x1.5 mm2
5Water: pipe min. 10x1 mm, angle valve outlet 3/8“
(2 outlets with 2 stopcocks)
Requirements for Supply Connections
Typical pressure in the suction system
Spray mist suction Vacuum / mbar
90 NL/min 22,6
150 NL/min 38,2
200 NL/min 60,0
250 NL/min 88,8
300 NL/min 124
316 NL/min 137
Saliva ejector
50 NL/min 100,0
55 NL/min 120,0
60 NL/min 135,2
67 NL/min 162
80 NL/min 200
Media Requirements

12
Dimensions in Millimetres
Treatment chair:
lowest position 370 mm
highest position 880 mm

13
1Treatment chair, seat
2Treatment chair, back rest
3Treatment chair, double-jointed headrest
4Treatment chair, joystick
5Foot controller doctor’s device
6Doctor’s device
7Assistant’s device
8Tray
9Cuspidor
10 Operating Lamp LED.light EVA
Product Description
Identification label

14
1Tray for storage
2Handle
3Turbine connection
4Micromotor
5Micromotor
6Piezo scaler
73-function syringe
8Display
9Spray mist suction
10 Saliva ejector
11 Pump
12 Implantmed motor
13 Stand
Connecting the instrument hoses:
The instrument hoses can be connected or disconnected
via a plug connection under the doctor’s device. Depen-
ding on the equipment of the model, the doctor’s device
is equipped with the following instruments (from the left):
turbine connections, micro-motor(s), piezo scaler and the
syringe. The instrument holders are marked on the back.
Do not connect the tubes crosswise.
Assistant’s device
Connecting the instrument hoses:
The instrument hoses can be connected or disconnected via a plug connection under
the assistant’s device. The assistant’s device is equipped with the following instruments
(from the left): 3-function syringe, spray mist suction and the saliva ejector. The instrument
holders are marked on the back. Do not connect the tubes crosswise.
Product Description

Marking Type of holder
GS Spray mist suction
KS Saliva ejector
T Turbine connection
M Micromotor
S Syringe
P Piezo Scaler
15
Product Description
ATTENTION stop protection!
Do not unlock without a specific reason! Always screw on very tight and
check! Do not swivel out too far when the stop protection is released!
Risk of cable breaks!

16
Moving the Docter´s device
When the unit is switched on, seize the doctor’s device
by its handle and press the release button 1to move
it. This way, the brakes will be released and the doctor’s
device can be moved easily.
Stop pressing the release button.
The supporting arm will brake automatical-
ly. The doctor’s device cannot be moved
up or down. The doctor’s device can be
swivelled easily.
1Start signal for instruments
1Stop / abortion of programme run
2Press briefly: coolant
2Press long: chipblower
3Programmes to activate instruments
4Press briefly: left/ right-hand rotation micro-
motor
4Press long: dim operating lamp
5Clamp for positioning
Foot Controller
The wireless S-NW foot controller enables hands-free
operation of the instruments.
Only use high-quality disposable AA / Mi-
gnon / LR6 / 1.5 V batteries.
You will find further information on use,
safety instructions, cleaning and battery
replacement in the W&H instruction ma-
nual foot controller S-NW, S-N2.
You can find an application film at www.youtube DKL Germany.
Video: DKL CHAIRS L2-D2 SERIES WITH TOUCH SCREEN
FUNCTIONS FOOT CONTROLLER
LINK: https://youtu.be/R803BCMsbvk

17
Icons – Display
Lifting the treatment chair and moving the back rest
Treatment chair, activate programme run
Display lock
Bell
Cup filler
Bowl rinser
Touch Screen
You can find application films at www.youtube DKL Germany.
Playlist: DKL CHAIRS L2-D2 SERIES DOCTOR’S DEVICE WITH TOUCH SCREEN
LINK: https://www.youtube.com/playlist?list=PLBx4baZAs6WgjO9xNPs3m30bNHsd_DR4e

18
Icons – Information touch screen
Setting selected Favourite selected
Information
red = replace battery
Foot controller, wireless
Information with selection option
Error message, further work is possibleError message, no further work is
possible
Icons – Navigation Touchscreen
Add user
Back
Confirm / save
Setup
Edit
To the next page
Implantmed menu (if part of the configuration)
Flush menu
Decrease / Increase

19

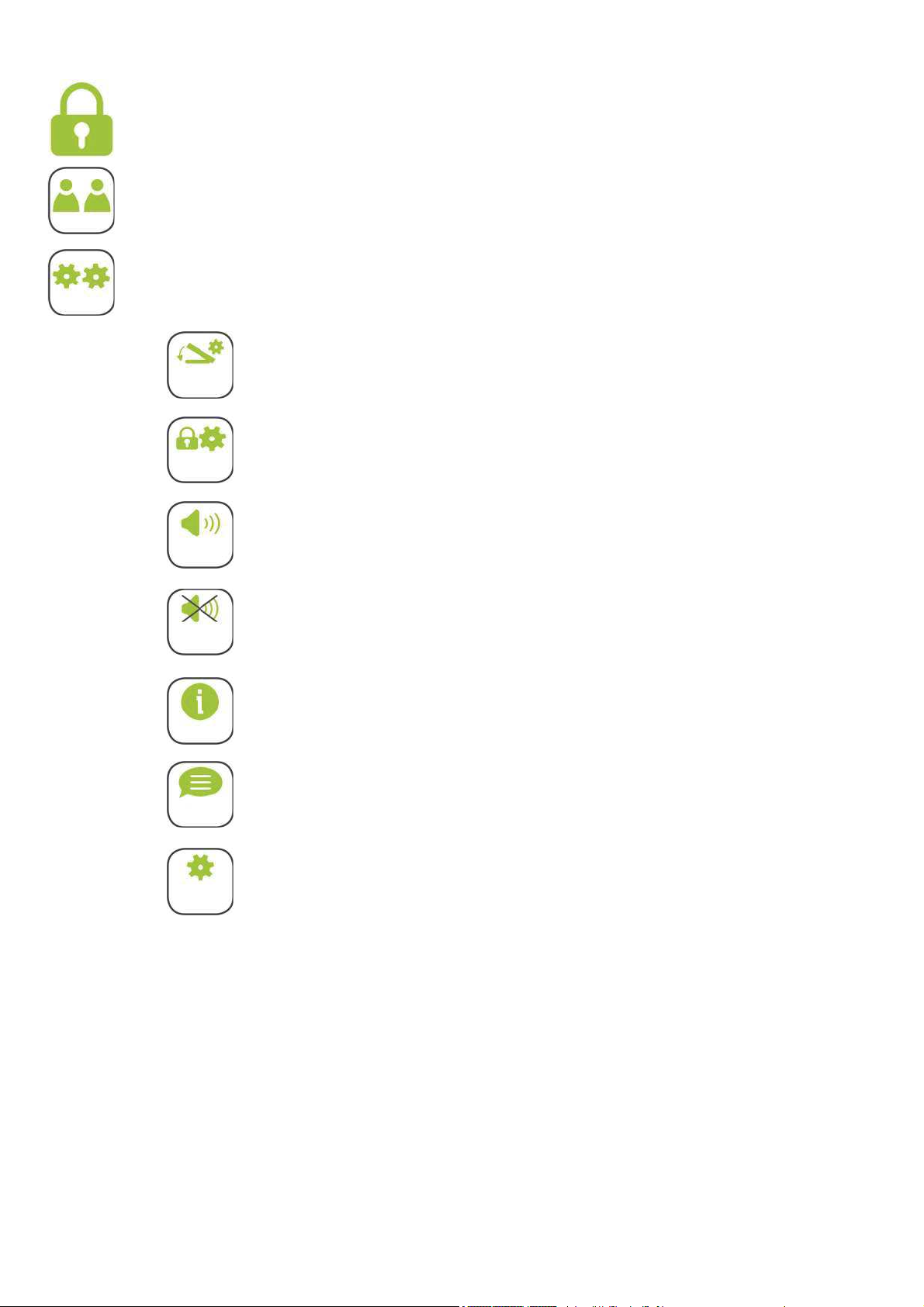

Icons – Setup
Touchscreen lock
Manage users
System
Setup foot controller
Setup touchscreen lock
Sound ON
Sound OFF (except warning sounds)
Device information
Language
Setup service

20
Moving the Treatment Chair
Move the joystick downwards
> Treatment chair moves downwards.
Move the joystick upwards
> Treatment chair moves upwards.
Move the joystick to the left
> Back rest tilts backwards.
Move the joystick to the right
> Back rest moves to an upright position.
Tap the JoystickTwice
> Treatment chair moves to the entry /exit position.
Tap the joystick twice downwards
> Treatment chair moves to the treatment position p2.
Tap the JoystickTwice to the Left
> Treatment chair moves to the rinsing position and
back to the last position when tapping twice again.
Tap theJoystickTwice to the Right
> Treatment chair moves to the treatment position p1.
Press “p0“
> Treatment chair moves to the position for getting on/off.
Press “p1“
> Treatment chair moves to treatment position p1.
Press “p2“
> Treatment chair moves to treatment position p2.
Press “p3“
> Treatment chair moves to treatment position p3.
Briefly press “lp“
> Treatment chair moves to the rinsing position and after
renewed pressing back to the “last position”.
For programming the keys, move to the desired programme position manually and then keep the respective
programme key pressed for about 3 seconds until you hear a signal tone. Now you have successfully saved
your individual treatment position.
Saving programme keys p0 – p3
Press the ”lp“ key to move the chair to the rinsing position. By pressing the key “Ip” once again, the chair moves
back to the previous programme position or to the manually set position. In order to programme the chair, move
it manually to the desired rinsing position and then keep the key “Ip” pressed for about 3 seconds until you hear
a signal tone. Now you have successfully saved your rinsing position.
Saving programme key lp
Programme keys at the back rest
Joystick at the chair base
Emergency-Stop System
Briefly tap the joystick or any programme key at the back rest to stop the active program-
me immediately. For this purpose, you can also press the start button for the instruments
at the foot controller.
Programme Run
Press the programme keys “0” and “lp” simultaneously for about 3 seconds until you hear
a signal tone. The treatment chair then moves the seat and the back rest into the lowest
position. The motion sequence has been reset now.
Once an instrument has been activated, the treatment chair cannot be moved any more.
Joystick
Programme keys
