Introduction
Thank you for choosing our SIGNAL ADDER CONVERTER XS-110. To ensure its proper
and efficient usage, it is important to read this manual thoroughly to understand how to operate
the XS-110 before putting it into operation.
About this Manual
1. This manual shall be delivered to the end user of the XS-110;
2. Contents are subject to change without notice;
3. All rights reserved. No part of this manual may be reproduced in any form without the
written permission from DLG;
4. The specifications contained herein are limited to standard models and do not cover
custom-made products;
5. All precautions were taken on preparing this manual, in order to guarantee the quality of its
information.
CAUTION!
The instrument described in this technical user manual is a device suitable for application
in a specialized technical area. DLG products are submitted to a strict quality control process.
However, industrial control electronic equipment can cause damage to machinery or controlled
processes in the event of any failure or improper operations and may even endanger human
lives. The user is responsible for selecting and setting values of the instrument parameters. The
manufacturer warns of the risk of incidents with injuries to both people and goods, resulting from
the incorrect use of the instrument.

Contents
PRESENTATION .................................................................................................. 6
SPECIFICATION .................................................................................................. 7
APPLICATIONS ................................................................................................... 8
TECHNICAL SPECIFICATIONS........................................................................... 9
DIMENSIONS ..................................................................................................... 10
OPERATION....................................................................................................... 11
Default triggering ............................................................................................................... 12
Sequential triggering.......................................................................................................... 12
MOUNTING......................................................................................................... 13

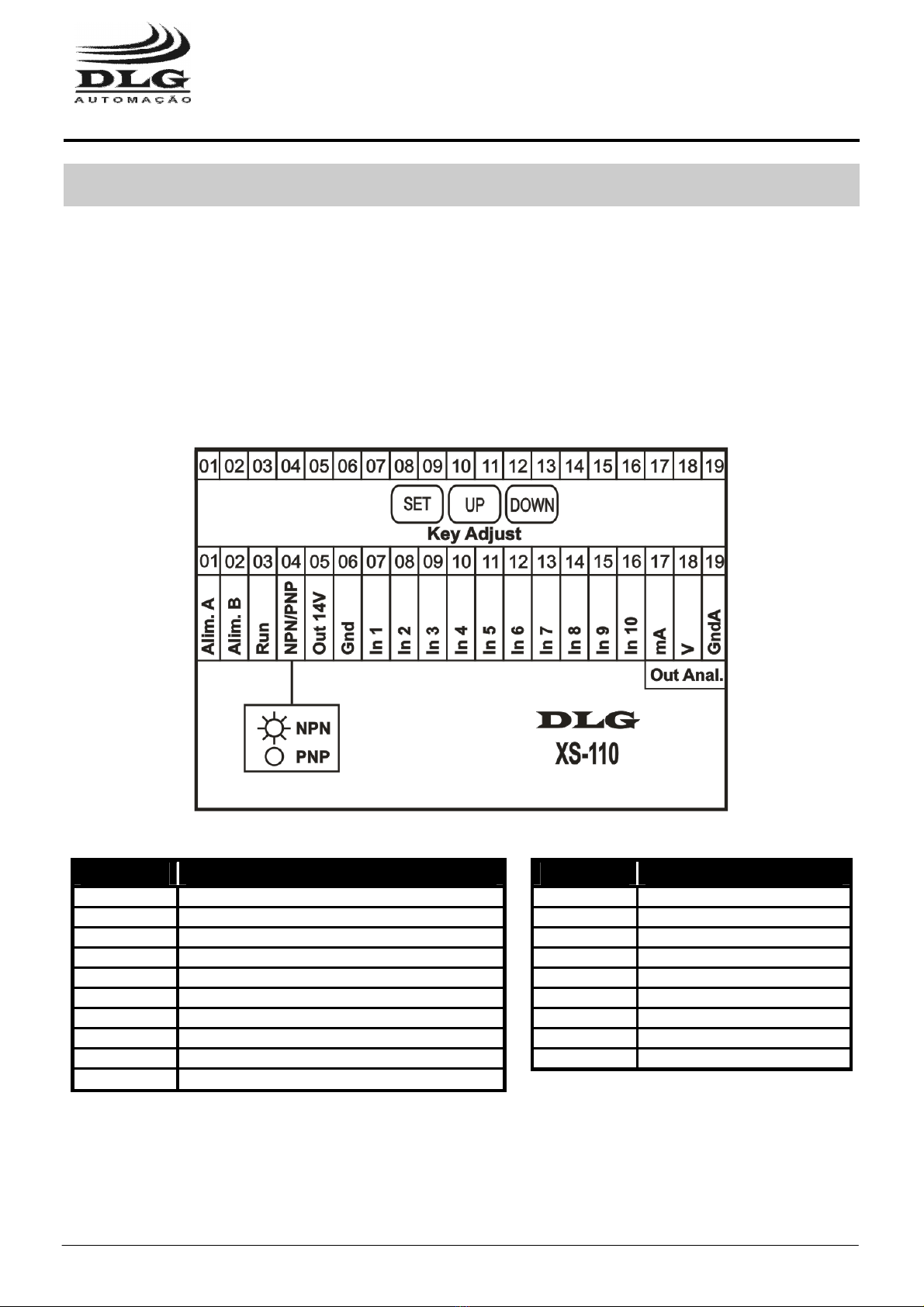

FRONT PANEL SETTINGS................................................................................ 15
Keys .................................................................................................................................. 15
LEDs.................................................................................................................................. 15
SETTINGS .......................................................................................................... 16
Default triggering ............................................................................................................... 16
NPN sensor............................................................................................................... 16
PNP sensor............................................................................................................... 16
Ramp rise time setting ..............................................................................................16
Ramp fall time setting................................................................................................ 16
Sequential triggering.......................................................................................................... 17
NPN sensor............................................................................................................... 17
PNP sensor............................................................................................................... 17
Ramp rise time setting ..............................................................................................17
Ramp fall time setting................................................................................................ 17
CONFIGURATION EXAMPLES ......................................................................... 18
Default triggering ............................................................................................................... 18
Configuring for 8 NPN sensors.................................................................................. 18

Configuring for 10 PNP sensors................................................................................ 18
Sequential triggering.......................................................................................................... 19
Configuring for 8 NPN sensors.................................................................................. 19
Configuring for 10 PNP sensors................................................................................ 19
MECHANICAL INSTALLATION ......................................................................... 20
RECOMMENDATIONS....................................................................................... 21
WARRANTY ....................................................................................................... 22

XS-110
Signal Adder Converter
Page 6 of 24 XS-110 User Manual MAN-EN-DE-XS110-01.02_13
All rights reserved to DLG Automacao Industrial

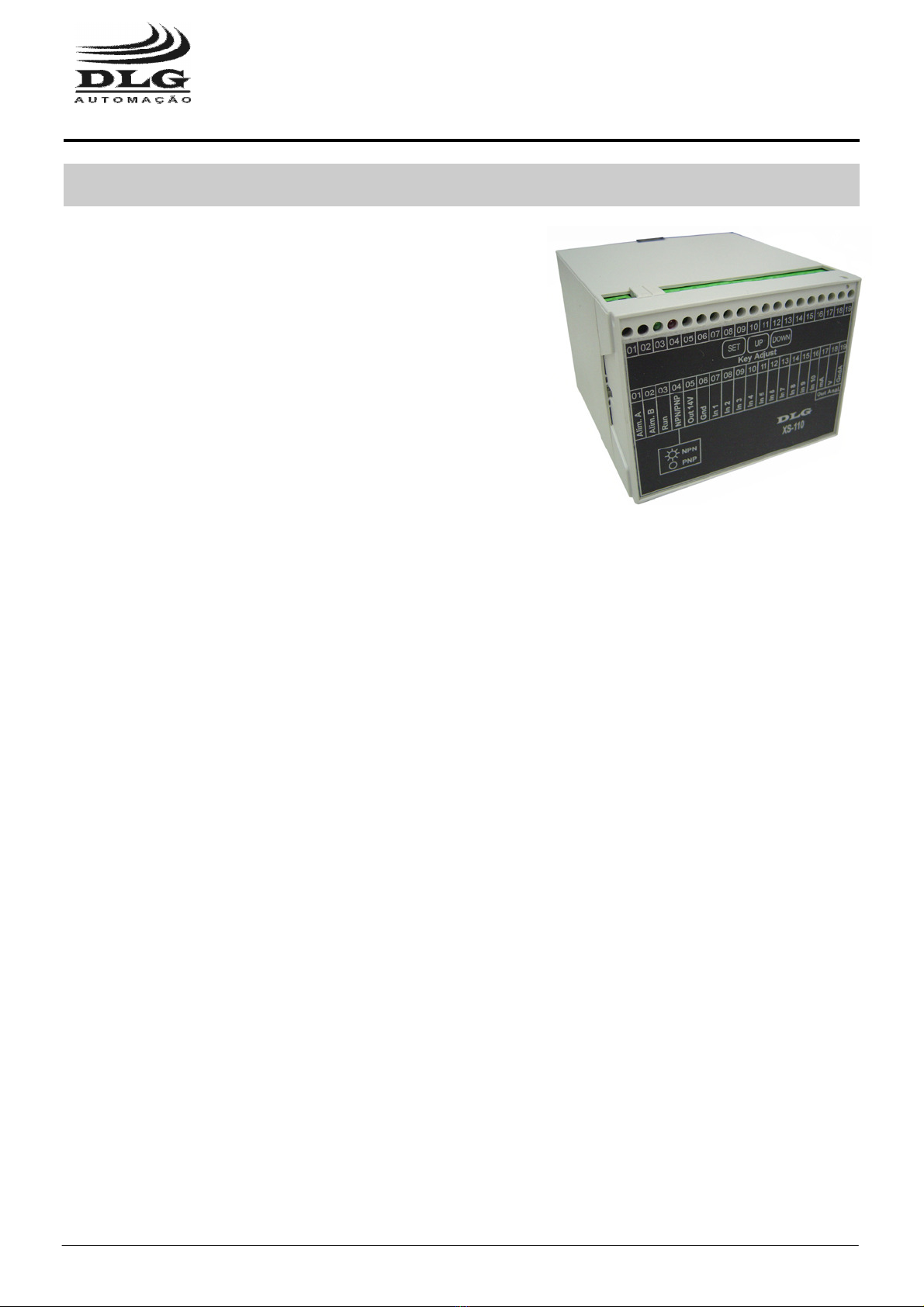

Presentation
The XS-110 provides on its output a standard
signal, proportional to the number of active sensors
connected to its digital inputs.

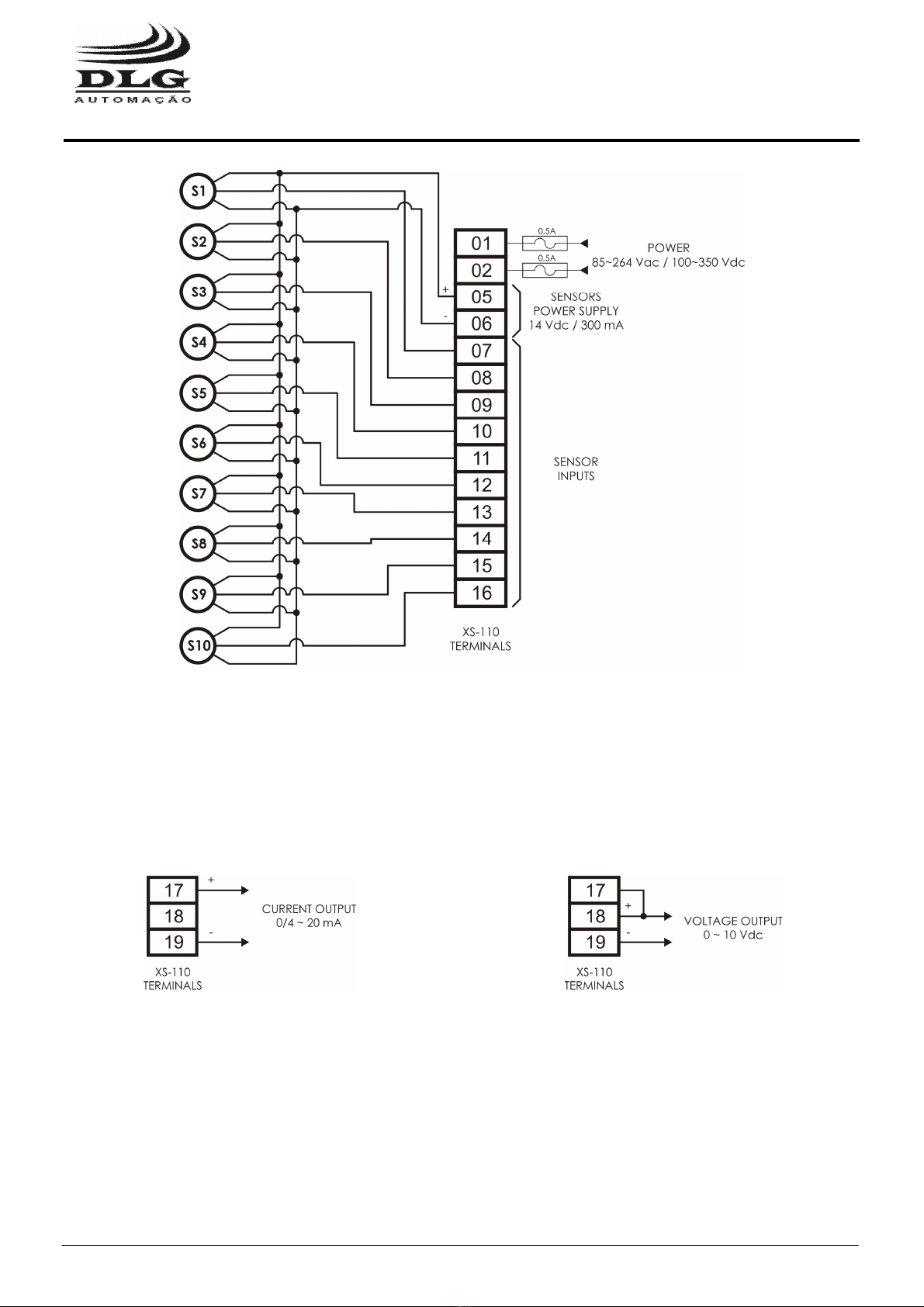

The XS-110 has 10 optically isolated inputs, which
can be connected to sensors with open collector output,
dry contact or voltage level. It also provides a power
supply for sensors with short circuit protection.
Among the possible applications, level measurement and control stands out.
The XS-110 is built in a plastic box for DIN rail mounting.

XS-110
Signal Adder Converter
XS-110 User Manual MAN-EN-DE-XS110-01.02_13 Page 7 of 24
All rights reserved to DLG Automacao Industrial
Specification
XS-_10 /___
Enclosure:
1
Only the converter (XS-110)
6
Water-proof enclosure (XS-610)
Triggering:
/ -
Default triggering comprises only the last triggered sensor.
/ S
Sequential triggering comprises triggered sensors in pairs.
/ I Inverted * default triggering comprises only the last triggered sensor.
Examples:
•XS-110 : Default triggering Signal Adder Converter. Output changes accordingly with the
last triggered input sensor;
•XS-110/S: Sequential triggering Signal Adder Converter. Except the first input channel,
output changes only when input is triggered in pairs, i.e., accordingly with the last and
penultimate triggered input sensor;
•XS-610 : Default triggering Signal Adder Converter built-in a waterproof box.
* The operation of the inverted triggering Adder comprises similarly to the default
triggering, it differs only at the analogic output, which will change from 20 to 4 mA (when 20 mA
indicates no input sensor triggered and 4 mA indicates that all input sensors are triggered).

XS-110
Signal Adder Converter
Page 8 of 24 XS-110 User Manual MAN-EN-DE-XS110-01.02_13
All rights reserved to DLG Automacao Industrial
Applications
Among the possible applications, level measuring and control working in tandem with the
SC-100 or SC-500 stands out, such as:
•Sugar cane level measurement in Shut Donelly feeders, largely employed in sugar cane
mills in ethanol plants;
•Level measurement in grains and cereals storage silos;
•Level measurement of solid products in food, ration, paints and paper industries.

XS-110
Signal Adder Converter
XS-110 User Manual MAN-EN-DE-XS110-01.02_13 Page 9 of 24
All rights reserved to DLG Automacao Industrial
Technical specifications
Parameter Characteristics
Digital input
NPN,PNP or dry contact – 2 mA (NPN) and 7 mA (PNP)
Ou
tput
0/4 ~ 20 mA - 800Ω; 0 ~ 10 Vdc – 20 mA
Span
1 – 10 digital inputs activated
Error
< 0.5% of range
Sensors power supply
14 Vdc / 300 mA
Power consumption
17 VA
Isolation
Galvanic
Operating temperature
0 ºC – 50 ºC
Input voltage
85 - 264 Vac, 100 - 350 Vdc.
Case
ABS plastic case
Mounting
DIN rail
Electrical connections
Screw terminals
IP protection
IP-30
Dimensions
75 x 100 x 110 mm (height x width x length).
Approx.
weight
0.3 kg

XS-110
Signal Adder Converter
Page 10 of 24 XS-110 User Manual MAN-EN-DE-XS110-01.02_13
All rights reserved to DLG Automacao Industrial
Dimensions
DIN rail 35 mm
Rail lock
Figure 1 – Dimensions (mm)
