DLS CRUISE CRPP-BMW1.4 User manual

User manual
BMW / MINI

Declaration of conformity
Welcome to DLS!
Thank you for buying a DLS Cruise
CRPP-BMW1.4. For us, it’s all about the sound
experience. We care deeply about sound and
construction quality. In order for your experience to
be as optimal as possible, it is important that you
fully read this manual, preferably before you start
your installation. Keep the manual in a safe and
accessible place for future reference.
Your speakers must be installed correctly in order
to work as intended. Make sure you have all
necessary tools nearby before starting and that
you are completely confident in how to proceed. If
you feel the slightest uncertainty; feel free to take
the help of an experienced installer or a car audio
dealer.
DLS plug and play speakers for vehicles are
manufactured in accordance with the EU directive
EEC 95/54 (72/245/ EEC) and are marked with
the approval number. They are also marked in
accordance with the WEEE-directive 2012/19/EC.
The products are also produced in accordance
with the EU RoHS directive 2015/863/EU.
Warranty
This component kit is covered by warranty,
depending on the conditions in the country where it
is sold. If the product is returned for service, please
include the original dated receipt with the product.
Winn Scandinavia AB
Elementvägen 15 - SE-702 27 Örebro - Sweden
Tel: [phone] - E-mail: [email protected]
www.dls.se
DLS products are engineered by DLS Sweden,
a part of:
Designed & Sound tuned in Sweden.
CRPP-BMW1.4
DLS CRUISE
Content
Welcome
Pre-installation
General info
Dismounting door panel
Removing speaker
Assemble DLS speaker
Speaker model A1
Speaker model A2
Speaker model B1
Changing speaker
High pass filter
Removing tweeter
Changing tweeter
Remounting door panel
Removing rear speaker
Changing rear speaker
Removing center speaker
Changing center speaker
Crossover
Running-in time

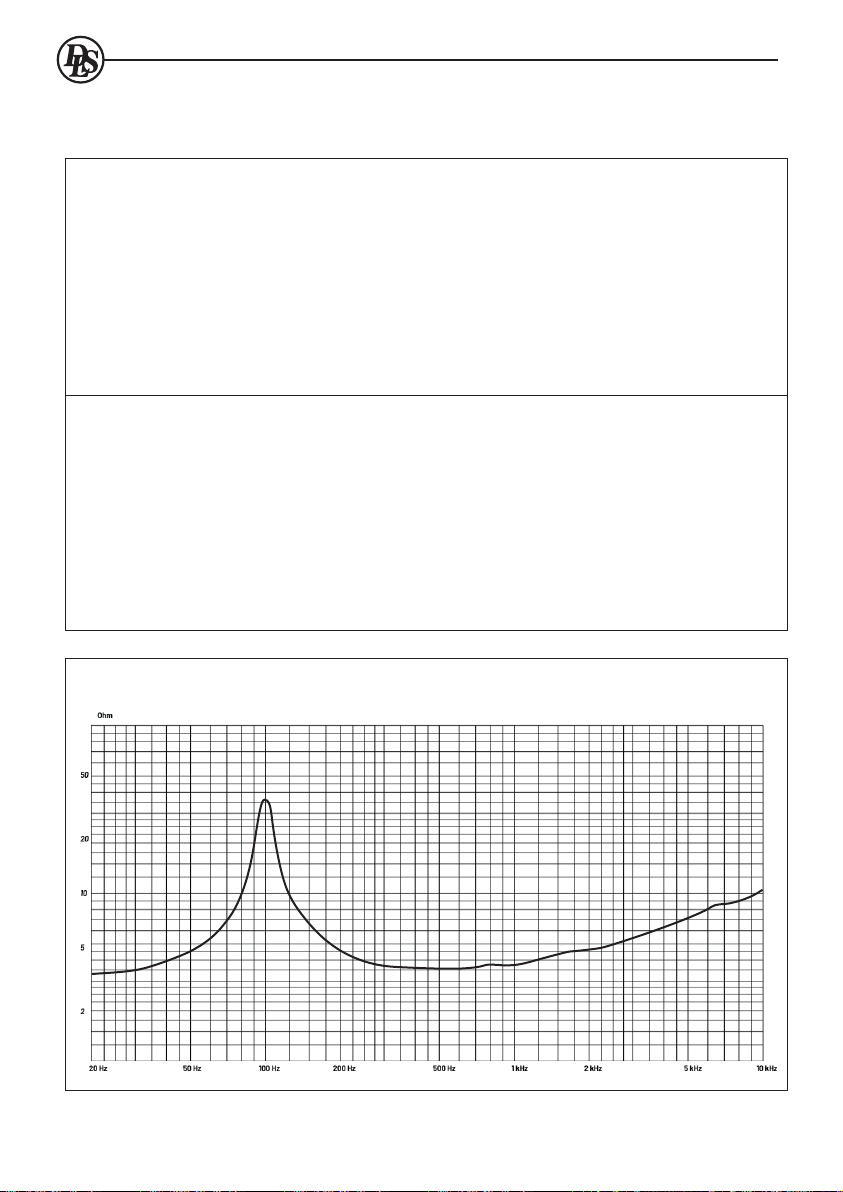

Specifications
Compatible car models
Product markings
1
2
2
3
4
4
5
6
7
8
8
9
10
10
11
11
12
12
13
13
14
16
18

Pre installation
Included products:
2pcs Midrange speakers
2pcs Tweeters
2pcs Crossovers HP tweeter
2pcs Crossovers HP midrange
Included in box:
2pcs Plastic adaptors (For type A1 & A2)
2pcs Steel adaptors (For type B1)
2pcs Tweeter adaptors (Type A & B)
2pcs Cable connectors
4pcs Adhesive foam pads
2pcs Rubber gaskets
2pcs EVA gaskets 102mm x 1.5mm
2pcs EVA gaskets 97mm x 1mm
2pcs Foam gaskets 115mm x 13mm
2pcs Foam gaskets 115mm x 4mm
2pcs Sound optimized tweeter brackets
8pcs M3 Scews
1pc Sealing compound
1pc PRY tool
1pc Manual
Disconnect Battery
Before you start the pro-
cess of replacing speakers,
disconnect and secure the
negative terminal from
your battery/power source.
This will prevent the risk
of damaging yourself or
the products.
Place the disconnected terminal in a secure and
isolated location away from any possible
connection belonging to the battery/power source
system.
BMW has many different sound systems and configurations in the same year/model.
This means that there are several different setups that can be installed in the same models
There can be different speakers in the front door, back door, rear shelf, side panel and center
in the dash board.
Before you begin with the installation, take a few minutes to check what kind of speaker you
have in your car. For this reason there can be a need for different tool, such as.
• Bit screwdriver
• Bit mini ratchet
• T15/T20 Torx bit
• Hex bit
• Philips bit
• Size 8mm & 10mm wrench
• Plastic PRY tool
• Narrow screwdriver
Remember: Use plastic PRY tool to avoid marks on the panels or damaging the plastic clips.
Take your time and don’t rush things. Don’t use brutal force to remove a grill, trim or door
panel.
General info
2

B1
Below is the assembly for a typical application
of B1, however any combination of gasket may
be useful for a particular installation.
Mount the EVA gasket (97mm x 1mm) on the
underside of the basket. Peel off the protective
cover of the self adhesive tape. Put it on the
underside of the basket, press firmly all around
so that the EVA gasket sticks thoroughly.
Remove the centerpiece of the small ring of the
EVA gasket. This piece will not be used.
Use a narrow tool to pick up the small ring from
the same EVA gasket.
Place the small foam rings over the four
threads on the basket.
Mount the steel adaptor over the speaker and fix
the frame with four included screws.
Mount the EVA gasket (102mm x 1.5mm) on the
underside of the basket. Peel off the protective
cover of the self adhesive tape. Press firmly all
around so that the EVA gasket sticks thoroughly.
7

3

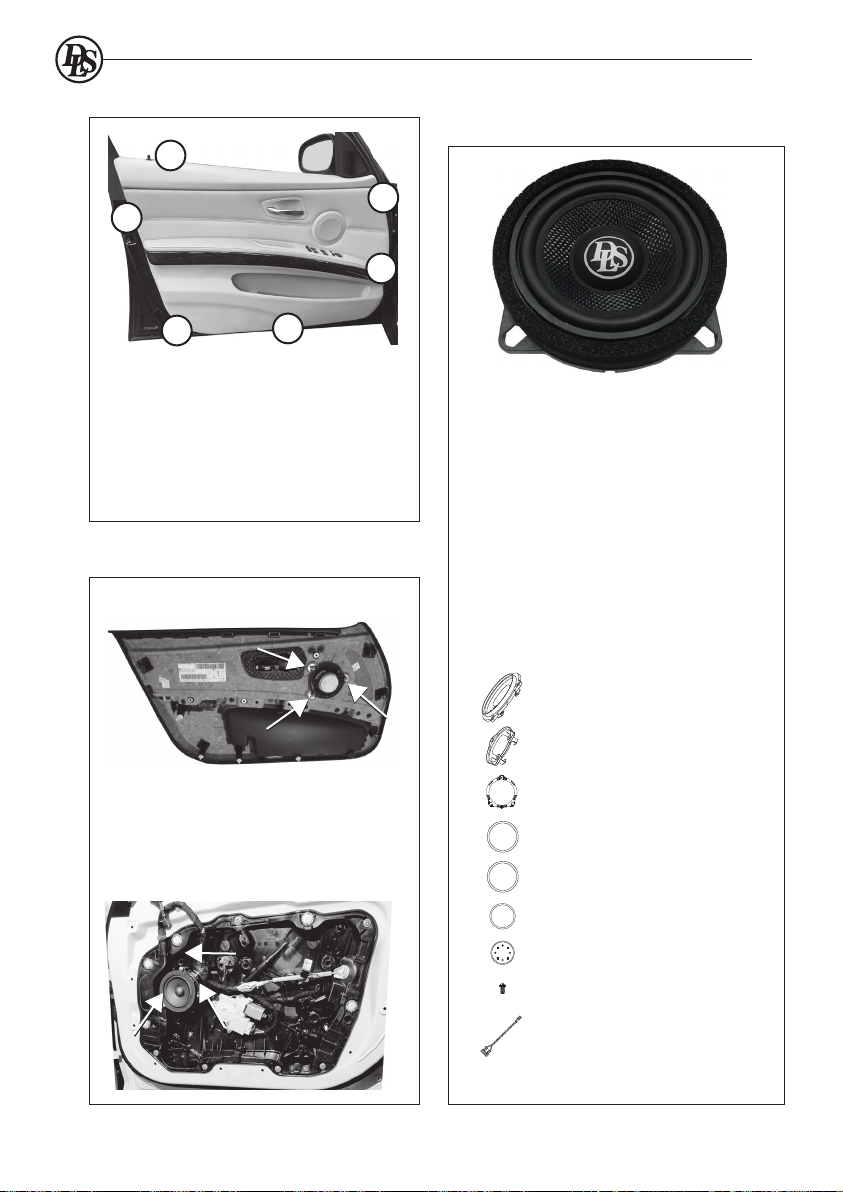

Start the dismount of the door cover by removing the decor trim panel.
Remove the door decor trim panel by using a PRY tool. Be careful with the ”hook” on the outer
end of the decor trim panel.
The rear door is done in a similar way.
Dismounting door panel
Installation
Remove the T20 screws. You need to remove the door handle as well, if the panel is equipped with one. Use
PRY tool and be careful. T20 screw at the top of the handle and in some models a screw at the bottom of the
handle.

Remove the door panel. Start on the inside. Use
a PRY tool. Insert the PRY tool behind the panel
and carefully bend the tool towards you. If your
car has a lock pin (6), make sure to remove it
before lifting the door cover.
There are several electric and mechanical
connectors on the backside of the door panel.
Disconnect the cables to the door handle,
speaker, window control and door light.
Removing speaker
1
2
3
4
5
6
Use a size 8mm or 10mm wrench to remove the
three bolts that are holding the speaker. Save the
bolts for later assembly.
Speakers mounted in the door frame are fixed
with T20 screws. Save the screws for later
assembly.
The speakers are either mounted in the door
panel or in the steel door frame.
Assemble DLS speaker
The DLS CRPP-BMW1.4 Custom upgrade kit
is suitable for most BMW and MINI-models.
The kit contains many different parts, read the
compatibility list on page 15, to see what
configuration that fits your car.
On the following pages, you will find a guide on
how to assemble the speaker to make it fit your
car. Be careful when assembling, take your
time and do no rush. All included parts will not
be used.
The speaker models are called A1, A2 & B1
Included parts
Plastic adaptor A1, A2
Steel adaptor B1
Rubber gasket A1
(118x1.5mm)
Foam gasket A2
(115x13mm)
Foam gasket A1, A2
(115x4mm)
EVA gasket B1
(102x1.5mm)
EVA gasket A1, A2, B1
(97x1mm)
Screws A1, A2, B1
(M3)
Cable connectors A1
(20cm Extension)
4

Below is the assembly for a typical application
of A1, however any combination of gasket may
be useful for a particular installation.
Mount the EVA gasket (97mm x 1mm) on the
underside of the basket. Peel off the protective
cover of the self adhesive tape. Put it on the
underside of the basket, press firmly all around
so that the EVA gasket sticks thoroughly.
Remove the centerpiece of the small ring of the
EVA gasket. This piece will not be used.
Use a narrow tool to pick up the small ring from
the same EVA gasket.
Place the small foam rings over the four
threads on the basket.
Place the plastic adaptor over the speaker and fix
the frame with four included screws.
Mount the rubber gasket (118mm x 1.5mm) on
the underside of the basket.
Mount the foam gasket (115mm x 4mm) on the
top of the basket. Peel off the protective cover of
the self adhesive tape. Press firmly all around so
that the foam gasket sticks thoroughly.
A1
5

Below is the assembly for a typical application
of A2, however any combination of gasket may
be useful for a particular installation.
Mount the EVA gasket (97mm x 1mm) on the
underside of the basket. Peel off the protective
cover of the self adhesive tape. Put it on the
underside of the basket, press firmly all around
so that the EVA gasket sticks thoroughly.
Remove the centerpiece of the small ring of the
EVA gasket. This piece will not be used.
Use a narrow tool to pick up the small ring from
the same EVA gasket.
Place the small foam rings over the four
threads on the basket.
Place the plastic frame over the speaker and fix
the frame with four included screws.
Attach the cable connector and place it in the
gap of the plastic frame.
Mount the foam gasket (115mm x 4mm) on the
underside of the basket.
Mount the foam gasket (115mm x 13mm) on the
top of the basket. Peel off the protective cover
of the self adhesive tape. Press firmly all around
so that the foam gasket sticks thoroughly.
A2
6

8
Changing speaker
Mount the DLS speakers back in the original place (Door panel or door frame). Use the bolts to attach the
DLS speaker in the door panel. Use a size 8mm or 10mm wrench to re-screw the three bolts to fix the
speaker. When the speakers are mounted in the door frame, use the T20 screw to refix the speaker.
Hint!
If you are also changing the tweeter and you have the speaker mounted in the door
panel, wait with reconnecting the speaker harness and remounting the door panel.
If the new speakers are powered by the factory installed radio/amplifier we recommend to use the included
cable adapter with installed high pass crossover for the midrange speaker. This crossover lowers the output
below 250Hz by 6db slope, to reduce resonances in the door panel and prevent the midrange speaker from
playing the lower bass tones.
Connect the factory speaker harness to the female connector of the adaptor and the male connector to the
new DLS midrange speaker. If the factory amplifier is replaced with a new one with built in high pass
crossover or more advanced DSP settings this cable won't be needed.

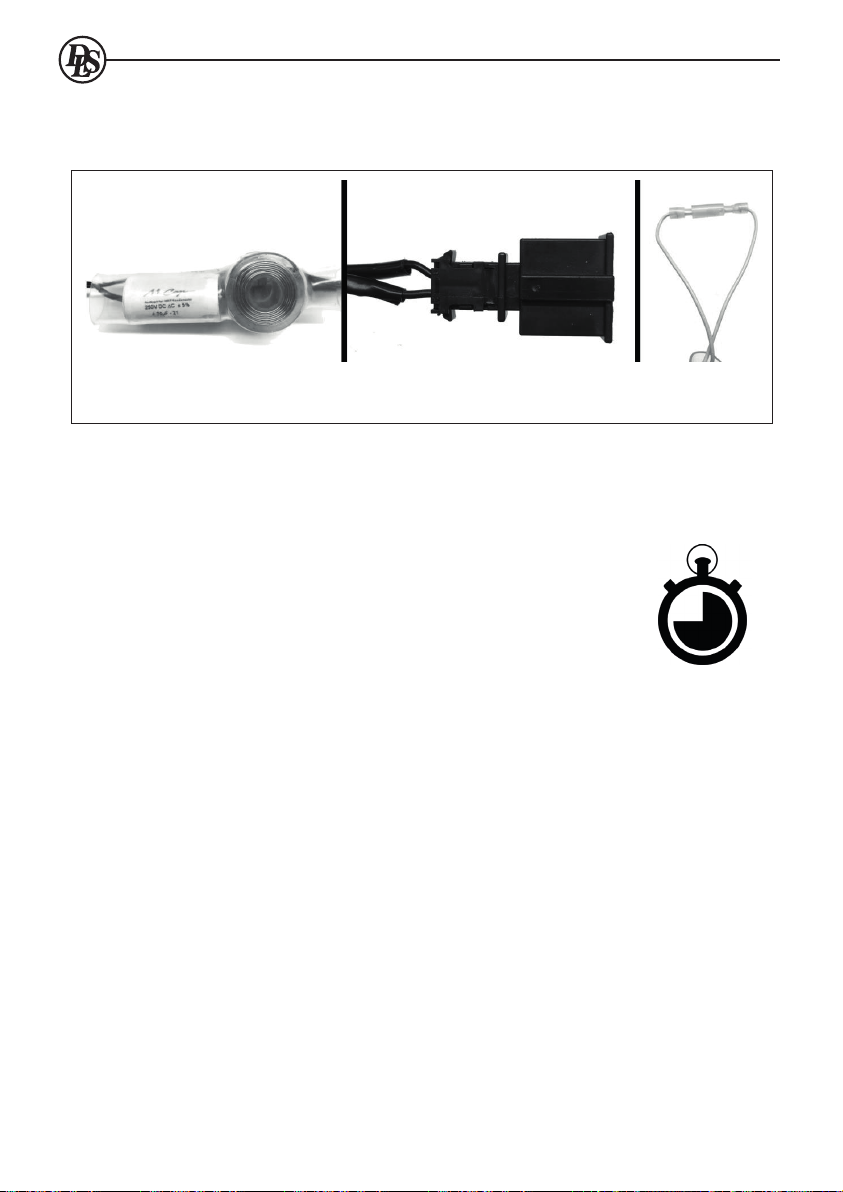

High pass filter for midrange speaker
(male) (female)

Removing tweeter
Remove the tweeter cover. (Before you start with changing the tweeter, the door panel needs to be removed.)
Usually the tweeter cover is fixed with 2 or 3 clips, behind the tweeter cover. Start by removing the tweeter
cover. On some models you need to remove the whole window trim. Use a PRY tool (or by hand) to remove it
and be careful. Take it easy and use minimal force. When loose, disconnect the speaker harness from the
tweeter. In cars with sound systems without tweeters in the front doors, the tweeter plastic covers or trim can
be bought from BMW dealers or spare parts stores.
1
2
3
4
Remove the soft inside cover to find the tweeter. Gently press out the ”hooks” to loosen the tweeter. Unplug the
tweeter harness.
9

Now start the assembly of the door panel.
Reconnect all wires harness.
Connect all plugs to the door cover, reconnect the unlocking device, place the door cover from the top, by the
window seal and push it down gently. Make sure the clips are in place and can engage. Give the door panel a
push by the hand to attach to the clips. Mount and fasten all screws/bolts at the correct places.
Hint!
Be careful when the door panel is installed so that no cable get squeezed and/or pressed against the midrange
speaker when it´s installed in the door frame.
Remounting door panel
Place the DLS tweeter in the OEM mounting bracket. Make sure that the speaker harness is facing down. Press
the tweeter gently down and let all four hooks grab on the back of the tweeter. Reinstall the soft inside cover.
Make sure that the fitment is as before. It’s crucial when you remount the tweeter cover. The new DLS tweeter
comes with a crossover installed on the speaker cable.
Connect the tweeter cable together with the midrange speaker connector. Use the included adhesive foam pads
to secure the crossover and cables in the door panel or door frame.
Start putting the tweeter cover and the window trim back. Be careful when reaching the top outer corner on the
window, make sure that the plastic on the outside gets in the correct position for perfect with the rubber sealing
around the window frame.
Changing tweeter
10

11

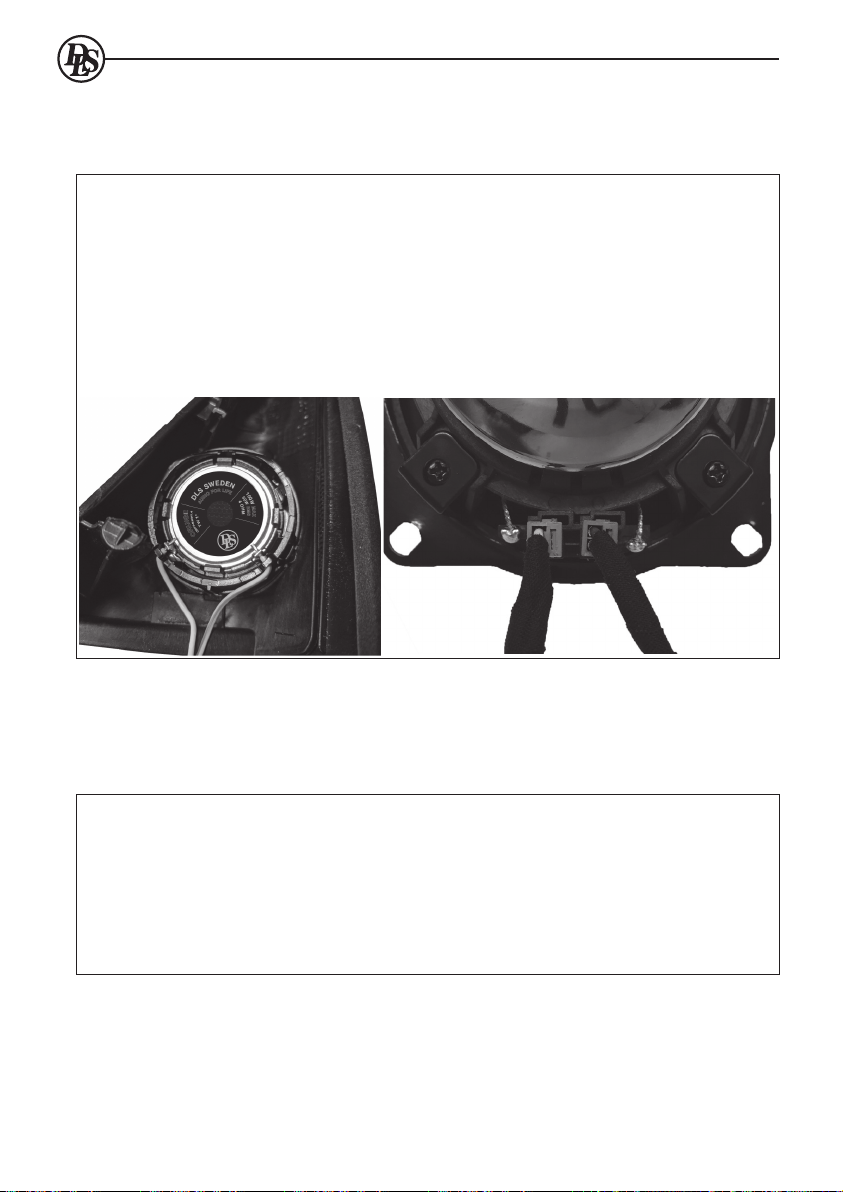

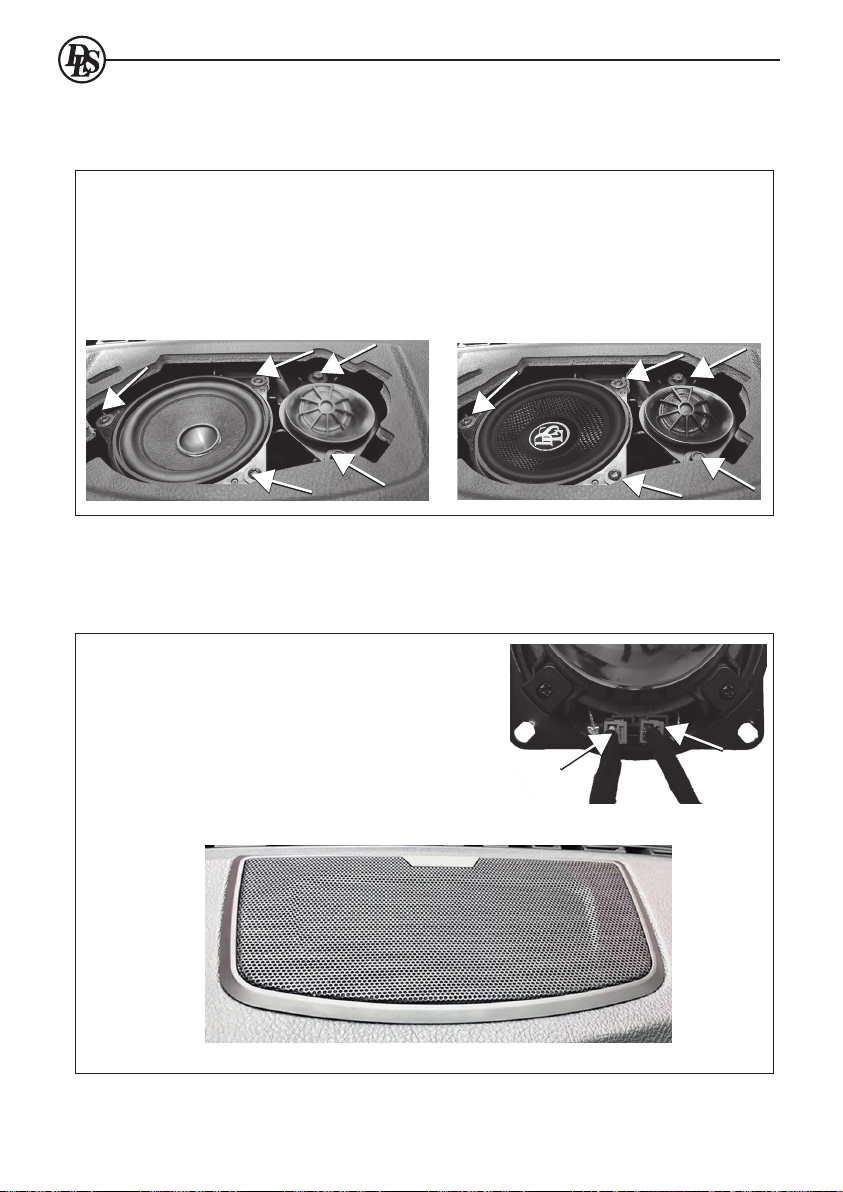

Removing rear speaker
Remove the speaker grill by using a PRY tool. As always, be careful when removing trim/covers or grills.
Normally the screws are T20, but T15 or even Philips screwsare used. Unscrew them and save them for later
assembly. Lift up the speakers and unplug the speaker harness from both speakers (or the speaker, if just one
is mounted)
Plug in the OEM harness in the new speaker from DLS to the OEM
harness. Plug in cable from the new DLS tweeter to the new speaker. (Or
use the connection cable to connect the tweeter and the DLS midrange
speaker)
The cable to the tweeter must be placed under the shelf panel, before the
new speaker is installed. Carefully place the screws in the threads, so you
don’t drop them. Fix the speaker with the screws/bolts. Finally attach the
speaker grill.
Changing rear speaker

Removing center speaker
Some sound systems don’t have a tweeter or even a hole for the tweeter. Make sure that the DLS speakers
fit your sound system.
Remove the speaker grill by using a PRY tool. Be careful when removing the cover/grille.
Normally the screws are T20, but T15 or even Philips screws and bolts are used in some cars.
Hint! Be careful so you don’t drop the screws/bolts.
You don’t want to have the them rattling around in your dashboard.
Unscrew them and save them for later assembly when you mount the new DLS speakers.
Take out the speakers and unplug the speaker harness from both
speakers (or the speaker, if just one is mounted)
Use the speaker harness to plug in the new driver from DLS. Plug in
cable from the new DLS tweeter to the DLS speaker. (Or use the
connection cable to connect the tweeter and the DLS driver)
Use OEM screws or bolts to reattach the speakers.
Be careful so the speaker harnesses don’t get stuck. Put the speaker
grill back in place and press it down gently.
12
Changing center speaker

Running-in time
Allow the component kit to play for at least 15-20 hours in order to perform at its
possibly best. This run-in can be made with tone sweep or with just music.
Start at a moderate volume and increase the volume step by step during the running
in period. After the 15-20 hour run in session the performance and characteristics will
be in the correct condition.
For technical assistance, ask your car audio dealer where the product was sold or the distributor in your country.
You can always contact the DLS Helpdesk in Sweden at e-mail: [email protected]. Information can also be found on our
WEB-site www.dls.se. We follow a policy of continuous advancement in development. For this reason, all or part of
the specifications and designs may be changed without prior notice.
DLS Support
The yellow cable loop is tweeter level select, enabling fine tuning of the high frequencies.
Closed loop = -4dB (Shown in the picture)
Open loop = Normal
13
Crossover
Finally, it’s time to play some good music and enjoy!

Woofer 4” / 100mm with fibreglass cone
Tweeter 1” / 25mm silk dome tweeter with accessories
RMS Power 60W
MAX Power 120W
Impedance 4 Ohm
Sensitivity 86dB 1W/1m
Freq. range 80Hz-25kHz
Crossover 4.8kHz 6dB/Oct with Mundorf caps
DLS Cruise CRPP-BMW1.4 Tweeter
Technical Specification:
Size 1” / 25.4mm
Voice Coil Material CCAW voice coil / Aluminium former
Frame Fibreglass Reinforced ABS
Magnet Neodymium / Copper shorting ring
Cone Natural silk dome
Impedance 4 Ohm
Freq. range 2kHz-25kHz
Electro-Acoustic Parameters:
Re 3.5 Ohm
Fs 1992Hz
SPL 94dB 1W/1m
DLS Cruise CRPP-BMW1.4 Midrange
Technical Specification
Size 4” / 100mm
RMS Power 60W
MAX Power 120W
Voice Coil Size 1” / 25mm
Voice Coil Material CCAW voice coil / Kapton former
Basket Fibreglass Reinforced ABS
Magnet Ferrite
Cone Fibreglass
Suspension Rubber
Impedance 3 Ohm
Freq. range 80Hz-8000Hz
Electro-Acoustic Parameters
Re 3.1 Ohm
Fs 99Hz
Mms 6.3gr
Cms 0.41
Vas 1.69L
Qts 0.68
Qes 0.74
Qms 8.48
Bl 4.05T.m
Spl 86dB 1W/1M
Sd 54cm²
Specifications
Art. no CK-CRPP-BMW1.4
Impedance VS Frequency
14

15
(mm)
5.8
6.8
49.5 ± 0.5
Ø43
Ø34.5
33
Ø94.4
Ø59
Ø94.4
Ø59
17
21.5
A/B
8.2
Ø118
13
18
A
B
49.5 ± 0.5
42.2
18
Ø102

16
DLS Cruise CRPP-BMW1.4 compatible car models
1-Serie E81 2007 - 2011 A1 B1 (Shelf) B1
1-Serie E82 2007 - 2013 A1 B1 (Shelf) B1
1-Serie E87 2005 - 2011 A1 B1 (Shelf) B1
1-Serie E88 2004 - 2013 A1 A1 (Side) B1
1-Serie F52 2017 - Present A2 A2 B1
1-Serie F20 2014 - Present A2 B1 (Shelf) B1
1-Serie F21 2014 - Present A2 B1 (Shelf) B1
1-Serie F40 2019 - Present A2 A2 B1
2-Serie F22 2014 - Present A2 B1 (Shelf) B1
2-Serie F87 2015 - Present A2 B1 (Shelf) B1
2-Serie F23 2014 - Present A2 A2 (Side) B1
2-Serie F44 2015 - Present A2 A2 B1
2-Serie F45 2015 - Present A2 A2 (Side) B1
2-Serie F46 2015 - Present A2 A2 (Side) B1
3-Serie E90 2005 - 2011 A1 B1 (Shelf) B1
3-Serie E91 2005 - 2012 A1 A1 B1
3-Serie E92 2006 - 2013 A1 A1 (Side) B1
3-Serie E93 2007 - 2013 A1 A1 (Side) B1
3-Serie F30 2012 - 2016 A2 A2 B1 (Shelf) B1
3-Serie F31 2012 - 2016 A2 A2 B1
3-Serie F34 2012 - 2016 A2 A2 B1 (Shelf) B1
3-Serie F35 2012 - 2019 A2 A2 B1 (Shelf) B1
3-Serie F80 2014 - 2018 A2 A2 B1 (Shelf) B1
3-Serie G20 2019 - Present A2 A2 B1 (Shelf ) B1
3-Serie G21 2020 - Present A2 A2 B1
3-Serie G28 2022 - Present A2 A2 B1 (Shelf ) B1
3-Serie G80 2021 - Present A2 A2 B1 (Shelf ) B1
4-Serie F32 2014 - 2020 A2 A2 (Side) B1
4-Serie F33 2014 - 2020 A2 A2 (Side) B1
4-Serie F36 2014 - 2020 A2 A2 B1 (Shelf) B1
4-Serie F82 2014 - 2020 A2 A2 (Side) B1
4-Serie F83 2014 - 2020 A2 A2 (Side) B1
4-Serie G22 2021 - Present A2 A2 (Side) B1
4-Serie G23 2021 - Present A2 A2 (Side) B1
5-serie E60 2003 - 2010 B1 B1 (Shelf) B1
5-serie E61 2003 - 2010 B1 B1 (Pillar) B1
5-serie F07 2009 - 2016 B1 B1 B1 (Pillar) B1
5-serie F10 2010 - 2016 A1 A1 B1 (Shelf) B1
5-serie F11 2011 - 2016 A1 A1 B1 (Shelf) B1
5-serie G30 2017 - Present A2 A2 B1 (Shelf) B1
5-serie G32 2017 - Present A2 A2 B1 (Roof ) B1
6-Serie E63 2004 - 2010 A1 A1 (Shelf) B1
6-Serie E64 2004 - 2010 A1 A1 A1 (Shelf) B1
BMW
Serie Body Year Front Back door Back Center

6-Serie F06 2011 - 2015 A2 A2 B1 (Shelf) B1
6-Serie F12 2012 - 2019 A2 A1 (Shelf) B1
6-Serie F13 2012 - 2019 A2 A1 (Shelf) B1(Side) B1
6-Serie G32 2018 - Present A2 A2 B1
7-Serie E65 2002 - 2008 B1 B1
7-Serie E66 2002 - 2008 B1 B1
7-Serie E67 2001 - 2008 B1 B1 B1
7-Serie F01 2009 - 2015 B1 B1 B1 (Shelf ) B1
7-Serie F02 2009 - 2015 B1 B1 B1 (Shelf ) B1
7-Serie F04 2010 - 2015 B1 B1 B1 (Shelf ) B1
7-Serie G11 2016 - 2022 A2 A2 B1 (Shelf) B1
7-Serie G12 2016 - 2022 A2 A2 B1 (Shelf) B1
i-8 L15 2014 - Present A2 B1 (Side) B1
X1 E84 2009 - 2015 A1 B1 (Shelf) B1
X1 F48 2016 - 2022 A2 A2 B1 (Shelf) B1
X1 F49 2016 - 2022 A2 A2 B1 (Shelf) B1
X3 E83 2003 - 2010 B1 B1
X3 F25 2011 - 2017 A2 A2 B1 (Pillar) B1
X3 G01 2018 - Present A2 A2 B1
X4 F26 2014 - 2018 A2 A2 A2 (Pillar) B1
X4 G02 2019 - Present A2 A2 B1
X5 E70 2007 - 2011 B1 B1 B1
X5 G05 2014 - 2018 A2 A2 B1(Pillar) B1
X6 E71 2008 - 2014 B1 B1 B1
X6 G06 2020 - Present A2 A2 B1(Pillar) B1
Z4 E89 2009 - 2016 B1 B1
MINI
Model Body Year Front Back door
Clubman R55 2006-2014 B1
Hatch (3-door) R56 2006-2010 B1
Cabrio R57 2008-2014 B1
Coupé R58 2011-2015 B1
Roadster R59 2011-2015 B1
Countryman R60 2010-2016 B1
Paceman R61 2013-2014 B1
Clubman F54 2016-2019 A2 A2
Hatch (5-door) F55 2014-2019 A2 A2
Hatch (3-door) F56 2014-2019 A2 A2
Cabrio F57 2019-2021 A2 A2
Countryman F60 2017-2021 A2 A2
Serie Body Year Front Back door Back Center
17

The crossed-out wheelie bin symbol means that the product, literature and pac-
kaging included must be taken to separate collection at the end of their working
life. Do not dispose of these products as unsorted municipal waste: take them
for recycling. For info on your nearest recycling point, check with your local
waste authority.
This product has been granted with the CE certification mark to show that the
product follows the health, safety, and environmental protection standards for
products sold within the European Economic Area (EEA).
DLS products complies with the relevant provisions of the RoHS
Directive for the European Union. In common with all Electrical
and Electronic Equipment (EEE) the product should not be
disposed of as household waste. Alternative arrangements may
apply in other jurisdictions.
Association, an organisation that focus on promoting the
custom made mobile media installations to consumers.
Product markings
We follow a policy of continuous advancement in development. For this reason all or part of
specifications & designs may be changed without prior notice. We reserve for possible typos,
factual or numeric errors that may have been printed on any products, package designs,
user manuals and/or other included accessories.
18
