DOCYKE L-03 Instructions for use

CONSTRUCTION
MANUAL
安装时间/Time to build：6hours
最大载重/Max weight：30Kg
L-03

1
320mm
装配时螺钉需要拧紧。
Tighten the bolts with full force to prevent them coming loose.
A
M8x20=4

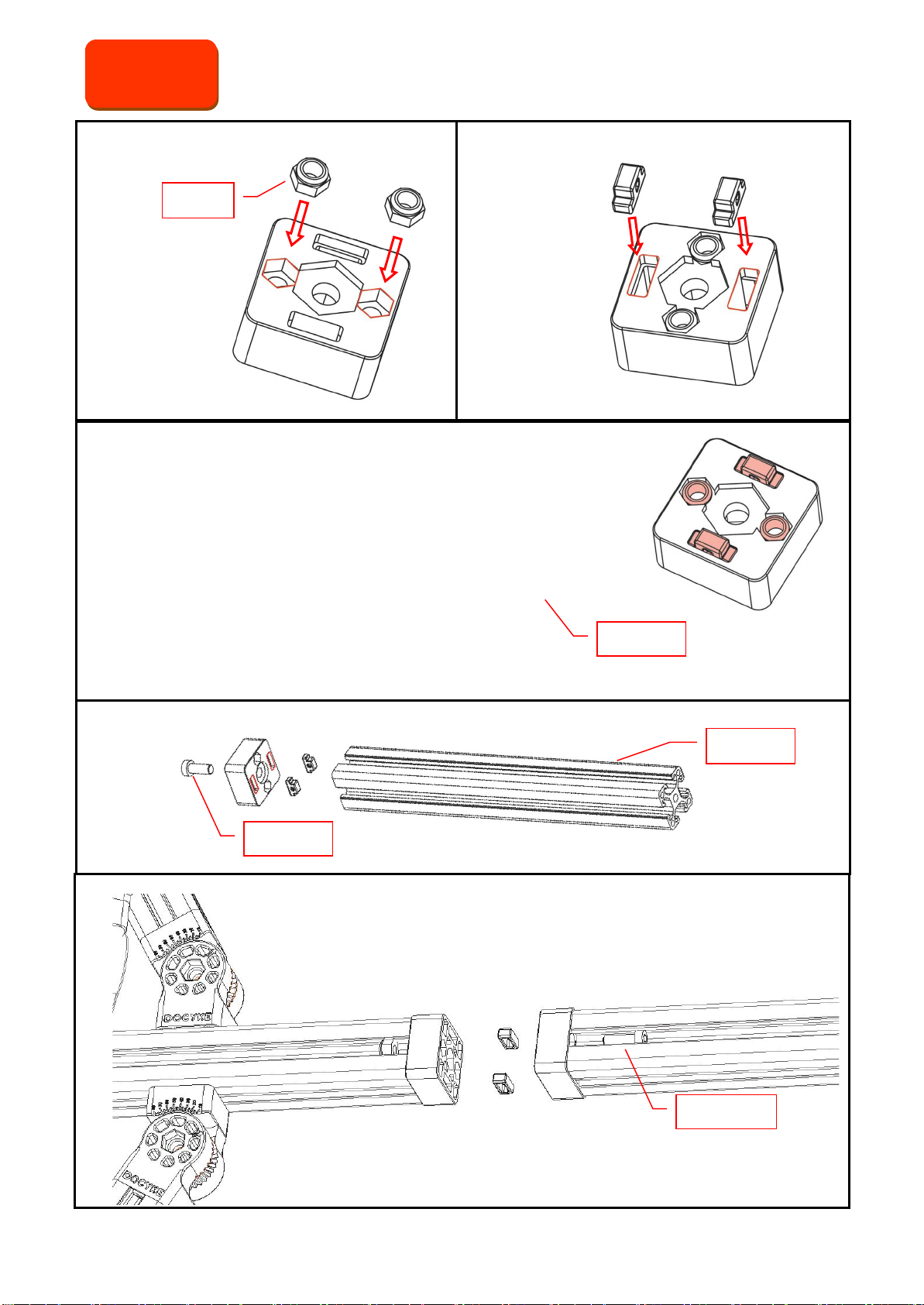

产品中一共包含两种定位块，
它是至关重要的部件，请仔细
分辨，避免漏装或误装。
The positioning blocks are some
of the smallest parts but they
also some of the most important.
Putting them in the right place is
a key of the DOCYKE.
200mm

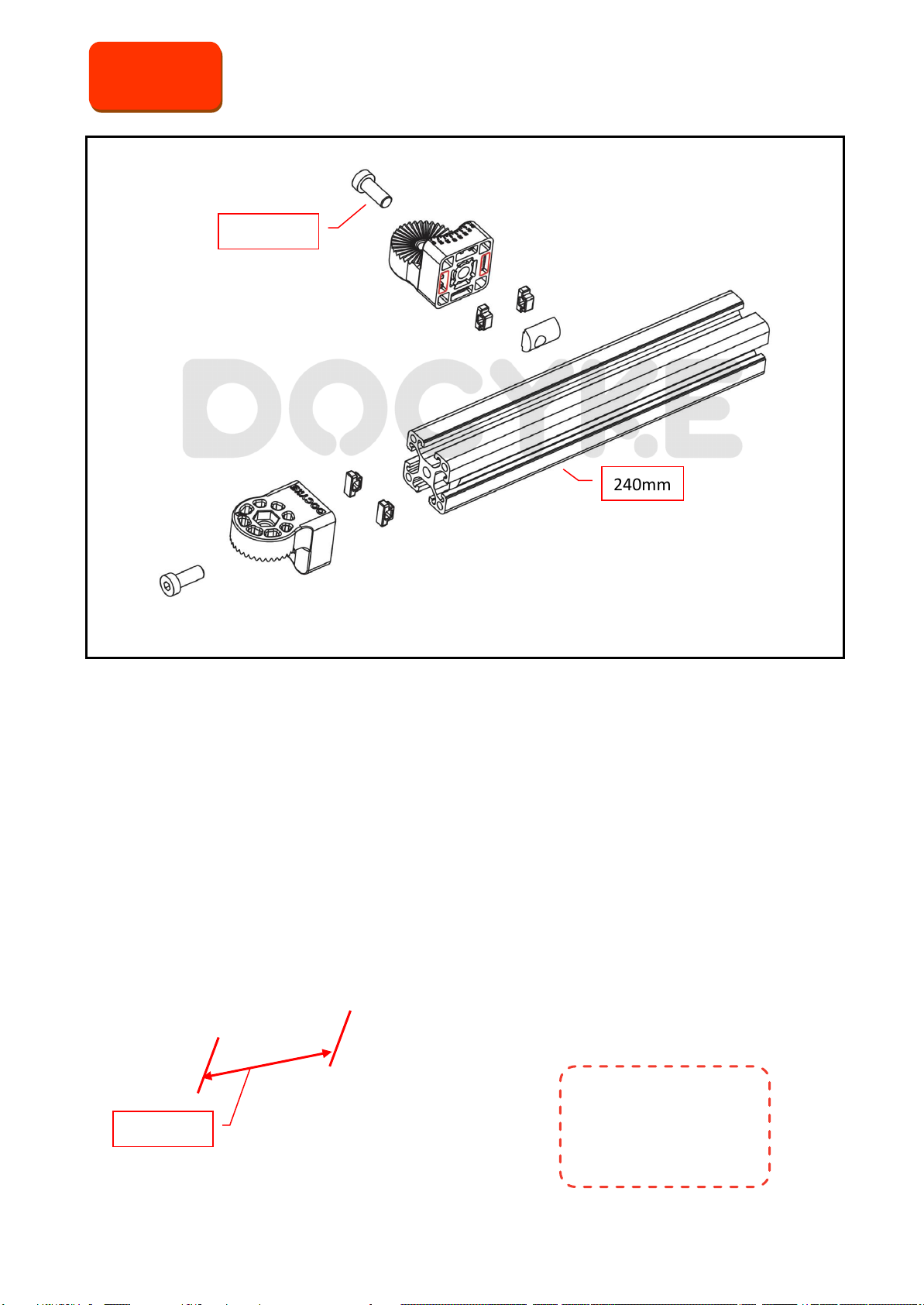

2
装配零件前先检查螺母
是否放置正确。
C
heck the profile nut
remains perfectly straight
in the slot.
M8x20=2
240mm
A
110mm
X2

3
M8x32=2
A
M8=2
30
°
角度片的齿型分 2种，
一种可安装成 5°,15°,25°,,,，， 等
一种可安装成 0，10°，20°, 30° ，， 等
There are two types of knurled discs.
One can be installed in 5°, 15°, 25°, etc.
The other can be installed in 0,10°,20°,30°,etc.

M8X20=2
4
A
Screws are required to use different lengths in different
locations, so be sure to follow the instruction manual and
use the Hex wrench handle to tighten the screws.
M8X32=4
30
°
B
M8=4
60mm
X2
30°

5
M8X20=2
A
B
M8X20=2
40mm

6
A
B
M8x20=2
320mm
120mm
M8x25
M8
M8x20

7
A
M8x32
M8
55
°

8
M8x40
25
°
A
M8X40=4
39mm
8mm

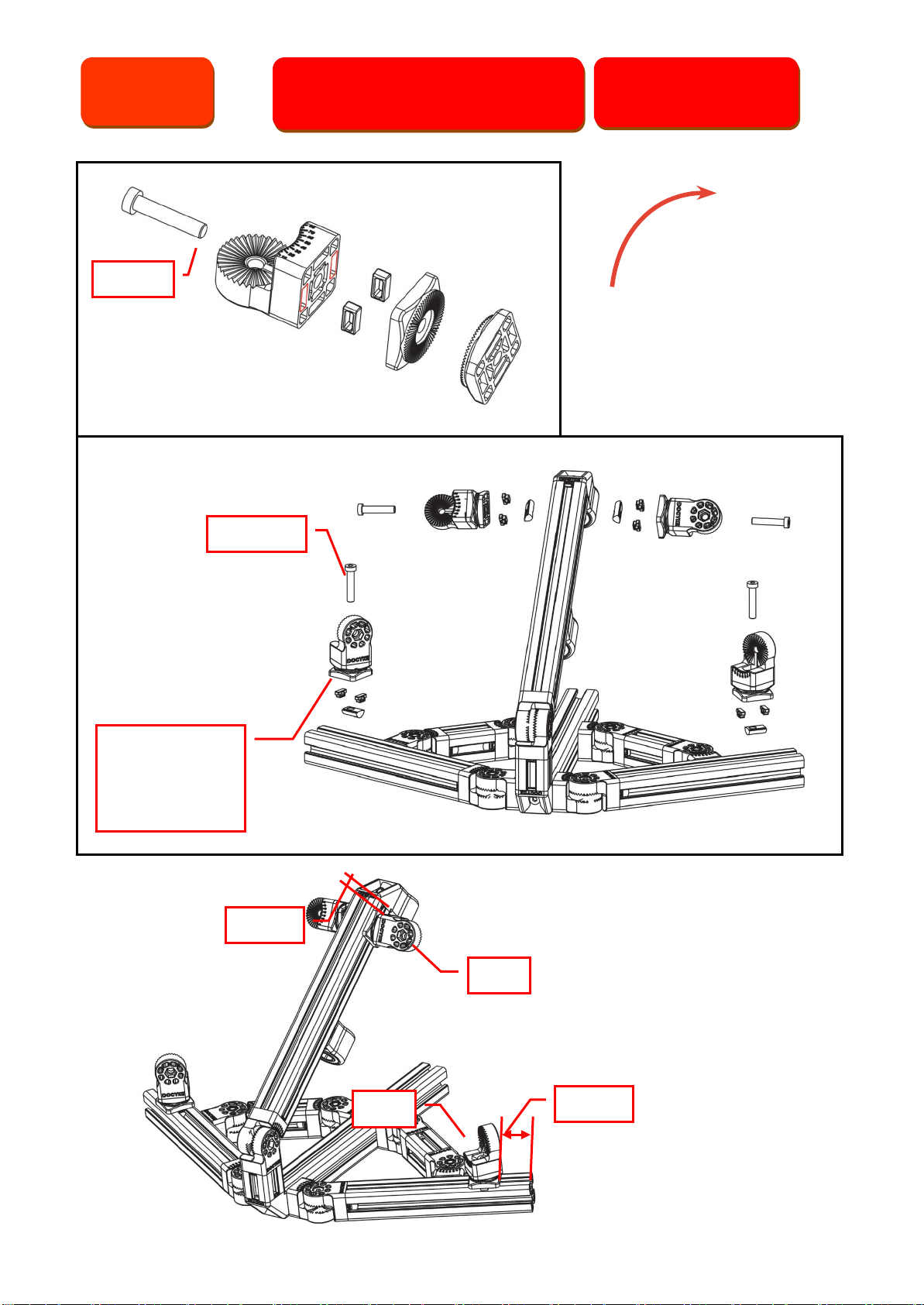

齿轮座每一格旋转的
最小单位是
5
度。
留
2mm
的调整余
量，转动 25 °
（5格）调整好
位置后再拧紧。
Each increment is 5°
，
5x
knurled increments.
25
°

9
A
M8X20
M8=4
M8X40
200mm
X2
B
M8X32=4
B
M8x20=2
45°
55
°

10
A
C
M6=2
B
M8x25
360mm
D
M8x25
E
M6x35=2

M8X20=4
F
G
M8X20=2
120mm
280mm
G
M8X20=2
X2

H
H
M8X20=2
I
J
K
M8X20=3

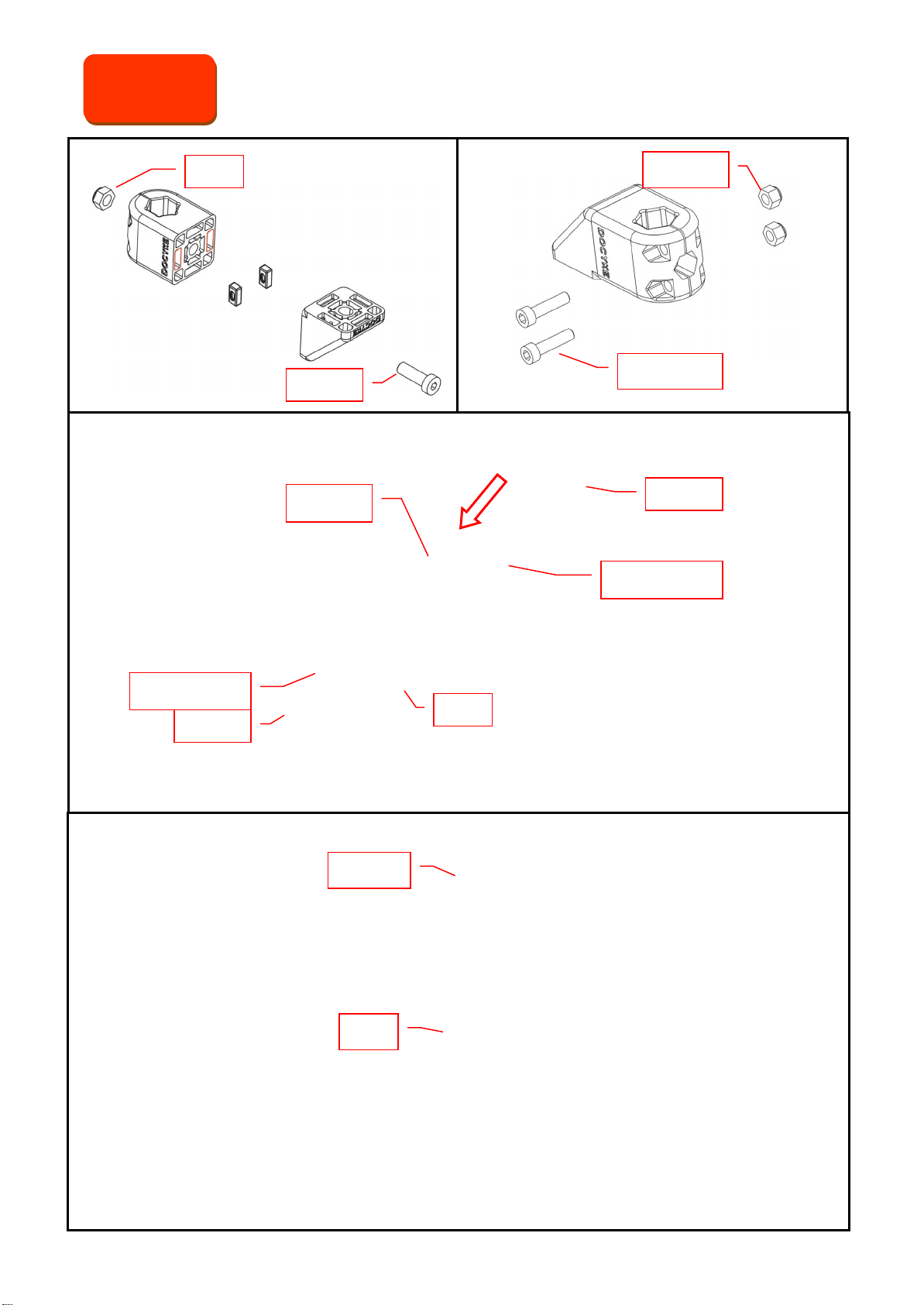

L
A side

11
M8
A
M8X50
B
M8X75
M8
ø8Xø30xh2
ø8Xø16xh1.6
重复这一步骤，组成 2套轮子（左右轮对称布置）。
Repeat this step to make two sets of wheel assemblies
(symmetrical arrangement ofleft and right wheel assemblies).
A side

12
M8X60
M8X60=2
A
B
M8=2
ø8Xø16xh1.6=2
M8

13
M6X25=2
A
B
M6=2
ø8Xø12xh6
M8
M8x25
M8
M8x50
M8
C
M8x40
M8x20
ø8Xø30xh2
418mm

拉杆螺纹分左旋（红点）和右
旋（绿点）。请对应安装。
The thread is divided into right-
handed (red dot) and left-handed
(green dot).
调整轮子的平行度，螺母锁紧，避免
松动。
Adjust the parallelism of the wheel, then
lock the nut, to avoid loose.

14
M8X60
A
M8X20
360mm

B
M8

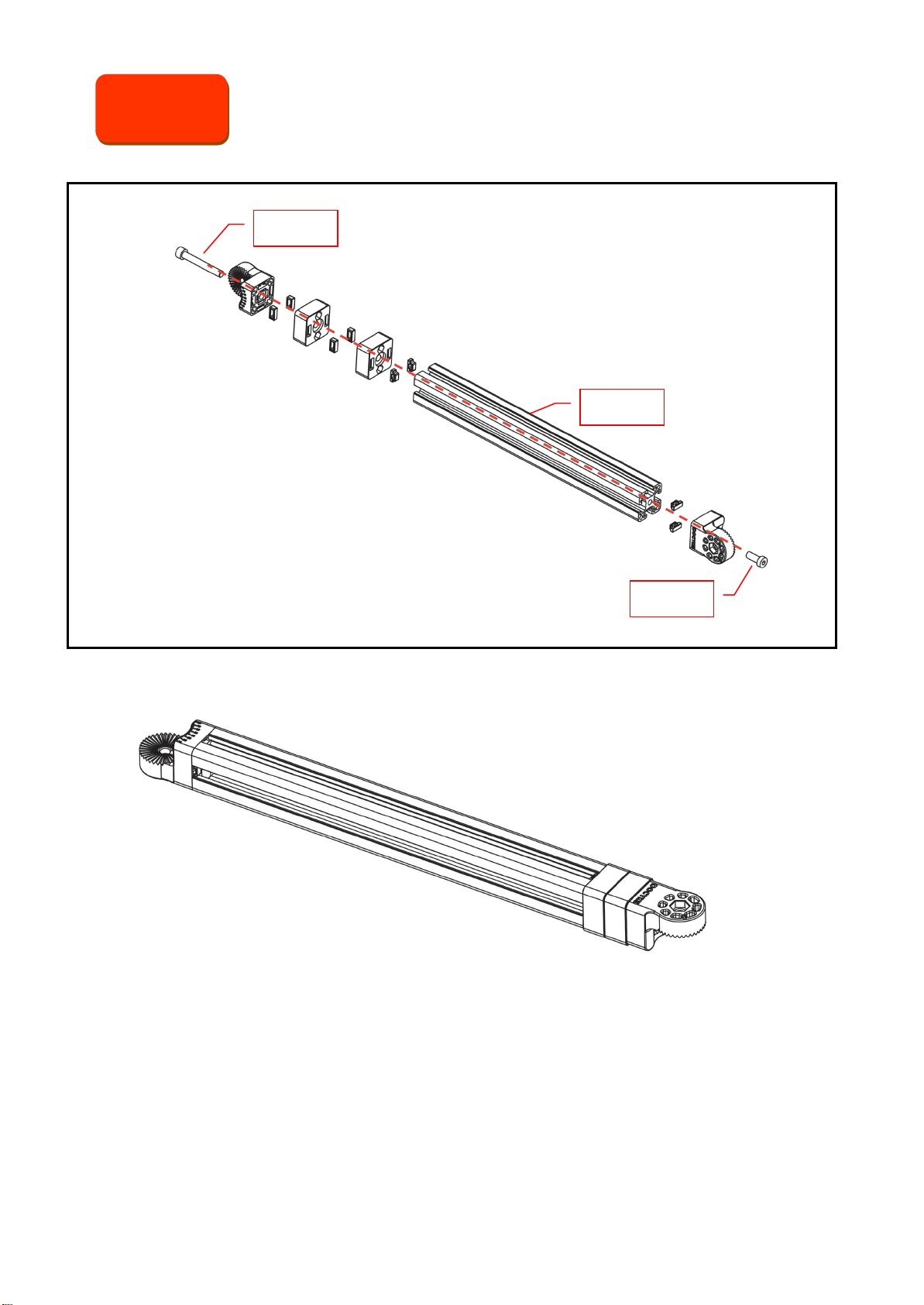

15
M8X40
A
160mm
M8X20
M8x32
80°

16
M8X40=2
A
M8X20
B
M8X20
先不需要拧紧，留
2mm
左右余
量,用于齿座的角度调节。
Do not need to first tighten, stay
2mm for angle adjustment.
80mm
