DOCYKE L-kit Instructions for use

CONSTRUCTION
MANUAL
L-kit
AGE: ≥4 YEARS
MAX. LOAD: 50 KG
TIME TO BUILD: 2-8HR
WEIGHT:30KG
DIFFICULTY level 3

Contents
Contents....................................................................................................... 1
Terms&Conditions....................................................................................... 2
Accessories Display.................................................................................... 4
L-04 construction manual............................................................................7
L-06 construction manual......................................................................... 43
More Ideas.................................................................................................. 77
1

High-Risk Activities
Docyke is not fault-tolerant and is not designed, manufactured or intended for
use or resale in hazardous environments. Docyke could lead to death,
personal injury, or severe physical or environmental damage. Docyke and its
licensors specifically disclaim any express or implied warranty of fitness for
High-Risk Activities.
Terms&Conditions
YOU SHOULD CAREFULLY READ THE FOLLOWING
AGREEMENT BEFORE USING THE PRODUCT. USING THE
PRODUCT INDICATES YOUR ACCEPTANCE OF THIS
AGREEMENT.
IF YOU DO NOT AGREE WITH THIS AGREEMENT, YOU
SHOULD NOT USE THIS PRODUCT AND PROMPTLY
CONTACT US AS PROVIDED BELOW FOR INSTRUCTIONS
ON RETURN OF THE PRODUCT AND CONTACT US FOR A
REFUND OF ITS PURCHASE PRICE.
2

Warning!
1. Check frequently if all parts are still firmly tightened and function properly.
2. Never exceed the maximum weight and assembly force(15nm). You can find the
maximum weight for every specific ride in our manual.
3.Avoid streets and excessive exposure to sunlight, water, sand, gravel, and other
debris that will shorten the life of the Docyke.
4. Avoid sharp bumps, drainage grates and sudden surface changes. Ride on smooth,
paved surfaces.
5.There are small parts contained in the package please prevent a choking hazard to
children under the age of three. Care should be taken during unpacking and assembly
to ensure that all small parts and plastic bags are accounted for and kept out of the
reach of children.
6. Dirt, leaves, and other debris can damage, shrink, or weaken Docyke parts. Keep
your ride in a dry environment.
7. It is not allowed to ride on the road.
8. Always wear safety equipment such as a helmet, knee pads and elbow pads
Privacy
Docyke respects your privacy. To make the Services available to you and process the
transactions made by you, Docyke may collect certain information and personal
data from you, and use such information and data following our Privacy Policy.
Docyke may update the Privacy Policy, located at our web from time to time, so
please periodically review the Privacy Policy.
3

Triangle-joint=22 Angle-joint=32 10°Toothed disc=16
Handle=2
Hex handle=1
M8-bearing joint=4 U joint 4 40x40 joint=12
Hex-joint 4 Protection cap=6 40x80 Hex-bearing joint=4
T block=180
Hex key
4mm=1
6 mm=1
5 mm=1
40x40 Profile
Block=60
Hex-bolt
M6×14=4 M6×25=12
M6×35=8 M8×20=85
M8×25=24 M8×32=18
M8×40=15 M8×50=5
M8×60=6 M8×75=3
Washer
S ø8×ø16×H1.6=16
L ø8×ø30×H2=12
Lock nut
M6=18
M8=36
Sliding slot
M8=48
L-kit

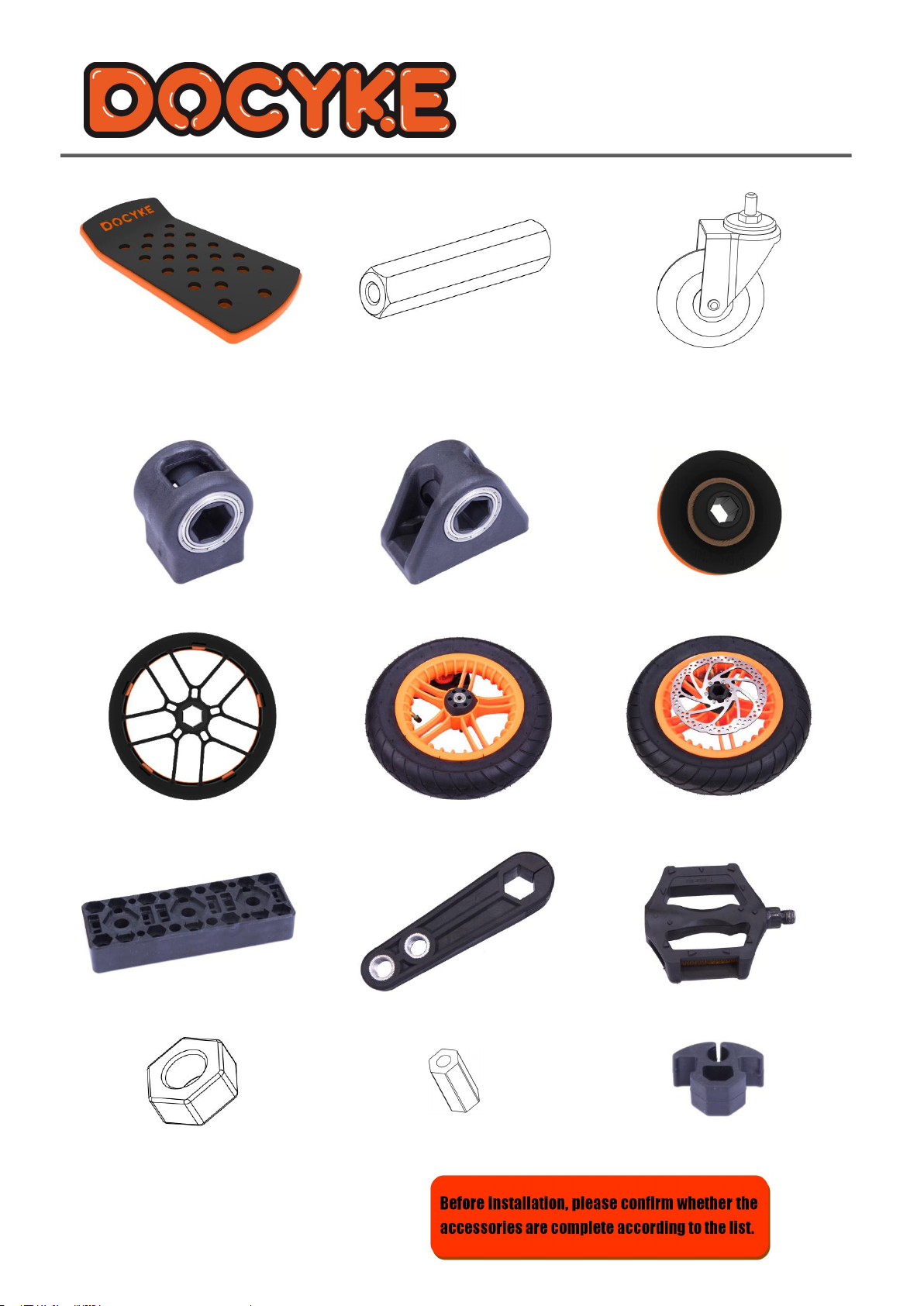

Accessories Display P1
4
5°Toothed disc=16
40mm=2 60mm=2 80mm=2 120mm=2
140m=2 160mm=2 200mm=2 240mm=2
280mm=2 320mm=2 360mm=2

Board=4
Hex-Profile
3 inch drift wheel=2
T34 Belt wheel(free)=1
12 inch wheel（brake disc）=1
Pedal (L+R)=1
Cable clip=6
40x40 Hex-bearing joint=5 40x80 Hex-bearing joint=2
12 inch wheel（bearing）=2
Crank (L+R)=1
Long nut M6=2
T62 Belt wheel=1
40x120 joint=5
Nut M8=2
L-kit

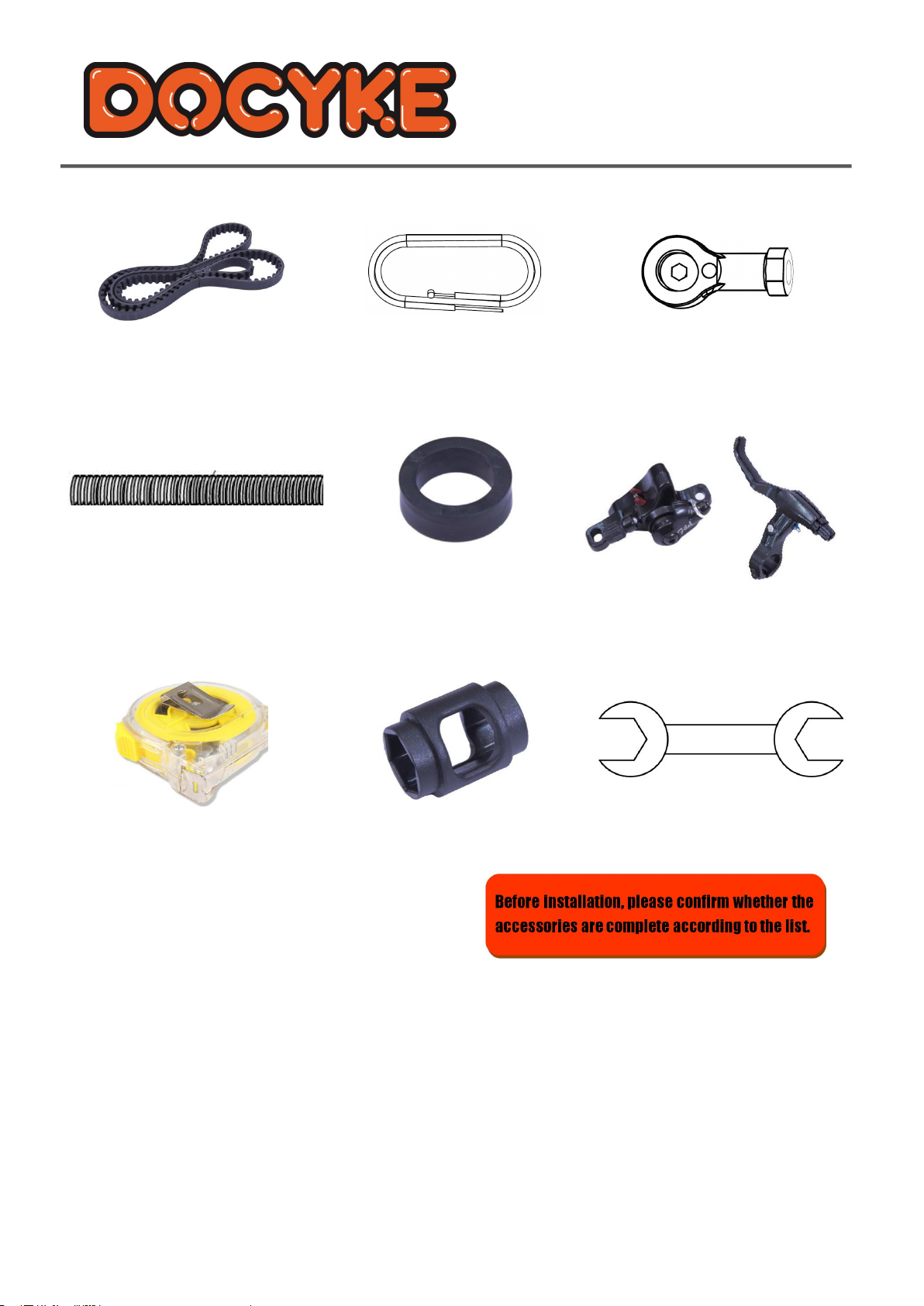

Accessories Display P2
5
40mm=4/120mm=2/172mm=1
222mm=1/ 418mm=1

Driving belt
1320mm=1
1648mm=1
Brake Cable
0.7 m=1
1.2 m=1
1.7 m=1
Ball bearing
Left thread=2
right thread=2
Screw
right thread M8x132=2
right thread M8x40=2
Left thread M8X132=2
Spacer
ø8xø12xH6=4
ø22xø32xH2.5=4
ø22xø32xH5=4
ø22xø32xH10=8
Brake kit=1
Tape=1 Hex-spacer=2 Wrench=1
L-kit
Accessories Display P3
6

CONSTRUCTION MANUAL
Time to build：6hours
Max weight：30Kg
L- 04
7

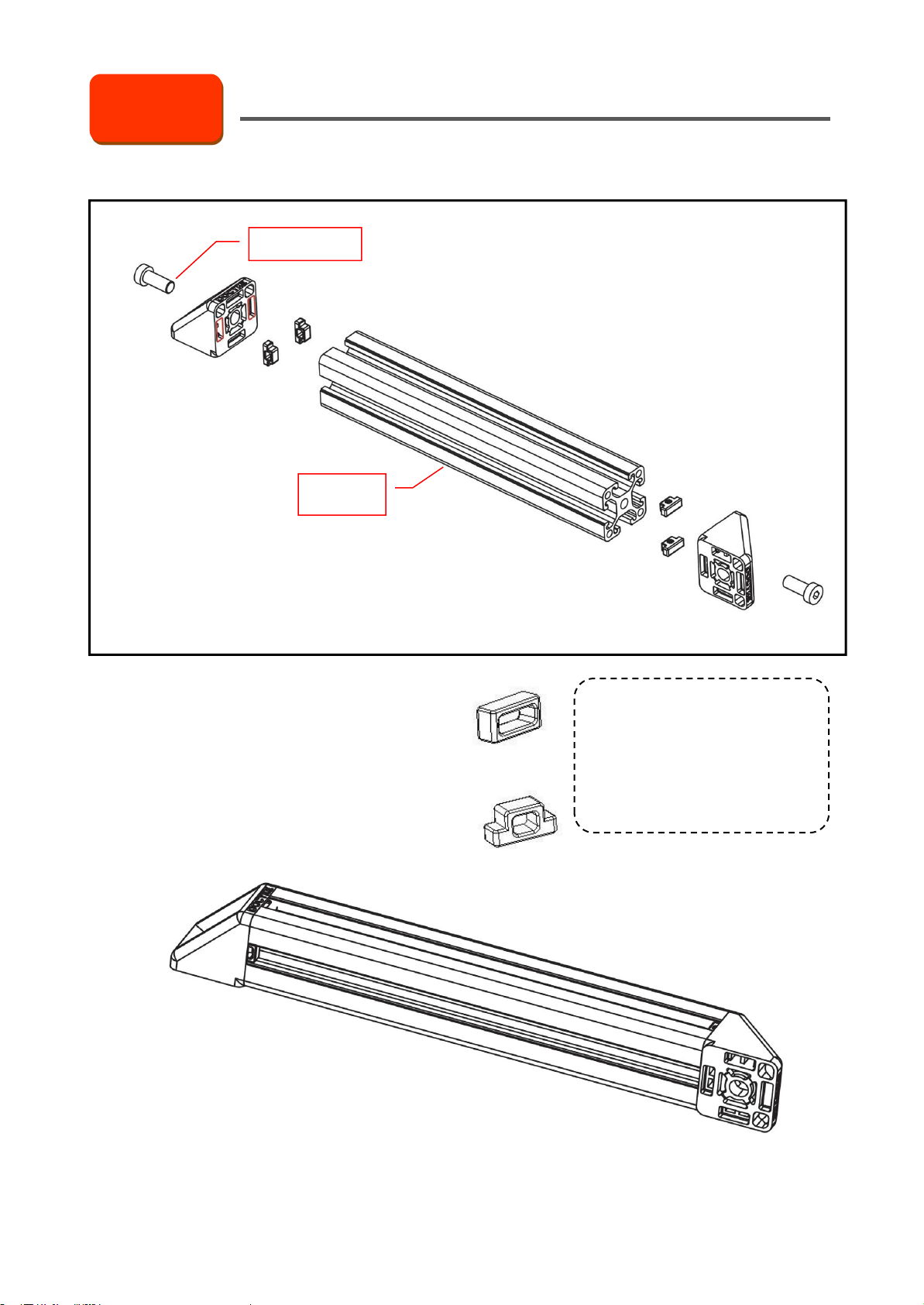

1
240mm
Tighten the bolts with full force to prevent them coming loose.
A
M8x20=2
The positioning blocks are some
of the smallest parts but they also
some of the most important.
Putting them in the right place is
a key of the DOCYKE.
8

2
Check the profile nut
remains
perfectly straight in the
slot.
M8x20=2
B
200mm
A
M8x20=2
X2
9

C
D
X2
M8x20=2
M8x25
M8
M8
M8x25
10

90°

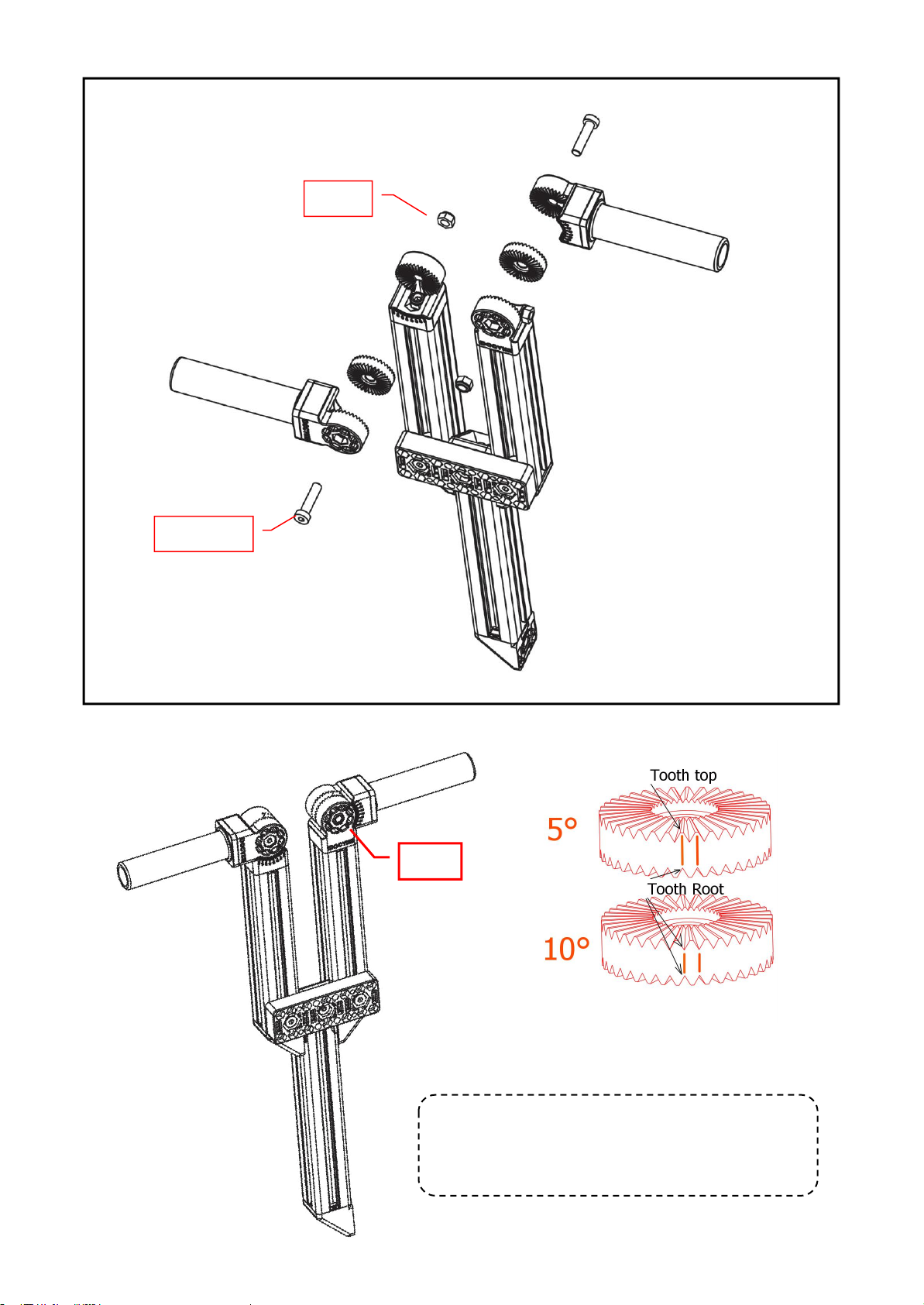

There are two types of knurled discs.
One can be installed in 5°, 15°, 25°, etc.
The other can be installed in 0,10°,20°,30°, etc.
E
M8x32=2
M8=2
11

3
M8x20=2
Screws are required to use different lengths in different
locations, so be sure to follow the instruction manual and
use the Hex wrench handle to tighten the screws.
A
320mm
X2
12

4
M8X40=3
A
40mm
13

5
M8X20=2
A
14

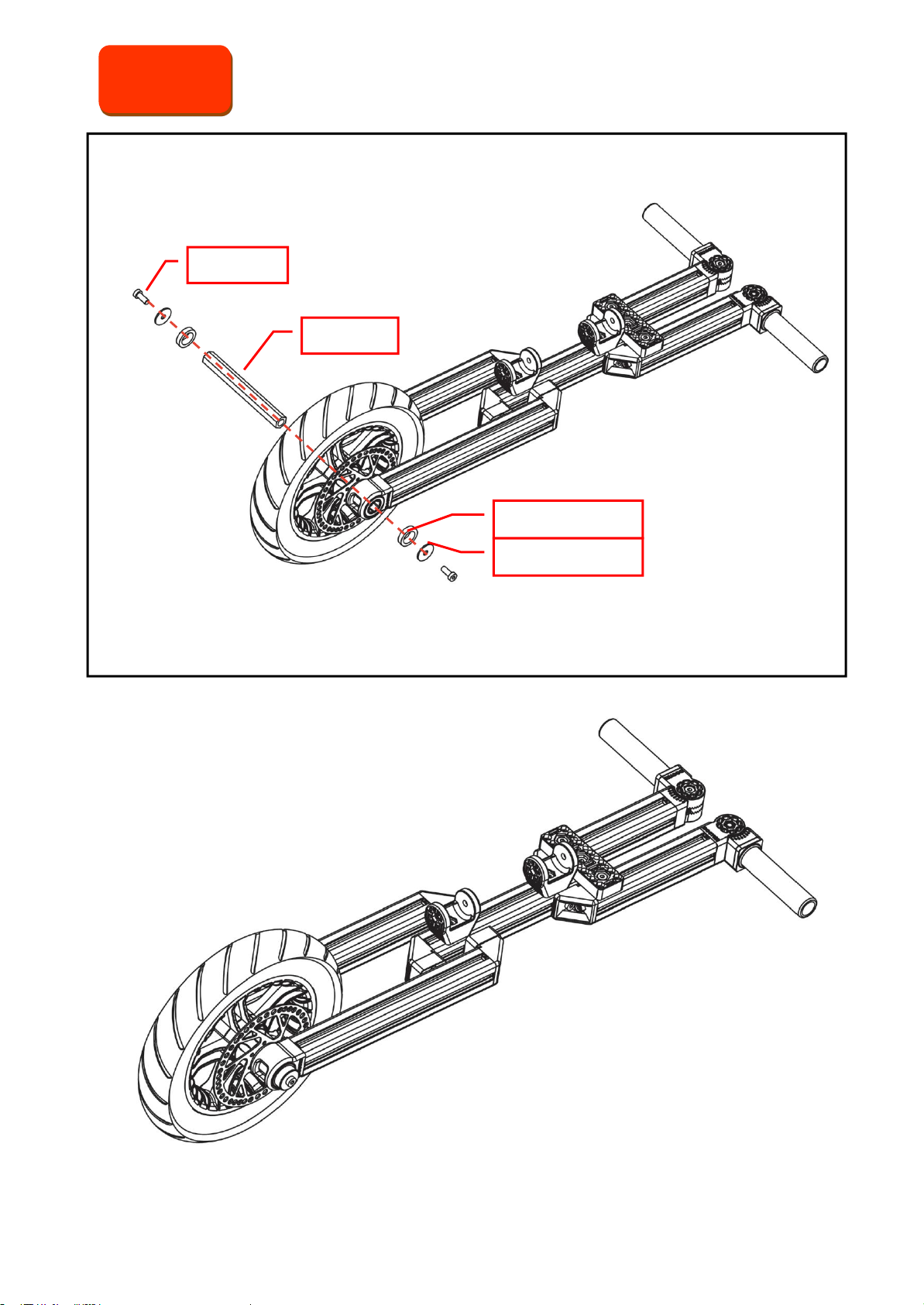

6
A
M8x20=2
172mm
ø8Xø30xh2=2
Ø22Xø32xh10
15

7
A
M8x20
0
360mm
X2
BM8x20=20
40mm
16

8
M8x20
A
M8X40=2
1320
17

9
AM8X20=2
160mm
80mm
BM8X20
C
M8x32
85°
M8
18

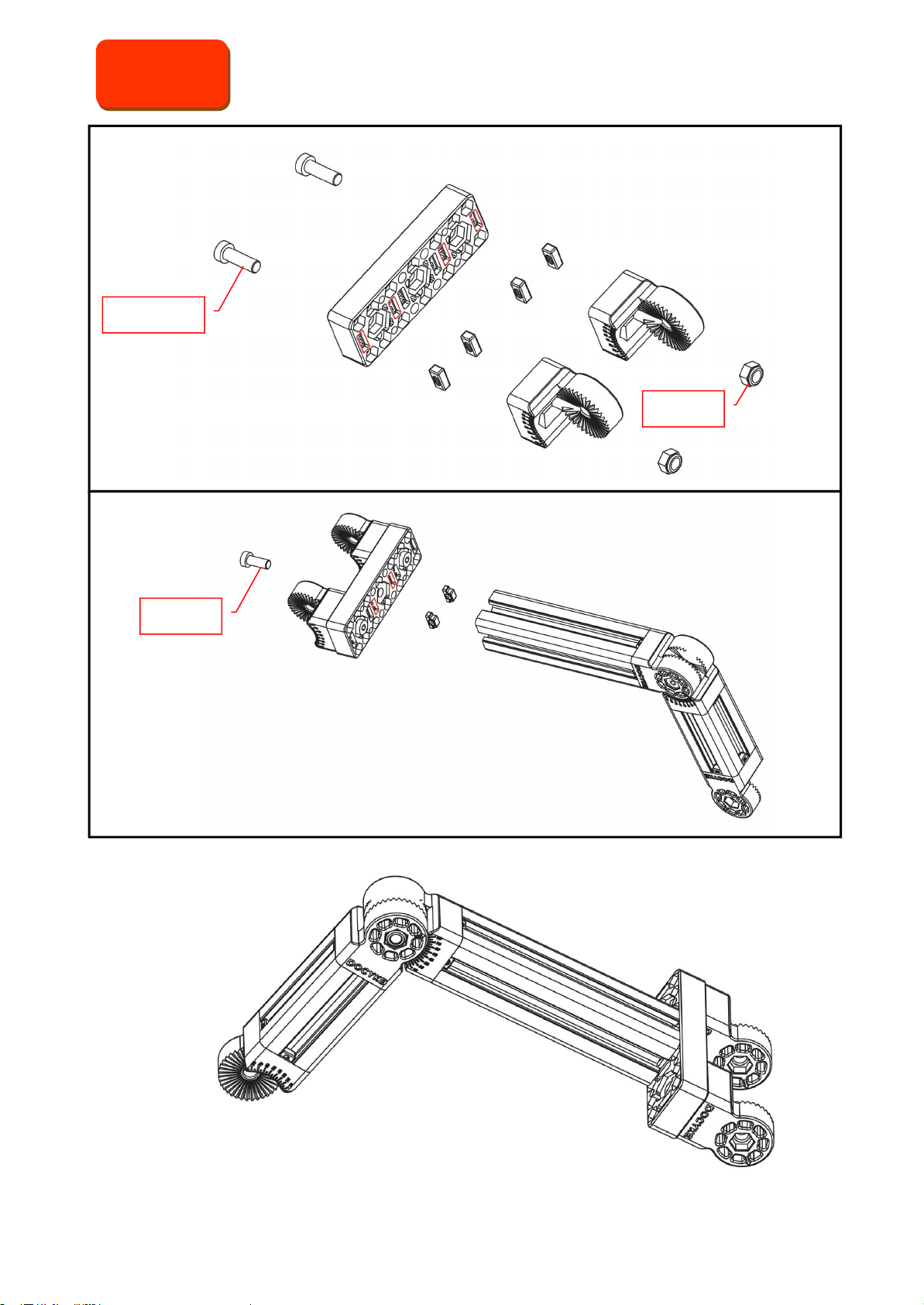

10
A
M8x25=2
B
M8=2
M8x32
19
