DOCYKE GK-06 User manual

1
额定功率 / Motor power : 400W
电池配置 / Batte capacity : 18V=6Ah
充电时间 / Charging time : 2-3h
安装时间 / Time to bulid : 6-20 hours
最大载重 / Max load : 50kg
产品净重 / Net weight : 30kg
续航时间 / Using time : 1hour 卡丁车套件
GO-KART KIT
&MFDUSPOJD1SPHSBNNJOH,JU
歏㶩綘玐㤛⟝
фս۴ӆ
685*;):3'4;'2
&
06
K

1
1
2-4
5-32
33
目 录
Contents
注意事项
Warning
GK-06 安装步骤
GK-06 assembly drawing
GK-06 快速安装图
GK-06 diagram

2
在您构建玩具前请先阅读下列内容，以保证儿童的安全并防止玩具损坏 ,
更多说明请到官方站点进行下载：www.docyke.com
Please read instruction manual and warnings before installation.
More speci󽗉cation please check our website: www.docyke.com
多可的装配和使用需由成人陪同,并且成人需悉知所有警告条款和安装注意事项。
DOCYKE 的所有正规渠道销售的零部件都通过严格测试的合格产品，由于不遵照
条款带来的人员受伤或产品损坏，我们将不承担任何责任。
DOCYKE should be assembled and used under adult supervision. Parents
should review all the following warning and instructions in advance, and make
sure that all riders understand all warnings，cautions， instructions and safety
topics，and assure that young riders are able to safely and responsibly use this
product. We recommends that you review and reinforce the information in this
manual periodically with younger riders，inspect and maintain your DOCYKE
rides to insure their safety.
The rides and all the parts have been tested by o󽗋cial independent testing
agencies. We shall not be responsible or liable, directly or indirectly, in any way
for any personal injury or product damage caused by non-compliance with the
terms and conditions in our manuals.
警告说明：
WARNING：
请在成人指导下安装使用。
Please assemble and use
under adult instruction.
警告说明！ WARNING!
!
!
!

3
1) 多可由多个零件组装而成 , 在使用过程中会造成零件松动 , 请及时检查并紧固好零
件。
Check frequently to make sure all parts are still firmly tightened and functioned properly.
2) 多可的所有零件都为官方测试的合格零件 , 但如果不按操作说明 , 超过零件的装配
力矩 (25NM) 或产品的承重载荷会损坏零件。
Never exceed the maximum weight and assembly force(25nm).You can find the maximum
weight for every specific ride in our manual.
3) 应尽量避免暴露在阳光 , 水 , 沙堆 , 泥土等会造成其老化和缩短使用寿命的环境因
素。
Avoid streets and Excessive exposure to sunlight ,water, sand, gravel, and other debris that will
shorten the life of the docyke .
4) 应避免接近尖锐的物体 , 以免刮伤其表面 , 同时尽量在平缓的地区使用。
Avoid sharp bumps, drainage grates and sudden surface changes. Ride on smooth, paved
surfaces.
5) 多可 由很多小零件组成 , 部分表面尖锐 , 请妥善保管并放置于儿童无法接触到的地
方 , 以免被幼儿误食或弄伤。
Before assembly，present a choking hazard to children under the age of three. Care should be
taken during unpacking and assembly to insure that all small parts and plastic bags are accounted
for and kept out of the reach of children.
6) 多可 不用时请放置在干燥的地方妥善保管。
Dirt，1eaves，and other debris can damage， shrink，expand or weaken docyke parts.
Keep your ride in a dry environment.
7) 多可 除螺钉外其余都为特别设计的零件 , 请不要和市场上类似零件混用。
Most of the docyke's components are specially designed, please do not mix with similar parts
on the market.
8) 检查充气轮胎气压不能大于 1.8bar(1.8 kgf/cm²)
Check the air pressure in the tires to max 1.8bar.
10) 适当着装 , 不要穿宽松衣物或饰品 , 让衣服 , 头发远离运动部件 , 避免卷入其中。
Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts. Avoid caught in moving parts.
11) 佩戴好个人防护装置 , 安全装置后使用 多可 , 如防滑鞋 , 安全帽 , 等。
Use personal protective equipment. Always wear protective equipment such as non-skid
safety shoes, hard hat etc.
12) 在进行任何调节 , 更换附件或储存 多可 之前必须使电池与产品脱开 , 减少以外启
动危险。
Disconnect the battery pack from the DOCYKE before making any adjustments, changing
accessories, or storing DOCYKE.
多可 使用规范：
DOCYKE use specication

4
电气安全警告：
Electrical safety warning
1) 充电器仅中室内使用 , 并使充电及使用环境的清洁 , 干燥。不得暴露在潮湿 , 粉尘环
境中 , 否则会增加电击危险。
The charger is only used indoors, Keep work area clean and well lit. Do not expose DOCYKE to
rain or wet conditions.
2) 只能用多可制造商规定的充电器及电池进行充电 .
Recharge only with the charger and battery pack which specifically designated by DOCYKE.
3) 当电池不用时 , 将它远离其它金属物体 , 以防电池短路引起火灾或燃烧。
Keep the battery away from other metal objects when it is not used, in case shorting the battery
terminal together may cause burns or fire.
4) 严禁打开电池及充电器 , 可能造成短路 , 火灾或燃烧。保护电池免受高温（如长时间
日照）, 火焰 , 水和湿气的侵害。有爆炸危险。
Do not open the battery and charger. Danger of short-circuiting.Protect the battery against heat, e,g,
against continuous intense sunlight, fire, water, andmoisture. Danger of explosion.
阅读所有警告及说明！不遵照以下警告和说明会导致电击，着火或严重伤害！
Read all safety warnings and all instructions. Failure to follow the warnings
and instructions may result in electric shock, 󽗉re or serious injury.

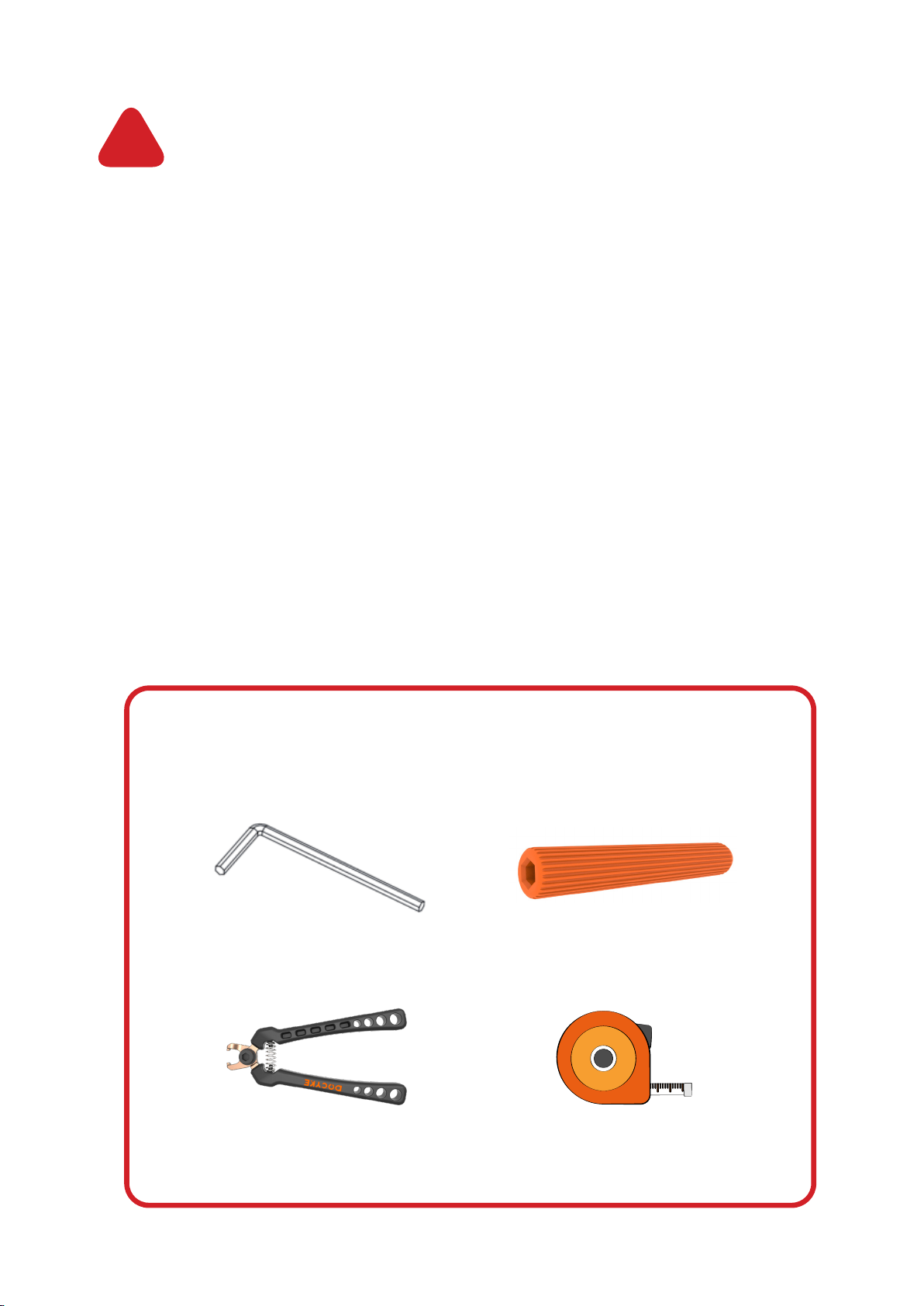

建议使用工具
RECOMMENDED TOOLS
六角扳手 /Hex key
钳子 /Tongs
六角手柄 /Hex handle
卷尺 /Tape
!

5
GK-06
1
3
2
4
PART
PART
PART
PART

6

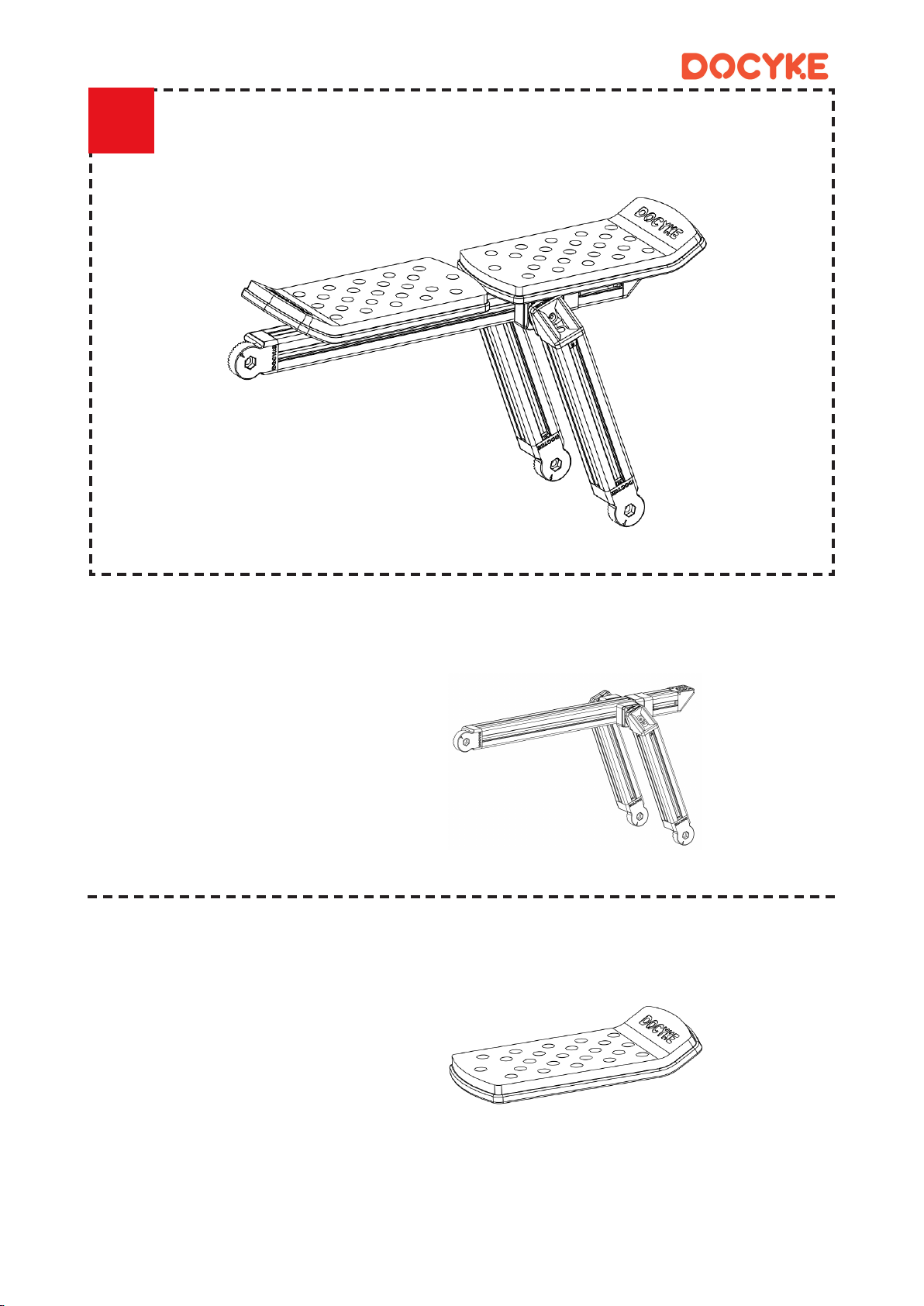

1PART
PART 1-1
PART 1-2

7
The positioning blocks are some of the
smallest parts but they also some of the most
important.Putting them in the right place is a
key of the product.
产品中一共包含两种定位块，它是至
关重要的部件，请仔细分辨。几乎所有零
件的装配都会使用到他们，请务必按照说
明使用，避免漏装或误装。

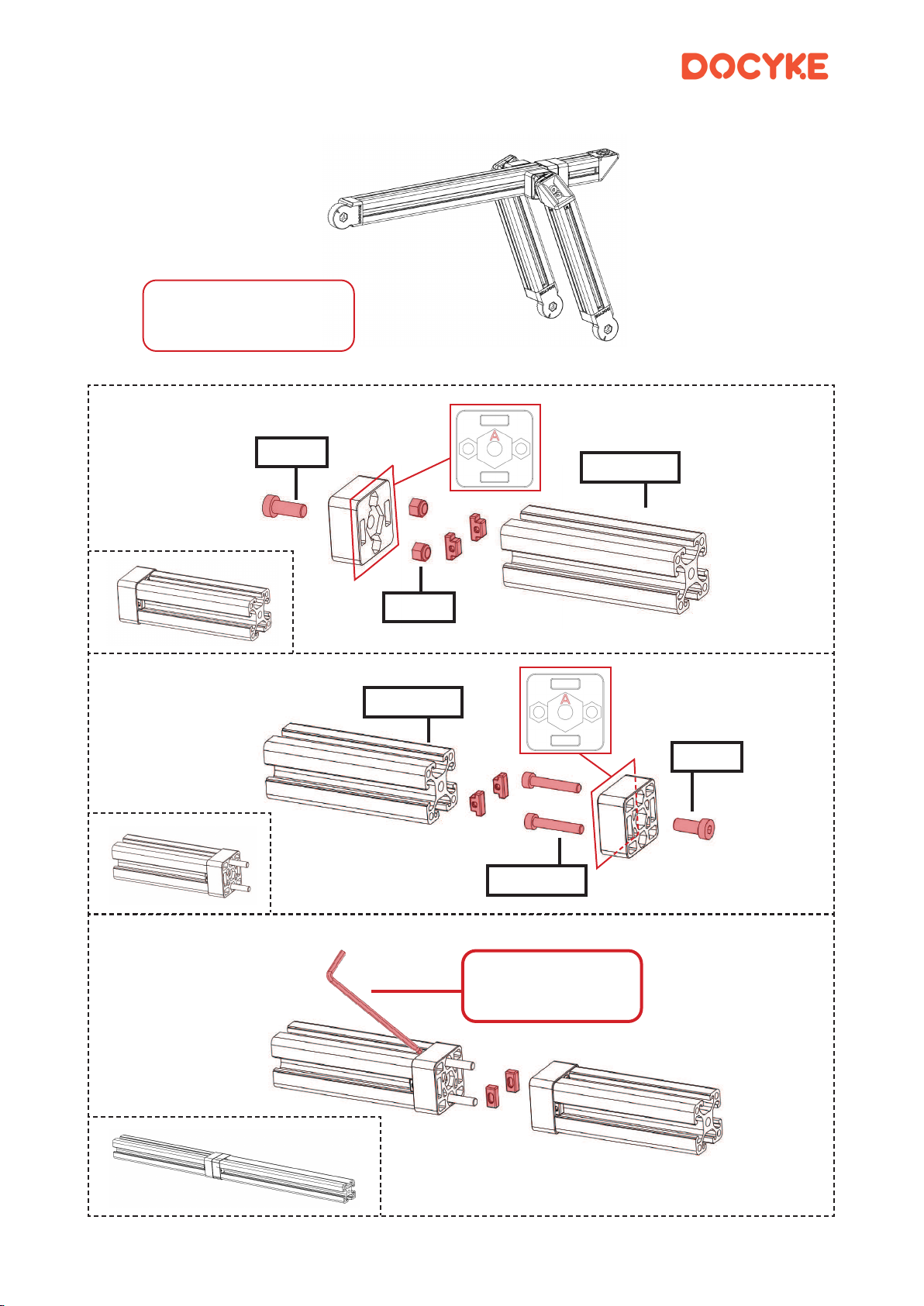

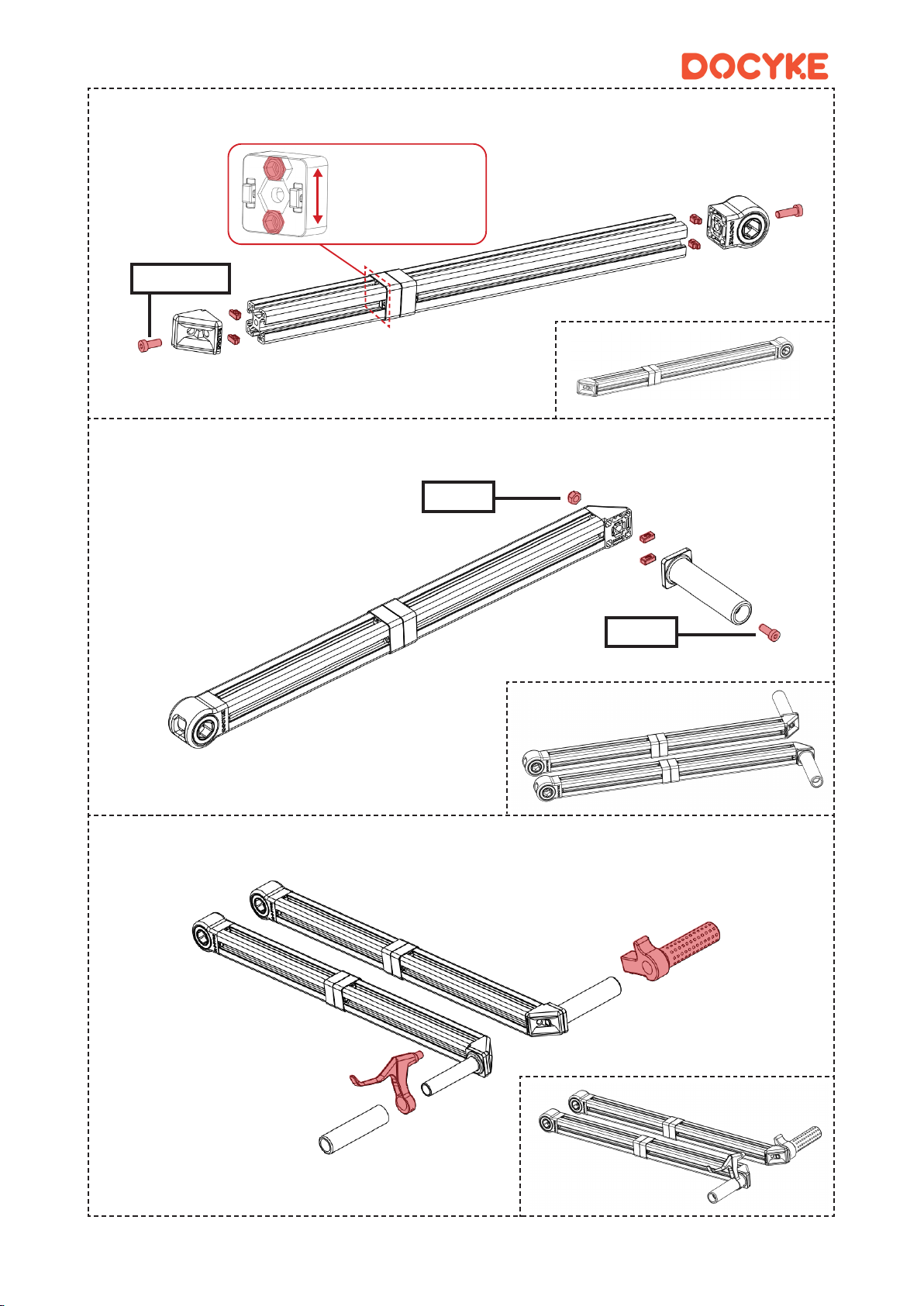

PART 1-1

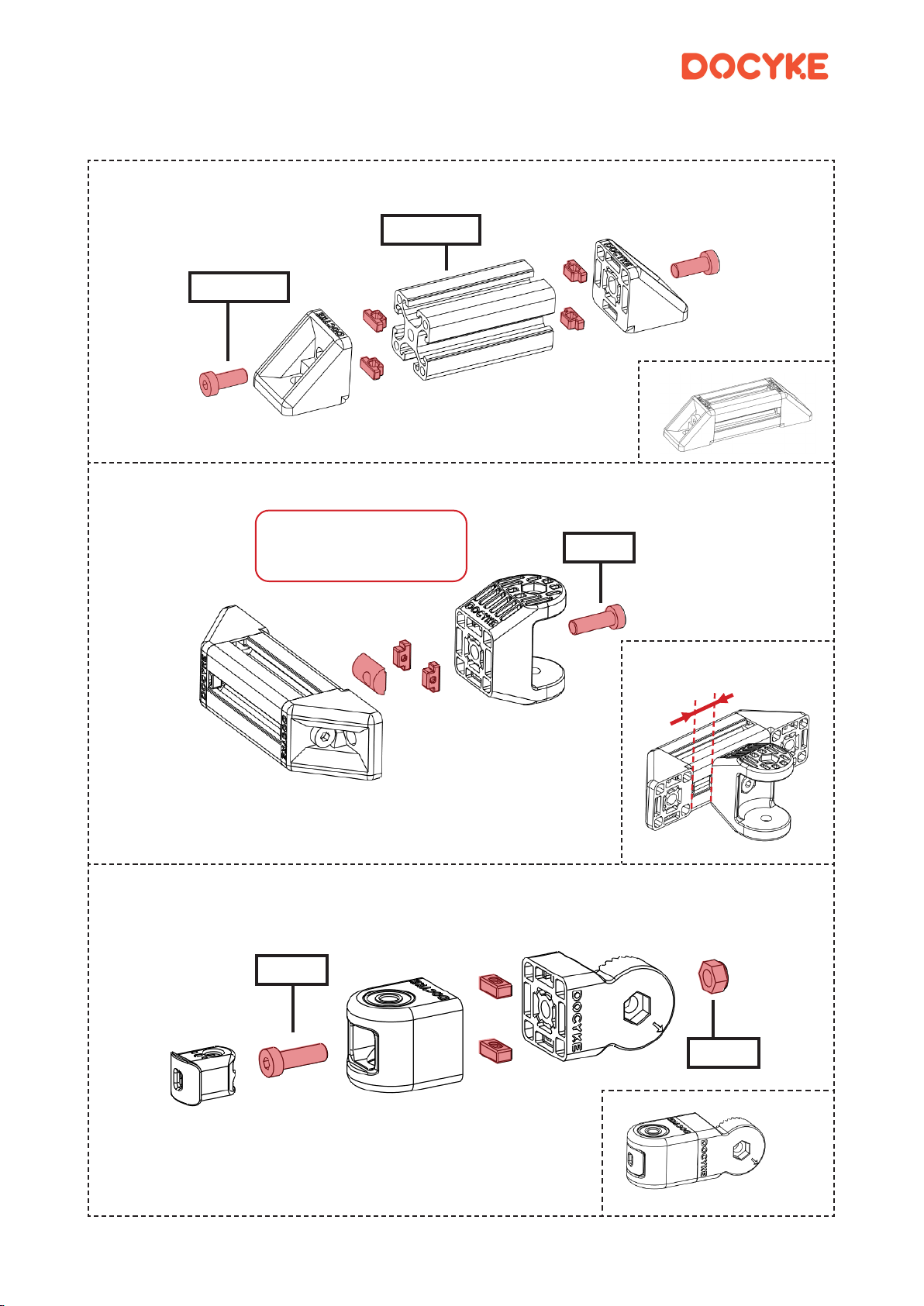

M8x25
M6=2
280mm
A
B
C
M8x25
M6x35=2
240mm
连接后拧紧两个螺丝。
Tighten the two screws
after connection.

8
D
E
F
X2
X2
M8x20=2
注意零件上下方向。
Pay attention to the up
and down direction of
parts.
M8x25
M8

9

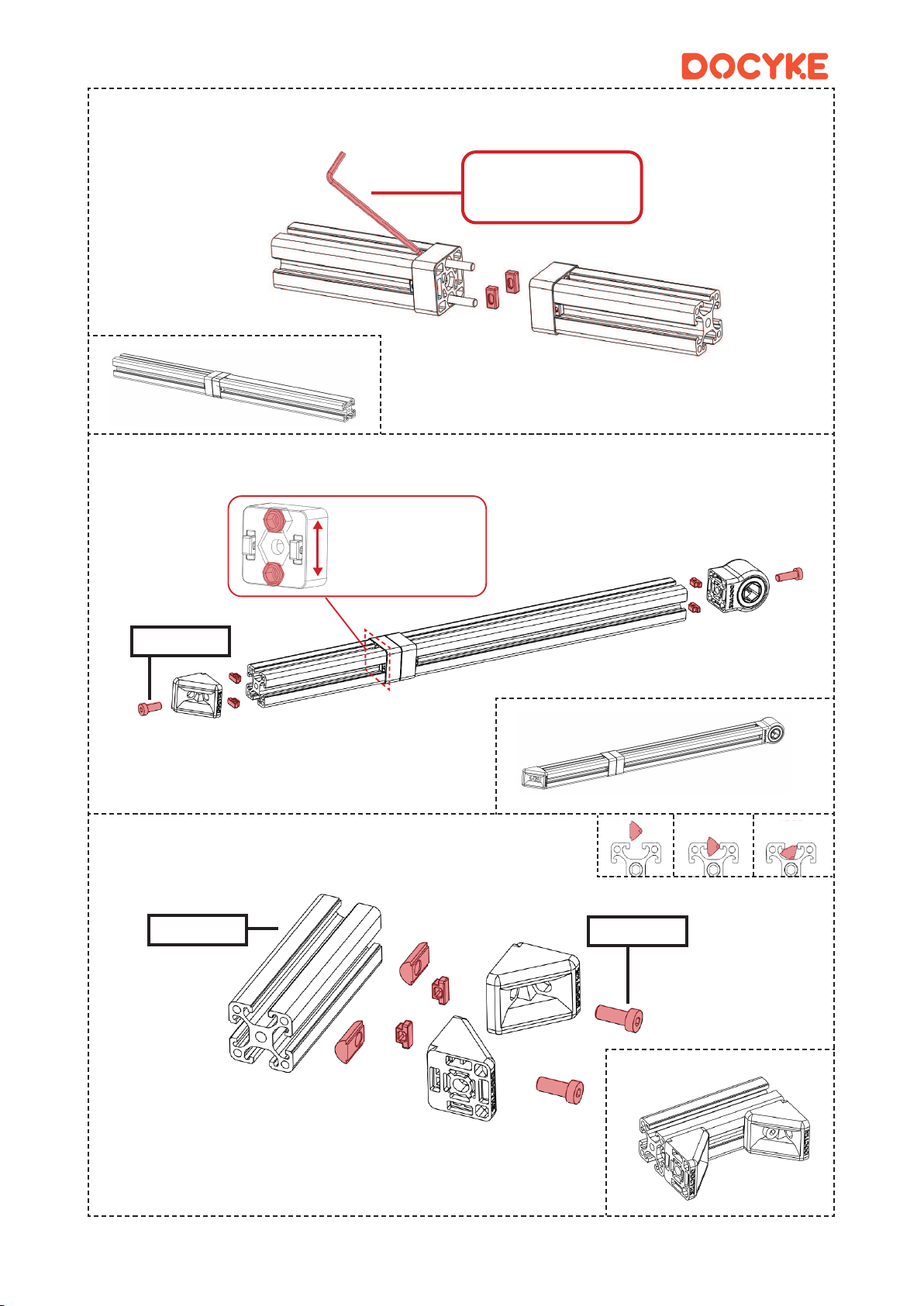

G
I
M8x20=2
螺丝在不同位置需要使用不同长度，请务必按
照指导手册使用，同时使用六角柄拧紧螺丝。
Screws are required to use different lengths
in different locations, so be sure to follow the
instruction manual and use the Hex wrench handle
to tighten the screws.prevent them coming loose.
M8x25
H
M6x14=4
M6x20=2
∅8x∅30xh2=2
∅22x∅32xh5=3
172mm

10
C
X2
A
B

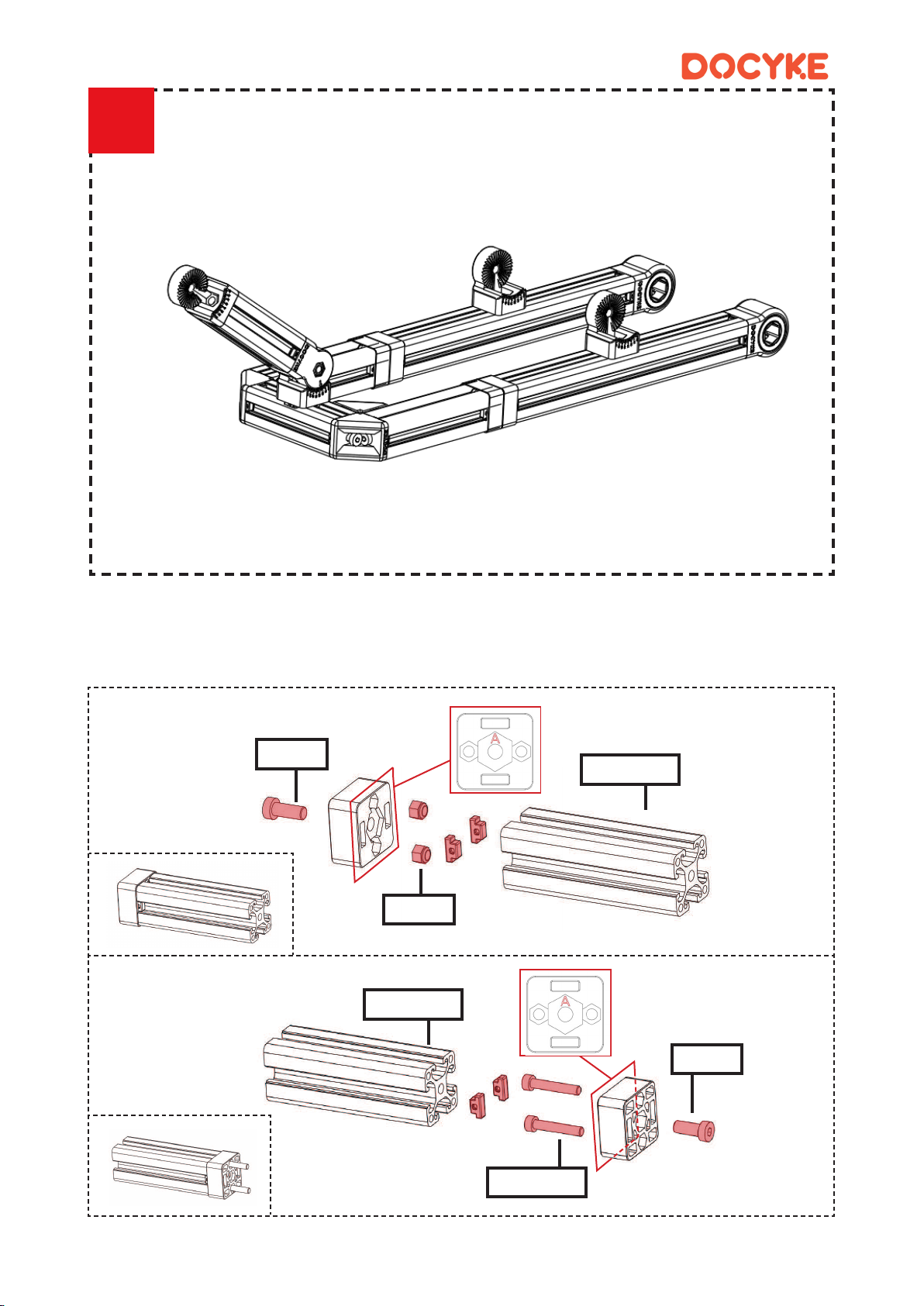

PART 1-2
M8x20
20mm
M8x25
M8
M8x20=2
80mm
装配时螺钉必须拧紧。
Tighten the bolts with full force to
prevent them coming loose.

11
D
E
F
X2
X2
140mm 220mm
M8x60
M8
M8x20

12
2PART
PART 2-1
PART 2-2

13

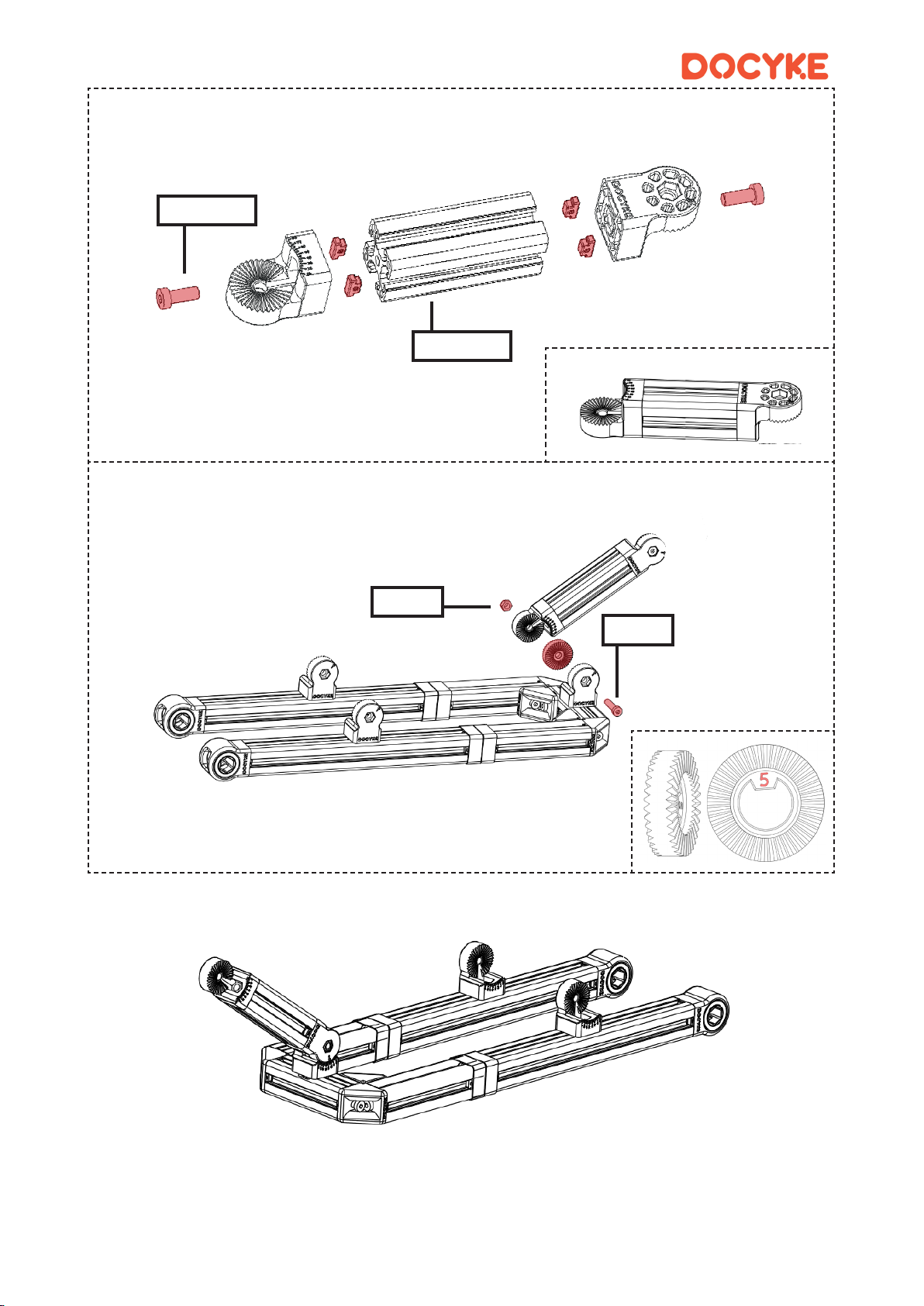

PART 2-1
M8x25
M6=2
360mm
A
B
C
M8x25
M6x35=2
60mm
连接后拧紧两个螺丝。
Tighten the two screws
after connection.
装配时螺钉必须拧紧。
Tighten the bolts with full force to
prevent them coming loose.

14
D
E
F
X2
每格为 10°，最高精度为 5°（半格）。
Each mark is 10° , and the maximum
accuracy is 5 ° (half mark).
如图，对称组装共 2 个。
As shown in the figure,
assemble 2 components.
M8x60
M8x20=2
M8x20=2
200mm
20°

15
PART 2-2
A
M8x20=4
M8

16
3PART
PART 3-1
M8x25
M6=2
320mm
A
B
M8x25
M6x35=2
140mm

17
C
连接后拧紧两个螺丝。
Tighten the two screws
after connection.
D
E
X2
M8x20=2
M8x20=2
120mm
注意零件上下方向。
Pay attention to the up
and down direction of
parts.

18
F
M8x20=2
X2
G
M8x20=3
40mm 140mm

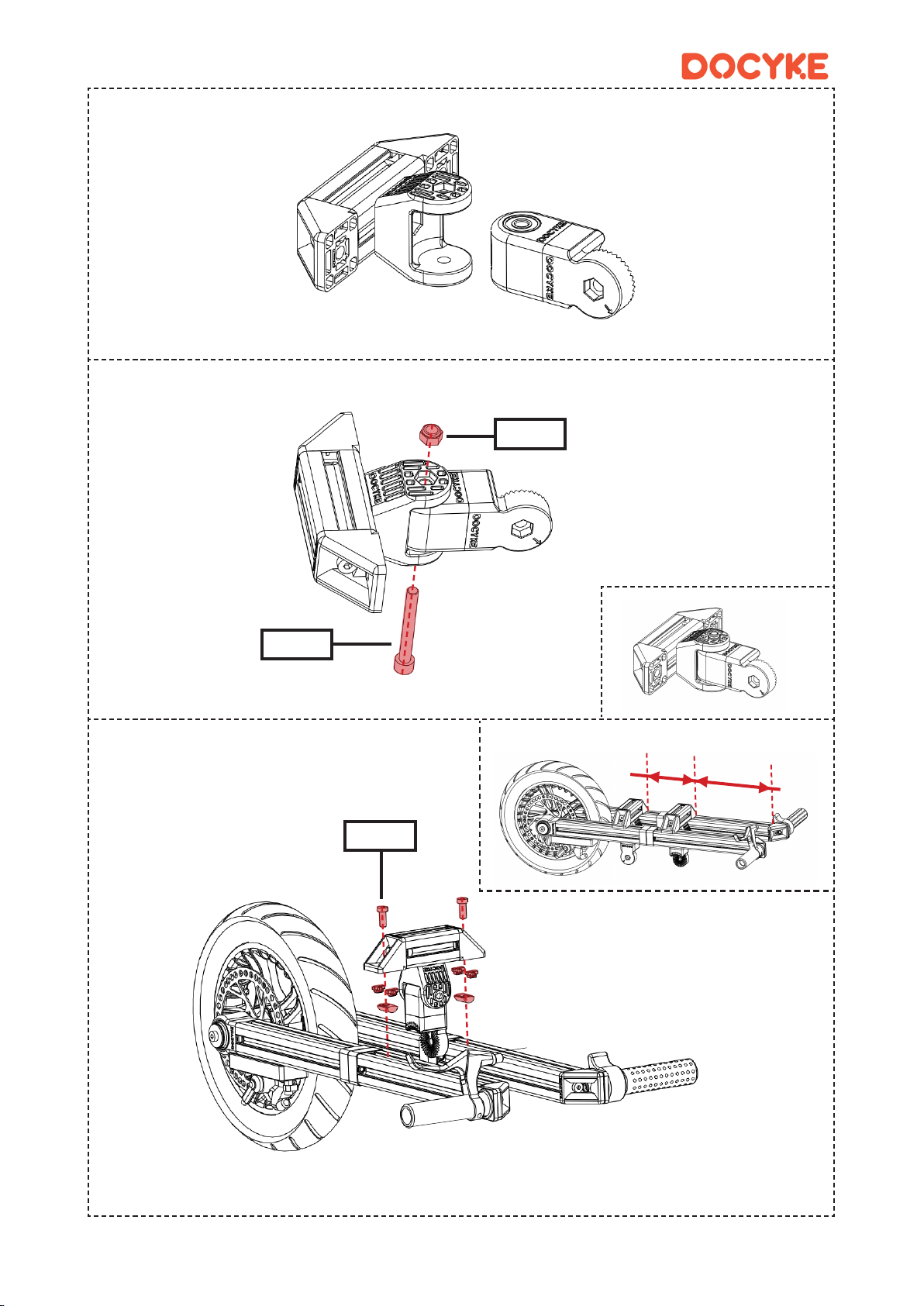

19
H
M8x20=2
120mm
K
M8x32
M8
55°
