Dodge 2008 LX49 Magnum User manual

TABLE OF CONTENTS
SECTION PAGE
1
INTRODUCTION .............................................................3
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ...............................9
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE ...............................81
4
UNDERSTANDING YOUR INSTRUMENT PANEL ................................... 167
5
STARTING AND OPERATING .................................................263
6
WHAT TO DO IN EMERGENCIES ...............................................359
7
MAINTAINING YOUR VEHICLE ...............................................381
8
MAINTENANCE SCHEDULES ..................................................441
9
IF YOU NEED CONSUMER ASSISTANCE ..........................................449
10
INDEX ....................................................................459
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
CONTENTS
mIntroduction ...........................4
mHow To Use This Manual ..................4
mWarnings And Cautions ...................6
mVehicle Identification Number ...............6
mVehicle Modifications / Alterations ...........7
1

INTRODUCTION
This manual has been prepared with the assistance of
service and engineering specialists to acquaint you with
the operation and maintenance of your new vehicle. It is
supplemented by a Warranty Information Booklet and
various customer oriented documents. You are urged to
read these publications carefully. Following the instruc-
tions and recommendations in this manual will help
assure safe and enjoyable operation of your vehicle.
NOTE: After you read the manual, it should be stored
in the vehicle for convenient reference and remain with
the vehicle when sold, so that the new owner will be
aware of all safety warnings.
When it comes to service, remember that your dealer
knows your vehicle best, has the factory-trained techni-
cians and genuine Mopartparts, and is interested in
your satisfaction.
HOW TO USE THIS MANUAL
Consult the table of contents to determine which section
contains the information you desire.
The detailed index, at the rear of this manual, contains a
complete listing of all subjects.

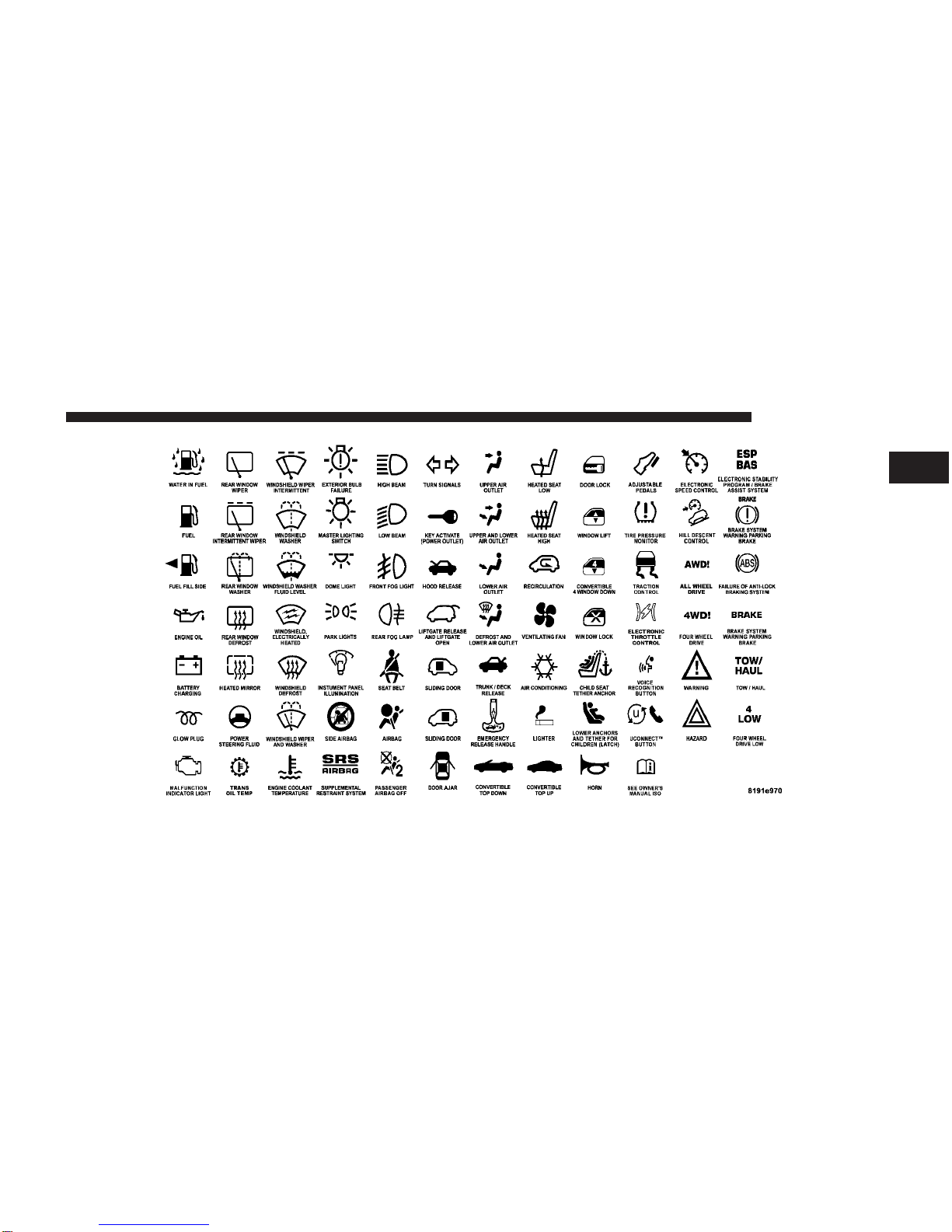

Consult the following table for a description of the
symbols that may be used on your vehicle or throughout
this owner manual:
4 INTRODUCTION

INTRODUCTION 5
1

WARNINGS AND CAUTIONS
This manual contains WARNINGS against operating
procedures, which could result in an accident or bodily
injury. It also contains CAUTIONS against procedures,
which could result in damage to your vehicle. If you do
not read this entire manual, you may miss important
information. Observe all Warnings and Cautions.
VEHICLE IDENTIFICATION NUMBER
The vehicle identification number (VIN) is on the left
front corner of the instrument panel. The VIN is visible
from outside of the vehicle through the windshield. This
number also appears on the Automobile Information
Disclosure Label affixed to a window on your vehicle, the
vehicle registration, and the title. NOTE: It is illegal to remove the VIN.

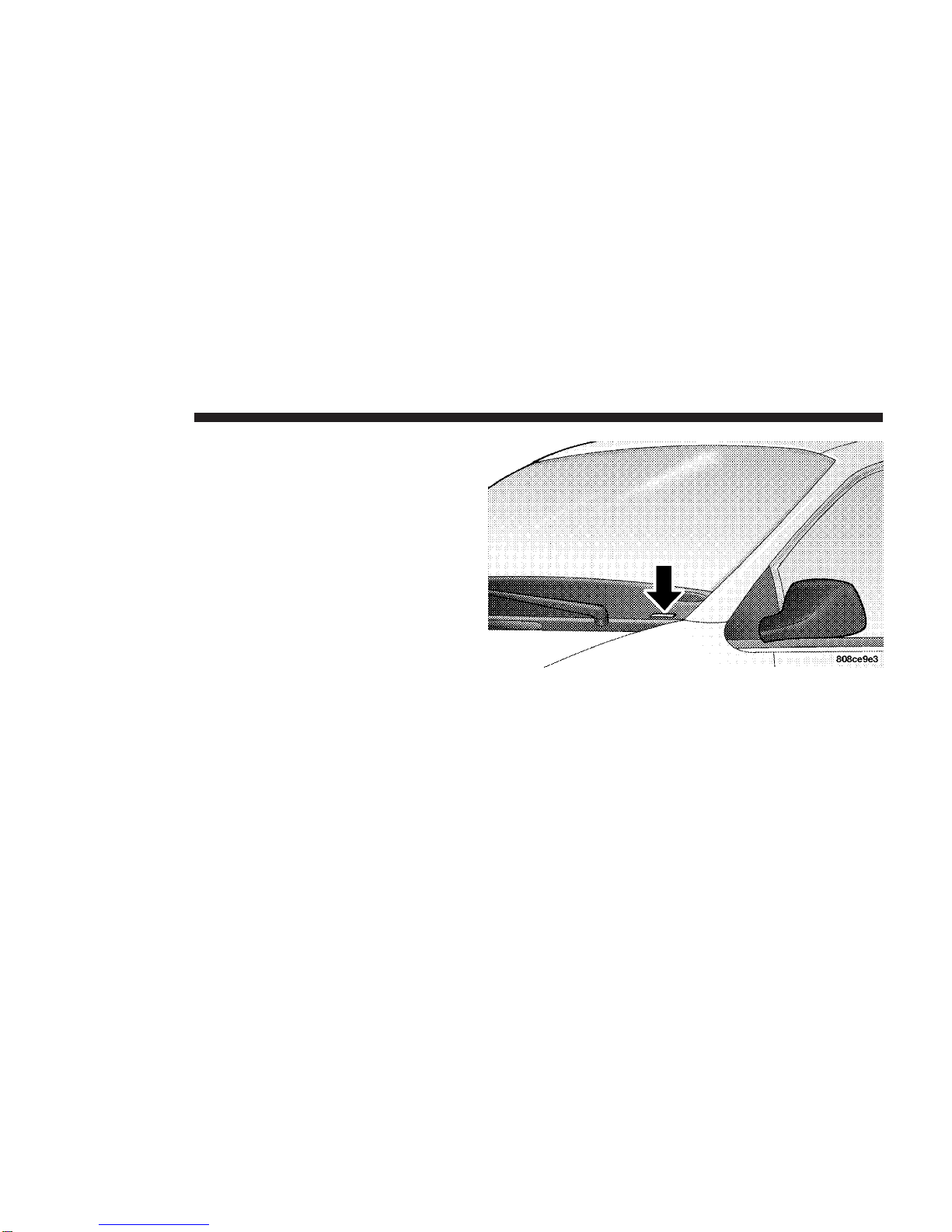

VIN LOCATION
6 INTRODUCTION

VEHICLE MODIFICATIONS / ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to an accident resulting in serious injury or
death.
INTRODUCTION 7
1

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
mA Word About Your Keys ..................12
▫Wireless Ignition Node (WIN) .............12
▫FOB With Integrated Key.................13
▫Tip Start Feature .......................14
▫Ignition Key Removal ...................14
▫Key-In-Ignition Reminder ................15
mSentry Key ............................15
▫Replacement Keys ......................16
▫Customer Key (FOB) Programming ..........17
▫General Information ....................18
mSecurity Alarm System — If Equipped .........18
▫Rearming Of The System .................18
▫To Arm The System .....................19
▫To Disarm The System ...................19
mIlluminated Entry System ..................20
mRemote Keyless Entry .....................20
▫To Unlock The Doors ...................21
▫To Lock The Doors .....................23
2

▫Using The Panic Alarm ..................24
▫Programming Additional Transmitters ........25
▫Transmitter Battery Service ...............25
▫General Information ....................26
mRemote Starting System — If Equipped ........26
▫How To Use Remote Start ................27
mDoor Locks ............................28
▫Manual Door Locks .....................28
▫Power Door Locks .....................30
▫Child Protection Door Lock ...............33
mWindows .............................35
▫Power Windows .......................35
▫Wind Buffeting ........................38
mLiftgate ...............................39
mOccupant Restraints ......................41
▫Lap/Shoulder Belts .....................42
▫Lap/Shoulder Belt Untwisting Procedure .....48
▫Seat Belt Pretensioners ...................48
▫Enhanced Seat Belt Reminder System
(BeltAlertt) ..........................49
▫Automatic Locking Mode — If Equipped .....50
▫Seat Belts And Pregnant Women ............51
▫Seat Belt Extender ......................51
▫Driver And Front Passenger Supplemental
Restraint System (SRS) - Airbag ............52
▫Event Data Recorder (EDR) ...............64
▫Child Restraint ........................66
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

mEngine Break-In Recommendations ...........75
mSafety Tips ............................76
▫Transporting Passengers .................76
▫Lock Your Vehicle ......................76
▫Exhaust Gas ..........................77
▫Safety Checks You Should Make Inside The
Vehicle ..............................78
▫Periodic Safety Checks You Should Make
Outside The Vehicle ....................78
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Fob with Integrated Key and a Wireless
Ignition Node (WIN) with integral ignition switch. You
can insert the double-sided integrated key into the igni-
tion switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three of
which are detented and one spring-loaded. The detented
positions are LOCK, ACC, and ON. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the detented ON position.
Wireless Ignition Node (WIN)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Fob with Integrated Key
The Fob with Integrated Key operates the ignition switch.
It also contains the Remote Keyless Entry (RKE) trans-
mitter and a valet key, which stores in the rear of the Fob.
The valet key allows for entry into the vehicle should the
battery in the vehicle or the Fob go dead. The valet key is
also for locking the glove box. You can keep the valet key
with you when valet parking.
To remove the valet key from the Fob, slide the mechani-
cal latch at the top of the Fob sideways with your thumb
and then pull the key out of the Fob with your other
hand. NOTE: You can insert the double-sided valet key into
the lock cylinders with either side up.
Valet Key Removal
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

Tip Start Feature
Do not press the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running.
Ignition Key Removal
Place the selector lever in “P” (Park). Turn the key to the
LOCK position and then remove the key.
NOTE:
• For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for 10 minutes after
the ignition switch is turned to the LOCK position.
Opening either front door will cancel this feature.
• For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, power sunroof (if equipped), and
power outlets will remain active for up to 60 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either front door will cancel this feature.
The time for this feature is programmable. For details,
refer to “Delay Power Off to Accessories Until Exit,”
under “Personal Settings (Customer Programmable
Features),” under “Electronic Vehicle Information
Center (EVIC)” in Section 4 of this manual.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
If you open the driver’s door and the key is in the
ignition, a chime will sound to remind you to remove the
key.
NOTE: The Key-In-Ignition reminder only sounds
when the ignition key is placed in the LOCK or ACC
position.
SENTRY KEY
The Sentry Key Immobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Fob with Integrated
Key and Wireless Ignition Node (WIN) to prevent unau-
thorized vehicle operation. Therefore, only Fobs that are
programmed to the vehicle can be used to start and
operate the vehicle. The system will shut the engine off in
two (2) seconds if someone uses an invalid Fob to start
the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Alarm Indicator Light will turn on for
three (3) seconds for a bulb check. If the light remains on
after the bulb check, it indicates that there is a problem
with the electronics. In addition, if the light begins to
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

flash after the bulb check, it indicates that someone used
an invalid Fob to start the engine. Either of these condi-
tions will result in the engine being shut off after two (2)
seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
NOTE:
• The Sentry Key Immobilizer System is not compatible
with aftermarket remote starting systems. Use of these
systems may result in vehicle starting problems and
loss of security protection.
• Exxon/Mobil Speed Pass,™ additional Fobs, or any
other transponder-equipped components on the same
key chain will not cause a fault unless the additional
part is physically held against the Fob being used to
start the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Fobs that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.
CAUTION!
Always remove Sentry Keys from the vehicle and
lock all doors when leaving the vehicle unattended.
At the time of purchase, the original owner is provided
with a four-digit PIN number. Keep the PIN in a secure
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

location. This number is required for dealer replacement
of Fobs. Duplication of Fobs may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank Fob to the vehicle electronics. A blank
Fob is one, which has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle Fobs with you to the
dealer.
Customer Key (Fob) Programming
If you have two valid sentry keys, you can program new
sentry keys to the system by performing the following
procedure:
1. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.
2. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds, a chime
will sound and the Vehicle Security Alarm Indicator
Light will begin to flash. Turn the ignition switch OFF
and remove the second key.
3. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds, a single chime will sound and the Vehicle
Security Alarm Indicator Light will stop flashing, turn on
again for 3 seconds, and then turn off.
The new Sentry Key is programmed. The Keyless Entry
Transmitter will also be programmed during this pro-
cedure.
Repeat this procedure to program up to 8 keys. If you do
not have a programmed sentry key, contact your dealer
for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

NOTE: If a programmed key is lost, see your dealer to
have all remaining keys erased from the systems
memory. This will prevent the lost key from starting your
vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to the dealer at
the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors for unauthorized entry and the ignition switch for
unauthorized operation. If something triggers the alarm,
the system will prevent the vehicle from starting and
provide the following audible and visual signals: the
horn will pulse; the headlights will flash; the park lights
will flash; and the Vehicle Security Alarm Indicator light
in the instrument cluster will flash.
Rearming of the System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after 3
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

To Arm the System:
Remove the key from the ignition switch and either press
a power door lock switch while the driver or passenger
door is open or press the LOCK button on the Remote
Keyless Entry (RKE) transmitter. After the last door is
closed, or if all doors are closed, the system will arm itself
in about 16 seconds. During that time, the Vehicle Secu-
rity Alarm Indicator light will flash. If it does not
illuminate, the system is not arming. In addition, if you
open a door during the arming period, the system will
cancel the arming process. If you wish to rearm the
system after closing the door, you must repeat one of the
previously described arming sequences.
To Disarm the System:
Either press the UNLOCK button on the RKE transmitter
or insert a valid ignition key into the ignition switch and
turn the key to the ON position.
If you open the liftgate after disarming the system, you
must use one of the previously described arming se-
quences if you wish to rearm the system after closing the
liftgate.
NOTE:
• The driver’s door key cylinder cannot arm or disarm
the system.
• When the system is armed, the interior power door
lock switches will not unlock the doors.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If one of the
previously described arming sequences has occurred, the
system will arm regardless of whether you are in the
vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
system.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

If the alarm system is armed and the battery becomes
disconnected the system will remain armed when the
battery is reconnected. The exterior lights will flash, the
horn will sound, and the ignition will not start the
vehicle. If this occurs, disarm the system.
Tamper Alert
If something has triggered the system in your absence,
the horn will sound three times when you disarm the
system. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors or liftgate.
The lights will fade to off after about 30 seconds or they
will immediately fade to off once the ignition switch is
turned ON from the LOCK position.
NOTE:
• None of the courtesy lights will operate if the dimmer
control is in the “defeat” position (extreme downward
position), unless the overhead map/reading lights are
turned on manually.
REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors or
activate the panic alarm from distances up to about 35
feet (11 meters) using a hand held radio transmitter. The
transmitter need not be pointed at the vehicle to activate
the system.
NOTE: Inserting the Fob with Integrated Key into the
ignition switch disables all buttons on that transmitter;
however, the buttons on the remaining transmitters will
continue to work. Driving at speeds 5 mph (8 km/h) and
above disables all transmitter buttons for all Fobs.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
