DOGIPARK DOGIFOUNTAIN 7751 User manual

7751 DOGIPARK® DOGIFOUNTAIN
PEDESTAL DOG DRINKING FOUNTAIN
Recommended Specications
The 7751 DOGIPARK®DOGIFOUNTAIN pedestal dog
drinking fountain is a single-level, vandal resistant drinking
fountain with Type 304 stainless steel 10” Schedule-10 main
column and 7 GA. ange.
Fountain shall have high-polished, 18 GA. stainless steel
bowl with anti-rotation, anti-squirt, solid stainless steel bub-
bler. Bubbler shall be activated by pedestal mounted solid
stainless steel foot-operated push button assembly, which
controls a lead-free, self-closing valve.
Push button shall require less than 5 lbs. of force to oper-
ate. Push button shall be adjustable to ensure adequate ow
without being wasteful. 7751 DOGIPARK®DOGIFOUN-
TAIN shall be lead-free, adhering to ANSI/NSF 61, Section
9, ANSI A117.1.
Standard Features
• Heavy duty Type 304 stainless steel 10” Schedule-10 main column and 7 GA. ange
• High polished stainless steel bowl
• Solid stainless steel, anti-rotation bubbler
• Serviceable mesh strainer on inlet water supply
• Resistant to sunlight, heat and vandalism
• Stainless steel adjustable push button
• Integral slow drain
7751 COMES IN BLACK OR GREEN. CUSTOM COLORS MAY BE ORDERED
(SILVER, RED, BLUE, ORANGE, VIOLET, YELLOW, BROWN, BEIGE, WHITE).
CUSTOM ORDERS TAKE APPROXIMATELY 8-10 WEEKS.
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681
1/2018

1/2018
DP DOGIPOT Products, Inc.
2100 Principal Row • Suite 405
Orlando, Florida 32837
Toll Free: 800.364.7681
Local: 407.888.4627
Fax: [phone]
www.DOGIPOT.com
Table of Contents
Pre-Installation Information .......................................... 2
Physical Dimensions .................................................... 3
Rough-In Dimensions ................................................... 4
Required Installation Supplies..................................... .5
Hardware Identication Chart ...................................... 6
Installation Instructions ..................................................
Step 1: Fixture Installation ........................................ 7
Step 2: Adjusting Drinking Spout Flow. .................... 8
Care and Maintenance ............................................... 9
Troubleshooting ........................................................ 10
Detail Drawings ..............................................................
General Dimensions ................................................ 11
Exploded View w/BOM ........................................... 12
Rough-in Dimensions ............................................. 13

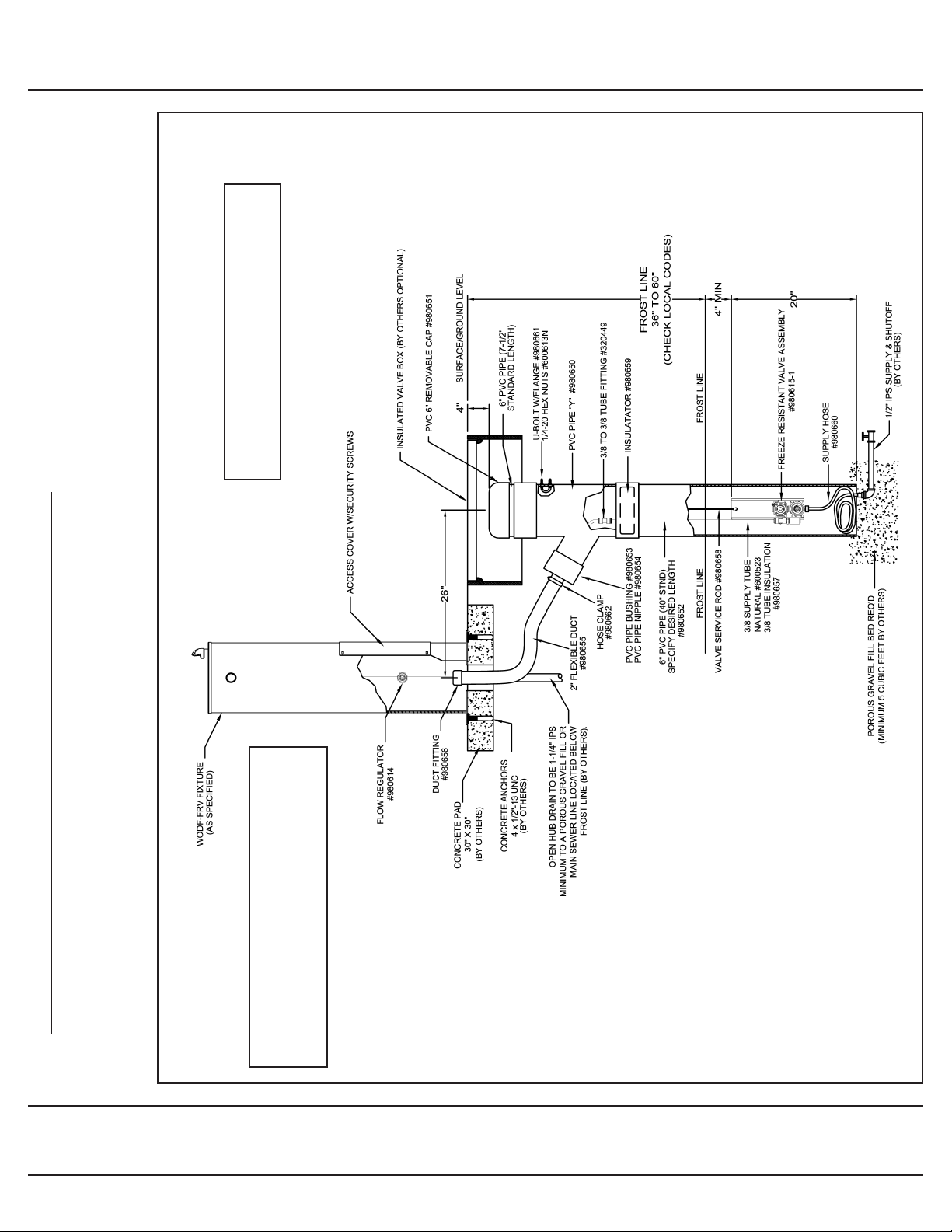

Freeze Resistant Valve Installation Detail ................ 14
Warranty ..................................................................... 15
Installation &
Operation Manual
7751 DOGIPARK® DOGIFOUNTAIN
PEDESTAL DOG DRINKING FOUNTAIN
SKU: 7751-BLACK
7751-GREEN

Pre-Installation Information
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
When installing the 7751 DOGIPARK®DOGIFOUNTAIN system:
Before Step 1 of the installation instructions, ensure that rough-ins are in the correct location.
The valve assembly, including the spray head, MUST NOT BE connected until after all lines have been ushed to remove the small
particles of debris that are inherent with new construction projects and all chemicals that are used in ushing are purged from the
system.
Chemicals used in ushing plumbing systems can attack the internal components of the valve and spray head and severely dam-
age them, so any ushing of the system must be followed by a full ushing with pure water to clear any harsh chemicals remaining
in the system. Debris in the system if allowed to enter the valve assembly and spray head can cause poor performance or outright
failure.
Again DO NOT attempt to connect the valve assembly and spray head until after all ushing is complete and pure water is the only
media that will be passing through the system. Damage to the valve assembly or spray head caused by harsh chemicals or debris
will not be covered by the manufacturer’s warranty.
Any ttings provided by the installer should be made of plastic to electrically isolate the unit from the building or connected plumb-
ing system.
The grounding of electric equipment such as telephones, computers, etc, to water lines is a common procedure. This grounding
can cause electrical feedback into a water fountain or similar xture, causing electrolysis, which results in a metallic taste or an in-
crease in the metal content of the water. This can easily be avoided by using the proper materials as indicated.
Installation notice!
Check Rough-In location PRIOR to installation
Flush lines thoroughly PRIOR to hook-up
Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 2
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 3
Physical Dimensions 7751 DOGIPARK®DOGIFOUNTAIN
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 4

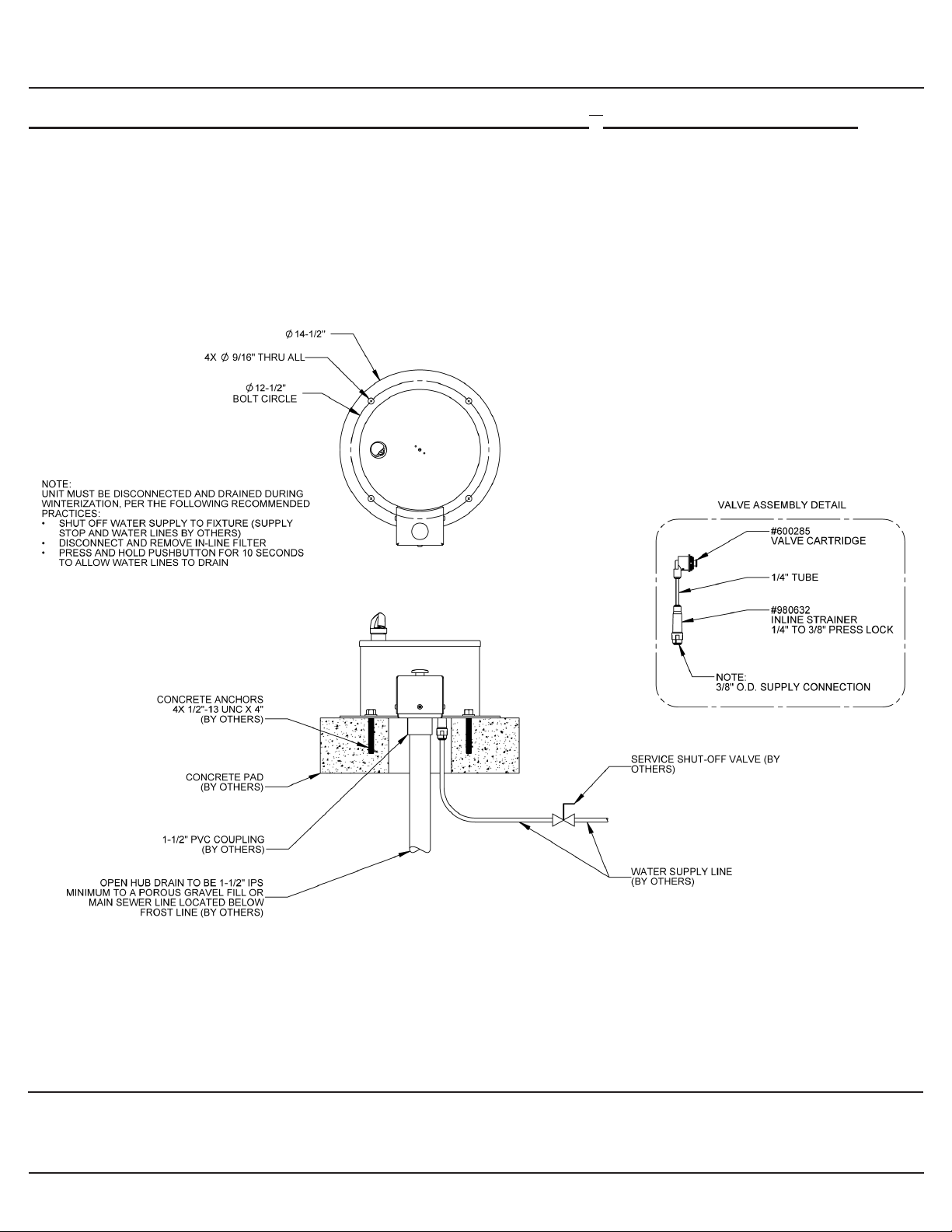

Rough-In Dimensions 7751 DOGIPARK®DOGIFOUNTAIN
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 5
Required Installation Supplies
• Proper mounting hardware
• Proper plastic ttings as indicated
• Hardware for waste outlet connections
• Gasket for waste outlet connection
• Shims (for installation if necessary)
• Supply piping
• Silicone caulk
• Plumbers putty
WARNING: DOGIPOT®does not assume any responsibility
for personal injury or damage to equipment due to
improperly installed 7751 DOGIPARK®DOGIFOUNTAIN.
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 6
Hardware Identication Chart
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Step 1: Fixture Installation
Note: the 7751 DOGIPARK®DOGIFOUNTAIN is to be mounted on a at, level surface (concrete or
otherwise) with an adequate support structure.
Note: refer to Rough-In Dimensions for locating plumbing connections.
1.) Install service shut-off valve in water supply line (valve not furnished).
2.) Locate and install drinking fountain using 1/2”-13 x 4” concrete anchors (anchors not furnished).
3.) As noted previously, ush the water supply line with clean drinking water before making nal connections
to the drinking fountain.
4.) Connect water supply line to inline strainer inside drinking fountain using 3/8” plastic tubing (extra tubing
not furnished). Push tube straight into tting on lter about 3/4” until it reaches a positive stop. Water supply
connection must comply with local codes.
5.) Connect fountain drain line to drainage system. Drain is to be 1-1/2” IPS minimum to a porous gravel ll
or main sewer line located below frost line. Installer to provide waste trap downstream of drain connection.
Drain and waste trap must comply with local codes.
6.) Turn on water supply and check both the water supply lines and drain lines for leaks.
Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 7
Installation Instructions
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 8
Installation Instructions (cont.)

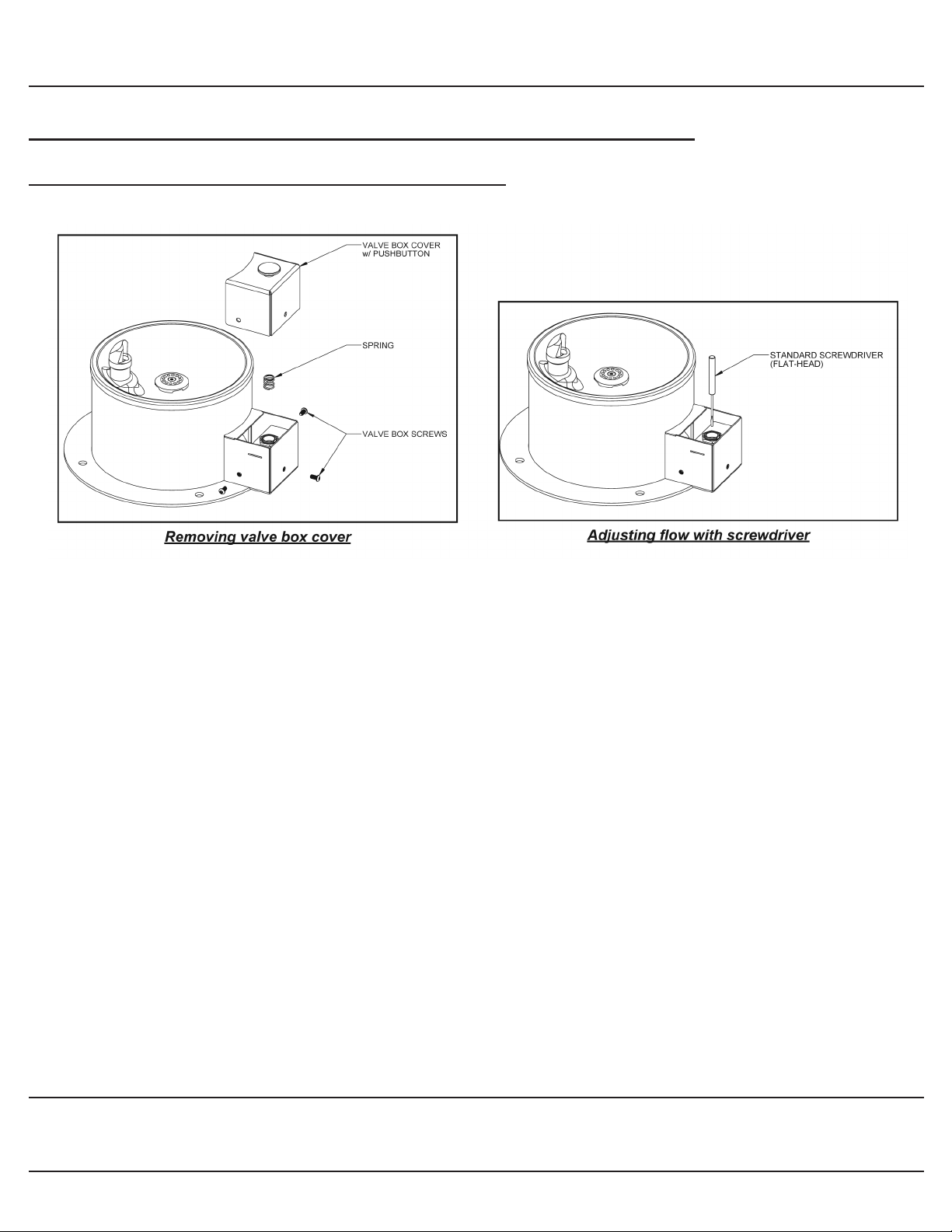

Step 2: Adjusting Drinking Spout Flow
1.) Remove valve box screws.
2.) Remove valve box cover and push button (together).
3.) Remove spring.
4.) Insert a standard at-head screwdriver into adjustment opening of valve, as shown in Figure 4.
5.) Rotate screwdriver to adjust until desired ow is achieved.
a.) Rotate clockwise to increase ow.
b.) Rotate counterclockwise to decrease ow.
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 9
Care and Maintenance
Unit Care
DOGIPARK®DOGIFOUNTAINS are not freeze resistant without the FRV Freeze Resistant Valve option. The unit
should be disconnected or shut off from the water supply and drained during the colder months. For more information,
refer to the rough-in detail.
In order to ensure adequate ow and cleanliness of water, the inline strainer in the supply line should be cleaned or
replaced regularly. New inline strainers can be ordered by calling DOGIPOT®.
Stainless Steel Care
Stainless Steels are basically alloys of iron and chromium and are corrosion resistant. Stainless steel has a
bright surface that is easy to clean and is free from oxides. Therefore, cleaning of stainless steel is relatively
simple and easy if done on a regular basis.
Frequency of cleaning should depend on the rate at wich the xture becomes dirty. Remember that fresh
(soft) deposits of all kinds are relatively easy to remove, while removing older (hard) deposits are much more
difcult. Establish as cleaning SCHEDULE.
Routine cleaning should involve ordinary soap or detergent and water, applied with a sponge, brush or cloth.
Baking soda, borax or any of several non-abrasive commercial cleansing agents can hasten the cleaning ac-
tion. After scrubbing, rinse THOROUGHLY and wipe dry.
DO NOT use common steel wool, scouring pads, scrapers, wire brushes, les or other steel tools to clean
stainless steel. Such items will scratch the surface or leave small particles of iron imbedded in the surface,
which will eventually rust and stain the surface - even appearing as if the stainless itself was rusting.
Certain chemical compounds, if used on stainless steel, can give the appearance of rust and if allowed to
stand for long periods of time, can pit the surface of even stainless steel. Products containing hydrochloric
acid, muriatic acid or potassium hydrochloride can ruin the surface.
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 10
Troubleshooting
I. InsufcientFlow
A. Ensure the service shut-off valve is fully open (provided by installer).
B. Ensure water supply is within the normal operating range of 40-60 psi.
1. If pressure is too low, ow can be drastically reduced.
2. If pressure is too high, the strainer and/or valve may have been damaged.
3. The unit is rated for a maximum range of 30-105 psi.
C. Inspect the unit’s valve for damage, and replace if necessary.
D. Inspect the inline strainer for damage and/or clogging, and clean or replace as necessary.
E. Check all ttings and tubing for damage and leaks. Replace components as necessary.
II. Unit has problems draining
A. Remove any debris from the drain.
B. Remove any debris from the PVC pipe and ttings.
C. Check and clear the waste trap (provided by installer).
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 11
DRAWING: -General Dimensions
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681
PRODUCT #7757 GREEN PRODUCT #7757 BLACK

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 12
DRAWING: Exploded View w/BOM
7751- Green 7751-Black
NOTE: 1/4” TUBING NOT SHOWN IN EXPLODED VIEW.
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 13
DRAWING: Rough-in Dimensions
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 14
DRAWING: Freeze Resistant Valve Installation Detail
NOTE: SEE INDIVIDUAL DOCUMENTATION OF SPECIFIED 7751 FIXTURE FOR SPECIFIC MOUNTING DETAILS. 7751 MOUNTING SHOWN FOR REFERENCE ONLY.
NOTE: FRV-1 SINGLE VALVE RESISTANT SYSTEM SHOWN
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681

Pedestal Dog Drinking Fountain
7751 DOGIPARK DOGIFOUNTAIN Installation & Operation Manual
1/2018 Page 15
DOGIPOT®warrants to commercial and institutional purchasers only that each unit will be free from defects
in workmanship and materials under normal use and service upon the following terms and conditions for a
period of one (1) year from date of shipment.
This warranty does not cover installation or any other labor charges and does not apply to any components
damaged by accident, abuse, improper installation or improper maintenance. This warranty does not cover
any installation that did not comply with national, state and local building, plumbing or electrical codes. The
warranty is limited to replacing or repairing at manufacturer’s option, transportation charges prepaid by the
purchaser, any component or part which upon our inspection shall be deemed as defective within the limita-
tions of this warranty. The replacement or repair of defective units as stated in this warranty shall constitute
the sole remedy of the purchaser and the sole liability of DOGIPOT®. DOGIPOT®shall not otherwise be liable
under any indirect damages caused by defects in the repair or replacement thereof.
This warranty only extends to commercial and industrial purchasers and does not extend to any others, in-
cluding consumer customers of commercial institutional purchasers. This warranty is in lieu of all other war-
ranties, expressed or implied, including implied warranty of merchantability or tness for a particular purpose
or otherwise.
Warranty
www.DOGIPOT.com www.DOGIPARK.com
2100 Principal Row • Suite 405 • Orlando, Florida 32837
407.888.4627 • Fax: [phone] • 800.364.7681
