Aquatronica ACQ450 User manual

Instruction Manual
Cod. ACQ450
3 DOSING PUMP

2 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Index
• Information .................................................................................... Page 3
• Information on safety...................................................................... Page 4
•Pack contents.................................................................................. Page 5
•Connecting the dosing pumps.......................................................... Page 6
•Main Screen Page ............................................................................ Page 7
•Glossary of the icons ....................................................................... Page 7
•Main Menu....................................................................................... Page 8
Name Change................................................................................................. Page 8
Pump Selection .............................................................................................. Page 9
Manual Controls..................................................................................... Page 9
Timer Programme ................................................................................. Page 9
Calibration ............................................................................................ Page 10
Pump Working:Yes / Pump Working:No ..................................................... Page 11
About ............................................................................................................ Page 11
•Certicate of Guarantee .................................................................. Page 11
•Declaration of Conformity................................................................ Page 12
•Technical Data................................................................................. Page 13
TO VERIFY ON INTERNET THE PRESENCE OF EVENTUAL MODERNIZATIONS TO
THE PRESENT MANUAL.

3 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
It is forbidden to reproduce, transfer, distribute or store in any form any part of this
manual without AQUATRONICA‘s written authorization.
The information in this manual can be changed at any time and without notice at AQUA-
TRONICA‘s discretion.
Any such changes will be made in the subsequent editions of this manual.
AQUATRONICA reserves the right to modify and improve any of the products described
in this manual without prior notice.
Please read this manual through carefully before using the “DOSING PUMP”
system.
DISPOSING OF THE ELECTRICAL AND ELECTRONIC COMPONENTS
In accordance with art. 13 of Law Decree no. 151 of 25 July 2005, “Implementation of
the Directives 2002/95/CE, 2002/96/CE and 2003/108/CE, concerning the
reduction of the use of dangerous substances in electrical and electronic equi-
pment and waste disposal ”
The symbol of the crossed waste bin on the equipment means that at the end of the
equipment’s useful life it must be collected separately from other waste.
To this end, the user shall take the equipment, at the end of its life, to a centre that col-
lects electronic and electrotechnical equipment for recycling or hand it over to the retailer
when he buys a new similar piece of equipment, at the rate of one to one.
Collecting equipment that is no longer used, so that it can be recycled, treated and dispo-
sed of in an environment-friendly manner, all helps avoid any and all possible negative
impact on the environment and on people’s health and also contributes to recycling the
materials it is made of.
If the user disposes of the product improperly, he is liable to pay an administrative ne
in accordance with Law Decree no. 22/1997 (art. 50 and subsequent articles of Law
Decree no. 22/1997).

4 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Information on safety
Use the product only for the purpose it has been designed for; any other use not
provided for in this manual can cause irreparable damage to the control unit.
Do not attempt to disassemble the product, as it contains no parts that can be
repaired by the user.
Repairs must only be done at authorised centres by skilled personnel. The
company is not liable for any damage to things or harm to people if the control
unit is tampered with.
Only original AQUATRONICA parts should be connected to the control unit or
those it approves. lf accessories are used that are not approved, it could lead to
damage, re, electric shocks or injury to people. The company is not liable for
any damage to things or harm to people if the control unit is tampered with.
The product must be out of the reach of children to avoid the danger of electric
shocks. The guarantee does not cover failures caused by the use of unapproved
material.
The product is not waterproof, so it must not be put in direct contact with
liquids.
Do not use ammable liquids to clean it, as they could come into contact with
the electrical parts and cause a re.
If the product malfunctions, there is an emergency function to use.
To start this function, please read the “Connecting the Dosing Pumps”
paragraph.
ENGLISH

5 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Pack Contents
You will nd:
1) No. 1 dosing pump
2) No. 1 12V power supply with universal points
3) No. 1 instruction manual
4) No. 1 graduated container
5) No. 1 BUS lead
1
3
5
4
ENGLISH
2

6 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]

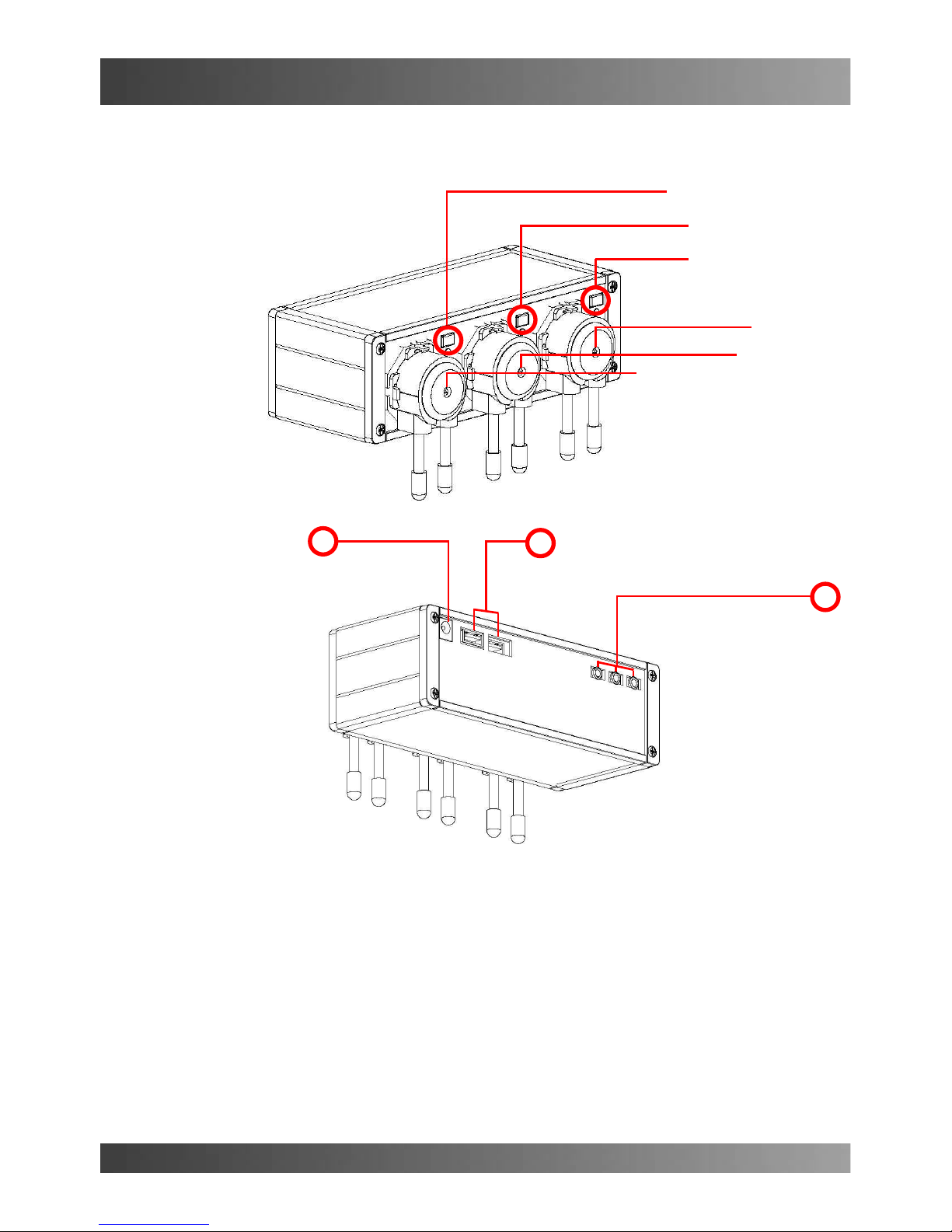

Connecting the Dosing Pumps
1) Connector for connecting the dosing pumps to the supply point (12Volt).
2) BUS sockets for connecting to the Aquarium controller and to other sensors.
3) Jack for connecting accessories (max 3) to the dosing pumps at a future date.
CONNECTING THE SENSORS TO THE PUMPS
Pump A Pump B
Pump C
3
2
1
Push button A
Push button B
Push button C
ENGLISH

7 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]

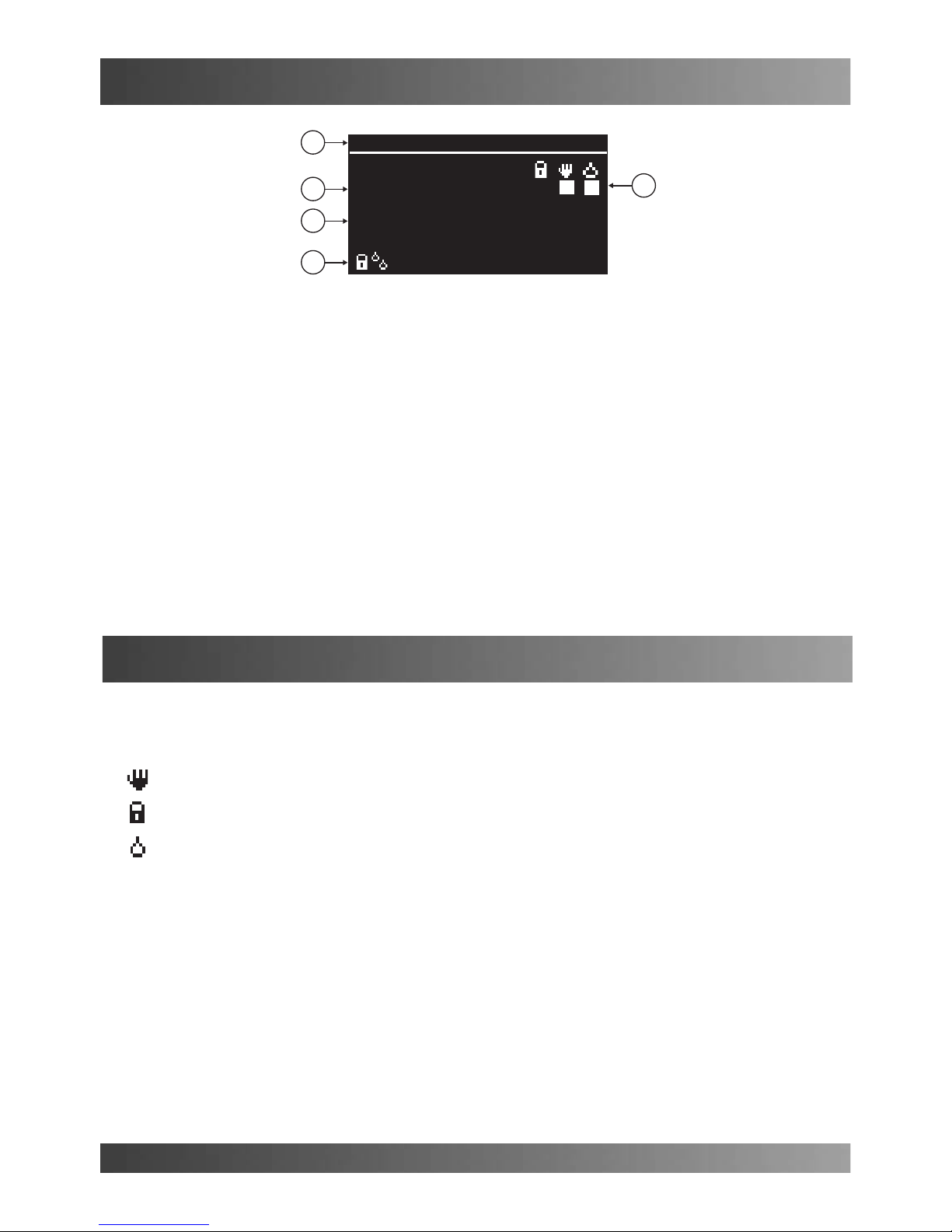

Main screen page
1) DAY/DATE display line (Day - Month - Year) / TIME.
2) Icon display line.
3) Pump module display line (PD = Dosing pump module, 01 = Number of pump modules con-
nected).
4) Connected accessories display line.
Mon 21/08/06 15:05
Temperature 27.2°C
1
32
4
5
Glossary of the icons
Icons that can be seen on the display.
Icon Description
Pump in the manual dosing mode
Pump not working
It means a programme is active on the pump selected
PD01 1 2 3
ENGLISH

8 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Main Menu
By connecting one or more Dosing Pump Modules to
the power unit (Max 4), the Aquatronica controller au-
tomatically recognises the accessory without the user
having to do a thing (Fig.1).
For any pump settings, proceed as follows (Fig.2):
Main screen page Main menu  Dosing Pumps
Select one of the dosing pumps shown (option
possible only if there are several modules con-
nected, see Fig.3).
Once you have dened the pump module you wish to
work with (Fig.3), click “Enter”; you access the rela-
tive menu (Fig.4) where the following operations are
allowed:
Name Change (Fig. 4)
This option allows to change the name of the dosing
pump module or the name of each single pump of the
module connected to the controller.
To change the name of the dosing pump module, pro-
ceed as follows:
•Select the “Name Change” menu with the  keys
and press “Enter”.
•Select the letter to insert with the  keys and use
the  keys to move around inside the word (ex. Fig.
5); press “Enter” at the end.
To change the name of a single dosing pump module,
proceed as follows:
•Select the “Pump Selection” menu with the 
keys and press “Enter”.
•Select the letter to insert with the  keys and use
the  keys to move around inside the word (ex. Fig.
5); press “Enter” at the end.
Main Menu
Settings
Dosing pumps
Module 1
Module 1
(Fig. 4)
(Fig. 3)
(Fig. 2)
Power Unit
Function keys
Module 2
Module 4
Module 3
Name Change
Pump Selection
About
Agenda
New Dosing device connected
01
(Fig. 1)
Dosing pumps
Dosing pumps
(Fig. 5 )
Dosing_
ENGLISH

9 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Dosing pump menu
Select pump (Fig.6)
Use this function to select the pump on which to acti-
vate the following operating modes:
- Manual Controls- it lets you instantly set the quan-
tity of liquid set (Fig.8); proceed as follows to set this
function:
Main screen page  Main menu Dosing Pumps
Select one of the dosing pump modules shown
Select pump Select the dosing pump wanted
 Manual controls Enter the quantity of pro-
duct to dispense.
- Timer Programme - it lets you carry out one or
more automatic dosing programmes using one of the
following modes:
- Single - it lets you dose the quantity of product
wanted (expressed in millilitres) within a period of
settable time and at a certain time the user himself
can dene (Date and Hour).
Example 1
The example in Fig.9 shows pump programming
allowing to dose 50 ml of Iodine in a period of time of
one hour and 10 minutes starting from 14:55 of the
day 03/07/06.
- Repetitive - It lets you dose the quantity of product
wanted (expressed in millilitres) within a period of
settable time that will be repeated at regular intervals
and set by the user himself.
Example 2
The example in Fig.10 shows pump programming
allowing to dose 50 ml of Iodine in a period of time of
one hour and 10 minutes starting at 14:55 of the day
03/07/06 and repeated every 20 days.
(Fig. 6)
(Fig. 7)
(Fig. 8)
Select pump
01: Iodine
02: Calcium
03: Plankton
Iodine
Programme Timer
Calibration
Manual Controls
Manual controls
Millilitres 50
(Fig. 9)
Iodine
Millilitres: 50
Time: 1h10m
Hour: 14:55
Date: 03/07/06
Single
Pump Working: Yes
ENGLISH

10 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Pump Selection menu
- Weekly -It lets you dose the quantity of product
wanted (expressed in millilitres) within a settable pe-
riod of time (period) and at the hour set and only for
the days of the week set (Date and Time).
Example 3
The example in Fig.11 shows pump programming al-
lowing to dose 50 ml of Iodine at 14:55 and repeated
every day of the week.
- Calibration - it lets you calibrate each single pump
so as to achieve a dosage that is as accurate as
possible.
The pump calibration procedure is the following:
1) Take the graduated container supplied.
2) By means of the button related to the pump you
wish to calibrate, make sure the pipes are full of liquid
and completely free of air.
3) Access the calibration screen page of the pump
wanted.
4) Set the amount of liquid for pump calibration: The
menu automatically displays as default a calibration
quantity of 40 ml; you can change this quantity if you
want a different one (see g. 12).
Note: For accurate pump calibration, we suggest
using as much liquid as possible (40-50 ml) to
minimise any parallax errors or if the push but-
ton is not pressed properly.
5) Press the push button on the pump (more than
once if necessary), until the graduated container is
lled with the preset amount of liquid.
6) Now press Enter on the controller.
The pump is now calibrated and ready for program-
ming to suit your needs.
(Fig. 11)
Iodio
Millilitres: 50
Period: 1h10m
Hour: 14:55
Mo Tu We Th Fr Sa Su
Weekly
(Fig. 12)
Press the push button on
the pump and ll up with the
known quantity. At the end,
press Enter to save or ESC to
exit
Millilitres 40
(Fig. 10)
Iodine
Millilitres: 50
Period: 1h10m
Hour: 14:55
Date: 03/07/06
Every: 20 Days
Repetitive

11 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
- Pump Working: Yes/Pump Working: No - it lets you enable or disable the pump
selected by simply pressing the  keys.
When the pump is disabled, an icon of a padlock appears on the pump (see the icon
glossary).
If a programme is being executed, it stops immediately and the ongoing dosing process
stops as well; in addition, if the pump shuts down, any programmes that may have been
set will not be nished until the pump selected is reset.
About
This function allows to have access to information about the control unit Firmware ver-
sion.
To use this function, proceed as follows:
Main screen page Main Menu Dosing Pumps About.
Certicate of guarantee
Pump Selection Menu
Dear Customer,
Thank you for choosing AQUATRONICA and buying this product. At AQUATRONICA, all products are put through
very strict quality tests but if, despite these tests, your product malfunctions please report it to your retailer/manu-
facturer straight away, so the necessary checks and work can be done.
- General guarantee rules
AQUATRONICA guarantees that this product is in perfect working order and free from manufacturing defects. If
faults are found during the guarantee period, AQUATRONICA will repair or replace the part(s) as the case may be.
Any parts that require changing will be changed free the AQUATRONICA works with shipping expenses at the con-
signee’s expense. For accessories and components not manufactured by AQUATRONICA, only the guarantees of the
relative manufacturers are valid. This guarantee is the only one given by AQUATRONICA, all others being excluded.
AQUATRONICA is in no way liable, except in the cases of fraud or grave offence, for harm to people or damage to
things caused by a malfunctioning product.
This guarantee is valid only if payments are in order.
- Conditions
The guarantee is valid for a period of 24 months from the date of purchase and only upon presentation of this
certicate which must include the shop keeper’s stamp, the date of sale and the product’s serial number, together with
the invoice or receipt issued by the shop keeper and on which the serial numbers are given of the products installed.
Without this information, the end customer is covered by a guarantee of 24 months starting from the date prin-
ted on the back of the product. AQUATRONICA can refuse to acknowledge the guarantee if this information is
incomplete or has been tampered with after purchase. The guarantee will be valid only if, at the time of purchase, the
product has been stored properly and is completely intact inside its packaging prepared by AQUATRONICA, which
is the only one that can ensure the source and provide adequate protection.
- The following are not covered by the guarantee:
a) periodical checks, maintenance, repairs or the replacing of parts worn by normal deterioration;
b) malfunctioning due to negligence, bad installation, improper use or that does not conform to the technical in-
structions given and, in general, all malfunctions that cannot be put down to manufacturing defects and, as such, the
responsibility of AQUATRONICA;
c) products that have been altered, repaired, replaced, mounted or in any way tampered with by someone without
written permission from AQUATRONICA;
d) accidents, originating from causes of force majeur or other causes (for example water, re, lightning, bad aeration,
etc.) not caused by AQUATRONICA.
No one must sell or install products that have easily recognisable manufacturing defects. The Court of
Reggio Emilia shall have exclusive jurisdiction for settling any disputes as to the construction and exe-
cution of this guarantee.
Product code:
Serial number:
Date of purchase:
Shop keeper’s stamp
Day Month Year
ENGLISH

12 - 14 IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Declaration of Conformity
DECLARATION OF CONFORMITY
Standard of reference ISO/IEC Guide 22 and EN 45014
Number of conformity: 003-2006
Name of the manufacturer:Aquatronica division of A.E.B. srl
Address: via dell’Industria, 20
Corte Tegge
42025 Cavriago (RE) Italy
DECLARES THAT THE ELECTRONIC UNITS
Code: ACQ012 (6 shuko plugs + I/O)
ACQ012 AUS (6 australian plugs + I/O)
ACQ012 F (6 french plugs + I/O)
ACQ012 UK (6 english plugs + I/O)
ACQ012 ZA (6 South Africa plugs + I/O)
ACQ013 (4 shuko plugs + 4 F plugs + I/O)
ACQ013 CH (8 swiss plugs + I/O)
ACQ220 (PC interface)
ACQ200 (I/O interface)
ACQ210-RX (REDOX sonde interface)
ACQ210-PH (PH sonde interface)
ACQ210-TL (temperature and level sonde interface)
ACQ210-MS (conducibility sonde interface)
ACQ210-D (density sonde interface)
ACQ450 (dosing pump 4 modules)
ARE IN COMPLIANCE WITH THE FOLLOWING PRODUCT
SPECIFICATIONS:
FIELD Directive Description References Test
Result
EMC 89/336/EEC EMC directive Official Journal of the
European Union L139
May 23 1989
applied
LVD 73/23/EEC Low voltage
directive
Official Journal of the
European Union L077
March 26 1973
applied
THEREFORE THEY ARE IN COMPLIANCE WITH THE REQUISITES OF
THE CE MARK
The equipment was checked in a typical working configuration
Place of issue: Cavriago (RE) Italy Date of issue: 05/23/06
The A.E.B. srl legal representative
Paterlini Ivan
ENGLISH

13 - 14
IsACQ450-2 Rev. 300507-2
Via dell’Industria, 20 - 42025 Cavriago (RE) Italy Tel.: [phone]
Fax: [phone] http:\\www.aquatronica.com E-mail: [email protected]
Technical Data
ENGLISH
-+
Dosing Pump
Input Voltage 12VDC
Current Used 250 mA
Measurements L.162 x W.91 x H.53 mm

Una divisione di A.E.B. S.r.l.
v. dell’Industria, 20
42025 Cavriago (RE) - ITALY
Tel. [phone]
Fax [phone]
http://www.aquatronica.com
E-mail: [email protected]
