Operating Instructions

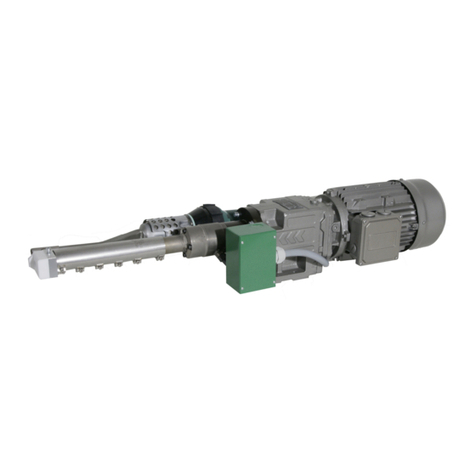

DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 20
We retain all copyrights of all descriptions, dra ings and schedules contained in these
operating instructions hich may not be reproduced nor be made accessible by third parties
or by competitors, neither in hole nor in part, unless e have expressly consented thereto.
Before start-up these operating instructions must be examined carefully because e ill not
assume any liability for any failures resulting from improper use. No arranty claims ill be
accepted if the hand-held elding and extruding machine has been modified unless this has
been done in consultation ith the manufacturer/ supplier.
The extruder shall be used for extrusion weld works only !
These operating instructions should always be accessible by the operator.
For after-sales service and orders please contact:
DOHLE Extrusionstechnik GmbH
Eitorfer Strasse 1
D-53809 Ruppichteroth
Telephone: [phone] – 902960
Telefax: (+49) 02295 – 902961
E-Mail: [e-mail]
.dohle-extruder.de
english
Content
1. Description of Type 21
2. Safety 21
3. Start-up 23
4. Error tracing 26
5. Dra ings, Informations 27

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 21
1. Type
Art.-no/Type of machine : DX315 ExOn7 3x400V
Machine no. : .........
Required voltage : 400 V / 50 – 60 Hz
Heating unit for extruder : 1200 W
Heating unit for air : 3300 W
Extruder drive unit : 1500 W-400V
2. Safety
Pursuant to sec. 55 of VDE 0 100 (Regulations of the Association of German
Electrotechnical Engineers), the extruder must be operated using a protective s itch or an
isolation transformer.
Keep extruder dry.
Operating hand-held elding and extruding machines is subject to applicable national
regulations. Observe applicable regulations for the prevention of accidents as ell as
technical rules for safe and professional operation.
Directive 92 / 57 / EWG dated June 24, 1992, shall be applicable by analogy.
Utilisation:
Hand-held elding and extruding machines are manufactured according to the latest state of
the art and in compliance ith safety requirements.
Any improper use may result in dangers for the operator or third parties or may adversely
affect machines and assets.
Only use hand-held elding and extruding machines if in technically perfect condition and for
the purposes for hich they are intended hile observing the operating instructions.
The manufacturer / supplier ill not accept any liability for any failure to comply ith the
above or for damages resulting therefrom.
Any utilisation of the hand-held elding and extruding machine for other purposes than those
for hich it is intended is subject to the consent of the manufacturer / supplier.
Work on electrical parts of the hand-held elding and extruding machines may only be
performed by an electrical engineer in compliance ith electro-technical rules.
Special risks:
All hand-held elding and extruding machines may only be held and operated using the
handles provided for this purpose.
A risk of burning exists on all uncovered metal parts. Avoid contact ith these parts
because they may achieve temperatures of up to 350 °C.

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 22
Safety area:
The hot air stream of the hand-held elding and extruding machine may not be directed to
temperature-sensitive objects or living things. Ensure that a safety distance of 2 m is
observed in all directions.
Operation:
Never use hand-held elding and extruding machines ithout air supply. In case of external
air supply ensure that the feed line is of sufficient size.
The pressurised air that is supplied must be free of oil and ater.
Safety:
Check for correct nominal voltage before connecting the hand-held elding and extruding
machine to the mains voltage.
Mains voltage must be identical to the nominal voltage sho n on the type plate of the hand-
held elding and extruding machine.
Pursuant to sec. 55 of VDE 0 100 the hand-held elding and extruding machine must be
operated using a protective s itch or an isolation transformer.
Extension cords:
When using extension cords the minimum diameter of cables must be observed.
Length up to 18 m: diameter 2.5 mm²
Length up to 50 m: diameter 4.0 mm²
Extension cords must be approved and marked for their place of utilisation.
Stop operating the hand-held welding and extruding machine if:
- connecting line or plug have been damaged
- safety installations have been damaged
- foreign objects or liquids have entered the hand-held elding and extruding machine
- changes occur in the operating state
Never spray water on hand-held welding and extruding machines
(risk of short circuit)
Never use hand-held elding and extruding machines in hazardous or inflammable areas.

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 23
3. Start-up
General:
Observe the notes on safety contained in these operating instructions. In addition, the
regulations on the prevention of accidents and the national regulations shall apply.
Assembling the hand-held welding and extruding machine
When dispatched, our hand-held elding and extruding machines are almost completely
assembled.
What remains to be done is to scre the enclosed handle to the machine.
For machines ith external air supply the air supply hose must be connected.
Ensure sufficient supply ith air hich is free of oil and ater (min. 300 l/min).
We recommend our air compressor, item no. DX 011. Connect extruder ith control box.
Weld shoe
The machine is supplied ith t o eld shoes blank hich can be machined to suit your
requirements.
Note: please observe guideline DVS 2207 part 4.
If you indicate your required form of seam and thickness of plates e ill supply t o eld
shoes machined ready for use.
Start-up of hand-held welding and extruding machine
Observe the section concerning safety of these operating instructions.
Hand-held elding and extruding machines may not be used ithout air supply. This ould
inevitably result in damages of the extruder.
Before connecting the extruder to the mains supply please check that
- the On/Off s itch of the heating unit is in OFF position
- air supply is connected correctly
- the driving machine has not been put to permanent operation
- no s itch on air supply
- and put plug into socket.
All our hand-held welding and extruding machines are provided with patented mass
measurement (the thermoelement is installed directly in the melting unit, between
worm and die) and with cold start protection.
No put the On/Off s itch of the heating unit into ON position. The machine ill heat up to
the last selected temperature value. For information on ho to modify the desired
temperature value please refer to the section on the adjustment of the controlling unit.

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 24
Display and control elements of front part of control unit
Controller – desired value setting
All controllers can be changed only in the desired value and are electrnically locked against
rong inputs.
Change the desired value
The controller indicates actual and desired value temperature at the same time. To change
the desired value temperature proceed as follo s:
Desired value temperatur
Up ard - key
Downward
-
key
By every press of this key, the value
becomes smaller, hich is indicated
on the desired value display. If this
key is kept constantly pressed, then
the value is sequentially becomes
smaller.
Upwar
d
-
key
By every press of this key, the
value increases, hich is indicated
on the desired value display. If this
key is kept constantly pressed,
then the value sequentially
becomes higher.
Actual value temperature
tettempevalue
temperatur
Do n ard - key
AL (Alarm)
Shines if the alarm
exit is on
Temperatur
e unit
Do not press these keys.

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 25
Changing the welding filler
Heat up the hand-held elding and extruding machine until operating temperature is reached
to ensure that no elding filler is present in the machine, remove the eld shoe and
exchange the die (caution, left-handed thread) by a ne one or by a die used ith the
material to be applied no .
Caution: Risk of burning when working on the heated machine
After removing the old die and before placing the ne one run the machine for approx. 1 min.
on ne Welding filler.
Interruption of welding operations
Never leave the hand-held elding and extruding machine unattended.
Air supply may not be broken.
Caution: When processing PVC or PVDF, hand-held elding and extruding machines may
not be stopped for more than 3 min.
In such a case or if elding operations are completed a cleaning run must be performed on
the machine for about 2 min. using PE or PP elding filler.
Switching-off the hand-held welding and extruding machine
Place hand-held elding and extruding machine onto the support stand included in the
scope of supply.
Put the On/Off s itch into OFF position and pull the plug after about 2 min.
Caution: Even after 15 minutes there is still a risk of burning present on uncovered
metal parts.
Never use ater or other substances to speed up the cooling process.
Maintenance
Al ays disconnect the machine from po er supply before performing any maintenance ork.
Maintenance ork may only be performed by skilled electricians.
Observe section on safety contained in these operating instructions!
Inspection
After an operating time of about 500 hours the hand-held elding and extruding machine and
the drive unit must be cleaned, re-filled ith ne grease and tested.
This ork may only be performed by skilled electricians.
Drive unit
Check carbon brushes of the drive unit approximately every 100 operating hours and replace
them, if necessary.
Thrust bearing extrusion worm
It is recommended to clean thrust bearing and extrusion orm and to re-grease the bearing
approximately every 200 operating hours.

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 26
4. Error tracing
Malfunctioning Error– No.
Driving motor does not start 01,02,04,05,06,07,08,09,10,11,12
Driving motor s itches off 03,04,05,06,07,08,09,10
Extruder remains cold 04,05,06,07,08,09,15,17
Hot air remains cold 05,07,08,09,12
Hot air temperature is under 11,13
desired value
Extrusion temperature is under 11
desired value
Extruder does not deliver extruded 11
material from the die
Display does not light up 01
Display sho s: S . e r r 15
Display not constant 17
Display sho s direction of action: - 18
Error-No. possible cause Elimination of error
01 No po er supply Provide po er supply
02 Incorrect mains voltage Have checked by skilled technician
03 Extension cord becomes hot Check cable diameter
Run out cable completely from reel
04 Thermoelement for mass defective Exchange thermoelement
05 Thermoelement for air defective Exchange thermoelement
06 Temperature control unit for mass
defective
Exchange temperature control unit
07 Temperature control unit for air defective Exchange temperature control unit
08 On/Off s itch for heating units in OFF
position
Put s itch to ON position
09 Defect on cable connections Have checked by skilled technician
10 Carbon brushes of drive motor orn Replace by ne carbon brushes
11 Pre-heating time too short Heat up extruder
12 External air supply not connected Connect external air supply
13
Air flo t
oo high hen using external air
supply
Reduce to prescribed quantity
15 Breakage of monitoring thermoelement Replace thermoelement
16 Unsuccessful attempt to change a
blocked parameter
Blockage can only be removed by a
skilled technician
17 Thermoelement failure or loose
connections
Check thermoelement
Check connections
18 Sensor incorrectly connected,
+ and – mistaken
Check connections

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 27
5 Drawings, Informations
DX315 ExOn7 3x400V
D - 0642
D - 0160
D - 0710
D-0560
D - 2194
D - 2370
D - 0864
D - 1432
D - 1424D - 2194
D - 1861
D - 1862
D - 1008
D - 1013
D - 1429
D - 1428
D - 0378
D - 1058
D - 1016
D - 0743
D - 1516
D - 0250
D - 0233
D - 0163

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 28
Article-No Description Qty
D - 0126 scre M5x10 DIN912 2
D - 0160 scre M6x10 2
D - 0163 deep groove ball thrust bearing 1
D - 0170 disc 8,4 DIN 125-A 4
D - 0233 orm type 5000 1
D - 0250 Extension burner pipe 30mm 1
D - 0378 die 5000 1
D - 0386 threaded stud 2
D - 0484 scre M8x25 DIN912 4
D - 0642 elbo scre ed plug WES 10/R3/8 1
D - 0710 scre M6x65 DIN912 3
D - 0743 scre M8x35 DIN 912 4
D - 0864 scre 2.9x6.5 DIN 7981 4
D - 1008 cylinder draft 5007-400V complete 1
D - 1013 connecting box 5007-6007 1
D - 1016 sre M6x55 DIN 912 6
D - 1017 ULS scre M4x10 4
D - 1058 Eron SSR 5007-6007 1
D - 1424 floor plate 1
D - 1428 adaptor shaft 5012-6012 1
D - 1429 flange 5012-6012 1
D - 1432 spur gear 1
D - 1516 strip heater ExOn5-6 1
D - 1861 thermoelement extruder ExOn5-6 1
D - 1862 blo pipe ExOn7-8 Eron 1
D - 2193 scre ed cable PG16 3
D - 2194 scre ed cable PG21 1
D - 2224 nut PG16 3
D - 2280 nut PG21 1

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 29
control box
2F1 2F2 2F3 3F13F22F4
D - 1087
D - 1090
D - 2193
D - 2062
D - 2340
D - 2334
D - 2286
D - 1091
D - 2196
D - 0502
D - 0505
D - 0326
D - 1017
D - 1092
D - 0131
DH 020
D - 1433

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 30
article-no description qty
D - 0131 scre M4x16 Ms 1
D - 0326 control box 5000-6000 1
D - 0502 front paneel 1
D - 0505 head control box 1
D - 1017 ULS scre M4x10 12
D - 1087 fuse automat B16A 1
D - 1088 fuse automat 2A 1
D - 1089 fuse 3pol Neozed 16A 1
D - 1090 fuse 1pol Neozed 16A 1
D - 1091 mounting case 1
D - 1092 bush insert 1
D - 1433 frequenzgenerator 1
D - 2012 s itch on-off 2-pol 1
D - 2062 solid state 1
D - 2082 s itch-heater 1
D - 2193 scre ed cable PG16 1
D - 2196 main s itch 1
D - 2224 nut PG16 1
D - 2286 potenziometer 47k 1
D - 2334 AIR temp controller 1
D - 2340 Melt temp controller 1
DH 020 emergency stop 1
HS 024 actuator frequency converter 1

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 31
Eron SSR, Art-Nr: D - 1058
5101270 6600613
6107591
6600645
5101776
6600614
6107592 6101242
6600616
5101760
6600602
6600601
6100444
6100284
6600622
6100268
6600611
D - 2177
D - 0519
D - 0704
6113695 6100287
6600612
6600607
6600622
6600606
6600616
D - 0129
D - 2049

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 32
article-no description qty
5101270 gasket 70x48x4 1
5101760 mica tube 47,6x95 1
5101776 heating element 230V/2200W 1
6100268 strain relief 1
6100284 countersunk scre M4x12 TX 3
6100287 hexagon nut M5 1
6100444 cord guard 9,6x75 1
6101242 connecting shackle 1
6107591 turbine 1
6107592 turbine 1
6113695 temperatur limit s itch 135°C 1
6600601 air filter 1
6600602 handle 1
6600606 motor 230V SL 1
6600607 carbon brush 2
6600611 PT fillister head scre M3x8 TX 2
6600612 rubber ring 1
6600613 turbine housing lo er part 1
6600614 stripper 1
6600616 countersunk scre M3x10 TX 6
6600622 fillister head scre M4x10 TX 5
6600645 turbine housing upper part ith hole1/4" 1
D - 0129 scre M4x10 DIN912 2
D - 0519 angle head SSR Eron 1
D - 0704 scre M3x8 2
D - 2048 Ölflex 2x0,5 1
D - 2063 supply cable 1
D - 2177 solid state relais 1

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 33

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 34

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 35

Operating Instructions
DOHLE Industrial Extruder DX315 ExOn7 3x400V
DOHLE Extrusionstechnik GmbH 36
Welding Shoes
a
s
s
s
s
X - weld
D-0174
D-0175
D-0177
D-0178
D-0179
D-0180
D-0181
D-0182
5-8
10-12
15
20
25
30
35
40
D-0183
D-0184
D-0185
D-0186
D-0187
D-0188
D-0189
D-0190
D-0191
5-8
10
15
20
25
30
35
40
12
D-0195
D-0196
D-0197
5-8
10-12
15
D-0600
D-0366
D-0337
Ø
20
15
Ø
Ø
D-0192
D-0193
D-0194
D-0599
25
30
35
40
D-0198
D-0199
D-0200
D-0201
D-0202
D-0203
D-0204
10
15
20
25
30
35
40
D-0223
D-0224
D-0225
D-0247
D-0248
D-0598
30 x 30 x 45
35
25
Ø
30 x 40 x 50
30 x 45 x 45
50 x 60 x 80
50 x 70 x 80
a = s x 0,7
s = thickness of material
fillet weld corner weld
V-seam
overlap weld
thickness of material order - no.
welding shoe, round
width of weld B
welding shoe - unshaped
please require for shoes for special application
size
thickness of material order - no.
thickness of material order - no.
thickness of material order - no.
order - no.
order - no.
order - no.
B
