Doka 586231000 User manual

© by Doka GmbH, A-3300 Amstetten
999265002 12/2017
en-GB
-
The Formwork Experts.
Dokamatic lifting strap
13.00m
Art.n°: 586231000, 586231500 | 2004 models onward
Original Operating Instructions
Please retain for future reference
© by Doka GmbH, A-3300 Amstetten

2999265002 - 12/2017
Original Operating Instructions Dokamatic lifting strap 13.00m

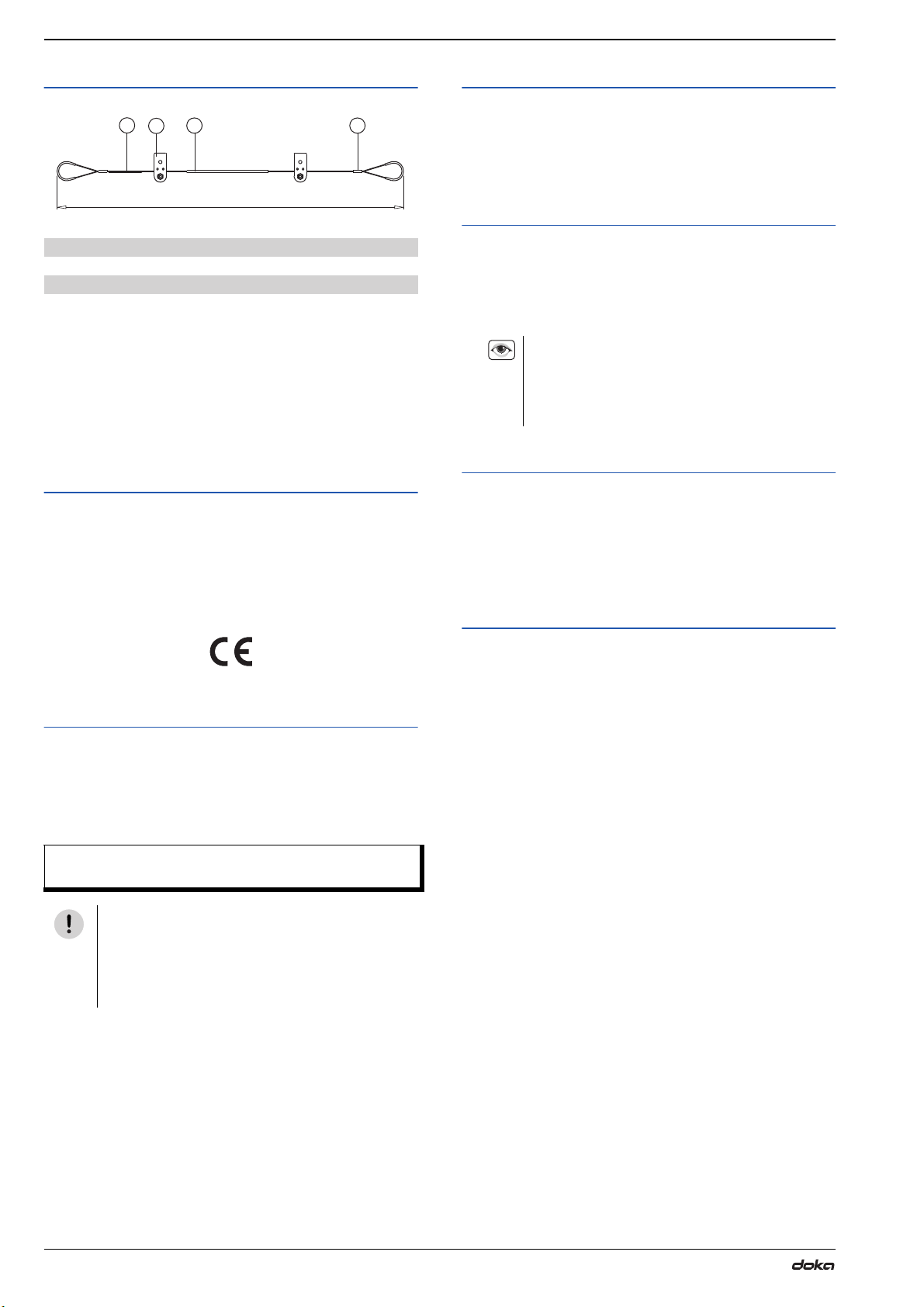

Basic drawings of product
a ... 13.00 m
▪ Strap shoes for safe lifting of stacked tableform
superstructures.
▪ Anti-dropout safeguard for strap shoes.
▪ Moveable, 8 m long protective sleeve makes it pos-
sible to lift in a horizontal position, and protects the
strap fabric.
Data on rating plate
Designation: Dokamatic lifting strap 13.00m, Doka-
matic lifting strap 13.00m SN
Art.n°: 586231000, 586231500
Dead weight: 10.5 kg (23.1 lbs)
Max. load: 2000 kg (4400 lbs)
Year of manufacture: see rating plate
Intended use
The Dokamatic lifting strap 13.00m is a lifting acces-
sory that is only suitable for lifting Doka tableforms and
stacked Doka panels.
2 Dokamatic lifting straps are needed for each unit to be
lifted.
Maintenance & inspection
▪ Repairs may only be carried out by the manufac-
turer!
▪ Doka accepts no liability for products that have been
altered!
Before every use
➤The lifting straps are equipped with a protective
sleeve that protects the actual lifting slings against
damage.
➤Inspect the protective sleeve and the lifting slings for
any signs of damage.
At regular intervals
▪ Inspection of lifting accessories must be performed
at regular intervals by an expert in conformity with
national statutory provisions.
Unless otherwise stipulated, such inspection must
be carried out at least once a year.
Storage
▪ Store lifting accessories in a dry and well ventilated
place, protected from the weather and from all corro-
sive substances.
ALifting sling
BStrap shoe
CProtective sleeve
DAnti-dropout safeguard for strap shoes
Max. load-bearing capacity:
2000 kg / Dokamatic lifting strap 13.00m
NOTICE
▪ It is forbidden to use the product for any-
thing but its designated purpose!
▪ It is forbidden to lift other manufacturers’
tableforms or panels with it.
C
BD
A
9265-201-01
a
▪ If any damage, of any kind, has occurred,
the entire Dokamatic lifting strap 13.00m
must be withdrawn from use.
▪ Rating plate must be in place and clearly
legible

Original Operating Instructions Dokamatic lifting strap 13.00m
3999265002 - 12/2017
Strap shoes
Depending on the usage situation, the strap shoes of
the lifting strap may need to be dismounted or
remounted.
Dismantling
➤Remove the linch pin.
➤Pull out the fixing pin.
Assembly
➤Remove the fixing pin and linch pin from each strap
shoe.
➤Mount the strap shoes onto the lifting sling, one after
the other, in the correct location.
➤Fix them in place with the fixing pin and linch pin.
General remarks
➤Observe the following points before lifting!
ALinch pin
BFixing pin
Fit the pin and linch pin back onto each strap
shoe, and store the strap shoes safely so that
they can be re-used.
CLifting sling
DStraight side
EElbowed plate
Make sure that the strap shoes are correctly
positioned on the lifting strap:
▪ The straight sides must be facing one
another.
▪ The elbowed plate must be facing
upwards.
WARNING
➤Strap shoes may only be mounted to original
Doka lifting slings (Dokamatic lifting strap
13.00m).
A B
9265-200-01
9265-200-02
D
E
C
NOTICE
▪ Suspend the load symmetrically (centre-of-
gravity position).
▪ The lifting sling must always be looped all
the way around the load.
▪ Make sure that the Lifting strap is carefully
and cleanly arranged!
▪ The table elements must be onloaded and
off-loaded, transported and stacked in such
a way that it is not possible for them to fall
off, slip, tip over or slide apart.
▪ Table elements may only be set down and
stacked on flat, firm surfaces.
▪ Spread-angle β of slinging chains: max.
30°.
▪ Do not detach a table element from the lift-
ing straps until it has been safely set down.
▪ Never climb onto the stack of table ele-
ments.
WARNING
➤Arranging the strap on one side only is
extremely dangerous and so is
FORBIDDEN!
9767-265-02
9265-205-01

4999265002 - 12/2017
Original Operating Instructions Dokamatic lifting strap 13.00m
Lifting of stacks
with strap shoes
To lift stacked tableform superstructures, the Doka-
matic lifting strap 13.00m is used with integrated
strap shoes.
▪ Dokamatic table
▪ Dokaflex table
Max. number of elements in stack:
➤Push the strap shoes of the Dokamatic lifting strap
onto the secondary beam, firmly and completely.
➤Mount the strap shoes of the second lifting strap in
the same way.
without strap shoes
To lift e.g. stacked Framax panels, the Dokamatic lift-
ing strap 13.00m is used without strap shoes.
▪ Framax panel
▪ Frami panel
▪ Formwork element FF20
▪ FF100 tec element
▪ Frame Xbright
NOTICE
Risk of damage to the bottom table if the Lifting
strap is used without strap shoes.
Dokamatic table 6 elements
Dokamatic S table 4 elements
Dokaflex table 5 elements
NOTICE
The strap shoes must always be mounted to
the 2nd secondary beam from the edge of the
element.
ADokamatic lifting strap 13.00m
BStrap shoe
Both strap shoes must be mounted to oppo-
site ends of the same formwork beam!
9767-281-01
9767-266-01
A
B
2
1
NOTICE
With custom tables, allowance must be made
for the following points:
▪ secondary beams may cantilever out further
▪ greater weight
▪ oblique pull of the lifting strap
Reinforce the secondary beams by e.g. nail-
ing on a strip of formwork sheeting.
WARNING
➤The Lifting straps 13.00 m may only be used
as shown here if there is no risk of the straps
sliding towards one another, or of the load
being displaced.
9767-349-01
9764-235-01

Original Operating Instructions Dokamatic lifting strap 13.00m
5999265002 - 12/2017
Lifting single tables
The integrated strap shoes are not pushed onto the
secondary beams. This makes it possible to operate
the Lifting strap 13.00m when working from ground
level.
The strap shoes can either remain on the strap, or be
detached from it as needed.
e ... approx. 1.0 cm
Declaration of Conformity
BStrap shoes
NOTICE
It is only allowed to lift one table at a time in
each crane cycle!
WARNING
Risk of intermediate props dropping out
when table is lifted
➤Intermediate props with a Supporting head
H20 DF, and props that are only secured
against tipping over, must be removed
before the table is lifted.
➤Intermediate props that are attached by an
Intermediate head DF and that are not dis-
mounted must be pulled in sufficiently far.
WARNING
➤"Passenger transportation" is forbidden!
➤Before repositioning the tableform, remove
any loose items (e.g. fitting-boards) from it.
➤Check the connections between the floor
props and the table before repositioning it.
9265-204-01
B
9767-265-01
NOTICE
Tables with pre-mounted edge strips or
covered in sheeting across entire width.
A nailed-on plank (approx. 15 x 5 x 60 cm) pre-
vents the lifting strap damaging or breaking off
the edge strip.
ADokamatic lifting strap 13.00m
CEdge strip
DPlank
EC Declaration of Conformity
pursuant to EC Directive 2006/42/EC.
The manufacturer declares that by reason of its conception and
design, the following product
Dokamatic lifting strap 13.00m, Art. n° 586231000
Dokamatic lifting strap 13.00m SN, Art. n° 586231500
conforms – in the version marketed by ourselves – to the pertinent
fundamental health and safety stipulations of the relevant EC Direc-
tives.
The following harmonised standards were applied:
▪ EN ISO 12100:2010
▪ EN ISO 12100-2:2009
▪ EN 349:1993+A1:2008
▪ EN 1492-1:2000+A1:2008
Person authorised to compile technical documentation
(pursuant to European Directive on Machinery Annex II):
Dipl.-Ing. Ludwig Pekarek
Josef Umdasch Platz 1
A-3300 Amstetten
Amstetten, 06/11/2017
Doka GmbH
Josef Umdasch Platz 1
A-3300 Amstetten
Ludwig Pekarek
Executive Manager
Dipl.-Ing. Peter Reisinger
Authorised Officer, Head of Engi-
neering
9767-280-01
