Dometic CU333 User manual

HOT AND COOKING
Built-in Hotplate, Ovens, Stoves, Minigrills, Hotplate-Sink
Combos for Recreational Vehicles and Marine.
Installation, use and service manual
CU311 - CU333 -
CU335 - CU311M -
CU333M - CU335M
FO311
MO8103 - MO8123
CU403 - CU403PE
CU402 - CU402PE
MO8302 -
MO8322 - MO8303
- MO8323
CU401 - CU401PE
PI7903 - PI7923
MO9503 - MO9523
VN555
PI0913 - PI0913A
PI8002 - PI8022 -
PI8003 - PI8023
PI8403 - PI8403GL -
PI8423 - PI8423GL -
PI8443 - PI8463
PI8621A - PI8621R -
PI8621S

© 2021 Dometic Group. The visual appearance of the contents of this manual is protected by
copyright and design law. The underlying technical design and the products contained herein may be
protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to
Dometic Sweden AB.
All rights are reserved.

CONTENTS EN
3
CONTENTS
1. GENERAL INFORMATION..................................................................4
1.1 Symbols used in this manual......................................................................... 4
1.2 Using and keeping the manual ..................................................................... 4
2. WARNINGS.....................................................................................5
3. INTENDED USE................................................................................5
4. USE................................................................................................6
4.1 Precautions ................................................................................................ 6
4.2 Control panel ............................................................................................. 7
4.3 Hotplate .................................................................................................... 8
4.3.1 Selecting the burner ..................................................................................................8
4.3.2 Electronic ignition hotplate (depending on model).........................................................8
4.3.3 Manual ignition hotplate.............................................................................................8
4.3.4 Hotplate flame regulation ..........................................................................................9
4.4 Oven......................................................................................................... 9
4.4.1 Electronic ignition oven ..............................................................................................9
4.4.2 Manual ignition oven .................................................................................................9
4.4.3 Oven flame regulation with thermostat.........................................................................9
4.5 Grill........................................................................................................... 10
4.5.1 Electronic ignition grill ...............................................................................................10
4.5.2 Manual ignition grill ................................................................................................... 10
4.5.3 Flame regulation grill .................................................................................................11
4.6 Electric hotplate (depending on model) ......................................................... 11
4.7 Spit (depending on model) .......................................................................... 11
4.8 Turntable (depending on model)................................................................... 11
4.9 Cleaning.................................................................................................... 11
4.10 Abnormal Operation ................................................................................... 12
5. INSTALLATION.................................................................................12
5.1 Dimensions of the appliance......................................................................... 12
5.2 Fitting cavity............................................................................................... 13
5.3 Gas connection .......................................................................................... 13
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to
ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all
applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself
and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines,
and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
www.dometic.com.

CONTENTS
EN
4
WARNING
WARNING
Risk of injury or death.
CAUTION
CAUTION
To avoid possible injuries and/or malfunctions.
1.2 Using and keeping the manual
WARNING
WARNING
Always read the instructions provided in full before installing and using this appliance.
The aim of this manual is to supply all the information necessary to ensure that, as well as being used
correctly, the appliance can be managed in the safest and most autonomous way possible.
Keep this manual and all the attached documentation in good condition, legible and complete in all its
parts; it is forbidden to remove, rewrite or modify the pages of the manual and their content in any way.
Keep the documentation near the appliance, in an accessible place known to all users.
The manual must always accompany the appliance even in the event of sale and must therefore be
handed over to the new user.
1. GENERAL INFORMATION
1.1 Symbols used in this manual
Below are shown the various symbols used in the manual to highlight particularly important information.
The safety symbols draw attention to potential hazards for personal safety.
Absolutely respect all safety messages by following these symbols.
5.4 Electric connection ..................................................................................... 15
5.5 Fixture....................................................................................................... 16
5.6 Testing (before leaving)................................................................................ 16
5.6.1 Test point..................................................................................................................17
5.7 Duplicate data plate .................................................................................... 17
6. SERVICING......................................................................................18
7. WARRANTY.....................................................................................21
FIGURES AND TECHNICAL DRAWINGS ........................................................22
WHO TO CONTACT ...................................................................................40

2. WARNINGS EN
5
2. WARNINGS
DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE APPLIANCE STORAGE DRAWER OR NEAR THIS
APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
DO NOT USE THIS APPLIANCE AS A SPACE HEATER.
This appliance shall be installed only by authorised persons and in accordance with the manufacturer’s
installation instructions, local gas fitting regulations, municipal building codes, electrical wiring
regulations, AS/NZS5601.2.2013 - Gas Installations and any other statutory regulations.
This appliance must be used only in a well ventilated environment. Do not obstruct the flow of combustion
and ventilation air.
This appliance is designed and manufactured for cooking food only. Any other use is considered improper
and incorrect creating hazardous conditions. The manufacturer declines all responsibility for damage to
things or injuries to persons caused by incorrect installation and / or incorrect and improper use.
If the appliance is to be left unused for any length of time, it is recommended that the gas supply be
turned off at the cylinder or main supply valve feeding the appliance.
3. INTENDED USE
This product is only suitable for the intended purpose and application in accordance with this instruction.
This manual provides information that is necessary for proper installation and/or operation of the product.
Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and
a possible failure.
All appliances except the CU..., FO... and VN555 models are suitable for use outdoors. If the appliance is
stowable ensure that it complies with all requirements for stowed appliances as found in AS/NZS 5601.2.
The manufacturer accepts no liability for any injury or damage to the product resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product specifications.

4. USE
EN
6
4. USE
4.1 Precautions
WARNING
WARNING
This appliance must not be used by persons (including children) who suffer from psychical
and motor related disorders or who are not familiar with or who have no experience with the
appliance unless under supervision or are being instructed on how to use the appliance by
the person responsible for their safety. Children must always be supervised to prevent them
from playing with the appliance.
WARNING
WARNING
The use of gas appliances generates heat and moisture in the immediate area. Always ensure
a good ventilation in the cooking area: keep all air vents open for natural ventilation or install
an extractor fan (cookerhood).
WARNING
WARNING
An intense and prolonged use of the appliance may require additional ventilation, for
example opening a window, or increasing the power of any mechanical extraction system.
WARNING
WARNING
Do not operate appliance during rain unless it has protection such as an awning. Always
ensure there is sufficient ventilation available when operating the appliance.
WARNING
This warning is affixed in a visible location on the hotplate glass lid. Glass hotplate lids may
shatter when heated. Always raise the lid before igniting a burner/s (hotplate, oven and grill)
and turn off all burners (hotplate, oven and grill) and let them cool down before lowering the
hotplate glass lid.
WARNING
WARNING
If appliance is installed outdoors and is stowable it shall be stowed away when no longer in
use to protect it from damage. Wait until appliance has cooled before stowing.
CAUTION
CAUTION
This appliance must only be used by responsible adults. During use and immediately after
use the burner and other accessible parts may be hot; do not touch these parts and always
keep children at a safe distance. After using the appliance ensure the knob/knobs are off.
After use always shut off the gas supply at the main gas tap.
CAUTION
CAUTION
Before cooking with the oven and grill for the first time turn on the oven or grill at high flame
and leave the oven on for at least 30 minutes and the grill for 15-20 minutes.
Before opening the glass cover of the hotplate, remove any liquids that may have spilled.
NOTE: To minimize corrosion and prolong the life of your appliance ensure that you clean the appliance
with a damp cloth and warm soapy water after it has been operated in areas close to salt water.
NOTE: High winds may negatively impact performance.

4. USE EN
7
4.2 Control panel
The following symbols identify which knob corresponds to which burner.
NOTE: Different models could have similar knobs and symbols.
This symbol is positioned near the burner knobs on the hotplate.
The black dot indicates the position of the burner on the hotplate.
This symbol is positioned near the oven burner knob.
GRILL
This symbol is positioned near the grill burner knob.
The following symbols are for burner flame regulation and correspond to the position of the knob.
NOTE: Different models could have similar knobs and symbols.
Gas off
High flame
Low flame
0Electric hotplate off
1 - 2 - 3 - 4 - 5 - 6 Oven and/or electric hotplate temperature
Grill
OTHER SYMBOLS
Electronic ignition pushbutton
CAUTION
This symbol is affixed in a clearly visible position near the oven
control knob for all models fitted with electronic ignition which is
activated by maintaining the control knob pressed.
Light switch
Spit switch
Turntable switch
In CU4... models it is also present as a turntable and light.

4. USE
EN
8

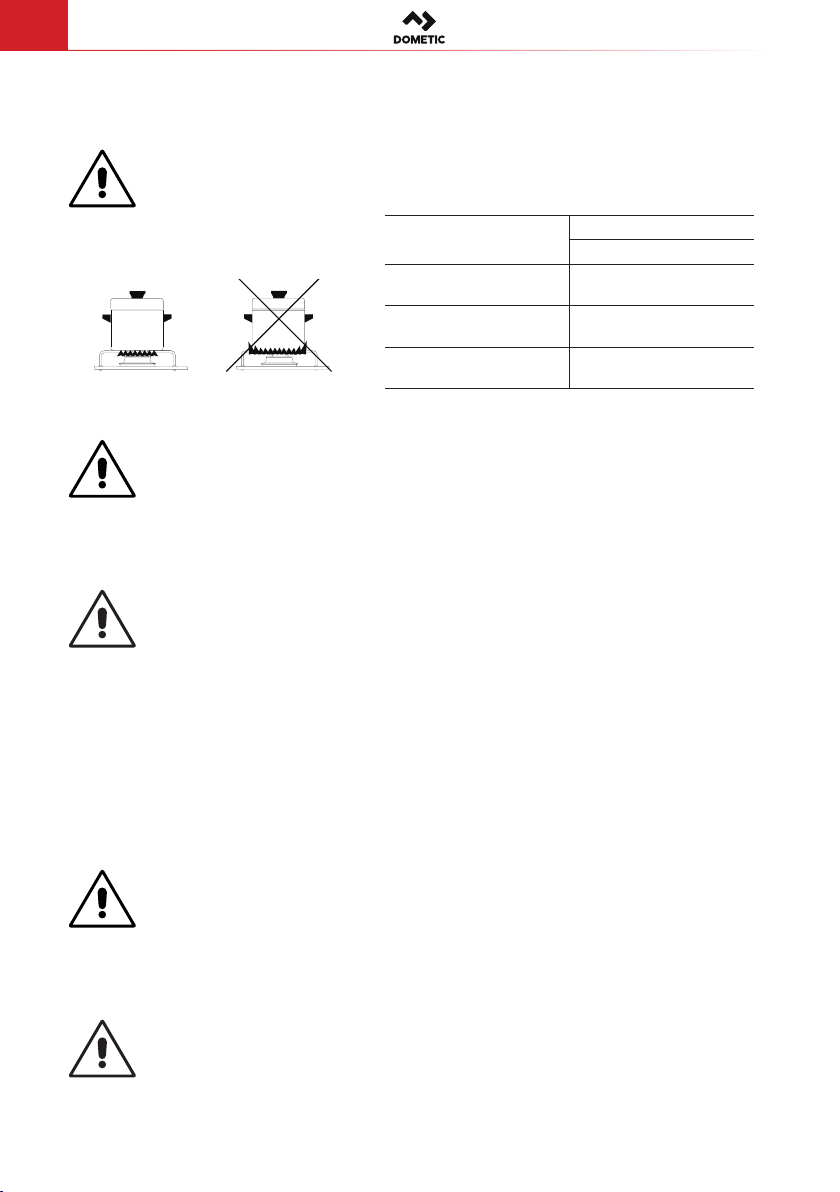

4.3 Hotplate
4.3.1 Selecting the burner
WARNING
WARNING
The flame must never extend beyond the edge of the pan. Centre the pan over the burner
ensuring stability on the pan support.
Burner Pan diameter
Min Max
Auxiliary
Ø 47 mm 6 cm 16 cm
Semi-rapid
Ø 62 mm 16 cm 22 cm
Rapid
Ø 77 mm 16 cm 22 cm
4.3.2 Electronic ignition hotplate (depending on model)
WARNING
WARNING
Make sure there are no pans or any other objects on the burners when igniting.
To ignite the burner, gently push in and turn the control knob to position HIGH FLAME and, keeping the
knob pushed in, at the same time press the electronic ignition pushbutton. Once the burner is lit, keep the
knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately repeat ignition after having followed each step
below:
• Turn the knob to “Low flame ”
• Proceed with manual ignition
• Check there is sufficient gas in the gas bottle.
If the appliance still does not ignite shut off the gas supply at the main gas tap and contact
your local dealer.
4.3.3 Manual ignition hotplate
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of
failure in the electronic ignition.
WARNING
WARNING
Make sure there are no pans or any other objects on the burners when igniting.
To ignite the burner, gently push in and turn the control knob to position HIGH FLAME and, keeping the
knob pushed in, at the same time light the burner with a match or gas lighter. Once the burner is lit, keep
the knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact
your local dealer.

4. USE EN
9
4.3.4 Hotplate flame regulation
To regulate the flame turn the knob to the desired cooking flame.
4.4 Oven
CAUTION
CAUTION
The oven burner must be ignited only with the oven door fully open.
WARNING
WARNING
The wire shelf, drip tray and oven dish when in the oven must be positioned so as to avoid
coming into contact with the flames.
If the burner flame goes out accidentally, turn off the gas knob and wait one minute before
re-igniting.
4.4.1 Electronic ignition oven
To ignite the burner, push in and turn the control knob to a position from 1 to 6 and, keeping the knob
pushed in, at the same time press the electronic ignition pushbutton (for models that have affixed
to the oven door the electronic ignition button is not visible and is activated by pressing the gas knob
down). Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately, repeat ignition after having followed each step
below:
• proceed with manual ignition
• check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact
your local dealer.
4.4.2 Manual ignition oven
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of
failure in the electronic ignition.
To ignite the burner, gently push in and turn the control knob to a position from 1 to 6 and, keeping the
knob pushed in, at the same time light the burner with a match or gas lighter. Once the burner is lit, keep
the knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact
your local dealer.
4.4.3 Oven flame regulation with thermostat
Positions 1 2 3 4 5 6
Temperature 130 °C 160 °C 180 °C 200 °C 220 °C 240 °C
When the oven burner is ignited the flame remains at high flame in all knob positions. When the oven
reaches the set temperature the flame automatically goes down to low flame.

4. USE
EN
10
4.5 Grill
CAUTION
CAUTION
The grill burner must be ignited only with the door fully open.
WARNING
WARNING
If the burner does not ignite immediately, release the knob, wait for at least 10 seconds and
ignite again.
As accessible parts may be very hot when using the grill, keep children at a safe distance
from grill.
When using the grill the door must be kept open and with the heat guard fully extracted (FIG.
1 – PG. 22).
Never use the grill for more than 25 minutes. The grill cannot be used as an oven.
If the burner flame goes out accidentally, turn off the gas knob and wait one minute before
re-igniting.
4.5.1 Electronic ignition grill
WARNING
WARNING
Do not ignite the grill burner with the door closed.
To ignite the burner, gently push in and turn the control knob to position GRILL or HIGH FLAME and,
keeping the knob pushed in, at the same time press the electronic ignition button (for models with the
symbol affixed to the door, the ignition button is not visible and is activated by pressing the knob down).
Once the burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately, repeat ignition after having followed each step
below:
• proceed with manual ignition
• check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact
your local dealer.
4.5.2 Manual ignition grill
Manual ignition when the appliance is not fitted with the electronic ignition feature or in the event of
failure in the electronic ignition.
To ignite the burner, gently push in and turn the control knob to position GRILL or HIGH FLAME and,
keeping the knob pushed in, at the same time light the burner with a match or gas lighter. Once the
burner is lit, keep the knob pushed in for a few seconds to ensure the flame remains lit.
CAUTION
CAUTION
If the burner does not ignite immediately, check there is sufficient gas in the gas bottle.
If the appliance still does not ignite, shut off the gas supply at the main gas tap and contact
your local dealer.

4. USE EN
11
4.5.3 Flame regulation grill
For models CU311 - CU311M - CU333 - CU333M - CU335 - CU335M - FO311:
the grill is to be used only at its maximum capacity.
For all other models:
to regulate flame, turn the knob to the desired cooking flame.
4.6 Electric hotplate (depending on model)
CAUTION
CAUTION
Before turning on the electric hotplate (or if the hotplate has remained unused for a long
time) it is necessary to eliminate any moisture by turning on the hotplate and leaving it on for
30 minutes with the corresponding knob in position 1.
Use pans with flat bottoms and with diameters no less than the diameter of the hotplate.
Dry the bottom of the pan before placing it on top of the hotplate.
When using the hotplate do not leave the appliance unattended and make sure children are
nowhere near the appliance.

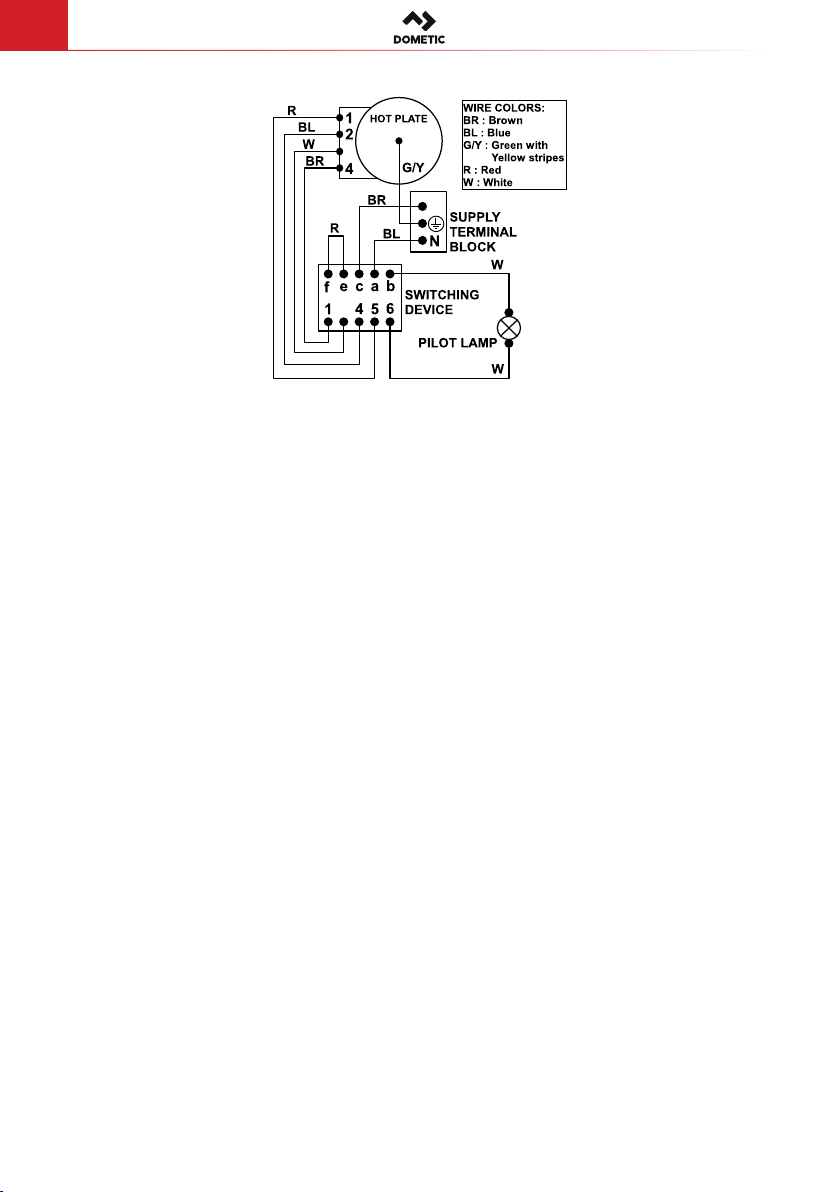

The electric hotplate is controlled by a 7-position knob: position off is 0 (zero) whereas positions 1 to 6
are for regulating the hotplate. Positions 1 to 6 correspond to an increase in temperature of the hotplate.
There is a red LED positioned next to the knob which lights up when the hotplate is on.
4.7 Spit (depending on model)
Ignite the oven as described in the chapter 3.4 Oven. Turn the gas knob to the required position. Insert
the drip tray with the spit already installed as illustrated in FIG. 2 - PG. 22. Press the spit button to turn on
the spit motor.
4.8 Turntable (depending on model)
Ignite the oven burner as indicated in chapter 3.4 Oven. Insert the turntable as indicated in FIG. 3 - PG. 22
Press the switch to operate the turntable motor.
4.9 Cleaning
No regular maintenance is required except cleaning.
WARNING
WARNING
Some cooking operations generate a considerable amount of grease. This, combined with
spillage, can became a hazard if allowed to accumulate on the appliance through lack of
cleaning.
CAUTION
CAUTION
Keep the appliance clean and in good working condition. To clean below the hotplate
burners, remove the burner cap screws using a suitable screwdriver. Once the screws are
removed, the burner cap and burner head can be removed to provide access below the
burner. Once cleaned, ensure the burner head and burner cap are refitted. It is recommended
to have it serviced annually by authorized personnel.

4. USE
EN
12
WARNING
WARNING
Before cleaning the appliance always turn it off and disconnect from power supply and wait
until it has cooled down.
WARNING
WARNING
Do not use alcohol or solvents to clean any part of appliance.
WARNING
WARNING
Never use abrasive and / or coarse cleaning materials or metal brushes to clean the glass
oven door as these materials scratch the glass surface with the risk of shattering the glass.
WARNING
WARNING
Never use steam cleaners to clean the appliance.
CAUTION
CAUTION
Hot surfaces may be damaged on contact with cold water or with a wet cloth. Do not use
abrasive, corrosive or chlorine-based products, pot scourers or steel wool. Do not leave
acid or alkaline substances (vinegar, salt, lemon juice, etc.) on the surfaces of the appliance.
Glasses, stainless steel surfaces and enamelled parts must be washed with water and neutral
soap or detergent, rinsed and dried. Use clean sponges and cloths.
CAUTION
CAUTION
Do not leave heavy spillover to bake on, as this will make cleaning more difficult.
CAUTION
CAUTION
The trivet (pan support) can be removed by carefully pulling the extended pins evenly out of
the plastic locaters in the hotplate. When replacing the trivet, ensure that the plastic guides
are not damaged.
4.10 Abnormal Operation
Gas valves, which are difficult to turn are considered to be abnormal operation and may require servicing.
In case the appliance fails to operate correctly, contact the authorised service provider in your area.
5. INSTALLATION
5.1 Dimensions of the appliance
The overall dimensions are illustrated in FIG. 5 - PG. 24 with the cavity diagrams.
The overall dimensions include the trivet (pan support), control knobs, handles and gas connection.

5. INSTALLATION EN
13
5.2 Fitting cavity
WARNING
WARNING
The appliance must fitted at an appropriate and safe distance from flammable materials.
WARNING
WARNING – For CU3… and FO311 models
The cavity that the appliance is built into must be completely sealed off. It is important that
the inside panels of the cavity are completely sealed and do not communicate with adjoining
cavities or the outside. The openings in the cavity that allow access to the gas and electric
connections should be sealed with rubber or foam.
The gas connection (1/4 BSPT female) is located at the rear for models CU..., FO... and for model VN555,
whereas it is on the bottom for models PI... and MO...
The electric connection is located at the rear for models CU..., FO... and for model VN555, whereas it
is on the bottom for models PI... and MO... (consult chapter 4.4 Electric connection to see whether the
appliance needs this connection).
Minimum allowable distances from walls (FIG. 4 - PG. 23)
100 mm From the external edge of the burner head nearest to the back wall (for CU4... and
PI80... models with glas lid).
200 mm From the external edge of the burner head nearest to a side and / or back wall.
500 mm Between the top part of the burners and cabinets and / or shelves fitted above the
hotplate (for all models except CU401).
550 mm Between the top part of the burners and cabinets and / or shelves fitted above the
hotplate (for CU401 model).
100 mm From the sides of the appliance and vertical walls.
170 mm From the top side to the cabinets and / or shelves fitted above the appliance.
Dimensions of fitting cavity
Cut out a hole in the cabinet as illustrated in FIG. 5 - PG. 24 size will depend on appliance model.
The cabinet must be appropriately constructed and aligned horizontally with the worktop and with the unit.
The cabinet aperture must be perfectly squared and aligned. If there are apertures for cabinet ventilation,
prevent flammable materials from entering these.
5.3 Gas connection
WARNING
WARNING
This appliance shall be installed only by authorised persons and in accordance with the
manufacturer’s installation instructions, local gas fitting regulations, municipal building
codes, electrical wiring regulations, AS/NZS5601.2.2013 - Gas Installations and any other
statutory regulations.
WARNING
WARNING
This appliance is not connected to a flue terminal which discharges the product of
combustion to the outside. Any enclosed space in which the appliance is installed must
therefore be provided with permanent ventilation in accordance with relevant federal and
state regulations in force, and the requirements of gas installations with particular attention
being paid to the matter of room ventilation.

5. INSTALLATION
EN
14
WARNING
WARNING
The appliance is not suitable for connection with a hose assembly.
WARNING
WARNING
A manual shut-off valve shall be provided on the inlet connection of the appliance. The valve
shall be accessible for operation and firmly fixed.
Below are the gas characteristics for which the appliance is set (given also on the appliance data plate). A
pressure reducer suitable for the type of gas used must be connected between the gas cylinder and the
appliance:
GAS PRESSURE OUTPUT OF THE REGULATOR
UNIVERSAL LPG 2,75 kPa 2,5kg/h
NOMINAL GAS CONSUMPTION
Model
AUXILIARY
Ø 47 mm
SEMI-RAPID
Ø 62 mm
RAPID
Ø 77 mm Grill Oven
TOTAL
NOMINAL GAS
CONSUMPTION
№MJ/h №MJ/h №MJ/h №MJ/h №MJ/h MJ/h
CU311 2 3.8 2 5.9 1 5.2 1 3.8 24.6
CU311M 2 3.8 2 5.9 1 5.2 1 3.8 24.6
CU333 1 3.8 1 5.9 1 5.2 1 3.8 14.9
CU333M 1 3.8 1 5.9 1 5.2 1 3.8 14.9
CU335 1 3.8 2 5.9 1 5.2 1 3.8 20.8
CU335M 1 3.8 2 5.9 1 5.2 1 3.8 20.8
CU401 1 3.8 3 5.9 1 5.2 1 3.8 30.5
CU401PE 1 3.8 2 5.9 1 5.2 1 3.8 24.6
CU402 1 3.8 3 5.9 1 5.2 26.7
CU402PE 1 3.8 2 5.9 1 5.2 20.8
CU403 1 3.8 3 5.9 21.5
CU403PE 1 3.8 2 5.9 15.6
FO311 1 5.2 1 3.8 5.2
MO8103 2 3.8 1 5.9 13.5
MO8123 2 3.8 1 5.9 13.5
MO8302 1 3.8 1 5.9 9.7
MO8322 1 3.8 1 5.9 9.7
MO8303 2 3.8 1 5.9 13.5
MO8323 2 3.8 1 5.9 13.5
MO9503 1 3.8 1 5.9 1 7.2 16.9
MO9523 1 3.8 1 5.9 1 7.2 16.9
PI0913 2 3.8 1 5.9 13.5
PI0913A 2 3.8 1 5.9 13.5

5. INSTALLATION EN
15
NOMINAL GAS CONSUMPTION
Model
AUXILIARY
Ø 47 mm
SEMI-RAPID
Ø 62 mm
RAPID
Ø 77 mm Grill Oven
TOTAL
NOMINAL GAS
CONSUMPTION
№MJ/h №MJ/h №MJ/h №MJ/h №MJ/h MJ/h
PI7903 1 3.8 1 5.9 1 7.2 16.9
PI7923 1 3.8 1 5.9 1 7.2 16.9
PI8002 1 3.8 1 5.9 9.7
PI8022 1 3.8 1 5.9 9.7
PI8003 1 3.8 2 5.9 15.6
PI8023 1 3.8 2 5.9 15.6
PI8403 1 3.8 2 5.9 15.6
PI8403GL 1 3.8 2 5.9 15.6
PI8423 1 3.8 2 5.9 15.6
PI8423GL 1 3.8 2 5.9 15.6
PI8443 1 3.8 2 5.9 15.6
PI8463 1 3.8 2 5.9 15.6
PI8621A 1 3.8 3.8
PI8621R 1 7.2 7.2
PI8621S 1 5.9 5.9
VN555 1 5.2 5.2
BURNER INJECTOR ORIFICE (mm) STAMPED №
AUXILIARY (Ø 47mm) 0.57 57
SEMI-RAPID (Ø 62mm) 0.72 72
RAPID (Ø 77mm) 0.80 80
GRILL 0.67 67
OVEN 0.57 57
The connection of the gas pipe to the appliance (1/4 BSPT female) must be made with a rigid metal pipe.
The pipe work and fittings shall be free from defects and of an approved type.
Once installed, the installation must be checked for leaks by means of an approved testing method.
Do not use a solution of soap and water.
WARNING
WARNING
Never use a naked flame to check for gas leaks.
5.4 Electric connection
Low voltage 12 V
This chapter concerns only models marked 12 V on the appliance data plate.

5. INSTALLATION
EN
16
CAUTION
CAUTION
This appliance must be connected to a 12 V source. The circuit must be protected by a
fuse of no more than 3 Ampere.
Ensure that the polarity of the connection is correct!
WARNING
WARNING
Absolutely do not connect the appliance to the mains voltage (230 V~), this would destroy
the components and cause a hazard for the user.
To connect the appliance use a 1.5 mm2double red and black wire and wire to the terminal junction box
located at the rear of the appliance with the wording “+12 V – “. The red terminal is the positive pole
and the black terminal is the negative pole.
High voltage 230-240 V~
This chapter refers only to the models listed in the table below.
Model Nominal voltage Nominal power
CU401PE - CU402PE - CU403PE 230-240V~ 800 W
In these models there is an electric plate in the hotplate.
WARNING
WARNING
When connecting direct to the mains supply, it is necessary to install a circuit breaker
which allows for disconnecting and isolating the appliance from the mains in the event of
overvoltage III conforming to installation regulations.
The supply cord must be positioned in such a way that it never reaches a temperature of
75°C above ambient in any point.
The plug must be easy to access after installation.
Always disconnect electrical power before working on or servicing the appliance.
For connecting to the mains power supply use a socket.
If the supply cord (H05RR-F 3x0,75mm2) is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
5.5 Fixture
CAUTION
CAUTION
This appliance is to be fixed and secured to the cabinet as described in FIG. 6 – PG. 31.
5.6 Testing (before leaving)
Ignite all burners both individually and concurrently to ensure correct operation of gas valves, burners and
ignition. Turn gas taps to low flame position and observe stability of the flame for each burner individually
and concurrently. Ensure correct operation of the flame failure protection.
Depending on the type of gas used, the appearance of the flame is as follows:
Propane: flame with blue centre and well-defined contour.
Butane: flame with light yellow tips when igniting the burner, gradually intensifying as the burner heats.

6. SERVICING EN
17
CAUTION
CAUTION
In case the appliance fails to operate correctly after all checks have been carried out, shut off
the gas supply at the main gas tap and refer to the authorized service provider in your area.
When satisfied with the appliance, please instruct the user on the correct method of operation.
5.6.1 Test point
For models PI... MO... CU...
The test point is supplied loose with the appliance (see picture in FIG. 7 - PG. 37). Remove one burner
head, the injector and screw in test point fitting. The pressure is measured with the relevant burner gas
valve on high flame and with an inlet pressure of 2.75 kPa.
For models FO...
The test point is fitted on the main gas pipe. Remove the front plastic plaque (see picture in FIG. 8 - PG. 37)
and remove the screw. The pressure is measured with an inlet pressure of 2.75 kPa.
For models VN555
The test point is fitted on the main gas pipe. Remove the screw. The pressure is measured with an inlet
pressure of 2.75 kPa.
5.7 Duplicate data plate
After installation, the data plate may be consulted by opening the door of the oven or of the grill
compartments, or on the back of the instructions manual.
The date of manufacture can be deduced from the serial number: the 2nd and the 3rd figure indicate the
year, the 4th and the 5th figure the week. See the example below.
year week

6. SERVICING
EN
18
6. SERVICING
WARNING
WARNING
The servicing shall be carried out only by authorized personnel.
WARNING
WARNING
Do not modify this appliance.
WARNING
WARNING
Before any servicing intervention shut off gas supply, disconnect all the electrical power
supplies and remove the appliance.
Hotplate: burners, injectors, thermocouples and ceramic igniters
1. Remove trivet (pan support) by pulling up from hotplate.
2. Remove screws from appropriate burner head disk. Remove head disk.
3. Remove burner by lifting straight up, taking care not to damage the thermocouple and ceramic
igniter.
4. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector
holder must be held in place with the aid of a tool (FIG. 9 - PG. 35)
5. Remove retaining washer from thermocouple head.
6. Disconnect appropriate thermocouple lead from gas cock.
7. Remove the thermocouple.
8. Remove retaining spring from ceramic igniter head.
9. Disconnect appropriate ceramic igniter lead from electronic igniter unit.
10. Remove the ceramic igniter.
11. Replace/ refit in reverse procedure.
Oven: injector, burner, thermocouple and ceramic igniter
1. From right hand side of appliance, remove spring from the oven burner inlet.
2. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector
holder must be held in place with the aid of tool (FIG. 9 - PG. 35).
3. Remove lower heat shield at rear and tilt appliance forward.
4. Unscrew the oven burner mounts and lower burner.
5. Remove retaining nut from thermocouple head.
6. Disconnect the oven thermocouple lead from the gas cock.
7. Remove the thermocouple.
8. Remove retaining screw from ceramic igniter support.
9. Disconnect ceramic igniter lead from appropriate electronic igniter unit.
10. Remove the ceramic igniter.
11. Replace/ refit in reverse procedure.
Grill: injector, thermocouple, ceramic igniter and burner
1. From right hand side of appliance, remove spring from the grill burner inlet.
2. Using a 7mm spanner, unscrew the injector. When removing and fitting the injector, the injector
holder must be held in place with the aid of tool (FIG. 9 - PG. 35)
3. Remove the protection disk (not present in the CU4... models)
4. Remove retaining nut from thermocouple head.

7. WARRANTY EN
19
5. Disconnect the grill thermocouple lead from the gas cock
6. Remove the thermocouple.
7. Remove retaining screw from ceramic igniter support.
8. Disconnect ceramic igniter lead from appropriate electronic igniter unit.
9. Remove the ceramic igniter.
10. Remove the grill burner mounting screws (2) from top.
11. Remove the grill burner mounting spacers (only for CU4... models) and lower burner.
Gas cocks
1. Remove the control knob by pulling.
2. Unscrew gas cock retaining nut.
3. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the gas
cock.
4. Remove the appropriate gas cock clamp by unscrewing the screws.
5. Remove the gas cock from the manifold.
6. Replace/ refit in reverse procedure.
Oven thermostat
1. Remove the appropriate control knob by pulling.
2. Unscrew gas cock retaining nut.
3. From the underside of the appliance, remove the thermocouple lead and the gas pipe from the
thermostat.
4. Remove the thermostat clamp by unscrewing the screws.
5. Remove the thermostat from the manifold.
6. Open oven door and remove the capillary bulb/ phial from its mount.
7. Remove capillary bulb/ phial though access hole.
8. Replace/ refit in reverse procedure.
Igniter unit/s
1. From the rear right-hand side of appliance, remove electrical connectors from igniter unit/s (noting
connection locations).
2. Remove the retaining rivets from appropriate igniter unit.
3. Remove the igniter unit.
4. Replace / refit in reverse procedure.
Oven door
1. Open oven door fully.
2. Remove the door hinge screws (2 each) at either side of the bottom of oven compartment.
3. Remove door from appliance.
4. Replace/ refit in reverse procedure.
230-240 V~ WIRING DIAGRAM
Shown below is the wiring diagram for the 230-240 V~ connection for a stove with electric element on
the hotplate.

7. WARRANTY
EN
20
3
3
