Dometic HiPro Series User manual

HiPro3000, HiPro4000,
HiPro4000Vision, HiPro6000
Minibar
Installation and Operating Manual. . . . . . . 15
EN
MINIBAR
HIPRO
HiPro3000_4000_6000_Vision-IO-EN.book Seite 1 Dienstag, 27. November 2018 6:20 18

HiPro3000_4000_6000_Vision-IO-EN.book Seite 2 Dienstag, 27. November 2018 6:20 18

HiPro
3
HiPro 3000
HiPro 4000
HiPro 6000
4
3
2
1
5
HiPro 4000
Vision
13
2
HiPro 4000
Vision
13
2
HiPro 4000
4
3
5
1
2
1
HiPro3000_4000_6000_Vision-IO-EN.book Seite 3 Dienstag, 27. November 2018 6:20 18

HiPro
4
1
2
HiPro3000_4000_6000_Vision-IO-EN.book Seite 4 Dienstag, 27. November 2018 6:20 18

HiPro
5
AB
CD
≥ 200 cm²
≥ 200 cm²
≥ 200 cm²
≥ 200 cm²
≥ 20 mm
≥ 200 cm²≥ 200 cm²
3
HiPro3000_4000_6000_Vision-IO-EN.book Seite 5 Dienstag, 27. November 2018 6:20 18

HiPro

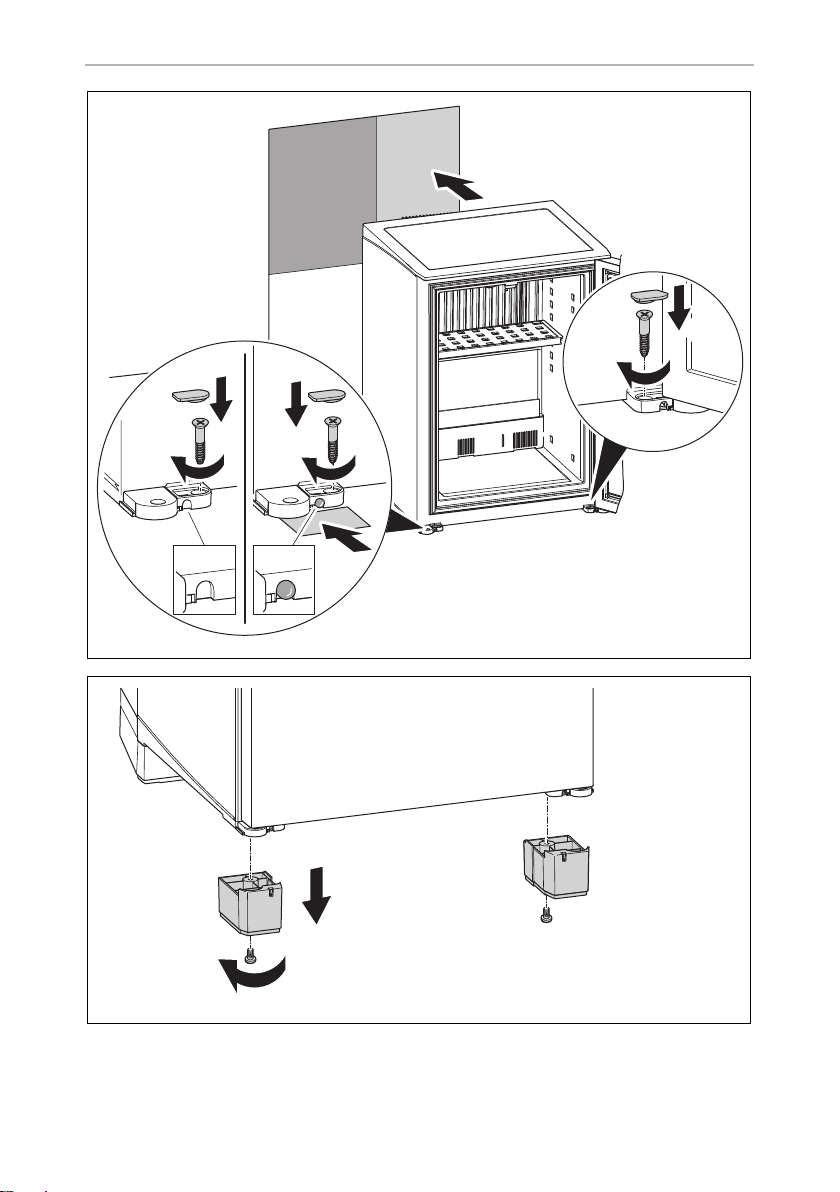

6
1.
5.
4.
5.
4.
6.
AB
2. 3.
4
1.
2.
HiPro 4000
HiPro 4000 Vision
5
HiPro3000_4000_6000_Vision-IO-EN.book Seite 6 Dienstag, 27. November 2018 6:20 18

HiPro
7
3.
4.
1.
2.
6
2. 1.
7
1.
2.
8
HiPro3000_4000_6000_Vision-IO-EN.book Seite 7 Dienstag, 27. November 2018 6:20 18

HiPro

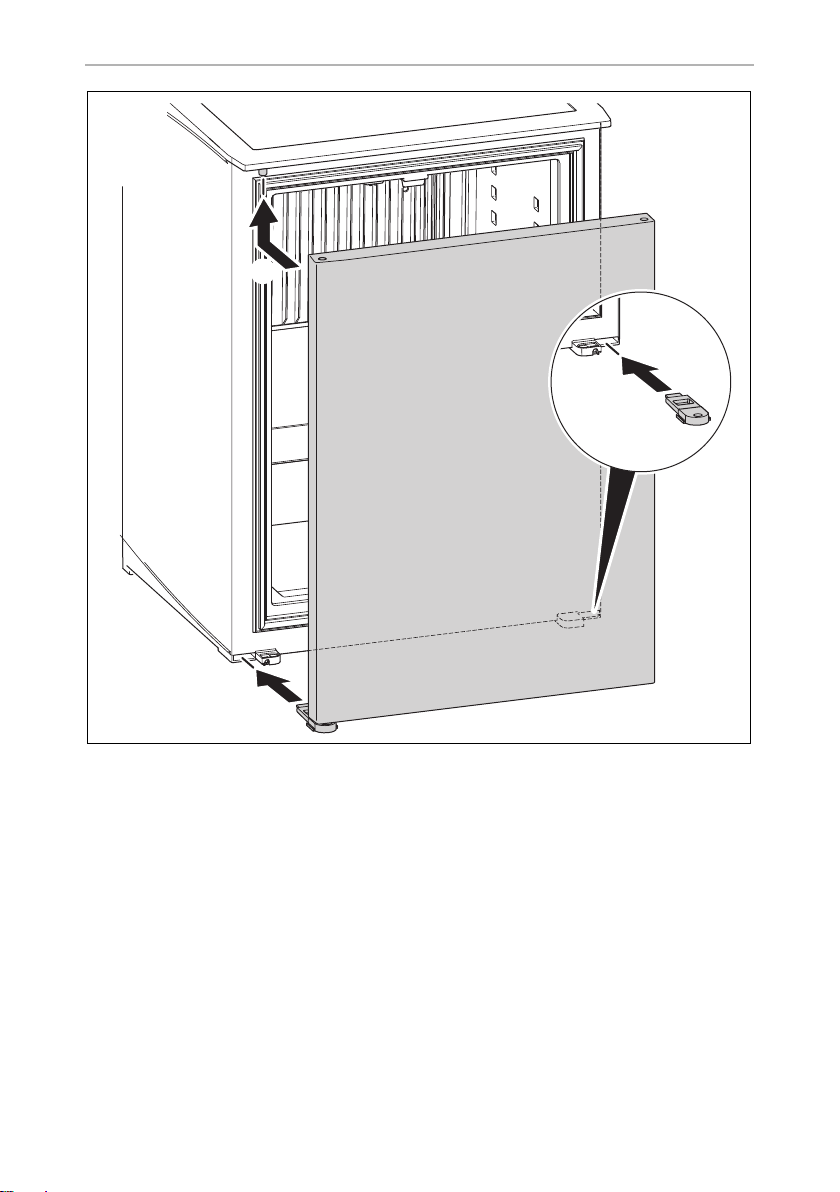

8
3.
1.
2.
9
HiPro3000_4000_6000_Vision-IO-EN.book Seite 8 Dienstag, 27. November 2018 6:20 18

HiPro
9
1-2
6-8
≤ 40
HiPro 3000
HiPro 4000
HiPro 6000
0
HiPro 3000
HiPro 4000
HiPro 6000
1.
2.
a
HiPro3000_4000_6000_Vision-IO-EN.book Seite 9 Dienstag, 27. November 2018 6:20 18

HiPro

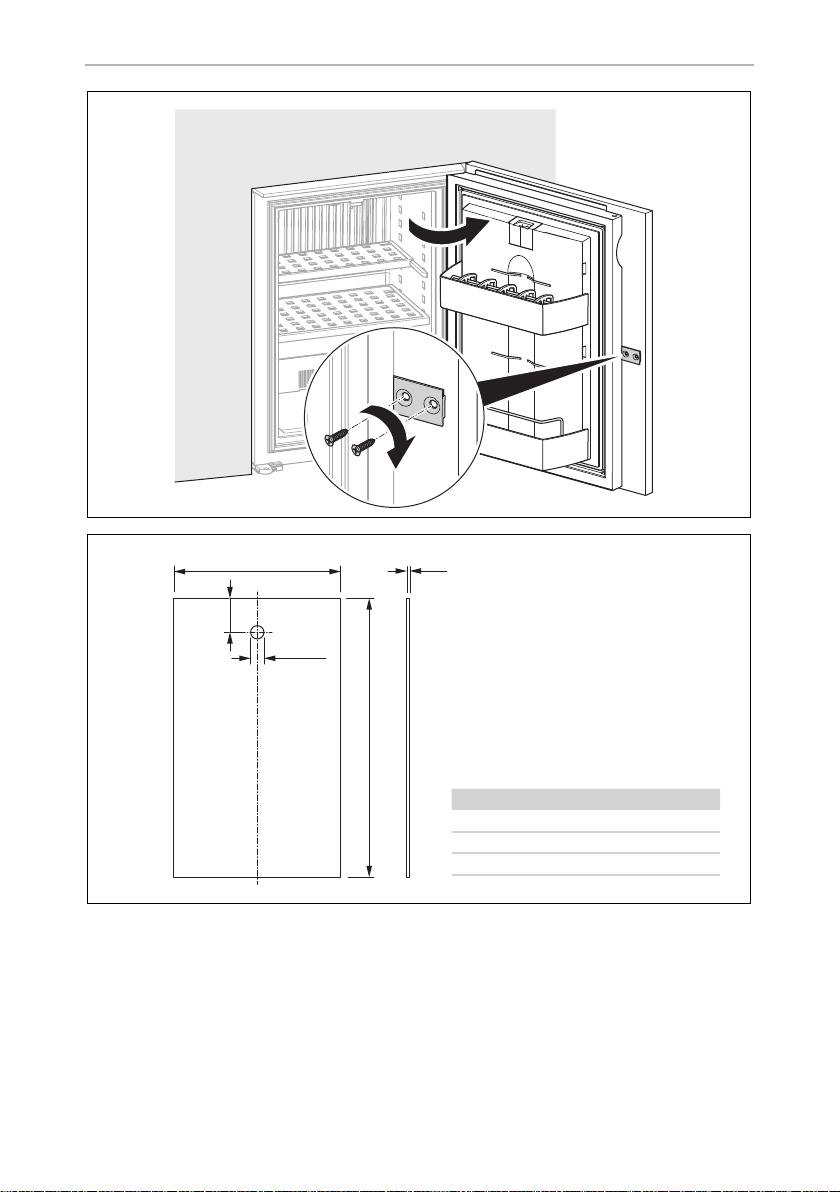

10
HiPro 3000
HiPro 4000
HiPro 6000
1.
2.
b
HiPro 3000
A
294,5 mm
311,5 mm
376,5 mm
B
418 mm
452 mm
475 mm
C
492 mm
524 mm
533 mm
HiPro 4000
HiPro 6000
A≤ 2
Ø 23,5
C
62
HiPro 3000
HiPro 4000
HiPro 6000
c
HiPro3000_4000_6000_Vision-IO-EN.book Seite 10 Dienstag, 27. November 2018 6:20 18

HiPro

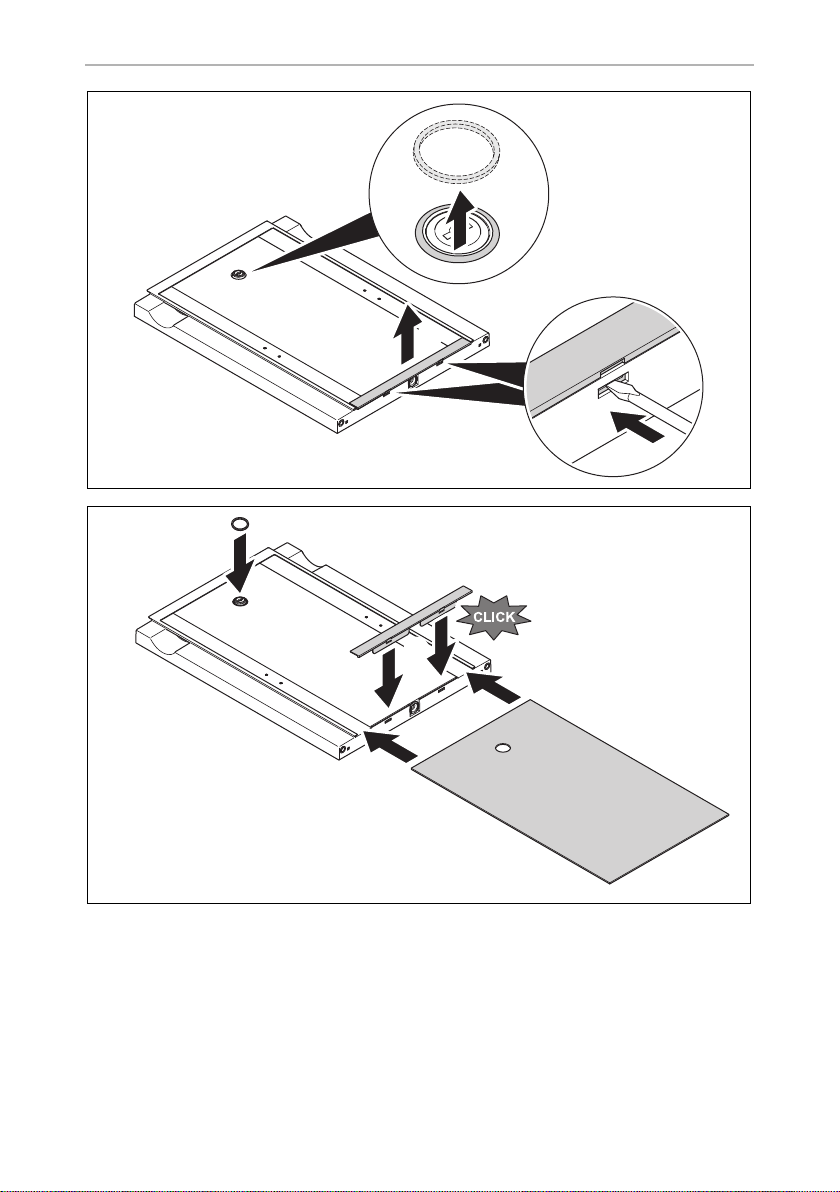

11
2.
3.
1.
d
1.
2.
3.
e
HiPro3000_4000_6000_Vision-IO-EN.book Seite 11 Dienstag, 27. November 2018 6:20 18

HiPro

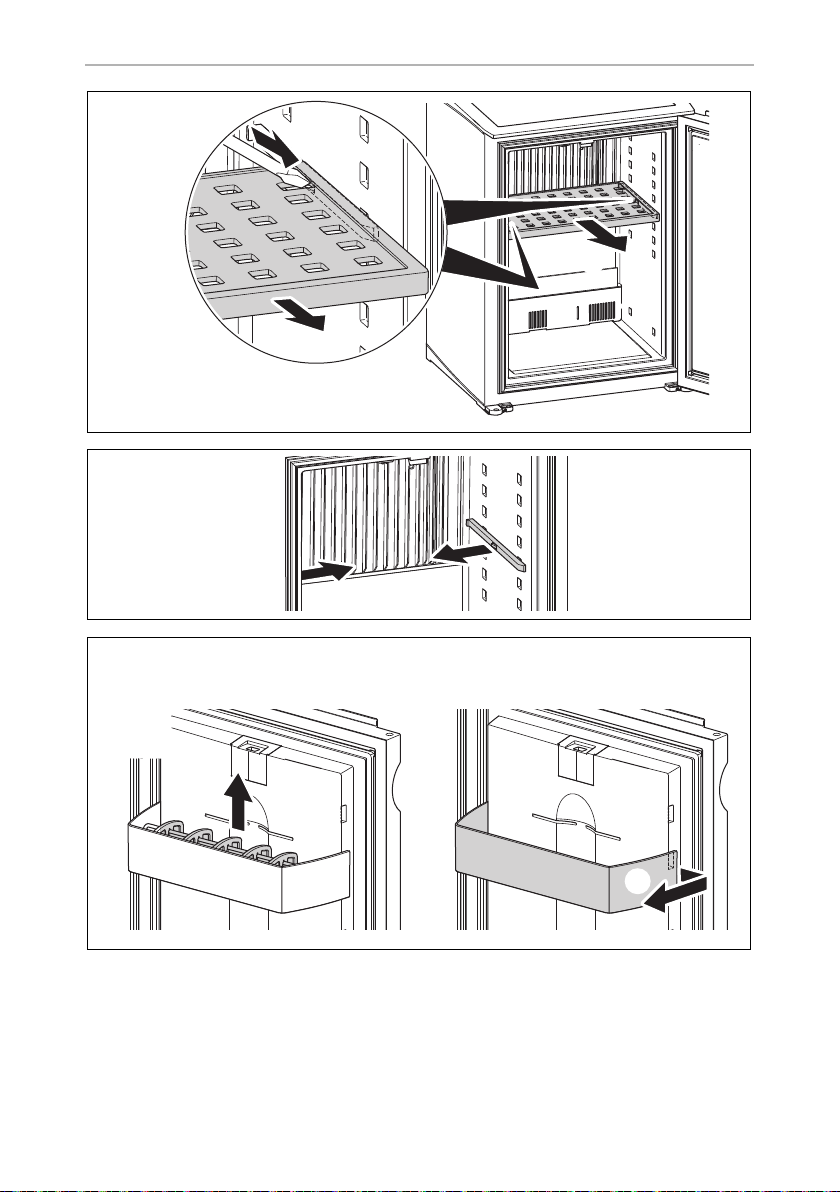

12
1.
2.
3.
f
g
HiPro 3000, HiPro 4000, HiPro 6000
1.
2.
h
HiPro3000_4000_6000_Vision-IO-EN.book Seite 12 Dienstag, 27. November 2018 6:20 18

HiPro
13
5 °C 7 °C 12 °C3 °C
3x 5x 7x 12x
1
2
5
3
4
i
HiPro3000_4000_6000_Vision-IO-EN.book Seite 13 Dienstag, 27. November 2018 6:20 18

HiPro
14
HiPro 4000
A
405 mm
405 mm
B
472 mm
484 mm
C
601 mm
601 mm
HiPro 4000 Vision
HiPro 3000
A
388 mm
405 mm
490 mm
405 mm
B
418 mm
452 mm
475 mm
464 mm
C
527 mm
559 mm
568 mm
559 mm
HiPro 4000
HiPro 6000
HiPro 4000 Vision
AB BA
C C
HiPro 3000
HiPro 4000
HiPro 6000
HiPro 4000
HiPro 4000 Vision
j
HiPro3000_4000_6000_Vision-IO-EN.book Seite 14 Dienstag, 27. November 2018 6:20 18

EN
HiPro Explanation of symbols
15
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7 Setting up and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Failure to observe this instruction can cause death
or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
HiPro3000_4000_6000_Vision-IO-EN.book Seite 15 Dienstag, 27. November 2018 6:20 18

EN
Safety instructions HiPro
16
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and incorrect
connection voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
•The refrigerant in the refrigerant circuit is highly flammable.
In the event of any damage to the refrigerant circuit (smell of ammo-
nia):
– Switch off the appliance.
– Avoid naked flames and sparks.
•Air the room well.
•Do not operate the device if it is visibly damaged.
•If the power cable for this device is damaged, it must be replaced by
the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This appliance may only be repaired by qualified personnel.
Inadequate repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
NOTE
Supplementary information for operating the product.
HiPro3000_4000_6000_Vision-IO-EN.book Seite 16 Dienstag, 27. November 2018 6:20 18

EN
HiPro Safety instructions
17
•Cleaning and user maintenance may not be carried out by
unsupervised children.
•Children must be supervised to ensure that they do not play with the
appliance.
!CAUTION!
•Danger of crushing! Do not place your hand on the hinge.
•Before start-up, ensure that the power supply line and power plug are
dry.
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Do not open the refrigerant circuit under any circumstances.
•Do not install the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Check that the voltage specification on the type plate is the same as
that of the energy supply.
•Only use the cable supplied to connect the appliance to the AC
mains.
•Never pull the power plug out of the socket by the cable.
•Do not store any substances that are caustic or contain solvents in the
refrigerator.
•Only use cables with a suitable cross-section.
•Keep the condensation opening clean at all times.
2.2 Operating the refrigerator safely
ANOTICE!
•Do not use electrical devices inside the device unless they are
recommended by the manufacturer for that purpose.
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•The absorber unit becomes hot during operation. Do not touch the
absorber unit!
•Ensure that the ventilation openings are not covered.
HiPro3000_4000_6000_Vision-IO-EN.book Seite 17 Dienstag, 27. November 2018 6:20 18

EN
Scope of delivery HiPro
18
•Do not fill the inner container with ice or liquids.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the refrigerator
compartment.
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The mini-bar is designed for operation in enclosed buildings, such as:
•In staff kitchens in stores, offices and other work areas
•In the agricultural sector
•In hotels, motels and other accommodations
Quantity Description
1 Mini-bar
2Shelf
2 Door rack (not for HiPro4000Vision)
1 Installation and operating manual
Description Explanation
Remote control For door opening monitor and temperature regulation
Reflector For door opening monitor
Keys For versions with lock
Sliding hinge For simultaneous opening of cabinetry door and refrigerator door
Cooler lid and high
device feet
For HiPro4000 and HiPro4000Vision, as free-standing versions
HiPro3000_4000_6000_Vision-IO-EN.book Seite 18 Dienstag, 27. November 2018 6:20 18

EN
HiPro Technical description
19
•In bed and breakfast establishments
•In catering businesses or similar wholesaler operations
The mini-bar is not suitable for installation in caravans, mobile homes, or boats.
The mini-bar is intended for installation in a piece of cabinetry or an installation niche.
Once it is installed, only the front of the appliance may be accessible.
The HiPro4000 and HiPro4000Vision mini-bars can also stand freely on the floor, if
the optional cooler lid is mounted on the rear and the high device feet are installed.
The mini-bar is designed exclusively for cooling and storing of beverages and foods
in closed containers.
The mini-bar is not suitable for storage of perishable foods.
!
!
6 Technical description
The mini-bar is a refrigerator with absorption cooling. Ammonia is used as the
refrigerant. All materials used are compatible for use with foodstuffs. The refrigerant
circuit is maintenance-free.
The mini-bar (except for HiPro4000Vision) has two shelves and two door racks.
There is a door rack intended for bottles. A 1.5 l bottle can be stored in the door rack
for bottles. The second door rack is intended for smaller bottles or snacks.
The HiPro4000Vision mini-bar has two shelves and a transparent acrylic door
without door racks.
The HiPro4000 and HiPro4000Vision mini-bars can optionally be used as
free-standing versions with a cooler lid and high device feet.
WARNING!
The device is not intended for proper storage of medicine.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food you wish to cool.
HiPro3000_4000_6000_Vision-IO-EN.book Seite 19 Dienstag, 27. November 2018 6:20 18

EN
Setting up and connecting the refrigerator HiPro
20
6.1 Control elements on the refrigerator
6.2 Control elements outside the refrigerator
7 Setting up and connecting the
refrigerator
7.1 Instructions for installing the refrigerator
Observe the following when installing the refrigerator:
•Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the sides, fig. 3, page 5).
No. in
fig. 1, page 3 Explanation
1 Interior light
2 LED of the door opening monitor (optional)
3Shelf
4 Lower door rack
5 Upper door rack
No. in
fig. 2, page 4 Explanation
1 Remote control for door opening monitor and temperature regula-
tion (optional)
Description in
fig. 3, page 5 Explanation
A Cold intake air
B Heated exhaust air
C Condenser
D Clearance above the refrigerator if exhaust air can not adequately
circulate upwardly or at the side
HiPro3000_4000_6000_Vision-IO-EN.book Seite 20 Dienstag, 27. November 2018 6:20 18
