Dometic CDF 18 User manual

CDF18, CDF26, CDF36, CDF46
Compressor Cooler
Operating manual . . . . . . . . . . . . . . . . . . . . .4
Kompressor-Kühlbox
Bedienungsanleitung . . . . . . . . . . . . . . . . .22
Glacière à compression
Notice d’utilisation . . . . . . . . . . . . . . . . . . . 41
Nevera por compresor
Instrucciones de uso . . . . . . . . . . . . . . . . . . 61
Geleira com compressor
Manual de instruções . . . . . . . . . . . . . . . . .80
Frigorifero a compressore
Istruzioni per l’uso . . . . . . . . . . . . . . . . . . .100
Compressorkoelbox
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . .120
Kompressor-køleboks
Betjeningsvejledning . . . . . . . . . . . . . . . .139
Kylbox med kompressor
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 157
Kjøleboks med kompressor
Bruksanvisning. . . . . . . . . . . . . . . . . . . . . . 175
Kompressori-kylmälaatikko
Käyttöohje . . . . . . . . . . . . . . . . . . . . . . . . .193
Компрессорный холодильник
Инструкция по эксплуатации . . . . . . . . . 211
Lodówka kompresorowa
Instrukcja obsługi . . . . . . . . . . . . . . . . . . . 231
Chladiaci box s kompresorom
Návod na obsluhu. . . . . . . . . . . . . . . . . . . 250
Kompresorový chladicí box
Návod k obsluze . . . . . . . . . . . . . . . . . . . . 268
Kompresszor hűtőláda
Használati utasítás. . . . . . . . . . . . . . . . . . . 286
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
COOLING BOXES
COOLFREEZE
CDF18-26-36-46--O-16s.book Seite 1 Montag, 7. November 2016 2:13 14

CoolFreeze
2
1
2
1
12/24V DC
COLD FREEZE
ERROR
POWER
HIGH
0
LOW
TEMPERATURE BATTERY MONITOR
1
CDF18
2 3 4
5
2
12/24V DC
CDF26, CDF36, CDF46
3
ERROR
POWER
°
CDF26
134 5 6 7
2
4
CDF18-26-36-46--O-16s.book Seite 2 Montag, 7. November 2016 2:13 14

CoolFreeze
3
ERROR
POWER
°
CDF36, CDF46
134 5 6
2
5
1
6
1 2 3
4
5
6
7
CDF26, CDF36, CDF46
1 2
8
CDF18-26-36-46--O-16s.book Seite 3 Montag, 7. November 2016 2:13 14

EN
CoolFreeze
4
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Function description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CDF18-26-36-46--O-16s.book Seite 4 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Explanation of symbols
5
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CDF18-26-36-46--O-16s.book Seite 5 Montag, 7. November 2016 2:13 14

EN
Safety instructions CoolFreeze
6
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device to a DC plug socket in the vehicle (e. g.
cigarette lighter) with the DC cable.
•Never pull the plug out of the socket by the cable.
•Disconnect the cooler and other power consuming devices from the
battery before connecting the quick charging device.
•Disconnect the cooler or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
CDF18-26-36-46--O-16s.book Seite 6 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Scope of delivery
7
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all timesthat there is sufficient ventilation so that the heatthat
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
fig. 1, page 2, shows the scope of delivery.
4Accessories
To operate the cooler using an AC power supply, we recommend using the
following mains adapter.
Available as accessory (not included in scope of delivery):
•220–240 V: CoolPower EPS100
•110–240 V: CoolPower MPS35
Item Quantity Description
1 1 Compressor cooler
2 1 Connection cable for DC connection
– 1 Operating manual
CDF18-26-36-46--O-16s.book Seite 7 Montag, 7. November 2016 2:13 14

EN
Intended use CoolFreeze
8
5 Intended use
The compressor cooler is suitable for cooling and freezing foodstuffs. The compres-
sor cooler is also suitable for use on boats.
The compressor cooler is designed to be operated from a 12 Vgor 24 Vgon-
board socket of a vehicle (e.g. DC socket), boat or mobile home.
I
!
6 Function description
The cooler can chill products, keep them cool as well as freeze them. A mainte-
nance-free, CFC-free refrigerant circuit with compressor provides the cooling. The
extra strong CFC-free insulation and powerful compressor ensure especially fast
cooling.
The cooler is designed for mobile use.
When used on boats, the cooler can be withstand a constant heel (inclination) of 30°.
An integrated dual-stage (CDF18) / three-stage (CDF26, CDF36, CDF46) battery
monitor prevents your vehicle battery from excessive discharging.
NOTE
To operate the device at the AC mains supply, we recommend using
one of the following rectifiers:
•220–240 V: CoolPower EPS100
•110–240 V: CoolPower MPS35
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
CDF18-26-36-46--O-16s.book Seite 8 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Function description
9
6.1 Operating and display elements
CDF18
Operating panel and connection socket (fig. 2, page 2):
Item Description Explanation
1 TEMPERATURE Temperature controller,
cooling temperature at the end positions:
COLD: +10 °C
FREEZE: –18 °C
2 POWER Operating display
LED is lit green: Device is switched on and ready for
operation
LED is lit yellow: Set temperature has been reached
3 ERROR LED flashes red: Switched on device is not ready for
operation
4 BATTERY MONITOR Switch-on device/battery monitor:
0: Device is switched off
HIGH: Device is switched on, battery
monitor is in HIGH mode
LOW: Device is switched on, battery
monitor is in LOW mode
5 12/24V DC Connection socket DC voltage supply
CDF18-26-36-46--O-16s.book Seite 9 Montag, 7. November 2016 2:13 14

EN
Function description CoolFreeze
10
CDF26
Connection socket (fig. 3, page 2) and operating panel (fig. 4, page 2):
Item Description Explanation
1ON
OFF button
Switches the cooler on or off when the button is pressed for
between one and two seconds
2 POWER Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off auto-
matically due to low battery
voltage
3 ERROR LED flashes red: Device is switched on but not
ready for operation
4 SET Selects the input mode
Temperature setting
Celsius or Fahrenheit display
Set battery monitor
5 – Display, shows the information
The first three digits of the four-digit display show the
temperature, the fourth digit shows the temperature unit
(°C or °F).
6 UP + Press once to increase the value
7 DOWN – Press once to decrease the value
CDF18-26-36-46--O-16s.book Seite 10 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Function description
11
CDF36, CDF46

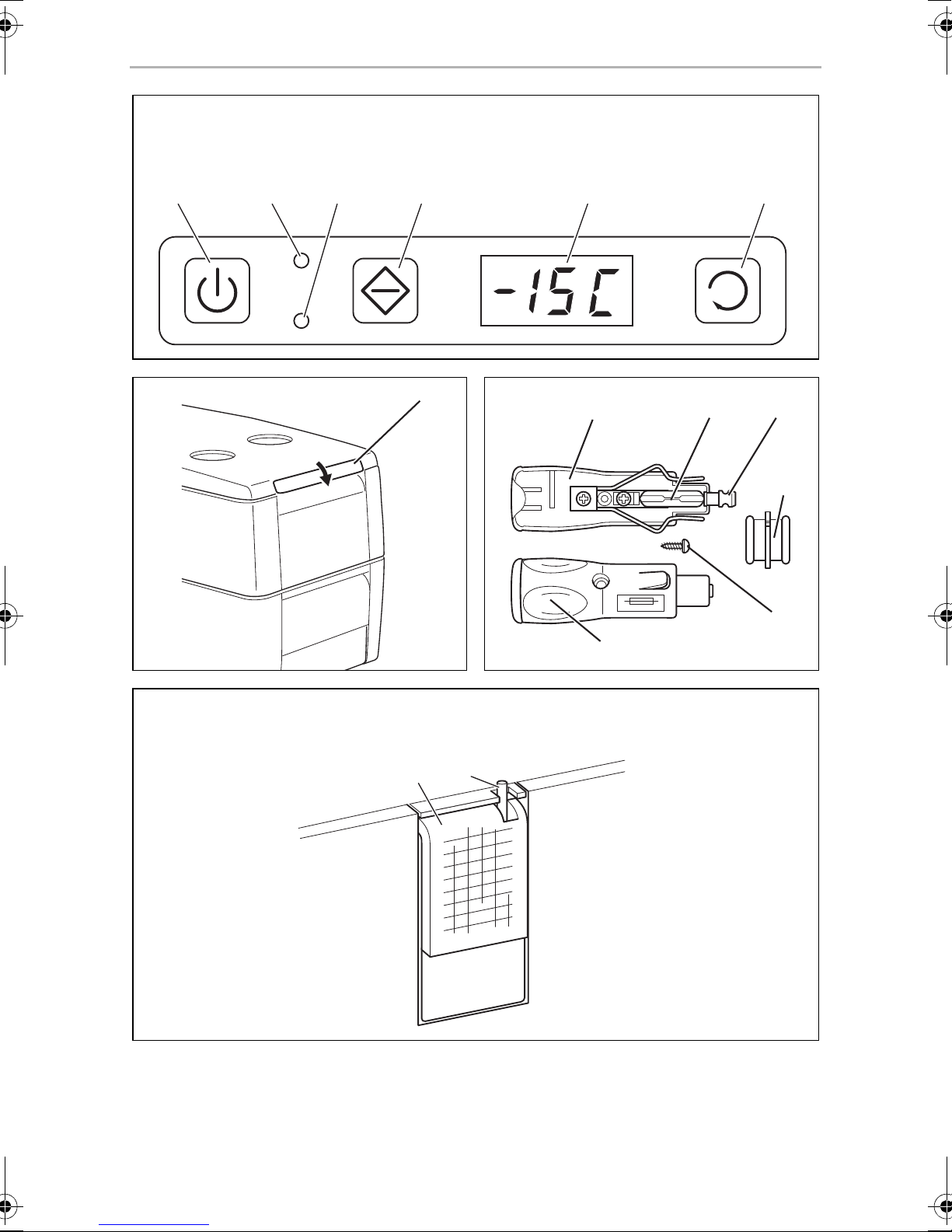

Connection socket (fig. 3, page 2) and operating panel (fig. 5, page 3):
Item Description Explanation
1 ON/OFF button Switches the cooler on or off when the button is pressed for
between one and two seconds
2 POWER Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off automatically
due to low battery voltage
3 ERROR LED flashes red: Device is switched on but not ready
for operation
4 SET Selects the input mode
Temperature setting
Celsius or Fahrenheit display
Set battery monitor
5 – Display, shows the information
The first three digits of the four-digit display show the
temperature, the fourth digit shows the temperature unit
(°C or °F).
6 ADJUST Press once to increase the value
Press once to decrease the value
CDF18-26-36-46--O-16s.book Seite 11 Montag, 7. November 2016 2:13 14

EN
Operation CoolFreeze
12
7Operation
7.1 Before initial use
I
7.2 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
•Defrost the cooler once a layer of ice forms.
•Avoid unnecessary low temperatures.
7.3 Connecting the cooler
The cooler can be operated with 12 V or 24 V DC.
A
For safety reasons the cooler is equipped with an electronic system to prevent the
polarityreversal.Thisprotects thecooleragainstshort-circuitingwhenconnecting to
a battery.
➤Plug the 12/24-V connection cable (fig. 12, page 2) into the DC voltage
socket and also into the cigarette lighter or a 12 V or 24 V socket.
NOTE
Before starting your new cooler for the first time, you should clean it
inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 18).
NOTICE! Danger of damaging the device!
Disconnect the cooler and other consumer units from the battery before
you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
CDF18-26-36-46--O-16s.book Seite 12 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Operation
13
7.4 Using the battery monitor
If the cooler is operated when the vehicle ignition is switched off, the cooler switches
off automatically as soon as the supply voltage falls below a set level. The cooler will
switch back on once the battery has been recharged to the restart voltage level.
A
In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and
“MED” (see the following table).
CDF18
CDF26, CDF36, CDF46
I
NOTICE! Danger of damage!
When switched off by the battery monitor, the battery will no longer be
fully charged. Avoid starting repeatedly or operating current consumers
without longer charging phases. Ensure that the battery is recharged.
Battery monitor mode LOW HIGH
Switch-off voltage at 12 V 10,2 V ± 0,3 V 11,2 V ± 0,3 V
Restart voltage at 12 V 11,2 V ± 0,3 V 12,2 V ± 0,3 V
Switch-off voltage at 24 V 22,0 V ± 0,3 V 23,9 V ± 0,3 V
Restart voltage at 24 V 23,3 V ± 0,3 V 25,1 V ± 0,3 V
Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V 10,1 V 11,4 V 11,8 V
Restart voltage at 12 V 11,1 V 12,2 V 12,6 V
Switch-off voltage at 24 V 21,5 V 24,1 V 24,6 V
Restart voltage at 24 V 23,0 V 25,3 V 26,2 V
NOTE
When the cooler is supplied by the starter battery, select the battery
monitor mode “HIGH”. If the cooler is connected to a supply battery,
the battery monitor mode “LOW” will suffice.
If you wish to operate the cooler from the AC mains, set the battery
monitor to the “LOW” position.
CDF18-26-36-46--O-16s.book Seite 13 Montag, 7. November 2016 2:13 14

EN
Operation CoolFreeze
14
CDF26: Setting the battery monitor mode
This is how to select the battery monitor mode:
➤Switch on the cooler.
➤Press the “SET” button three times.
➤Use the “+” and “–” buttons to select the battery monitor mode.
✓The selected mode then appears in the display for a few seconds. The display
flashes several times before it returns to the current temperature.
CDF36, CDF46: Setting the battery monitor mode
This is how to select the battery monitor mode:
➤Switch on the cooler.
➤Press the “SET” button three times.
➤Use the “ADJUST” button to select the battery monitor mode.
7.5 Using the cooler
A
➤Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the heated air can
dissipate.
➤Close the cooler, see chapter “Connecting the cooler” on page 12.
A
Locking the cooler
➤Close the lid.
➤Press the lock (fig. 61, page 3) down, until it latches in place audibly.
NOTICE! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
generated during operation can dissipate. Ensure that the ventilation
slots are not covered. Make sure that the device is sufficiently far away
from walls and other objects so that the air can circulate.
NOTICE! Danger from excessively low temperature!
Ensure that the only those objects are placed in the cooler that are
intended to be cooled at the selected temperature.
CDF18-26-36-46--O-16s.book Seite 14 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Operation
15
CDF18: Switching on the cooler
➤Slide the sliding switch “BATTERY MONITOR” to HIGH if you wish to operate
from a starter battery or to “LOW” if you want to operate from a supply battery.
✓The “POWER” LED is lit green.
✓The cooler starts cooling the interior.
➤Set the cooling temperature with the temperature controller “TEMPERATURE”.
✓When the cooling temperature has been reached, the “POWER” LED is lit yellow.
CDF26, CDF36, CDF46: Switching on the cooler
➤Press the “ON/OFF” button for three seconds.
✓The “POWER” LED is lit green.
✓The display switches on and shows the current cooling temperature.
✓The cooler starts cooling the interior.
CDF18: Switching off the cooler
➤Empty the cooler.
➤To Switch the cooler off: Slide the sliding switch “BATTERY MONITOR” to “0”:
➤Pull out the connection cable.
If you do not want to use the cooler for a longer period of time:
➤Leave the cover slightly open. This prevents odour build-up.
CDF26, CDF36, CDF46: Switching off the cooler
➤Empty the cooler.
➤Switch the cooler off.
➤Unplug the connection cable.
If you do not want to use the cooler for a longer period of time:
➤Leave the lid slightly open. This prevents build-up of odours.
CDF18-26-36-46--O-16s.book Seite 15 Montag, 7. November 2016 2:13 14

EN
Operation CoolFreeze
16
7.6 Setting the temperature
CDF26
➤Press the “SET” button once.
➤Use the “+” and “–” buttons to set the cooling temperature.
✓The set cooling temperature then appears in the display for a few seconds. The
display flashes several times before it returns to the current temperature.
CDF36, CDF46
➤Press the “SET” button once.
➤Use the “ADJUST” button to set the cooling temperature.
✓The set cooling temperature then appears in the display for a few seconds. The
display flashes several times before it returns to the current temperature.
7.7 Selecting the temperature unit
CDF26
You can switch the temperature display between Celsius and Fahrenheit. To do this,
proceed as follows:
➤Switch on the cooler.
➤Press the “SET” button twice.
➤Use the “+” and “–” buttons to set the cooling temperature.
✓The set temperature unit then appears in the display for a few seconds. The dis-
play flashes several times before it returns to the current temperature.
CDF36, CDF46
You can switch the temperature display between Celsius and Fahrenheit. To do this,
proceed as follows:
➤Switch on the cooler.
➤Press the “SET” button twice.
➤Use the “ADJUST” button to set the Celsius or Fahrenheit temperature unit.
CDF18-26-36-46--O-16s.book Seite 16 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Operation
17
7.8 Defrosting the cooler
Humidity can form frost in the interior of the cooling device or on the vaporiser. This
reduces the cooling capacity. Defrost the device in good time to avoid this.
A
To defrost the cooler, proceed as follows:
➤Take out the contents of the cooling device.
➤If necessary, place them in another cooling device to keep them cool.
➤Switch off the device.
➤Leave the cover open.
➤Wipe off the defrosted water.
7.9 Replacing the plug fuse (12/24 V)
➤Pull the adapter sleeve (fig. 74, page 3) off of the plug.
➤Unscrew the screw (fig. 75, page 3) out of the upper half of the housing
(fig. 71, page 3).
➤Carefully raise the upper half of the housing from the lower (fig. 76, page 3)
half.
➤Take out the contact pin (fig. 73, page 3).
➤Replace the defective fuse (fig. 72, page 3) with a new one that has the same
rating (8A 32V).
➤Re-assemble the plug in the reverse order.
7.10 Replacing the light bulb (CDF26, CDF36, CDF46)
➤Press the switch pin (fig. 82, page 3) downwards so that the transparent part
(fig. 81, page 3) of the lamp can be removed at the front.
➤Replace the light bulb.
➤Press the lamp back into the housing.
NOTICE! Danger of damaging the device!
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
CDF18-26-36-46--O-16s.book Seite 17 Montag, 7. November 2016 2:13 14

EN
Cleaning and maintenance CoolFreeze
18
8 Cleaning and maintenance
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any dust and
dirt, so that heat can be released and the device is not damaged.
9Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
•Never clean the cooler under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
CDF18-26-36-46--O-16s.book Seite 18 Montag, 7. November 2016 2:13 14

EN
CoolFreeze Troubleshooting
19
10 Troubleshooting
11 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Fault Possible cause Suggested remedy
Device does not
function, LED does not
glow.
No voltage is flowing
from the DC power
socket in your vehicle.
The ignition must be switched on in
most vehicles to supply current to the
DC power socket.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The device does not
cool (plug is inserted,
POWER LED is lit).
Defective compressor. This can only be repaired by an
authorised repair centre.
The device does not
cool (plug is inserted,
ERROR LED flashes).
Battery voltage is too
low.
Test the battery and charge it as needed.
When operating from
the DC power socket:
The ignition is on and
the device is not work-
ing and the LED is not
lit.
Pull the plug out of the
socket and make the
following checks.
The DC socket is dirty.
This results in a poor
electrical contact.
If the plug of your cooler becomes very
warm in the DC socket, either the socket
must be cleaned or the plug has not
been assembled correctly.
The fuse of the 12/24 V
plug has blown.
Replace the fuse (5 A) in the 12 V plug,
see chapter “Replacing the plug fuse
(12/24 V)” on page 17.
The vehicle fuse has
blown.
Replace the vehicle's 12/24 V socket
fuse (usually 15 A). Please refer to your
vehicle's operating manual.
ERROR LED flashes for
longer than 2 minutes,
as follows: 3 flashes,
pause, 3 flashes,
pause, ...
Defective device. This can only be repaired by an
authorised repair centre.
CDF18-26-36-46--O-16s.book Seite 19 Montag, 7. November 2016 2:13 14

EN
Technical data CoolFreeze
20
12 Technical data
CDF18 CDF26
Ref. no.: 9600000460 9600000183
Contains: 18 l 21 l
Voltage: 12/24 Vg
Rated current
12 Vg:3.5A5.0A
24 Vg:1.9A2.5A
Cooling capacity: +10 °C to –18 °C
Climate class: N or T
Ambient temperature: +16 °C – +43 °C
Dimensions (WxHxD) in mm: 465 x 414 x 300 550 x 425 x 260
Weight: 9.5 kg 12.7 kg
Tests/
Certification:
4
CDF18-26-36-46--O-16s.book Seite 20 Montag, 7. November 2016 2:13 14
