Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CK40D-Hybrid-O-16s.book Seite 4 Mittwoch, 7. September 2016 11:41 11

EN
CK40D Hybrid Explanation of symbols
5
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over,as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CK40D-Hybrid-O-16s.book Seite 5 Mittwoch, 7. September 2016 11:41 11

EN
Safety instructions CK40D Hybrid
6
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device as follows:
– With the DC cable to a DC plug socket in the vehicle (e. g.
cigarette lighter)
– Or with the 230 V connection cable to the 230 V AC mains supply
•Connect the device with the 230 V connection cable to the 230 V
mains supply.
•Never pull the plug out of the socket by the cable.
•If the cooler is connected to the DC socket: Disconnect the cooler and
other power consuming devices from the battery before connecting
the quick charging device.
•If the cooler is connected to the DC socket: Disconnect the cooler or
switch it off when you turn off the engine. Otherwise you may dis-
charge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
CK40D-Hybrid-O-16s.book Seite 6 Mittwoch, 7. September 2016 11:41 11

EN
CK40D Hybrid Scope of delivery
7
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all timesthat thereis sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
Quantity Description
1Coolbox
1 Instruction manual
CK40D-Hybrid-O-16s.book Seite 7 Mittwoch, 7. September 2016 11:41 11

EN
Proper use CK40D Hybrid
8
4Properuse
In compressor mode the cooler is suitable for cooling and deep freezing food-
stuffs. In thermoelectric mode the cooler is only suitable for cooling foodstuffs.
The device is designed for use with:
•a 12 V vehicle electrics socket of a car (such as a cigarette lighter), boat or caravan
(see voltage specification on the type plate)
•a 230 V AC mains supply
The appliance may also be used for camping use. The appliance shall not to be
exposed to rain.
!
5 Technical description
The hybrid cooler is suitable for portable use. It is equipped with two separate
cooling systems. The device features a Peltier cooling system with heat discharged
by a fan, as well as a compressor cooling system. The cooling system is non-wearing.
In thermoelectric mode (connection to 12 Vg), it can cool goods down to max.
20 °C below ambient temperature and keep them cool. In compressor mode
(connection to 230 Vw), it can cool goods and keep them cool or deep freeze them
down to –15 °C.
In thermoelectric mode you don’t have to set the temperature. The display is
deactivated.
In compressor mode, you can use the buttons to set the temperature within a
range from +10 °C to –15 °C. The display shows the temperature.
The lid is sealed continuously and has a magnetic lock.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
CK40D-Hybrid-O-16s.book Seite 8 Mittwoch, 7. September 2016 11:41 11

EN
CK40D Hybrid Operation
9
The cooler has the following operating elements:
6Operation
!
I
6.1 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
Item in fig. 2,
page 3 Description Explanation
1 Display Displays the current or the desired temperature,
respectively.
2 ON/OFF Switches the cooler on or off.
3 TEMP – Decreases the desired cooling
temperature by 1 °C.
4 TEMP + Increases the desired cooling temperature
by 1 °C.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
•Before starting your new coolbox for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please
also refer to the chapter “Cleaning and care” on page 12).
•A few water drops may form inside the cooler if it has been cooling
for a lengthy period. This is normal because the moisture in the air
condenses to water when the temperature in the cooler falls. The
cooler is not defective. Wipe it out with a dry cloth if necessary.
CK40D-Hybrid-O-16s.book Seite 9 Mittwoch, 7. September 2016 11:41 11

EN
Operation CK40D Hybrid
10
6.2 Using the coolbox
A
➤Place the coolbox on a firm base.

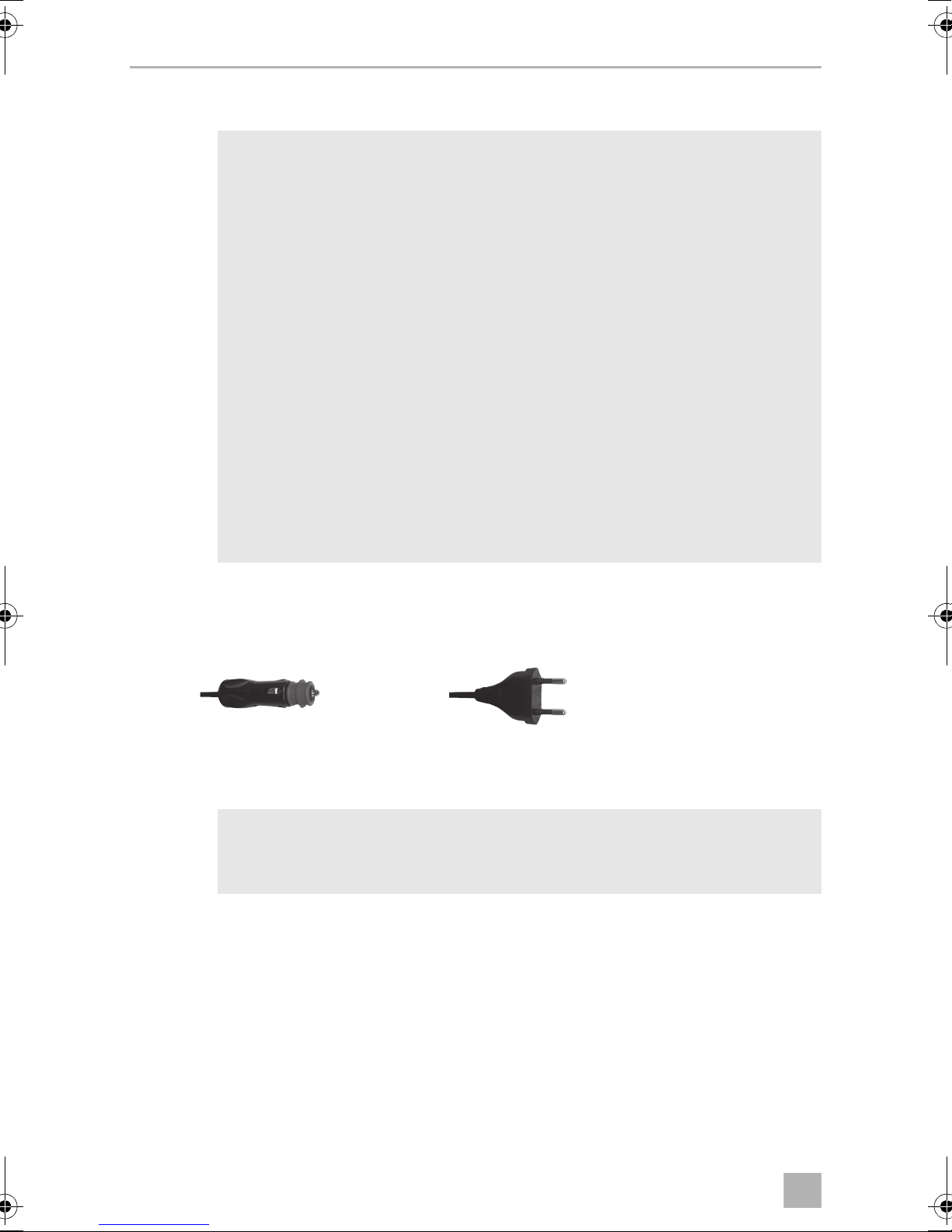

Connection cable plug
Connecting the cooler to 12 V (thermoelectric mode)
I
➤Make sure the cable between the cooler and the battery is protected by a fuse
(maximum 5 A).
➤Plug the 12 V connection cable (see figure) into the cigarette lighter socket or a
12 V socket in the vehicle.
✓The cooler starts cooling the interior.
NOTICE! Risk of damage
•Do not switch on the device immediately after transporting it. This
could damage the cooling system. Leave the device to stand for
about 30 minutes after transporting, before you switch it on. This
allows the refrigerant to collect again in the compressor, and the
compressor does not run dry.
•Only operate the device from a single energy source. Simultaneous
use of the thermoelectric cooling system and the compressor is not
permitted.
•Ensure that the objects or goods placed in the cooling device are
suitable for cooling to the selected temperature.
•Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy glass containers.
•Ensure that your cooler is well ventilated so that any heat created can
dissipate. Otherwise proper functioning cannot be ensured. It is
especially important not to cover the air vents.
NOTE
In thermoelectric mode, the thermostat has no function and the device
cannot deep freeze.
12 V 230 V
