CDF18, CDF26, CDF36, CDF46
Compressor Cooler
Operating manual . . . . . . . . . . . . . . . . . . . . .4
EN
COOLING BOXES
COOLFREEZE
CDF18-26-36-46--O-16s.book Seite 1 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

CoolFreeze
2
1
2
1
12/24V DC
COLD FREEZE
ERROR
POWER
HIGH
0
LOW
TEMPERATURE BATTERY MONITOR
1
CDF18
2 3 4
5
2
12/24V DC
CDF26, CDF36, CDF46
3
ERROR
POWER
°
CDF26
134 5 6 7
2
4
CDF18-26-36-46--O-16s.book Seite 2 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

CoolFreeze
3
ERROR
POWER
°
CDF36, CDF46
134 5 6
2
5
1
6
1 2 3
4
5
6
7
CDF26, CDF36, CDF46
1 2
8
CDF18-26-36-46--O-16s.book Seite 3 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
CoolFreeze
4
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
CDF18-26-36-46--O-16s.book Seite 4 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
CoolFreeze Explanation of symbols
5
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CDF18-26-36-46--O-16s.book Seite 5 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
Safety instructions CoolFreeze
6
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device to a DC plug socket in the vehicle (e. g.
cigarette lighter) with the DC cable.
•Never pull the plug out of the socket by the cable.
•Disconnect the cooler and other power consuming devices from the
battery before connecting the quick charging device.
•Disconnect the cooler or switch it off when you turn off the engine.
Otherwise you may discharge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
CDF18-26-36-46--O-16s.book Seite 6 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
CoolFreeze Scope of delivery
7
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
fig. 1, page 2, shows the scope of delivery.
4Accessories
To operate the cooler using an AC power supply, we recommend using the
following mains adapter.
Available as accessory (not included in scope of delivery):
•220–240 V: CoolPower EPS100
•110–240 V: CoolPower MPS35
Item Quantity Description
1 1 Compressor cooler
2 1 Connection cable for DC connection
– 1 Operating manual
CDF18-26-36-46--O-16s.book Seite 7 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
Intended use CoolFreeze
8
5 Intended use
The compressor cooler is suitable for cooling and freezing foodstuffs. The compres-
sor cooler is also suitable for use on boats.
The compressor cooler is designed to be operated from a 12 Vgor 24 Vgon-
board socket of a vehicle (e.g. DC socket), boat or mobile home.
I
!
6 Function description
The cooler can chill products, keep them cool as well as freeze them. A mainte-
nance-free, CFC-free refrigerant circuit with compressor provides the cooling. The
extra strong CFC-free insulation and powerful compressor ensure especially fast
cooling.
The cooler is designed for mobile use.
When used on boats, the cooler can be withstand a constant heel (inclination) of 30°.
An integrated dual-stage (CDF18) / three-stage (CDF26, CDF36, CDF46) battery
monitor prevents your vehicle battery from excessive discharging.
NOTE
To operate the device at the AC mains supply, we recommend using
one of the following rectifiers:
•220–240 V: CoolPower EPS100
•110–240 V: CoolPower MPS35
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
CDF18-26-36-46--O-16s.book Seite 8 Montag, 7. November 2016 2:13 14
Autogoods “130”
130.com.ua

EN
CoolFreeze Function description
9
6.1 Operating and display elements
CDF18

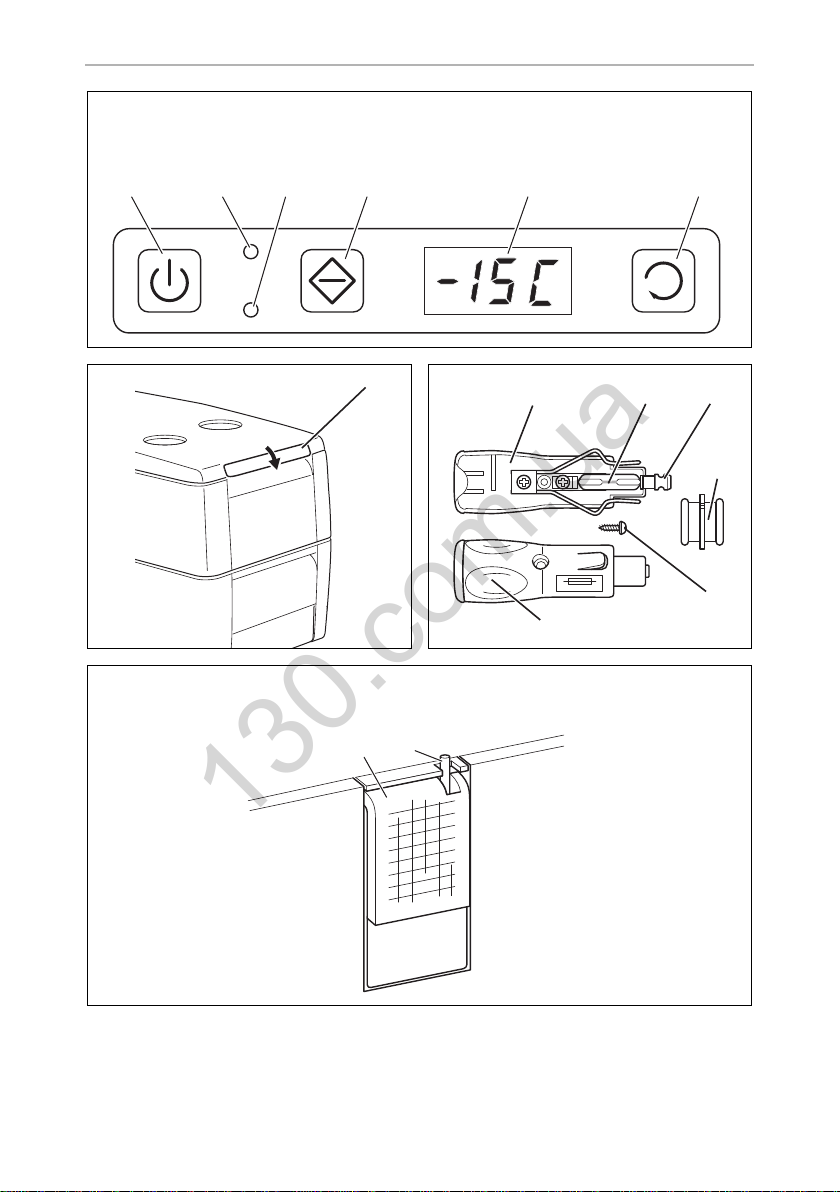

Operating panel and connection socket (fig. 2, page 2):
Item Description Explanation
1 TEMPERATURE Temperature controller,
cooling temperature at the end positions:
COLD: +10 °C
FREEZE: –18 °C
2 POWER Operating display
LED is lit green: Device is switched on and ready for
operation
LED is lit yellow: Set temperature has been reached
3 ERROR LED flashes red: Switched on device is not ready for
operation
4 BATTERY MONITOR Switch-on device/battery monitor:
0: Device is switched off
HIGH: Device is switched on, battery
monitor is in HIGH mode
LOW: Device is switched on, battery
monitor is in LOW mode
5 12/24V DC Connection socket DC voltage supply
CDF18-26-36-46--O-16s.book Seite 9 Montag, 7. November 2016 2:13 14
Autogoods “130”
