REFRIGERATOR
MODEL
RM2652
RM2852
AMERICANA
Model RM2652 & RM2852
REFRIGERATOR FOR LP/GAS
AND ELECTRIC OPERATION
FormNo.3106406.0066/95
TheDometicCorp.
LaGrange,IN46761
Copyright1995TheDometicCorporation
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

1. GENERAL INSTRUCTIONS
This appliance is designed for storage of foods and
storage of frozen foods and making ice.
The refrigerators outlined herein have been design certi-
fied by A.G.A. under ANSI
Z21 .19 Refrigerator Standard
for installation in a mobile home or recreational vehicle and
are approved by the Canadian Gas Association.
The certifications are, however, contingent on the
installation being made in accordance with the following
instructions as applicable.
In the U.S.A., the installation must conform with:
1. National Fuel Gas Code ANSI Z223.1-(latest edition)
2. Manufactured Home Construction and Safety Stan-
dard, Title 24 CFR, Part 3280
3. Recreational Vehicles ANSI Al
19.2-(latest edition).
The unit must be electrically grounded in accordance with
the National Electric Code ANSI/NFPA 70-(latest edition)
when installed if an external alternating current electrical
source is utilized.
4. Any applicable local code.
In Canada, the installation must conform with:
1. Current CGA B 149 Gas Installation Codes
2. Current CSA Standard Z 240.4 GAS-EQUIPPED REC-
REATIONAL VEHICLES AND MOBILE HOUSING
3. Any applicable local code
The unit must be electrically grounded in accordance with
the CANADIAN ELECTRICAL CODE C 22 Parts 1 and 2.
2. VENTILATION
The installation shall be made in such a manner as to
separatethecombustion system from the living space of the
mobile home or recreational vehicle. Louveropeningsforair
supply or for venting of combustion products shall have a
minimum dimension of not less than 1/4 inch.
Proper installation requires one fresh air intake and one
upper exhaust vent. The ventilation kits shown in this
instruction manual have been certified for use with the
refrigerator model listed in the Table. For “Certified Vent
System Kits” see Section B. The ventilation kits must be
installed and used without modification. An opening toward
theoutsideatfloor level in the refrigeratorcompartment must
be provided forventilation of heavier-than-air fuel gases. The
lower vent of the recommended kits is provided with proper
size openings. The flow of combustion and ventilation air
must not be obstructed.
The lower side vent is fitted with a panel which provides an
adequate access opening for ready serviceability of the
burner and control manifold of the refrigerator. This should be
centered on the back of the refrigerator.
3. CERTIFIED INSTALLATION
Certified installations require one roof vent and one lower
side vent.
For certified vent system kits, see Section B.
For further information, contact your dealer or distributor.
4. METHOD OF INSTALLATION
The method of installation is shown in FIG. 1. It is essential
that all maximum or minimum dimensions are strictly main-
tained as the performanceof the refrigerator is dependent on
adequate flow of air over the rear of the refrigerator.
NOTE: The upper vent should be
centered over the condenser coil
at the
back of the refrigerator.
FIG. 1
2
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

3
5.VENTILATION HEIGHTS
Refer to FIG 1., Page 2
Installation with roof Minimum Ventilation
vent and lower side vent heights in:
REFRIGERATOR INCHES MM
RM2652 57-3/4 1465
RM2852 63-3/4 1620
LOWERVENTCUTOUT
UPPERVENTCUTOUT
5-1/2"
21-9/16"
13-3/4"
23-3/4"
NOTE: All cutout dimensions are +/– 1/8".
6.CLEARANCES
Minimumclearancesininchestocombustiblematerialsare:
G: Top 0"
K: Side 0"
L: Bottom 0"
M: Rear 0"
N: SeeNOTE
NOTE:Clearance"M"isbetweentherearmostpartofthe
refrigeratorandthewallbehindtherefrigerator.
NOTE:Clearance"N"isthedistancebetweenthebottom
of the lower vent to the roof material. For ventilation
height,referto SectionA.Installation,Item5.Ventilation
Heights . See FIGS. 1 & 2.
FIG. 2
FIG. 3
NOTE: Wood Strip
MUST be in Place
Refrigerator Overall Recess Total
Model Dimensions Dimensions Ref. Vol.
Height Width Depth Height Width Depth
A B C H W D Cu. Ft.
54-9/16 24-11/16 24-7/8 53-3/4 23-11/16 24 6.0
1386 627 632 1365 601 608
60-5/8 24-11/16 24-7/8 59-15/16 23-11/16 24 7.3
1530 627 632 1522 602 610
RM2652 (Inches)
(mm)
RM2852 (Inches)
(mm)
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

4
7. INSTALLING REFRIGERATOR IN
ENCLOSURE
NOTE:DONOT installthe appliancedirectlyon carpeting.
Carpeting must be removed or protected by a metal or
wood panel beneath the appliance, which extends at least
the full width and depth of the appliance.
Any space between the counter, storage area or ceiling
can trap heat produced at the rear of the refrigerator. Any
space between the top and sides of the refrigerator should
be blocked for maximum refrigerator performance.
CONDENSATE WATER DRAIN HOSE: A 3/4" hole must
be drilled through the flooring in the opening of the base
plateon the rearof refrigerator (seeFIG. 5D). Theinstaller
must make sure that the hose does not kink when run
through the floor. Seal around the hose where it goes
through the hole. If a longer hose is required, follow the
illustration shown below:
OPTION A:
1) Remove black water check valve from hose.
2) Add additional hose
3) Reinstall black water check valve
OPTION B:
1) Cut drain hose at location shown below.
2) Install new drain hose between pieces cut.
NOTE: Black water check valve must be reinstalled to
ensureproperrefrigeratoroperation.DONOTKINKHOSE.
OPTION C:
In vehicles where routing the drain hose through the floor
is not possible, a metal clip is available. The clip is used to
drain water out through the side vent.
Part No. 3106590.007 Clip for plastic side vent (Qty. 50)
Part No. 3106590.015 Clip for plastic side vent (Single)
Part No. 3106559.002 Clip for metal side vent (Qty. 50)
Part No. 3106559.010 Clip for metal side vent (Single)
INSTALLATION: The refrigerator must be installed in a
substantial enclosure and must be level. When installing
therefrigeratorintheenclosure,allareaswithintherecess
in which the refrigerator is installed must be sealed. Make
sure that there is a complete seal between the front frame
of the refrigerator and the top, sides and bottom of the
enclosure. A length of sealing strip is applied to the rear
surface of the front frame for this purpose. Also apply a
sealing strip to the foremost floor of the enclosure and
apply a second sealing strip to the bottom of the trim strip
on the front base as shown in FIG. 4. The sealing should
provide complete isolation of the appliance's combustion
system from the vehicle interior.
A wood strip must be in place across the upper opening of
the enclosure. The top frame of the refrigerator will be
anchored to the wood strip with screws. See FIG. 2.
The dimensions shown in FIG. 3 will give you adequate
space for service and proper installation.
NOTE: Ifthedoorishingedanditneedsbechangedtothe
opposite side, it must be done before the refrigerator is
installed in the enclosure. See Step. 13.
NOTE: Be careful not to damage the sealing strip applied
to the floor of the enclosure when the refrigerator is put in
place.
Therefrigeratorissecuredintheenclosurewithsixscrews.
They must be installed in the following order:
a. First:Twoscrewsareinstalledinfrontdeco-
ration strip and through the front base.
1) The front strip is to be installed after the refrig-
eratoris set intothe alcove.Thestrip isshipped
as a loose part.
2) Install the lowerfront stripby sliding itunderthe
bottom hinge plate as shown in FIG. 5. The
hinge plate can be on the right or left side
depending on the door swing.
FIG.4
FIG. 5
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

5
3)Whenthefrontstripisinplace,installonescrew
throughthehingeandintothefloor.Thesecond
screwisinstalled with a washeronthe opposite
side. (See FIG. 5A)
b.Second: Install the two screws in the top
frame.
1)The top decoration panel must be removed
from the refrigerator before the screws can be
installed. Open refrigerator door and gently
pushthetabsoutoftheholeinthehingewithflat
blade screwdriver. See FIG. 5B.
2)Carefully tilt the top decoration panel and lift up
to remove from top frame. See FIG. 5B.
3)Install the second two screws in the top frame
as shown in FIG. 5C.
FIG. 5B
FIG. 5A
4)Replace the top decoration panel. Be careful
not to pinch the wires. Make sure the tabs snap
back into the holes in the hinge plate.
C.Third: Two screws installed as shown in
rear base. See FIG. 5D.
FIG. 5D
Failure to follow the sequence in securing the refrigerator
intheenclosurecancauseleakagebetweentheframeand
cabinet.
Holefor
DrainWater
Hose
FIG. 5C
8.GAS CONNECTION
Hookuptothegassupplylineisaccomplishedatthemanual
gas shutoff valve, which is furnished with a 3/8" SAE (UNF
5/8"–18)maleflareconnection.Allcompletedconnections
should be checked for leaks with a noncorrosive leak
detector. (See FIG. 6 – Gas tubing may have a different
orientationthanshown).

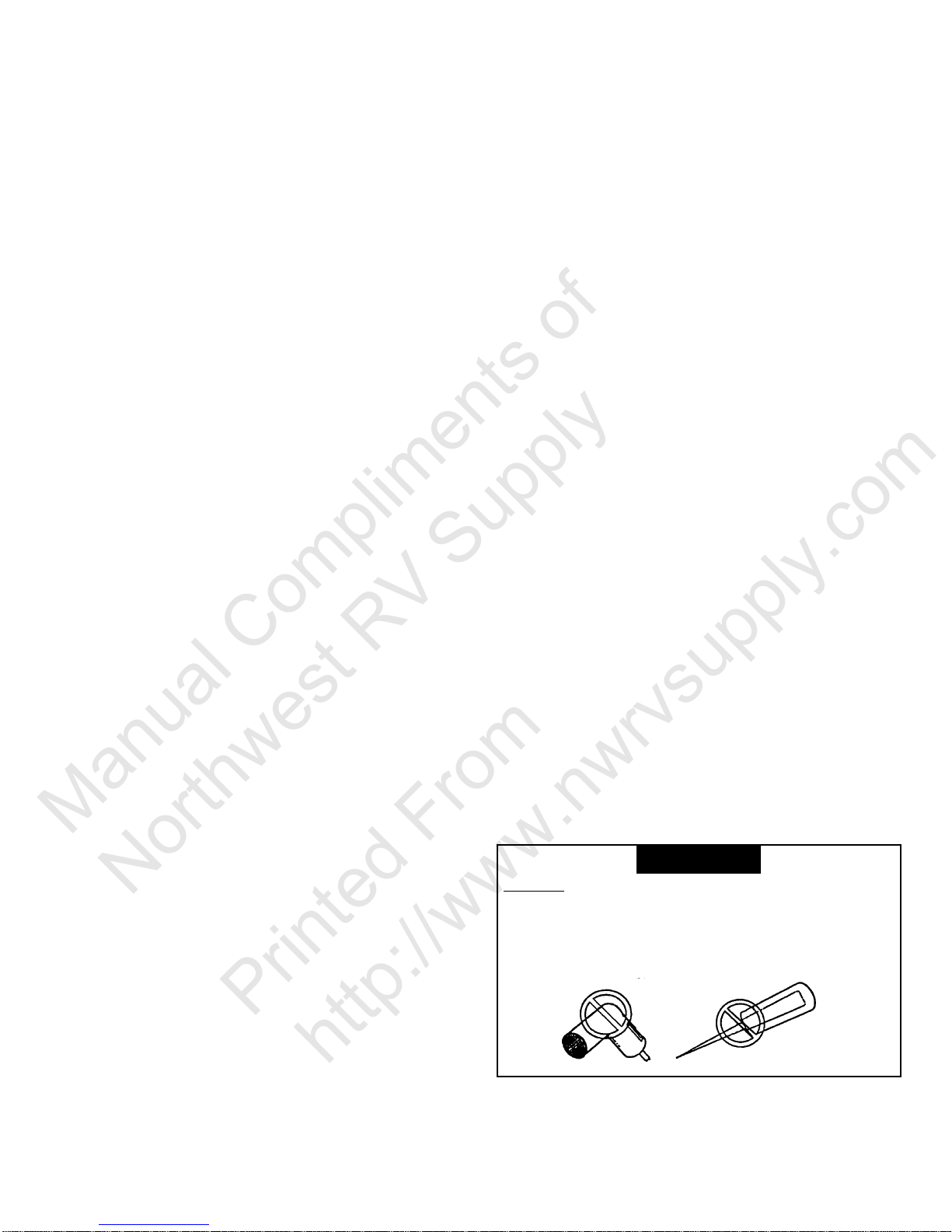

! WARNING
DO NOT USE A FLAME
TOCHECKFOR GAS LEAKS.
Thegas supplysystemmust incorporatea pressureregu-
latortomaintainasupplypressureofnotmorethan13-1/2
inches water column (static) no load.
When testing the gas supply system at test pressures in
excessof1/2psig,therefrigeratoranditsindividualshutoff
valve must be disconnected from the gas supply piping
system.
PRESSURE
REGULATOR
LP GAS
CYLINDER
TO
REFRIGERATOR
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

6
9.TESTING LP GAS SAFETY
SHUTOFF
Thegas safetyshutoffmustbetested afterthe refrigerator
is connected to LP gas supply.
Totestthegassafetyshutoff,proceedasfollows:
A.Start the refrigerator according to the instructions, and
switchtogasmode.See"SectionC.OperationInstruc-
tions."
B.Check that the gas flame is lit.
C.Close the manual shutoff valve at the back of the
refrigerator. (SeeFIG.6)
D.Waitforoneminute.Thecheckindicatorlamp(B)should
nowbelitandthegasmodeindicatorlampshouldbeoff.
E.Remove cover (see FIG. 6) and open the manual gas
valve.Applyanoncorrosivecommercialbubblesolution
to burner jet (see FIG. 6).
FIG.7
Whentestingthegassupplysystematpressureslessthan
orequalto1/2psig,theappliancemustbeisolatedfromthe
gas supply piping by closing its individual manual shutoff
valve.
Incasedetailedinstructionsontheinstallationandconnec-
tion to the gas supply are required, contact your dealer or
distributor.
F.Nobubblesshouldappearattheopeningoftheburnerjet.
Thepresenceofbubblesindicatesadefectivegassafety
shutoff, and service is required.
G.If no bubbles were present at the burner jet, the gas
safety valve is working properly. Rinse jet thoroughly
with fresh water before proceeding. Be careful not to
damage burner jet. Replace cover and turn the main
FIG.6
10.120VOLT AC ELECTRICAL
CONNECTION
Therefrigerator isequipped withathree-prong (grounded)
plug for protection against shock hazards, and should be
pluggeddirectlyintoaproperlygroundedthree-prongrecep-
tacle.DONOTcutorremovethegroundingprongfromthis
plug.Thepowercordshouldberoutedtoavoiddirectcontact
withtheburnercover,fluecoverormanualgasshutoffvalve
knob. The free length of the cord is two feet and therefore
recommendedthatthereceptaclebelocatedtotheleftside
oftherefrigerator(viewedfromtherear)andapproximately
six inches from the floor (see FIG. 7). This allows easy
access through the vent door.
switch OFF and back ON. (See "Section C. Operation
Instructions,Item2.ControlPanel").Normaloperationof
theburnershouldreturn.Allowtheburnertooperatefor
a minimum of 5 minutes.
! WARNING
DO NOT USE A FLAME
TO CHECK FOR GAS LEAKS.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

7
11. 12 VOLT DC CONNECTION
This refrigerator model is not designed for 12 volt DC
operationof the coolingsystem; however, 12volt DC must
besuppliedtotherefrigeratortooperatethecontrols.Usea
minimum of a 14 gauge wire between the battery and
refrigeratortosupplythecontrolvoltage.Theconnectionis
made to the positive (+) and negative (–) terminals of the
terminal block on back of refrigerator. (See FIG. 6) The 12
volt DC supply circuit must be fused, and the maximum
fuse size is 5 amps.
DO NOT use the chassis or vehicle frame as one of the
conductors.Connecttwowiresattherefrigeratorandroute
to the DC supply.
CleanDirectCurrent(DC)powerismandatoryforhigh-
techcircuitstooperateasdesigned.ThesourcesforDC
powerare a batteryandaconverter.
A battery will provide straight line DC power, but ex-
tended operation will require recharging of the battery
bytheconverterorthealternator.
The converter and alternator produces DC power by a
seriesofdiodesthatrectifyalternatingcurrenttoDC.A
battery or capacitors can be used to clean up the AC
ripplethatispresentafterACvoltagehasbeenrectified.
12.INSTRUCTION FOR INSTALLING
DOOR PANEL
Therefrigeratorisnormallydeliveredwithoutthedoorpan-
els.Beforestartingthemountingwork,checkthatthepanel
dimensionsareincompliancewiththosegivenintheTable
onthispageandtheinstructionsarereadthoroughly.When
mounting the panel, proceed as follows. (See FIG. 8)
A. Removethetrimstripfromthedoorbytakingoutthe3
screws. See FIG. 8.
B. Locate the 2 pins in the end frame of the door. If they
arein thetopframe, relocatethe pinsintothe holesin
the bottom door frame to support the panel. See FIG.
8.
C. Slide panel into grooves on vertical edges of the door
untilitslipsintothegrooveontheoppositeendofdoor.
D. Replace trim strip and screws.
13. CHANGING DOOR SWING TO
OPPOSITE SIDE
FIG. 8
Refr. Models HEIGHT WIDTH
TYPE MAX. MIN. MAX. MIN.
RM2652
upper mm 403 401 527 524
inch 15-7/8 15-3/4 20-3/4 20-5/8
lower mm 827 825 527 524
inch 32-11/16 32-5/8 20-3/4 20-5/8
RM2852
upper mm 403 401 527 524
inch 15-7/8 15-3/4 20-3/4 20-5/8
lower mm 983 981 527 524
inch 38-11/16 38-5/8 20-3/4 20-5/8
PANEL DIMENSIONS
MAX. THICKNESS 5/32" (4 mm)
Therefrigeratorisequippedwithconvertibledoors.To
changethe doorswing,consulttheparts manualfor
theConversionKitPartNumber.Forfurtherinforma-
tion,pleasecontacttheDometicCorporationlistedon
thefront page.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

8
SECTION B. CERTIFIED VENT SYSTEM KITS
REFRIGERATOR KIT
MODEL NO. COMPONENTS PART NO.
RM2652 OPTION #1 ROOF BASE 3103633.XXX *
RM2852 ROOF COVER 3103634.XXX *
LOWER SIDE VENT 3102277.XXX *
OPTION #3–A
POWER VENTILATOR POWER VENT ASM. 3104131.002 **
(Island/through ROOF BASE 3103633.XXX *
floor) ROOF COVER 3103634.XXX *
* Fill in "XXX" with color code numbers. For color codes, contact your supplier.
** Alternate instructions forwarded with the Ventilator Kit.
SECTION C. OPERATING INSTRUCTIONS
MostLPgasappliancesusedinrecreationalvehiclesareventedtotheoutsideofthevehicle.Whenparked
close to a gasoline pump, it is possible that the gasoline fumes could enter this type of appliance and
ignite from the burner flame, CAUSING A FIRE OR AN EXPLOSION.
FOR YOUR SAFETY, when refueling, shut off all LP gas appliances which are vented to the outside.
Inanabsorptionrefrigeratorsystem,ammoniaisliquefiedin
the finned condenser coil at the top of the refrigerator. The
liquid ammonia then flows into the evaporator (inside the
freezer section) and is exposed to a circulating flow of
hydrogen gas, which causes the ammonia to evaporate,
creating a cold condition in the freezer.
Thetubingintheevaporatorsectionisspecificallyslopedto
provide a continuous movement of liquid ammonia down-
ward by gravity through this section. If the refrigerator is
operated when it is not level and the vehicle is not moving,
liquidammoniawillaccumulateinsectionsoftheevaporator
tubing.Thiswillslowthecirculationofhydrogenandammo-
niagas, orinsevere cases,completely blockit,resultingin
a loss of cooling.
Any time the vehicle is parked for several hours with the
refrigerator operating, the vehicle should be leveled to
preventthislossofcooling.Thevehicleneedstobeleveled
only so it is comfortable to live in (no noticeable sloping of
floors or walls).
Whenthevehicleismoving,thelevelingisnotcriticalasthe
rolling and pitching motion of the vehicle will pass to either
sideoflevel,keepingtheliquidammoniafromaccumulating
intheevaporatortubing.
1.IMPORTANCE OF LEVELING A REFRIGERATOR
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

9
2. CONTROL PANEL
FIG.10
C
LEGEND 2-WAY MODEL
1. Main Power Button ON/OFF
2. AUTO/MANUAL Mode Selector Button
A. AUTO Mode indicator lamp
B. CHECK indicator lamp (Gas Mode Only)
C. Climate control switch
2-WAY DISPLAY PANEL
3. START-UP INSTRUCTIONS
Beforestartingtherefrigerator,checkthatallthemanualgas
valves are in the ON position. DO NOT forget the manual
shutoff valve on the rear of the refrigerator. See FIG. 6.
This refrigerator is equipped with a control system, which
can automatically select the most suitable energy source
which is available, either 120 Volt AC or LP gas operation.
The refrigerator can be operated in either the AUTO mode
(thermostat factory preset below the safe food storage
temperature)orMANUALmode(continuousoperation-no
thermostatcontrol).
NOTE:Undercertaincoolweatherconditions,thefoodinthe
lower portion of the fresh food compartment may freeze if
operated for an extended period of time on the MANUAL
mode.
A. A12voltDCsupplymustbeavailablefortheelectronic
controltofunction.Therefrigeratorwillworkdownto9.6
volt DC.
B. Press the main power ON/OFF button (1) to the
DOWNposition.
B. InAUTOmodeoperation,thetemperatureiscontrolled
bya singletemperaturesetting, onthe energysource
selected by the control system. (See Auto Mode)
C. In MANUAL mode operation, the refrigerator will run
continuously on the energy source selected by the
control system. (See Manual Mode)
NOTE:Thefoodinthelowercompartmentmaybefrozenif
the refrigerator is left on MANUAL mode.
D. TO SHUT OFF THE REFRIGERATOR
The refrigerator may be shut off while in any mode of
operationby pressingthe mainpowerON/OFFbuttonto
the UP (OFF) position. This shuts off all DC power to the
refrigerator,includingtheinteriorlight.
4. DESCRIPTION OF OPERATING
MODES
A. AUTO MODE
Press the AUTO/MANUAL mode selector button (2) to the
DOWN position. The AUTO mode indicator lamp (A) will
illuminate.
When operating in the AUTO mode, the AUTO mode
indicator lamp (A) will illuminate. The control system will
automatically select between AC and GAS operation with
AC having priority over GAS. If the control system is
operatingonACenergyanditthenbecomesunavailable,the
system will automatically switch to GAS. As soon as AC
becomesavailableagain thecontrolwill switch backto AC
operation.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

10
If 120 volts AC is not available, the control system will
automatically switch to GAS operation. Within 45 seconds
the burner should be ignited and operating normally. If
unsuccessful, the CHECK indicator lamp (B) will illumi-
nate.
To restart an ignition attempt with the CHECK lamp
illuminatedortoclear(turnoff)theCHECKlamp,pressthe
main power ON/OFF button to the OFF and the ON
position. The control system will attempt a new 45 second
ignition sequence.
On the initial refrigerator start-up on gas (120 volts AC is
not available), it may take longer than 45 seconds to allow
airtobepurgedfromthegasline. Iftherefrigerator hasnot
been used for a long time or the LP tanks have just been
refilled,airmaybetrappedinthesupplylines.Topurgethe
airfromthelinesmayrequireresettingthemainpowerON/
OFFbutton (1) threeof fourtimes.If repeatedattempts fail
to start the LP gas operation, check to make sure that the
LP gas supply tanks are not empty and all manual shutoff
valves in the lines are open. If the problem is still not
corrected, contact a service center for assistance.
NOTE: DO NOT continue to reset GAS operation if the
CHECK indicator lamp continues to be illuminated after 3
or 4 tries.
If 120 volts AC becomes available while the CHECK
indicator lamp is on, the control system will switch to 120
volt AC operation. The CHECK lamp will not turn off until
themainpowerON/OFFbuttonispressedto theOFFthen
ON position.
In AUTO mode operation, the temperature is controlled by
a single temperature setting.
B.MANUAL MODE
When operating in the MANUAL mode, the AUTO mode
indicator lamp (A) will be off, and the refrigerator will run
continuously on the energy source selected by the control
system.
5.HOW TOUSE THE REFRIGERATOR
A.FOOD STORAGE COMPARTMENT
The food storage compartment is completely closed and
unventilated,whichisnecessarytomaintaintherequiredlow
temperatureforfoodstorage.Consequently,foodshavinga
strong odor or those that absorb odors easily should be
covered. Vegetables, salads, etc. should be covered to
retaintheircrispness.Thecoldestpositionsintherefrigera-
tor are under the cooling fins and at the bottom of the
refrigerator.Thewarmerareasareontheupperdoorshelves.
This should be considered when placing different types of
foodintherefrigerator.
B.FROZEN FOOD STORAGE
COMPARTMENT
Quickfrozensoftfruitsandicecreamshouldbeplacedinthe
coldestpartofthecompartmentwhichisonorjustbelowthe
freezershelf.Frozenvegetables,maybestoredinanypart
of the compartment.
Thiscompartmentisnotdesignedfordeeporquickfreezing
offood.Meatorfish,whetherraworprepared,canbestored
in the frozen food storage compartment provided they are
precooledfirst inthe refrigerator.They
can be stored about three times longer in the frozen food
compartmentascomparedtothefreshfoodcompartment.
To prevent food from drying out, keep it in covered dishes,
containers, plastic bags or wrapped in aluminum foil.
C. ICE MAKING
Ice cubes can be made in the ice tray placed in the freezer
compartment. The tray should be filled with water to within
1/4" (5mm) from the top. For faster ice making, the tray
should be placed in direct contact with the freezer shelf.
Toreleasetheicecubes,seizethetraywithbothhandsand
twistthetray. Cubesnotrequiredshouldbereplaced inthe
tray. Refill the tray with water and replace the tray on the
freezershelf.
Icewillbemademorerapidlyifthecontrolpanelissetinthe
MANUAL position. It is a good idea to do this a few hours
before the anticipated need for ice, but be sure to set the
controlbackto AUTOsettingwhen the iceis formed. Food
inthelower compartmentmaybe frozenifthesettingisleft
in the MANUAL position.
D. DEFROSTING
ShutofftherefrigeratorbypressingthemainpowerON/OFF
button to the UP (OFF) position. Empty the refrigerator,
leaving the drip tray under the finned evaporator, and the
cabinet and freezer doors open. Defrosting time can be
reducedbyfillingtheicetraywithhotwaterandplacingiton
the freezer shelf.
! CAUTION
DO NOT use a hot air blower. Permanent damage could
resultfrom warpingthemetal orplastic parts.DO NOTuse
a knife or an ice pick, or other sharp tools to remove frost
fromthefreezershelf.Theycancreatealeakintheammonia
system.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

11
G. CLIMATE CONTROL
Duringthesummermonthsofhightemperaturesandhumid-
ity, the metal frame between the freezer and fresh food
compartmentsmayhavewaterdropletsforming.Thenum-
ber of water droplets will increase if the vehicle isn't air
conditionedduringthesemonths.
Thisrefrigeratorcomesstandardwitha12volt(DC)climate
controlthatwillevaporatethewaterdropletswhentheyform.
Tohavetheclimatecontrolon,youpositiontheswitch("C",
Figure 10) located beneath the top decorative strip that
housesthecontrolpaneltoON.Theclimatecontrolcanbe
leftoncontinuouslyoronlyusedwhentemperaturesrequire
it.
! CAUTION
THE CLIMATE CONTROL WILL DRAW 12 VOLT DC
POWER CONTINUOUSLY WHEN IN THE "ON" POSI-
TION.ITSHOULDBETURNED"OFF"WHENACHARG-
ING SOURCE IS NOT AVAILABLE. IT WILL QUICKLY
DRAINTHECHARGEFROMABATTERY.
(Section D. Maintenance & Service, continued on
next page)
Whenallfrostismelted,drytheinterioroftherefrigeratorwith
acleancloth.Replaceallfoodandturntherefrigeratorback
on.
E.CLEANING
Cleaningtherefrigeratorisusuallydoneafteritisdefrosted
orputintostorage.Tocleantheinteriorlineroftherefrigera-
tor,uselukewarmweaksodasolution.Useonlywarmwater
to clean the finned evaporator, gaskets, ice trays and
shelves.NEVERusestrongchemicalsorabrasivestoclean
thesepartsastheprotectivesurfaceswillbedamaged.Itis
importantto alwayskeepthe refrigeratorclean.
F.SHUT-OFF (STORAGE PROCEDURE)
ShutofftherefrigeratorbypressingthemainpowerON/OFF
button to the UP (OFF) position. (See FIG. 10)
Iftherefrigeratorwillnotbeinoperationforaperiodofweeks,
it should be emptied, defrosted, cleaned and the doors left
ajar. The ice tray should also be dried and kept outside the
cabinet.
! WARNING
DONOTstoreexplosivesubstancesintherefrigerator,
suchasgasolineandotherflammablevaporsorliquids.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

12
SECTION D. MAINTENANCE & SERVICE
Tips for the Service Technician
Theusershouldbeawareofservicethatmustbedoneonaregularscheduletokeeptherefrigeratoroperatingproperly.
TheserviceshouldonlybeperformedbyaqualifiedtechnicianwhoisfamiliarwithLPgassystemsandrefrigerators.
1. REFRIGERATOR REMOVAL
Beforeworkingontherefrigerator,makesuretheACvoltage
and DC voltage leads are disconnected. Shut off the gas
supply at the LP tank. Disconnect the gas supply line. Cap
the gas supply line, loosen the screws anchoring the
refrigeratortotheenclosureandslidetherefrigeratoroutof
thecompartment.
Replacement is the reverse of removal. Check all connec-
tions for gas leaks. Refer to Section A, Item 1 to 12 of
Installation Instructions .
2. PERIODIC MAINTENANCE
TokeepyourDometicrefrigeratoroperatingefficientlyand
safely, periodic inspection and cleaning of several compo-
nents once or twice a year is recommended.
A. It is important to keep the area at the back of the
refrigeratorclean.Checkthelowervent,upperventand
areabetweentheseopeningsforanyobstructionssuch
asbird/insectnests,spiderwebs,etc.Cleanthecoilson
the back of the refrigerator. Use a soft bristled brush to
dust off the coils.
Itisimportanttokeeptherefrigeratorventareafreefrom
combustible material, gasoline and other flammable
vapors or liquids.
NOTE:Thefollowingmaintenanceisrequiredonceortwice
a year, but should only be done by a qualified serviceman
who is familiar with LP gas systems and refrigerators.
B. CheckallconnectionsintheLPgassystem(attheback
oftherefrigerator)forgasleaks.TheLPgassupplymust
beturnedon.Applyanoncorrosivebubblesolutiontoall
LP gas connections. The appearance of bubbles indi-
cates a leak and should be repaired immediately by a
QUALIFIED SERVICEMAN WHO IS FAMILIAR WITH
LP GAS SYSTEMS AND REFRIGERATORS.
GAS EQUIPMENT ASSEMBLY
FIG. 12
MANUAL SHUTOFF VALVE
Use a quarter dollar or a slotted screwdriver
to change position
SOLENOID VALVE
BURNER MOUNTING SCREWS THERMOCOUPL
E
BURNER
TUBE
SPARK
ELECTRODE
BURNER
JET
PRESSURE TEST
PORT
INLET FITTING
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

13
! ! WARNING
DO NOT USE A FLAME
TOCHECKFOR GAS LEAKS.
C.Check the control system by connecting/disconnecting
120volt ACpower,start/stop theengine, etc.Compare
theoperationwiththeoperationdescribedin SectionC.
OperationInstructions .
D.The LP gas pressure should be checked and the main
regulatorreadjustedifpressureisincorrect.Thecorrect
operating pressure is 11 inches of water column. The
correct place to take the LP gas pressure is at the test
port just ahead of the burner jet. (See FIG. 12).
E.Inspectthefluebaffle.Itshouldbereasonablycleanand
free of soot. Heavy soot formation indicates improper
functioningoftheburner.Theflueandburnerbothrequire
cleaninginthefollowingmanner:
1)Unplugthe refrigeratorpowercordfromthe 120volt
AC outlet (see FIG. 6).
2)Disconnect or shut off the 12 volt power to the
refrigerator.
3)TurnmanualshutoffvalvetoOFF.(SeeFIG.6&12).
4)Removecoverfromtheburnerhousing.(SeeFIG.6).
5)Disconnectthewirefromthehighvoltageelectrode.
6)Removetheburnermountingscrewsandremovethe
burnerassembly.
7)Removethefluecapfromtopoffluetubeandliftout
thewireand spiralbaffle.Cleanthefluefromthe top
using a flue brush. Blowing compressed air into the
flue will not properly clean soot and scale out of the
flue tube. Replace spiral baffle and flue cap.
8)Cleanburnertubewithabrush.Blowoutburnerwith
compressedair.
9)Beforeremovingburnerjet,cleanburnerareaofsoot
andscalethatfelloutoffluetube.Removetheburner
jet. Soak the jet in wood alcohol and blow it out with
compressedair. Reinstalland tightenburnerjet.
DO NOT use a wire or pin when cleaning the burner jet
asdamagecanoccurtotheprecisionopening.Thiscan
causedamagetotherefrigeratororcreateafirehazard.
10)Reinstall burner, being careful that the end of the
burnerfitsintotheslotontheburnerbracket.Check
tomake sureslotsare centeredunder theflue tube
and the thermocouple is positioned properly (tip of
thermocoupleextendsover twoslotsof burner).
11)Be sure to reconnect the wire to high voltage elec-
trode. Check the electrode for proper location and
gap. (See FIG. 13).
ELECTRODE
BURNER TUBE
1/8" TO 3/16"
(3-5 mm)
12)Turn on manual gas shutoff valve and check all
fittings for leaks.
13)Connect 120 volt power cord to the outlet and
reconnect or turn on the 12 volt DC power.
14)CheckLPgassafetyshutoff.See SectionA.Instal-
lation, Item 9. Testing LP Gas Safety Shutoff .
FIG. 13
F.FUSES
The 2-way models are equipped with 2 fuses, one for the
refrigerator control system and one for the AC cartridge
heater (see Table below). To replace fuse(s) proceed as
follows:
1.Disconnect the wall plug, and the 12 volt wires.
2.Remove the power module cover. See FIG. 6.
3.Snap the fuse out of the fuse holder.
4.Fit a new fuse in to the fuse holder.
5.Replacethepowermodulecover.
ControlSystem 3-amp
ACHeater 5-amp
3.TROUBLESHOOTING
Refrigerator Does Not Cool Properly
A.Burnerjetclogged.
Clean. See Section D. Maintenance & Service, Item 1.
PeriodicMaintenance,ParagraphE.Item1–14.
B.Checklevelof refrigerator.
C.Ventingproblem.
Restriction in air flow across cooling unit.
D.Heavy frost buildup on evaporator fins.
Defrost.
E.Flue baffle not inserted properly in flue tube.
F.Improperlyset thermostat.
See Section C. Operating Instructions, Item 3.
ParagraphF.
G.Burnerdirty.
Clean. See Section D. Maintenance & Service, Item 1.
PeriodicMaintenance,ParagraphE.8.
H.LPgaspressure low atburner.
Setmain regulator sopressure does notdrop below 11
inches water column at pressure tap.
I.Burnernotlocatedproperlyunderfluetube.
Relocate.
J.Burnerdamaged.
Replace.
K.Odorsand fumes.
1.Dislocatedburner.
2.Damagedburner
3.Dirty flue tube.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

14
L. FUSES
1) RefrigeratorACsupply
2) RefrigeratorDCsupply
3) RefrigeratorControlSystem
See Section D. Maintenance &Service , Item 2,
ParagraphF.
Contact an authorized service center for parts
and repairs as needed.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com

This Manual is Compliments of
Northwest RV Supply
86325 College View Road
Eugene, OR 97405
Local: 541-746-9092
Toll-Free: 866-678-7467
Fax: [phone]
http://www.nwrvsupply.com
[e-mail]
Northwest RV Supply carries a large spectrum of surplus, used, and new
RV parts and components. Please feel free to visit our website for
additional information.
Manual Compliments of
Northwest RV Supply
Printed From
http://www.nwrvsupply.com
