Dometic CRX1065D User manual

CRX1065D, CRX0065D
Compressor refrigerator
Installation and Operating Manual. . . . . . . 10
Kompressor-Kühlschrank
Montage- und Bedienungsanleitung. . . . .32
Réfrigérateur à compression
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .55
Nevera con compresor
Instrucciones de montaje y de uso . . . . . . .79
Frigorífico com compressor
Instruções de montagem e manual de
instruções. . . . . . . . . . . . . . . . . . . . . . . . . .102
Frigorifero con compressore
Istruzioni di montaggio e d’uso . . . . . . . .126
Compressorkoelkast
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . .149
Kompressor-Køleskab
Monterings- og betjeningsvejledning. . . 172
Kylskåp med kompressor
Monterings- och bruksanvisning . . . . . . . 195
Kompressorkjøleskap
Monterings- og bruksanvisning . . . . . . . . 217
Kompressori jääkaappi
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 239
Компрессорный холодильник
Инструкция по монтажу
и эксплуатации . . . . . . . . . . . . . . . . . . . . .262
Lodówka kompresorowa
Instrukcja montażu i obsługi. . . . . . . . . . . 288
Kompresorová chladnička
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 312
Kompresorová chladnička
Návod k montáži a obsluze . . . . . . . . . . . 334
Kompresszoros hűtőszekrény
Szerelési és használati útmutató . . . . . . . 357
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
COOLMATIC
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
3
5
1
3
2
4
1
2
1
2
3
4
8
7
6
5
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
4
3
1
2
43
1
2
AB
50
3
min. 595 mm
(min. 23.43")
458 mm
(18.03")
535 mm (21.06")
4
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX

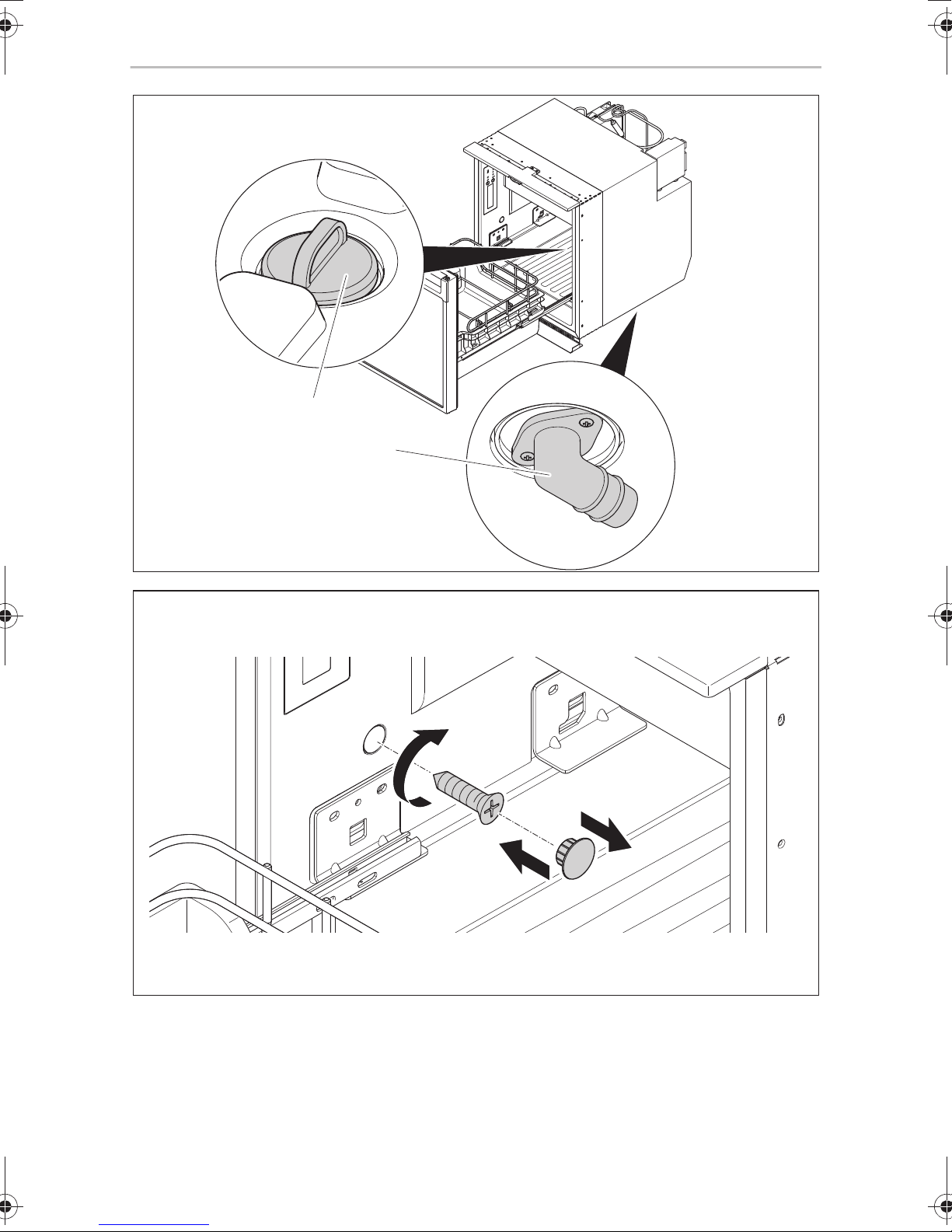

5
5
1
2
6
1.
2.
3.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
6

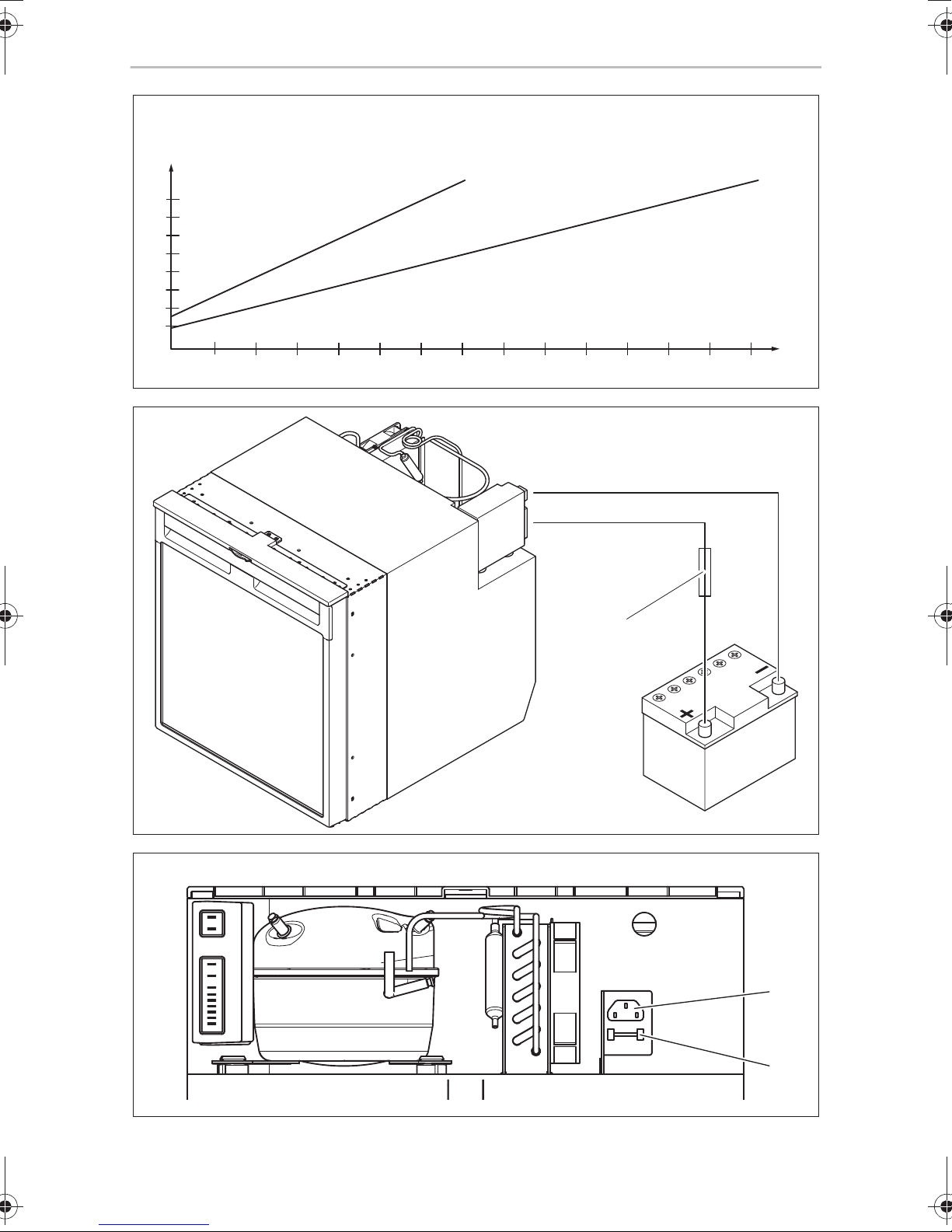

Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
7
rd
bk
1
8
1
2
9
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
7

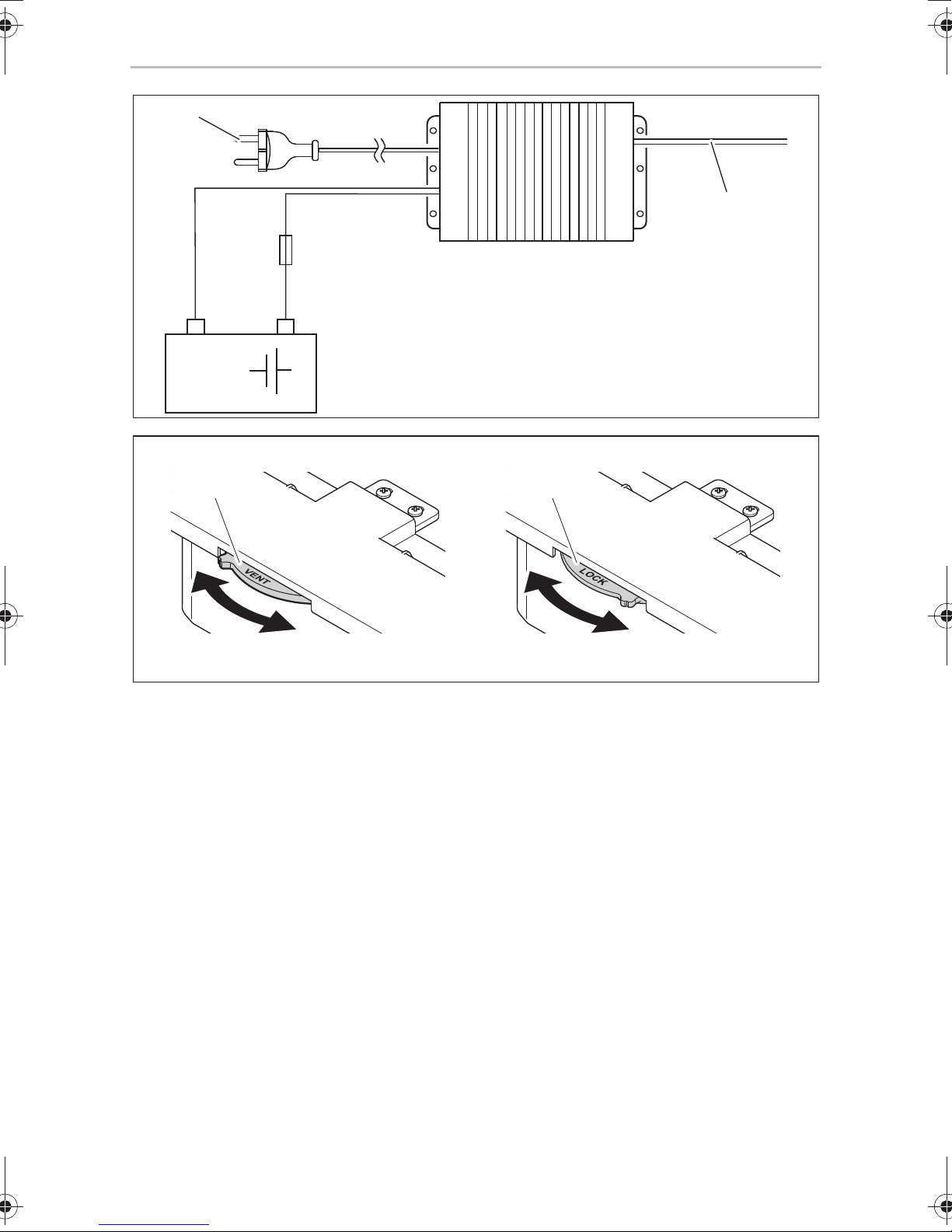

12 V/24 V
10 A
–
–
+
+
2
1
rd/bk
rd
sw
bk
100 – 240 V~
0
1 1
a
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
8
b
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

CRX
9
1.
2.
c
448 545
525
d
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX
10
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX Explanation of symbols
11
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
Faulty assembly or connection
Damage to the product resulting from mechanical influences and excess voltage
Alterations to the product without express permission from the manufacturer
Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
Have a qualified technician perform the installation in wet rooms.
Do not operate the device if it is visibly damaged.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
Safety instructions CRX
12
If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
This device can be used by children aged8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
Cleaning and user maintenance must not be carried out by children
without supervision.
Children must be supervised to ensure that they do not play with the
device.
Always keep and use the device out of the reach of children under
8 years of age.
Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
Danger of crushing! Do not put your fingers into the hinge.
Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
Check that the voltage specification on the type plate is the same as
that of the power supply.
Never pull the plug out of the socket by the connection cable.
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery before
connecting the quick charging device.
If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
Keep the drainage outlet clean at all times.
Do not open the refrigerant circuit under any circumstances.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX Safety instructions
13
Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
Before starting the device, ensure that the power supply line and the
plug are dry.
If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
Ensure that the ventilation vents are not covered.
Do not fill the inner container with ice or fluid.
Never immerse the appliance in water.
Protect the appliance and the cable against heat and moisture.
Make sure that foodstuffs do not touch the walls of the cooling area.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
Scope of delivery CRX
14
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
All accessories are available from your specialist dealer. If you have any questions,
consult your specialist dealer or your service partner.
5 Intended use
The refrigerator is designed for installation in caravans and motorhomes and on
boats. It is only suitable for installation in a fitted niche. Once it is installed, only the
front of the appliance may be accessible
The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The
refrigerator is not intended for the proper storage of medicine.
!
The refrigerator is suitable for use with a DC voltage.
Quantity Description
1 Refrigerator with shelves
1 Outlet port
1 Installation and operating manual
Description Explanation Ref. no.
Rectifier Transforms an input voltage of 100 – 240 Vwto 12 Vg
or 24 Vg, so that the refrigerator can be connected to
an AC power supply.
9600000445
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX Technical description
15
6 Technical description
The CoolMatic cooling appliances can cool products and keep them cool. Products
can be deep-frozen in the freezer compartment. If the refrigerator is operated
without a freezer compartment, frozen products can be stored in the short term
using the fast-cooling function.
The refrigerant circuit is maintenance-free.
CRX0065D:
The DC version can be operated with the rectifier MPS35 (accessory) on an
AC network.
CRX1065D:
The ACDC version can be connected directly to the AC network using the AC plug.
The temperature is set using the control panel on the inside left of the refrigerator.
Four temperature ranges from +3 °C to +12 °C, and a fast-cooling function,
are available for selection.
6.1 Components
No. in
fig. 1, page 3 Explanation
1 Freezer compartment (detachable)
2 Control panel
3 Refrigerator drawer
4 Compartment with lid (hinged)
5 Lock
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
Installing and connecting the refrigerator CRX
16
6.2 Control elements
7 Installing and connecting the
refrigerator
7.1 Safety instructions for installation on boats
Please note the following instructions for installation on boats:
D
A
No. in
fig. 2, page 3 Explanation
1 IR sensor for switching the interior light
2 LED Service display
3 LED Blue: Compressor is running
LED Orange: Compressor is off
4 On/off button
5 Inner lighting
6 Temperature selection button
7 LED: Fast cooling function on
8 LEDs: Temperature levels 1 to 4
DANGER!
If the appliance is powered by the mains, ensure that the voltage supply
has a residual current circuit breaker.
NOTICE!
The refrigerator is designed for short-term heeling of up to 30°.
When setting up the refrigerator, note that it must be fastened to take
account of this. If you have any questions regarding installation, con-
sult your specialist dealer.
The appliance is designed for ambient temperatures between
+16 °C and +43 °C.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX Installing and connecting the refrigerator
17
7.2 Notes on installing the refrigerator
Observe the following when installing the refrigerator:
Install the refrigerator so that the warm air produced can easily flow away
(either upwards or to the sides, fig. 3, page 4).
Key for fig. 3, page 4
Observe the installation dimensions in fig. 4, page 4.
Keep objects clear of openings in the housing or installation structure (such as
ventilation slots, etc.).
Condensate is produced when the refrigerator is operating normally. You can
either wipe up the condensate on the floor of the refrigerator in regular intervals,
or drain it through an outlet in the floor of the refrigerator (see chapter “Mounting
the outlet port (optional)” on page 17).
7.3 Mounting the outlet port (optional)
➤Connect a hose with an inside diameter of 10 mm (not included) to the outlet
port.
➤Lay the refrigerator on its side in order to access the bottom side.
➤Mount the outlet port (fig. 52, page 5) aligned to the front or to the back
according to the desired outlet direction.
➤Remove the drain plug (fig. 51, page 5) inside the refrigerator.
No. Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if there is not sufficient air to circulate
above or at the side.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
Installing and connecting the refrigerator CRX
18
7.4 Installing the refrigerator
Proceed as follows to install the refrigerator:
➤If you wish to drain the condensate through a hose:
Mount the outlet port (see chapter “Mounting the outlet port (optional)” on
page 17)
➤Undo the transport lock (chapter “Releasing the lock” on page 24).
➤Open the refrigerator drawer.
➤Remove the blanking plugs (fig. 6, page 5).
➤Push the refrigerator into the recess.
➤Fix the refrigerator in place using suitable screws (fig. 6, page 5).
➤Press the blanking plugs (fig. 6, page 5) into the openings.
7.5 Connecting the refrigerator to DC voltage
A
The refrigerator can be operated with a 12 V or a 24 V DC voltage supply.
For safety reasons, the refrigerator is equipped with an electronic system to prevent
the polarity being reversed. This protects the refrigerator against reversed polarity
when connecting to a battery and against short circuiting.
To protect the battery, the refrigerator switches off automatically if the voltage is
insufficient (see table below).
NOTICE!
To avoid voltage drops and loss of performance, keep the
connection cable as short as possible and not be interrupted.
Therefore avoid additional switches, plugs or power strips.
Disconnect the cooling device and other electric consumers from
the battery before you connect the battery to a quick charging
device. Overvoltage can damage the electronics of the device.
12 V 24 V
Cut-off voltage 10.4 V 22.8 V
Cut-in voltage 11.7 V 24.2 V
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
CRX Installing and connecting the refrigerator
19
➤Determine the required cross section of the cable in relation to the cable length
according to fig. 7, page 6.
Key to fig. 7, page 6:
A
➤Connect your refrigerator to a plug socket which is fuse-protected with at least
15 A (at 12 Vg) or 7.5 A (at 24 Vg) (fig. 81, page 6).
➤Connect the red cable (fig. 8rt, page 6) to the positive terminal of the battery.
➤Connect the black cable (fig. 8sw, page 6) to the negative terminal of the
battery.
7.6 Connecting the refrigerator to AC voltage
D
Connecting the ACDC version to AC voltage
Proceed as follows when you connect the refrigerator to the AC supply:
➤Plug the connector into the AC socket (fig. 91, page 6).
Coordinate axis Meaning Unit
l Cable length m
∅Cable cross section mm²
NOTICE!
Make sure the polarity is correct.
DANGER! mortal danger!
Never handle plugs and switches with wet hands or if you are
standing on a wet surface.
If you are operating your refrigerator on board a boat with an
AC mains connection using a shore connection, you must install a
residual current circuit breaker between the AC mains supply and
the refrigerator.
Seek advice from a trained technician.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU

EN
Using the refrigerator CRX
20
Connecting the DC version to AC voltage
You can connect the refrigerator to 100 – 240 VwAC power if you use the MPS35
rectifier (accessory).
The MPS35 rectifier features a priority circuit which conserves the battery
connected. When a AC mains connection is used, the rectifier automatically
switches from battery to mains operation.
When disconnected from the AC supply, the rectifier automatically switches back to
battery operation. Mains operation via the rectifier always takes priority over battery
operation.
Proceed as follows when you connect the refrigerator to the AC supply:
➤Attach the rectifier on the back of the refrigerator.
➤Connect the rectifier as shown in fig. 0, page 7.
➤Connect the refrigerator to the rectifier (fig. 02, page 7):
– Red cable: positive battery terminal
– Black cable: negative battery terminal
➤Plug the connector into the AC socket (fig. 01, page 7).
8Usingtherefrigerator
The refrigerator conserves fresh foodstuffs. The freezer compartment conserves
frozen foodstuffs and freezes fresh foodstuffs.
ANOTICE!
Do not place any electrical devices inside the cooler. The
only exceptions are devices approved for the purpose by the
manufacturer.
Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy glass containers.
Food may only be stored in its original packaging or in suitable
containers.
Make sure that you only put items in the cooler which may be kept
at the selected temperature.
&5;',2VERRN6HLWH0RQWDJ)HEUXDU
