Dometic miniBar RH 430LG User manual

RH430LD, RH430LG, RH440LD,
RH440LG, RH460LD, RH460LG
Minibar
Installation and Operating Manual. . . . . . . 11
Minibar
Montage- und Bedienungsanleitung . . . . .22
Minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .34
Minibar
Instrucciones de montaje y de uso . . . . . . .46
Minibar
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Minibar
Istruzioni di montaggio e d’uso . . . . . . . . .70
Minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .82
Minibar
Monterings- og betjeningsvejledning . . . .94
Minibar
Monterings- och bruksanvisning . . . . . . . 105
Minibar
Monterings- og bruksanvisning . . . . . . . . 116
Minibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 126
Мини-бар
Инструкция по монтажу
и эксплуатации . . . . . . . . . . . . . . . . . . . . . 137
Minibar
Instrukcja montażu i obsługi. . . . . . . . . . . 149
Minibar
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 160
Minibar
Návod k montáži a obsluze . . . . . . . . . . . 171
Minibár
Szerelési és használati útmutató . . . . . . . 182
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
MINI FRIDGES

RH4xxLD, RH4xxLG
3
1
1
ADCB
2
3

RH4xxLD, RH4xxLG
4
1.
2.
3.
4
1.
2.
3.
5
3.
2.
1.
5 mm
5 mm
6
7
3.
2.
1.

RH4xxLD, RH4xxLG
5
1.
2.
3.
8
1.
2.
3.
9
180°
0
a
1. 2.
b
c

RH4xxLD, RH4xxLG
6
180°
d
3.
2.
1.
e
2.
1.
f
g
3.
2.
1.
h

RH4xxLD, RH4xxLG
7
1.
2.
40 mm
10 mm
i
1 – 2 mm
6 – 8 mm
j
k

RH4xxLD, RH4xxLG
8
l
80 mm
90°
m

RH4xxLD, RH4xxLG
9
1.
2.
3.
n
o
p
q
3.
2.
1.
r

RH4xxLD, RH4xxLG
10
s
1. 2.
3.
4.
5.
6.

EN
RH4xxLD, RH4xxLG
11
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

EN
Explanation of symbols RH4xxLD, RH4xxLG
12
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the cooling device if it is visibly damaged.
•If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
•This cooling device can be used by children aged 8 years or over, as
well as by persons with diminished physical, sensory or mental capac-
ities or a lack of experience and/or knowledge, providing they are
supervised or have been taught how to use the cooling device safely
and are aware of the resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the cooling device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.

EN
RH4xxLD, RH4xxLG Safety instructions
13
•Children must be supervised to ensure that they do not play with the
cooling device.
•Always keep and use the cooling device out of the reach of children
under the age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
!CAUTION!
•Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Connect the cooling device with the AC connection cable to the AC
power supply.
•Never pull the plug out of the socket by the cable.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling.
2.2 Operating the cooling device safely
!CAUTION!
•Before starting the cooling device, ensure that the power supply line
and the plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
•Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).

EN
Intended use RH4xxLD, RH4xxLG
14
•Danger of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluids.
•Never immerse the cooling device in water.
•Protect the cooling device and the cable against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with a 220 – 240 Vwmains supply.
!
4Scopeofdelivery
5 Technical description
The cooling device can cool products to a maximum of 21 °C (RH430LD, RH440LD,
RH460LD only) or 18 °C (RH430LG, RH440LG, RH460LG only) under the ambient
temperature and keep them cool. A grid divider can be used to separate foodstuffs,
e.g. bottles and sweets.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
Quantity Description
1 Minibar
1 Installation and operating manual

EN
RH4xxLD, RH4xxLG Installation
15
Control element
Defrosting function
Frost will gradually form on the cooling surfaces. To prevent this frost-formation the
appliance has a function switching off the cooling unit for two hours in every
24 hours.
During the two hour defrosting phase the frost will melt and the defrost water runs
into an evaporating vessel located at the bottom rear of the refrigerator. The defrost
water evaporates automatically so that the vessel does not have to be emptied man-
ually.
6 Installation
The cooling device is designed for free-standing installation, but it can also be
installed in a built-in cabinet. To ensure satisfactory operation and maximum cooling
efficiency the following installation conditions have to be fulfilled.
•The cooling device must be levelled carefully to ensure proper function.
•The clearance between the cooling device‘s back and the wall should be 20 mm
or more.

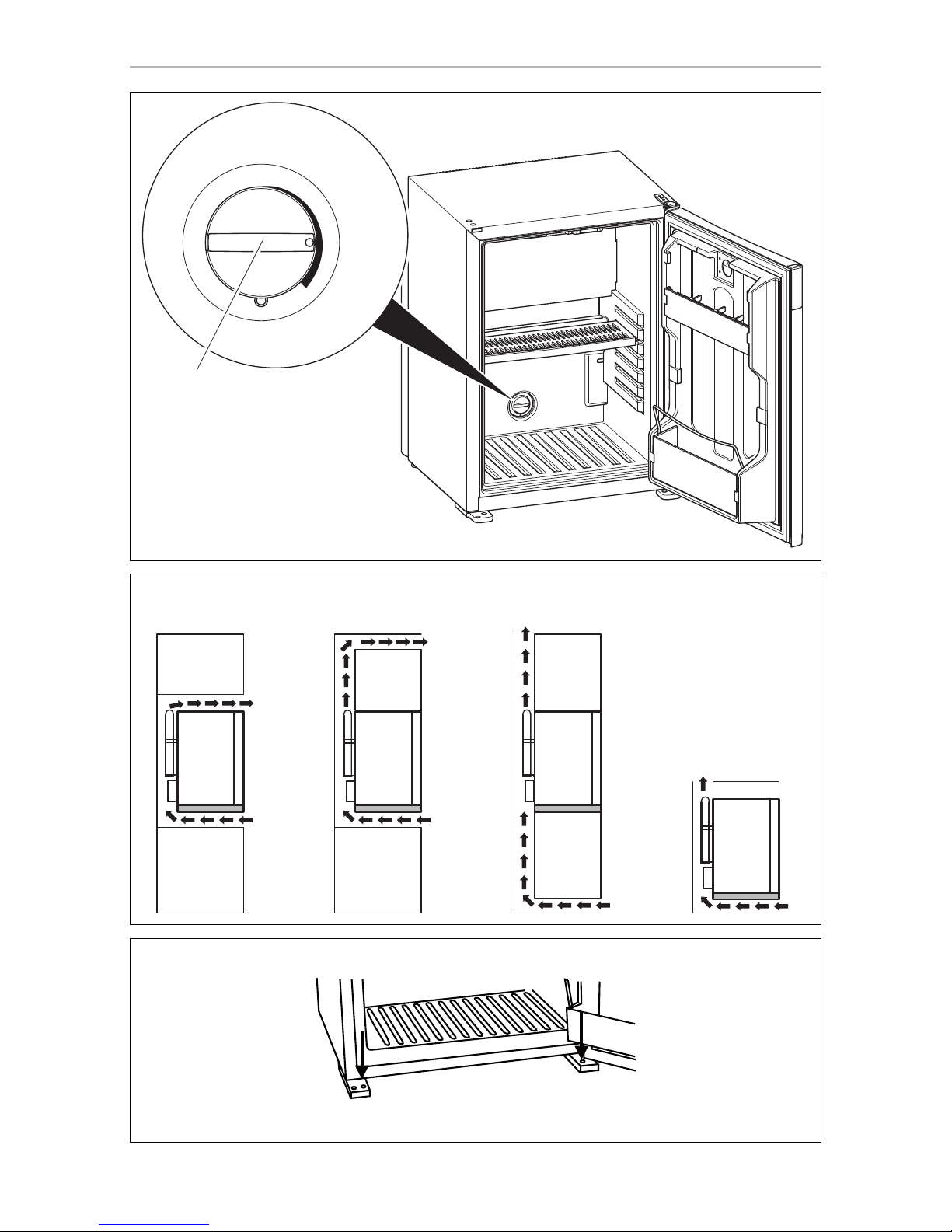

•Ventilation must be provided as shown in alternatives A, B, C or D (fig. 2,
page 3).
•The ventilation duct must at least measure 105 mm x the width of the cooling
device.
•The entire cooling unit must project into the ventilation duct as shown (fig. 2,
page 3). Other parts of the device may not project into the ventilation duct.
•Air passing through the ventilation duct must not be preheated by any source of
heat.
•Ventilation grills, if used, must have openings of at least 200 cm².
•Moisture will condense on the door of the glass door version, when the ambient
humidity is above 65 % in 25 °C ambient temperature.
•The cooling device can be fixed to furniture by inserting screws of an appropriate
length through the device feet (fig. 3, page 3).
•The socket outlet for the mains connection must be freely accessible.
No. in
fig. 1, page 3 Description
1 Temperature controller

EN
Operation RH4xxLD, RH4xxLG
16
6.1 Changing the decorative plate
To change the decorative plate proceed as shown in fig. 4to fig. 7on page 4.
6.2 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened
together with the door of the built-in cabinet (fig. 8, page 5, to fig. m, page 8).

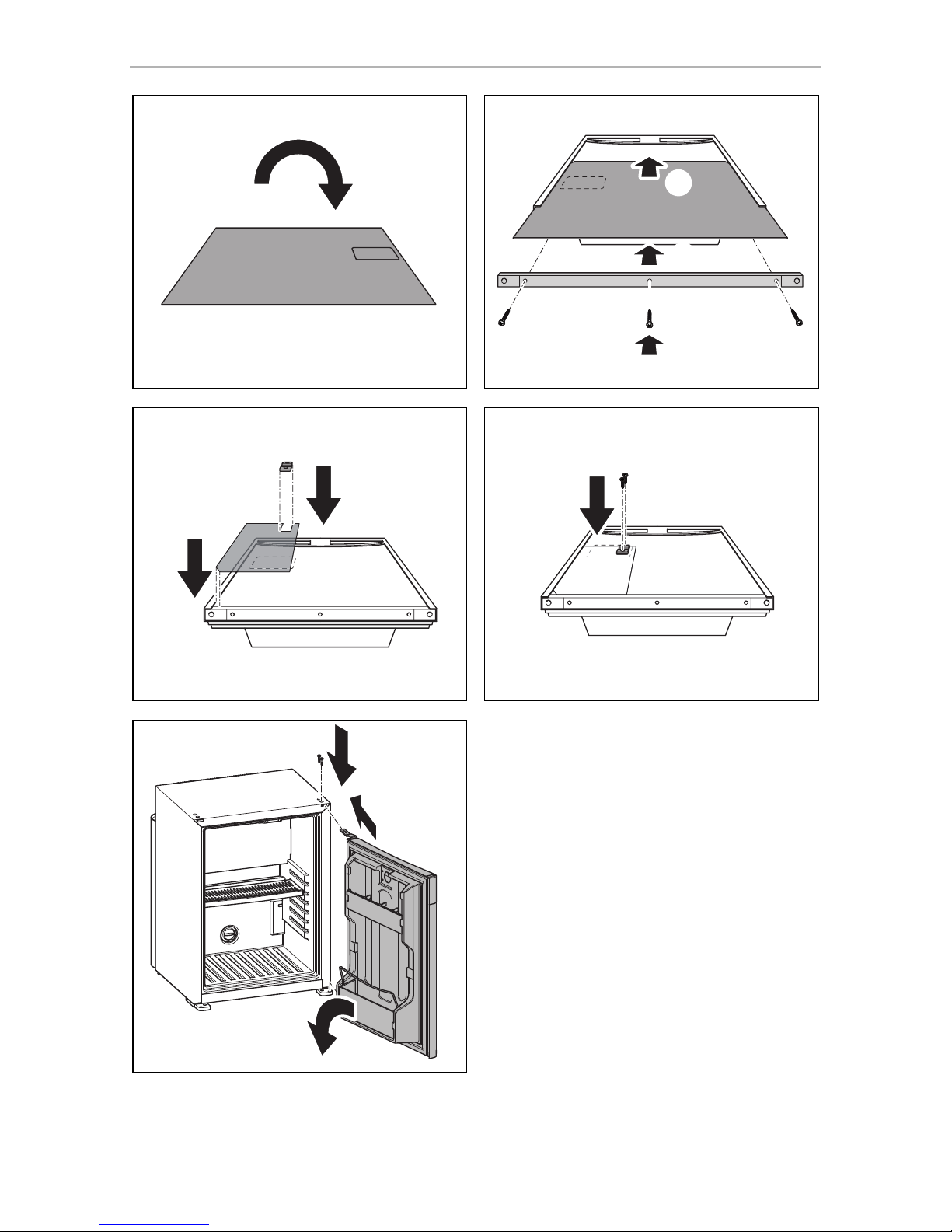

6.3 Reversing the door
Reverse the door as shown in fig. nto fig. ron page 9.
For doors with a sliding hinge proceed as shown in fig. pto fig. qon page 9.
7Operation
!
I
7.1 Energy saving tips
•Choose a well ventilated location which is protected from direct sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
•Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 18).
•If a few drops of water form inside the cooling device after it has been
cooling for a lengthy period, the cooling device is not defective. Air
moisture condenses to water when the temperature in the cooling
device falls. Wipe the water out with a dry cloth if necessary.

EN
RH4xxLD, RH4xxLG Operation
17
7.2 Using the cooling device
A
I
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 3) to the desired temperature
(3 – 12 °C).
➤If you wish to switch the cooling device off, pull out the connection cable
or ...
➤Rotate the temperature controller (fig. 11, page 3) anti-clockwise to the OFF
position.
NOTICE! Risk of damage
•Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
•Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
•Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
NOTE
If the cooling device is not in use for an extended period of time, leave
the door slightly ajar to prevent unpleasant odours building up.

EN
Cleaning and maintenance RH4xxLD, RH4xxLG
18
8 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
8.1 Changing the device light
!
The device uses a LED board as illuminant. A new LED board can be obtained from
Dometic.

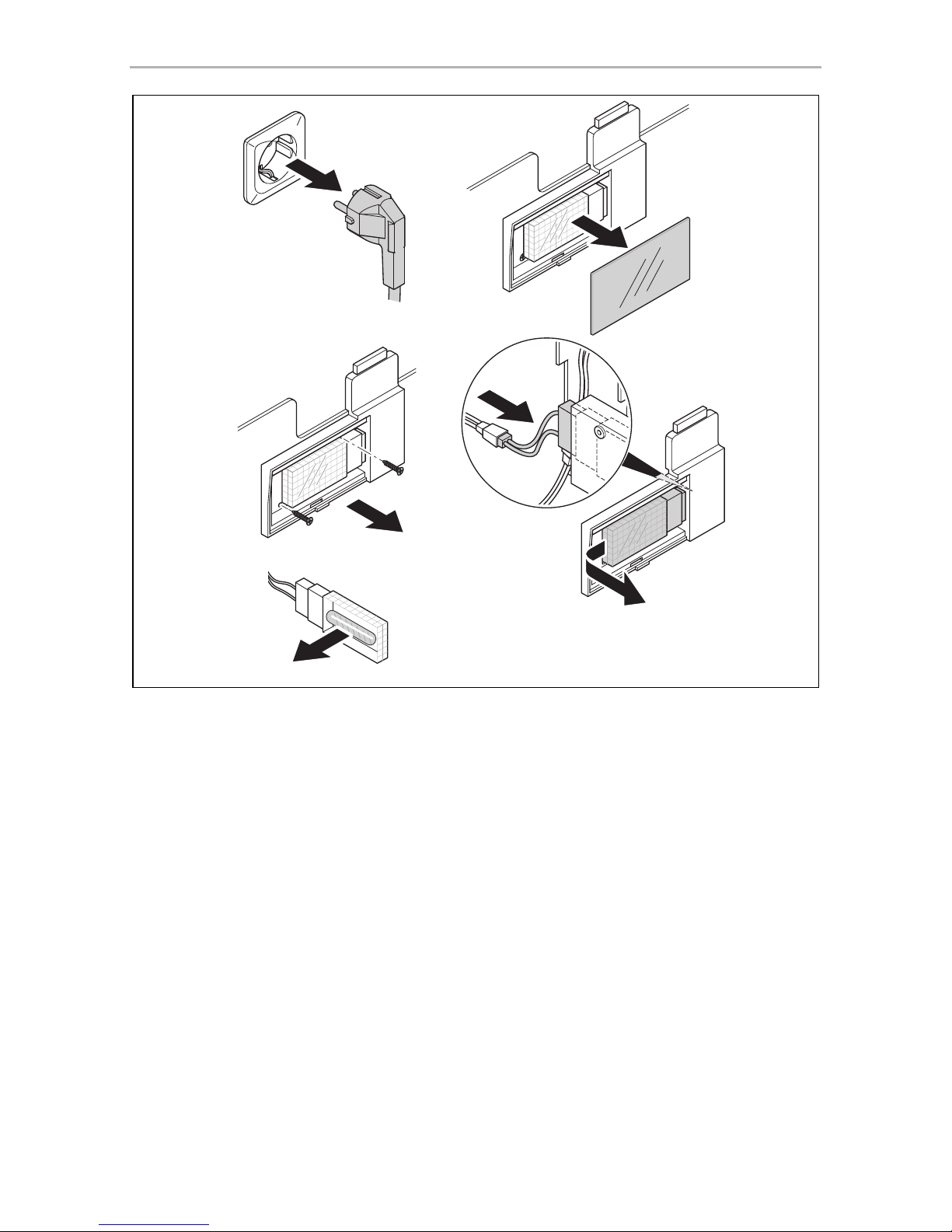

➤Change the LED light as follows: fig. s, page 10
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
•Never clean the cooling device under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
WARNING!
Always disconnect the device from the power supply before you
change the device light.

EN
RH4xxLD, RH4xxLGTroubleshooting
19
9 Troubleshooting
Problem Possible cause Suggested remedy
Device is not cooling
(the cooling unit at
the back of the
device is cold).
The device plug is not
plugged in.
Plug the device plug in.
No voltage present in the
AC voltage socket.
Check fuse or try using another plug
socket.
The device is in its defrost-
ing phase.
Check again if the device is cooling
after 2 hours as the defrosting phase
lasts 2 hours.
The electronics or the sen-
sor is defective.
This can only be repaired by an author-
ised customer services unit.
The heating element is
defective.
This can only be repaired by an
authorised repair centre.
Device is not cooling
(the cooling unit at
the back of the
device is warm).
The device is not level. Level the device using a spirit level.
The device was only
switched on a short while
ago.
Let the device run for 5 to 6 hours.
The cooling unit is
defective.
This can only be repaired by an
authorised repair centre.
The devices cooling
performance is poor.
The cooling unit is not
sufficiently ventilated.
Check that the ventilation grids are not
covered.
Check that device has been installed
in accordance with fig. 2, page 3.
The device is exposed to
heat or direct sunlight.
Relocate the device.
The device door does not
close tightly.
Check if the door is installed correctly.
An authorised repair centre can install
a new door seal if necessary..
The device was stocked a
short while ago.
Check the temperature after 5 to
6hours.
Frost is forming inside
the device.
The device door does not
close tightly.
Check if the door is installed correctly.
An authorised repair centre can install
a new door seal if necessary.

EN
Disposal RH4xxLD, RH4xxLG
20
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
11 Technical data
RH430LD RH430LG RH440LD
Gross capacity: 30 l 40 l
Connection voltage: 220 – 240 Vw, 50/60 Hz
Power consumption: 65 W
Temperature range: +3 °C to +12 °C
Category: 2 (Cellar)
Energy efficiency class: D F D
Energy consumption
(kWh/annum):
260 365 266
Usable capacity: 26 l 27 l 36 l
Climate class: N, T
Refrigerant quantity: 100 g
Ambient temperature: +16 °C to +32 °C
Noise emission (sound power): 0 dB
Dimensions (W x D x H): 384 x 410 x 522 384 x 420 x 522 401 x 446 x 554
Weight: 13.95 kg 16.7 kg 15 kg
Testing/certification:
