Dometic CR Series User manual

CoolMatic CRD0050
Refrigerator
Installation and Operating Manual. . . . . . . .8
Kühlschrank
Montage- und Bedienungsanleitung . . . . .27
Réfrigérateur
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .47
Nevera
Instrucciones de montaje y de uso . . . . . . .68
Frigorífico
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Frigorifero
Istruzioni di montaggio e d’uso . . . . . . . .109
Koelkast
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . . . 129
Køleskab
Monterings- og betjeningsvejledning. . . 149
Kylskåp
Monterings- och bruksanvisning . . . . . . . 168
Kjøleskap
Monterings- og bruksanvisning. . . . . . . . 187
Jääkaapp
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 206
Холодильник
Инструкция по монтажу и эксплуатации 224
Lodówka
Instrukcja montażu i obsługi. . . . . . . . . . . 245
Chladnička
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 266
Lednička
Návod k montáži a obsluze . . . . . . . . . . . 285
Hűtőszekrény
Szerelési és használati útmutató . . . . . . . 303
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
CR SERIES
CRD0050--IO-16s.book Seite 1 Mittwoch, 16. August 2017 10:30 10

CRD0050--IO-16s.book Seite 2 Mittwoch, 16. August 2017 10:30 10

CRD0050
3
1
3
2
1
1
2
3
4
2
CRD0050--IO-16s.book Seite 3 Mittwoch, 16. August 2017 10:30 10

CRD0050
4
1
4
3
2
ca. 50 mm
3
A
B
4
CRD0050--IO-16s.book Seite 4 Mittwoch, 16. August 2017 10:30 10

CRD0050
5
1
5
1
2
6
Ø/mm²
l/m
12 V 24 V
0 2 4 6 8 10 12 14 16 18 20 22 24 26 28
0
2
6
10
14
7
CRD0050--IO-16s.book Seite 5 Mittwoch, 16. August 2017 10:30 10

CRD0050
6
1
rd
bk
8
1
3
2
9
CRD0050--IO-16s.book Seite 6 Mittwoch, 16. August 2017 10:30 10

CRD0050
7
12 V/24 V
10 A
–
–
+
+
2
1
rd/bk
rd
bk
bk
110 – 240 Vw
0
1
Vent Lock
a
380
534
500
b
CRD0050--IO-16s.book Seite 7 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050
8
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7 Installing and connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . .14
8 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
CRD0050--IO-16s.book Seite 8 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Explanation of symbols
9
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
•On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
•Have a qualified technician perform the installation in wet rooms.
•Do not operate the device if it is visibly damaged.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
CRD0050--IO-16s.book Seite 9 Mittwoch, 16. August 2017 10:30 10

EN
Safety instructions CRD0050
10
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by childrenaged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8 years of age.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•If the refrigerator is connected to the DC socket: Disconnect the
refrigerator and other electric consumers from the battery before
connecting the quick charging device.
•If the refrigerator is connected to the DC socket: Disconnect the
refrigerator or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
CRD0050--IO-16s.book Seite 10 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Safety instructions
11
•Never transport the device in a horizontal position, so that no oil can
leak out of the compressor.
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
•Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
•If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation vents are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the appliance in water.
•Protect the appliance and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
CRD0050--IO-16s.book Seite 11 Mittwoch, 16. August 2017 10:30 10

EN
Scope of delivery CRD0050
12
3Scopeofdelivery
4Accessories
5 Intended use
The refrigerator is suitable for cooling and freezing foodstuffs.
A
An optimum cooling capacity is guaranteed at ambient temperatures between
+16 °C and +38 °C and at a maximum air humidity of 90 %.
6 Technical description
CoolMatic CRD0050 can refrigerate goods and keep them cool. Products can be
deep-frozen in the freezer compartment.
The refrigerator drawer can be pulled out by the handle and completely removed
from the unit for cleaning purposes. Bottles or beverage packaging are separated
with spacers to ensure they do not fall when pulled out.
The freezer compartment is detachable. This allows the refrigerator space to be
extended if required.
All materials used in the refrigerator are compatible for use with foodstuffs. The
refrigerant circuit is maintenance-free.
Quantity Description
1 Refrigerator
1 Operating manual
Description Ref. no.
MPS35 mains adapter 9103555825
NOTICE!
If you wish to cool medicines, please check if the cooling capacity of the
refrigerator is suitable for the medicine in question.
CRD0050--IO-16s.book Seite 12 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Technical description
13
The refrigerator is suitable for use with a DC voltage of 12 V or 24 V (e.g. in camper
vans, caravans or on boats).
With a rectifier (accessory), the 12 and 24 V refrigerators can be operatedon an AC
network:
•MPS35 rectifier: for use with a 100 – 240 V supply
You can use the continuously variable thermostat to set the desired temperature.

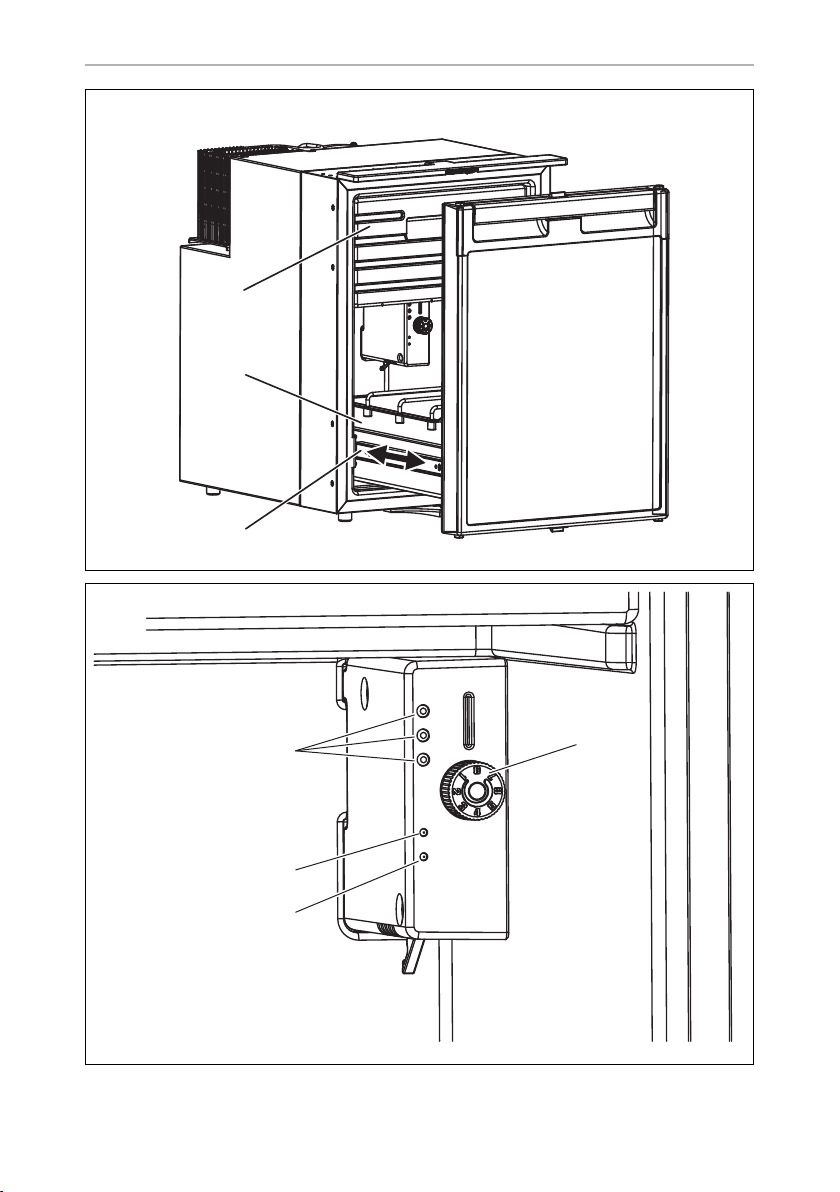

6.1 Overview
6.2 Control elements
No. in
fig. 1, page 3 Explanation
1 Freezer compartment (detachable)
2 Refrigerator drawer (detachable)
3 Fastening lever for the refrigerator drawer
No. in
fig. 2, page 3 Explanation
1 Temperature controller
2 Green LED: operation
3 Red LED: fault
4 Interior lighting
CRD0050--IO-16s.book Seite 13 Mittwoch, 16. August 2017 10:30 10

EN
Installing and connecting the refrigerator CRD0050
14
7 Installing and connecting the
refrigerator
A
7.1 Installing the refrigerator
A
The refrigerator is designed for ambient temperatures between +16 °C and +38 °C.
In continuous operation, the air humidity may not exceed 90 %.
Set up the refrigerator in a dry, sheltered place. Avoid placing it near heat sources
such as radiators, gas ovens, hot water pipes etc.
NOTICE! Safety instructions for installation on boats
Please note the following instructions for installation on boats:
•The refrigerator is designed for short-term heeling of up to 30°.
When setting up the refrigerator, note that it must be fastened to take
account of this. If you have any questions regarding installation, con-
sult your specialist dealer.

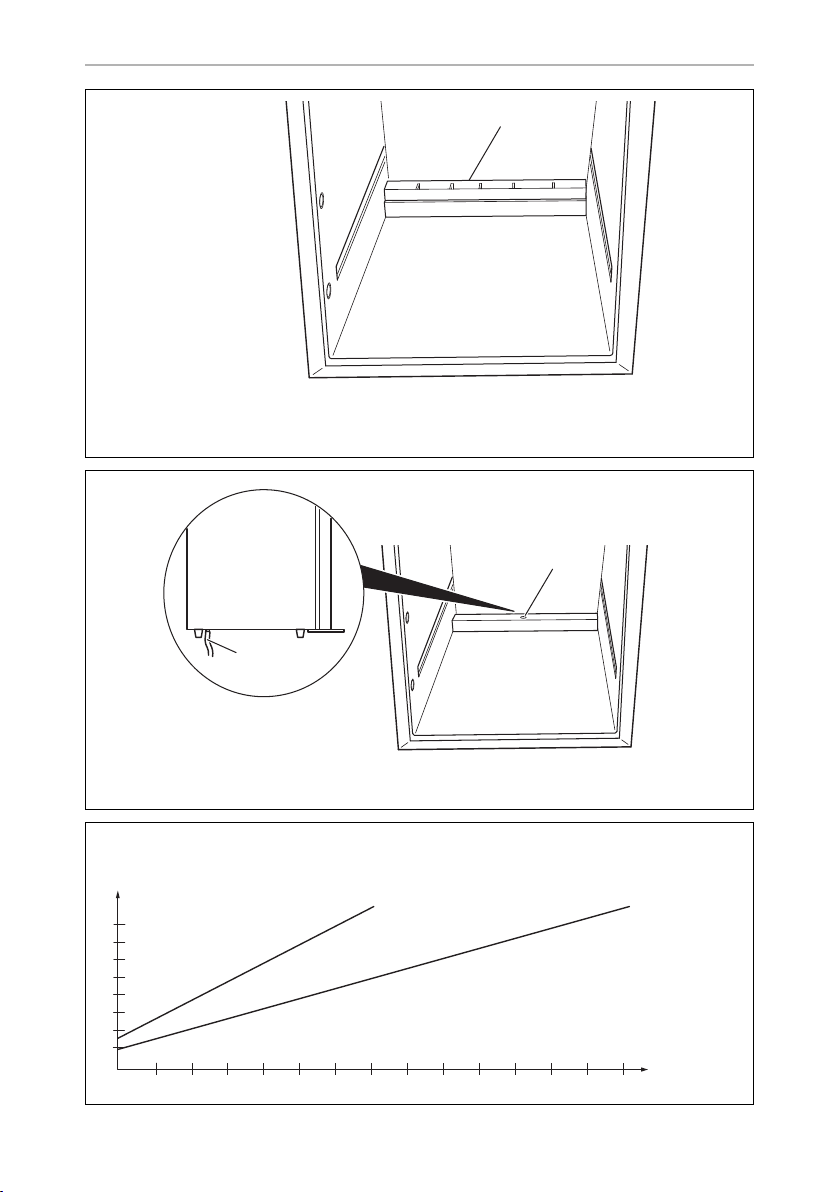

•Install the refrigerator so that the warm air produced can easily flow
away (either upwards or to the sides, fig. 3, page 4).
•The refrigerator is designed for ambient temperatures between
+16 °C and +38 °C.
•If the refrigerator is powered by the mains, ensure that the power
supply has a residual current circuit breaker.
NOTICE!
•Fasten the refrigerator as described in the operating manual to
prevent hazards.
•Keep objects clear of openings in the housing or mounting structure
(such as ventilation slots).
•The refrigerator is only suitable for installation in a fitted niche. Once
it is installed, only the front of the refrigerator may be accessible.
•If brakes are applied fully, then strong forces act in the direction of
travel. In order to prevent damage to the refrigerator and the vehicle
interior, the refrigerator should not be installed with the front facing
the direction of travel.
CRD0050--IO-16s.book Seite 14 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Installing and connecting the refrigerator
15
Install the refrigerator so that the warm air produced can easily flow away (either
upwards or to the sides). Therefore make sure there is adequate ventilation (fig. 3,
page 4).
The condensation which forms during normal operation of the refrigerator can be
drained off via two outlets on the refrigerator. For delivery purposes, these outlets
are sealed. The two outlets are located on the rear and on the underside of the refrig-
erator (fig. 4, page 4).
➤Choose the condensation outlet most suitable for the place of installation and
remove its cap.
➤Insert a sharp object (e.g. a screwdriver) approx. 25 to 30 mm into the outlet to
pierce open the inside of the refrigerator.
➤Remove the drip-tray (fig. 51, page 5).
➤Connect a hose (fig. 62, page 5) to the outlet connections (fig. 61, page 5).
No. in
fig. 3, page 4 Explanation
1 Cold intake air
2 Hot waste air
3 Condenser
4 Spacing above the refrigerator if insufficient air can circulate above
or at the side
CRD0050--IO-16s.book Seite 15 Mittwoch, 16. August 2017 10:30 10

EN
Installing and connecting the refrigerator CRD0050
16
7.2 Connecting the refrigerator
Connect the refrigerator to DC power
The refrigerators can be operated with 12 Vgor with 24 Vg.
A
➤Determine the required cross section of the cable in relation to the cable length
according to fig. 7, page 5.
Key for fig. 7, page 5
A
➤Before starting up the refrigerator for the first time, check whether the operating
voltage and the battery voltage match (see type plate).
➤Connect the refrigerator
– as directly as possible to the poles of the battery or
– to a 12 or 24 Vgsocket.
Fit a fuse in the positive wire of 15 A (for 12 V) or 7.5 A (for 24 V) (fig. 81,
page 6).
➤Connect the red cable (fig. 8rt, page 6) to the positive terminal of the battery.
➤Connect the black cable (fig. 8sw, page 6) to the negative terminal of the
battery.
A
NOTICE!
To avoid voltage drops and loss of performance, keep the cable as short
as possible and avoid joins.
For this reason avoid additional switches, plugs or multi-way adapters.
Co-ordinate axis Explanation Unit
l Cable length m
∅Cable cross section mm²
NOTICE!
Make sure that the polarity is correct.
NOTICE!
Disconnect the refrigerator and other electric loads from the battery
before connecting the battery to a quick charging device.
Overvoltage can damage the refrigerator electronics.
CRD0050--IO-16s.book Seite 16 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Installing and connecting the refrigerator
17
For safety reasons the refrigerator is equipped with an electronic system to prevent
the polarity being reversed. This protects the refrigerator against reversed polarity
when connecting to a battery and against short circuiting. To protect the battery, the
refrigerator switches off automatically if the voltage is insufficient (see table below).
Connecting the refrigerator to AC power (accessory)
D
You can connect the refrigerator to 100 – 240 V AC power if you use the MPS35
rectifier (accessory).
The MPS35 features a priority circuit which conserves the battery connected. When
a 100 – 240 Vwmains connection is used, the rectifier automatically switches from
battery to mains operation.
When disconnected from the 100 – 240 Vwmains supply, the rectifier automatically
switches back to battery operation. Mains operation using the rectifier always takes
priority over battery operation.
Proceed as follows when you connect the refrigerator to the AC supply:
➤Affix the rectifier in its intended position behind the refrigerator (fig. 9, page 6),
as shown.
➤Protect the AC circuit using a slow-blow fuse (250 V/4 A) (fig. 93, page 6).
➤Connect the rectifier as shown in fig. 9, page 6.
➤Connect the refrigerator to the rectifier (fig. 92, page 6):
– Red cable: positive battery terminal
– Black cable: negative battery terminal
➤Plug the connector into the AC socket (fig. 91,page 6).
12 V 24 V
Cut-off voltage 10.4 V 22.8 V
Cut-in voltage 11.7 V 24.2 V
DANGER! Danger of fatal injury!
•Never handle plugs and switches with wet hands or if you are
standing on a wet surface.
•If you are operating your refrigerator on board a boat with a mains
connection of 230 V using a shore connection, you must install a
residual current circuit breaker between the 230 V mains supply and
the refrigerator.
Seek advice from a trained technician.
CRD0050--IO-16s.book Seite 17 Mittwoch, 16. August 2017 10:30 10

EN
Using the refrigerator CRD0050
18
8 Using the refrigerator
I
8.1 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
•Defrost your refrigerator as soon as a layer of ice forms.
•Avoid unnecessarily low temperature settings.
•Clean dust and dirt from the condenser at regular intervals.
8.2 Using the refrigerator
The refrigerator conserves fresh foodstuffs. The freezer compartment conserves fro-
zen foodstuffs and freezes fresh foodstuffs.
A
➤Switch the refrigerator on by turning the temperature control (fig. 21 page 3)
clockwise.
NOTE
Before starting your new refrigerator for the first time, you should clean
it inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and care” on page 22).
NOTICE!
•Do not place any electrical devices inside the refrigerator. The only
exceptions are devices approved for the purpose by the
manufacturer.
•Ensure that food or liquids in glass containers are not excessively
cooled.
Liquids expand when they freeze and can thus destroy the glass
containers.
•Food may only be stored in its original packaging or in suitable
containers.
•Ensure that the objects placed in the refrigerator are suitable for
cooling to the selected temperature.
CRD0050--IO-16s.book Seite 18 Mittwoch, 16. August 2017 10:30 10

EN
CRD0050 Using the refrigerator
19
I
Setting the temperature
You can set the temperature to any level using the control knob.
➤Switch the refrigerator on by turning the temperature control (fig. 21 page 3)
clockwise.
The built-in thermostat regulates the temperature as follows:
•1=leastcooling
•7=mostcooling
I
Conserving foodstuffs
You can conserve foodstuffs in the refrigerator. The time for which the food can be
conserved in this way is usually stated on the package.
A
I
➤Observe the temperature information and best before date on the food
packaging.
NOTE
After switching on, the refrigerator requires approx. 60 s until the
compressor starts up.
NOTE
The cooling capacity can be influenced by:
•the ambient temperature
•the amount of food to be conserved
•the frequency with which the door is opened.
NOTICE!
Do not conserve warm food in the refrigerator.
Do not place glass containers containing liquid in the freezer
compartment.
NOTE
Food which can easily absorb tastes and odours and liquids and
products with a high alcohol content should be conserved in air-tight
containers.
CRD0050--IO-16s.book Seite 19 Mittwoch, 16. August 2017 10:30 10

EN
Using the refrigerator CRD0050
20
➤Observe the following when using the refrigerator:
– Never re-freeze products which have started defrosting or have been
defrosted, but consume them as soon as possible.
– Wrap food in aluminium foil or cling film and shut in in a suitable box with a lid.
This ensures that aromas, the shape and the freshness will be better
conserved.
Detaching the refrigerator drawer
➤Pull out the refrigerator drawer all the way.
➤Push the fastening lever up to release the lock.
➤Pull out the refrigerator drawer.
Detaching the freezer compartment
➤Open the flap of the freezer compartment and position horizontally.
➤Remove the chain from the attachment.
➤Take out the flap. The base of the compartment also comes out.
Defrosting the refrigerator
The refrigerator has two options to remove the condensation resulting from
operation:
•pass it directly outside:
Remove the drip-tray (fig. 51, page 5).
Connect a hose (fig. 62, page 5) to the outlet connections (fig. 61, page 5).
•collect in the drip-tray:
Empty the drip-tray (fig. 51, page 5) as required.
Defrosting the freezer compartment
A
To defrost the refrigerator, proceed as follows:
➤Take the contents out.
➤If necessary, place the contents in another cooling appliance, to keep them cool.
NOTICE!
Never use mechanical tools to remove ice or to loosen objects stuck to
the refrigerator.
CRD0050--IO-16s.book Seite 20 Mittwoch, 16. August 2017 10:30 10
