Dometic REFRIGERATION 10-Series User manual

RM10.5(S)(T), RMS10.5(X)(S)(T)
Absorber refrigerator
Installation Manual. . . . . . . . . . . . . . . . . . . . 14
Absorber-Kühlschrank
Montageanleitung. . . . . . . . . . . . . . . . . . . .29
Réfrigérateur à absorption
Instructions de montage . . . . . . . . . . . . . . .45
Nevera con extractor
Instrucciones de montaje . . . . . . . . . . . . . . 61
Frigorífico de absorção
Instruções de montagem . . . . . . . . . . . . . .77
Frigorifero ad assorbimento
Indicazioni di montaggio . . . . . . . . . . . . . .93
Absorptiekoelkast
Montagehandleiding . . . . . . . . . . . . . . . .109
Absorber-køleskab
Monteringsvejledning. . . . . . . . . . . . . . . .125
Absorptionskylskåp
Monteringsanvisning. . . . . . . . . . . . . . . . . 141
Absorbsjons-kjøleskap
Monteringsanvisning . . . . . . . . . . . . . . . . 155
Absorptiojääkaappi
Asennusohje . . . . . . . . . . . . . . . . . . . . . . . 169
Абсорбционный холодильник
Инструкция по монтажу. . . . . . . . . . . . . . 184
Lodówka absorpcyjna
Instrukcja montażu . . . . . . . . . . . . . . . . . . 200
Absorpčná chladnička
Návod na montáž . . . . . . . . . . . . . . . . . . . 216
Absorpční lednička
Návod k montáži . . . . . . . . . . . . . . . . . . . .232
Abszorberes hűtőszekrény
Szerelési útmutató . . . . . . . . . . . . . . . . . . 248
Absorpcijski hladilnik
Navodilo za montažo . . . . . . . . . . . . . . . . 264
Ψυγείο υγραερίου/ρεύματος
Οδηγίες τοποθέτησης. . . . . . . . . . . . . . 279
EN
DE
FRFR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
SL
EL
REFRIGERATION
10-SERIES
RM10_RMS10-I-EMEA18.book Seite 1 Mittwoch, 29. April 2020 7:31 07

© 2020 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
RM10_RMS10-I-EMEA18.book Seite 2 Mittwoch, 29. April 2020 7:31 07

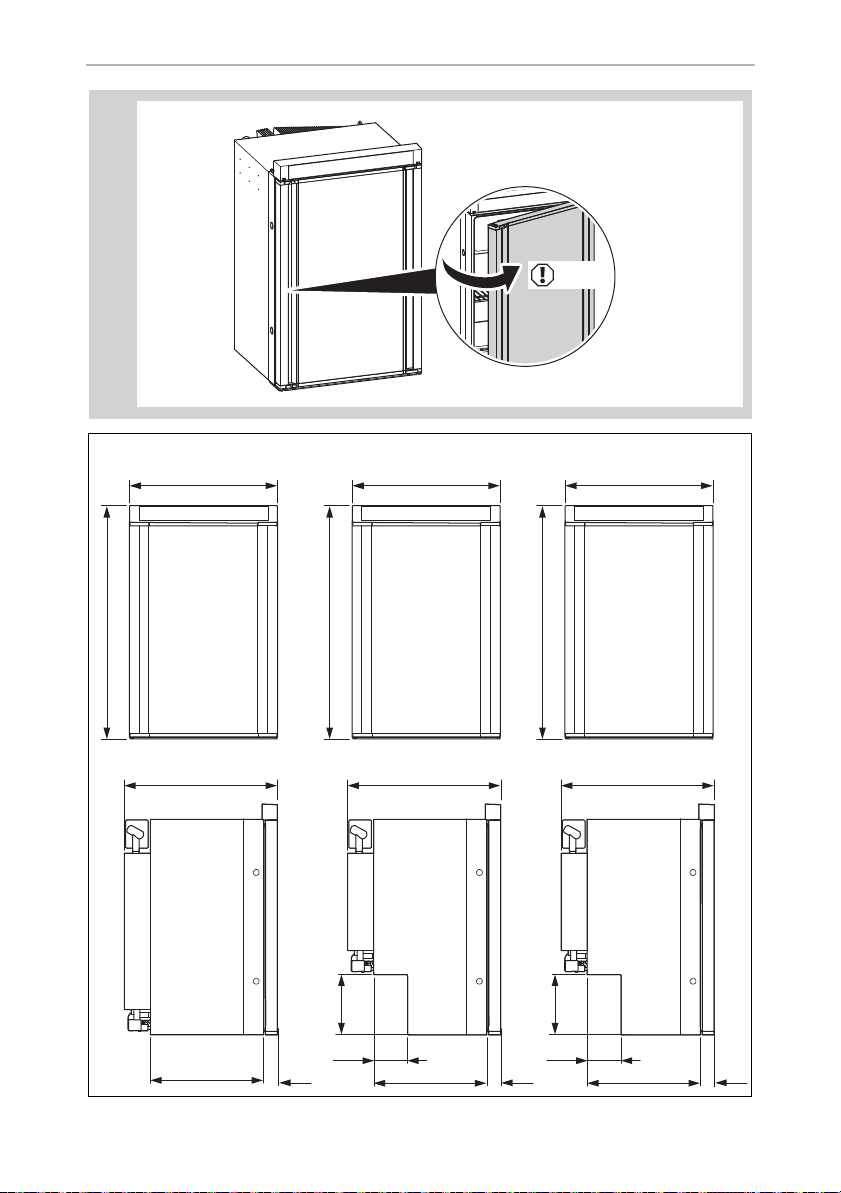

RM10.5(S)(T), RMS10.5(X)(S)(T)
3
NOTICENOTICE
d90°
548
400
216
400
118
548
523
821
523
821
523
821
RM10.5S, RM10.5T RMS10.5S, RMS10.5T
216
455
118
603
RMS10.5XS, RMS10.5XT
5050 50
1
RM10_RMS10-I-EMEA18.book Seite 3 Mittwoch, 29. April 2020 7:31 07

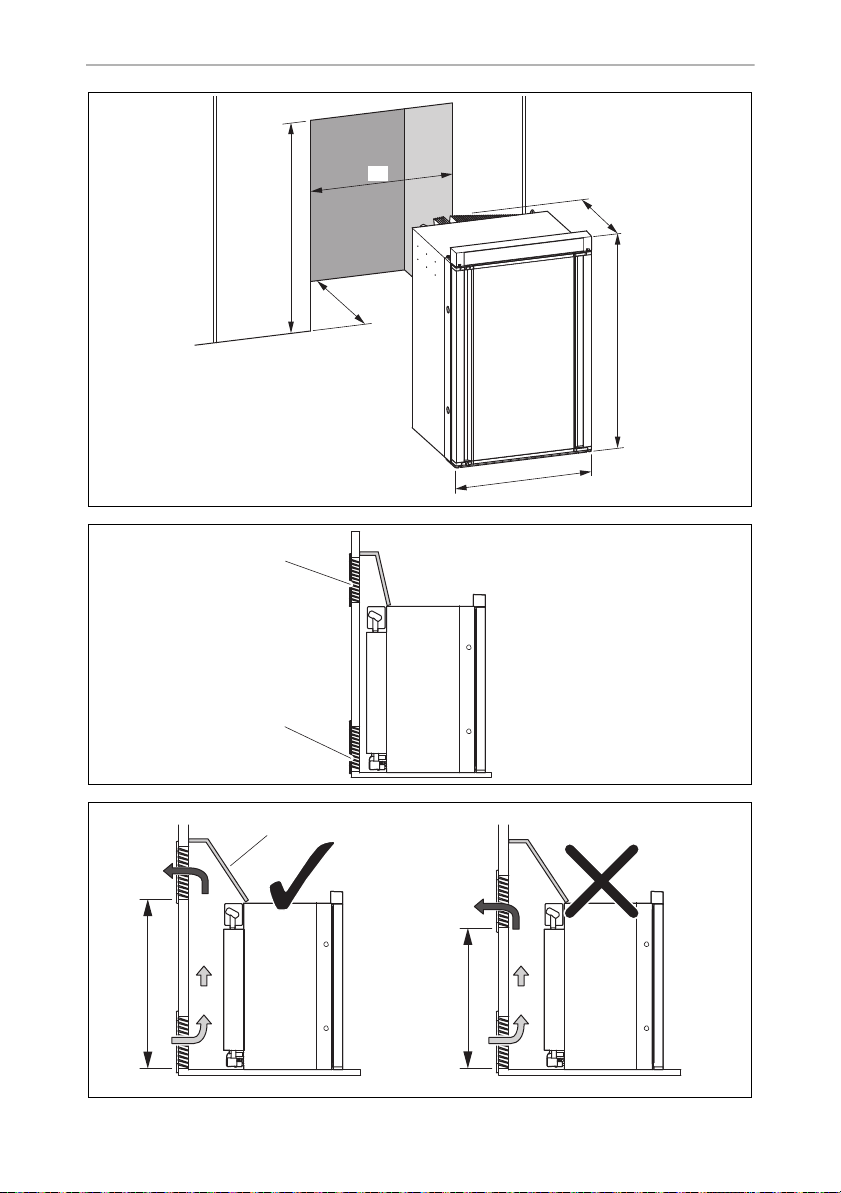

RM10.5(S)(T), RMS10.5(X)(S)(T)
4
D
C
H
A
W
B
2
2
1
3
≥1050 mm
< 1050 mm
1
4
RM10_RMS10-I-EMEA18.book Seite 4 Mittwoch, 29. April 2020 7:31 07

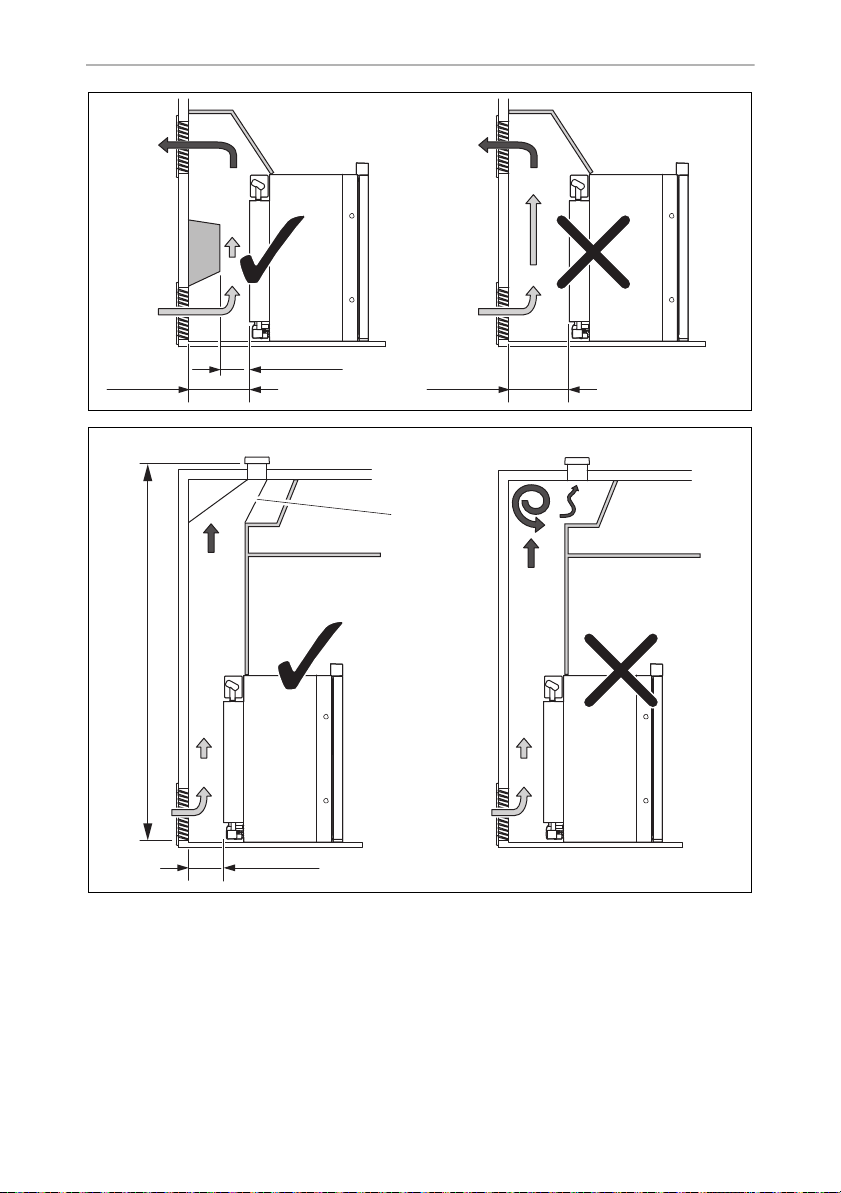

RM10.5(S)(T), RMS10.5(X)(S)(T)
5
15 – 25 mm
> 25 mm > 25 mm
5
≥ 900 mm
15 – 25 mm
1
6
RM10_RMS10-I-EMEA18.book Seite 5 Mittwoch, 29. April 2020 7:31 07

RM10.5(S)(T), RMS10.5(X)(S)(T)
6
≥ 300 mm
1 2
7
RM10_RMS10-I-EMEA18.book Seite 6 Mittwoch, 29. April 2020 7:31 07

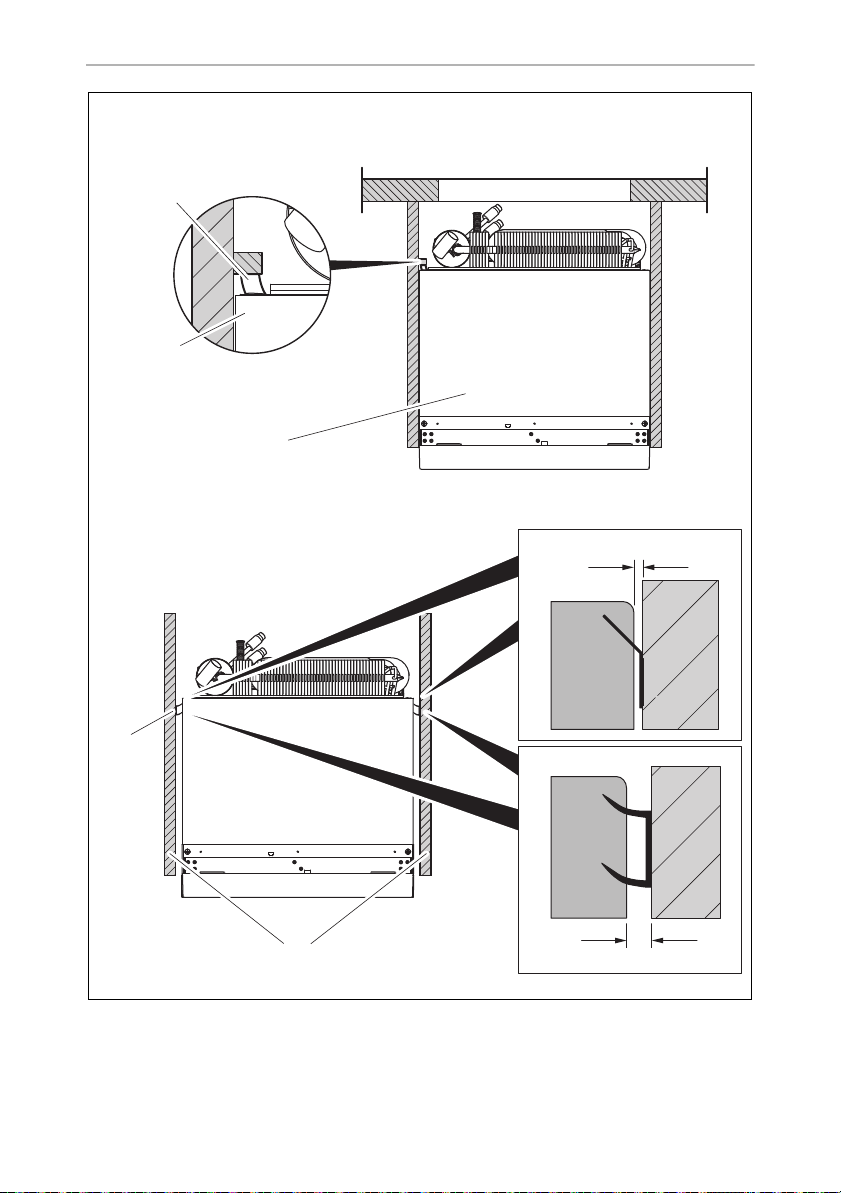

RM10.5(S)(T), RMS10.5(X)(S)(T)
7
A
B< 5 mm
C
5 mm – 10 mm
3
1
2
1
4
8
RM10_RMS10-I-EMEA18.book Seite 7 Mittwoch, 29. April 2020 7:31 07

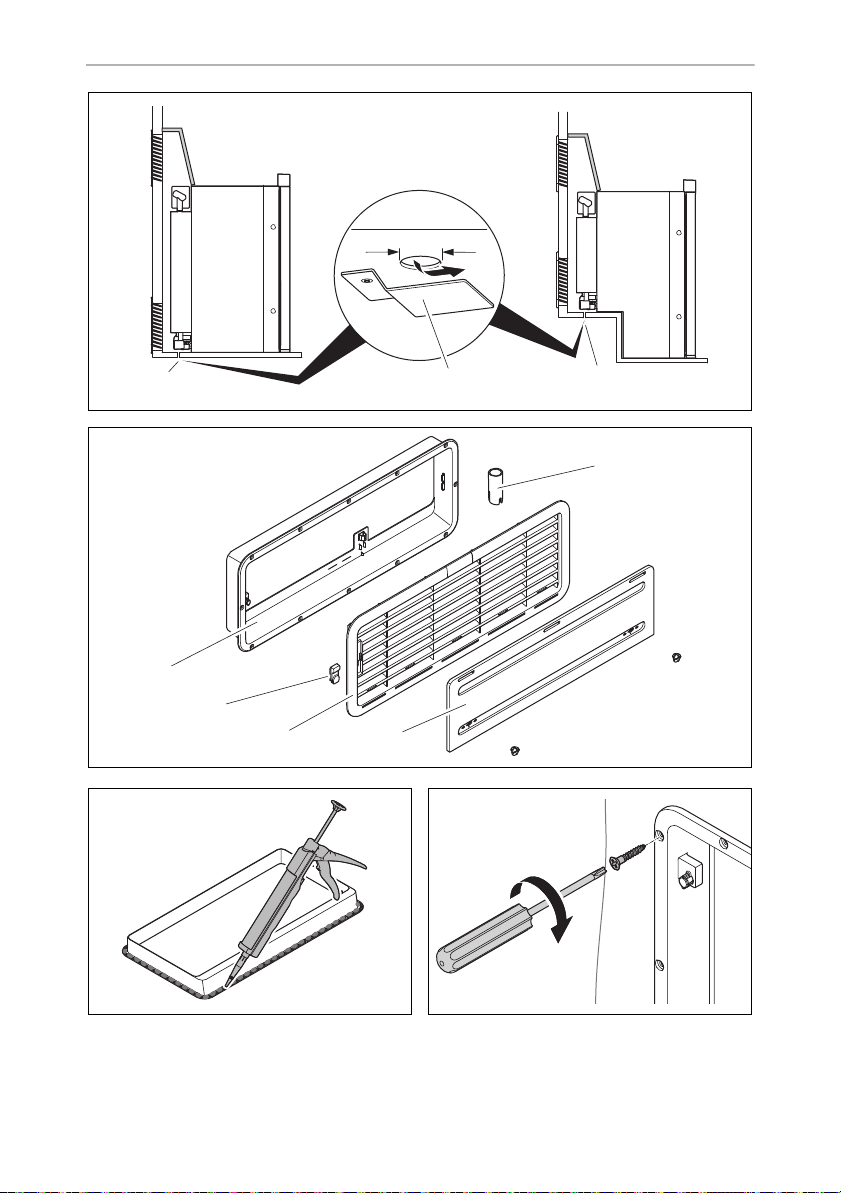

RM10.5(S)(T), RMS10.5(X)(S)(T)
8
t40 mm
1
1 2
9
1
2
3 4
5
LS 200
0
a
b

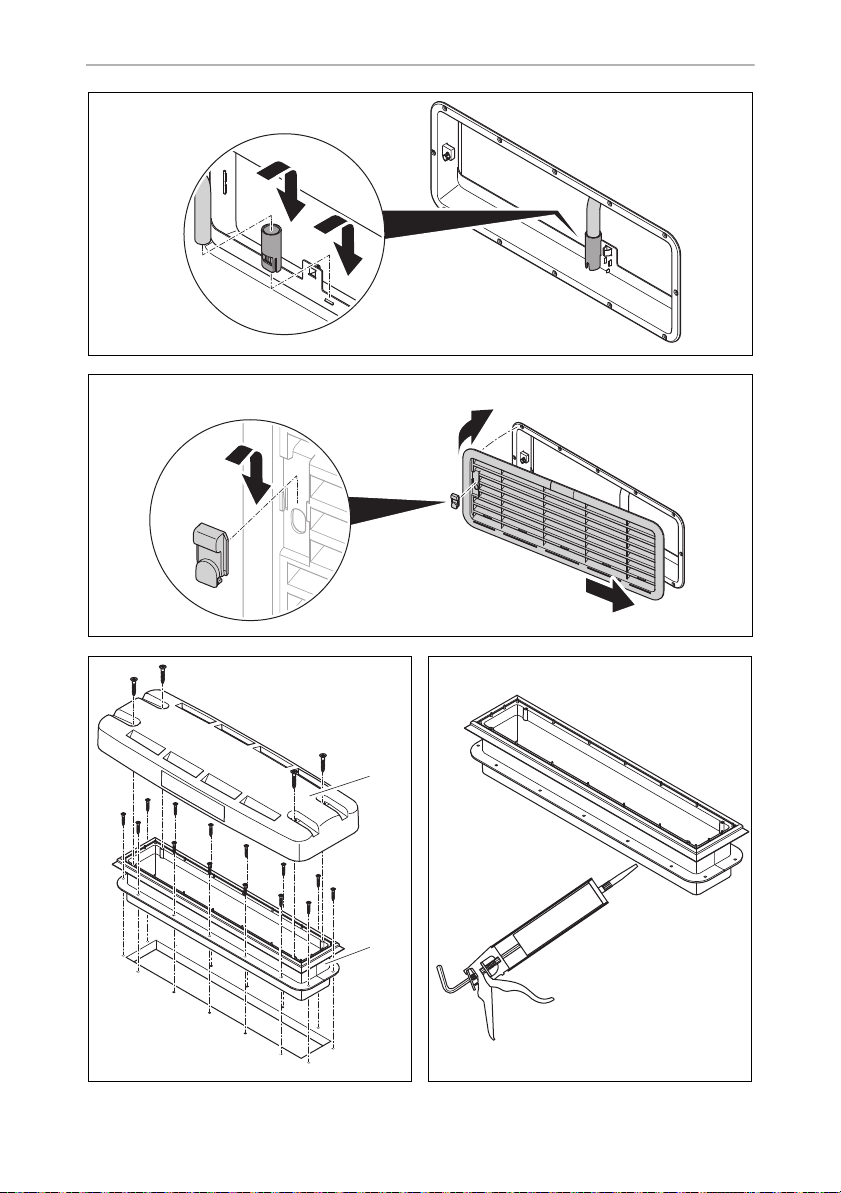

RM10_RMS10-I-EMEA18.book Seite 8 Mittwoch, 29. April 2020 7:31 07

RM10.5(S)(T), RMS10.5(X)(S)(T)
9
2.
1.
c
1.
2.
3.
d
1
2
e
f
RM10_RMS10-I-EMEA18.book Seite 9 Mittwoch, 29. April 2020 7:31 07

RM10.5(S)(T), RMS10.5(X)(S)(T)
10
g
h
1
2
i
2
31
j
RM10_RMS10-I-EMEA18.book Seite 10 Mittwoch, 29. April 2020 7:31 07

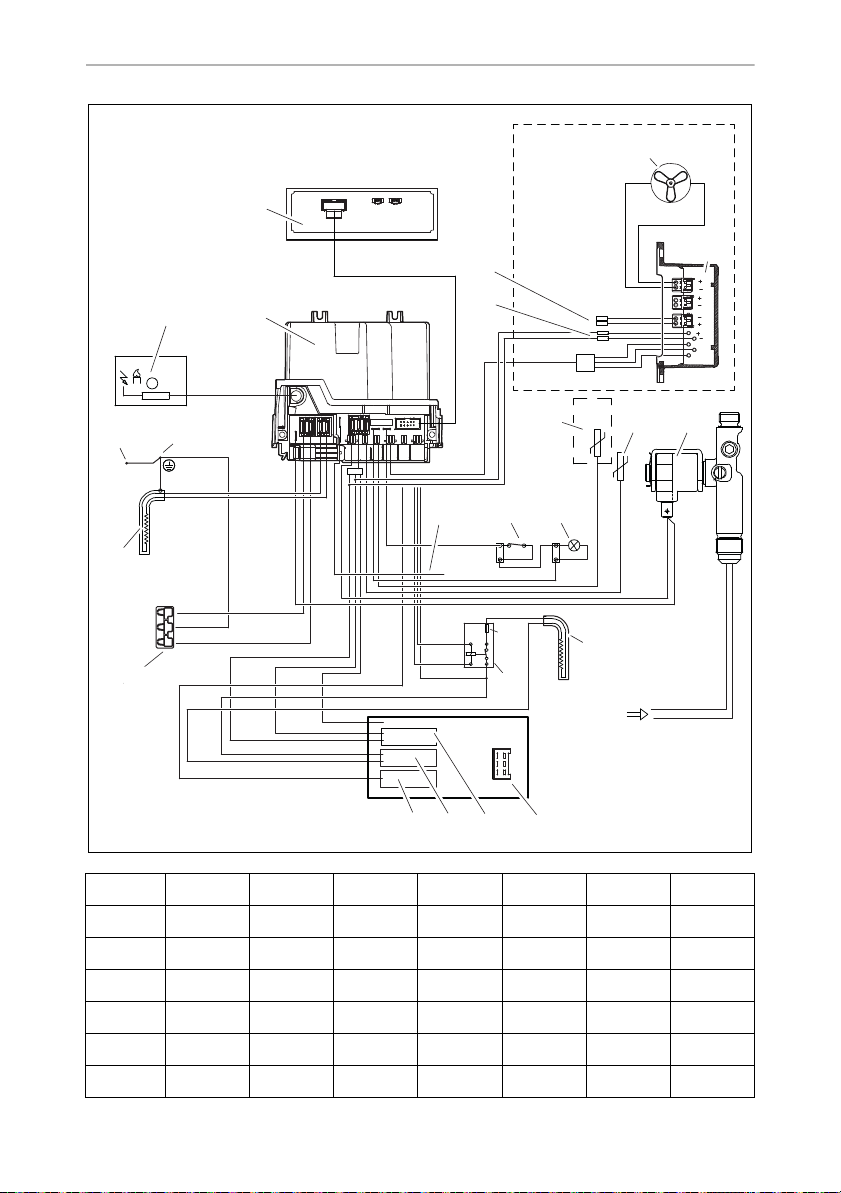

RM10.5(S)(T), RMS10.5(X)(S)(T)
11
bk bn bu rd pk vt wh
EN Black Brown Blue Red Pink Violet White
DE Schwarz Braun Blau Rot Pink Violett Weiß
FR Noir Marron Bleu Rouge Rosa Violeta Blanc
ES Negro Marrón Azul Rojo Rose Lila Blanco
PT Preto Castanho Azul Vermelho Cor de rosa Violeta Branco
IT Nero Marrone Blu Rosso Rosa Violetto Bianco
13
12
AC 230–240 V
E
87
85
86 30
X6
X4
2A FUSE
X07
S+ Optional
X2
20
11
15161718
765
8910
24
25
14
2122
X32
X07X07
23
19
1
2
rd (+)
L PE N
A
A
B
B
C
C
D
D
E
E
F
F
WAGO
gy (gn)
D+ (wh)
rd (+)
pk (ye) (+)
bk (bn)(–)
bn (–)
3
4
k
RM10_RMS10-I-EMEA18.book Seite 11 Mittwoch, 29. April 2020 7:31 07

RM10.5(S)(T), RMS10.5(X)(S)(T)
12
NL Zwart Bruin Blauw Rood Roze Paars Wit
DA Sort Brun Blå Rød Lyserøde Violet Hvid
SV Svart Brun Blå Röd Rosa Violett Vit
NO Svart Brun Blå Rød Rosa Fiolett Hvit
FI Musta Ruskea Sininen Punainen Pinkki Violetti Valkoinen
RU Черный Коричневый Синий Красный Розовый Фиолетовый Белый
PL Czarny Brązowy Niebieski Czerwony Różowy Fioletowy Biały
SK Čierna Hnedá Modrá Červená Ružová Fialová Biela
CS Černá Hněda Modrá Červená Růžová Fialová Bílá
HU Fekete Barna Kék Piros Rózsaszín Ibolya Fehér
SL Črna Rjav Moder Rdeč Roza Vijolična Bel
EL Μαύρος Καφέ Μπλε Κόκκινος ροζ βιολέτα Άσπρος
bk bn bu rd pk vt wh
RM10_RMS10-I-EMEA18.book Seite 12 Mittwoch, 29. April 2020 7:31 07

RM10.5(S)(T), RMS10.5(X)(S)(T)
13
15 A 15 A
ABC
DE F
2 A
12 Vg12 Vg
12 Vg
CC
FF
D(–)
A(+)
B
ED+
CI-BUS
t
Ø 2,5 mm²
,,,
,,,
t Ø 0,75 mm²
<6 m = Ø 6 mm²
>6 m = Ø 10 mm²
S+
l
RM10_RMS10-I-EMEA18.book Seite 13 Mittwoch, 29. April 2020 7:31 07

EN
Explanation of symbols RM10.5(S)(T), RMS10.5(X)(S)(T)
14
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
I
Table of contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4 Installing the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1 Explanation of symbols
!
!
A
I
NOTE
You can find details on the operation in the operating manual.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
RM10_RMS10-I-EMEA18.book Seite 14 Mittwoch, 29. April 2020 7:31 07

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Safety instructions
15
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences and incorrect
connection voltage
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Explosion hazard
• Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Only operate the device at the pressure shown on the type plate.
Only use pressure controllers with a fixed setting which comply with
the national regulations (in Europe EN 12864).
Fire hazard
• Ensure clean and residue-free handling if silicon sealant or similar is
used. There is a risk of fire if silicone filaments come into contact with
hot parts or naked flames.
• Never use a naked flame to check the device for leaks.
• Only use propane or butane gas (not natural gas).
Health hazard
• Do not operate the device if it is visibly damaged.
• If the AC power cable for this device is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
Risk of asphyxiation
• Dismantle all device doors for the disposal of the old device and leave
the shelves in the device to prevent accidental enclosure and suffoca-
tion.
RM10_RMS10-I-EMEA18.book Seite 15 Mittwoch, 29. April 2020 7:31 07

EN
Safety instructions RM10.5(S)(T), RMS10.5(X)(S)(T)
16
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrical shock
• Before starting the device, ensure that the power supply line and the
plug are dry.
Risk of crushing
• Do not put your fingers into the hinge.
ANOTICE! Damage hazard
• Only hold the device at the body of the device during transport. Never
hold the device at the absorber unit, the cooling fins, the gas pipes,
the door or the control panel.
• Make sure that the device circuit is not damaged during
transportation. The refrigerant in the device circuit is highly
flammable.
In the event of any damage to the device circuit (smell of ammonia):
– Switch off the device if applicable.
– Avoid naked flames and sparks.
– Air the room well.
• Do not install the device near naked flames or other heat sources (heat-
ers, direct sunlight, gas ovens etc.).
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
• Check that the voltage specification on the type plate is the same as
that of the power supply.
• Do not open the refrigerant circuit under any circumstances.
• Only use the AC connection cable supplied to connect the device to
the AC mains.
• Only use cables with a suitable size.
• Never pull the plug out of the socket by the connection cable.
• The device may not be exposed to rain.
RM10_RMS10-I-EMEA18.book Seite 16 Mittwoch, 29. April 2020 7:31 07

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Accessories
17
3Accessories
4 Installing the refrigerator
!
You find the instructions manual for changing the door stop and the decorative
plate online at:
“dometic.com/manuals”.
The device is suitable for installation in:
• caravans
• motor homes
Description
Flexible gas piping
Seal for draft-proof installation for gaps of 1 – 5 mm (fig. 8B, page 6)
Seal for draft-proof installation for gaps of 5 – 10 mm (fig. 8C, page 6)
Winter cover WA 130 for the ventilation grill LS 200
Adapter cable
•WAGO to CEE
•WAGO to UK
•WAGO to JST
•WAGO to MATE-N-LOK
Optional Fan Kit REF-FANKIT
Optional Battery pack Pack R10-BP for stand-alone gas operation
Optional storage kit
CAUTION! Health hazard
To avoid a hazard due to instability of the device, it must be fixed in
accordance with the instructions.
RM10_RMS10-I-EMEA18.book Seite 17 Mittwoch, 29. April 2020 7:31 07

EN
Installing the refrigerator RM10.5(S)(T), RMS10.5(X)(S)(T)
18
4.1 Preparing the installation
A
When installing the refrigerator, note the following:
• Ensure that the floor is solid and level.
Park the vehicle horizontally for this purpose.
• Ensure that the refrigerator is level.
• The refrigerator must be installed so that
– it is easily accessible for service work
– easy to de-install and install
– can be easily removed from the vehicle
• The refrigerator must be installed in a recess so that it stands secure when the
vehicle is in motion. Note the following dimensions (fig. 1, page 3 and fig. 2,
page 4):
NOTICE!
• The refrigerator may not be installed in the rear of mobile homes with
the door pointing in the direction of travel.
• Use exclusively original Dometic ventilation grills to ensure safe
operation.
RM10.5(S)(T) RMS10.5(S)(T) RMS10.5X(S)(T)
Refrigerator Overall dimension in mm
Height (A) 821 821 821
Width (B) 523 523 523
Depth (C)
(excludes control knob 5 mm)
548 548 603
Recess Dimension in mm
Height (H)≥824 ≥824 ≥824
Width (W)≥525.5 ≥525.5 ≥525.5
Depth (D)≥563 ≥563 ≥618
RM10_RMS10-I-EMEA18.book Seite 18 Mittwoch, 29. April 2020 7:31 07

EN
RM10.5(S)(T), RMS10.5(X)(S)(T) Installing the refrigerator
19
• The outer wall must be fitted with an air inlet vent (fig. 31, page 4) and an outlet
vent (fig. 32, page 4) with ventilation grills so that the heat generated can be
easily released to the outside:
– Air inlet vent: Fit ventilation grill as flush as possible with the base of the instal-
lation niche.
– Outlet vent: fit as far above the refrigerator as possible.
– The distance between the air inlet and outlet vents must be at least 1050 mm
(fig. 4, page 4).
• Fit a heat conduction plate (fig. 41, page 4) above the refrigerator so that the
heat does not accumulate in the vehicle.
• The distance between the refrigerator and the rear wall must be at least 15 mm
but no more than 25 mm.
• A distance of more than 25 mm between the refrigerator and rear wall leads to
poor performance and increases the power consumption of the refrigerator.
Reduce the space behind the refrigerator to create adequate air inlet and outlet
ventilation (fig. 5, page 5). Use a ventilation plate, for example, to do this.
• If the minimum distance between the air inlet and outlet vents cannot be met, a
roof vent must be installed instead of the air outlet vent.
– The roof vent should be installed directly above the back of the refrigerator as
far as this is possible. Use an air duct (fig. 61, page 5) if you need to install
the roof vent offset; otherwise, heat will accumulate there.
– The distance between the air inlet vent and the roof vent must be at least
900 mm (fig. 6, page 5).
– If a roof air conditioner is provided, the distance between the roof vent
(fig. 71, page 6) and the air outlet of the roof air conditioner (fig. 72,
page 6) must be at least 300 mm.
• The refrigerator must not be installed at the side of the air inlet and outlet vents as
this leads to poor performance and increases the power consumption of the
refrigerator.
• The air inlet and outlet vents must not be covered by vehicle parts (such as an
open door or by installing accessories such as bicycle racks) while operating.
• Install the refrigerator so that it is protected from excessive heat, as this leads to
poor performance and increases the power consumption of the refrigerator.
• The refrigerator must be installed in a draft-proof location.
RM10_RMS10-I-EMEA18.book Seite 19 Mittwoch, 29. April 2020 7:31 07

EN
Installing the refrigerator RM10.5(S)(T), RMS10.5(X)(S)(T)
20
4.2 Installing the refrigerator in a draft-proof location
!
Gas-powered refrigerators in caravans or motor homes must be installed in a draft-
free location. This means that the combustion air is not extracted from the interior
and the exhaust fumes are prevented from directly entering the living space.
A suitable seal must be fitted between the rear panel of the refrigerator and the inte-
rior of the vehicle.
The manufacturer recommends using a flexible seal to ease removal and installation
for maintenance purposes.
Select one of the three versions for draft-proof installation (fig. 8, page 7):
Stop bar behind the fridge (A)
➤Glue a flexible sealing lip (1) to a stop bar (2) behind the refrigerator (3).
➤Push the refrigerator-oven combination against the stop bar with the flexible seal-
ing lips.
✓The space behind the refrigerator is sealed to the interior of the vehicle.
Side gap distance of up to 5 mm between refrigerator and furniture (B)
➤Glue the sealing lips (see chapter “Accessories” on page 17) on the side of the
furniture (4).
➤Push the refrigerator-oven combination against the flexible sealing lips on furni-
ture.
✓The space behind the refrigerator is sealed to the interior of the vehicle.
Side gap distance of 5 mm to 10 mm between refrigerator and
furniture (C)
➤Glue the double lipped sealing (see chapter “Accessories” on page 17) on the
side of the furniture (4).
WARNING! Fire hazard!
• Do not use flammable materials such as silicone sealants, foam or
similar for the draft-proof installation.
• Position the device so that no connection cable is damaged or
pinched.
• Do not use multiple sockets or portable power adapters behind the
device.
RM10_RMS10-I-EMEA18.book Seite 20 Mittwoch, 29. April 2020 7:31 07
