Dometic RH440LDC User manual

RH440LDC, RH440LGC, CL440LDC, CL440LGC, CL460LDC, CL460LGC
Minibar
Installation and Operating Manual
EN
REFRIGERATION
MINI FRIDGES
RH440-CL440-460--IO-EN.book Seite 1 Donnerstag, 18. Mai 2017 6:29 18

RH440-CL440-460--IO-EN.book Seite 2 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
3
1
1
ADCB
2
3
RH440-CL440-460--IO-EN.book Seite 3 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
4
1.
2.
3.
4
1.
2.
3.
5
3.
2.
1.
5 mm
5 mm
6
7
3.
2.
1.
RH440-CL440-460--IO-EN.book Seite 4 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
5
1.
2.
3.
8
1.
2.
3.
9
180°
0
a
1. 2.
b
c
RH440-CL440-460--IO-EN.book Seite 5 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
6
180°
d
3.
2.
1.
e
2.
1.
f
g
3.
2.
1.
h
RH440-CL440-460--IO-EN.book Seite 6 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
7
1.
2.
40 mm
10 mm
i
1 – 2 mm
6 – 8 mm
j
k
RH440-CL440-460--IO-EN.book Seite 7 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
8
l
80 mm
90°
m
RH440-CL440-460--IO-EN.book Seite 8 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
9
1.
2.
3.
n
o
p
q
3.
2.
1.
r
RH440-CL440-460--IO-EN.book Seite 9 Donnerstag, 18. Mai 2017 6:29 18

RH440, CL440, CL460
10
s
t
1. 2.
3.
4.
5.
6.
RH440-CL440-460--IO-EN.book Seite 10 Donnerstag, 18. Mai 2017 6:29 18

EN
RH440, CL440, CL460
11
Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to
another person, this operating manual must be handed over to the user
along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
RH440-CL440-460--IO-EN.book Seite 11 Donnerstag, 18. Mai 2017 6:29 18

EN
Explanation of symbols RH440, CL440, CL460
12
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RH440-CL440-460--IO-EN.book Seite 12 Donnerstag, 18. Mai 2017 6:29 18

EN
RH440, CL440, CL460 Safety instructions
13
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Connect the device with the AC connection cable to the AC mains
supply.
•Never pull the plug out of the socket by the cable.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
RH440-CL440-460--IO-EN.book Seite 13 Donnerstag, 18. Mai 2017 6:29 18

EN
Intended use RH440, CL440, CL460
14
•Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with a 100–240 V AC mains supply.
!
4Scopeofdelivery
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
Quantity Description
1 Minibar
1 Installation and operating manual
RH440-CL440-460--IO-EN.book Seite 14 Donnerstag, 18. Mai 2017 6:29 18

EN
RH440, CL440, CL460 Technical description
15
5 Technical description
The cooling device can cool products to a maximum of 26 °C (RH440LDC,
CL440LDC, CL460LDC only) or 19 °C (RH440LGC, CL440LGC, CL460LGC only)
under the ambient temperature and keep them cool. A grid divider can be used to
separate foodstuffs, e.g. bottles and sweets.
Its cooling system is a non-wearing Peltier cooling.
Control element

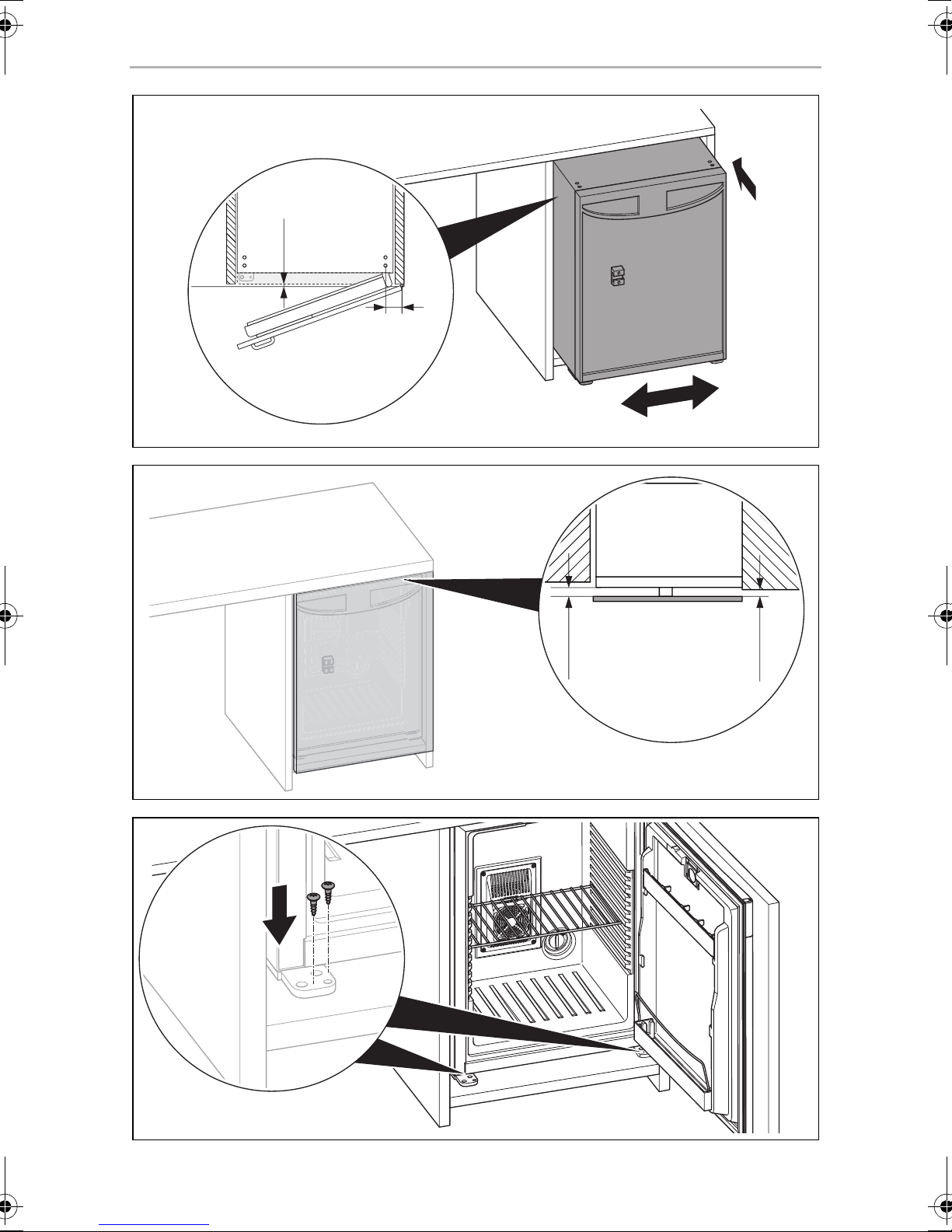

6 Installation
The cooling device is designed for free-standing installation, but can be built-in if the
following conditions are complied with to ensure satisfactory operation and maxi-
mum cooling efficiency.
•The cooling device must be levelled carefully to ensure proper function.
•The clearance between the cooling device‘s back and the wall should be 20 mm
or more.
•Ventilation must be provided as shown in alternatives A, B, C or D (fig. 2,
page 3).
•The ventilation duct must at least measure 105 mm x the width of the cooling
device.
•Only the entire cooling unit must project into the ventilation duct as shown
(fig. 2, page 3).
•Air passing through the ventilation duct must not be preheated by any source of
heat.
•Ventilation grills, if used, must have openings of at least 200 cm² each.
•For glass door version, when ambient humidity is above 65 % in 25 °C ambient
temperature, moisture will condense on the door.
•The cooling device can be fixed to the bottom of the furniture through its fixing
feets using screws of an appropiate length (fig. 3, page 3).
•The socket outlet for the mains connection must be freely accessible.
No. in
fig. 1, page 3 Description
1 Temperature controller
RH440-CL440-460--IO-EN.book Seite 15 Donnerstag, 18. Mai 2017 6:29 18

EN
Operation RH440, CL440, CL460
16

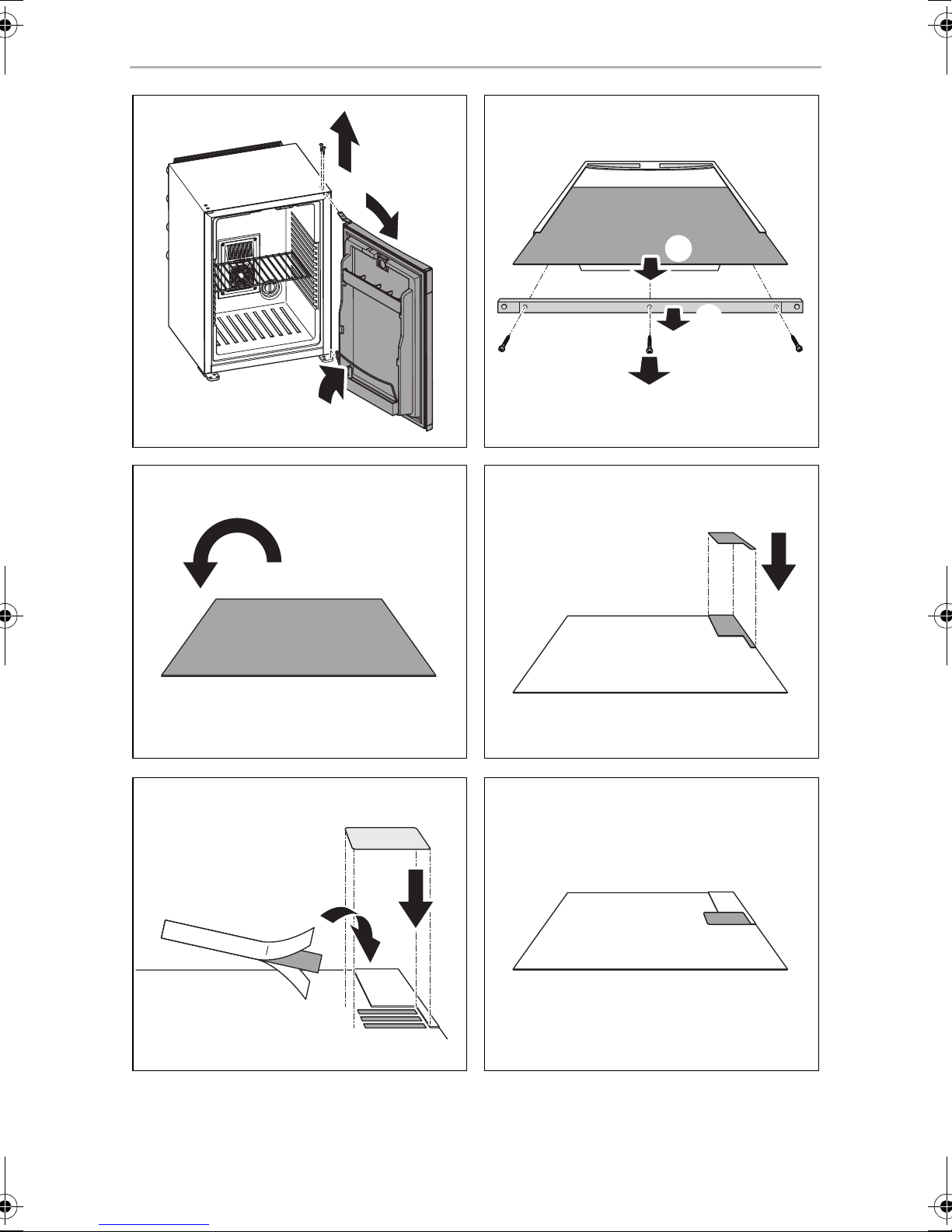

6.1 Changing the decorative plate

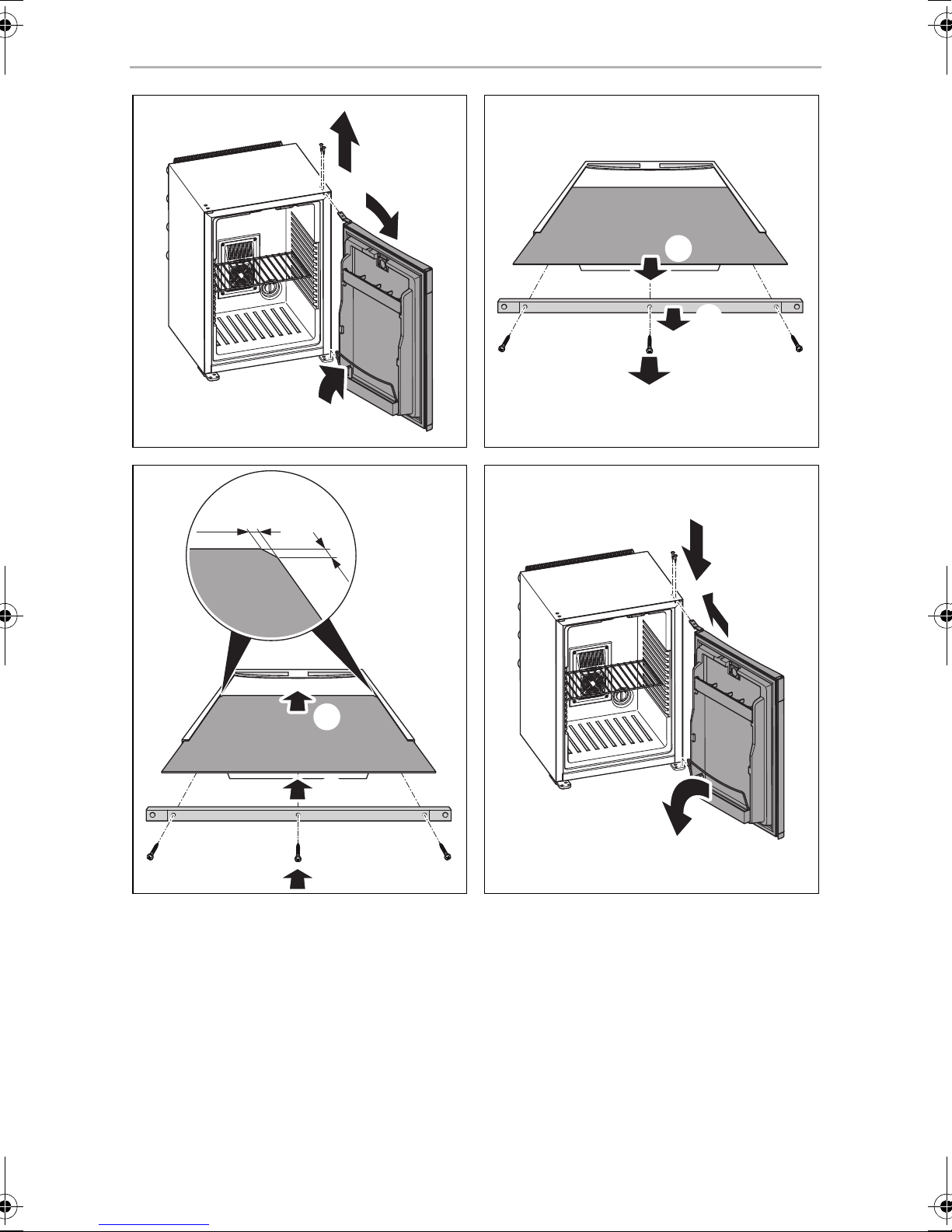

You can change the decorative plate: fig. 4to fig. 7, page 4.

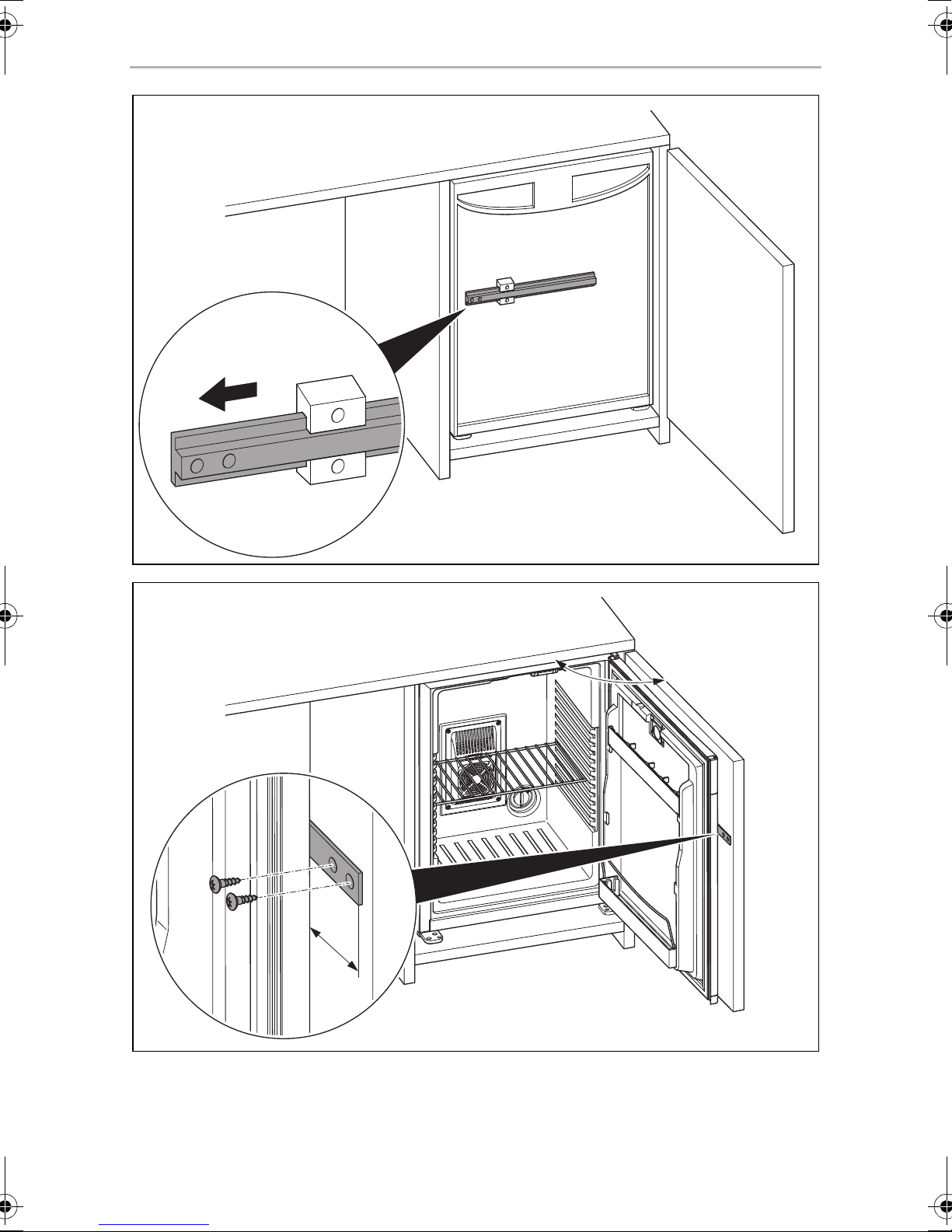

6.2 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened at
the same time as the door of the built-in cabinet: fig. 8, page 5, to fig. m, page 8.
6.3 Reversing the door
Reverse the door as follows: fig. nto fig. r, page 9.
Suitable for doors with sliding hinge only: fig. pto fig. q, page 9.
7Operation
!
I
7.1 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
•Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 18).
•A few water drops may form inside the cooling device if it has been
cooling for a lengthy period. This is normal because the moisture in
the air condenses to water when the temperature in the cooling
device falls. The cooling device is not defective. Wipe it out with a
dry cloth if necessary.
RH440-CL440-460--IO-EN.book Seite 16 Donnerstag, 18. Mai 2017 6:29 18

EN
RH440, CL440, CL460 Operation
17
7.2 Using the cooling device
A
I
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤Set the temperature controller (fig. 11, page 3) to the desired position:
– max: lowest temperature
– min: highest temperature
➤If you wish to switch the cooling device off, pull out the connection cable.
➤Clean the interior to make sure it is dry enough.
7.3 Locking the door
➤Turn the key a quarter turn to the left to lock the cooling device (fig. s, page 10).
7.4 Changing the LED light
➤Change the LED light as follows: fig. t, page 10.
NOTICE! Risk of damage
•Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
•Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
•Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
NOTE
If you are not going to use the cooling device for a long time, leave the
door slightly ajar to prevent unpleasant odours building up.
RH440-CL440-460--IO-EN.book Seite 17 Donnerstag, 18. Mai 2017 6:29 18

EN
Cleaning and maintenance RH440, CL440, CL460
18
8 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
•Never clean the cooling device under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
RH440-CL440-460--IO-EN.book Seite 18 Donnerstag, 18. Mai 2017 6:29 18

EN
RH440, CL440, CL460 Troubleshooting
19
9 Troubleshooting
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Problem Possible cause Suggested remedy
No voltage present There is an interruption
in the battery –
electronics connection.
Establish a connection.
Main switch faulty (if
installed)
Replace the main switch.
Additional supply line
fuse has blown (if
installed).
Replace the supply line fuse.
Voltage is present but
the compressor doesn't
run (connected to AC
supply)
Ambient temperature
too high.
Insufficient ventilation Move the refrigerator to another
location.
Condenser is dirty. Clean the condenser.
Poor cooling, compres-
sor running for a long
time /continuously
Ambient temperature
too high
Insufficient ventilation Move the refrigerator to another
location.
Condenser is dirty. Clean the condenser.
Too cold or a great tem-
perature deviation
Defective compressor Replace compressor
RH440-CL440-460--IO-EN.book Seite 19 Donnerstag, 18. Mai 2017 6:29 18

EN
Technical data RH440, CL440, CL460
20
11 Technical data
The coolant circuit contains R134a.
Contains fluorinated greenhouse gases
Hermetically sealed equipment
RH440LDC RH440LGC
Gross capacity: 40 l
Connection voltage: 100 – 240 Vw, 50/60 Hz
Power consumption: 55 W
12.1 W (100 – 240 Vw, ECO mode)
Temprature range: 4 °C … 12 °C
max. 26 °C under
ambient temperature
4°C…12°C
max. 19 °C under
ambient temperature
Category: 1 (Fresh food storage
compartment)
2 (Cellar)
Energy efficiency class: A+
Energy consumption: 101 kWh/annum 97 Wh/annum
Usable capacity: 36 l 37 l
Climate class: N
Refrigerant quantity: 30 g
CO2 equivalent: 0.043 t
Global warming potential (GWP): 1430
Ambient temperature: +16 °C to +32 °C
Noise emission (sound power): 42 dB
Dimensions (W x D x H): 554 x 401 x 509 mm 554 x 401 x 519 mm
Weight: 17.3kg 19.0kg
Testing/certification:
RH440-CL440-460--IO-EN.book Seite 20 Donnerstag, 18. Mai 2017 6:29 18
