Dometic RMV 5301 User manual

RMV5301, RMV5305
Absorber refrigerator
Operating manual . . . . . . . . . . . . . . . . . . . . 14
Absorber-Kühlschrank
Bedienungsanleitung . . . . . . . . . . . . . . . . .37
Réfrigérateur à absorption
Notice d’utilisation . . . . . . . . . . . . . . . . . . . 61
Absorptiekoelkast
Gebruiksaanwijzing. . . . . . . . . . . . . . . . . . .86
EN
DE
FR
NL
REFRIGERATION
REFRIGERATORS
RMV530x-B-EN-DE-FR-NL.book Seite 1 Freitag, 21. Oktober 2016 11:03 11

RMV530x-B-EN-DE-FR-NL.book Seite 2 Freitag, 21. Oktober 2016 11:03 11

RMV5301,RMV5305
3
1
2
5
4
7
6
3
1
BRUTTOINHALT
TOTAL CAP.
VOLUME BRUT
VERDAMPFERFACH
FREEZER COMP.
VOLUME COMPT BT
MADE IN GERMANY
MLCPROD. NO.MOD. NO.
TYPE
C 40/110 CLIMATE CLASS SKU
SER. NO.
00094200762
008515
NUTZINHALT
USEFUL CAP.
VOLUME NET
AP
10R – 047358
2
4
5
13
2
RMV530x-B-EN-DE-FR-NL.book Seite 3 Freitag, 21. Oktober 2016 11:03 11

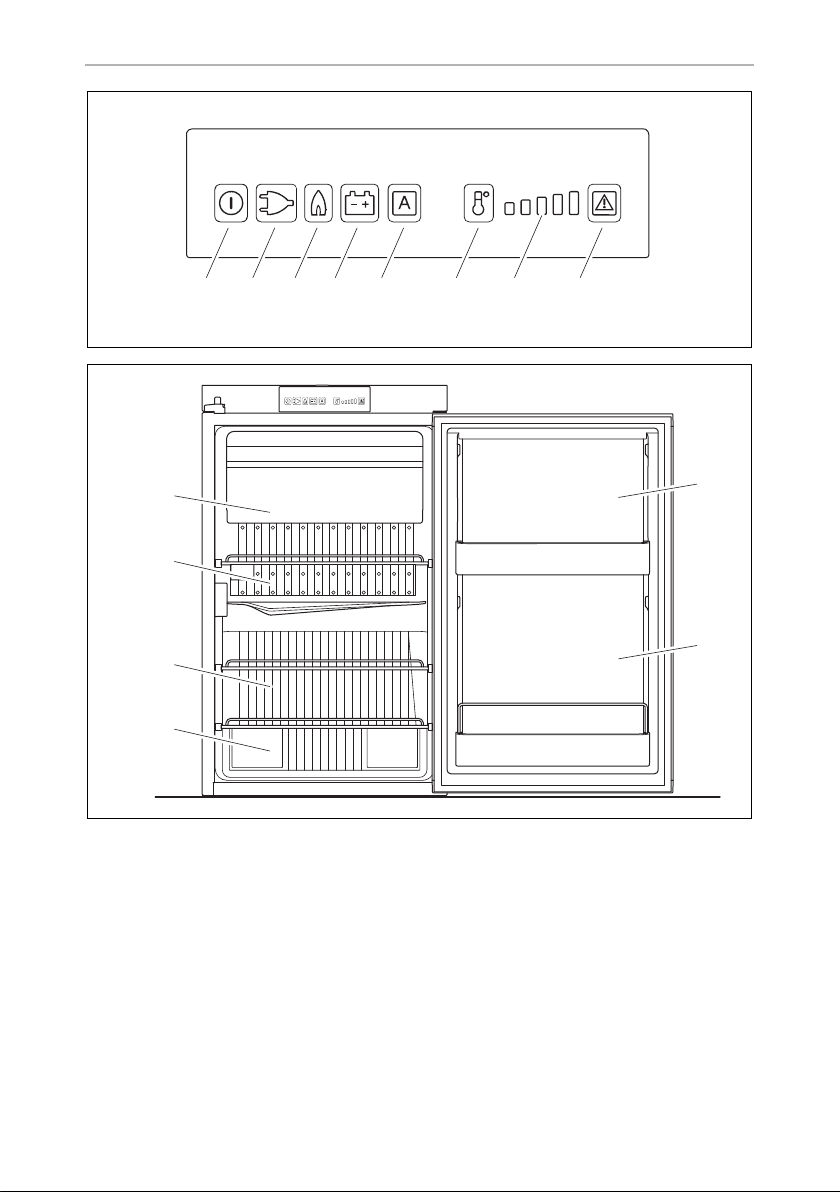

RMV5301, RMV5305
4
1 2 3 4 5 6 7 8
3
1
5
3
4
6
2
4
RMV530x-B-EN-DE-FR-NL.book Seite 4 Freitag, 21. Oktober 2016 11:03 11

RMV5301,RMV5305
5
2.
1.
5
BA
2.
1.
6
AB
7
RMV530x-B-EN-DE-FR-NL.book Seite 5 Freitag, 21. Oktober 2016 11:03 11

RMV5301, RMV5305
6
8
AB
C
2.
1.
3. 3.
2.
1.
2.
3.
1.
9
RMV530x-B-EN-DE-FR-NL.book Seite 6 Freitag, 21. Oktober 2016 11:03 11

RMV5301,RMV5305
7
A B
CD
2.
2.
1.
1.
4.
1.
2.
1.
2.
3.
3.
0
RMV530x-B-EN-DE-FR-NL.book Seite 7 Freitag, 21. Oktober 2016 11:03 11

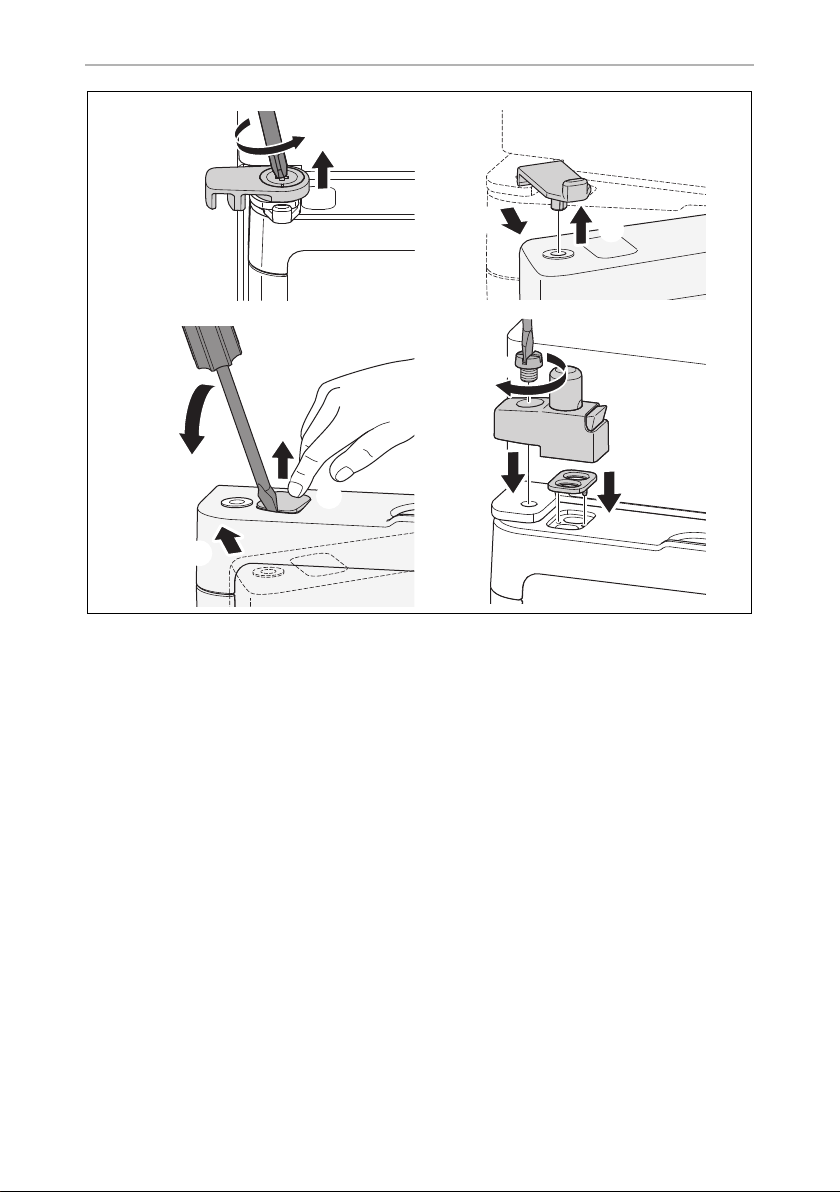

RMV5301, RMV5305
8
3.
1.
2.
a
1.
3.
2.
b
RMV530x-B-EN-DE-FR-NL.book Seite 8 Freitag, 21. Oktober 2016 11:03 11

RMV5301,RMV5305
9
A B
DC
FE
GH
IJ
1. 2.
1.
2.
2.
1.
3.
3.
3.
c
RMV530x-B-EN-DE-FR-NL.book Seite 9 Freitag, 21. Oktober 2016 11:03 11

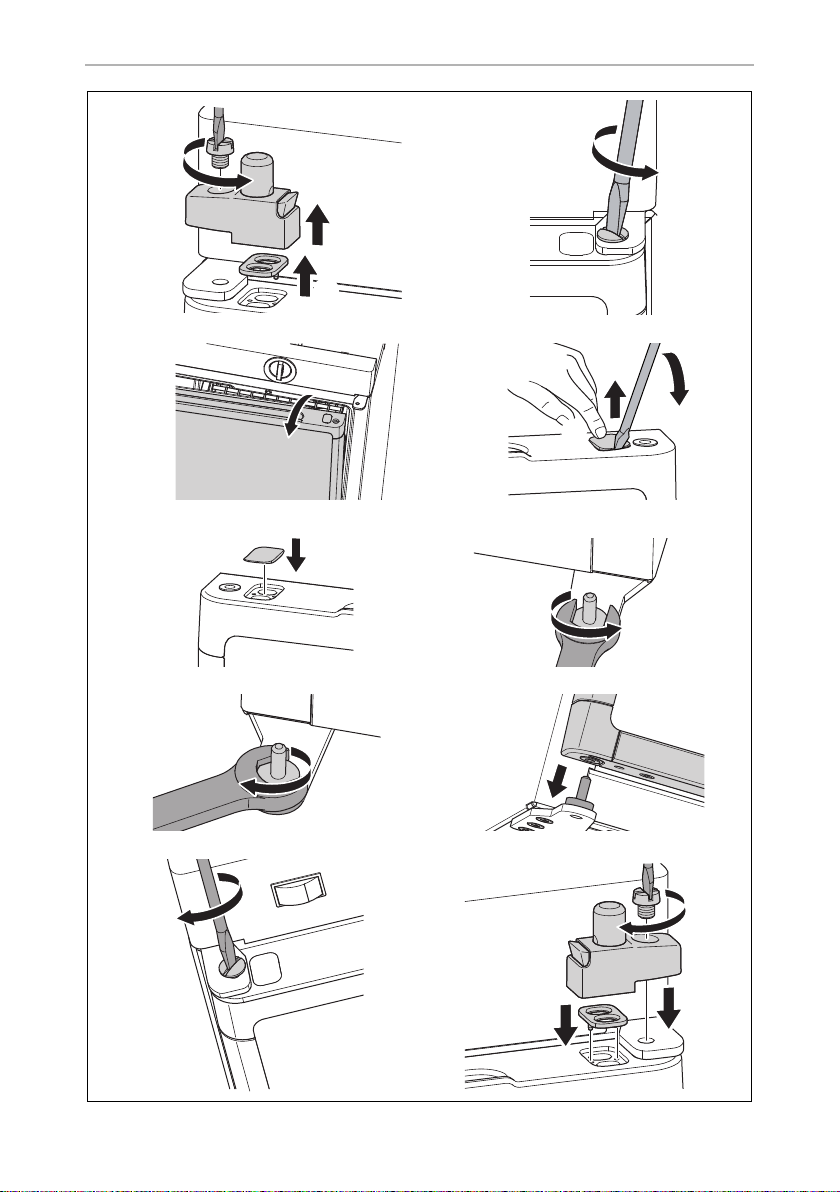

RMV5301, RMV5305
10
A B
CD
EF
GH
IJ
1.
1.
2.
2.
d
RMV530x-B-EN-DE-FR-NL.book Seite 10 Freitag, 21. Oktober 2016 11:03 11

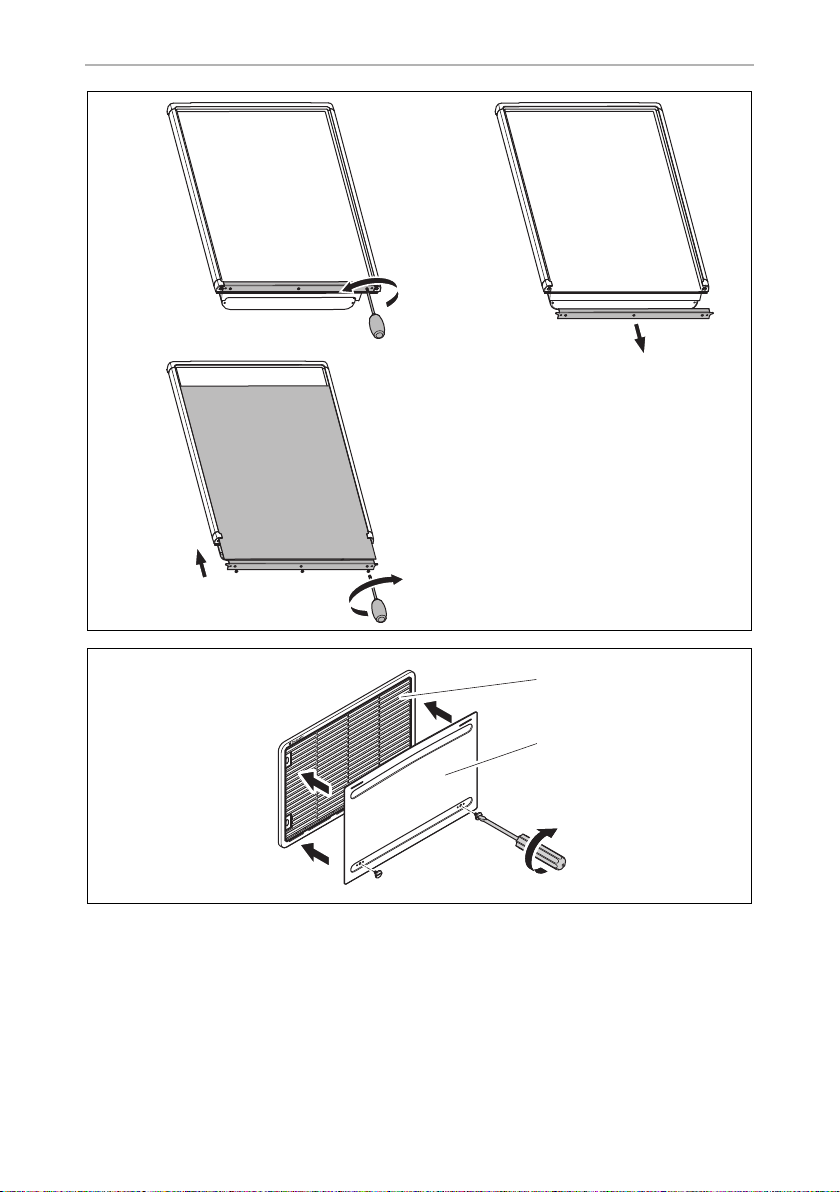

RMV5301,RMV5305
11
AB
C
2.
1.
e
1
2
f
RMV530x-B-EN-DE-FR-NL.book Seite 11 Freitag, 21. Oktober 2016 11:03 11

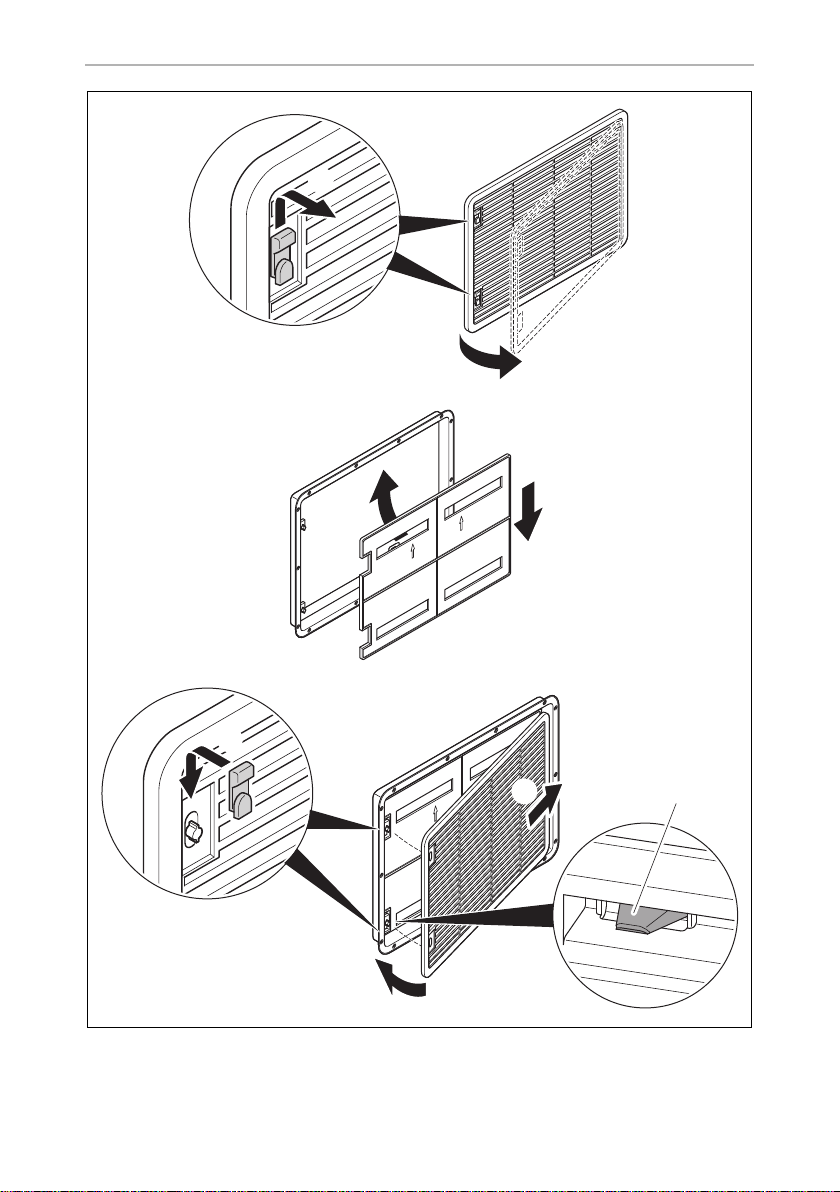

RMV5301, RMV5305
12
2.
3.
1.
4.
5.
6.
7.
1
g
RMV530x-B-EN-DE-FR-NL.book Seite 12 Freitag, 21. Oktober 2016 11:03 11

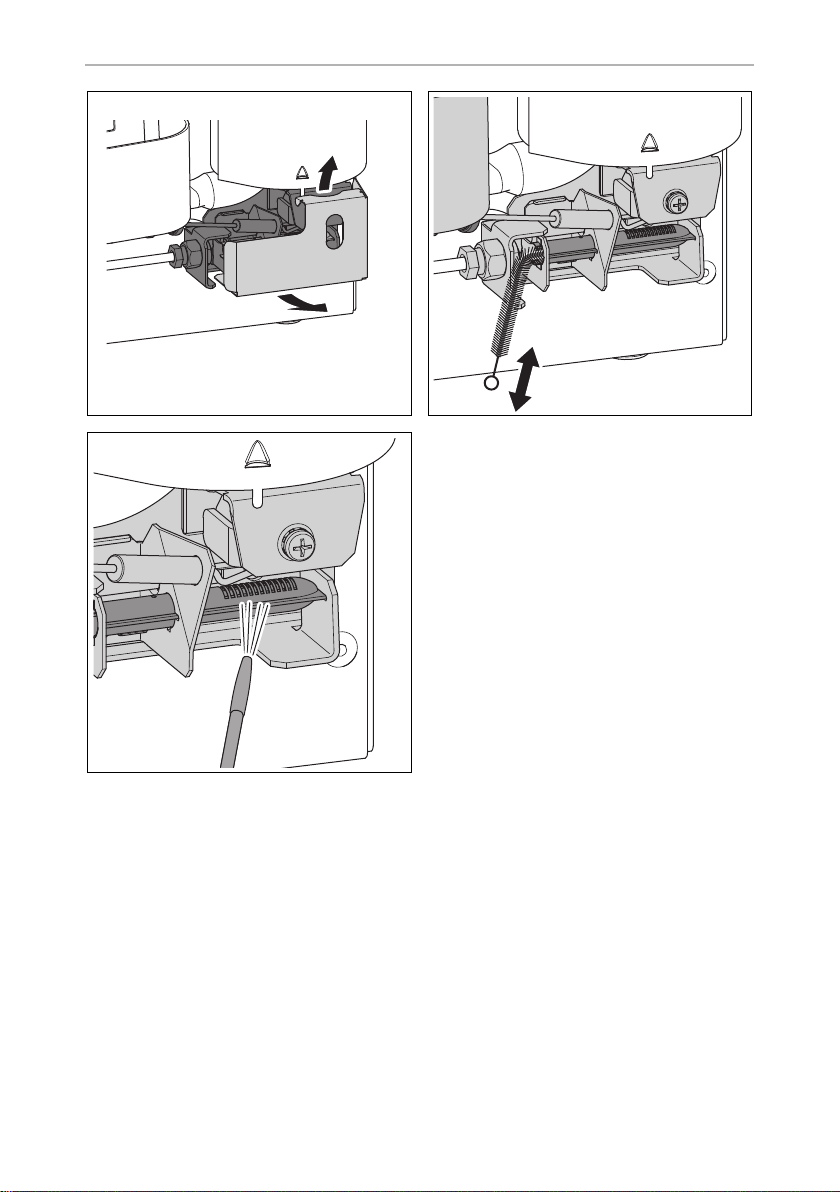

RMV5301,RMV5305
13
2.
1.
h
i
j
RMV530x-B-EN-DE-FR-NL.book Seite 13 Freitag, 21. Oktober 2016 11:03 11

EN
RMV5301, RMV5305
14
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
RMV530x-B-EN-DE-FR-NL.book Seite 14 Freitag, 21. Oktober 2016 11:03 11

EN
RMV5301,RMV5305 Explanation ofsymbols
15
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
•Never open the absorber unit. It is under high pressure and can cause
injury if it is opened.
•Do not operate the refrigerator if it is visibly damaged.
•If the power cable for this refrigerator is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
•This refrigerator may only be repaired by qualified personnel. Inade-
quate repairs may cause serious hazards.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RMV530x-B-EN-DE-FR-NL.book Seite 15 Freitag, 21. Oktober 2016 11:03 11

EN
Safety instructions RMV5301, RMV5305
16
•This refrigerator can be used by children aged 8 years or over, as well
as by persons with diminished physical, sensory or mental capacities
or a lack of experience and knowledge, providing they are supervised
or have been instructed how to use the refrigerator safely and are
aware of the resulting risks.
•Cleaning and user maintenance must not be carried out by unsuper-
vised children.
•Children must be supervised to ensure that they do not play with the
refrigerator.
•Do not store any explosive substances, such as spray cans with propel-
lants, in the refrigerator.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Food may only be stored in its original packaging or in suitable con-
tainers.
ANOTICE!
•Do not open the refrigerant circuit under any circumstances.
•The refrigerant in the refrigerator circuit is highly flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
– Air the room well.
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not use a high-pressure cleaner near the ventilation grille when
cleaning the vehicle.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator lighting may only be replaced by customer service.
•The refrigerator may not be exposed to rain.
2.2 Safe operation
!CAUTION!
•Close the refrigerator door before beginning a journey.
RMV530x-B-EN-DE-FR-NL.book Seite 16 Freitag, 21. Oktober 2016 11:03 11

EN
RMV5301,RMV5305 Safetyinstructions
17
•The refrigerator unit at the back of the refrigerator gets very hot during
operation. Protect yourself from coming into contact with hot parts
when removing ventilation grilles.
•Only store heavy objects such as bottles or cans in the refrigerator
door, in the vegetable drawer or on the bottom shelf.
ANOTICE!
•Do not use electrical devices inside the refrigerator unless they are rec-
ommended by the manufacturer for that purpose.
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the refrigerator is sufficiently
far away from walls and other objects so that the air can circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Protect the refrigerator and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
2.3 Safety when operating with DC power
ANOTICE!
•Only select DC operation (battery mode) if you are using a battery
monitor or if the alternator in your vehicle provides sufficient voltage.
2.4 Safety when operating with AC power
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Only use the cable supplied to connect the refrigerator to the
AC mains.
•Never pull the plug out of the socket by the connection cable.
2.5 Safety when operating with gas
!WARNING!
•Only operate the refrigerator at the pressure shown on the type
plate. Only use pressure controllers with a fixed setting which comply
with the national regulations (in Europe EN 12864).
RMV530x-B-EN-DE-FR-NL.book Seite 17 Freitag, 21. Oktober 2016 11:03 11

EN
Safety instructions RMV5301, RMV5305
18
•Never store liquid gas cylinders in unventilated areas or below
ground level (funnel shaped holes in the ground).
•Keep liquid gas cylinders away from direct sunlight. The temperature
may not exceed 50 °C.
•Never operate the refrigerator with gas
– at petrol stations
– while driving
– while transporting the caravan or mobile home with a transport
vehicle or tow truck
•Never use a naked flame to check the refrigerator for leaks.
•If you smell gas:
– Close the gas supply cock and the valve on the cylinder.
– Open all windows and leave the room.
– Do not press an electric switch.
– Put out any naked flames.
– Have the gas system checked by a specialist.
ANOTICE!
•Only use propane or butane gas (not natural gas).
RMV530x-B-EN-DE-FR-NL.book Seite 18 Freitag, 21. Oktober 2016 11:03 11

EN
RMV5301,RMV5305 Scopeofdelivery
19
3Scopeofdelivery
•Refrigerator
•Ice-cube tray
•Operating manual
•Installation manual (optional)
4Accessories
Available as accessories (not included in the scope of delivery):
All the accessories are available from specialist dealers. If you have any questions,
please contact the dealer or your service partner directly.
5 Intended use
The refrigerator is designed for installation in caravans or motorhomes. It is only suit-
able for cooling, freezing and storing foodstuffs. The refrigerator is not intended for
the proper storage of medicine.
!
The refrigerator is designed to be operated on a DC power supply and an AC socket
and can be independently powered by liquid gas (propane or butane). The
refrigerator may not be run on natural gas or city gas. The RMV5305 refrigerator also
always requires a permanent DC supply.
Description
Winter cover for the ventilation grille
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
RMV530x-B-EN-DE-FR-NL.book Seite 19 Freitag, 21. Oktober 2016 11:03 11

EN
Technical description RMV5301, RMV5305
20
6 Technical description
6.1 Description
The refrigerator is an absorption refrigerator. The refrigerator is designed to operate
with different types of power and can be run on an AC power supply, a DC power
supply or with butane/propane gas. For DC operation, the vehicle battery or a solar
system built on the vehicle can be used. For AC and gas operation, the thermostatic
control ensures that the refrigerator temperature is kept constant and as little power
as possible is consumed.
The refrigerator has
•a locking mechanism to protect it during transport.
•a defrost drain with its opening located on the rear panel of the refrigerator.
•an automatic pilot light which automatically interrupts the gas supply after
approx. 30 seconds if the flame goes out.
The RMV5305 refrigerator has an automatic operating mode which selects the most
economical power mode connected.
The brightness of the control elements is automatically reduced after a few seconds
if no button is pressed. If a button is pressed then the brightness increases again.
Pressing the button again performs the required function.
If the door is open for longer than 2 minutes, a beep is emitted.
6.2 Components
No. in
fig. 1, page 3 Description
1 Control elements
2 Upper trays
3 Bottom tray with bottle holder
4Shelf
5 Thawed water drainage channel
6 Secondary evaporator for refrigerator
7 Freezer compartment
RMV530x-B-EN-DE-FR-NL.book Seite 20 Freitag, 21. Oktober 2016 11:03 11
