RUC8408X
Compressor refrigerator
Installation and Operating Manual
EN
REFRIGERATION
RUC SERIES
RUC8408X--IO-AU.book Seite 1 Freitag, 22. Dezember 2017 8:21 20

RUC8408X--IO-AU.book Seite 2 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1Explanationofsymbols...........................................4
2Safetyinstructions...............................................4
3Scopeofdelivery...............................................7
4Accessories....................................................7
5Intendeduse...................................................7
6Technicaldescription............................................8
7Installingtherefrigerator.........................................10
8Connectingtherefrigerator............. . . . . . . . . . . . . . . . . . . . . . . . . .21
9Usingtherefrigerator..........................................23
10 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
RUC8408X--IO-AU.book Seite 3 Freitag, 22. Dezember 2017 8:21 20

EN
Explanation of symbols RUC8408X
4
1 Explanation of symbols
D
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Faulty assembly or connection
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
2.1 General safety
DDANGER!
•On boats: If the device is powered by the mains, ensure that the
power supply has a residual current circuit breaker.
!WARNING!
•Have a qualified technician perform the installation in wet rooms.
•Do not operate the device if it is visibly damaged.
DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or
serious injury.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
RUC8408X--IO-AU.book Seite 4 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Safety instructions
5
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Inadequate
repairs may cause serious hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and knowledge, providing they are supervised, or
have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under
8yearsofage.
•Do not store any explosive substances, such as spray cans with
propellants, in the device.
!CAUTION!
•Danger of crushing! Do not put your fingers into the hinge.
•Foodstuff may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate is the same as
that of the power supply.
•Never pull the plug out of the socket by the connection cable.
•The refrigerator is not suitable for storing substances which are caustic
or contain solvents.
•Keep the drainage outlet clean at all times.
•Do not open the refrigerant circuit under any circumstances.
•Never transport the device in a horizontal position, so that lubricating
oil does not drain from the compressor into the pipes.
RUC8408X--IO-AU.book Seite 5 Freitag, 22. Dezember 2017 8:21 20

EN
Safety instructions RUC8408X
6
•Make sure that the refrigerator circuit is not damaged during transpor-
tation. The refrigerant in the refrigerator circuit has a low potential to
become flammable.
In the event of any damage to the refrigerator circuit:
– Avoid naked flames and sparks.
–Airtheroomwell.
•Set up the device in a dry location where it is protected against splash-
ing water.
2.2 Operating the device safely
DDANGER!
•Do not touch exposed cables with your bare hands. This applies
especially when operating the device from the AC mains.
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
•If you connect the device to a battery, make sure that no food comes
into contact with the battery acid.
ANOTICE!
•Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for that purpose.
•Do not place it near naked flames or other heat sources (heaters, direct
sunlight, gas ovens etc.)
•Danger of overheating!
Always ensure sufficient ventilation so that the heat generated during
operation can dissipate. Make sure that the device is sufficiently far
away from walls and other objects so that the air can circulate.
•Ensure that the ventilation vents are not covered.
•Do not fill the device with ice or fluid.
•Never immerse the appliance in water.
•Protect the appliance and the cable against heat and moisture.
•Make sure that foodstuffs do not touch the walls of the cooling area.
RUC8408X--IO-AU.book Seite 6 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Scope of delivery
7
3Scopeofdelivery
4Accessories
Available as accessories (not included in the scope of delivery):
Accessories are available from specialist dealers. If you have any questions, please
contact the dealer or your service partner directly.
5 Intended use
The refrigerator is suitable for refrigerating foodstuffs and storing frozen foodstuffs.
The device is suitable for installation into caravans, motorhomes or boats. The device
is designed to be operated from a 12 V DC or 24 V DC on-board supply as well as
from a 100 – 240 V AC mains.
!
The refrigerator is only suitable for installation in a fitted cavity. Once it is installed,
only the front of the appliance may be accessible.
Quantity Description
1Refrigerator
1 Drain hose
1 Bottom trim piece
1 Installation and Operating Manual
Description
LS300 ventilation grille (W x H: 490 x 249 mm, open ventilation area 667 cm2)
CAUTION! Health hazard!
Please check if the cooling capacity of the refrigerator is suitable for
storing the food you wish to cool.
RUC8408X--IO-AU.book Seite 7 Freitag, 22. Dezember 2017 8:21 20

EN
Technical description RUC8408X
8
6 Technical description
6.1 Description
The device can refrigerate goods to +8 °C to 0 °C and keep them cool. Products can
be frozen to –10 °C to –20 °C in the freezer compartment. You can use the control
display to set the desired temperature.
The refrigerator is suitable for use with 12 V or 24 V DC voltage and can therefore be
used e.g. for mobile homes, caravans or on boats. It can also be connected to a
100 – 240 V mains supply.
The refrigerator can withstand a short term inclination of 30°, for example on boats.
All materials used in the refrigerator are compatible for use with foodstuffs. The
refrigerant circuit is hermetically sealed and CFC-free.
6.2 Components
13
12
4
3
1
2
5
11
9
10
8
6
7
11
RUC8408X--IO-AU.book Seite 8 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Technical description
9
6.3 Control and display
The refrigerator has a display and a control knob between the refrigerator and
freezer doors (fig. 2).
Function of the control knob (fig. 2):
•Rotate: Choose menu item. The selected menu item is highlighted.
•Short press: Confirm
•Press for 2 to 4 seconds: Acknowledge fault (chapter “Troubleshooting” on
page 46)
No. in
fig. 1Description
1 Freezer compartment door
2 Freezer door rack
3 Refrigerator door
4 Top door bin
5 Bottom door bin with bottle holder
6 Fruit and vegetable section
7 Refrigerator shelf
8 Refrigerator compartment
9 Air duct cover plate
10 Internal light
11 Control and display
12 Freezer shelf
13 Freezer compartment
2
RUC8408X--IO-AU.book Seite 9 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
10
7 Installing the refrigerator
7.1 Preparing the installation
When installing the refrigerator, note the following:
•Ensure that the floor is solid and level.
•Ensure that the refrigerator is level.
•The refrigerator must be installed so that it is easily accessible for service work,
easy to de-install and install and can be easily removed from the vehicle.
•The refrigerator must be installed in a recess so that it stands secure when the
vehicle is in motion. Note the following dimensions (fig. 3):
WH
B
D
A
C
3
RUC8408X--IO-AU.book Seite 10 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Installing the refrigerator
11
Installation with two rear vents
•The air inlet and outlet vents must not be covered by vehicle parts (such as an
open door or by installing accessories such as bicycle racks) while operating.
•Install the refrigerator so that it is protected from excessive heat, as this leads to
poor performance and increases the power consumption of the refrigerator.
•The electrical installation must comply with national and local regulations.
Refrigerator Overall dimension in mm
Height (A) 1657
Width (B) 550
Depth (C) 677 (includes control knob 5mm)
Recess Dimension in mm
Height (H) 1647 –1652
Width (W) 530 – 535
Depth (D) min. 611
RUC8408X--IO-AU.book Seite 11 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
12

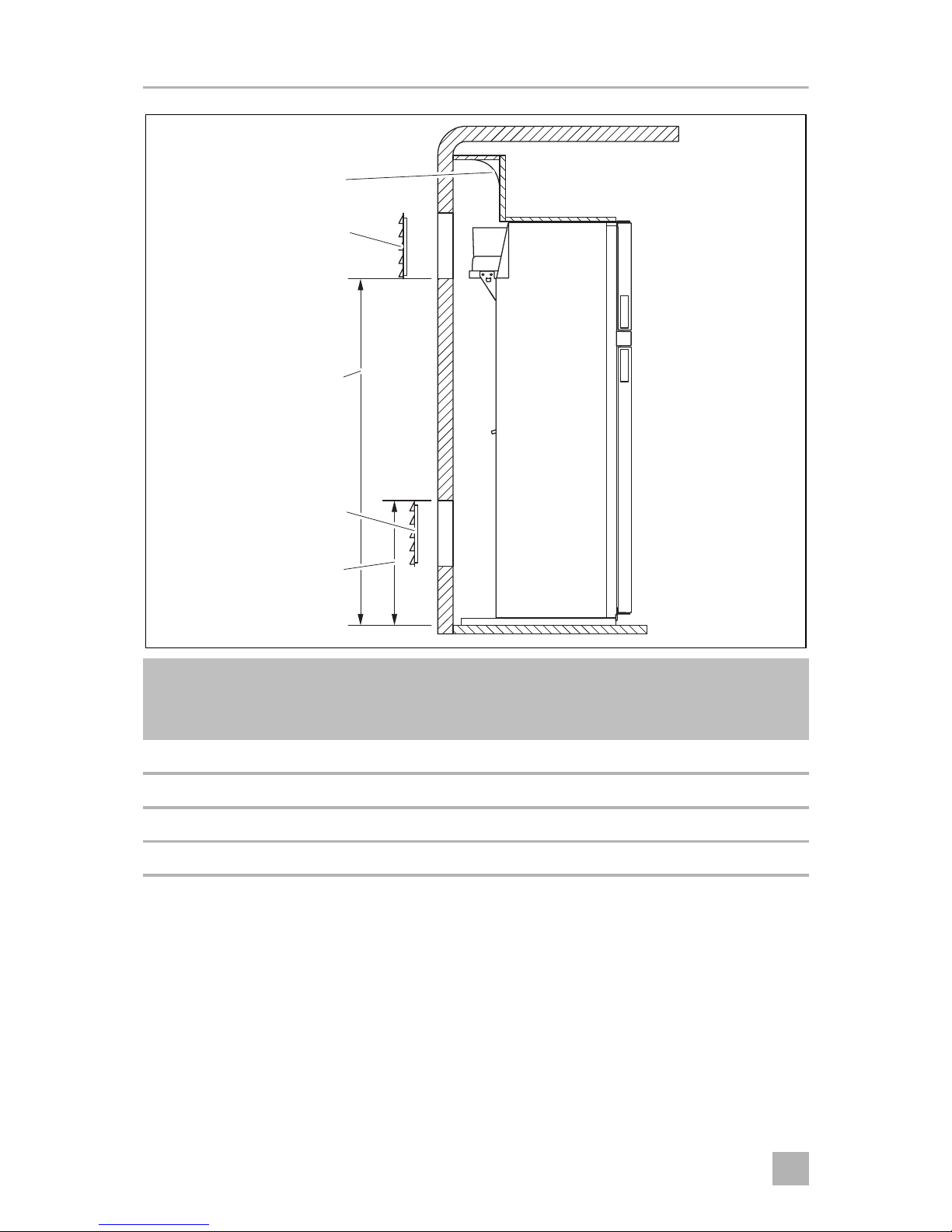

•The outer wall must be fitted with one air inlet ventilation grille (fig. 42a,
page 12) and one outlet ventilation grille (fig. 42b, page 12) so that the heat
generated can be easily released to the outside:
–LowerairinletventLS300canbeinstalled from flush to the vehicle floor up to
a maximum height (top of vent) of 300 mm below the compressor shelf.
– Upper air outlet vent LS300 must be installed with the bottom of the vent no
lower than the compressor shelf. Higher than the compressor shelf is
allowed, but for optimum service access as close as possible to the compres-
sor shelf height is recommended.
Pos. in
fig. 4,
page 12
Description
1 Maximum height to 300 mm below the compressor shelf
2 LS300 vent
3 Minimum height is equal to the height of the compressor shelf
4 Air deflection plate
4
2b
2a
3
1
4
RUC8408X--IO-AU.book Seite 12 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Installing the refrigerator
13
•Fit an air deflection plate (fig. 44, page 12) above the compressor so that the
heat does not accumulate in the vehicle.

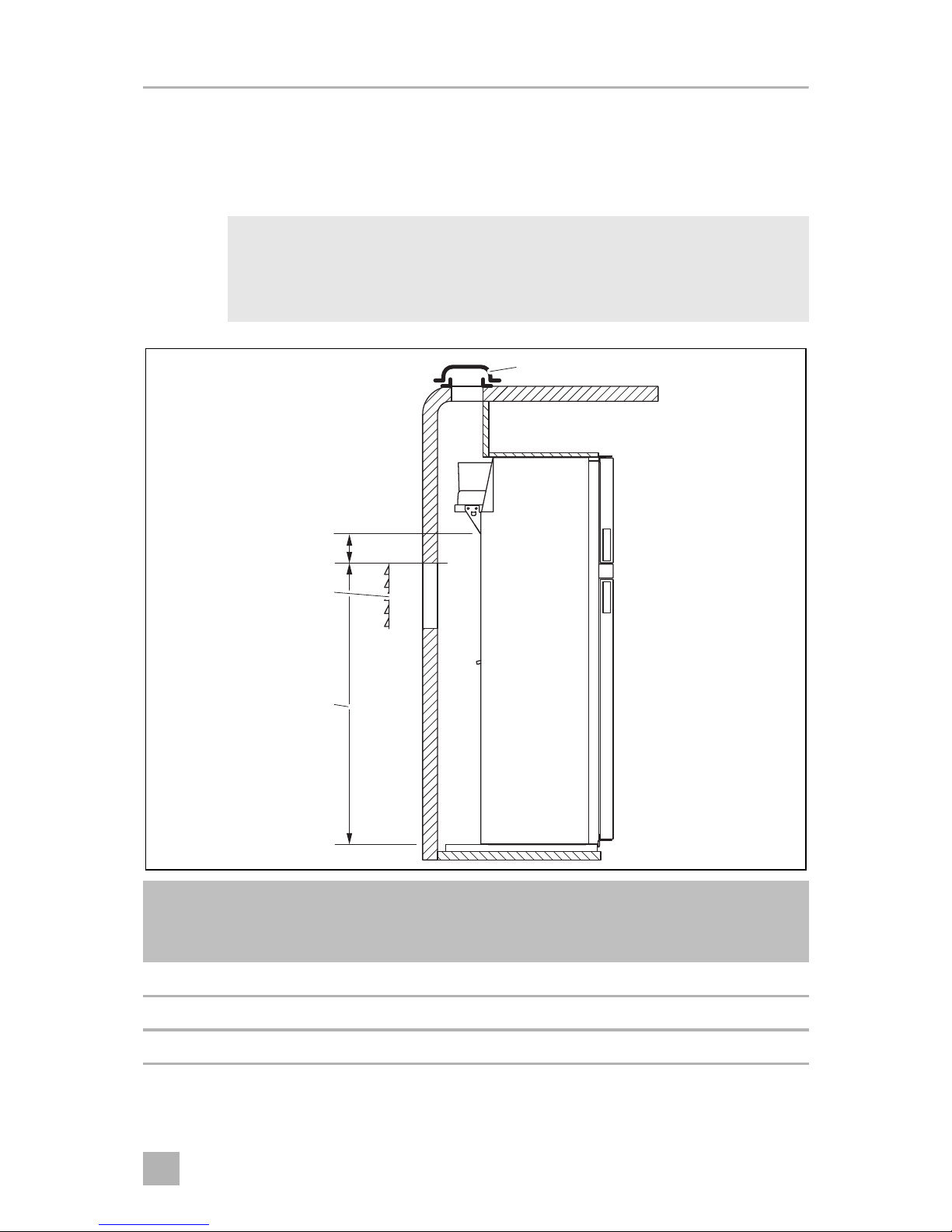

Installation with one lower rear vent and one roof vent
INOTE
This installation method is satisfactory for refrigerator performance, but
not the preferred method due to lack of service access to the compres-
sor shelf area.
Pos. in
fig. 4,
page 12
Description
1 Maximum height is equal to 100 mm below the compressor shelf
2 LS300 vent
3 Roof vent
≥100 mm
1
2
3
5
RUC8408X--IO-AU.book Seite 13 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
14
•A roof vent may be installed instead of the air outlet vent.
–Theroofventshouldbeinstalleddirectly above the back of the refrigerator as
far as this is possible. Use an air duct if you need to install the roof vent
(fig. 53) offset, otherwise heat will accumulate there.
7.2 Installing the refrigerator in a sealed location
separate to the living space
It is recommended to install the refrigerator in a sealed location in order to prevent
dust and heat from entering the living space of the caravan or motorhome.
A suitable seal must be provided and fitted to the bottom surface of the refrigerator.
The purpose is to provide a seal between the interior of the vehicle and the cooling
unit and ventilation area behind the refrigerator.
!
The manufacturer has applied a sealing strip to the rear surface of the front frame.
➤Apply a sealing strip to all four sides of the bottom surface of the refrigerator (1.
in fig. 6).
➤Push the refrigerator into position (2. in fig. 6). This then seals the space behind
the refrigerator to the interior of the vehicle.
WARNING! Fire hazard!
Do not use flammable materials such as silicone sealants, foam or similar
for the draught-proof installation.
1.
2.
6
RUC8408X--IO-AU.book Seite 14 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Installing the refrigerator
15

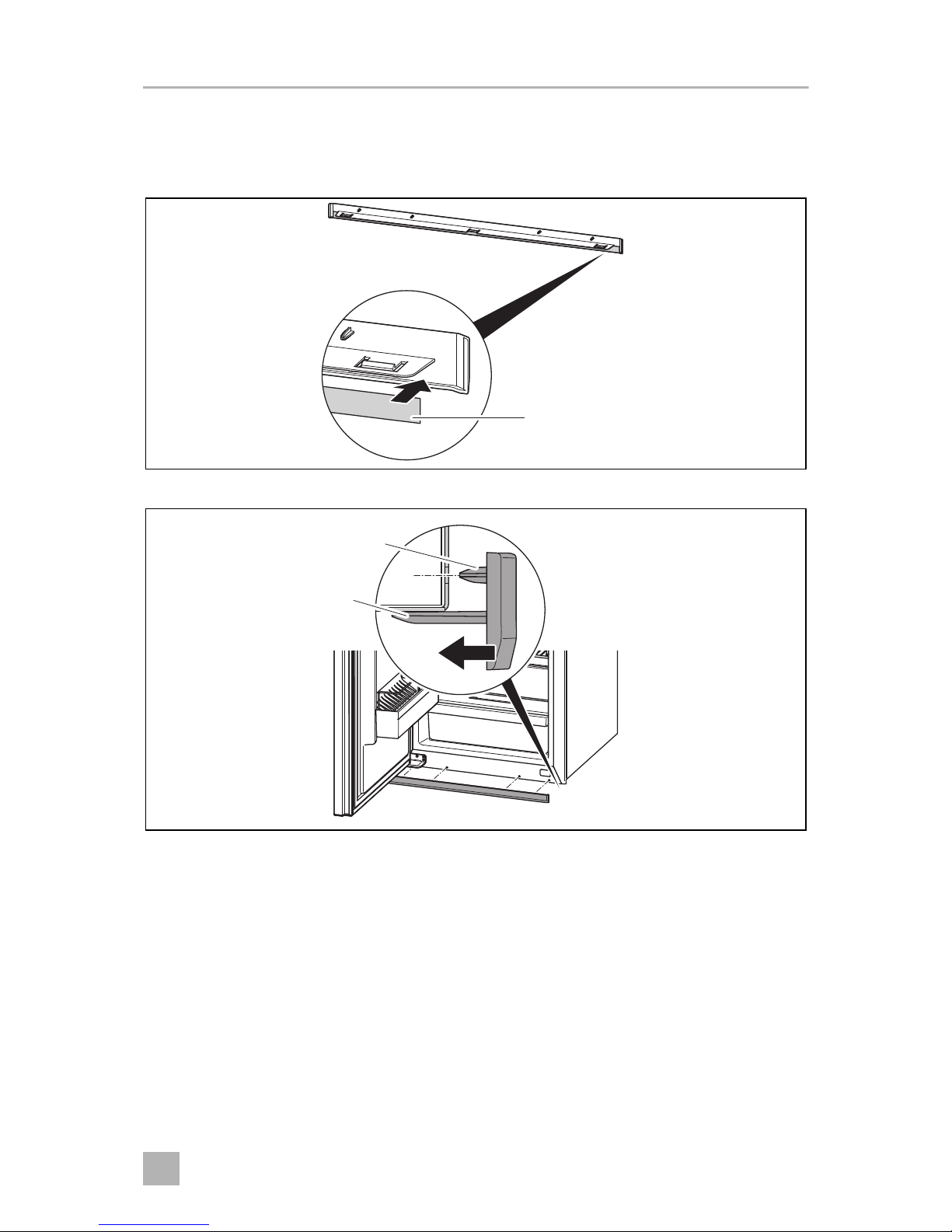

OPTIONAL:
➤If the refrigerator stands on a platform, install the bottom trim piece in order to
seal the space between the refrigerator and the platform.
–Applyasealingstrip(fig.71) to the lower surface of the bottom trim piece.
– Push the bottom trim piece with the four plugs (fig. 81) into the holes on the
front frame of the refrigerator.
– Snap the three catches (fig. 82) into the holes under the bottom frame of
the refrigerator.
7
1
8
1
2
RUC8408X--IO-AU.book Seite 15 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
16
7.3 Installing the drain water hose
➤To avoid damage to the drain water hose, position the hole for the drain water
hose in a way that the hose does not kink.
➤Drill a hole through the floor at the rear of the refrigerator.
➤Install the drain water hose through the drilled hole. Ensure, that the drain water
hose is long enough in order to drain the water outside of the vehicle.
➤Ensure that the drain water hose is not kinked.
➤Seal the area around the drain water hose.
7.4 Installing the ventilation grille
➤Make a cut out in the wall to fit an appropriate upper and lower vent system,
choose LS300 check the dimensions required for the vent. See chapter “Prepar-
ing the installation” on page 10.
No. in
fig. 0Description
1Slider
2 Ventilation grille
3 Installation frame
3
2
1
0
RUC8408X--IO-AU.book Seite 16 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Installing the refrigerator
17

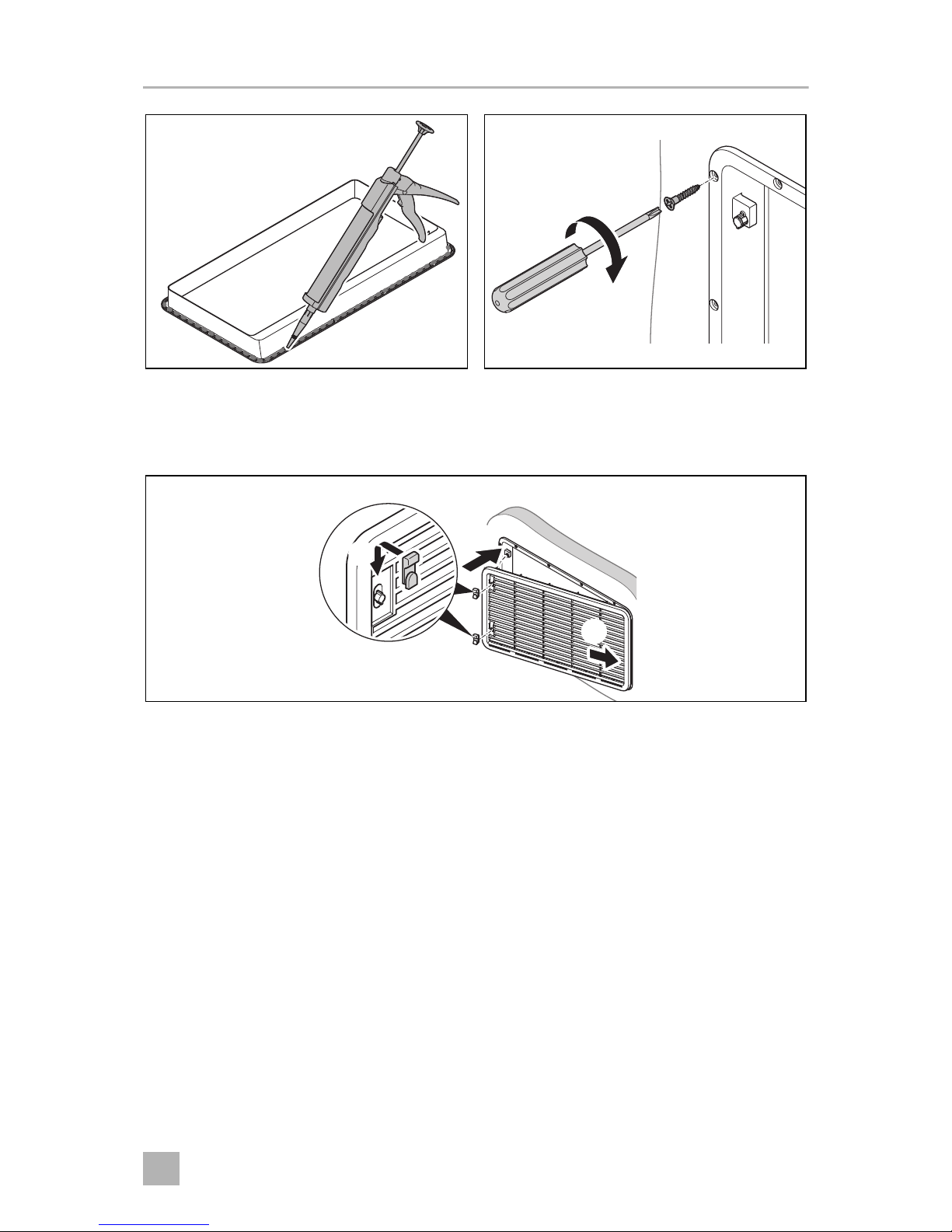

➤Ensure the installation frame is water resistant (fig. a).
➤Insert the installation frame and screw it down tightly (fig. b). Use all the fixing
holes for this.
➤Fit the ventilation grille (1. and 2. in fig. c).
➤Insert the slider and lock the ventilation grille with it (3. in fig. c).
a
b
1.
2.
3.
c
RUC8408X--IO-AU.book Seite 17 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
18
7.5 Install the roof vent
➤Cut out a section in the roof. Refer to the roof vent instruction manual for the
required dimensions. When doing so, observe the information, see chapter “Pre-
paring the installation” on page 10.
➤Ensure the installation frame is water resistant (fig. e).
No. in
fig. dDescription
1Hood
2 Installation frame
1
2
d
e
RUC8408X--IO-AU.book Seite 18 Freitag, 22. Dezember 2017 8:21 20

EN
RUC8408X Installing the refrigerator
19
➤Insert the installation frame and screw it down tightly (fig. f). Use all the fixing
holes for this.
➤Insert the hood and screw it down tightly (fig. g).
f
g
RUC8408X--IO-AU.book Seite 19 Freitag, 22. Dezember 2017 8:21 20

EN
Installing the refrigerator RUC8408X
20

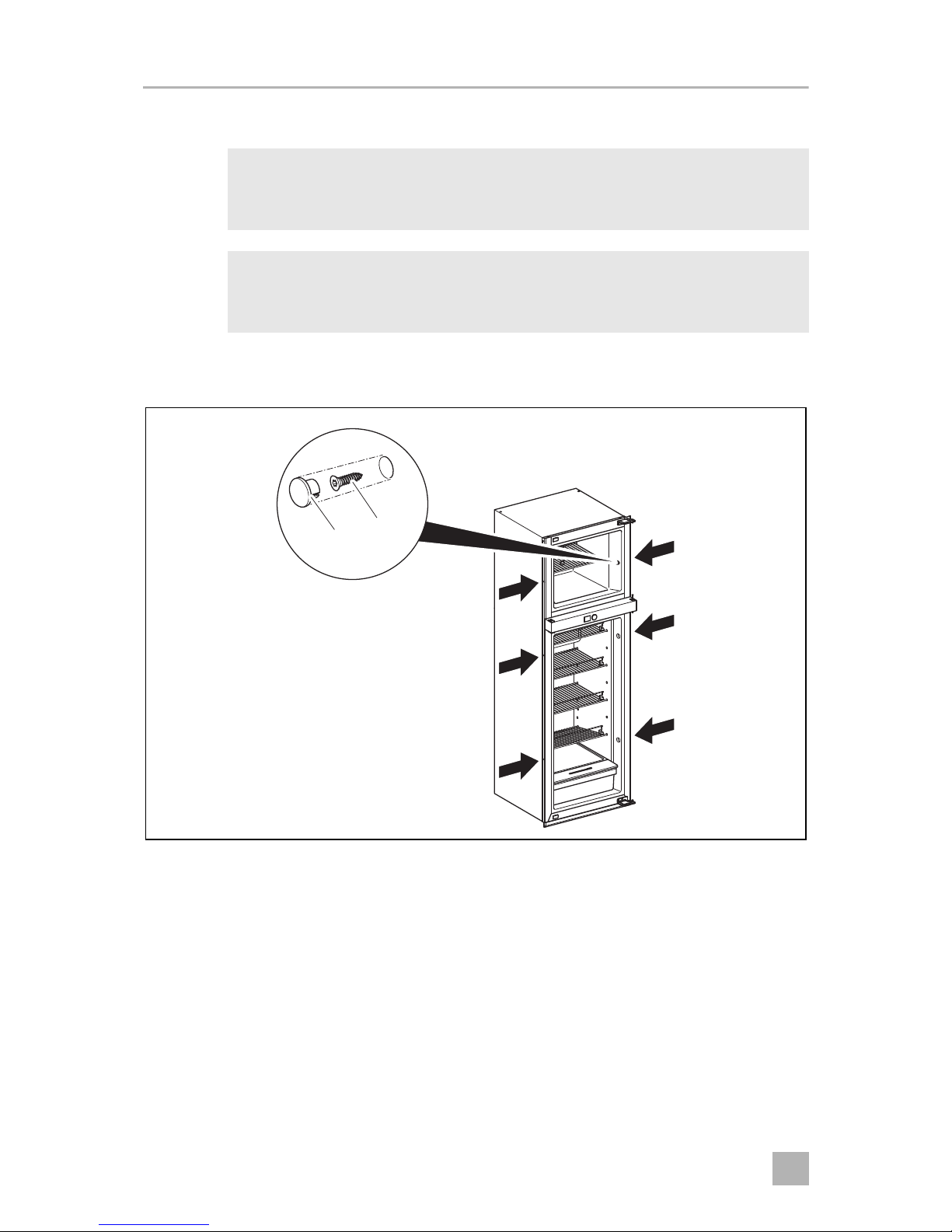

7.6 Securing the refrigerator
!
I
➤Push the refrigerator firmly into its final location with the front flange sitting hard
against the recess front.
➤Push the six screws (fig. h1) through the six plastic bushes in the sides of the
refrigerator, and fasten into the recess walls.
➤Fit the caps (fig. h2) into the bushes.
CAUTION!
Only screw through the bushes built into the refrigerator, otherwise
foamed components, including electrical wiring, can be damaged.
NOTE
Ensure that the screws are tight, even when under increased loads
(while driving).
21
h
RUC8408X--IO-AU.book Seite 20 Freitag, 22. Dezember 2017 8:21 20
