Doran SMARTLINK 360SLT2 User manual

S
g
en
a
i
r
st
o
s
n
o
i
t
u
l
MANUFACTURING LLC

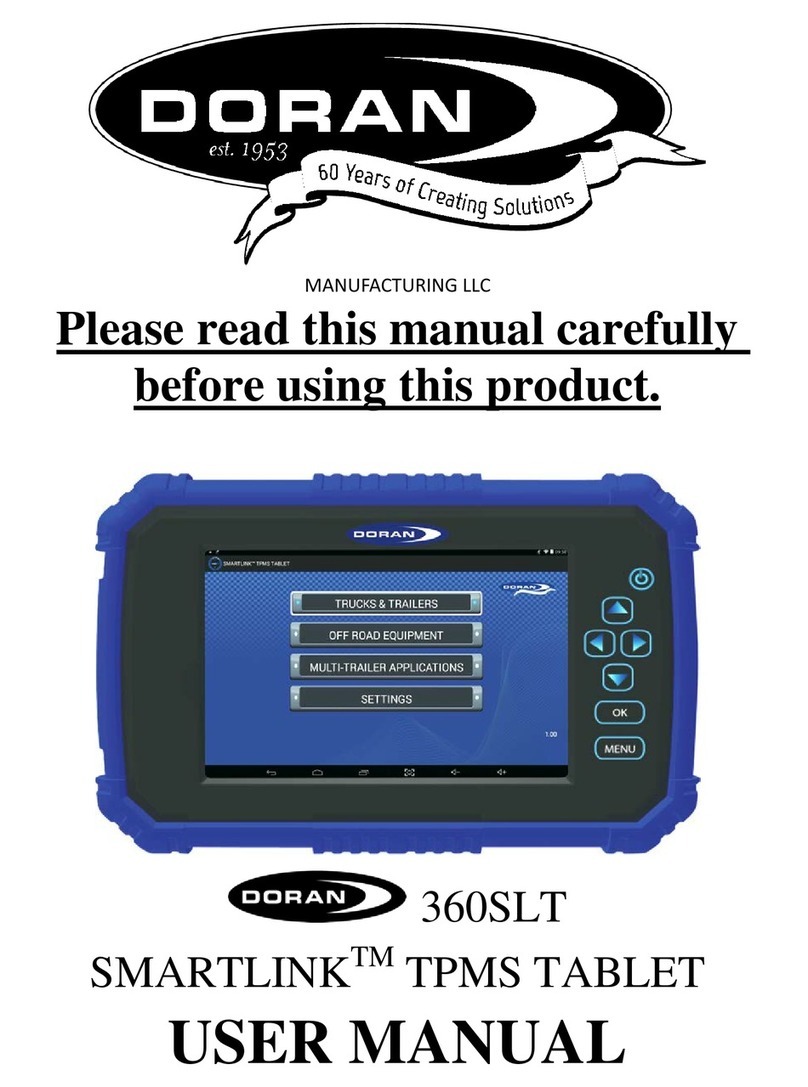

Please Read This Manual Carefully
Before Using This Product
360SLT 2
SMARTLINKTM TPMS TABLET
USER MANUAL

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
2
Table of Contents
1. INTRODUCTION................................................................................................................................ 3
1.1. PACKING AND ACCESSORIES ......................................................................................................... 3
1.2. TABLET COMPONENTS ................................................................................................................. 3
1.3. INITIAL POWER UP ....................................................................................................................... 4
1.4. CONNECT THE TABLET TO THE INTERNET ..................................................................................... 4
1.5. CONNECT TO A COMPUTER FOR FILE TRANSFER ........................................................................... 4
2. FUNCTIONS AND APPLICATIONS....................................................................................................... 6
2.1. INTRODUCTION ............................................................................................................................ 6
3. FUNCTIONS AND APPLICATIONS....................................................................................................... 6
3.1. PROGRAMING A TRANSCEIVER ..................................................................................................... 6
3.2. READ TIRE SENSOR DATA ............................................................................................................. 8
3.2.1. READ ONE-CLICK TRANSCEIVERS............................................................................................... 9
3.2.2. READ INDIVIDUAL TIRE SENSOR .............................................................................................. 10
3.2.3. RECORD TIRE DATA ................................................................................................................ 10
3.3. SAVED FILES ............................................................................................................................... 11
3.4. APP SETTINGS ............................................................................................................................ 12
3.5. YARDCHECK360 WEB PORTAL .................................................................................................... 12
4. FAQS AND TIPS............................................................................................................................... 14
5. SPECIFICATIONS ............................................................................................................................. 15
6. CERTIFICATIONS ............................................................................................................................. 16
7. LIMITED WARRANTY ...................................................................................................................... 16

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
3
1. INTRODUCTION
The Doran 360SLT2 is a SMARTLINK™ TPMS Tablet used to communicate with all Doran
TPMS products with a RF or LF transmitting capability. These TPMS products cover the
Truck and Trailer Fleets, OFF Road Equipment, and Multi-Trailer applications. It can be
used to program a transceiver configuration and also access current tire data on the
transceiver and individual sensors.
The Doran 360SLT2 uses the Google Android operating system. The 360SLT2 can be
connected to a computer via a USB-C connection so that users can download saved
data for documentation and analysis.
1.1. PACKING AND ACCESSORIES
The product comes with the following components:
• SMARTLINK™ TPMS Tablet
• USB-C Cable
• Power Adapter
• USB OTG Adapter
• Quick Reference Guide
• Operation Manual (On the tablet as an e-copy or downloaded from Doranmfg.com)
1.2. TABLET COMPONENTS

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
4
1.3. INITIAL POWER UP
Before powering on the device, make sure it is fully charged. If the battery’s charge is
less than 50%, the tablet will prevent upgrading the software to the latest version. To
charge the device, use the USB adapter and USB-C cable provided.
To power on the tablet, press and hold the power button on the top left of the tablet
until the display turns on and the blue Doran logo appears.
The tablet will automatically shut off to conserve battery if it is not used for 30
minutes.
1.4. CONNECT THE TABLET TO THE INTERNET
To connect the tablet to the internet, first click App Settings on the home screen. Next,
hit Tablet Settings. Click on the WLAN button, browse for the Wi-Fi network, and
connect. If the network is password protected, the tablet will prompt for a password
entry.
1.5. CONNECT TO A COMPUTER FOR FILE TRANSFER
The device can be connected to a computer with a USB-C cable to transfer stored data.
To connect the tablet and computer, insert the USB-C cable into the tablet and the USB
end to the computer.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
5
On the tablet, an Android System notification will appear. Swipe down from the top
notification bar and select the option below.
Select the Transfer Files radio button. This will allow the computer to access the
internal storage of the tablet.
The tablet will now be accessible on the computer it is connected to. The folder named
Doran TPMS Data will have all exported data.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
6
2. FUNCTIONS AND APPLICATIONS
2.1. INTRODUCTION
The Doran 360SLT2 SMARTLINK™ TPMS TABLET is an all-in-one tool that can be used
with all of the Doran TPMS products. The main menu features the following operations.
• PROGRAM TRANSCEIVER
o Used to program any TPMS transceivers installed on a vehicle
• READ TIRE SENSOR
o Allows the user to read sensor data from transceivers, LFA TPMS sensors,
or record truck tire data with LFA sensors
• SAVED FILES
o Access saved data from recorded tire data
• APP SETTINGS
o Access Android settings, change the unit of measure, checking for
software updates, and setting up an email account.
• ACCESS WEB PORTAL
o Access the YardCheck360™ web portal (Only for use with YardCheck360™
products).
3. FUNCTIONS AND APPLICATIONS
3.1. PROGRAMING A TRANSCEIVER
After clicking the Program Transceiver icon on the home screen, the tablet will search
for and list any active transceivers within range. (In order to have reliable
communication, the tablet should be less than 35ft (10m) away from the transceivers)

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
7
The appropriate transceiver is selected and a tire layout screen is displayed. (For 7-axle
transceivers, use arrow to scroll right for more wheel positions) On this screen, the user
can set a global baseline pressure to all programmed tire positions, input/change the
asset ID (Asset ID must be 6-digits), and program sensors on to the transceiver.
The default baseline pressure is set to 100 PSI. The alarm level defaults are 87.5 PSI for
low pressure level 1, 75 PSI for low pressure level 2, and 125 PSI for the high pressure
alert. To set the global baseline pressure, the button is pressed and the newly desired
values are entered. Confirm the pressure levels by pressing the Confirm button and then
the Send Data to Transceiver button is pressed to transfer the new settings and save the
global baseline pressure to the transceiver.
To program a tire sensor, the desired position is pressed. The sensor ID is typed in at the
top of the screen (Sensor ID can also be input through “READ ID” to these LFA sensors).
If the baseline pressure or alert levels need to be customized, it can be done on this
screen as well. After confirming the ID and alarm levels are correct, the data can be sent
to the transceiver and saved by pressing the “SEND DATA TO TRANSCEIVER” button.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
8
A programmed sensor can be deleted by tapping on the programmed tire and then
tapping the “DELETE” button. The “SEND DATA TO TRANSCEIVER” button has to be
pressed to apply the change. Pressing the “RELOAD” button will take the tablet back to
the transceiver selection screen if programming another transceiver is required.
3.2. READ TIRE SENSOR DATA
After clicking the Read Tire Sensor Data on the home screen, the user is presented with three
different options.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
9
3.2.1. READ ONE-CLICK TRANSCEIVERS
Clicking on the Read One-Click Transceivers button will bring up a list transceivers.
Once a transceiver is selected, the tire data will be loaded.
Clicking on a tire will bring up the tire details. The user can also add information
such as a serial number, position ID, tread depth, and photos. After information is
added, simply press “CONFIRM” and then the Save button to save the data to the
tablet.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
10
3.2.2. READ INDIVIDUAL TIRE SENSOR
Users can also read individual tire sensors if they have a LFA mark on them. This is a
special type of tire sensor that features low frequency communication to allow the
tablet to communicate directly to the sensor. To read a LFA tire sensor, hold the
tablet close to the sensor (no more than 6 inches) and press the “READ INDIVIDUAL
TIRE SENSOR”. When the sensor is read, the ID, pressure, and temperature will be
displayed.
3.2.3. RECORD TIRE DATA
In addition to displaying the current pressure and temperature of a sensor, the
360SLT2 can also record tire data. After pressing the Record Tire Data button on the
Read Data Menu, two axles are shown. An asset ID (The asset ID can be any
numbers/letters) is first assigned and then the vehicle configuration can be
modified. Using the + and – buttons, the user can add or subtract axels to match
the configuration of the vehicle.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
11
Clicking on a tire will bring up the tire record input screen. If the sensors are
marked with LFA, they can be read to fill in the tire pressure and temperature.
Additionally, information such as a serial number, position ID, tread depth, and
photos can be added. Once all desired data is entered for that tire, the Confirm
button is pressed. Once all tires are recorded, the Save button is pressed and the
data will be saved to the tablet. This data can be exported or reviewed in the Saved
Files menu which is outlined in the following section.
3.3. SAVED FILES
Clicking on the Saved Files button will bring up a list with all of the assets that have been
stored on the tablet. A red tire indicates an alarm condition has been recorded. A blue
dot indicates that all tires on the asset are at correct pressures and temperatures.
Pressing the Export button will save all of the data to a file located in the Doran TPMS
Data folder of the tablet.
Clicking on the Detail button for any of the assets will bring up a Last Reported Data
screen displaying the last reported tire data.
Clicking on an individual tire will bring up a detailed graph of the Historical Data from
the last 7 Days for that specific tire.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
12
3.4. APP SETTINGS
In the App Settings, the user can change the unit of measure for temperature,
pressure, and tread depth measurements. The Check for Update button will verify that
the tablet is running the most up to date version of software. The Tablet Settings
button will navigate to Android settings such as Wi-Fi, Bluetooth, Display, and
Notification settings. Lastly, the Email button will guide a user through setting up an
email account on the tablet. This can be used to email saved data and photos off the
tablet.
3.5. YARDCHECK360 WEB PORTAL
If YardCheck360 hardware is being used, the YardCheck360 web portal can be accessed
by the tablet. Please visit http://doranmfg.com/yardcheck-360-wireless-gate-reader-
tire-pressure-monitoring-system/ for more details regarding the YardCheck360 product
line.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
13

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
14
4. FAQS AND TIPS
Why can’t I read the sensor data successfully?
The communication between the sensor and smart tablet is called low frequency
technology. The communication distance is much shorter than RF. Typical read distance
is just 6 inches. Make sure the tablet is close enough to read sensor data successfully.
Only LFA sensors can be read by the tablet, verify the sensor has the LFA marking on it.
Why doesn’t my tablet turn on?
Press and hold the power button for a few seconds until the Doran logo appears on a
white screen. If the tablet does not power on, check if the battery needs charged.
Why can’t I see the sensor ID in the data read from the transceiver?
The sensor ID is not included in the data transmission from the transceiver to the tablet.
The sensor ID is only available if the data is read directly from a LFA sensor.
Why isn’t the system date and time correct?
The system date and time will be auto synced when correct time zone is selected and
internet connection is set through WIFI. You can also manually set the date and time in
Android Tablet settings accessed through the App Setting button on the home screen.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
15
5. SPECIFICATIONS
SLT2 TPMS Tablet Specifications
Wireless
Communication
Wi-Fi (2.4G)
2.4G
Bluetooth (2.4G)
2.4G
RF (434.1MHz)
434.1MHz
LF (125kHz)
125kHz
Tablet
Information
OS
Android 7.1.2
Storage
8GB
Camera
5.0MP
Touch panel
Capacitive
Display
7" IPS
Screen resolution
1280x800
Power Adapter
100~240V
Battery
5000mAh
Power consumption
<8W
Working
Temperature
0~55 ℃"
Storage
Temperature
-20~60 ℃"
Dimensions
250Lx130Wx23H mm
Weight
0.56 kg
Connection
USB (Type C)
USB (OTG)
Micro SD card

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
16
6. CERTIFICATIONS
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This product may not be collocated or operated in conjunction with any other antenna or transmitter.
•
•
•
•
Industry Canada (IC)
CAN ICES-3 (B)/NMB-3(B)
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Cetappareilestconforme à la norme RSS d'Industrie Canada. Son fonctionnementestsujet aux deux
conditions suivantes:
(1) ledispositif ne doit pas produire de brouillagepréjudiciable, et
(2) cedispositifdoit accepter tout brouillagereçu, y compris un brouillage susceptible de provoquer un
fonctionnementindésirable.
RF exposure warning
0,17W/kg.
on!the!body,!as!described!in!this!user!guide,!is!
rted!to!the!IC!when!
The!highest!SAR!value!for!the!EUT!as!repo
Absorption!Rate,!or!SAR.!The!SAR!limit!set!by!the!IC!is!1.6W/kg.
The! exposure! standard! for! wireless! transmitter! employs! a! unit! of! measurement! known! as! the! Specific!

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
17
THE ORIGINAL PURCHASE PRICE OF THE PRODUCT IN QUESTION.
XCESS OF
WHATSOEVER, SHALL DORAN MFG. LLC HAVE ANY LIABILITY TO ANY PARTY IN E
FOR NO CAUSE
EVENT, ANDSPECIAL, OR CONSEQUENTIAL DAMAGES. IN NO
LY EXCLUDES ALL INCIDENTAL,
PART OF DORAN MFG. LLC. THIS WARRANTY SPECIFICAL
THER OBLIGATIONS OR LIABILITIES ON THE
FOR A PARTICULAR PURPOSE, AND ALL OF ALL O
IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS
OR IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, THE
ED
EXPRESS
IS EXPRESSLY IN LIEU OF ALL OTHER
MITED WARRANTY
THIS LILIMITATIONS:
is used. accidents which the DORAN 360SLT2
to abrasive or corrosive materials or pollutants, or attributable to collision or other
attributable to fire or other casualty, including, without limitation, acts of God or exposure
efect
from misuse, abuse, unauthorized repair or alteration, circumstances; or damage or d
EXCLUSIONS FROM COVERAGE: This Limited Warranty does not apply to any claims arising
No other remedy shall be available.
therefore.
f the purchase price
or the refund o
repair or replacement of such defective product,
LLC to be defective within such period shall, at the sole option of DORAN MFG. LLC, be the
any subsequent users. The exclusive remedy for any product determined by DORAN MFG.
ed, transferred or conveyed to user and cannot be assign
-
to claims made by the original end
user. This Limited Warranty applies only
-
following the date of purchase by the original end
year period
-
use during the oneworkmanship that result in a product failure under normal
in material or
Limited Warranty, the DORAN 360SLT2is warranted against defects
ONE YEAR LIMITED WARRANTY: Subject to the limitations and exclusions set forth in this
LIMITED WARRANTY7.
and LVD.Health
ice passed both CE and RCM test on EMC, RF,
This dev
CE and RCM
de!l'utilisateur,!est!de!
lorsqu'elle!est!portée!sur!le!corps,!comme!décrit!dans!ce!guide!La!valeur!SAR!la!plus!élevée!pour!l'EUT!signalée!à!l'IC
ue,!ou!SAR.!La!limite!SAR!fixée!par!l'IC!est!de!1,6!W!/!kg.d'absorption!spécifiq
La! norme! d'exposition! pour! l'émetteur! sans! fil! utilise! une! unité! de! mesure! connue! sous! le! nom! de! taux!
0,17W/kg.

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
EXCLUSIVE AGREEMENT: This Limited Warranty is a complete and exclusive statement of
the warranties which apply to the DORAN 360SLT. There are no expressed or implied
warranties beyond those expressly stated above. No employee, agent, dealer or other
Person is authorized to give any warranties on behalf of DORAN MFG. LLC, except as
authorized in writing.
STATUTE OF LIMITATIONS. In purchasing the DORAN 360SLT2you agree that any action for
breach of contract or warranty must be commenced within one year after the cause of
action has accrued.
PROCEDURE: Products determined to be defective within the terms of this Limited
Warranty should be returned to Doran Mfg. LLC, transportation prepaid. Call DORAN MFG.
LLC for return authorization. No unauthorized returns shall be accepted. Sender is
responsible for all costs incurred in the removal or reinstallation and shipping of the
returned product. A copy of the sales slip from the point of purchase must accompany the
returned product.
APPLICABLE LAW: The internal laws of the State of Ohio, U.S.A. shall govern this Limited
Warranty, and the exclusive venue for any dispute in connection with the purchase or use
of the product shall be the state and federal courts of general jurisdiction located in
Hamilton County, Ohio U.S.A.
SPECIAL NOTICE TO CONSUMERS: If you have purchased this product for person, family or
household use:
(1) Some states do not permit disclaimers or term limitations of implied warranties so that
the disclaimers and limitations in this Limited Warranty may not apply to you;
(2) Some states do not permit the exclusion or l imitation of incidental or consequential
damages so that the exclusions and limitations in this Limited Warranty may not apply to
you; and
(3) This Limited Warranty gives you specific legal rights and you may have other rights that
vary from state to state.
Doran keeps rights to update this manual without notifications. Please always go to Doran
website (www.doranmfg.com) to check for the latest version or contact your sales agent for
instruction.
18

360SLT2 SMARTLINKTM TPMS Tablet User Manual (v1)
Doran Mfg. LLC – 2851 Massachusetts Ave – Cincinnati, OH 45225 – 866-816-7233 – Doranmfg.com
DORAN MANUFACTURING CO. LLC
2851 Massachusetts Avenue
Cincinnati, OH 45225
Tel: [phone] Fax: [phone]
Website: www.Doranmfg.com
