Dorel Asia DA7618 User manual

Model No:
UPC CODE:
NOTE:
Lot number:
(LOCATED ON CARTON)
_____________________________________
0-65857-17453-3
0-65857-17418-2
MULTIFUNCTION CART
DA7618B (BLACK)
DA7618G (GRAY)
DOREL ASIA
DA7618 (WHITE)
DA7618-DC (WHITE)
0-65857-17425-0
KEEP FOR FUTURE REFERENCE.
Date of purchase:
_______ / _______ / _______
0-65857-17454-0
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
THIS INSTRUCTION BOOKLET
DO NOT RETURN PRODUCT TO THE RETAILER.
If a part is missing or damaged, contact our customer
service department. We will replace the part FREE of
charge.
Tel #: [phone]
E-Mail: [email protected]m
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Watch our instructional video
for more information on how to
care for the natural wood top.
DorelLiving.com/Mainstays
MultifunctionCart

*
*DO NOT use the unit if it is damaged or broken.
*DO NOT use power tools.
*Caution: Adult assembly required.
*Assembly will require 2 people.
*Estimated assembly time: 30 minutes.
*Phillips head screwdriver (not provided) is required for assembly.
*
DO NOT use the cart as a seating surface.
*
DO NOT place any type of electrical appliance on the unit.
*
DO NOT place any pots or pans containing hot liquids on the unit.
*
DO NOT place any item on the top panel weighing more than 30 lbs.
*
DO NOT place any item on the cart with dimensions exceeding those of the top panel.
*
*To prevent damage to the caster wheels, gently lift the cart when sliding it over raised edges on the floor.
1-YEAR LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any
such defect. This warranty covers 1 year from the date of original purchase from authorized retailers. This
warranty is valid only upon presentation of proof of purchase. This is solely limited to the repair or replacement
of defective furniture components and no assembly labor is included. This warranty does not apply to any
product which has been improperly assembled, subjected to misuse or abuse or which has been altered or
repaired in any way. The warranty does not cover wearing, tearing, fading or splitting of the fabric (where
applicable). This warranty gives you specific legal rights and you may also have other rights which vary from
State to State or Province to Province.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
Dust regularly with a soft, lint-free cloth to prevent soil build-up. Do not use any abrasives that may damage
finish. Excessive exposure to sunlight and extreme changes in temperature and moisture can damage wood
furniture.
To protect the natural wood top from staining, generously apply a food grade mineral oil and work it into the
wood grain using a soft cloth or paper towel. Wait 30 minutes before wiping off excess oil with a clean cloth.
We recommend applying the mineral oil every 2 -3 months, or more frequently if the surface is used extensively
for prepping food. Visit www.DorelLiving.com/MainstaysMultifunctionCart to view an instructional video on
how to care for the wood top.
Check all bolts, screws and fasteners periodically and tighten them if necessary.
CARE, CLEANING AND MAINTENANCE
WARNINGS
Before moving the cart remove all products off the top panel and make sure the caster wheels are in the
unlocked position. After placing the cart in the desired location, lock the caster wheels to prevent movement.
NOTES
Assemble on a soft surface to prevent damage to the product finish.
CUSTOMER SERVICE
You can also contact us by writing to the address listed below. Please include the product model number,
color and a detailed description of your enquiry.
Dorel Living - Customer Service Department
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada, H1G 3L1

1 2 3
4 5 6
7 8
910
11 12
∅1/4" x 64mm
∅15mm x 12mm
CAM LOCK
6 PCS
BOLT
10 PCS
ALLEN KEY
1 PC
HANDLE
1 PC
4mm
141mm x 15mm
MULTIFUNCTION CART
HARDWARE LIST
WRENCH
1 PC
DRAWER STOPPER
1 PC
90mm x 25mmx 2mm
57mm x 16mm
∅6mm x 25mm
FLAT HEAD WOOD SCREW
14 PCS
CAM BOLT
6 PCS
WOOD DOWEL
6 PCS
∅1/4" x 36mm
∅4mm x 25mm
30mm x 14mm
SHELF SUPPORT
4 PCS
∅5/32" x 20mm
∅6mm x 3mm x 12mm
ROUND HEAD BOLT
2 PCS
ROUND WOOD SCREW
5 PCS

A B C
D E F
G
RIGHT DRAWER SIDE
1 PC
BOTTOM RAIL
2 PCS
BOTTOM SHELF
1 PC
FRONT RAIL
1 PC
MULTIFUNCTION CART
PARTS LIST
DRAWER FRONT
1 PC
DRAWER BACK
1 PC
LEFT DRAWER SIDE
1 PC

H I J
K L M
N O
TOP PANEL
1 PC
LOCKING CASTERS
2 PCS
CASTERS
2 PCS
MULTIFUNCTION CART
PARTS LIST
DRAWER BOTTOM
1 PC
ADJUSTABLE SHELF
1 PC
BACK PANEL
1 PC
RIGHT SIDE PANEL
1 PC
LEFT SIDE PANEL
1 PC

MULTIFUNCTION CART

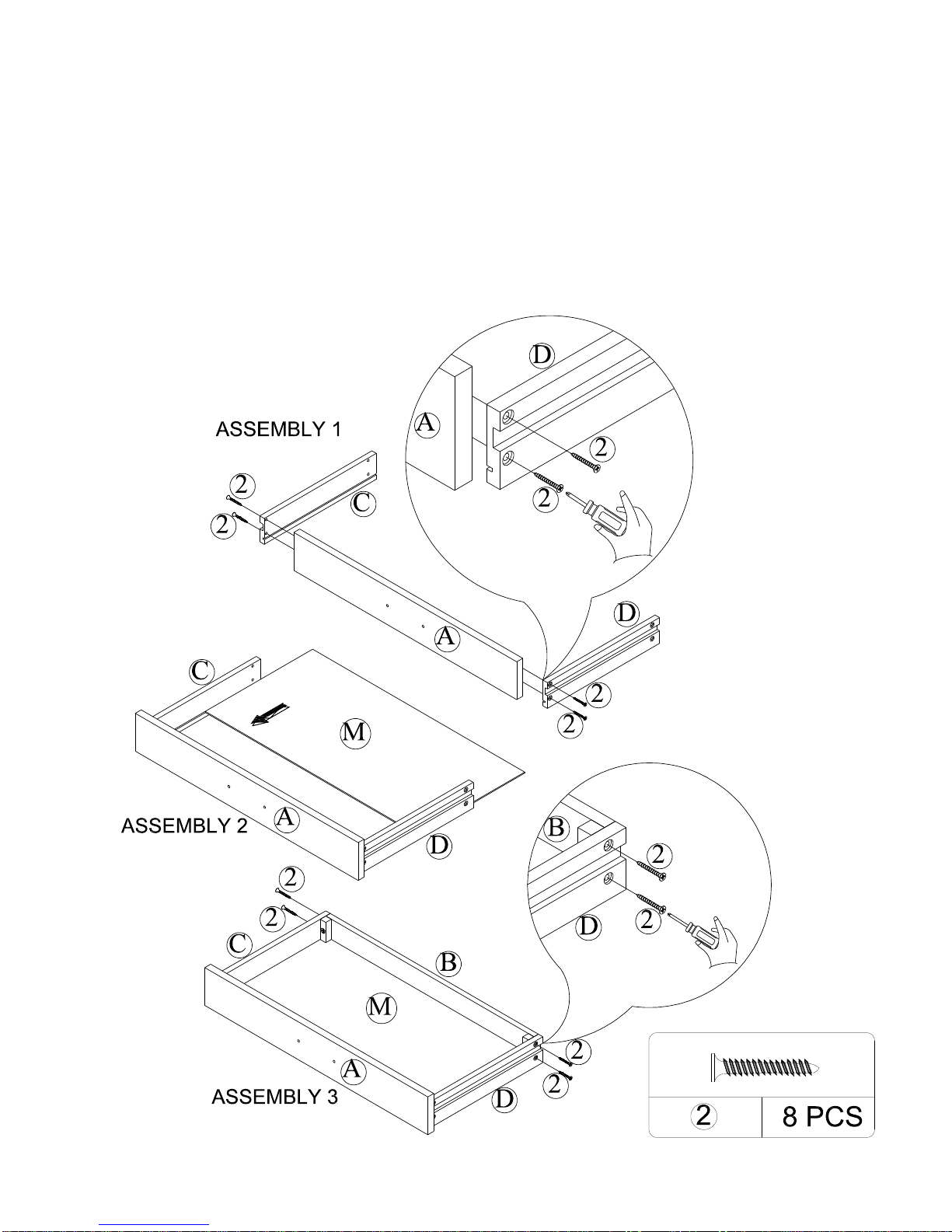

Slide drawer bottom panel (M) into the grooves of the drawer sides (C & D).
Attach right and left drawer side (C & D) to drawer front (A) with flat head wood
STEP 1:
Use a Phillips head screwdriver (not included) to tighten the screws and bolts.
Attach drawer back (B) to right and left drawer sides (C & D) with flat head wood

STEP 2:
MULTIFUNCTION CART
Use a Phillips head screwdriver (not included) to tighten the screws and bolts.
Attach handle (11) to drawer front (A) with round head bolts (5).

MULTIFUNCTION CART
STEP 3:
Insert cam bolts (1) to top panel (L) with a Philips head screwdriver (not included).

MULTIFUNCTION CART
STEP 4:
Insert wood dowels (3) into bottom shelf (F). Attach bottom rail (E) to bottom shelf
(F) with flat head wood screw (2) using a Phillips head screwdriver (not included).

MULTIFUNCTION CART
STEP 5:
Attach drawer stopper (9) to front rail (G) with round wood screws (4) using a Phillips
head screwdriver (not included).

MULTIFUNCTION CART
STEP 6:
Insert wood dowels (3) into left and right side panels (I & J) as shown.
Attach side panels (I & J) to rails (E & G) and back panel (H) with bolts (7) and Allen
key (12) as shown below.

MULTIFUNCTION CART
STEP 7:
Insert shelf support (6) into the desired location on left and right side panels (I & J).

MULTIFUNCTION CART
On a clean surface, place the cart on its side as shown below. Place the adjustable
shelf (K) on the shelf supports (6) as shown below. Secure the adjustable shelf (K) to
the shelf suppports (6) using round wood screws (4) and a Phillips head screwdriver
STEP 8:

MULTIFUNCTION CART

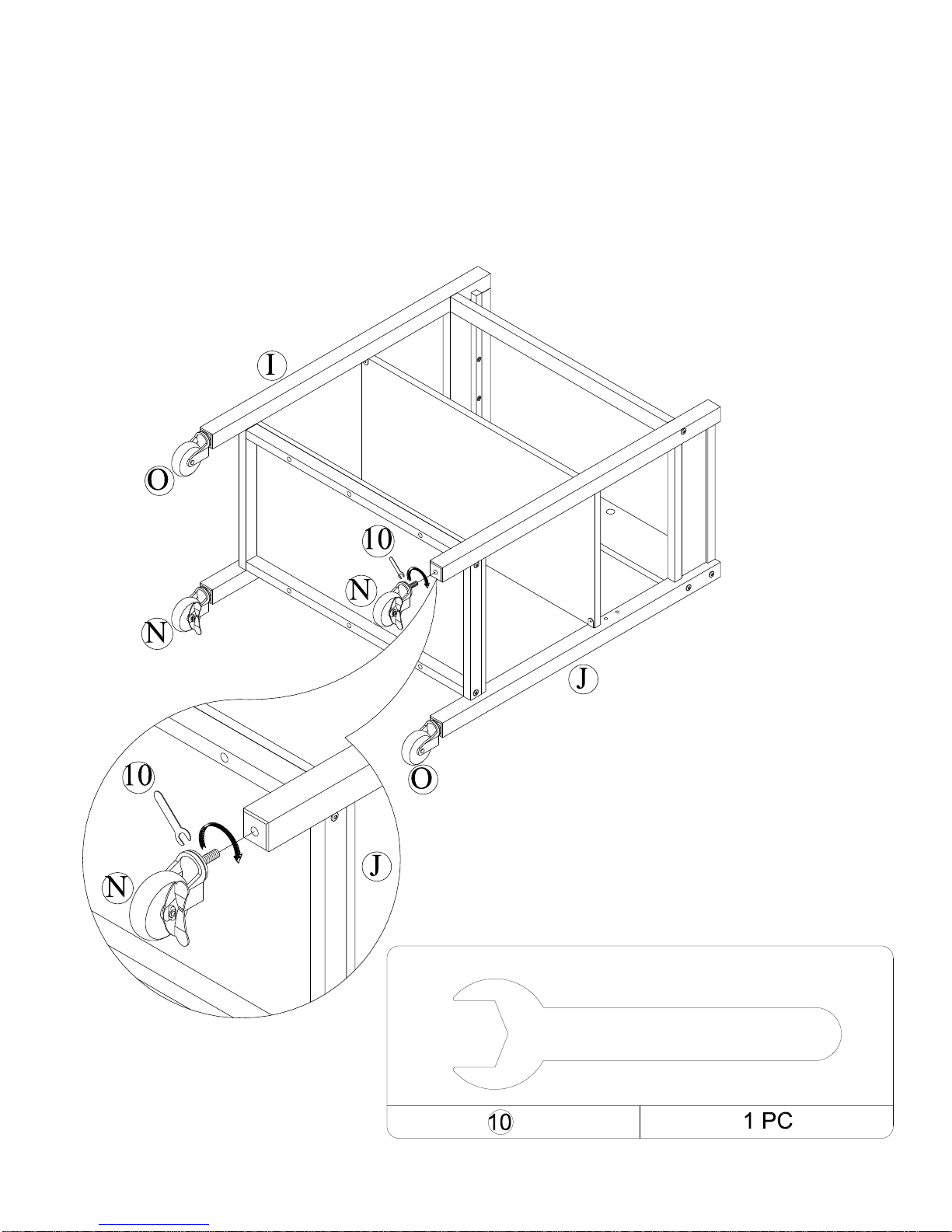

STEP 9:
Insert the locking casters & casters (N & O) into the bottom of right and left side panel (I
& J) as shown and tighten with wrench (10).

MULTIFUNCTION CART
STEP 10:
Insert cam lock (8) into side panels (I & J) and back panel (H) as shown.
Fasten top panel (L) to the assembled unit by rotating the cam lock 1/2 turn using a
Phillips head screwdriver (not included).
Read the CARE, CLEANING AND MAINTENANCE section located on
page 1 for guidance on how to properly care for the wood top.

MULTIFUNCTION CART

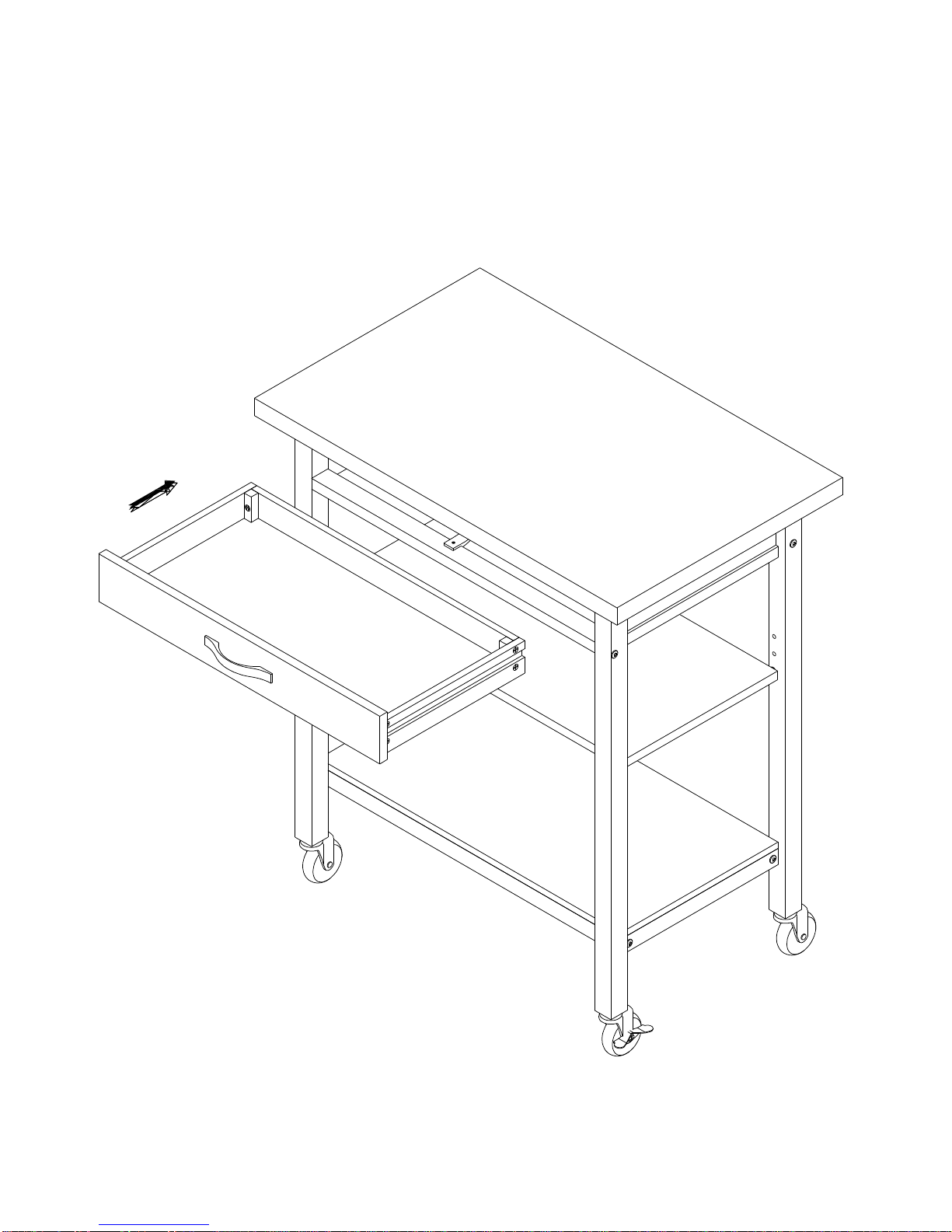

STEP 11:
Insert the drawer into the unit as shown.

MULTIFUNCTION CART

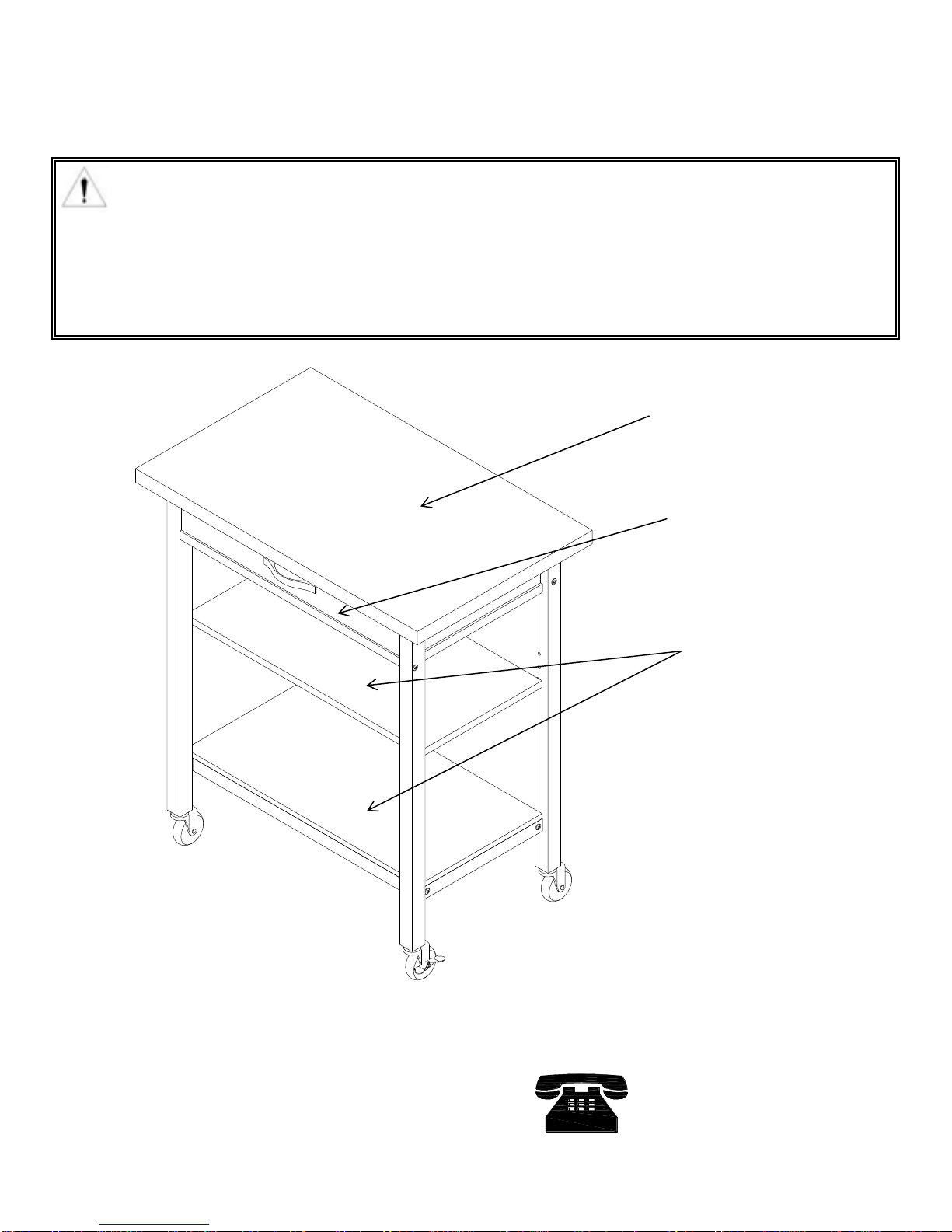

CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum
weights indicated may result in instability or cause possible
injury.
DO NOT RETURN PRODUCT TO THE RETAILER
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Top Panel
maximum weight =
30 lbs
Drawer maximum
weight = 10 lbs
Shelf maximum
weight = 15 lbs
each
