Dorel Asia DA7674 User manual

Model No:
UPC CODE:
NOTE:
Lot number:
(TAKEN FROM CARTON)
_____________________________________
0-65857-17772-5
MULTIFUNCTION CART
DOREL ASIA
DA7674 (WHITE)
KEEP FOR FUTURE REFERENCE.
Date of purchase:
_______ / _______ / _______
CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND
THIS INSTRUCTION BOOKLET
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

* Ensure that all parts and components are located before beginning assembly.
* Assemble on a soft surface to prevent damage to the product finish.
* DO NOT use the unit if it is damaged or broken.
* DO NOT use power tools.
* Caution: Adult assembly required.
* Assembly will require 2 people.
* Estimated assembly time: 30 minutes.
* Phillips head screwdriver (not provided) is required for assembly.
* DO NOT use the cart as a seating surface.
* DO NOT place any type of electrical appliance on the unit.
* DO NOT place any pots or pans containing hot liquids on the unit.
* DO NOT place any item on the top panel weighing more than 10 lbs.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact our customer service representative first!
CALL 1-800-295-1980
You can also order parts by writing to the address listed below. Please include the product model number, color and a
detailed description of the part.
WARNING: Should this product become damaged, and/or
components are broken or missing, DO NOT USE.
E-MAIL: [email protected]m
Customer Service Department No. 413
12345 Albert-Hudon Boulevard, Suite 100
* After placing the cart in the desired location, lock the caster wheels to prevent movement.
CARE AND CLEANING
Dust regularly with a soft, lint-free cloth to prevent soil build-up. A damp cloth may be used occasionally to clean
surface. Dry immediately. Do not use any abrasives that may damage finish. Excessive exposure to sunlight and
extreme changes in temperature and moisture can damage wood furniture.
LIMITED WARRANTY
Dorel warrants its product to be free from defects in material and workmanship and agrees to remedy any such
defect. This warranty covers 1 year from the date of original purchase. This warranty is valid only upon presentation
of proof of purchase. This is solely limited to the repair or replacement of defective furniture components and no
assembly labor is included. This warranty does not apply to any product which has been improperly assembled,
subjected to misuse or abuse or which has been altered or repaired in any way. This warranty gives you specific
legal rights and you may also have other rights which vary from State to State.
NOTE
* DO NOT place any item on the cart with dimensions exceeding those of the top panel.
Montreal, Quebec
Canada H1G 3L1
* Before moving the cart remove all products off the top panel and make sure the caster wheels are in the unlocked
position.
WARNING
MAINTENANCE
Check bolts/screws periodically and tighten them if necessary.
* To prevent damage to the caster wheels, gently lift the cart when sliding it over raised edges on the floor.

1 2 3
4 5 6
7 8
910
11
HANDLE
1 PC
141mm x 15mm
∅1/4" x 64mm
57mm x 16mm
DRAWER STOPPER
1 PC
BOLT
10 PCS
ALLEN KEY
1 PC
WRENCH
1 PC
4mm
90mm x 25mmx 2mm
∅1/4" x 36mm
∅4mm x 25mm
∅6mm x 25mm
FLAT HEAD WOOD SCREW
12 PCS
CAM BOLT
6 PCS
WOOD DOWEL
6 PCS
∅15mm x 12mm
CAM LOCK
6 PCS
∅5/32" x 20mm
∅6mm x 3mm x 12mm
ROUND HEAD BOLT
2 PCS
ROUND WOOD SCREW
1 PC
MULTIFUNCTION CART
DA7674
HARDWARE LIST

A B C
D E F
RIGHT DRAWER SIDE
1 PC
BOTTOM RAIL
2 PCS
BOTTOM SHELF
1 PC
MULTIFUNCTION CART
DA7674
PARTS LIST
DRAWER FRONT
1 PC
DRAWER BACK
1 PC
LEFT DRAWER SIDE
1 PC

G H I
J K
L
M N O
FRONT RAIL
1 PC
LEFT SIDE PANEL
1 PC
BACK PANEL
1 PC
TOP PANEL
1 PC
DRAWER BOTTOM
1 PC
LOCKING CASTERS
2 PCS
CASTERS
2 PCS
MULTIFUNCTION CART
DA7674
PARTS LIST
WIRE BASKET
1 SET
RIGHT SIDE PANEL
1 PC

MULTIFUNCTION CART
DA7674
Slide drawer bottom (M) into the grooves of the drawer sides (C & D).
Attach right and left drawer side (C & D) to drawer front (A) with flat head wood screws (2).
STEP 1:
Use a Phillips head screwdriver (not included) to tighten the screws.
Attach drawer back (B) to right and left drawer sides (C & D) with flat head wood screws (2).

STEP 2:
MULTIFUNCTION CART
DA7674
Attach handle (11) to drawer front (A) with round head bolts (5) and a Phillips head
screwdriver (not included).

MULTIFUNCTION CART
DA7674

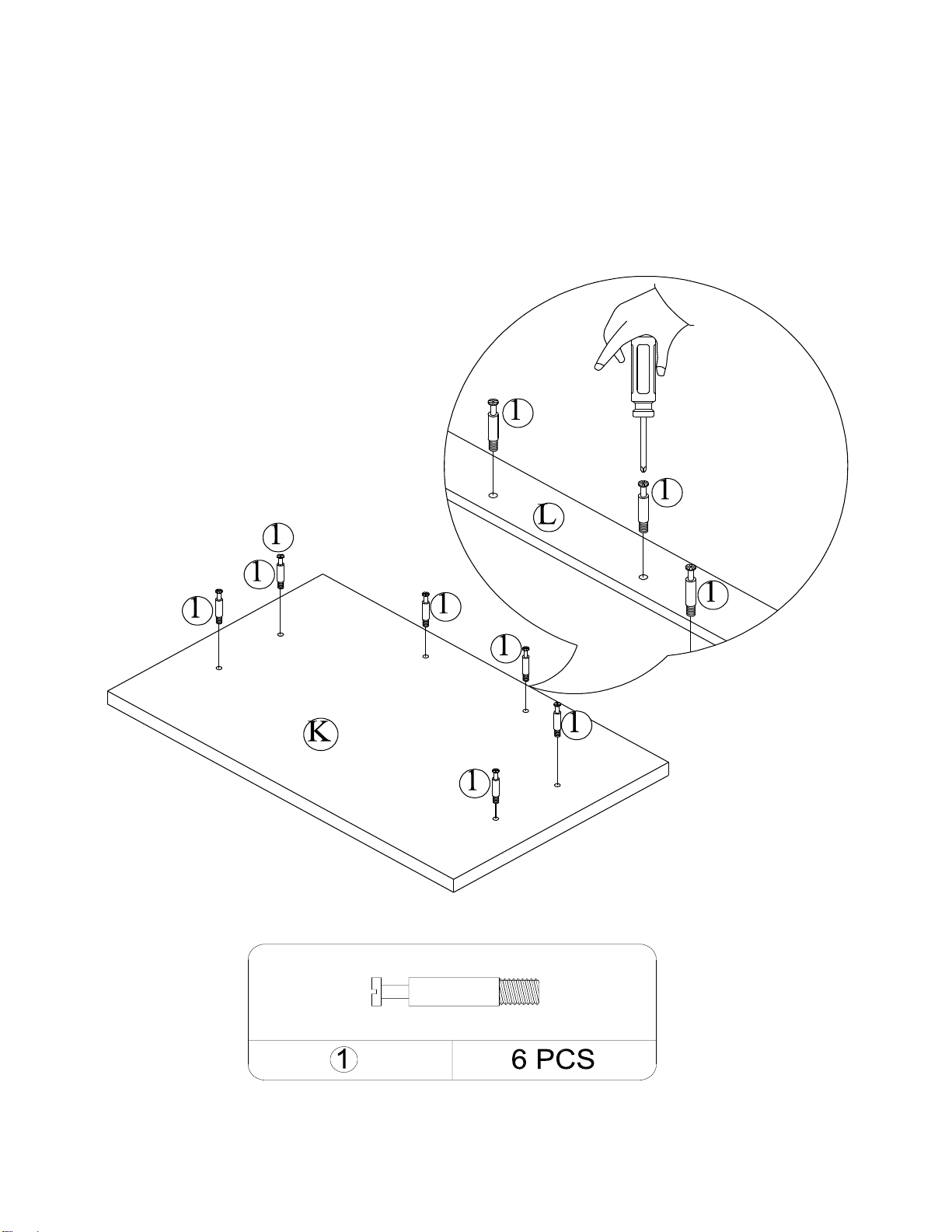

STEP 3:
Insert cam bolts (1) to top panel (K) with a Philips head screwdriver (not included).

MULTIFUNCTION CART
DA7674
STEP 4:
Insert wood dowels (3) into bottom shelf (F). Attach bottom rails (E) to bottom shelf (F) with
flat head wood screw (2) using a Phillips head screwdriver (not included).

MULTIFUNCTION CART
DA7674

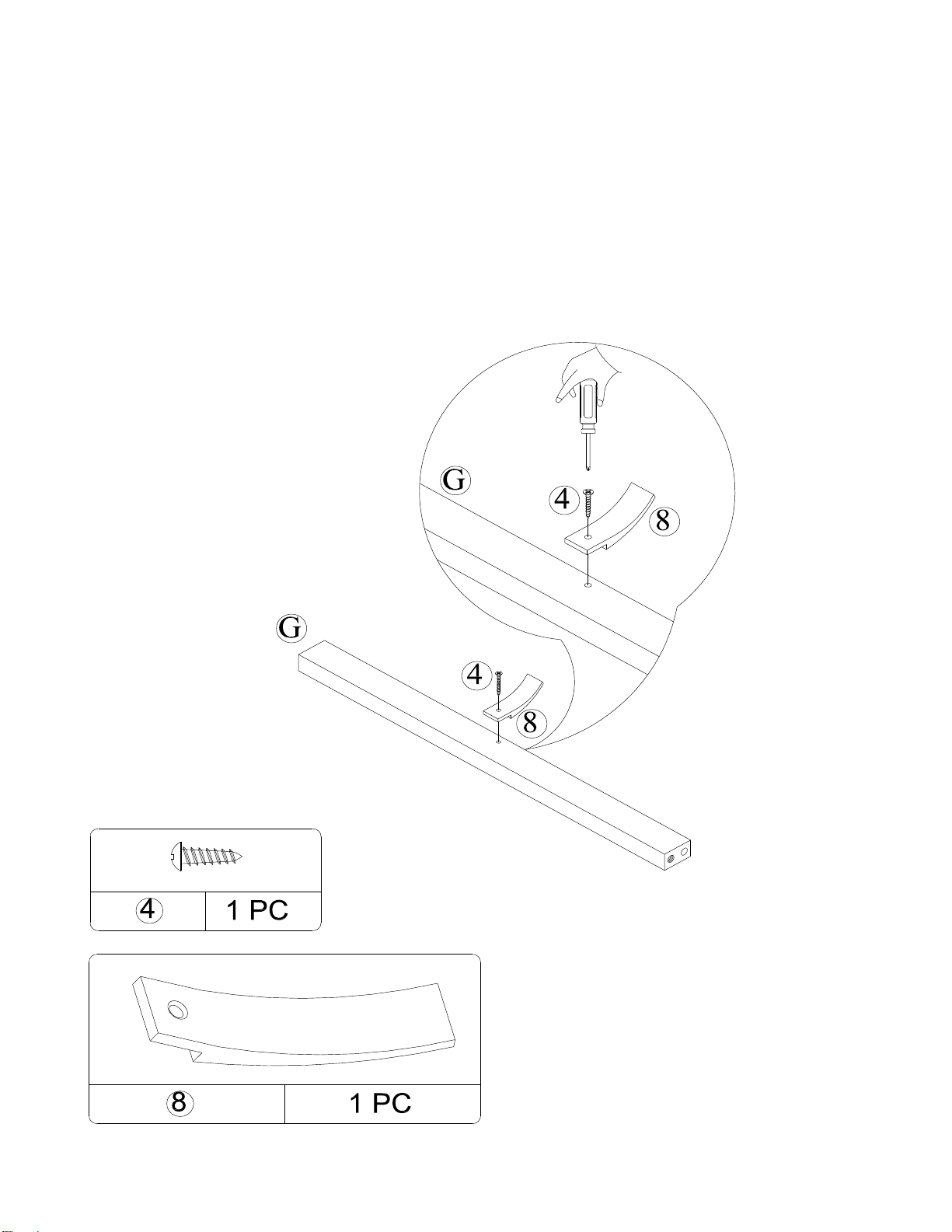

STEP 5:
Attach drawer stopper (8) to front rail (G) with round wood screws (4) using a Phillips head
screwdriver (not included).

MULTIFUNCTION CART
DA7674
STEP 6:
Insert wood dowels (3) into left and right side panels (I & J) as shown.
Attach side panels (I & J) to rails (E & G) and back panel (H) with bolts (7) and Allen key (10)
as shown below.

MULTIFUNCTION CART
DA7674

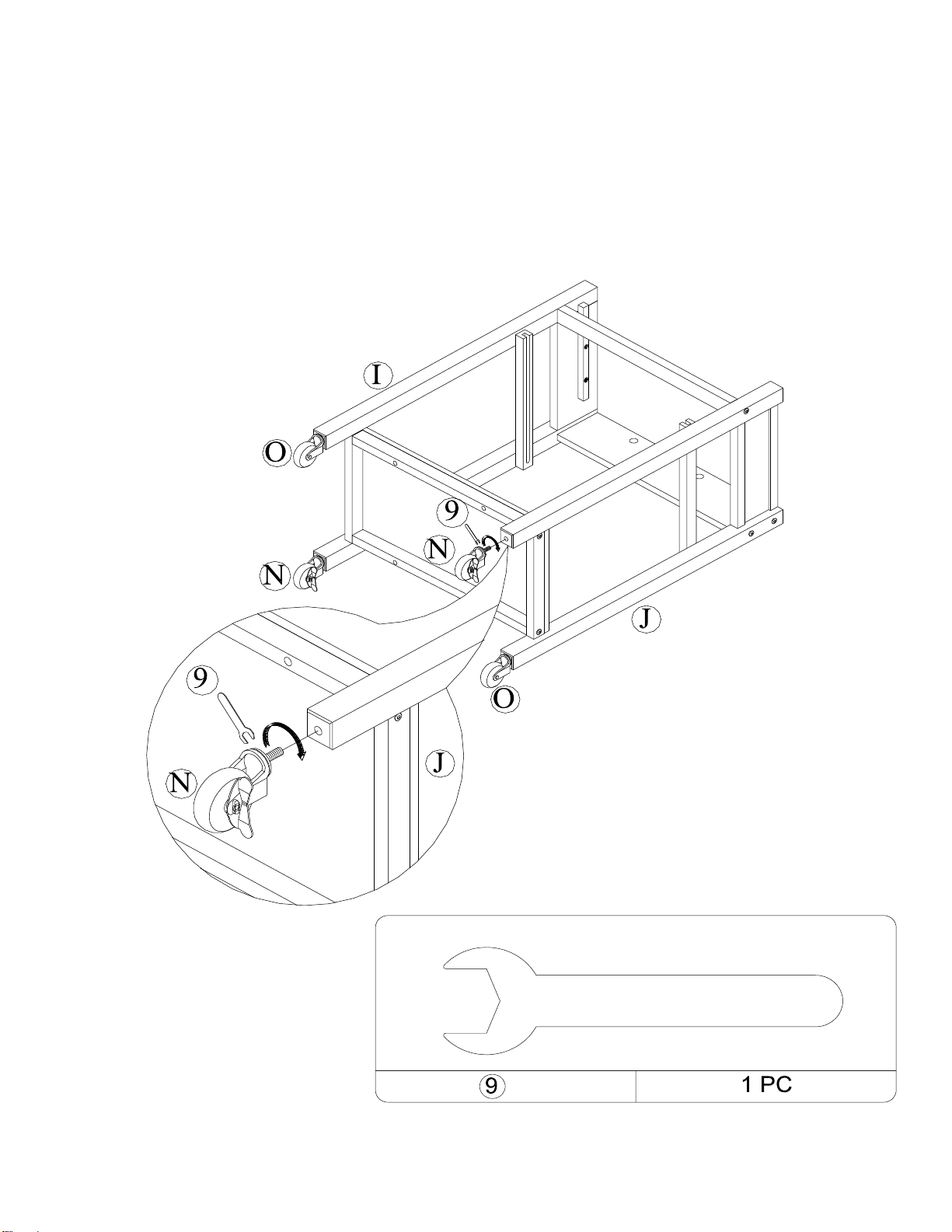

STEP 7:
Insert the locking casters & casters (N & O) into the bottom of right and left side panel (I & J)
as shown and tighten with wrench (9).

MULTIFUNCTION CART
DA7674

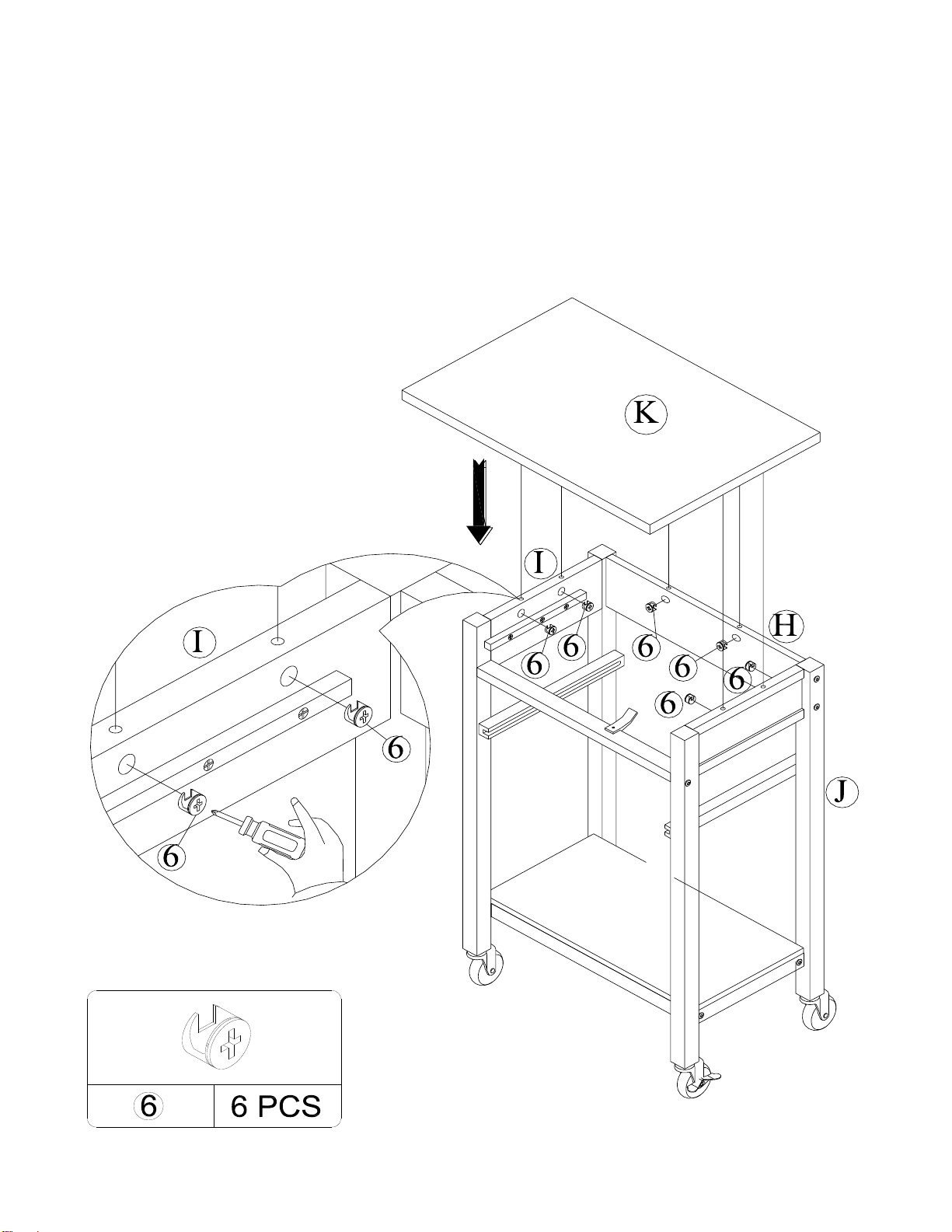

STEP 8:
Insert cam lock (6) into side panels (I & J) and back panel (H) as shown.
Fasten top panel (K) to the assembled unit by rotating the cam lock 1/2 turn using a Phillips
head screwdriver (not included).

MULTIFUNCTION CART
DA7674
STEP 9:
Insert the drawer into the unit as shown.

MULTIFUNCTION CART
DA7674
STEP 10: Basket assembly
4

MULTIFUNCTION CART
DA7674
STEP 11:
Insert the wire basket into the unit as shown.

MULTIFUNCTION CART
DA7674
CAUTION: This unit is intended for use only with the
products and/or maximum weights indicated. Use with other
products and/or products heavier than the maximum weights
indicated may result in instability or cause possible injury.
DO NOT RETURN PRODUCT TO THE STORE.
If a part is missing or damaged, contact our customer service
department. We will replace the part FREE of charge.
Tel #: [phone]
E-Mail: [email protected]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]
Top Panel
maximum weight =
10 lbs
Drawer maximum
weight = 5 lbs
Shelf maximum
weight = 60 lbs
each
Metal basket weight
= 5 lbs

MODEL #: DA7674
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE
PLEASE CONTACT CUSTOMER SERVICE REPRESENTATIVES AT THE FOLLOWING
NUMBERS SHOULD THERE BE ANY MISSING OR DEFECTIVE PART(S).
Customer Service Phone Number 1-800-295-1980
Customer Service Fax Number 514-353-7819
Request Date:
Name:
Shipping Address:
Street & Number:
City & State:
Zip Code:
Day Time Phone Number:
(including area code)
Date & Place of Purchase:
Part(s) description and quantity (Please be sure to list model number or SKN number):
Customer Service
Customer Service Representative Mailing Address:
Customer Service Department No. 413, 12345 Albert-Hudon Boulevard, Suite 100, Montreal, QC, Canada, H1G 3L1
Email: [email protected]

Modelo No:
CODIGO UPC:
NOTA:
ESTE MANUEL DE INSTRUCCIONES
CONTIENE INFORMACIÓN DE
SEGURIDAD IMPORTANTE.
POR FAVOR LÉALO Y CONSÉRVELO
PARA REFERENCIA FUTURA.
Numéro de lote:
(TOMADO DEL CARTON)
_____________________________________
DOREL ASIA
CARRITO MULTIFUNCIÓN
DA7674 (BLANCO)
0-65857-17772-5
Fecha de compra:
_______ / _______ / _______
NO DEVUELVA EL PRODUCTO A LA TIENDA.
Si falta una pieza o está dañada, contacte nuestro departamento
de servicio a la clientela. Reemplazaremos la pieza SIN cargo.
Tel #: [phone]
Correo electrónico: [e-mail]
Fax #: [phone]
NEED HELP!
CALL US FOR ASSISTANCE
1-800-295-1980
DO NOT RETURN PRODUCT TO STORE
E-MAIL:[e-mail]

* Antes de comenzar a armarla, asegúrese de identificar todas las piezas y componentes
* Ármela sobre una superficie suave para evitar dañar el pulido del producto.
* No utilice la unidad si está dañada o rota.
* PRECAUCION: Debe ser armada por un adulto.
* Tiempo estimado para armarla: 30 minutos.
* Se necesita un destornillador en cruz para armarla (no incluido).
* NO use la carrito de cocina como asiento.
SERVICIO AL CLIENTE
Si faltan piezas o si tiene alguna pregunta sobre este producto, ¡comuníquese con nuestro representante de servicio!
LLAME AL 1-800-295-1980
También puede pedir piezas escribiendo a la siguiente dirección. Por favor incluya el número de modelo, color y
una descripción detallada de la pieza.
* NO coloque ninguna cacerola o sartén con líquidos calientes sobre la unidad
12345 Albert-Hudon Boulevard, Suite 100
Montreal, Quebec
Canada H1G 3L1
CORREO ELECTRONICO: [email protected]
NOTA
* NO coloque ningún artículo que pese más de 10 libras sobre el panel superior.
MANTENIMIENTO
Verifique los pernos y tornillos periódicamente y ajústelos si es necesario.
* NO coloque ningún artículo cuyas dimensiones excedan las del panel superior sobre la carrito de cocina.
* Antes de desplazar la carrito de cocina, retire todos los productos que estén sobre el panel superior y
asegúrese de que las rueditas no estén aseguradas.
Departamento de Servicio al Cliente No. 413
* Se necesitan dos personas para armarla.
ADVERTENCIA
* NO coloque ningún tipo de electrodoméstico sobre la unidad.
* No utilice herramientas eléctricas
* Para evitar dañar las rueditas, levante levemente el carrito de cocina cuando lo deslice sobre bordes
salientes del piso.
* Luego de colocar la mesa auxiliar de cocina en el lugar deseado, asegure las rueditas para evitar que se
mueva.
GARANTÍA LIMITADA
Dorel garantiza que el producto está libre de defectos de material y mano de obra y se compromete a
remediar cualquier defecto de este tipo. Esta garantía cubre 1 año a partir de la fecha de compra original.
Esta garantía es válida solamente con presentación de una prueba de compra. Se limita a la reparación o
reemplazo de componentes defectuosos del mueble y no incluye ningún trabajo de armado. Esta garantía
no se aplica a ningún producto que haya sido mal armado, sometido a mal uso o abuso, o que haya sido
alterado o reparado de cualquier manera. Esta garantía le da las derechas legales específicas y usted
puede también tener otras derechas que varíen de estado a estado.
Quítele el polvo regularmente con un paño limpio y seco para evitar que haya acumulación. De vez en
cuando se puede usar un paño húmedo para limpiar la superficie. Séquelo inmediatamente. No utilice
productos abrasivos que puedan dañar el lustre. La exposición excesiva a la luz solar y a cambios
extremos de temperatura y humedad puede dañar la madera del mueble.
ADVERTENCIA: Si este producto está dañado y/o ciertas piezas
faltan o están rotas, NO LO USE.
CUIDADO Y LIMPIEZA
