Dorel Home Products 4447929CL User manual

DO NOT RETURN TO THE STORE !
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
4447929CL(Green) 4450029CL(Black)
4453329CL(Ivory)
B344447929CL00
Date of Purchase

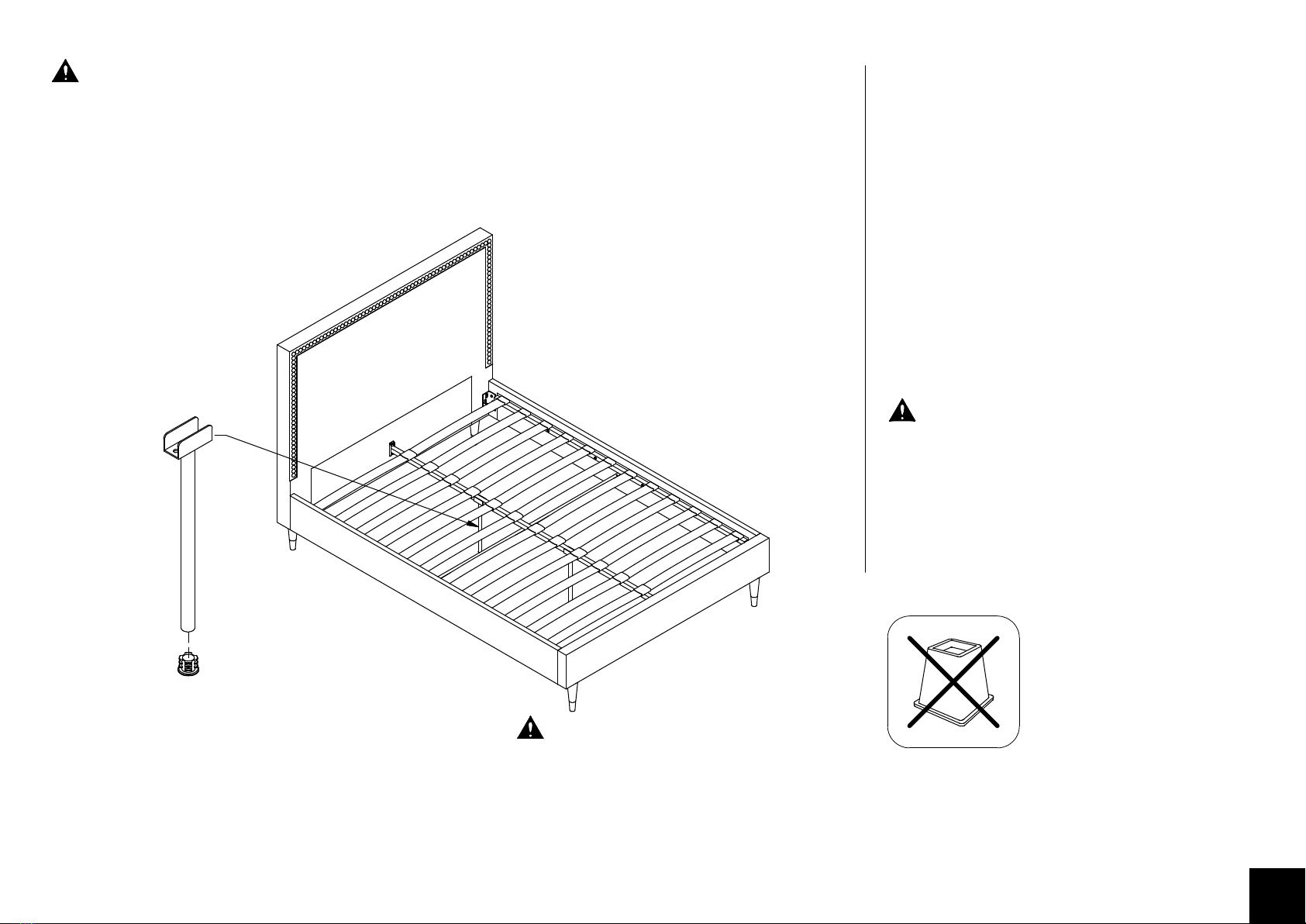

Upholstered Bed
KT. - 2020/6/8
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Lot Number
Thank you for purchasing from DHP!
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
© 2014 Dorel Home Products All Rights Reserved
Full
Weight Limit: Bed: 450 Lb / 204 Kg

2
1-800-267-1739
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec H1G 3L1
[e-mail]
● Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
● Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
● Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
● This product may contain small components. Please ensure that they are kept
away from small children.
● This product is designed for home use and is not intended for commercial use.
For help with assembly, identifying parts, product information or to order parts,
please contact us:
Limited 1 year Warranty
DHP warrants this product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers one year from the
date of original purchase from authorized retailers. This is solely limited to the
repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in
any way.The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). Liability for consequential damages is excluded to the
extent exclusion is permitted by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state or province to
province.
To obtain warranty service, purchaser must present original bill of sale.
Components repaired or replaced are warranted through the remainder of the
original warranty period only. The defective components will be repaired or
replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
Contact Us!
Read Before Beginning Assembly
Monday to Friday
Saturday
Sunday
9 am to 9 pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7 pm (Eastern Time)
1.5 hour
Do NOT use
powertools
This product is shipped in
2 cartons
Box 1 of 2 Box 2 of 2
The hardware pack has been placed inside
elther carton #1 or carton #2
Check both cartons to locate the hardware pack.

3

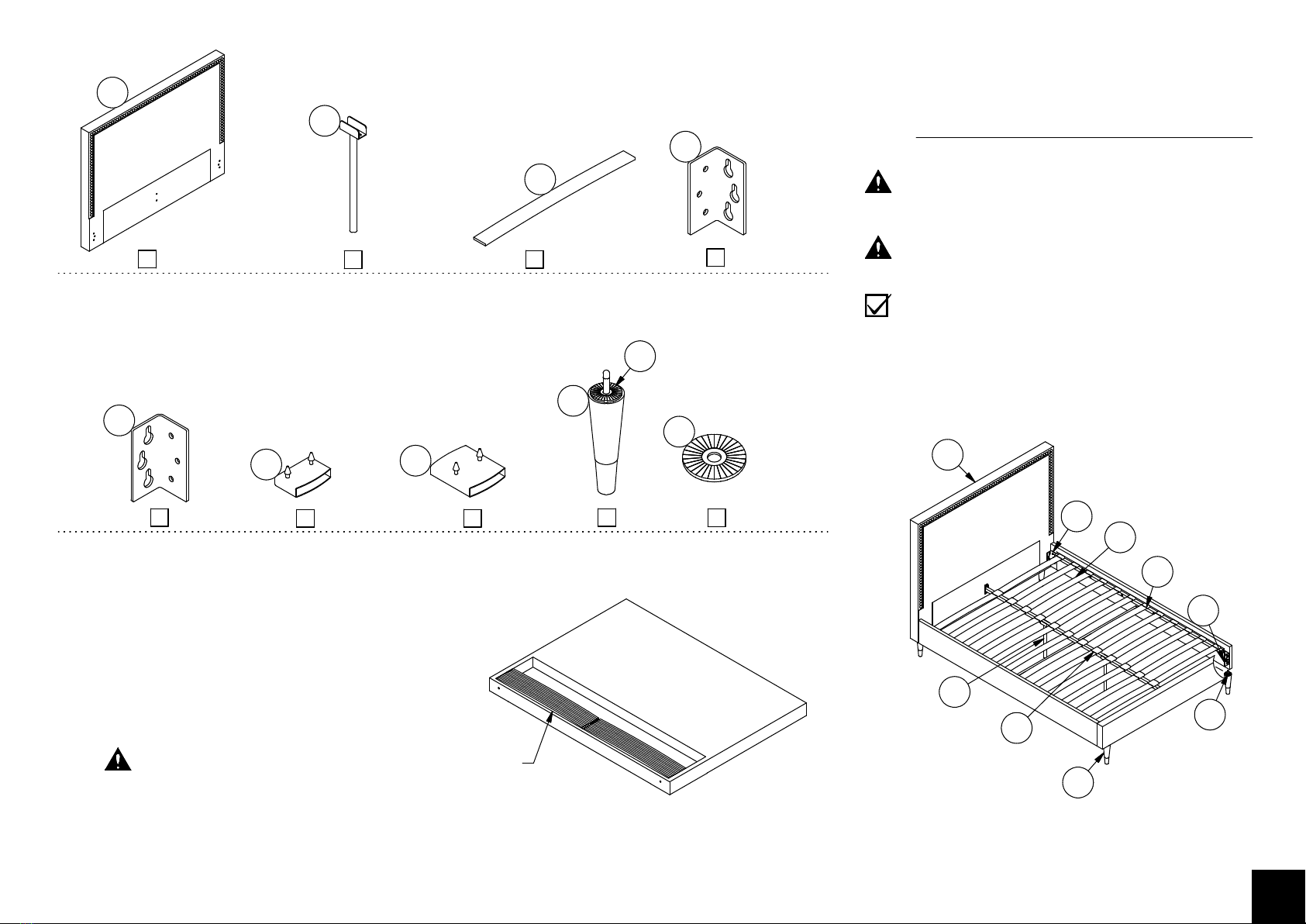

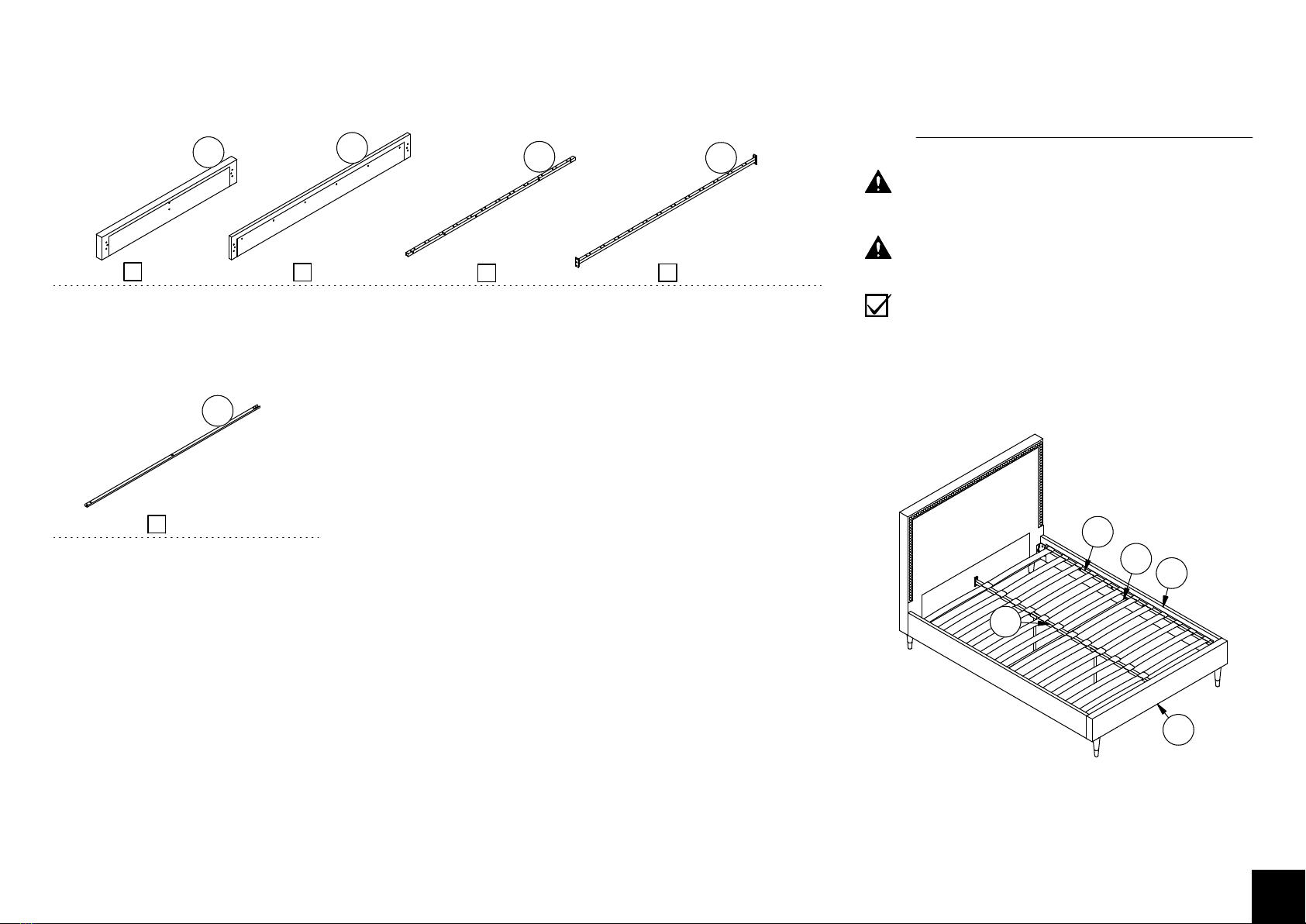

Parts
This item is packed in 2 boxes!
All parts listed on this page are in Box A.
If Box B is missing please contact your Retailer.
Replacement Parts, visit
www.dhpfurniture.com/eng/replacement-parts
Before you throw the package, please use the
Check Box to identify the parts and ensure that
you have all the parts needed for the assembly.
There are inner box(es) that include components
required to complete this assembly.
A
Headboard
X 1
XY
Single Slat Cap
X 24 Double Slat Cap
X 12
Support Leg
X 2
Wooden Slats
X 24
Bracket
X 2
Bracket
X 2
Leg
X 4
L
P
S
T
A
P
Z
S
T
L
Plastic Washer
X 4
H
H
Z
H
X
Y
Note: All parts on this page except A are stored
in the compartment on the back of A, before assembly,
please take out all parts and properly close the
compartment.

4
Parts
This item is packed in 2 boxes!
All parts listed on this page are in Box B.
If Box A is missing please contact your Retailer.
Before you throw the package, please use the
Check Box to identify the parts and ensure that
you have all the parts needed for the assembly.
There are inner box(es) that include components
required to complete this assembly.
Replacement Parts, visit
www.dhpfurniture.com/eng/replacement-parts
Cross Brace
X 1
Center Rail
X 1
Side Rail
X 2
Footboard
X 1
Side Panel
X 2
B
B
C
C
E
E
F
G
F
G

5
Replacement Parts, visit
www.dhpfurniture.com/eng/replacement-parts
Part number
4447929CL(Green) 4450029CL(Black) 4453329CL(Ivory)
A T982410 T982480 T982510
B T982420 T982490 T982520
C T982430 T982500 T982530
E T982440 T982440 T982440
F T982450 T982450 T982450
G T982460 T982460 T982460
L T961130 T961130 T961130
P T926770 T926770 T926770
S T393050 T393050 T393050
T T393060 T393060 T393060
H T393140 T393140 T393140
X T926370 T926370 T926370
Y T926380 T926380 T926380
Z T982470 T982470 T982470
Parts
IMPORTANT: Below part numbers list is unique to your product.
Please keep it on hand when calling for replacement parts.

6

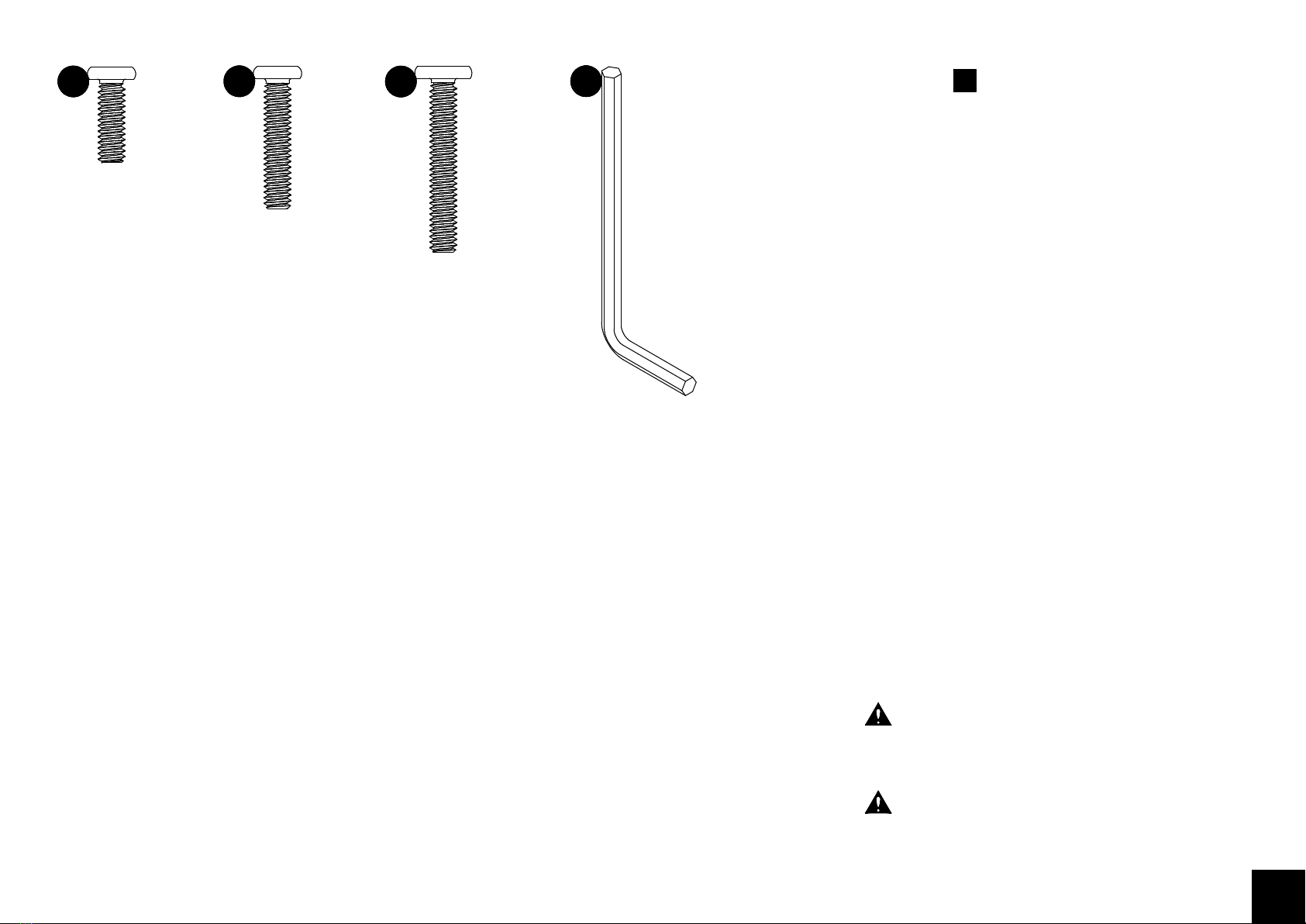

Hardware Pack
Hardware Pack #: T4447929CL-00
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step
instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner of
the page.
14 32
4mm
X 1
1/4" X 3/4"
X 29
1/4" X 1 3/16"
X 6
1/4" X 1 9/16"
X12

7

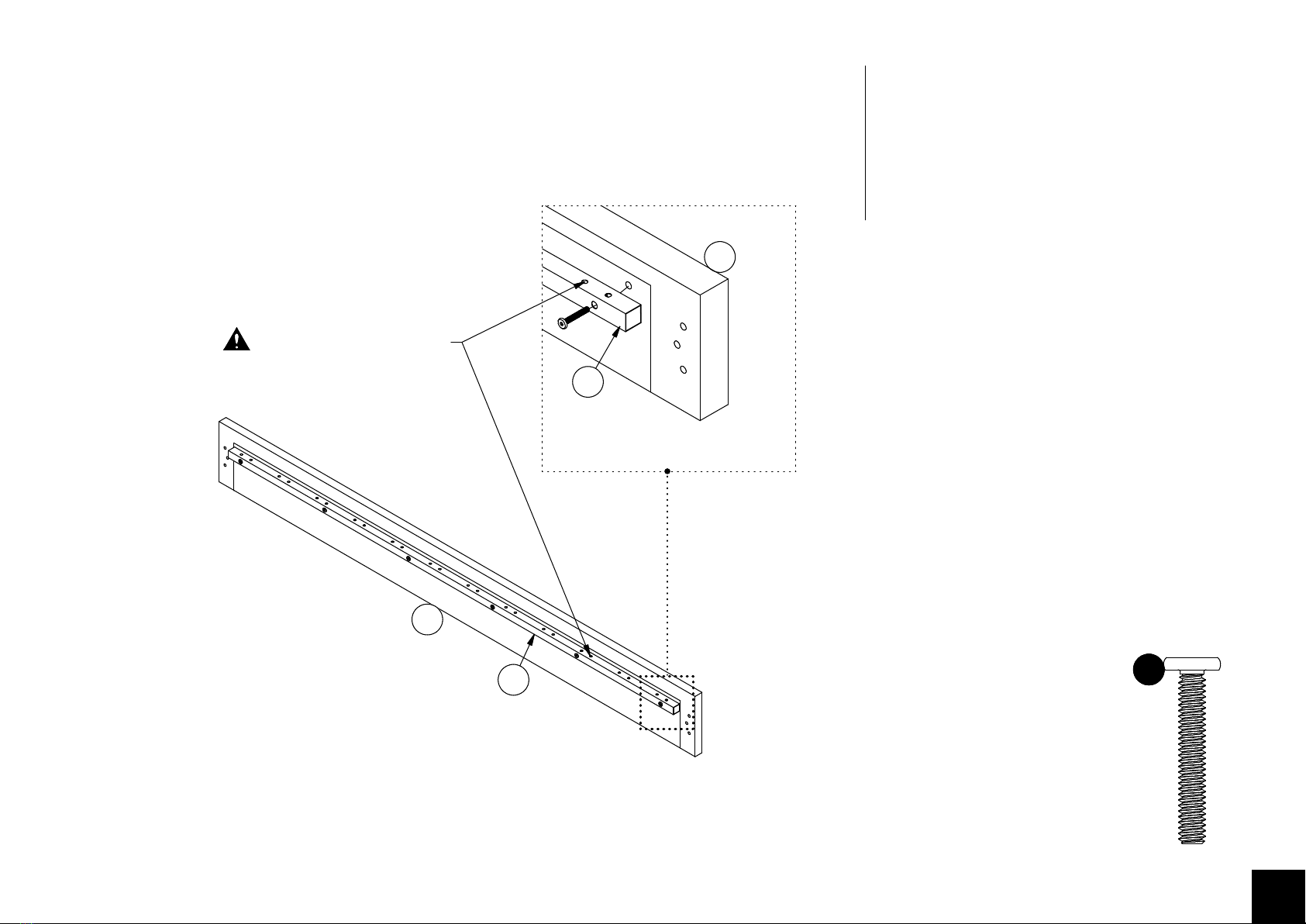

Step 1
Attach E to C with w.
Repeat the same step for remaining
parts E and C.
X 12
x2
The slat holes on part E
should be facing upward.
C
C
E
E3

8
Step 2
Attach S and T to C with u.
Repeat the same step for remaining
parts C, S and T.
X 12
1
Small holes of slot on S and T should
be facing upward.
C
C
C
T
T
S
S
x2

9
Step 3
Attach Z x 4 and H x 4 to A and B.
A
B
B
Z
Z
Z
Z
Z
H
Z

10

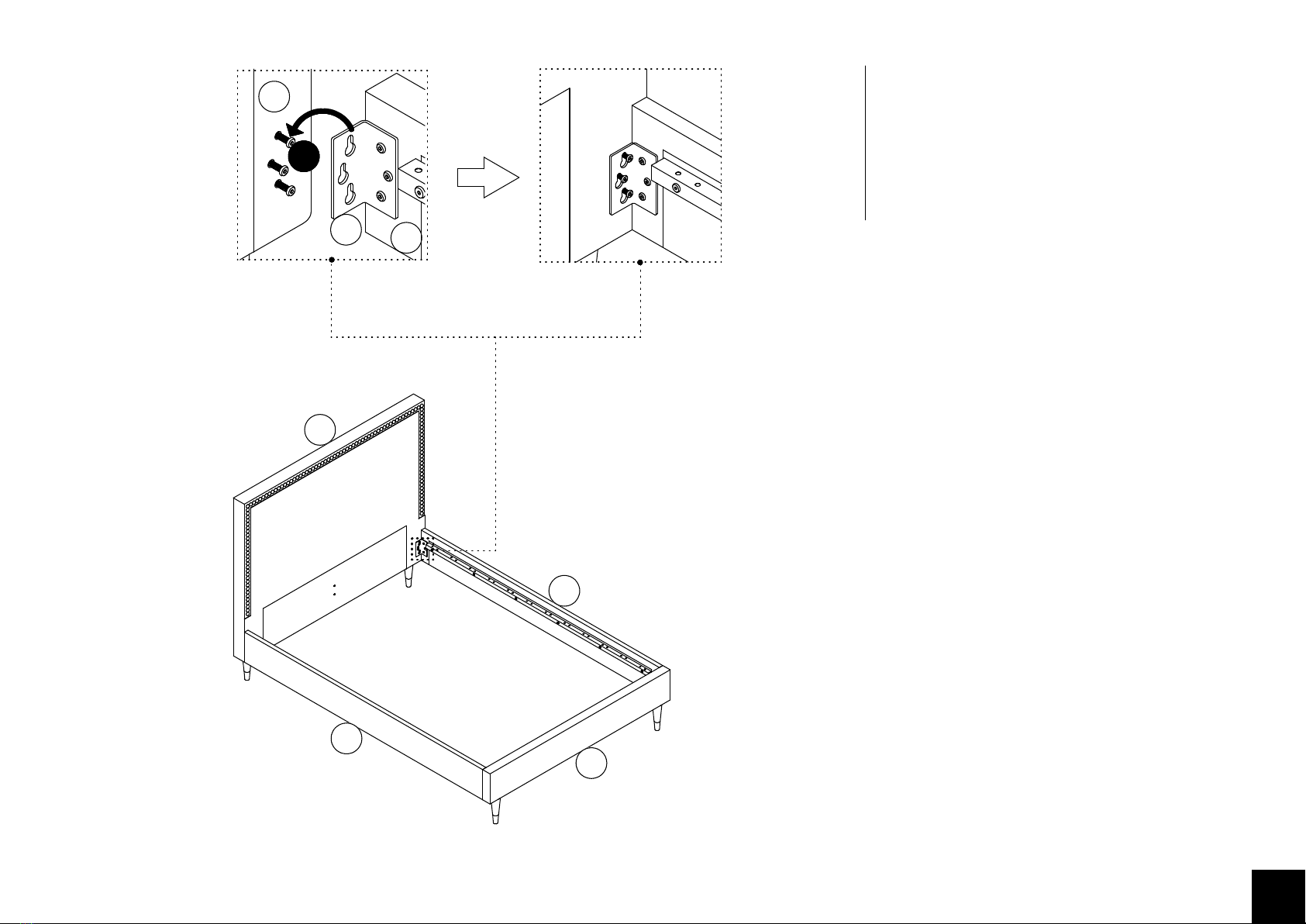

Step 4
X 6
Screw v into A and u into B, leave half
of the thread exposed.
X 6
1
2
Do not completely tighten the
BOLTS, leave half of the thread
exposed.
A
B
1
2
A
B
