Dorel Home Products DA7750G User manual

DA7750G(Light Gray)
Date of Purchase
Model Name: TODDLER BED
Lot Number (TAKEN F OM CA TON)
Thank you for purchasing from Dorel!
THIS INSTRUCTION BOOKLET CONTAINS IMPO TANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1
V.K. - 2 22/ 5/11
© 2022 Dorel Home Products All Rights Reserved
Weight Limit: 5 lb / 22,7 kg
B34DA775 G - 1 6484
Questions, concerns, missing parts?
CONTACT OU CUSTOME SE VICE DEPA TMENT
BEFO E ETU NING P ODUCT TO THE ETAILE .
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739.
You can also chat with us at www.dhpfurniture.com

2
1-800-267-1739
Monday to Friday
Saturday
Sunday
DHP Consumer Services
12345 Albert Hudon, Suite 1 ,
Montreal, Quebec H1G 3L1
[e-mail]
ead Before Beginning Assembly
●Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
● Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
●Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
●This product may contain small components. Please ensure that they are kept
away from small children.
● This product is designed for home use and is not intended for commercial use.
Contact Us!
For help with assembly, identifying parts, product information or to order parts,
please contact us:
Limited 1 year Warranty
Dorel warrants this product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers one year from the
date of original purchase from authorized retailers. This is solely limited to the
repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in
any way.The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). Liability for consequential damages is excluded to the
extent exclusion is permitted by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state or province to
province.
To obtain warranty service, purchaser must present original bill of sale.
Components repaired or replaced are warranted through the remainder of the
original warranty period only. The defective components will be repaired or
replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
9 am to 9pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7pm (Eastern Time)
Do NOT use
powertools
Chat
with us! www.dhpfurniture.com
This product is shipped
in
1 carton
Phillips head
screwdriver
Tools required (not included)
45 minutes

● * Infants have died in toddler beds from entrapment and strangulation.
● * Failure to follow these warnings and assembly instructions could result in serious injury or death from entrapment or
strangulation.
● * NEVER use bed with children under 15 months.
● * The TODDLER BED is not intended for children under 15 months of age or over 5 pounds (22.7kg).
● *If guardrails are used as the mattress containment means, guardrail(s) provided must be used to avoid the formation of a
gap between the mattress and the bed that could cause an entrapment.
● * DO NOT place TODDLER BED near windows where cords from blinds or drapes may strangle a child.
● * DO NOT place items with a string, cord, or ribbon around a child's neck, such as hood strings or pacifier cords.
● * DO NOT suspend strings over a toddler bed for any reason.
● * Any mattress used must be at least 27-1/4 inches by 51-5/8 inches (69cm by 131cm) with a minimum thickness of 4
inches (1 cm) and not exceeding 6 inches (15cm).
● Should this product become damaged and/or components are broken or missing, DO NOT USE.
WA NING
3

PA TS
4

PA TS LIST
5

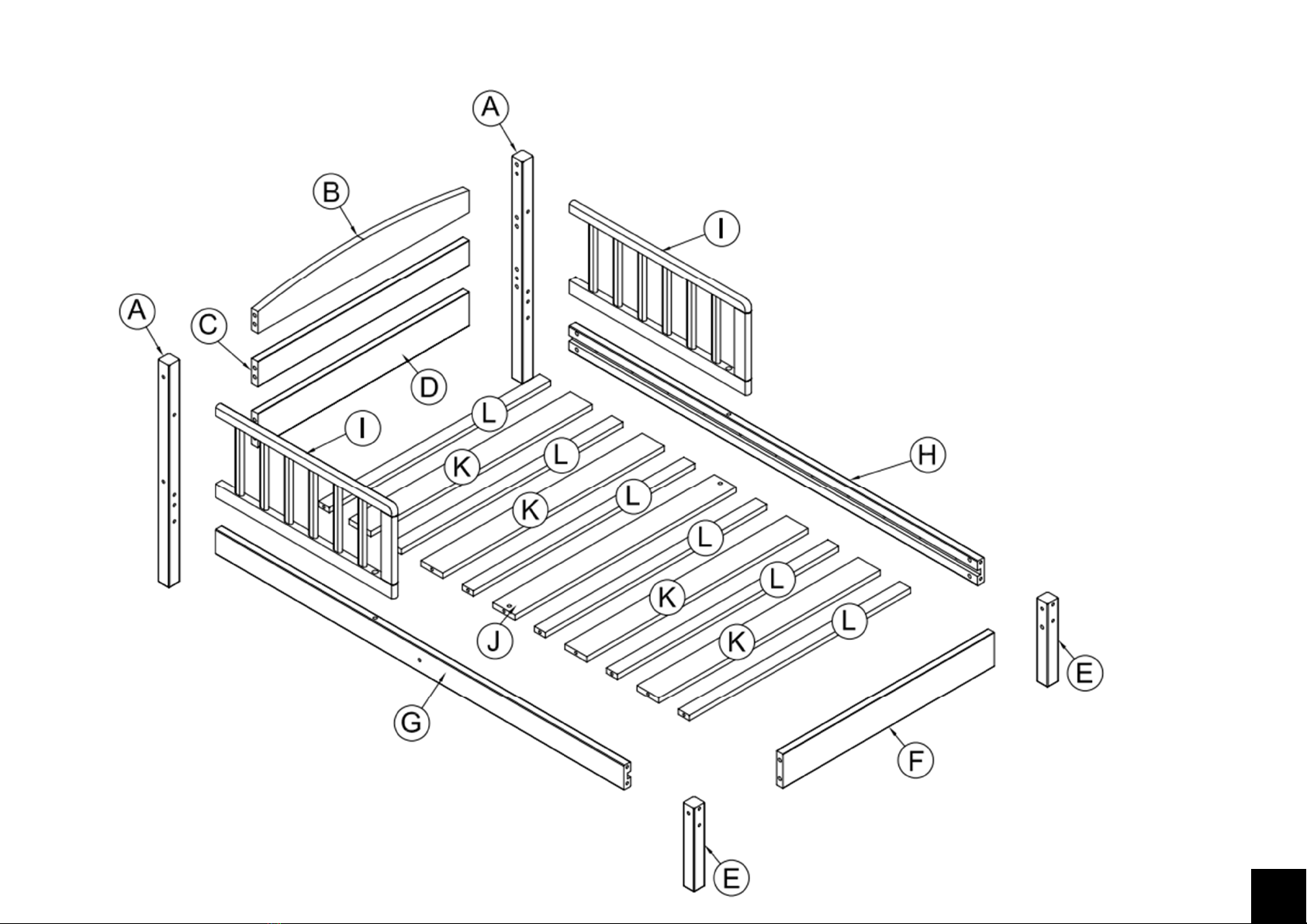

ABC D E
FGHI J
HEADBOARD POST
2 PCS
TOP PANEL
1 PC
MIDDLE PANEL
1 PC
BOTTOM PANEL
1 PC
FOOTBOARD POST
2 PCS
FOOTBOARD PANEL
1 PC
LEFT SIDE RAIL
1 PC
RIGHT SIDE RAIL
1 PC
GUARDRAIL
2 PCS
CENTER SUPPORT SLAT
1 PC
K L
WIDE SUPPORT SLAT
4 PCS
NARROW SUPPORT SLAT
6 PCS

PA TS LIST
Each part has a unique part number.
Please reference the appropriate part
number when contacting customer
service for replacement parts.
Before throwing any packaging, please
verify all contents and make sure you have
received all the parts listed above!
6
PART NUMBERS
PART LABELS DA775 G
(GRAY)
AT5 813
BT5 814
CT5 815
DT5 816
ET5 817
FT5 818
GT5 819
HT5 82
IT5 821
JT5 822
KT5 823
LT5 824

7
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step
instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner of the
page.
HA DWA E LIST
1
BOLT
2 PCS BOLT
2 PCS
BARREL NUT
1 PCS ALLEN KEY
1 PC
WOOD DOWEL
12 PCS
WOOD DOWEL
2 PCS
Ø 1/4’’ x 2-3/4’’
1 2 3 54
6
Hardware Pack
DA775 G(Light Gray) HP # : TDA775 G-
Ø 1/4’’ x 1-3/4’’ Ø 1/4’’ x 1/2’’ 4MM Ø 1 mm x 4 mm
Ø 8mm x 3 mm

Step 1
Insert the wood dowels into top panel B,
middle panel Cand bottom panel D. Attach
panels B, Cand Dto the headboard posts
Aas shown below using bolt and Allen
key .
NOTE: Do not fully tighten the bolts.
Leaving the bolts loose will facilitate
assembly in the following steps.
8
X 4
1
X 1
5
5
4
1
NOTE: Please pieces on a
piece of carpet or cardboard to
prevent scratching.

Step 2
Insert the wood dowels into the
footboard panel F.
Attach footboard panel Fto the footboard
post Eusing bolt and Allen key .
9
5
41
5
X 2
1
X 2
NOTE: Please pieces on a
piece of carpet or cardboard to
prevent scratching.

Step 3

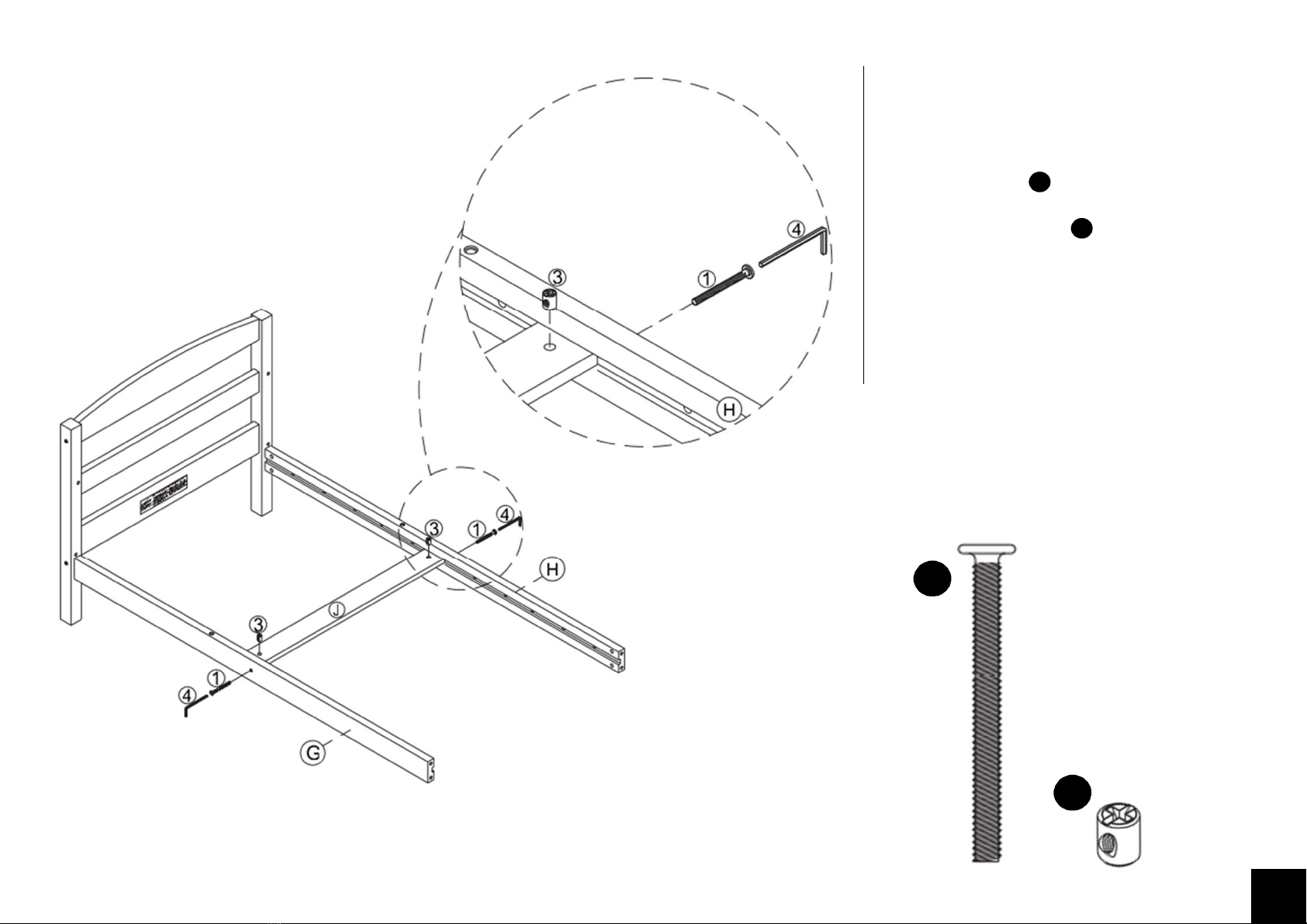

Insert barrel nuts into both ends of the
side rail G& H.
Attach the headboard to the left and right
side rail G &Hby inserting bolts through
the headboard post A. Use Allen key to
install the bolts.
Note: The barrel nut can be rotated
using as screwdriver (not included) to
properly align with the bolt coming through
side rail G& H.
10
X 4
3
3
4
1
3
X 4
1
Pre-drilled hole must face up.
