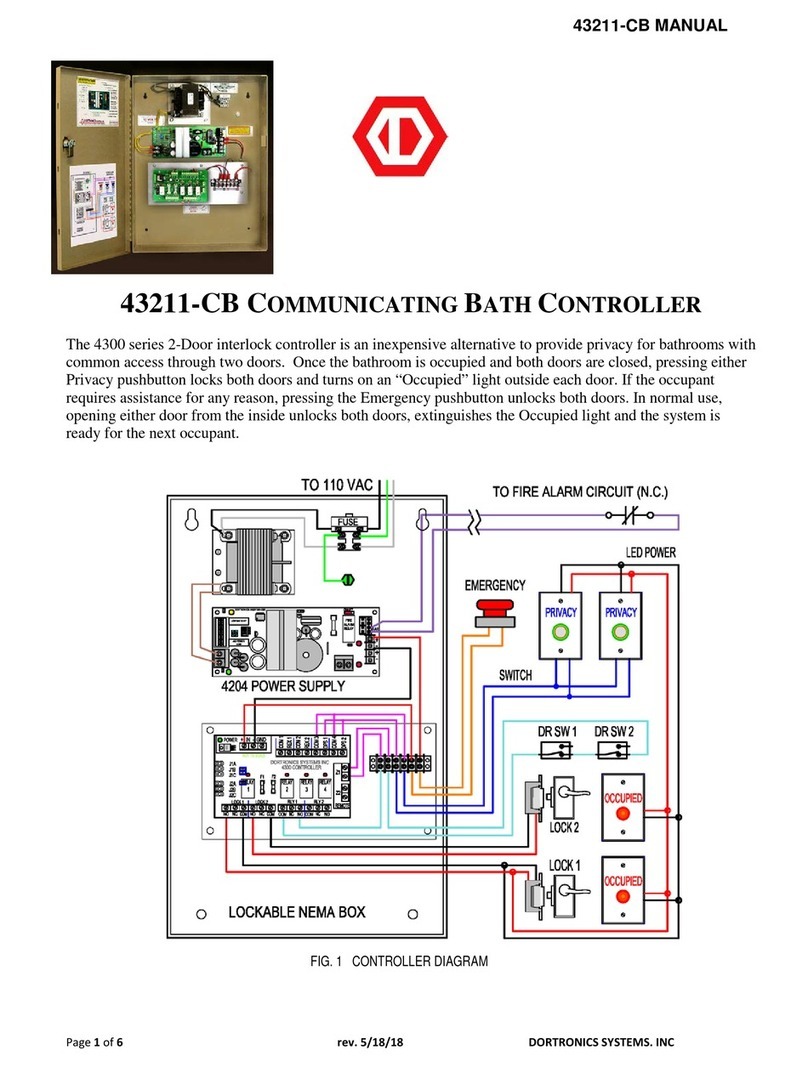

4300 SERIES 2 DOOR INTERLOCK CONTROLLER
The 4300 series 2-Door interlock controller is an inexpensive alternative for two door mantraps. It features
two powered relay outputs for direct connection to locks and traffic lights. It may be easily configured during
installation for locked, unlocked or locked-unlocked operation by means of jumpers. It includes an override
function to unlock one or both doors remotely, bypassing the interlock.
A Power Input – 12 or 24 VDC E Lock Power Output
B Control Inputs F Optional Non-powered Outputs
C Configuration Jumper Matrix G Remote Lock Override
D Output Fuses H Relay State Indicator LEDs
FIG. 1 CONTROLLER DIAGRAM
1.3

4300 MANUAL 1.2
Page 2 of 6 rev. 12/9/2021 DORTRONICS SYSTEMS. INC
HOOKUP
The standard 4300 series controller comes mounted in a12” x 15 1/2” x 4 1/2” metal, locking NEMA
enclosure and includes a 4 Amp power supply with trickle charge output for battery back-up. The supply
may be quickly set for either 12 or 24 VDC output (12 VDC as shipped). The supply features a supervised
Fire Alarm Interface. The supply will drop low voltage power to the locks when the fire alarm circuit goes
active. Refer to the Power Supply User’s Manual (included) for more details.
The 4300 controller comes mounted on an aluminum plate with DIN rail clips. The plate may be unclipped
to make wire connections more convenient, and then snapped into place when done.
Use a small screw driver to unclip the plate from the DIN rail by inserting the screw driver in one of the
holes provided. Press down and out to open the clip.
FIG. 2 TYPICAL INSTALLATIONS

4300 MANUAL 1.2
Page 3 of 6 rev. 12/9/2021 DORTRONICS SYSTEMS. INC
DOOR POSITION SWITCHES
Door switch contacts must be closed when the door is secure. Twisted pair wiring – AWG gauge 22 or larger
is recommended.
REQUEST FOR ACCESS DEVICES
Door unlock time is determined by an external device, typically a card reader, motion sensor, pushbutton or
remote console. Only normally open dry contacts should be used. Do not apply voltage to a 4300 input.
DOOR LOCKS
Maglocks and strikes are connected to the powered outputs directly. Both powered outputs are fused. LED
indicators to indicate lock status may be wired in parallel (as shown)
NOTE:
Connect Maglocks to the normally closed relay contacts and fail-secure electric strikes to the normally open
contacts so that the door is unlocked when the associated relay is energized. Fail-safe strikes (unlocked when
power is removed) should be connected to the normally closed contacts.
Use a wire of sufficient diameter and rating to minimize voltage drop, especially over long wire runs. AWG
18 gauge is recommended for power circuits. Do not connect loads greater than 1.5 Amps to a powered
output. Make sure diodes are used on maglocks to prevent back EMF (standard on most Dortronics locks).
TRAFFIC AND LOCK STATUS LIGHTS
LED and incandescent indicator lights (typically red to show a locked or inaccessible condition and green to
show an unlocked or freely accessible condition) may be connected as shown in Figure 2. Note that the red
LED can be connected in parallel with the maglock and the green in parallel with a strike, or they may be
connected to the dry contact non-fused outputs (RLY 1 = Door 1).
AWG 22 gauge or larger is recommended for signaling and low-power indicator circuits.
PANIC EGRESS OR REMOTE UNLOCK
The 4300 controller includes a remote lock override function. The Remote lock override terminals (Fig 1G)
may be connected to a set of dry contacts. On closure, the associated door lock relay will energize, unlocking
the door and bypassing the interlock function for as long as the switch contacts are closed.
Both doors can be unlocked simultaneously by using a double pole double throw switch. Multiple DPDT
switches can be used in parallel if needed, but be sure to wire them correctly. The Lock Override function is
separate and in addition to the fire alarm connection on the power supply. The override is useful to unlock
doors in the event of a door position switch failure, a stuck door, an environmental emergency or any other
reason that requires immediate egress regardless of interlock status.
Building codes vary by location. The installer is responsible for understanding and working in compliance
with all local codes and regulations as defined by the governing authority.
TESTING
Indicator LEDs for each relay indicate if the relay is energized. There are 2 output relays and 2 logic relays.
The action of the logic relays will depend on the desired type of operation, and is selectable by changing the
jumper configuration (Fig 1C). Make sure the pattern of jumpers is correct for the operation required. Doors
should be unlocked when relays are energized. Door position switch contacts should be closed when the door
is closed.
Caution: Do not short the powered outputs! If a fuse blows, replace it with the proper value - 1.6 Amp
quick blow.

4300 MANUAL 1.2
Page 4 of 6 rev. 12/9/2021 DORTRONICS SYSTEMS. INC
RECOMMENDED EQUIPMENT DORTRONICS PART #
1200 lb electromagnetic 12/24 VDC maglocks with built-in door position switch. 1110xDxB
Electric Strike 12 or 24 VDC adjustable with integral door switch 3300xD & 3301xD
High intensity Red / Green LEDs on single gang S/S wall plate. 7201xL2-H
High intensity Red / Green LEDs with piezo sounder on double gang S/S wall plate. (Optional for
use with security breach alarm output.)
7202xL2-HxCS
OPTIONS USEFUL ADDITIONS FOR ENHANCED SECURITY DORTRONICS
PART #
Auxiliary DPDT Dual Pack Auxiliary DPDT relay pair may be driven directly by powered outputs
to provide additional switching capacity, may be connected to non-
powered outputs and supply to mirror lock status to multiple remote
devices, or may be used to convert wet contacts at input to dry contacts.
4802001
Keyed Maintained Contact
Mushroom Switches
The Dortronics 5200 series of mushroom switches are available keyed
and non-keyed. They may be connected to the Remote inputs to provide
an interlock override for immediate egress regardless of door status.
5200 Series
4 Amp Power Supply For double door, or paired maglock installations, the 4 Amp power
supply is recommended
4202-4
Battery Backup 7 Amp hour battery backup for locks and controller fits in the enclosure
and can provide up to 6 hours of continuous security during power
outages. Batteries may be ganged for longer backup times.. Battery is
continually trickle charged when power is provided to the system.
XBATT
AT and ET Timer Modules
Allow for timing functions fully adjustable between 1
-
60 sec.
AT or ET Timer
SPECIFICATIONS
Qty Description Remarks
Power Supply 12 or 24VDC selectable, with switched outputs, non-switched
outputs and battery trickle charge outputs.
3 - Screw Terminals
Inputs 4 Digital 9 - 32 VDC rating use dry contact only Screw Terminals
Outputs 2 SPDT Powered outputs for direct connection to locks and lights. Screw Terminals
2 SPDT non-powered relay outputs - rated 2 Amps @ 30 VDC Screw Terminals Option
Temperature Operating 0-60° C
Dimensions 3” W x 5” L x .75” H
Current 40 mA @ 24 Volts. Controller only

4300 MANUAL 1.2
Page 5 of 6 rev. 12/9/2021 DORTRONICS SYSTEMS. INC
OPERATION & INSTALLATION NOTES

4300 MANUAL 1.2
Page 6 of 6 rev. 12/9/2021 DORTRONICS SYSTEMS. INC
