Double Power Electronics DP-8120VB User manual

User Manual
1
1+1Pocket
Multi-Currency Banknote Sorter
User Manual
Preface
Thank you for choosing our products! It is an accurate, reliable multi-currency banknote
sorter, the structure design and performance are more scientific and the operation is extremely
smooth and vibration free. it defines a new standard of banknote counting machines with sorting
functions.
In order to make the best use of the accurate banknote counting/sorting capability of the unit,
please read this manual carefully before using and operate as per the procedures stipulated in the
manual.
Contents
Safety Instruction...................................................................................................................................................2
Features....................................................................................................................................................................3
Unpacking................................................................................................................................................................3
Exterior Introduction..............................................................................................................................................4
Operation Instruction............................................................................................................................................ 6
Function Instruction.............................................................................................................................................. 8
User Menu Instruction........................................................................................................................................ 12

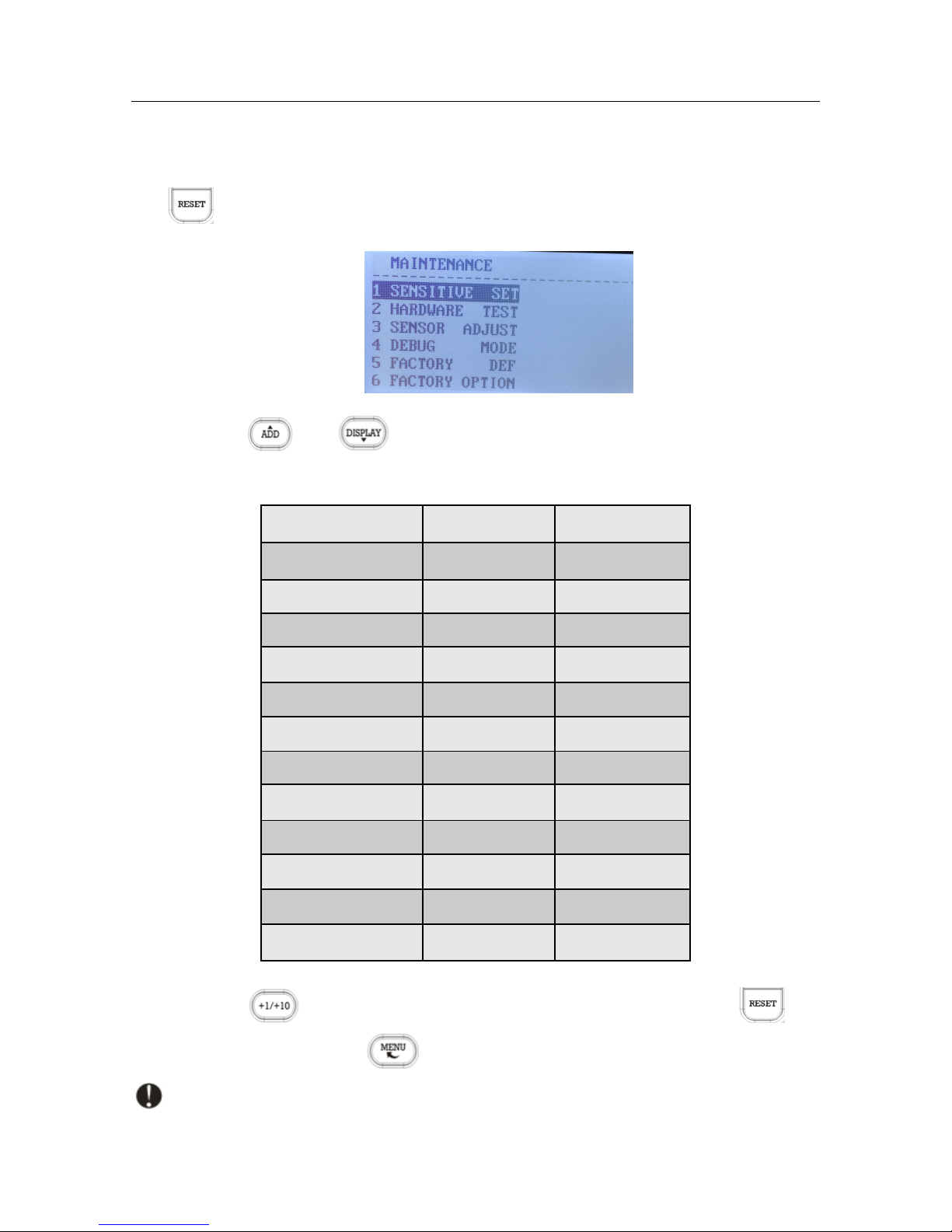

Sensitivity Parameters Setting..........................................................................................................................13

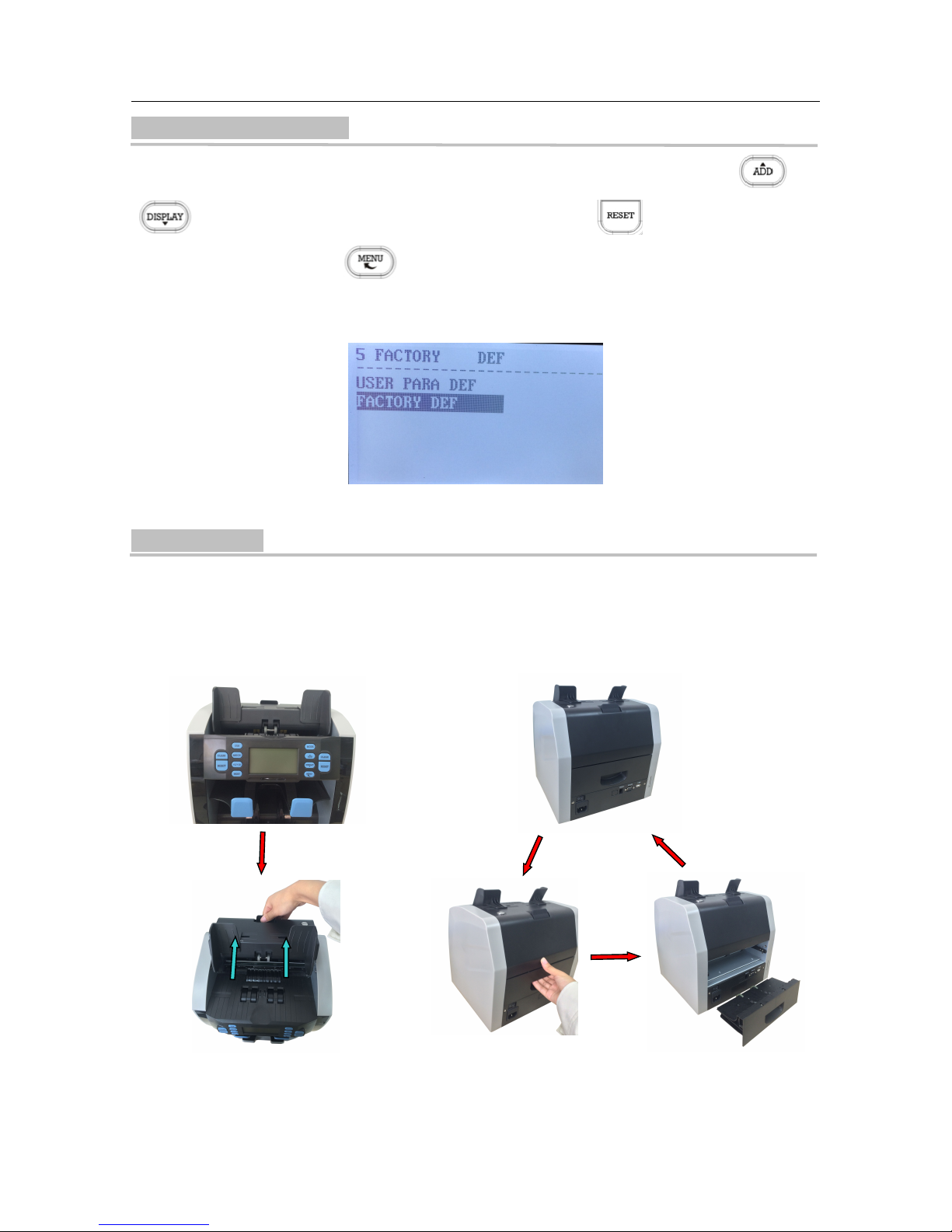

Resume to Factory Setting................................................................................................................................15
Troubleshooting................................................................................................................................................... 15
Regular Maintenance Instruction..................................................................................................................... 20
How to replace the fuse.................................................................................................................................... 20
Specifications....................................................................................................................................................... 21
Prepared by
Reviewed by
Approved by

User Manual
2
Safety Instruction
To avoid damage to the machine and personal injury, please read all warnings and cautions
carefully before first use!
Place the unit on a solid flat surface.
Before moving the unit, please disconnect the power cord, otherwise the
power cord may be damaged resulting in fire and electrical shock.
Don't place the unit on a shaky or vibrating surface.
Keep the unit away from volatile gases or flammable materials
Keep the unit away from heavy humidity and strong sunlight, it may cause
machine's failure.

Don't try to modify, pull, bend and rub the power cord, and don't put
heavy objects on the power cord.
In case of the spilled water come into the interior of the unit, please stop
operating it, switch off and disconnect the power cord immediately, then
contact the service center for help.
Please connect the supplied power cord to a grounded well wall outlet.
If the unit is unused for a long period, please switch off the unit and
disconnect the power cord from the unit, otherwise there will be a
decrease in insulation and electrical shock, creep age or fire may occur.
Don't touch the power cord with the wet hand.
Don't expose the unit to dust.
Please take care to avoid any foreign objects dropping into the unit,
otherwise will damage the machine or effect the note feeding.
It is strictly prohibited for unprofessional personnel to dissemble the
machine.
!
!

User Manual
3
Features
Detects magnetic ink, infrared ink, UV, CIS image, length, thickness, etc.
Compact size, dual-operator user interface with large and clear LCD display.
Installs up to 4 different currencies, banknotes can be processed in all four orientations.
High-capacity hopper, stacker and reject pocket.
ADD function, batch function, reporting and printing function are available.
Easy enters user menu and maintenance menu interface for flexible operation, user friendly.
Adopts auto adjustable technology, Easy software upgraded via SD card or USB interface.
Configurable USB interface, printer interface, external display interface.
Full open channel design for better maintenance and jam removing.

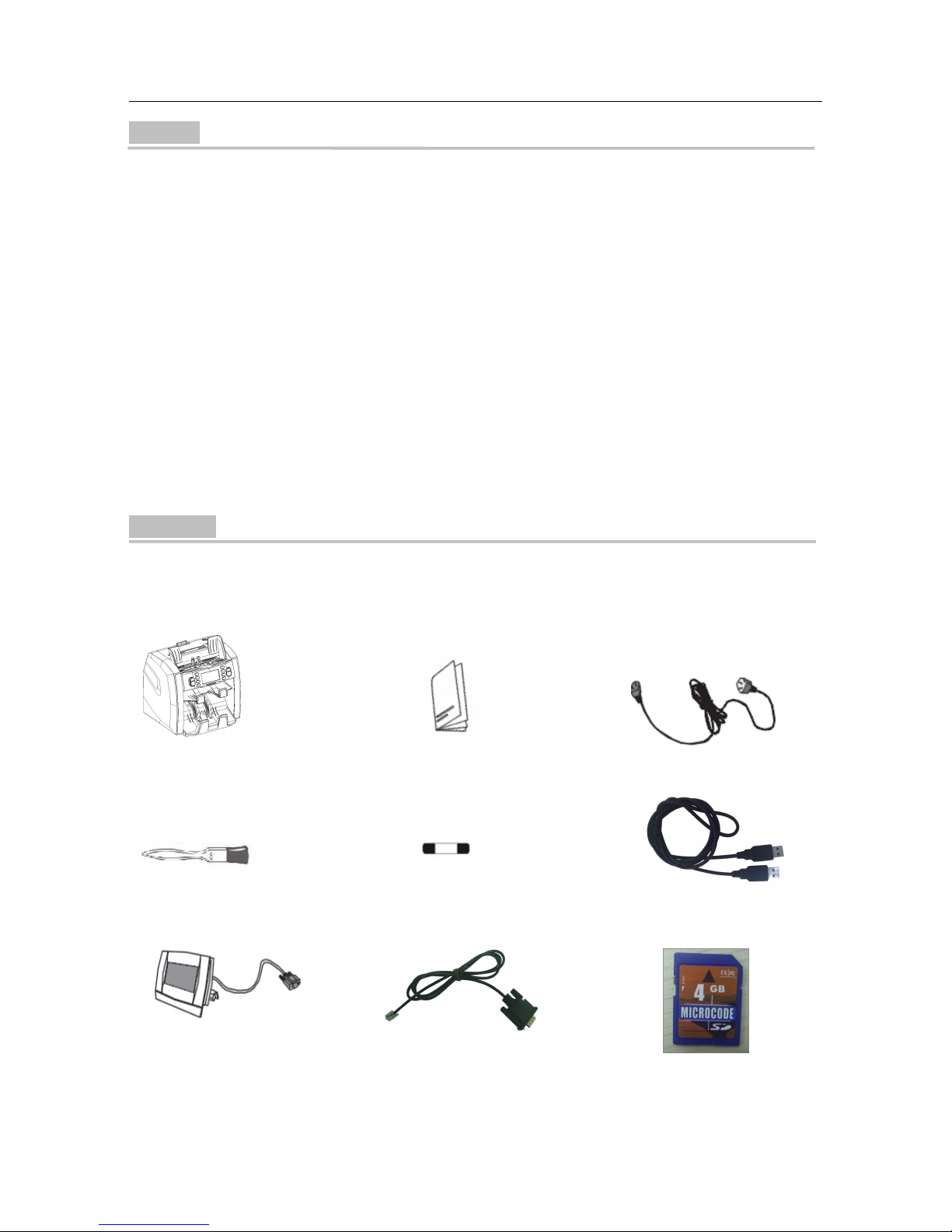

Unpacking
Please check whether the appearance of the machine is in good condition and whether all of
the accessories are available. Inside the package there shall be the following.
Banknote sorter User manual Power cable
Cleaning brush Fuse USB download cable
(Optional)
External LCD display Print cable SD card
(Optional) (Optional) (Optional)

User Manual
4
♦Hopper with adjustable guides
♦Banknote
Exterior Introduction
1. Three-view drawing
2. Back view
♦Hopper
♦Banknote pressing wheel
♦Control panel
♦Reject pocket
♦LCD display
♦Banknote receiving sensor
♦Stacker
♦USB Port for connection to PC
♦RS232 port
♦SD card Slot
♦Banknote twiddling wheel
♦Port for printer
♦Handle of back drawer
♦On/off Switch
♦Power Connection
♦ Adjusting screw
♦ Handle
♦Banknote receiving wheel

User Manual
5
3. Explanation about the user’s panel
1] ：Currency section.
2] ：Batch function on/off and set batch number.
3] ：Increase the batch number by 1(just press) or 10(press and hold).
4] ：Send count report to print.
5] ：Counting mode settings: MIX, SINGLE, FACE, ORIENT, COUNT.
6] ：Add function on/off. Also served as a upward navigation key.
7] ：View the counting result report. Also served as a downward navigation key.
8] ：Open/ close device menu and go back previous level(in MENU mode).
9] ：Clear the number of counted banknotes and turn the batch function off.
10] ：Start counting/ Confirm selection in menu mode.

User Manual
6
Operation Instruction
In order to avoid counting/detecting errors, the following banknotes should be handle before
counting:
① Keep the banknotes in order
② Straighten out the folded notes
③ Remove the wrinkled notes
④ Remove any stray foreign object from the note pack
⑤ Unwrap the fold corner and curved banknotes
Place the machine on a solid flat surface, ensure there is no strong electromagnetic field
and strong sunshine around it. Then plug the electric socket into 100~240V AC electric source,
make sure all the connections are secure. If you have purchased an external display, connect it to
the RS232 interface on the back of the machine.
Note: In order to ensure personal safety, the electric socket shall be safety grounded.
Turn on the power switch, the machine will display the software version first, then perform a
self-test.
If the test is successful, the machine will enter ready state (See figure 1). If some error

User Manual
7
messages are displayed on the LCD, please handle them according to the Troubleshooting in the
manual.
Figure 1
Before counting the banknotes, please adjust the left and right hopper guide to a suitable
position base on the length of the banknotes for smooth feeding.
Next place the well-prepared banknotes onto the hopper flatly and the machine will start
counting. The suspicious or unfit banknotes are rejected to the reject pocket.
Note: When an error is found, and causes the machine to stop automatically, please
re-count these banknotes.
The suspicious or unfit notes

User Manual
8
Function Instruction
1. Currency selection
After turning on the machine, the symbol of current currency is displayed on the LCD. If you
need counting/sorting other types of currencies, press "CUR" key to change current currency, the
symbol of installed currency will be displayed in turn.
"EUR" means Euro
"USD" means US Dollar
“TRY” means Turkish Lira
"GBP" means Pound Sterling
…etc.
2. Counting/Sorting mode
Five counting/sorting modes are supported. They are Mix mode, Single mode, Face mode,
Orientation mode and Count Mode. User can press the "MODE" key on the control panel to switch
the counting/sorting mode according to requirement.
A. Mix mode
In mix mode, "MIX" is displayed on the LCD and the machine can count the mixed banknotes
with different denomination of the same currency type.
After the counting is finished, the total value and total pieces are displayed on the LCD, and
the machine will provide a report for detailed counting result by pressing the "DISPLAY" key.

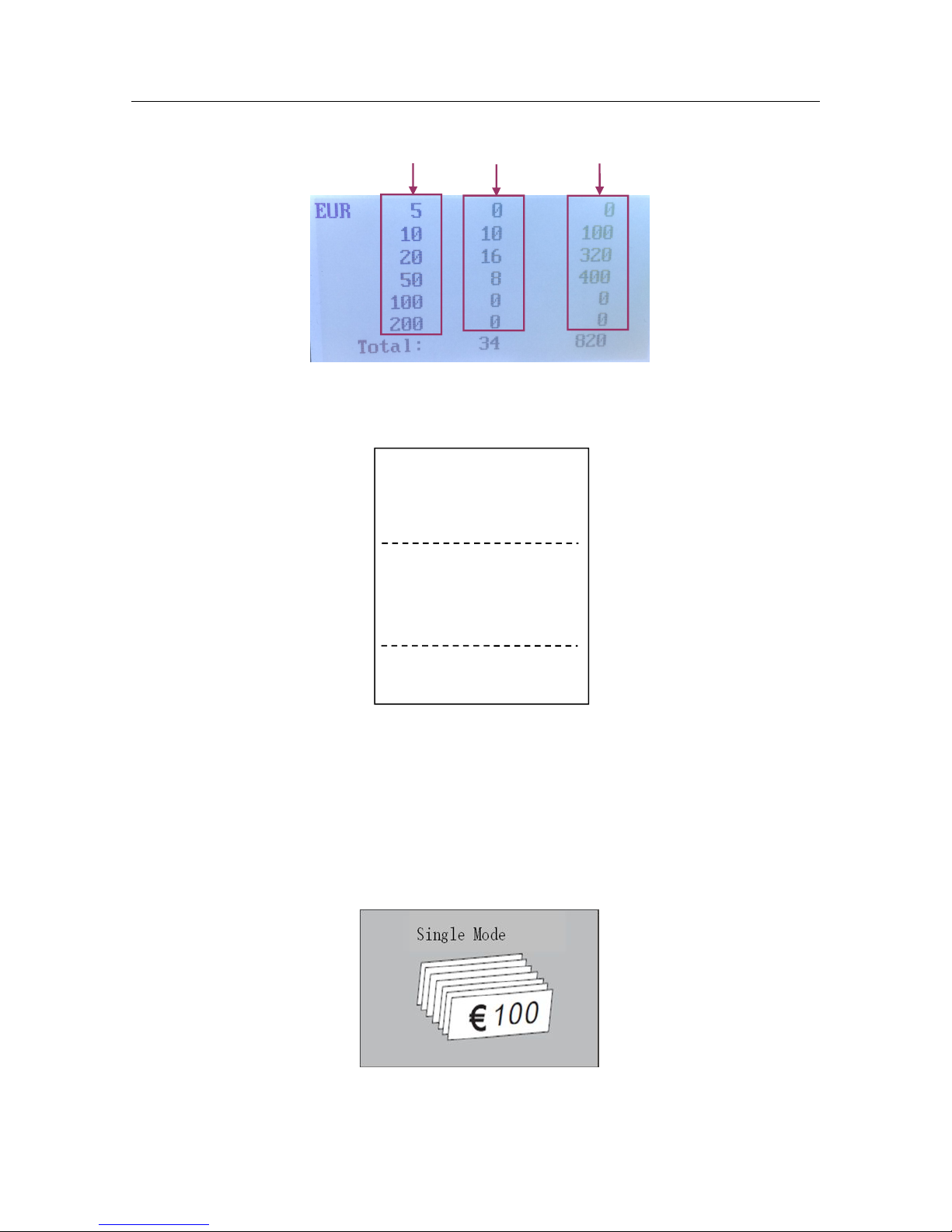

e.g. Euro result can be as follows:

User Manual
9
If the printer is connected to the machine, press the "PRINT" key, the report will be printed.
B. Single mode
In single mode, "SINGLE" is displayed on the LCD and the machine can count the same
denomination. After the counting is finished, the total value and total pieces are displayed on the
LCD, If a suspicious or a different denomination of banknote is mixed in the pile, it will be rejected
into the reject pocket.
C. Face mode
Denomination
Piece
Value
EUR
2015-06-26 08:33
Deno PCS Value
EUR 10 10 100
EUR 20 16 320
EUR 50 8 400
Total 34 820

User Manual
10

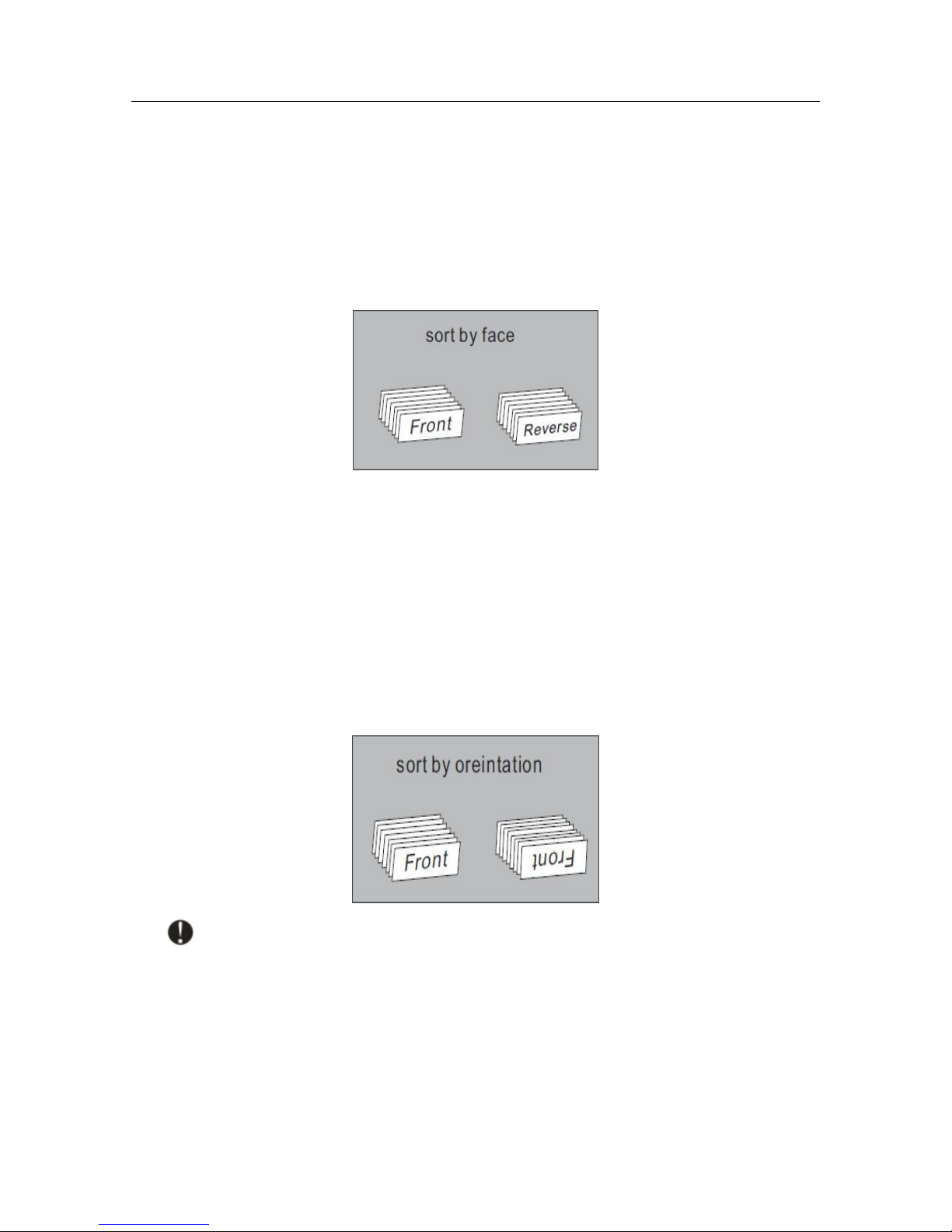

In Face mode, "FACE" is displayed on the LCD and the machine will sort the banknotes
according to front and back.
The banknote with a front or the rear side first detected by the sensor, becomes the reference
for stacker. These banknotes are stacked there.
The banknote facing to the other side are then sorted into reject pocket, including any
suspect notes.
D. Orientation mode
In Orientation mode, "ORIENT" is displayed on the LCD and the machine will sort the
banknotes by orientation.
The banknote with a forward or the reversed orientation first detected by the sensor,
becomes the reference for stacker. These banknotes are stacked there.
The banknote facing to the other orientation are then sorted into reject pocket, including any
suspect notes.
Note: We suggest you to sort the banknotes by face first and then by orientation.
E. Count mode
If you only need to count the pieces of banknotes, press the "MODE" key on the control panel.
when the "COUNT" is displayed on the LCD, the machine will count the total pieces without
detection. After the banknote counting is finished, the number displayed on the LCD is the total
